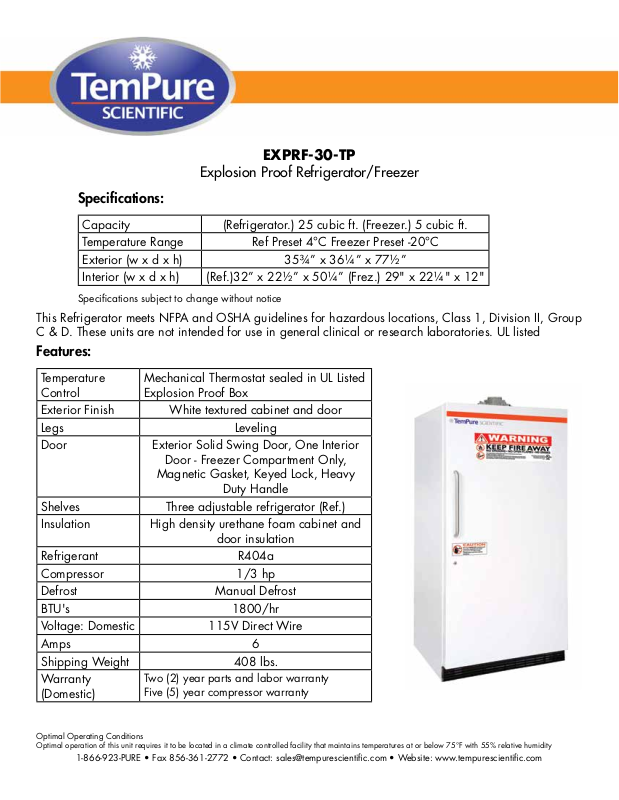

EXPRF-30-TP

Explosion Proof Refrigerator/Freezer

Specifications:

Capacity (Refrigerator.) 25 cubic ft. (Freezer.) 5 cubic ft.
Temperature Range Ref Preset 4°C Freezer Preset -20°C
Exterior (w x d x h) 35¾” x 36¼” x 77½”
Interior (w x d x h) (Ref.)32” x 22½” x 50¼” (Frez.) 29" x 22¼" x 12"

Specifications subject to change without notice

This Refrigerator meets NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Group
C & D. These units are not intended for use in general clinical or research laboratories. UL listed

Features:

Temperature
Control

Mechanical Thermostat sealed in UL Listed

Explosion Proof Box
Exterior Finish White textured cabinet and door
Legs Leveling
Door Exterior Solid Swing Door, One Interior

Door - Freezer Compartment Only,

Magnetic Gasket, Keyed Lock, Heavy

Duty Handle
Shelves Three adjustable refrigerator (Ref.)
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R404a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 1800/hr
Voltage: Domestic 115V Direct Wire
Amps 6
Shipping Weight 408 lbs.
Warranty

(Domestic)

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

1 Freezer

36¼”

28½”

5¾”

77½”

35¾”

35”

5”

35”

65½”

18”

CUTSHEET

Exterior Hazardous Location

(Explosion Proof) Ref/Freezer Combo

EXPRF-30-TP

EXPRF-30-TP

30 Manual

1 Solid 1 Freezer 6 368 lbs.

3 Adj Refrig

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft

Factory Sealed Wires Only

35¾ 36¼

Front View Side View Top View

77½*

*Leveling legs are fully recessed

Unit Weight
