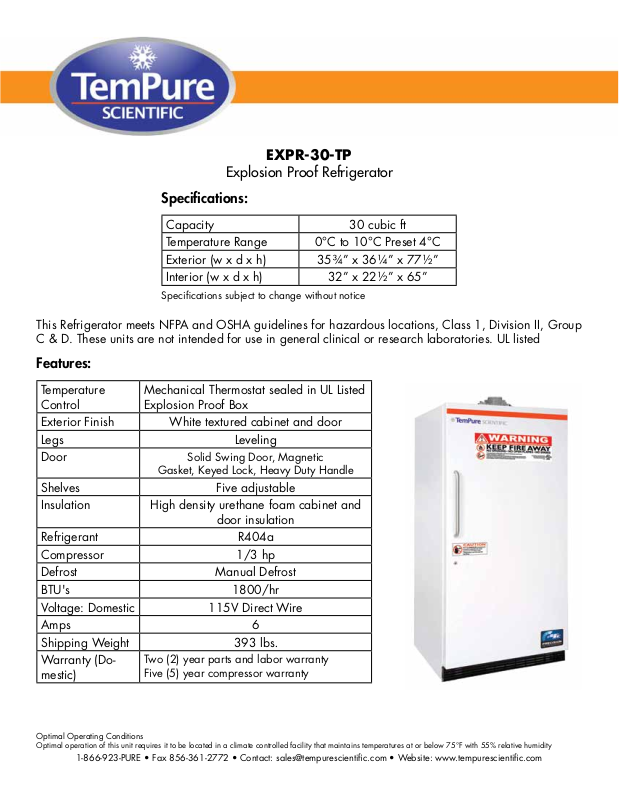

EXPR-30-TP
Explosion Proof Refrigerator
Specifications:
Capacity 30 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 35¾” x 36¼” x 77½”
Interior (w x d x h) 32” x 22½” x 65”
Specifications subject to change without notice
This Refrigerator meets NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Group
C & D. These units are not intended for use in general clinical or research laboratories. UL listed
Features:
Temperature
Control
Mechanical Thermostat sealed in UL Listed
Explosion Proof Box
Exterior Finish White textured cabinet and door
Legs Leveling
Door
Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Handle
Shelves Five adjustable
Insulation High density urethane foam cabinet and
door insulation
Refrigerant R404a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 1800/hr
Voltage: Domestic 115V Direct Wire
Amps 6
Shipping Weight 393 lbs.
Warranty (Do-
mestic)
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
EXPR-30-TP
65½”
35”
Unit Weight
Factory Sealed Wires Only
Exterior Hazardous Location
(Explosion Proof) Refrigerator
28½”
36¼”
77½”
5”
5¾”
1 Solid 0 35¾ 36¼ 77½* 6 353 lbs.1/35 Adj
Manual
Front View Side View Top View
35¾”
18”
30
CUTSHEET
*Leveling legs are fully recessed
Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft
EXPR-30-TP
EXPR-30-TP
Unit Weight
Factory Sealed Wires Only
65
10 ¾”
Interior Hazardous Location
(Explosion Proof) Refrigerator
20”
22½”
4 ½”
7 ½”
Interior Dim.
D” H”
W”
22½
32
5 Adj
1 Solid 0 6 353 lbs.1/3
32”
Front View Side View
A d j u s t a b l e
65”
CUTSHEET
S h e l v i n g
Model Defrost Door Int Door Shelves H.P. AmpsCu. Ft
30 Manual
EXPR-30-TP
