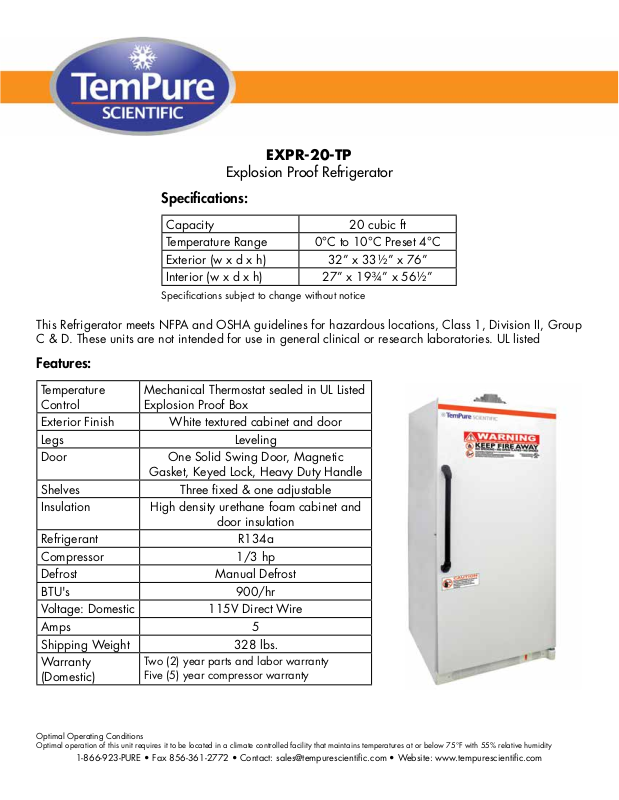

Tempure Scientific EXPR-20-TP User Manual

EXPR-20-TP

Explosion Proof Refrigerator

Specifications:

Capacity 20 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 32” x 33½” x 76”
Interior (w x d x h) 27” x 19¾” x 56½”

Specifications subject to change without notice

This Refrigerator meets NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Group
C & D. These units are not intended for use in general clinical or research laboratories. UL listed

Features:

Temperature
Control

Mechanical Thermostat sealed in UL Listed

Explosion Proof Box
Exterior Finish White textured cabinet and door
Legs Leveling
Door One Solid Swing Door, Magnetic

Gasket, Keyed Lock, Heavy Duty Handle
Shelves Three fixed & one adjustable
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 900/hr
Voltage: Domestic 115V Direct Wire
Amps 5
Shipping Weight 328 lbs.
Warranty

(Domestic)

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

61”

Exterior Hazardous Location

(Explosion Proof) Refrigerator

EXPR-20-TP

32”

26¼”

5½”

Unit Weight

Factory Sealed Wires Only

Front View Side View Top View

33½”

1 Adj/3 Fixed

76”

5”

1 Solid 0 32 33½ 76 5 288 lbs.1/3

Manual

32”

18”

20

CUTSHEET

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft

EXPR-20-TP
