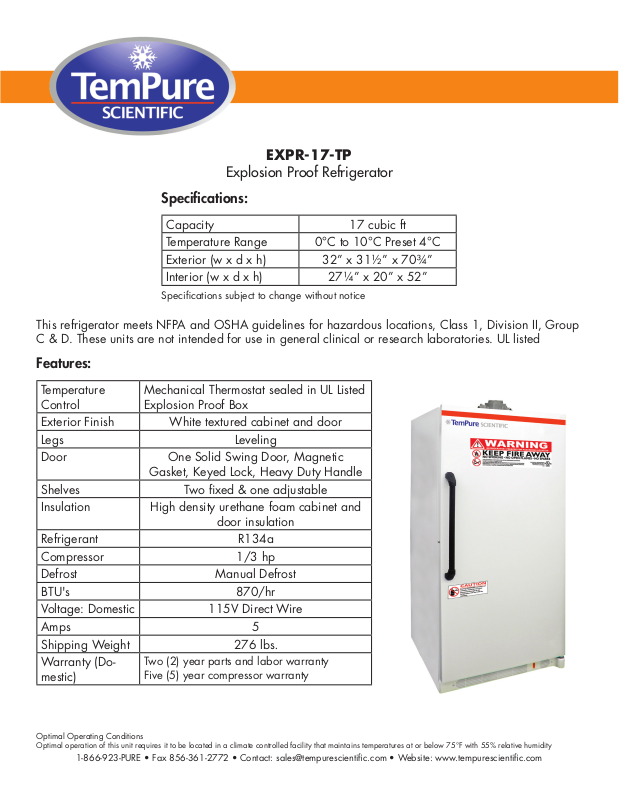

EXPR-17-TP
Explosion Proof Refrigerator
Specifications:
Capacity 17 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 32” x 31½” x 70¾”
Interior (w x d x h) 27¼” x 20” x 52”
Specifications subject to change without notice
This refrigerator meets NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Group
C & D. These units are not intended for use in general clinical or research laboratories. UL listed
Features:
Temperature
Control
Mechanical Thermostat sealed in UL Listed
Explosion Proof Box
Exterior Finish White textured cabinet and door
Legs Leveling
Door One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Handle
Shelves Two fixed & one adjustable
Insulation High density urethane foam cabinet and
door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 870/hr
Voltage: Domestic 115V Direct Wire
Amps 5
Shipping Weight 276 lbs.
Warranty (Do-
mestic)
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
EXPR-17-TP
59¼”
32”
Factory Sealed Wires Only
Exterior Hazardous Location
(Explosion Proof) Refrigerator
24¼”
31½”
70¾”
5”
5½”
1 Adj/2 Fixed
1 Solid 0 32 31½ 70¾ 5 236 lbs.1/3
Front View Side View Top View
CUTSHEET
32”
Model Defrost Door Int Door Shelves W” D” H” H.P. Amps Unit WeightCu. Ft
17 Manual
EXPR-17-TP
18”
