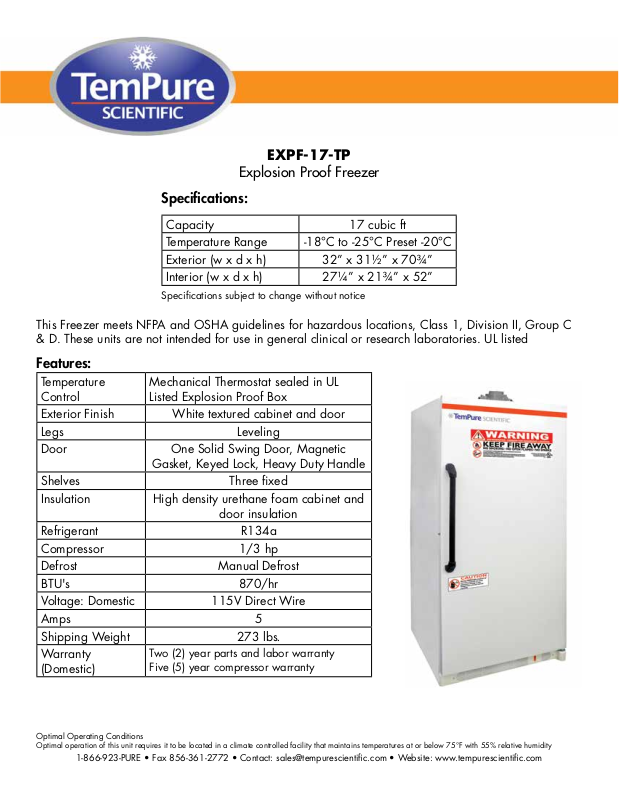

Tempure Scientific EXPF-17-TP User Manual

EXPF-17-TP

Explosion Proof Freezer

Specifications:

Capacity 17 cubic ft
Temperature Range -18°C to -25°C Preset -20°C
Exterior (w x d x h) 32” x 31½” x 70¾”
Interior (w x d x h) 27¼” x 21¾” x 52”

Specifications subject to change without notice

This Freezer meets NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Group C

& D. These units are not intended for use in general clinical or research laboratories. UL listed

Features:

Temperature
Control

Mechanical Thermostat sealed in UL

Listed Explosion Proof Box
Exterior Finish White textured cabinet and door
Legs Leveling
Door One Solid Swing Door, Magnetic

Gasket, Keyed Lock, Heavy Duty Handle
Shelves Three fixed
Insulation High density urethane foam cabinet and

door insulation
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
BTU's 870/hr
Voltage: Domestic 115V Direct Wire
Amps 5
Shipping Weight 273 lbs.
Warranty

(Domestic)

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

EXPF-17-TP

59¼”

32”

Factory Sealed Wires Only

(Explosion Proof) Freezer

Exterior Hazardous Location

24¼”

31½”

70¾”

5”

5½”

3 Fixed

1 Solid 0 32 31½ 70¾ 5 233 lbs.1/3

Front View Side View Top View

CUTSHEET

32”

Model Defrost Door Int Door Shelves W” D” H” H.P. Amps WeightCu. Ft

17 Manual

EXPF-17-TP

18”
