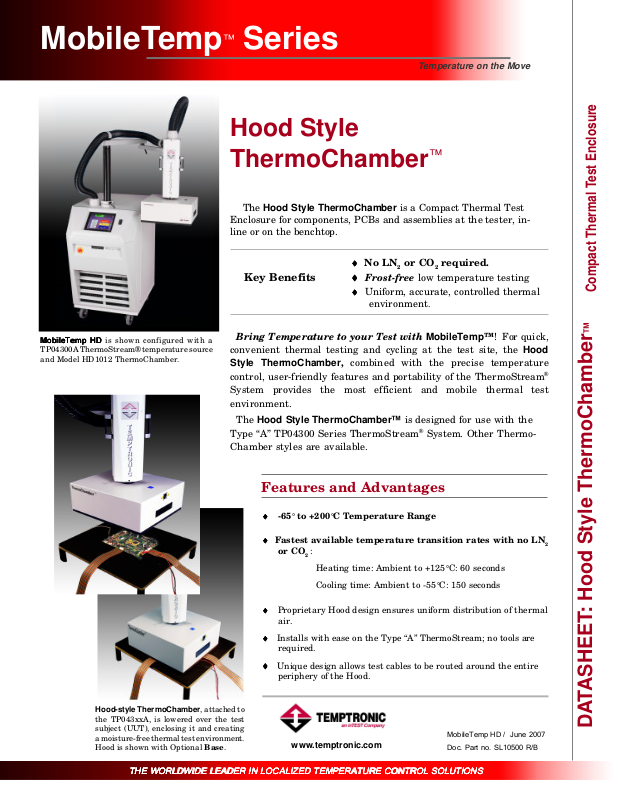

MobileTemp™ Series
Hood Style
Temperature on the Move
MobileTemp HD MobileTemp HD

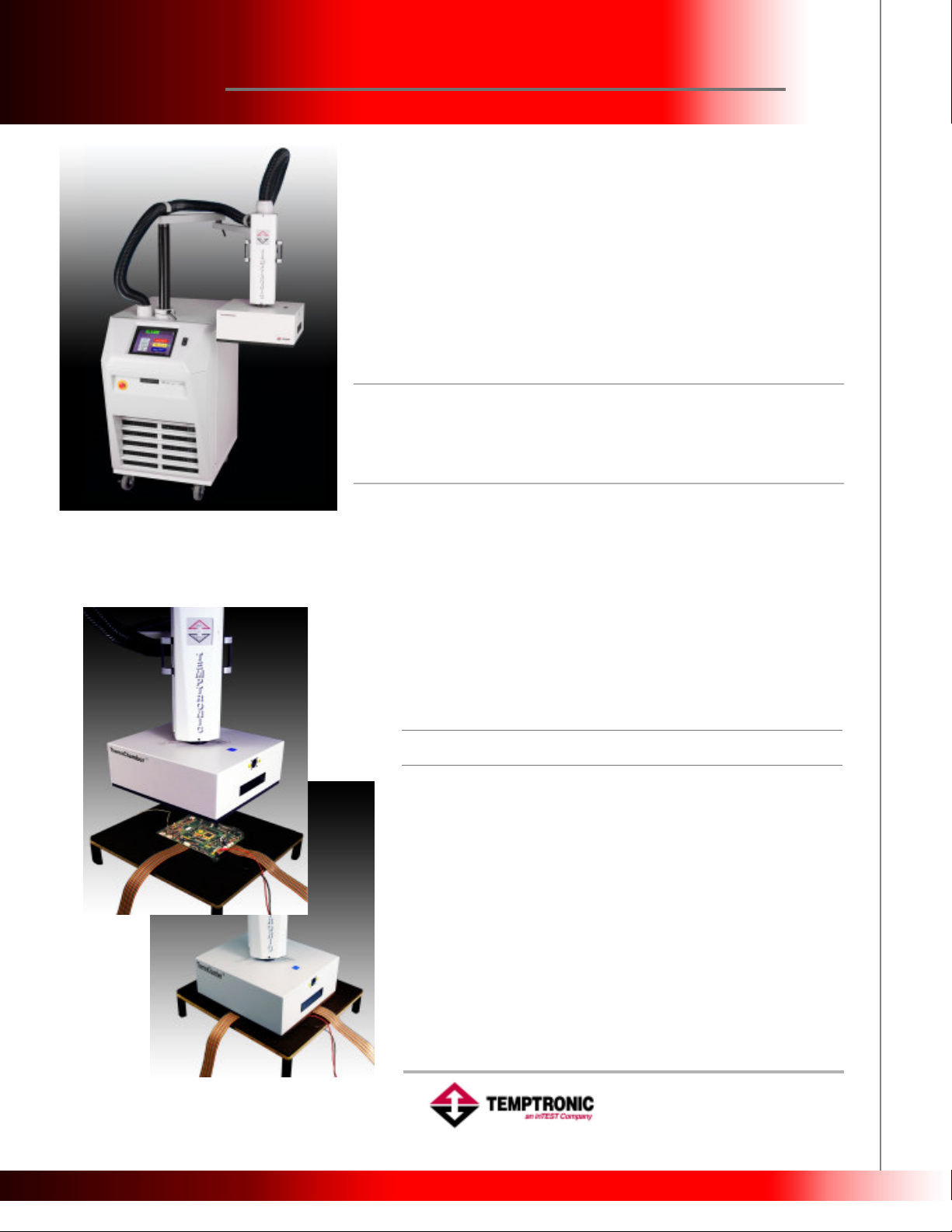

MobileTemp HD is shown configured with a
MobileTemp HD MobileTemp HD
TP04300A ThermoStream® temperature source
and Model HD1012 ThermoChamber.
ThermoChamber
™
The Hood Style ThermoChamber is a Compact Thermal Test
Enclosure for components, PCBs and assemblies at the tester, inline or on the benchtop.
♦ ♦
♦ No LN2 or CO2 required.
♦ ♦
♦♦
♦ Frost-free low temperature testing
Key Benefits
Bring Temperature to your Test with MobileTemp™! For quick,
convenient thermal testing and cycling at the test site, the Hood
Style ThermoChamber, combined with the precise temperature
control, user-friendly features and portability of the ThermoStream
System provides the most efficient and mobile thermal test
environment.
The Hood Style ThermoChamber™ is designed for use with the
Type “A” TP04300 Series ThermoStream® System. Other ThermoChamber styles are available.
♦♦
♦♦
♦ Uniform, accurate, controlled thermal
♦♦
environment.
Compact Thermal Test Enclosure
®
Hood-style ThermoChamber, attached to
the TP043xxA, is lowered over the test
subject (UUT), enclosing it and creating
a moisture-free thermal test environment.
Hood is shown with Optional Base.
THE WORLDWIDE LEADER IN LOCALIZED TEMPERATURE CONTROL SOLUTIONSTHE WORLDWIDE LEADER IN LOCALIZED TEMPERATURE CONTROL SOLUTIONS
THE WORLDWIDE LEADER IN LOCALIZED TEMPERATURE CONTROL SOLUTIONS
THE WORLDWIDE LEADER IN LOCALIZED TEMPERATURE CONTROL SOLUTIONSTHE WORLDWIDE LEADER IN LOCALIZED TEMPERATURE CONTROL SOLUTIONS
Features and Advantages
♦♦
♦ -65° to +200°C Temperature Range
♦♦
♦ ♦
♦ Fastest available temperature transition rates with no LN
♦ ♦
or CO2 :
Heating time: Ambient to +125°C: 60 seconds
Cooling time: Ambient to -55°C: 150 seconds
♦♦
♦ Proprietary Hood design ensures uniform distribution of thermal
♦♦
air.
♦♦
♦ Installs with ease on the Type “A” ThermoStream; no tools are
♦♦
required.
♦♦
♦ Unique design allows test cables to be routed around the entire
♦♦
periphery of the Hood.
MobileTemp HD / June 2007
www.temptronic.com
Doc. Part no. SL10500 R/B
2
DATASHEET: Hood Style ThermoChamber™
Page 2
MobileTempTM Series
Temperature on the Move
DATASHEET: Hood Style ThermoChamber™

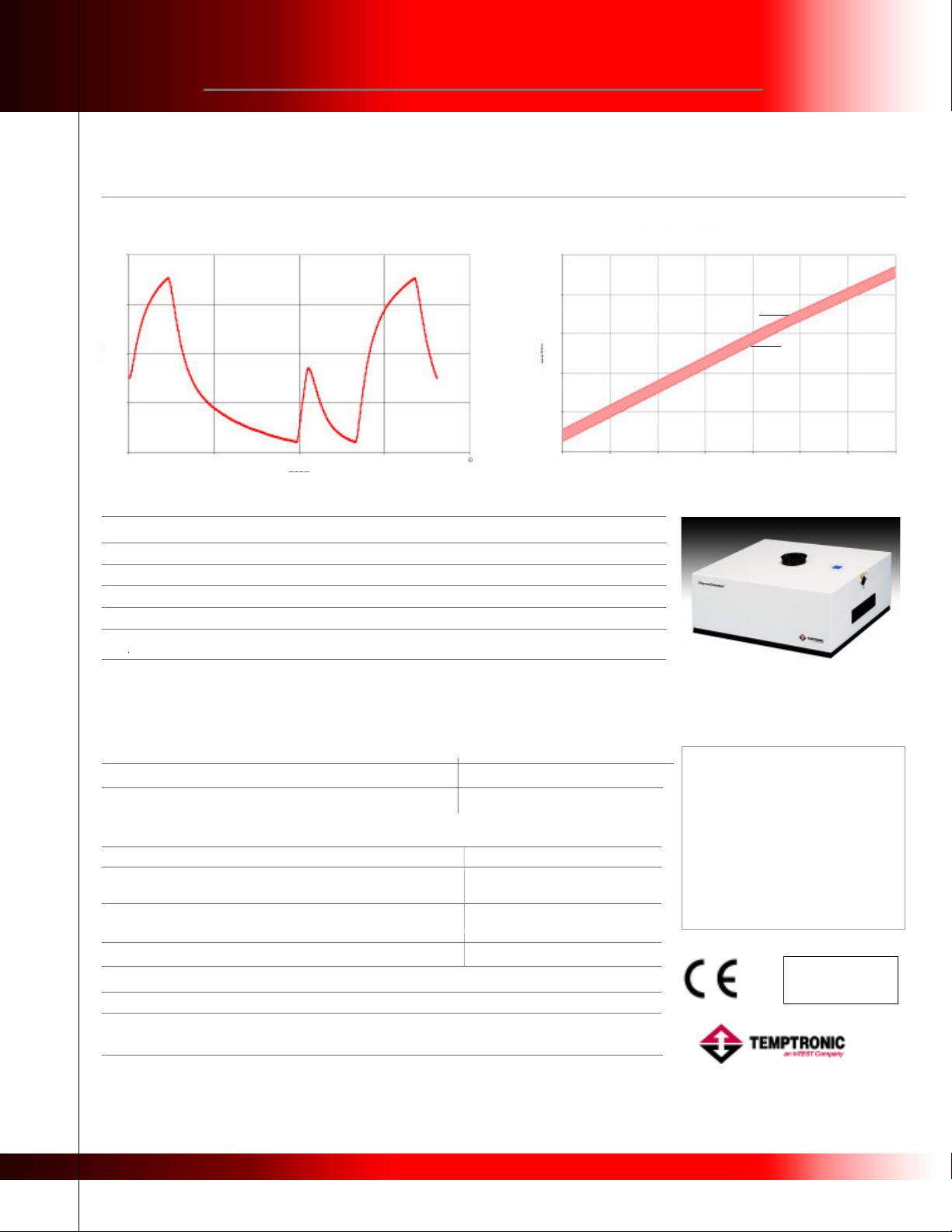

Typical Performance
1,2,3
Transitions Thermal Capacity
150
100
50
Deg. C
0
-50
0 5 10 15 20
Temperature Change Rate (in minutes)
Ambient to +125°C 2.4
+125°C to Ambient 1.8
Ambient to -40°C 2.6
-40°C to Ambient 0.6
Minutes
Hood Style ThermoChamber
500
400
60 Hz
300
Watts
200
100
0
0
-55
-70 -50 -30 -10 0
-40
-25
Deg. C
Deg C.
50 Hz
5-10
™
Chamber Uniformity 2.0°C range from setpoint
1
Refer to Temptronic Product Specification Doc. SL10580
2
For optimal performance, use ThermoChamber closest in size to the UUT.
2
Performance is measured on HD1416 using a model TP04300A-8C32 thermal source at 12 scfm air
flow rate
Features
Hood Model No. HD1012 HD1416
ThermoCouple Connections 1 1
Compact Thermal Test Enclosure
Weights and Dimensions (nominal)
Hood Model No. HD1012 HD1416
Inside Dimension (ID) 25.4 W x 30.5 L x 10.2 H cm 35.5 W x 40.6 L x 10.2 H cm
cm. (in.) nominal (10 W x 12 L x 4 H in.) (14 W x 16 L x 4 H in.)
Outside Dimension (OD) 35.5 W x 40.6 L x 16.5 H cm 45.8 W x 51 L x 16.5 H cm
cm. (in.) (14 W x 16 L x 6.5 H in.) (18 W x 20 L x 6.5 H in.)
Weight - kg (lbs.) 3.2 kg (8 lbs.) 4.5 kg (11 lbs. )
Base (Optional)
Dimensions: 50.8 L x 56 W x 12.4 H cm (20 x 22 x 4.9 in.)
OPTIONS
♦ The Base is a non-conductive platform for support of the user’s UUT. The platform can
be modified by the user to allow connection between UUT and tester. Base includes
thermocouple interface connectors.
♦ The Insulation Kit includes rubber sheets to provide greater thermal insulation when
coupling to a UUT. Available in non-conductive and conductive material.
Hood Style ThermoChamber’s top
connector port enables insertion of
the TP043xxA ThermoStream
airflow nozzle.
These specifications are valid when used
with a TP04300 Series ThermoStream for
the standard product and are subject to
change without notice. Applications
requiring modification of the mechanical,
thermal or electrical characteristics should
be discussed with Temptronic for possible
accommodation at additional cost.
©Copyright, Temptronic 2006, 2007.
ThermoStream® is a registered trademark
of Temptronic Corporation, an inTEST
Company.
ISO:9001-2000
Certified
4 Commercial St.
Sharon , MA. 02067 USA
Tel: 781-688-2300
FAX:781-688-2301
www.temptronic.com
[email protected]
