Tempered Azure AD Integration Guide

Tempered – Azure AD – Integration Guide

Tempered – Azure AD Integration Guide

Setting up your Conductor to use the Authentication Platform Azure AD and optionally MFA for Conductor users and/or Remote Access Users

Tempered – Azure AD – Integration Guide

Table of Contents

Introduction ...................................................................................................................... 3

Overview .......................................................................................................................... 3

Preparing to Configure OIDC Integration ......................................................................... 5

Integrate Third-party Authentication with OpenID Connect ............................................ 6

User Roles .................................................................................................................... 6

Multi-factor Authentication ............................................................................................... 7

Integrate Authentication with the Conductor ................................................................... 7

1. Create and conﬁgure an application in your authentication provider ...................... 8

2. Conﬁgure OIDC on the Airwall Conductor ................................................................ 9

3. Set up the Airwall Agents ........................................................................................ 10

Require third-party authentication .............................................................................. 11

For Azure AD - Register Application and Set Up Group Claims .................................... 11

Verify third-party authentication is working ................................................................... 19

Troubleshooting Third-party Authentication User Login ................................................ 20

Tempered – Azure AD – Integration Guide

Introduction

When using Tempered’s Zero Trust Architecture, Software-Defined Perimeter solution all policy is controlled from a central location in the Airwall Conductor. As a result, securing access and using appropriate role-based access control is important when setting up a production environment. Authentication platforms provide significant value for managing user identities, delivering capabilities like single sign-on and multifactor authentication (MFA). When companies already have an authentication platform provider or are looking to add MFA support to Tempered’s networking security solution integrating these two solutions can often be the best architecture.

There are two primary use cases for integrating the Conductor with an authentication platform: accessing the Conductor itself and/or providing user authentication for remote users leveraging the Airwall Agent.

The purpose of this document is to provide the necessary steps to integrate Tempered’s Conductor with Azure AD’s authentication platform using OpenID Connect.

OpenID Connect is a simple identity layer on top of the OAuth 2.0 protocol, which allows computing clients like the Airwall Conductor to verify the identity of an end-user based on the authentication performed by an authorization server – in this case Azure AD, as well as to obtain basic profile information about the end-user in an interoperable and REST-like manner. In technical terms, OpenID Connect specifies a RESTful HTTP API, using JSON as a data format.

Overview

When a user goes to login to the Airwall Conductor, they can either authenticate using the Conductor’s configured users (People) or choose from a pull-down that allows them to authenticate using a third-party authentication platform like Azure AD.

Tempered – Azure AD – Integration Guide

When the user chooses the Azure AD option, they will be redirected to the Azure AD authentication page where they will need to enter their Azure AD credentials and connect using MFA if configured. Once the user is authenticated, they will be redirected back to the Conductor.

For remote access users running Airwall Agents, if user authentication is enabled and linked to an authentication platform, the user will be prompted for credentials by the Agent that is communicating with the Conductor. They will then be redirected to Azure AD and once again they will need to enter their username and password and perform the MFA steps if configured. Once authenticated, the Airwall Agent will be able to connect to the devices configured in their overlay networks.

Tempered – Azure AD – Integration Guide

Parameter

Example

Notes

Authenticati on Provider Name that will be visible to users

MyCompanyAzureAD

Conductor URL

https://conductor.mycompany.com

People Group names that will be configured in both the Conductor and the OpenID provider

cond_system_admins , cond_readonly_admins , cond_network_admins , and cond_remote_users

Note that multiple groups can be configur ed for each role.

OpenID Connect host

Example: https://sts.windows.net

OpenID Connect Issuer

Example: https://sts.windows.net/123456e7-2b88-9876-87a68ecc41caa76c

OpenID Connect

Example: 0dfa1234-5678-4ee8-9cf2-f89a9f5a3af7

For either type of integration, the user configured in Azure AD will be part of a group and that information is sent back to the Conductor so that the user can be assigned to the proper role or People Group in the Conductor.

Preparing to Configure OIDC Integration

Gather the following information in preparation for configuring the OpenID connection settings in the Conductor

Tempered – Azure AD – Integration Guide

Client ID (sometimes called Identiﬁer)

OpenID Connect Secret

Example: abcdefghc60f3e068f42118fd9a51479d966ace97dc6132c1c11db8 5aa123456

OpenID Connect Test User Account

Integrate Third-party Authentication with OpenID Connect

You can integrate a third-party authentication provider with person authentication in the Conductor using OpenID Connect (OIDC). If your users are already conﬁgured for single sign-on (SSO) with a third party, or if you have a large number of users, this integration streamlines your user management.

Note: You can only conﬁgure one OpenID Connect provider on the Conductor at a time. If you need to support many OIDC authentication providers simultaneously, you can choose providers that support federated login so you can connect to one provider and have that provider connect to other providers to authenticate users.

Important: To use OpenID Connect on macOS or iOS Airwall Agents, you must have a

public certiﬁcate on your Conductor.

User Roles

In the Airwall Conductor, you conﬁgure person roles in OIDC by including them in groups. The OIDC group names are pre-conﬁgured in the Conductor, so when you make a person a member of one of the OIDC groups in the OIDC provider, they are automatically given that role in the Conductor. For instance, you can declare that all members of the OIDC provider’s cond_system_admins group are system administrators in the Conductor, and that members of the OIDC cond_remote_users group are remote-access users.

This is configured in the Conductor when you set up the Authentication Provider. Each group is configured to be in one of four groups that directly link them to the equivalent Role in the Conductor.

Tempered – Azure AD – Integration Guide

For example, if you would like to manage a group of remote access users in a group called vendorA, you would add that group to the Remote-access user groups box as shown here:

Note that the groups defined here won’t show up in the People Groups tab of the Conductor until a user is added by the Authentication Provider (you can also manually pre-configure it).

Multi-factor Authentication

If your OIDC provider supports multi-factor authentication (MFA), you can use MFA on your provider to require MFA for logging into your Conductor or for Airwall Agent session authentication.

Integrate Authentication with the Conductor

To successfully integrate authentication, you must:

1. Register an application in your authentication provider.

2. Conﬁgure OIDC on the Conductor.

Tempered – Azure AD – Integration Guide

Field

Enter

Name

Whatever you want. For example, “Airwall Conductor”

Your Conductor URI followed by /user/auth/openid_connect/callback . For example:

https://conductor.mycompany.com/user/auth/openid_connect/callback.

Note – If your Conductor is HA paired, add a second login redirect URI, with the same path added.

Logout Redirect URI

Your Conductor URI: https://conductor.mycompany.com

(Optional – not typically configured in OneLogin)

3. Set up Airwall Agents.

4. Verify third-party authentication is working

Since each provider is diﬀerent, refer to the basics required here, and then the Azure AD-specific instructions that follow.

Create and conﬁgure an application in your

authentication provider

Create and conﬁgure the application in your provider before connecting it to the Airwall Conductor. Each provider’s workﬂow is diﬀerent, but here are the general steps:

1. Create an OpenID Connect application.

2. Conﬁgure it with the following information:

3. Depending on your provider, set the authentication method to basic, or indicate you are using an authorization code for authentication (not a refresh token).

4. Allow the groups claim for grant. The groups claim is what allows the Conductor to match a user’s group with what role they are given. Because groups is not a default OIDC claim, it must be turned on in the provider. For more details, see the speciﬁc instructions for Azure AD below.

5. Create four groups: cond_system_admins , cond_readonly_admins , cond_network_admins , and cond_remote_users to indicate the four diﬀerent Conductor roles. Other group names can be added but must be configured in both the Conductor and OIDC provider.

6. Add users to each group so they are assigned the correct role when logging into Conductor.

7. Give your users access to the application you created in your provider.

8. If you want to require MFA to log in, set it up in the OIDC provider. Generally MFA is associated with the app. Please consult your provider documentation for detailed instructions on setting up MFA.

Tempered – Azure AD – Integration Guide

For this Setting

Enter

Provider name

Give your provider a descriptive name. This name appears as an option when logging into the Conductor. Example: MyCompanyAzureAD

Conductor host

Host of your Conductor. Must be in the format

https://conductor.mycompany.com (no trailing slash)

OpenID Connect host

Must be in the format https://hostname.com:{optional port}

Example: https://sts.windows.net

Issuer

Issuer provided by your OIDC provider. Sometimes this value is the same as the OpenID Connect host depending on the provider.

Example: https://sts.windows.net/{long customer string}

Client ID

(sometimes called Identiﬁer)

Token provided by your OIDC provider associated with the provider application Secret

Secret token that goes with the Client ID

For this Setting

Enter

Use groups to manage roles

Checked

System admin groups

Comma-separated list of groups from your provider that will give your user this role.

Example: cond_system_admins

Conﬁgure OIDC on the Airwall Conductor

1. Go to Conductor Settings.

2. Next to Authentication, select Add provider.

3. Select OpenID Connect and then select Next.

4. On the Add Authentication Provider page, under General settings, conﬁgure the Provider settings as follows (see the Azure AD-specific instructions below for help in ﬁnding this information):

Note: OpenID Connect logout is not supported with Azure AD.

5. For HA-paired Conductor host, enter the Host of your HA Conductor (if applicable).

6. Conﬁgure the Group settings as follows, and then click Next:

Tempered – Azure AD – Integration Guide

Read-only admin groups

Comma-separated list of groups from your provider that will give your user this role.

Example: cond_readonly_admins

Network admin groups

Comma-separated list of groups from your provider that will give your user this role.

Example: cond_network_admins

Remote-access user groups

Comma-separated list of groups from your provider that will give your user this role.

Example: cond_remote_users

Note: If users are in groups that match more than one of the roles, they are given the highest level of access possible (system admin, read-only admin, network admin, then remote-access user).

7. Conﬁgure any Group ﬁlters you want and click Finish.

8. If you have non-public DNS servers conﬁgured in the Conductor under Global Airwall Agent/client settings, your users won’t be able to reach the public addresses on their devices that include the OpenID Connect providers. You may need to conﬁgure DNS servers on the Conductor to add your OpenID Connect provider’s DNS server.

9. After changing OIDC conﬁguration, you need to log out and log back in to the Conductor to restart it. When you log back in, you can now choose your third-party authentication provider.

Set up the Airwall Agents

Any Airwall Agents authenticating using your third-party provider also need to be set up:

1. Provision and manage Airwall Agents in the Conductor.

2. (Optional starting with 2.2.8) Go to the Overlays page, scroll down to People, and click Update, and add the Airwall Agent as a member.

3. Also check that:

a. Airwall Agents are included in your Airwall Relay rules. b. Airwall Agent devices have been added to the appropriate Overlays, and you’ve set

device trust on the Overlays as needed.

Your users should now be able to log in using the third-party authentication provider.

Tempered – Azure AD – Integration Guide

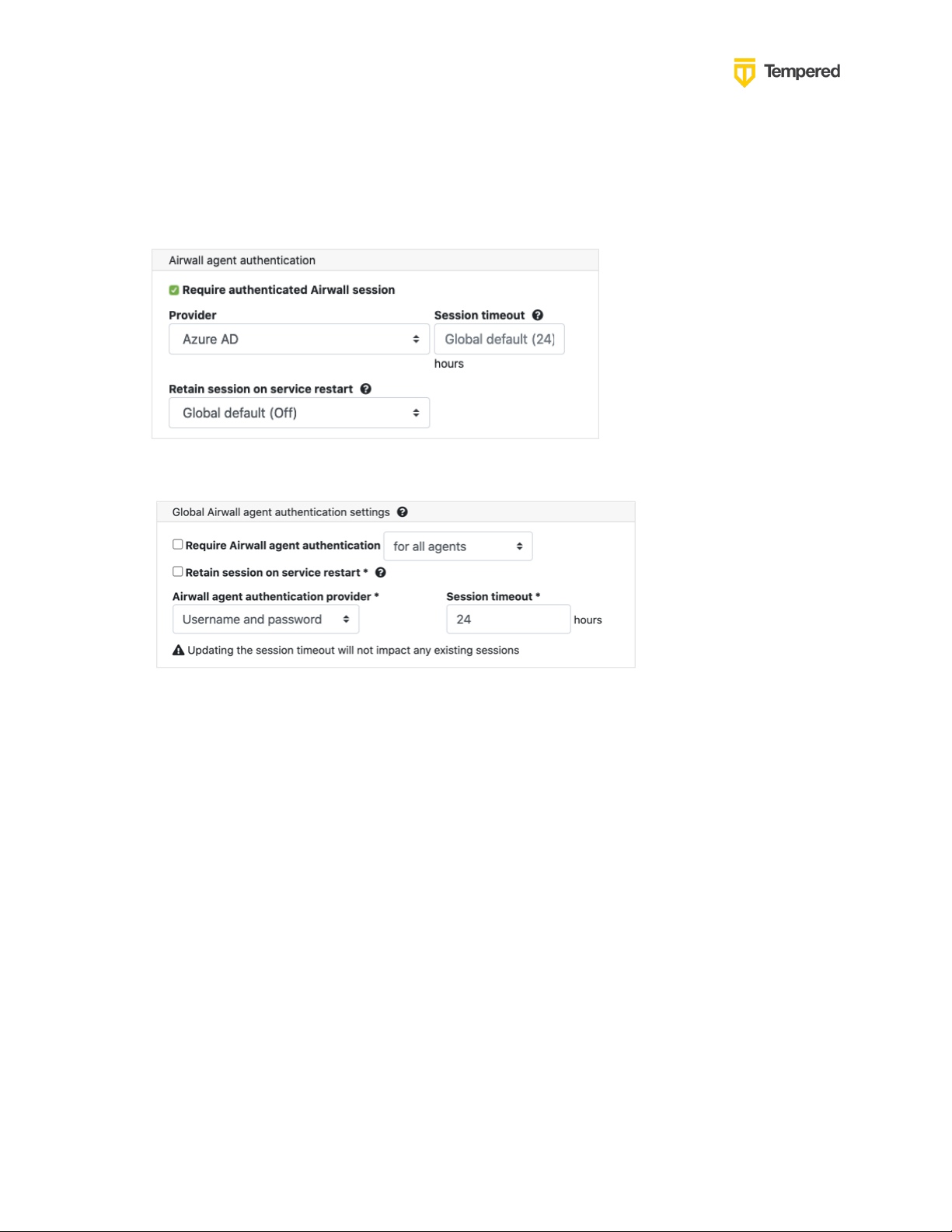

Require third-party authentication

You can also require users to authenticate using the third-party provider either individually (per agent) or globally (all agents). On the agent's Airwall Agent tab, or on a People Group Properties tab:

• Check Require Authenticated Airwall Session.

• For Global configuration, go to Conductor, Settings:

For Azure AD - Register Application and Set Up Group Claims

Here are speciﬁc instructions for Azure AD. Note that the Azure AD documentation may be more up-to-date and the settings in your Azure AD account may vary.

1. In Azure AD, select App registrations:

Tempered – Azure AD – Integration Guide

2. + New Registration. Enter a Name for the Application (i.e., Airwall Conductor). Select Support account types: Accounts in any organizational directory (Any Azure AD directory – multitenant). Set the Redirect URI to Web, and the URL of your Conductor following by /user/auth/openid_connect/callback. Click Register.

Tempered – Azure AD – Integration Guide

3. Once you’ve registered this Application, Azure AD will provide a set of IDs that will be configured in the Conductor when you set up the OIDC provider. Note that the names will vary in authentication providers, but here are the mappings for Azure AD.

The Application (client ID) in Azure becomes the Client ID in the Conductor.

The Directory (tenant) ID in Azure gets appended to https://sts.windows.net/ to create the Issuer in the Conductor.

Tempered – Azure AD – Integration Guide

4. To create a Client Secret, click on Certificates & secrets and click on + New client secret.

5. Configure the Description, Expiration timeframe and click Add.

Tempered – Azure AD – Integration Guide

6. Copy the Value, not the ID to be used as the Secret in the Conductor

7. From your new registered application in Azure AD, click on Authentication. Verify that they Implicit grant is set up to use Access tokens.

Tempered – Azure AD – Integration Guide

8. The key next step is to set up the groups claim in Azure AD. From your new registered application, click on Token configuration:

Click on + Add groups claim.

Configure all of the group types:

Tempered – Azure AD – Integration Guide

9. Token properties should be configured using the sAMAccountName:

The SAML setting is not applicable.

10. Create Groups in Azure AD:

Tempered – Azure AD – Integration Guide

11. Add users and assign group membership:

Verify third-party authentication is working

To verify your conﬁguration:

1. Log out of Conductor.

2. Open an incognito window and log in, choosing the provider name you chose in the Conductor.

3. Log in as a user you’ve set up with third-party provider. You should be able to log in to the Conductor using your third-party provider credentials.

To verify a Airwall Agent can connect:

• After the Airwall Agent logs in using the third-party provider, verify connectivity.

Tempered – Azure AD – Integration Guide

Working example:

Troubleshooting Third-party Authentication User Login

If user login is failing with “Could not ﬁnd that username/password combination,” verify:

• The user has been given access to your OIDC application in the third-party provider

• The user is a member of a group in your provider that is mapped to a user role in the

Conductor

• The “groups” claim is allowed in your application in the provider

• The user typed in their username and password correctly

Check the Conductor log for additional clues for why the login failed. For instance, you may see a log message that a person does not match any groups to get a role.
