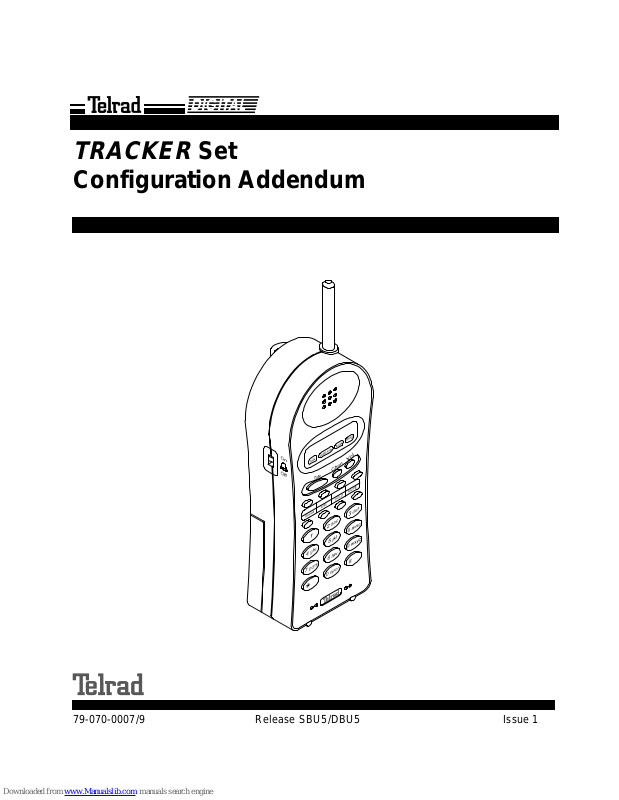

Telrad TRACKER Set Configuration Addendum

TRACKER

Set

Configuration Addendum

79-070-0007/9 Release SBU5/DBU5 Issue 1

79-070-0007/9

Release SBU5/DBU5

Issue 1

DIGITAL FAMILY OF SYSTEMS

TRACKER

Set: Configuration Addendum

Telrad Telecommunicatio ns Inc.

Woodbury, New York

NOTICE

The information in this manual refers to the Telrad DIGITAL family of telephone systems, including the DIGITAL KEY BX system, Re­lease SBU5 and the DIGITAL 400 system, Release DBU5, August 1997. Telrad, Ltd., reserves the right to make changes in the
equipment described in this manual without notification. However, changes in the equipment do not necessarily render this manual
invalid.

Additional copies of this manual may be obtained from Telrad, Ltd. Reproduction of this manual or parts thereof, without written per­mission from Telrad, Ltd., is strictly prohibited.

© 1997 Telrad Telecommunications Inc.

Woodbury, New York

The following are registered trademarks of the respective listed firms:

Trademark Firm

AT&T American Telephone and Telegraph Corp.
GTE General Telephone & Electronics Corp.
UL Underwriters Laboratories Inc.

FCC Regulations

This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruc­tion manual, may cause interference to radio communications. Operation of this equipment in a residential area is likely to cause harm­ful interference, in which case the user should contact the Telrad Field Service Department, at the telephone number listed below, to
correct the interference problem. It has been tested and found to comply with the limits for a Class A computing device pursuant to
Subpart J of Part 15 of the FCC Rules which are designed to provide reasonable protection against such interference when operated
in a commercial environment.

Registration

The Telrad DIGITAL Family systems are registered wi th the FCC based upon compliance with par t 68 of its rules. Connection of these
systems to the nationwide telecommunications network is made through a standard network interface jack which you can order from
your telephone company. Jacks for this type of customer-provided equipment will not be provided on party lines or coin lines.

Warning

Hearing Aid Compatibility

DIGITAL family telephones are Hearing Aid compatible, as defined in Section 68.316 of Part 68 FCC Rules.

Telephone Company Registration

It is usually not necessary to call the telephone company with information on the equipment before connecting the DIGITAL family
system cabinet to the telephone network. But, if the telephone company should require this information, provide the following
FCC Registration Number

(on label affixed to cabinet)
Ringer Equivalence Number
(on label affixed to cabinet)

USOC Jack: DB15, RJ2EX, RJ2FX, RJ2GX, RJ2HX, RJ11, RJ21X, RJ48C

Service Order Code (SOC) - for off premise extensions and all analog trunk cards except the DID card 9.0F

Facility Interface Code (FIC): - Central Office Ground-start trunk 02GS2

- Key system

- Multi-function (Hybrid Key/PBX) system

- for DID cards AS.2

- for digital trunks 6.0P

- Central Office Loop-start trunk 02LS2

- Direct Inward Dialing 02RV2-T

- Off-premises extension OL13C

- Primary Rate Interface 04DU9-1SN

- T1 (DIGITAL TRUNK) 04DU9-BN, 04-DU9-DN, 04-DU9-1KN, 04-DU9-1SN, 04-DU9-1ZN

- E&M (TIE TRUNK INTERFACE -- 2-wire) TL11E, TL11M, TL12E, TL12M

- E&M (TIE TRUNK INTERFACE -- 4-wire) TL31E, TL31M, TL32E, TL32M

ARAISR-18430-KF-E

ARAISR-18427-MF-E

:

3.9B

Rights of the Telephone Company

If the system is determined to be causing harm to the telephone network, the telephone company may discontinue your service tem­porarily. If possible, the telephone company will notify you as soon as possible. You will be given the opportunity to correct the situ­ation and you will be informed of your right to file a complaint to the F CC. Your telephone company may make changes in its facilit ies,
equipment, operations, or procedures that could affect the proper functioning of your system. If it does this, you will be notified in ad­vance to give you the opportunity to maintain uninterrupted telephone service.
In the event of an equipment malfunction, all repairs will be performed by T elrad Telecommunications, Inc., or by one of its au thorized
dealers.

Address of repair facility in USA

Telrad Service Center, 135 Crossways Park Drive, Woodbury, NY 11797. Phone: [phone] or 1-800-645-1350.

79-070-0007/9

Release SBU5/DBU5

Issue 1

Printed in Israel

Telrad Telecommunications Inc.

Woodbury, New York

1.1 GENERAL

1.2 SCOPE

Section 1

INTRODUCTION

This manual provides the information needed to install
the Telrad Tracker Set in the DIGITAL family of sys­tems.

1.3 STRUCTURE

This manual includes detailed instructions on how to
wire the Telrad Tracker Set, program the appropriate
parameters in the PC Configuration Program and initial­ize the station for operation.

The manual is divided into the following sections:

1. INTRODUCTION

This section provides a general explanation of the con­tents of this manual.

2. PRODUCT DESCRIPTION

This section provides a general descr iption of the Telrad
Tracker Set pack age.

3. INSTALLATION PROCEDURES

This section provides the wiring, installation, configura­tion programming and station initialization procedures.
A troubleshooting table is included at the end of the
section.

.

1-1

79-070-0007/9, Issue 1

4. ACCESSORIES

This section provides details on the Telrad T racker’s optional
accessories including the headset and the wall-mo unting
option. A list of the station specifications is included at the end.

1.4 INTENDED AUDIENCE

This manual is intended for the Customer Service Representa­tive (CSR) and assumes familiarity with the DIGITAL family of
systems, installation and PC configuration procedures, and
the relevant documentation (below).

1.5 APPLICABLE DOCUMENTATION

The following DIGITAL family of systems publications are rele­vant for the installation, configuration and use of the Telrad
Tracker Set:

•

DIGITAL FAMILY OF SYSTEMS
Administration manual

Catalog number 76-110-0175/F.

•

DIGITAL FAMILY OF SYSTEMS
Administration Forms

Catalog number 76-110-0405/F.

•

DIGITAL FAMILY OF SYSTEMS
Installation manual

Catalog number 76-110-0410/F.

•

DIGITAL FAMILY OF SYSTEMS
Operating Instructions

Catalog number 76-110-0165/F.

•

TELRAD TRACKER SET
User Guide

Catalog number 79-070-0009/6.

•

TELRAD TRACKER SET
Quick Reference Guide

Catalog number 79-070-0008/2.

1-2

PRODUCT DESCRIPTION

2.1 GENERAL

2.2 OVERVIEW

Section 2

This section provides a brief description of t he Telrad
Tracker Set and lists the items included in the package.

The Telrad Tracker Set operates with the DIGITAL KEY BX
Family of systems as a custom-designed portable system
extension. Aside from the standard dial pad, it has four fixed
feature buttons and four PC-programmed buttons. It also
includes a 2-by-16 character disp lay , vol ume control button,
30-channel selector button and a jack for an optional head­set. From a functional viewpoint, it can perf o rm most of the
features available to a DIGITAL set with display, with a few
exceptions, including: receiving a page, handsfree answer­back, background music and call intrusio n.

2.3 PARTS LIST

Following is a list of all of the items included in this pack­age. If any parts are missing, please contact Telrad imme­diately.

2-1

79-070-0007/9, Issue 1

Figure 2-1: The Telrad Tracker Set package

2-2

Section 3

INSTALLATION PROCEDURES

3.1 GENERAL

This section provides the wiring, installation, configura­tion programming and station initialization procedures.
A troubleshooting table is included at the end of the
section.

3.2 SELECTING A LOCATION

Select a location which is not subject to excessive heat
or humidity. The base can be placed on a desk or table
top near a standard 120VAC outlet and DIGITAL sys­tem modular extension jack. It can be mounted on a
standard AT&T or GTE wall plate using the Wall Mount
Adapter included (see Section 4.3)

3.3 WIRING THE UNIT

When installing this equipment, all standard safety pre­cautions should be observed to reduce the risk of fire,
electrical shock and injury.

3.3.1 Connecting the telephone cord

• Connect one RJ11 plug in the designated modular
extension jack connected to the DIGITAL system.

• Connect the other RJ11 plug in the socket marked
"LINE IN" on the Base unit.

WARNING

3-1

79-070-0007/9, Issue 1

Figure 3-1: Connecting the telephone cord

3.3.2 Connecting a second extension

The DIGITAL system can support two SAP extensions per S­Bus and this is also possible in conjunction with the Telrad
Tracker Set. Simpl y connect the second station (which can also
be another Telrad Tracke r Set) to the "LINE OUT" socket on the
Base Unit. Other than this difference, the regular configuration
and installation procedures sh ould be followed, as descr ibed in
the Installation and Configuration manuals.

3.4 BATTERY PACK AND CHARGER

Before proceeding, please note the following
precautions regarding the battery pack:

• The battery pack is a rechargeable sealed Lead-Acid bat­tery. Telrad DOES NOT guarantee this unit to be water­proof. To reduce the risk of fire, electrical shock or damage
to the unit, DO NOT expose the this unit to moisture.

• Do not short-circuit the battery.

• Do not charge the battery with any other than the desig­nated charger supplied. Using another charger ma y dam­age the battery or cause it to explode.

3.4.1 Charging the battery pack

A new battery pack should be fully charged
before being used for the first time (5 hours,
uninterrupted).

WARNING

NOTE

3-2

Section 3: INSTALLATION PROCEDURES

• Connect the AC Adapter output plug in the Charger Stand
jack marked "DC IN 9V ".

• Connect the AC plug into the mains socket.

• CHARGING THE BATTERY IN THE HANDSET: Place the
handset into the Char ger Stand and check t hat the " Charge
1" indicator lights.

• CHARGING THE SPARE BATTERY PACK: With the label
facing forward, push the bat tery int o the charging slot until it
locks in place, as shown below. Check that the "Charge 2"
indicator lights. To release the battery when chargi ng is
complete, slide the locking tab off the top of the battery
pack.

Figure 3-2: Connecting the Charger Stand AC adapter

3.5 DEFINING THE EXTENSION

In principle, the Telrad Tracker Set is configured in the same
way as any other DIGITAL system extension. Therefore, the
instructions which follow will only pre sent the items which are
specific to the Telrad Tracker Set. Familiarity with system con­figuration, as presented in the ADMINISTRATION MANUAL is
assumed.

3.5.1 Defining the extension

The basic difference in programming the Telrad Tracker Set is
that the following features are disabled:

• Background Music

• Handsfree Answerback (received)

• Page (received)

• Barge in (received)

• Call waiting (received)

• Camp-on tone (received)
The procedures which follow provide only the programming
requirements specific to the Telrad Tracker Set:

3-3

79-070-0007/9, Issue 1

1. From the main PROGRAMMING SCREEN menu, access the
OC→OL screen and enter the "Edit units" mode <F9> for the
desired extension card (ELD, EHD). Program an available DN,
define the STATION TYPE as

and set the Audio path as

SD2

single (S).

2. Access the FE→PK screen. Define an available station key
map number as SD. Enter the "Edit units" mode <F9> and pro­gram the top 4 buttons (2 on the right and 2 on the left) with
appropriate features requested by the customer ( Note:

not

BM). These correspond to the four "Programmed" buttons on
the Telrad Tracker Set handset, as shown below.

Telrad Tracker Set:

Programmed Buttons

Relevant SD Map

Buttons:

F1 F2 F3 F4 F3 F1

Redial XFR HOLD MUTE

Fixed Buttons .

F4 F2

.
.
.

.

.

3. Access the FE→CO screen and define COSs (for the COS
fields in the FE→AT screen) to include the following mandatory
field definitions:

ALL INTRUSION=N
ONHOOK INTRUSION=N
BARGE-IN STATION=N
HOT DIALPAD=N
CAMP-ON TONE=N
OFFHOOK RING=N
AUTO ANSWER=Y
BGM ACCESS=N

3-4

4. Access the IF→SP screen and define all I NTERNAL PAGEs (1-

8) with "N" for the designated Telrad T racker Set DN, defined in
Step 1, above.

5. Access the FE→AT screen and include the following manda­tory field definitions:

MAP No.= Button map number defined in Step 2, above.
DAY COS, NIGHT COS, TRAVEL C OS - Make sure that each
COS entry is one of the legal classes defined in Step 3, above.

Section 3: INSTALLATION PROCEDURES

5.

Save and load the changes made <F5>. Configuration of the
Telrad Tracker Set is now complete.

3.6 APPLYING POWER TO THE BASE UNIT

• Connect the AC Adapter output plug in the Base unit jack

marked "DC IN 10V ".

• Connect the AC plug into the mains socket.

Figure 3-3: Connecting the Base Unit AC adapter

3.7 INITIALIZING THE STATION

Once the wiring and configuration procedures have been com­pleted, all you need to do to initiali ze the station is to insert a
fully charged battery.

3.7.1 Inserting the battery

The battery is inserted as follows:

• Remove the battery cover by pressing the latch down and

sliding the cover off.

• Slide the battery into position with the terminals facing the

metal contacts (label facing upward).

• Slide the cover until it clicks into the closed position.

3.7.2 Assigning the DN

The first time you connect the Telrad Track er Set to the
exchange, you are required to enter the DN you defined abov e.
After inserting the battery, initial connection displays appear
followed by "ENTER DN:".

• Enter the DN you defined above and then press #.
Within a few seconds, the "TELRAD DIGITAL" message
appears on the display, along with the newly programmed DN.
The Telrad Tracker Set is now ready to be used.

3-5

79-070-0007/9, Issue 1

3.8 TROUBLESHOOTING

If the Telrad Tracker Set is not performing according to expec­tations, follow the si mple steps given in the following table. If
the problem remains unresolved, contact your Telrad represen­tative.

TROUBLESHOOTING TABLE

Problem Suggestion

Do not attempt to service this unit yourself.

Charge 1 light does not light when the
handset is placed in the Charger Stand.

• Check that the AC adapter is plugged
into the Charger Stand and wall outlet.

• Check that the handset is properly
seated in the Charger Stand.

• Check that the Lead-Acid battery pack is
properly inserted in the handset.

• Check that the contacts on the handset
and Charger Stand are clean.

Charge 2 light does not light when a par­tially charged battery is inserted in the
Charger Stand.

• Check that the AC adapter is plugged
into the Charger Stand and wall outlet.

• Check that the battery is properly
inserted in the Charger Stand.

• Check that the contacts on the battery
and Charger Stand are clean.

Calls are interrupted frequently • Check that the base unit ant enna is f ully

extended vertically.

• Move the handset closer to the base
unit.

• Check for LO BAT warning.

Warning tone and NO SERVICE message • Move the handset closer to the base

Handset does not ring • Battery may be weak. Charge for eight

3-6

• Try a dif ferent channel by pressing the

button.

Chan

unit.

hours.

• Check that the base unit ant enna is f ully
extended vertically.

• Move the handset closer to the base
unit.

4.1 GENERAL

4.2 HEADSET

Section 4

ACCESSORIES

This section provides details on the Telrad T racker Set’s
optional accessories including the headset and the wall­mounting option. A list of the station specifications is
included at the end.

A headset can provide a “hands free” option for the Telrad
Tracker Set (The UNIDEN Model #EXP9530 is highly rec­ommended). With the headset installed, the Belt Clip can
be used to carry the handset, allowing the user to conduct
calls in a “hands free” fashion.

To install the headset:

1. Open the cover of the headset jack.

2. Insert the headset plug.
The unit can now be operated via the headset. The handset

earphone and microphone are disabled when the headset
is connected.

4.3 WALL MOUNTING

4.3.1 Standard Wall Plat e Mounting

The Base Unit is designed to be mounted on a standard
AT&T or GTE wall plate. To attach the wall mounting piece
to the Base Unit:

4-1

79-070-0007/9, Issue 1

Figure 4-1:

Wall Mounting the Base Unit

1. Insert the two protrus ions at t he top of t he Wall Mounting piece
in the notches at the top of the Base Unit, and then rotate the
bottom of the Wall Mounting piece towards the Base Unit until
it snaps into place.

2. Plug the AC Adapter into the Base Unit.

3. Run the AC Adapter cord through the thinner molded channel
in the Wall Mounting piece.

4. Plug one end of a modular RJ-11 cord into the LINE IN jack on
the Base Unit.

5. Run the cord through part of the middle molded channel, mak­ing sure to leave just enough slack to reach the wall plate.

6. Plug the other end of the cord into the modular jack on the wall
plate.

7. Align the mounting holes of the Base Unit over the posts of the
wall plate and slide down until firmly locked in position.

8. Plug the AC Adapter into a standard 120V AC mains outlet.

4-2

4.3.2 Mounting the Charger Stand

The Charger Stand can also be wall mounted. Before doin g so, the
following considerations are recommended:

• Select a location away from electrical cables, pipes or other

items hazardous to the insertion of mounting screws.

• Make sure that the wall is made of mate rial capable of suppor ting

the Charger Stand.

• Use #10 screws with appropriate anchoring devices

Section 4: ACCESSORIES

Figure 4-2: Wall Mounting the Charger Stand

1. Insert the two mounting screws 1½ inches apart (horizontally),

3

allowing

/16 of an inch between the wall and screw heads for

mounting the unit.

2. Plug the AC Adapter into the Charger Stand, inserting a small
length of the cord via the hook to the left of the jack, for strain
relief.

3. Align the mounting holes of the Charger Stand over the screw
heads and slide down until firmly locked in position.

4. Plug the AC Adapter into a standard 120V AC mains outlet.

4-3

79-070-0007/9, Issue 1

4.4 SPECIFICATIONS

General : The Telrad Tracker Set complies with FCC Parts 15
and 68.

Frequency Control : Phase Lock Loop
Modulation : FM
Operating Temperature : -10° to +50°C

Base Unit
Receive/T ransmit Frequency : 902 MHz to 928 MHz
Power Requirements : 10VDC from supplied AC adapter
Size : 4¼ in.W x 7½ in.D x 2¼ in. H
Weight : Approx. 15.4 oz.

Handset
Receive/T ransmit Frequency : 902 MHz to 928 MHz
Power Requirements : Rechargeable sealed Lead Acid

Battery Pack

Size : 2¼ in.W x 1½ in.D x 8¼ in. H

(with antenna)
Weight : Approx. 8.8 oz. with battery
Battery : Capac ity 500mAh, 4.0V
Talk Mode : 5 hours (typical)
Standby Mode : 40 hours (typical)

NOTE: Specifications shown are typical and subject to change without notice.

4-4
