Telonics PRE-200 User Manual

Telonics Pro Audio

Telonics PRE-200

Preamplifier

Users Manual

©2010 Telonics, Inc. All Rights Reserved

PB-008684 Rev A 2010.08.13

The Telonics PRE-200

Congratulations on purchasing one of the world’s finest professional instrument preamplifiers!
The PRE-200 preamplifier is a state of the art audiophile quality unit designed and built with the
latest and best sounding technology.

The PRE-200 preamplifier gives you dramatically better control of your sound. The result is
transparent smooth clean sound with added sustain, tight bottom end and silky highs. It’s just
what you’ve been looking for!

Telonics PRE-200 Preamp Features:

• Superb string separation at all volume levels. No muddiness!

• All pure analog. No digitization of your sound thru A/D or D/A converters.

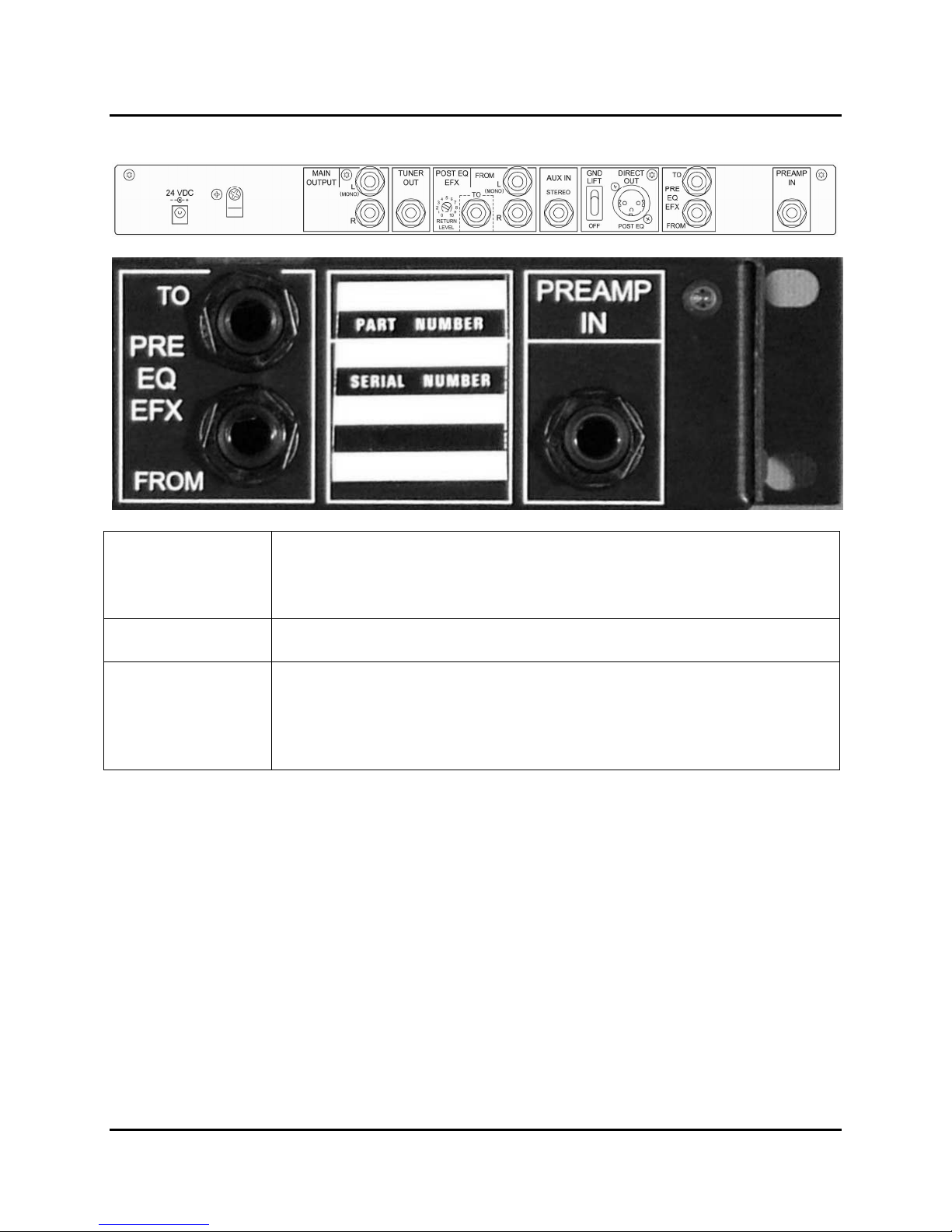

• Has Insert To/From feature, Pre EQ. (Rear panel mounted).

• Adjustable input impedance control to fine tune your sound.

• Warm tube-like sound with crystal clear highs.

• Ultra low noise – studio quality.

• High headroom.

• High output level available on demand.

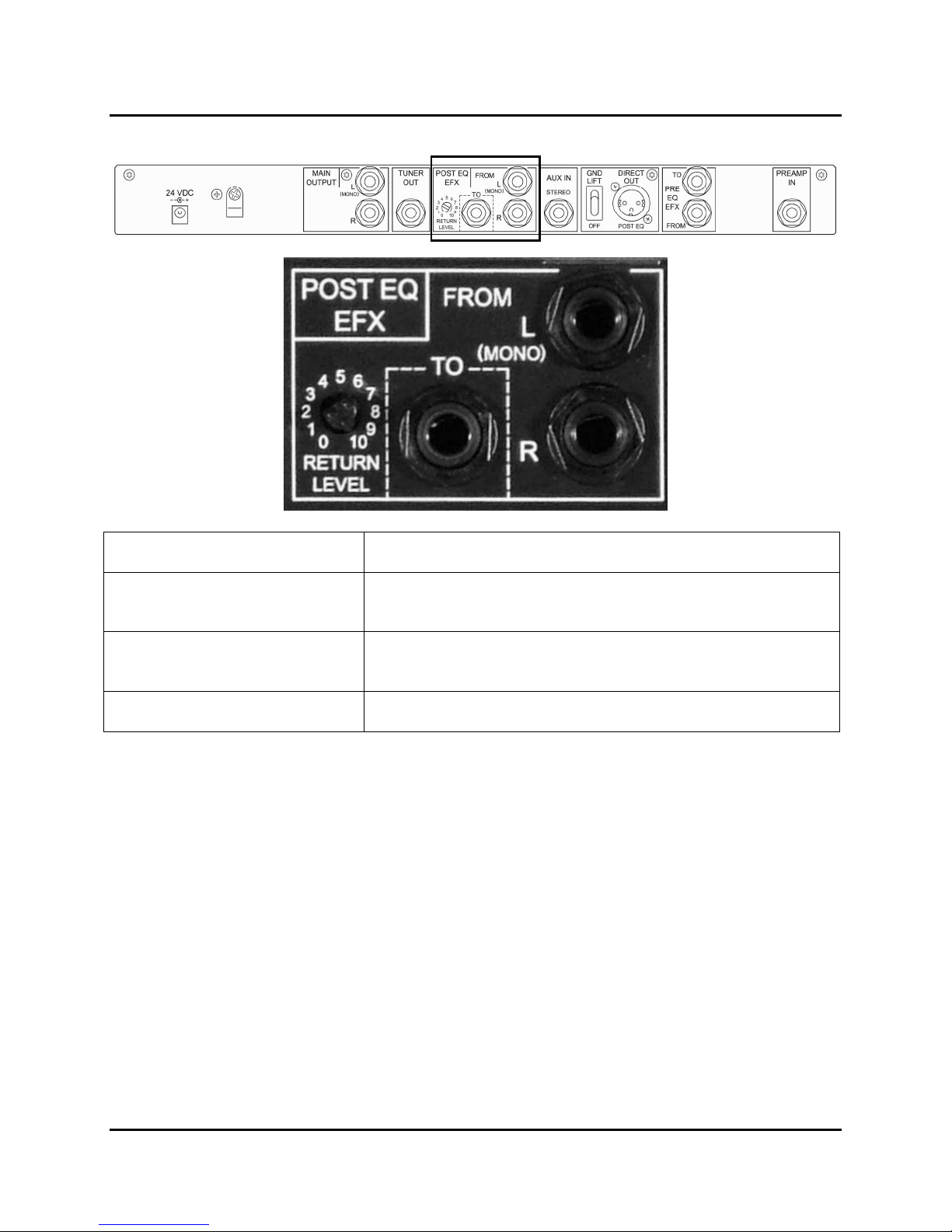

• Studio style effects send and returns. Can be used in stereo or mono.

• Built in digital reverb with front panel level control.

• Input and Output Overload LED indicators.

• Special “Blend” EQ control for personalizing your tone.

• Special Power On/Off circuit to minimize “pops” and speaker damage.

• Built in high output headphone amp with separate volume control.

• Noiseless Mute circuit with LED indicator.

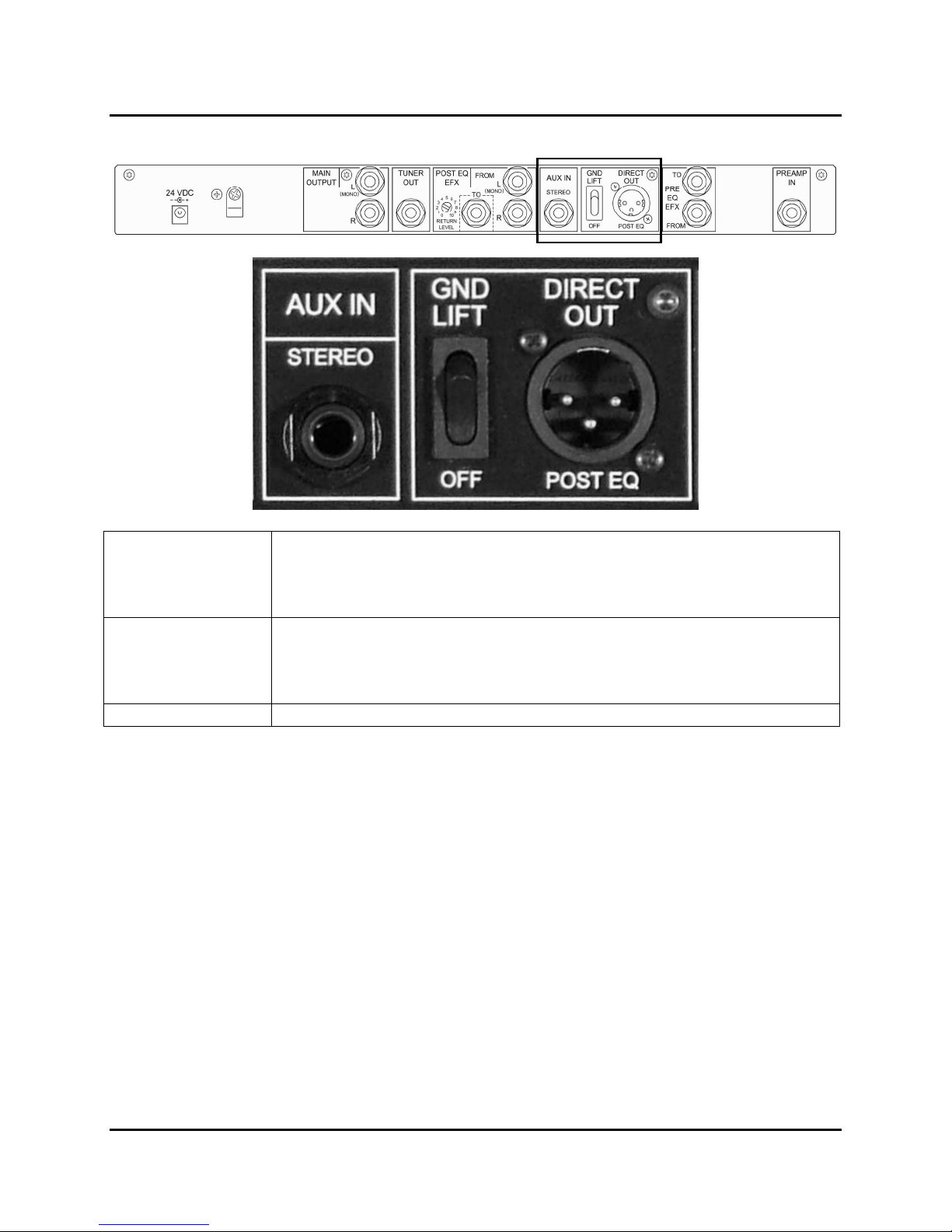

• Balanced XLR output for stage and studio use. Includes ground lift switch.

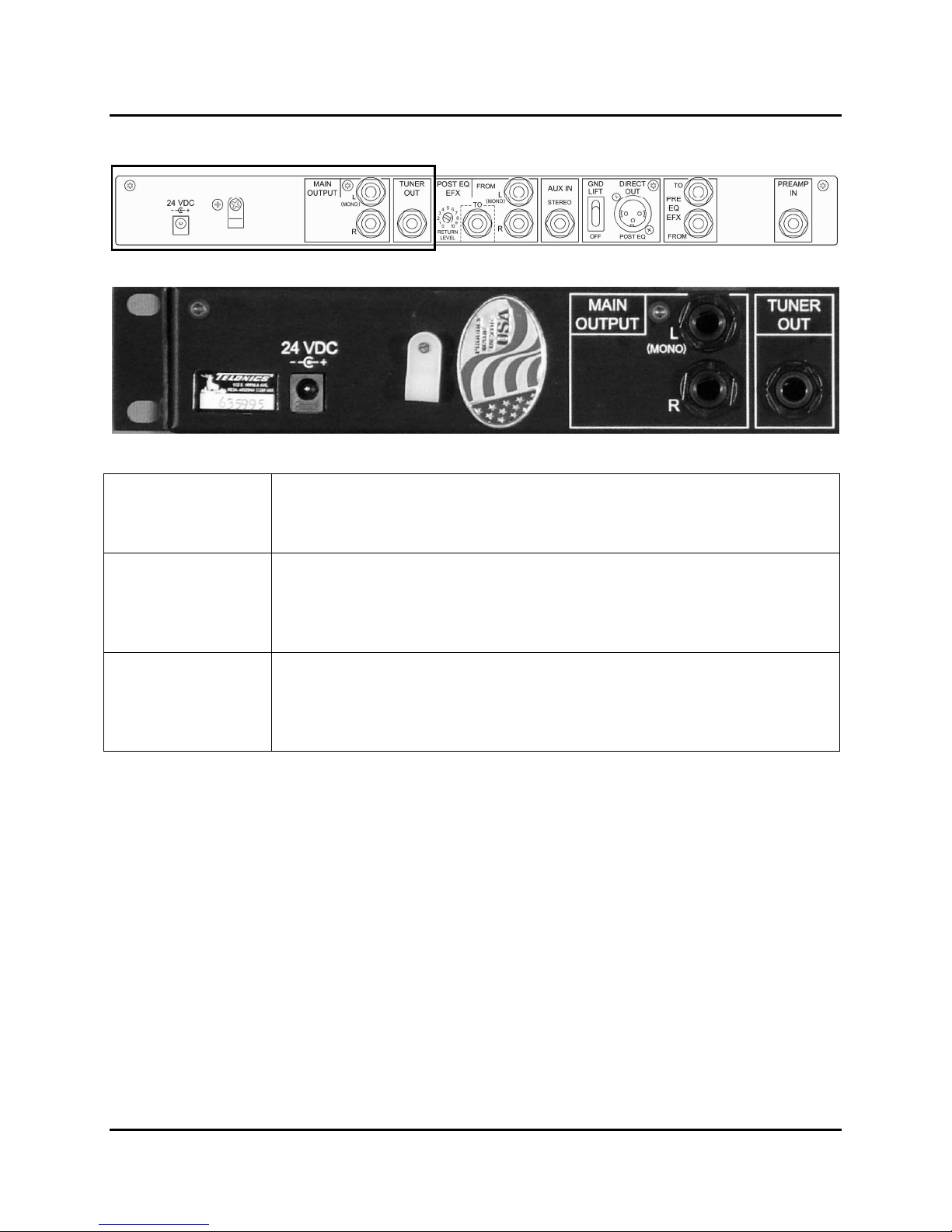

• Buffered output for tuner.

• Input jacks located both front and rear. Use only one or the other (the front panel jack

auto-disconnects the rear).

• Auxiliary stereo inputs for home practice or solo gigs with front panel level control. For

CD players or a second effects return. Jacks located both front and rear.

• Only requires 1U rack space.

• Durable construction throughout. Made for years of trouble free use.

• Proudly made in the U.S.A. by musicians and engineers.

Telonics PRE-200 Preamplifier 2

PB-008684 Rev A

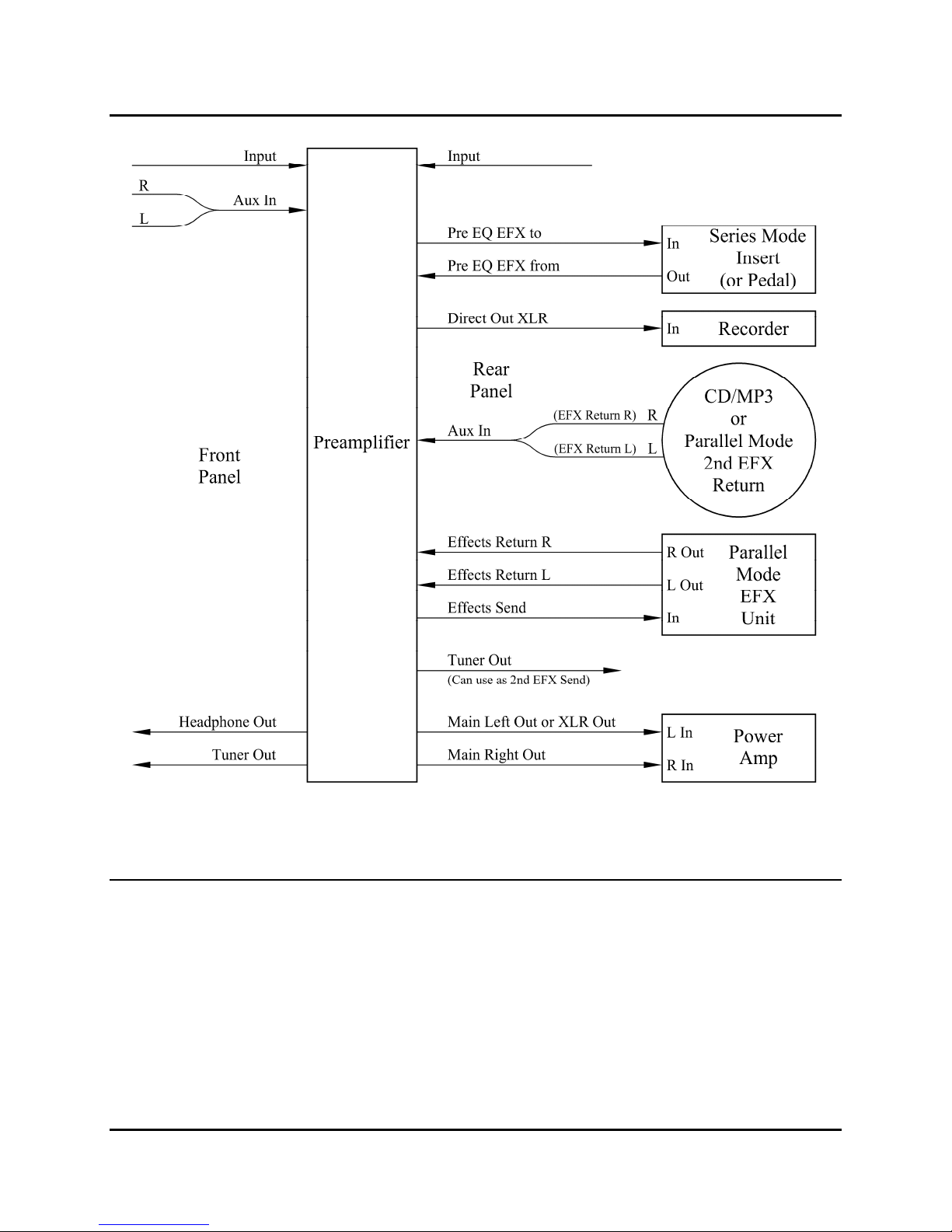

PRE-200 PREAMP CONTROL FUNCTIONS, JACKS, & INDICATORS:

FRONT PANEL

Preamp In There are two input connectors. Insertion of a plug into the front panel input

connector auto-disconnects rea r input conne ctor. This reduces or eliminates
possible noise sources.

Input Impedance
Adjust

Aux In There are two stereo input connectors. Insertion of a plug into the front panel

Reverb Level The Reverb Level controls how much of the wet signal from the internal digital

Aux In Level Sets the level for the stereo auxiliary input. This level control acts as an

Preamp Gain Sets the gain for the first audio stage. Start at 3 or 4. This gain control sets the

Set for best tone. If a pedal is used before the preamp, set fully clockwise. If this
function is not desired, set to taste (5 to 8 for normal tone). Adjustment range is
20 k ohms to 500 k ohms. See FAQ’s

input connector auto-disconnects rear input connector.

reverb is added to the output. Adjust to desired level. Note: Reverb input is the
combination of Post EQ EFX signal (Return Level rear panel) and the normal dry
mix (Preamp Gain on front panel).

attenuator. Fully clockwise (CW) is no attenuation and counterclockwise is full
attenuation. The Aux In is summed into the final stage and is not affected by the
[Preamp Gain] and [Master level]. If fully CW does not give enough volume you

will need to turn up the level at the source.

level for the [PRE-EQ/EFX To] connector on the back panel.

Telonics PRE-200 Preamplifier 3

PB-008684 Rev A

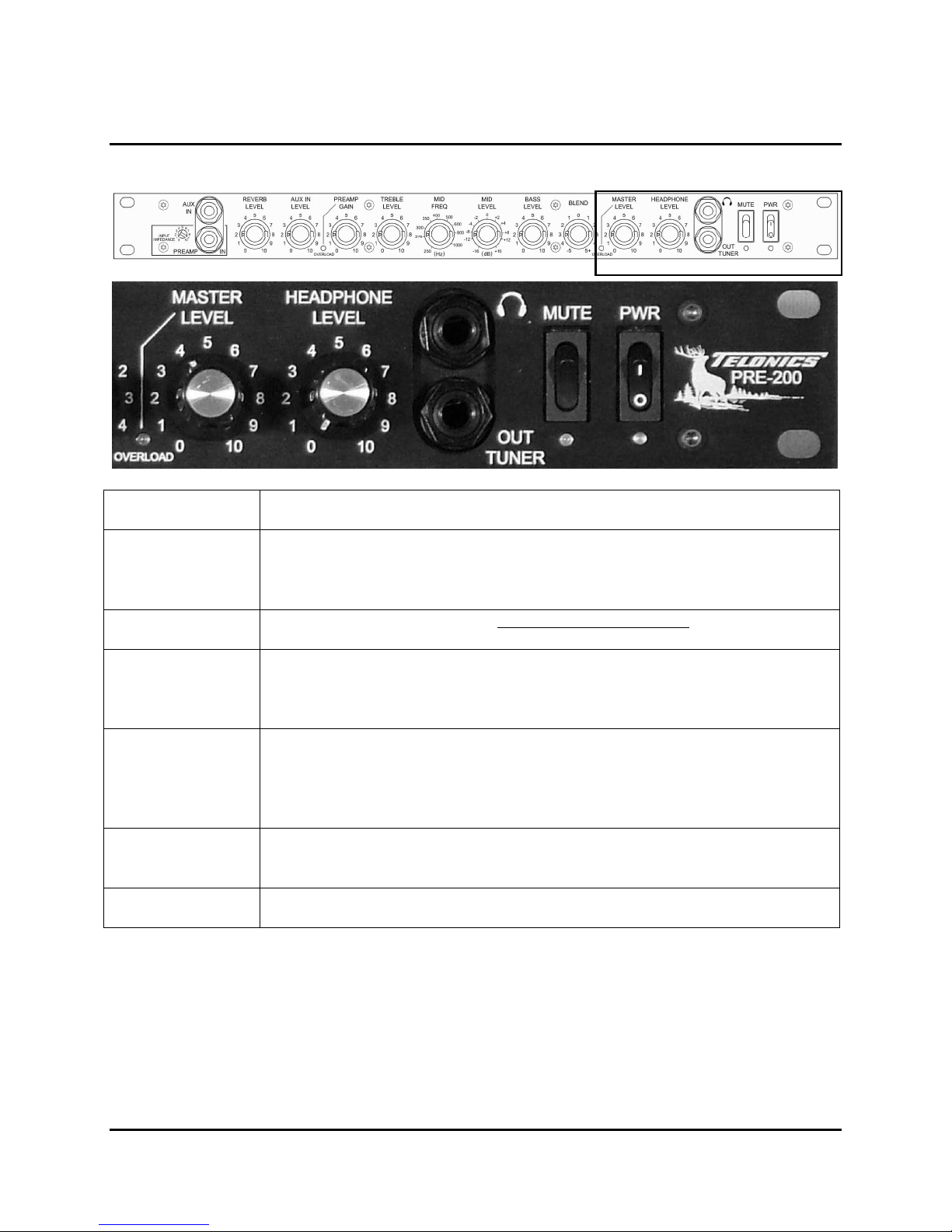

PRE-200 PREAMP CONTROL FUNCTIONS, JACKS, & INDICATORS:

FRONT PANEL (CONTINUED)

Treble Level Adjusts the high frequency level. Clockwise (CW) boosts the level of highs,

counterclockwise (CCW) cuts the level of highs. The level is adjustable from -16
dB cut to +16 dB boost. Start at 5 (flat) and adjust to taste.

Mid Frequency Sets the frequency at which the Mid Level control has an effect. Several

frequency intervals between 250 Hz and 1000 Hz are marked.

Mid Level Sets a boost or cut in the mid range frequencies selected by the Mid Frequency

control. Level is adjustable from -20 dB cut to +5 dB boost.

Bass Level Controls low frequency response. Start at 0 (flat) and adjust to taste.

CW is boost, CCW is cut. Level is adjustable from -16 dB cut to +16 dB boost.

Blend Only set this control after you have set the others. This is to be used as a sonic

“shading” control and, like any seasoning, a little goes a long way. Start at
12 o’clock. CW yields a “Mooney” bright aggressive sound; CCW gives you a
mellow, darker tone.

Telonics PRE-200 Preamplifier 4

PB-008684 Rev A
