Page 1
PW24
2.4GHZ WIRELESS SYSTEM FOR
POLICE VIDEO RECORDING
USER GUIDE
Revision B Page 1 of 8 3/29/06
Page 2
TABLE OF CONTENTS
1. Quick Set Up and Operation ....................................................... 3
2. Installation.................................................................................... 4
3. Guidelines For Best Performance................................................ 5
4. Troubleshooting Guide................................................................. 6
5. Technical Specifications .............................................................. 7
6. Service and Warranty .................................................................. 8
7. Components and Accessories ..................................................... 8
Revision B Page 2 of 8 3/29/06
Page 3
QUICK SET UP AND OPERATION
Synching Up The Transmitter and Base
1) Turn the transmitter power switch to on and place the transmitter in the
recharge cradle of the base. The transmitter goes in the base with the
beltclip facing out.
2) The recharge LED will light (Green if fully charged, Red if charging) and the
In-Use Green LED on the base and transmitter will flash 3 times.
3) The transmitter and base are now synched and will continue to be until
another transmitter is linked to that base or the base is powered down.
Normal Operation
Out of Range
4) With the transmitter synched up, remove it from the cradle, plug in the lapel
microphone (if used) and place the transmitter on your belt.
5) To start the recording, press the In-Use button and the In-Use LED will light a
constant green and you will hear a short beep
6) To end recording, press the In-Use button and the In-Use LED will turn off
and you will hear a short beep.
7) At the end of your shift turn the transmitter off and replace it in the charging
cradle.
8) If you use the Transmitter too far away from the Receiver during recording,
the transmitter will alert you with Audible warning beeps (two tone) and the
In-Use LED will blink in red.
9) Move closer to the receiver base and the link will be re-established once you
return to normal range. The In-Use LED will light constant green when link is
back to normal operation.
10) If the link is not re-established within 30 seconds, the transmitter and receiver
will return to standby mode.
11) If you went out of range in Standby mode, or the unit reverted to standby
mode, re-enter normal range and press the In-Use button. Operation will
return to normal.
12) If you will be out of range for a long period of time, turn the bodypack off.
Low Battery Warning
13) If the transmitter Low BATT indicator (red) starts flashing or you hear warning
beeps, return the transmitter to its cradle on the receiver to fully charge the
transmitter.
14) The Charge LED indicator will light constant green when the unit is fully
charged.
EMG Panic Button (if wired for use in your vehicle)
15) The EMG or Panic Button can be programmed to do many things but may
not be connected in your vehicle. Check with your technical department to
understand what this button will control before you use it.
16) In Record mode: Press the EMG button on the transmitter, a beep will sound
and the relay will be triggered at the receiver.
17) In Standby mode: Press the EMG button on the transmitter, a beep will
sound, the green In-Use indicator will blink and the relay will be triggered at
the receiver.
Revision B Page 3 of 8 3/29/06
Page 4

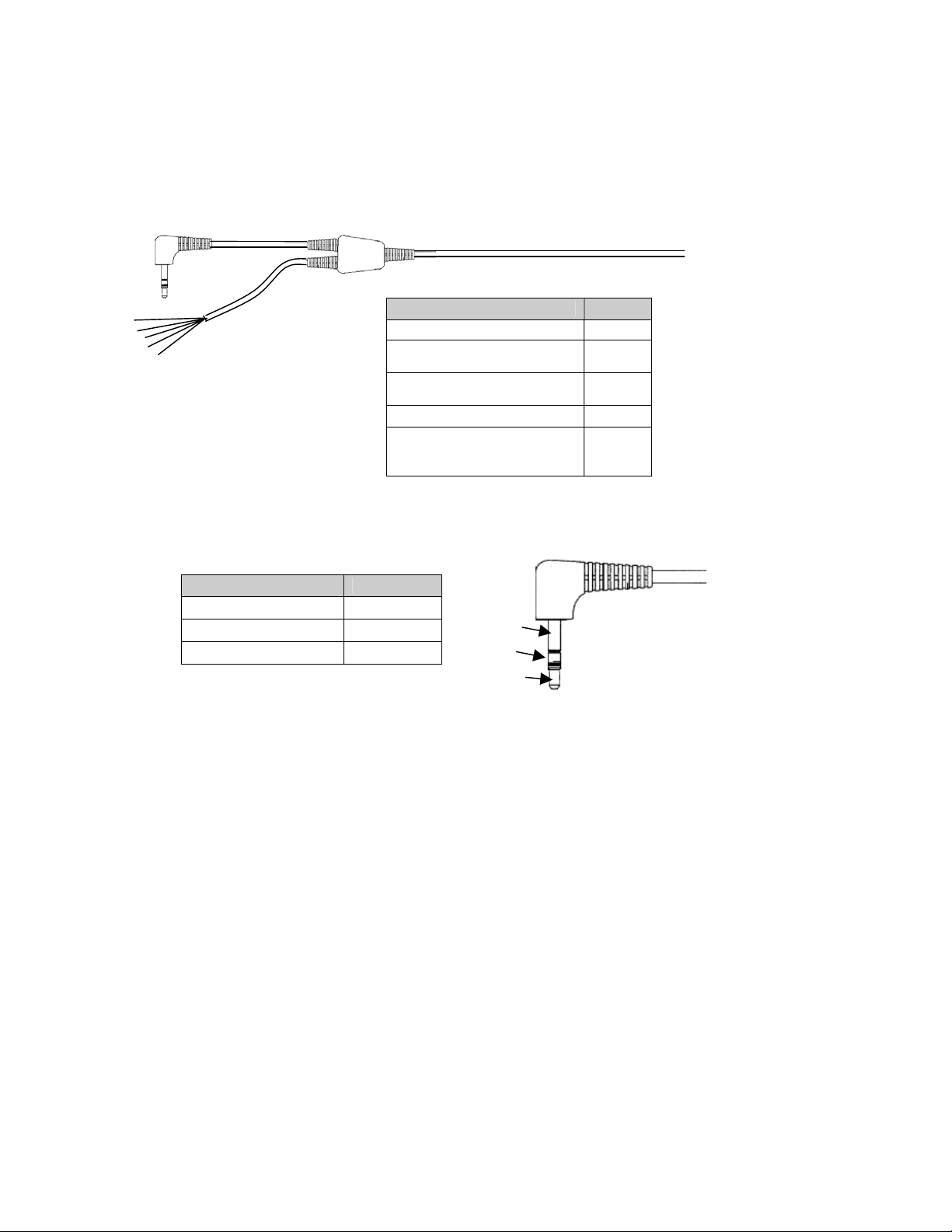

INSTALLATION
A
1. Wire the un-terminated signal wires to the control unit according to the signal chart. A 5
Amp fast blow fuse is recommend in the 12VDC power supply line to protect the
equipment.
udio In
12 FT
Un-terminated wires
Description Color
Power +12V DC Red
Microphone Trigger
(Ground = Transmitter On)
Left Channel (Ground to
enable Inside Microphone)
Power Ground Orange
AUX (Panic) Trigger
12V+ DC Output when EMG
button is pushed
Black
Yellow
White
2. Plug the 3.5mm stereo plug into the audio input jack of the recording device.
Description Position
Inside Car Mic Audio
Transmitter Audio
Audio Ground
Tip
Ring
Sleeve
Sleeve
Ring
Tip
3. If it is to be used, plug in the in-car microphone into the In-Car Mic jack in the side of the
receiver base.
4. Turn on the transmitter and place it in the charging cradle with the beltclip facing out.
The Charge LED will light and the In-Use LED will flash three times. If these lights do not
come on, check the connections and repeat.
Installation is complete. Refer to Operation Section for more information.
Revision B Page 4 of 8 3/29/06
Page 5
4) Guidelines and recommendations for best performance.
Compatibility
The transmitter and receiver must synchronize to work together by placing the transmitter into the
charging cradle while on. The In-Use LEDs will flash three times and the two are synchronized.
Any PR24 can be synchronized with any PB24 base.
Using Multiple Wireless Systems
The PW24 system has 40 possible “channels” that are really different frequency hopping
schemes. Each synchronized base and transmitter will automatically find a clear channel so up
to 40 systems can work together in one location depending on other interference problems.
Potential Sources of Interference
There are many potential sources of interference for your wireless system. Any electronic
product that contains digital circuitry including digital signal processors (reverb/multi-effects units),
electronic keyboards, digital lighting controllers, CD and DVD players, and computers, all emit RF
energy that can adversely affect the performance of your wireless system. It is always best to
place the receiver as far away as possible from these devices to minimize potential problems.
The PW24 operates in the 2.4MHz ISM band and other devices in that band may interfere. The
spread spectrum technique used in the PW24 is very robust and should operate even in the
presence of other 2.4MHz devices such as walkie-talkies, LANs, cordless phones, etc. in the
area.
Battery Recommendations
The Lithium-Ion battery built into the PB24 transmitter will work at full capacity for over 500
charge cycles. If you notice lower than usual battery life over time, it may be time to replace the
cell.
Revision B Page 5 of 8 3/29/06
Page 6
5) Trouble Shooting Guide
Problem Possible Causes Solutions
No audio and no In-Use LED
light on the receiver when
transmitter is on and In-Use
Transmitter and receiver not
No (or low) Audio with all InUse LEDs solid green
Receiver is not powered Make sure that the power
supply is properly connected
Turn on transmitter and place
synchronized
Lapel Microphone not connected
or positioned properly
in recharge cradle. In-Use
LEDs should flash 3 times and
the pair will be synched
Check the mic connection and
placement of the microphone
Receiver audio output cable is
damaged or disconnected
Interference Another 2.4GHz device in the
area causing interference.
Short range or drop-outs RF reflective metal obstacles
between the transmitter and
receiver
In-Use LED on beltpack flashes
red and two tone beep sounds
Transmitter is out of range Move closer to the receiver.
Connect, repair or replace
cable
Push the In-Use button and
the PW24 will automatically
select a clearer channel. If the
interference is too strong, this
may not completely eliminate
it.
Move the obstacles, or
reposition the receiver if
possible
Revision B Page 6 of 8 3/29/06
Page 7
PR24 RECEIVER BASE STATION
Indicators
INUSE LED: GREEN
CHARGE LED : CHARGING -> RED
FULL CHARGED -> GREEN
Connections
In Car Mic 2.5mm Mono Plug
Un-terminated Cord
RED +12V DC Power
BLACK Microphone Trigger (Ground = Transmitter On)
WHITE AUX (Panic) Trigger (+12V when EMG is pushed)
YELLOW Left Channel (Inside Mic)
ORANGE Power Ground
Audio Connector
Tip Inside Car Mic
Ring Transmitter Audio
Sleeve Audio Ground
RF Specifications
Frequency Range: 2.4GHz
Number of Channels: 40 possible
Diversity: Internal antenna
Receiver Type: DSSS
RF Sensitivity: -102 +/-3 dBm(I,Q signal level at -3dB point))
FCC type acceptance: Approved under Part 15
Audio Specifications
Frequency Response: 200 ~ 3400Hz +/- 3 dB
Audio Output Level: 3.6Vp-p
Distortion: Less than 2%
Signal to Noise Ratio: > 40 dB
Dynamic Range: > 50 dB
General Specifications
Range 800 feet typical
Power Supply: External 12 VDC
Current Draw: 190mA Typical
Size: 2.75in x 2.99in x 3.15in
70mm x 76mm x 80mm
Weight 233 g
PB24 Bodypack Transmitter
Controls
On/Off Switch
In Use Button
Emergency Button
Indicators
Red LED low battery indicator/Emergency indicator
Yellow LED In Use
Battery Internal Li-ion 3.7V/1300mAh cell
Battery Life 8 hours In Use with full charge
14days Standby
Battery Recharge Time 3.5 hours from full discharge
Antenna Internal
2.5mm Mic Connector Tip Signal
Sleeve Ground
Secondary Microphone Internal
RF Output 30 ~ 40 mW (typical)
Size 2.5 in. x 1.8 in. x 0.94 in.
64 mm x 46 mm x 24 mm
Weight 74 g
Revision B Page 7 of 8 3/29/06
Page 8
Factory Service (North America)
If factory service is required, ship the unit prepaid in its original carton to:
Telex Audio Service
c/o Telex Communications
8601 East Cornhusker Highway
Lincoln, NE 68507-9702 U.S.A.
Tel: 402/467-5321 or 800-553-5992
Fax: 402/467-3279
Enclose a note describing the problem along with any other pertinent information and how to contact you.
Warranty (Limited)
Telex products are guaranteed against malfunction due to defects in materials or workmanship for a specified period, as
noted in the individual product-line statement(s) below, or in the individual product data sheet or owner's manual,
beginning with the date of original purchase. If such malfunction occurs during the specified period, the product will be
repaired or replaced (at our option) without charge. The product will be returned to the customer prepaid via UPS Ground.
Exclusions and Limitations: The Limited Warranty does not apply to: (a) exterior finish or appearance; (b) certain
specific described in the individual product-line statement(s) below,
or in the individual product data sheet or owner's manual; (c) malfunction resulting from use or operation of the product
other than as specified in the product data sheet or owner's manual; (d) malfunction resulting from misuse or abuse of the
product; or (e) malfunction occurring at any time after repairs have been made to the product by anyone other than
Electro-Voice or any of its authorized service representatives.
Obtaining Warranty Service: To obtain warranty service, the customer must deliver the product, prepaid, to Telex
together with proof of purchase of the product in the form of a bill of sale or receipted invoice.
Incidental and Consequential Damages Excluded: Product repair or replacement and return to the customer are the
only remedies provided to the customer. Telex shall not be liable for any incidental or consequential damages including,
without limitation, injury to persons or property or loss of use.
Other Rights (United States Only): This warranty gives you specific legal rights and you may also have other rights,
which vary from state to state.
Telex 2.4GHz Wireless Systems are guaranteed against malfunction due to defects in materials or workmanship for a
period of one (1) year from the date of original purchase. The Limited Warranty does not extend to cables or cable
connectors. Additional details are included in the Uniform Limited Warranty Statement. Technical Assistance: 800-3923497(U.S. and Canada only)
ACCESSORIES AND PARTS
Police Wireless PW24
Model
Part #
DESCRIPTION
One PB24 transmitter and one PR24 receiver, no
PW24 302039001
microphone
Bodypack transmitter with internal microphone,
PB24 302039002
internal Li-ion battery cell, belt clip, no microphone
Receiver and recharge station, un-terminated
PR24 302039003
connection cable
TC-24 302039004 Optional TX Charger Base for PB24
KT24-ML 302039007 Lapel Microphone for PB24
PW24-MI 302039005 In Car Microphone
Revision B Page 8 of 8 3/29/06
