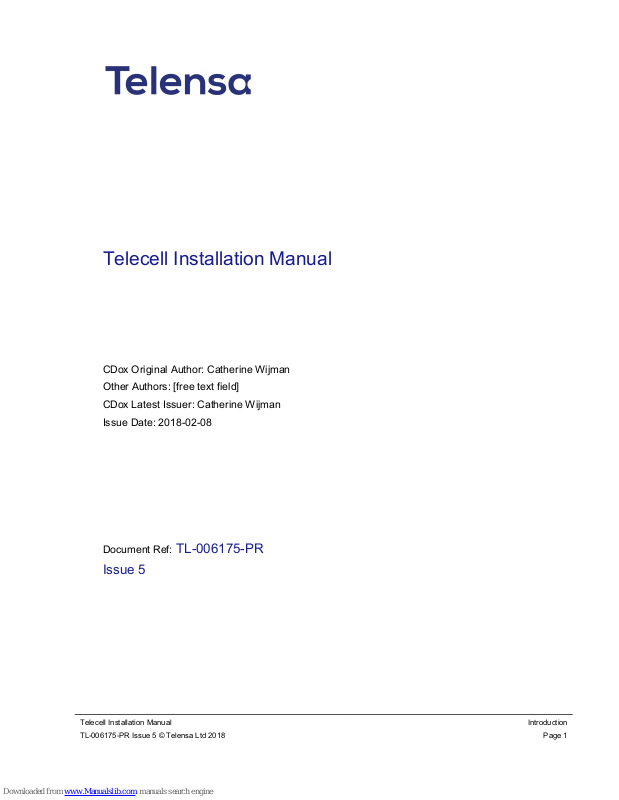

Telensa Telecell Installation Manual

Telecell Installation Manual Introduction
TL-006175-PR Issue 5 © Telensa Ltd 2018 Page 1

Telecell Installation Manual

CDox Original Author: Catherine Wijman
Other Authors: [free text field]
CDox Latest Issuer: Catherine Wijman
Issue Date: 2018-02-08

Document Ref: TL-006175-PR

Issue 5

Telecell Installation Manual Introduction
TL-006175-PR Issue 5 © Telensa Ltd 2018 Page 2

Notices

This document is provided to you by or on behalf of Telensa Ltd.
© Telensa Ltd 2018.
The documentation and any software described herein and/or provided to you in

conjunction with this documentation contain proprietary and confidential information of
Telensa Ltd and may only be used subject to a license agreement containing restrictions
on use and disclosure. They are also protected by copyright, patent rights and other
intellectual and industrial property laws. The information contained in this document and
any software described herein is subject to change without notice. If you find any
problems in the documentation and/or the software, please report them to us in writing.
The document and/or the software are not warranted to be error-free. No right, title,
license or interest in any physically or electronically distributed materials is transferred to
you by such distribution. No part of this document and/or the software may be
reproduced, displayed, copied, translated, adapted, downloaded, electronically
transmitted, used or reproduced in any form including (without limitation) distribution or
storage in a system for retrieval without our express written permission (which may be
subject to conditions).

The documentation and/or software may provide links to Web sites and access to
content, products, and services from third parties. Telensa Ltd is not responsible for the
availability of, or any content provided on, third-party Web sites. You bear all risks
associated with the use of such content. If you choose to purchase any products or
services from a third party, the relationship is directly between you and the third party.
Telensa Ltd is not responsible for: (a) the quality of third-party products or services; or
(b) fulfilling any of the terms of the agreement with the third party, including delivery of
products or services and warranty obligations related to purchased products or services.
Telensa Ltd is not responsible for any loss or damage of any sort that you may incur
from dealing with any third party.

Telensa Ltd is the owner of the “Telensa” trademark and all associated trade names,
logos and devices unless indicated to the contrary. Any other trademarks, logos and
names appearing on in this document may be the property of their respective owners.

Telensa Ltd is a Private Limited Company Registered in England and Wales
Company No. 4498125

Registered Office:
Telensa Ltd
Iconix 3
London Road
Pampisford
CB22 3EG
UK
Tel: [phone]

Further company information may be found at www.telensa.com.

Telecell Installation Manual Introduction
TL-006175-PR Issue 5 © Telensa Ltd 2018 Page 3

Table of Contents

1 Introduction ........................................................................................... 5

1.1 Overview ................................................................................................. 5

1.2 General Warnings and Cautions.............................................................. 7

1.3 Packing and Handling Instructions .......................................................... 7

1.4 Telecell Regulatory Statements and Compliance Information .................. 8

1.4.1 United States of America (FCC) .................................................................... 8

1.4.2 Canada (IC) ................................................................................................... 8

1.4.3 Europe (ETSI) ................................................................................................ 9

1.5 Related Information ............................................................................... 10

1.6 Terminology .......................................................................................... 10

1.7 Essential information ............................................................................. 10

1.7.1 Installer ........................................................................................................ 10

1.7.2 Administrator ................................................................................................ 11

1.7.3 Pre-Provisioning .......................................................................................... 11

1.7.4 Power Requirements ................................................................................... 11

1.8 Recording Telecell Identity at Installation .............................................. 11

1.9 Standard Deployment Equipment .......................................................... 13

1.9.1 Standard deployment equipment includes: ................................................. 13

1.9.2 Installer Supply List:..................................................................................... 13

2 Installation ........................................................................................... 14

2.1 Installation Tasks .................................................................................. 14

2.1.1 Two-Part Mounting ...................................................................................... 17

2.1.2 Two-Part Antenna Connection .................................................................... 17

2.2 Wiring Diagrams .................................................................................... 18

2.2.1 Wire Gauge .................................................................................................. 19

2.2.2 Plug in locking type ...................................................................................... 19

2.2.3 Conduit and Two-Part with Dimming ........................................................... 19

2.2.4 Conduit and Two-Part without Dimming ...................................................... 20

3 Commissioning ................................................................................... 21

3.1 Commission a Telecell .......................................................................... 21

3.2 Set Up a Telecell ................................................................................... 21

3.3 Configuration ......................................................................................... 21

Telecell Installation Manual Introduction
TL-006175-PR Issue 5 © Telensa Ltd 2018 Page 4

3.3.1 Set Telecell to Asset .................................................................................... 21

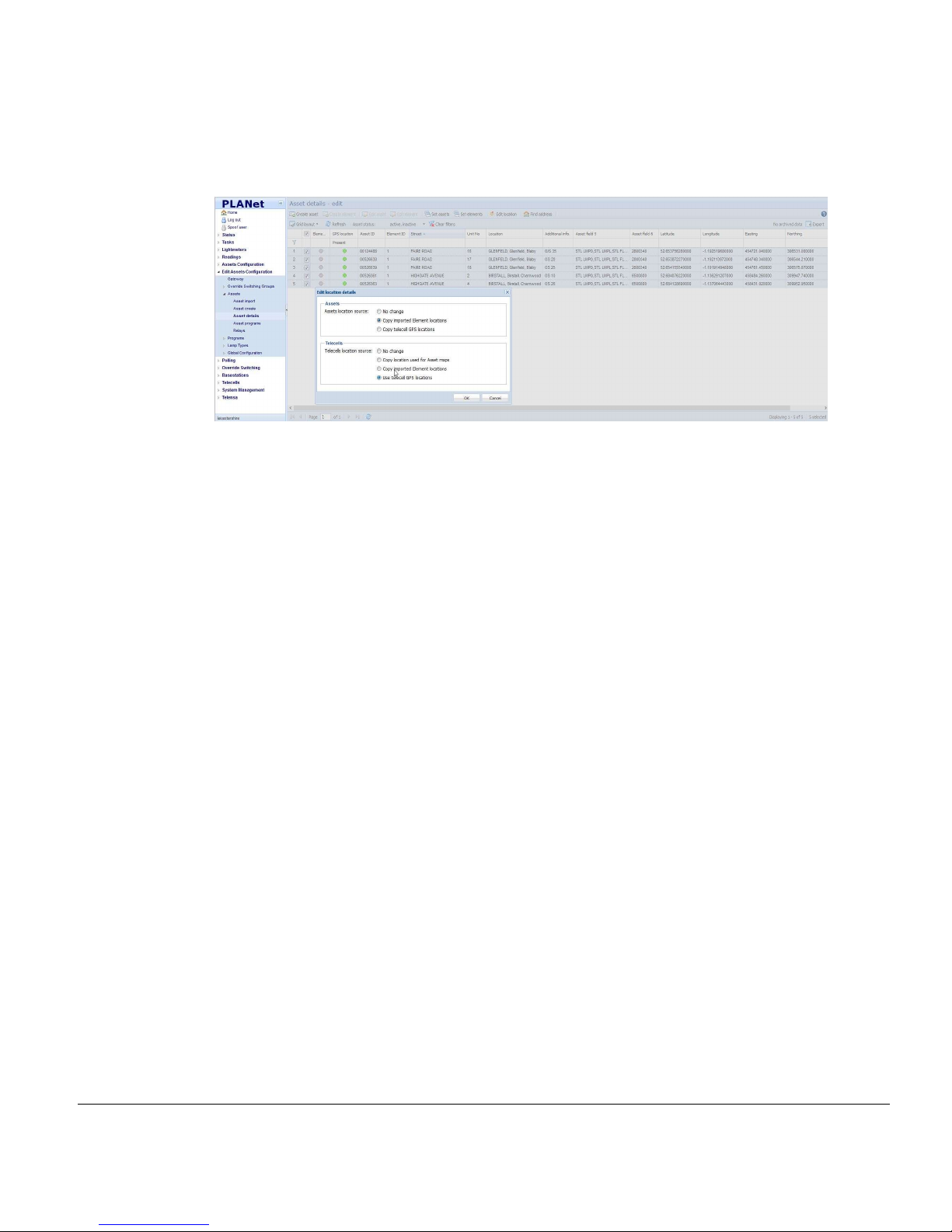

3.3.2 Set Location ................................................................................................. 23

3.3.3 Set Programmes .......................................................................................... 24

3.4 Operational Checks ............................................................................... 25

3.5 Bring the Telecell into Service ............................................................... 25

3.5.1 Connection Status ....................................................................................... 25

3.5.2 Telecell Control ............................................................................................ 26

3.6 Example Installation Data Capture Sheet ................................................ 1

3.7 Example Commissioning Record Sheet .................................................. 1

Telecell Installation Manual Introduction
TL-006175-PR Issue 5 © Telensa Ltd 2018 Page 5

1 Introduction

1.1 Overview

This manual covers the installation, test and commissioning guidelines for the Telensa
Telecells.

The system must be configured correctly to allow PLANet to function fully. This guide
serves as a tool to aid the installation of component parts, mainly the setup of the system
so that reports and data returns are accurate.

This document details the installation of component parts, configuration of Assets and
confirmatory checks.

Below is the Telecell Work Flow Diagram showing the following processes:

 Ordering
 Installation
 Test and Commission

Telecell Installation Manual

Introduction

TL-006175-PR Issue 5 © Telensa Ltd 2018

Page 6

Pre-Ship

Activity

Installation and Setup Process

Telecells ordered

Telecells shipped and

entered onto TGC by

Telensa

Telensa export the

Telecell information

into the PLANet

system

User can now view

the Telecells on the

Telecells page within

the PLANet UI

Placed in

Customer stores

Sent to Luminaire

manufacturer for

Pre-Install

Brought from

Customer stores for

installation

Assign Telecell to Asset

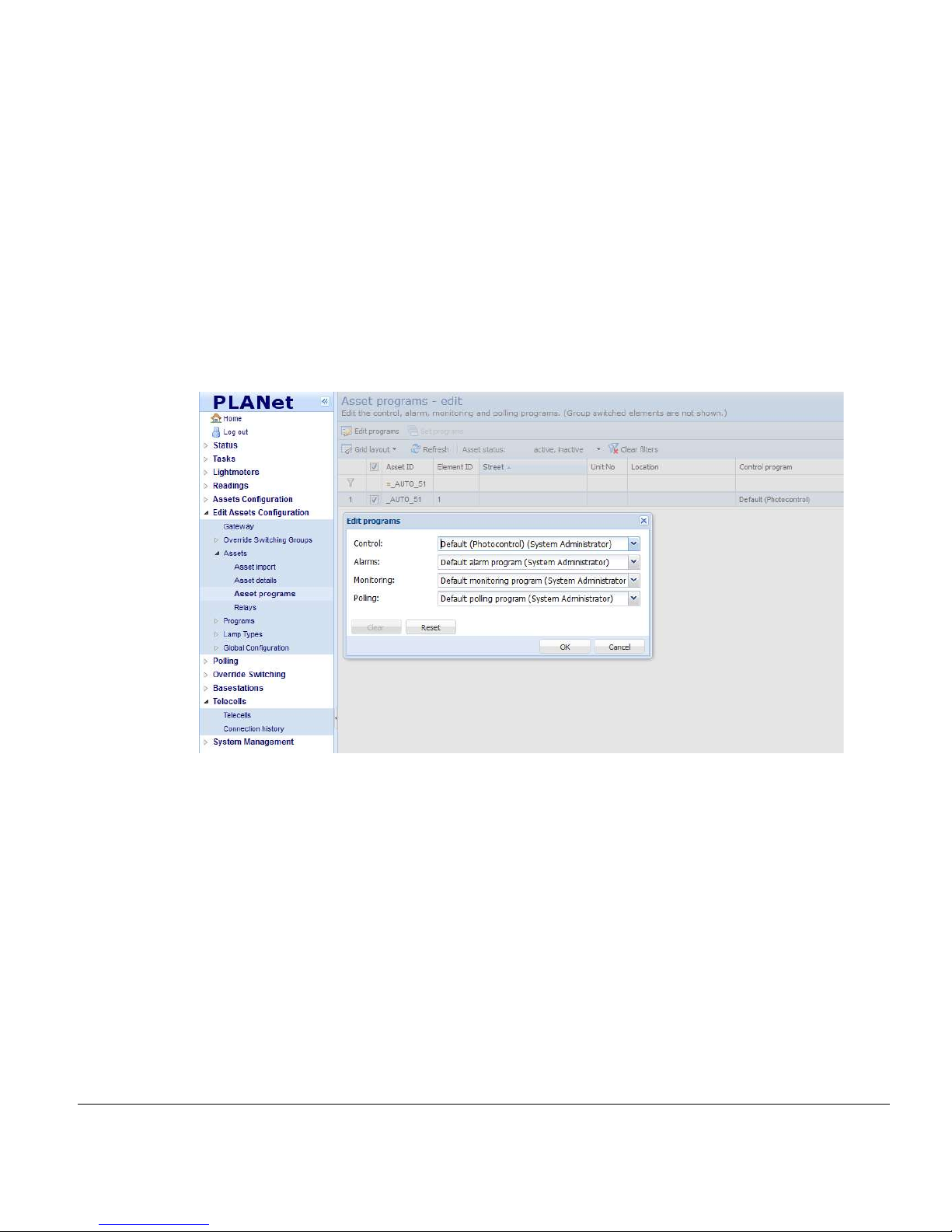

Assign Programs

(control/monitor/

alarm)

Set Map Location

Set Dimming Module

Type

Assign Lamp Type

Test &

Commissioning

Process

Check power

readings show lamp

type is assigned

Check Event Log

Override Asset

Poll Asset

Poll Asset

storage

pre-install

Some activities may be performed by Telensa or Customer depending on the agreed contract

System Administrator Activity

System Administrator Activity

Installer Activity

Capture relevant Data

Perform Power On/Off

Test

Telec

ell Installation Manual

Introduction

TL-006175

-PR

Issue 5 © Telensa Ltd 2018

Page 7

1.2 General Warnings and Cautions

This section provides safety and regulatory warnings, cautions and information for the
Telecell and its internal components. Details of manufacturer's source documents are
noted where they are used.

Installers must be suitably trained and qualified for electrical work, according to the laws
and local codes for the locality and country where the unit will be installed. This unit must
only be installed by personnel that have been trained by Telensa or their representatives to
carry out this work.

The supply voltage present in the luminaire and its plug in locking type socket is hazardous
and all necessary precautions must be taken to ensure the safety of the installer. Isolate
the supply to the plug in locking type socket before removing an old photocontrol, and
installing the Telecell.

The transmitter must not be co-located or operated with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20cm from
bystanders.

1.3 Packing and Handling Instructions

Telecells are electronic devises containing processors, a radio module and memory.
Although encased in a robust outer shield, Telecells should be treated with care.

Dropping the Telecell from a height could cause irreparable damage.
Ensure that pins are protected, remaining in their original packaging and kept dry during

transportation and installation.
If returned to Telensa, Telecells must be packaged to the same standard prior to shipping.

Telec

ell Installation Manual

Introduction

TL-006175

-PR

Issue 5 © Telensa Ltd 2018

Page 8

1.4 Telecell Regulatory Statements and Compliance Information

1.4.1 United States of America (FCC)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:

 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and receiver
 Consult a dealer or an experienced radio/TV technician for help

Note that no changes shall be made to the equipment without the manufacturer’s
permission as this may void the user’s authority to operate the equipment.

This transmitter must not be co-located or operated with any other antenna or transmitter
This device complies with Part 2.1091 of the FCC Rules for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.

Transmit Band: 902.0 – 928.0 MHz
Transmit Power: 20 dBm

1.4.2 Canada (IC)

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to
the following two conditions: 1) This device may not cause interference; and 2) This device
must accept any interference, including interference that may cause undesired operation of
the device.

The radio transmitters (12199A-2TXD and 12199A-2NPD) have been approved by
Industry Canada to operate with the antenna types listed below with the maximum
permissible gains indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for use with this
device.

Telec

ell Installation Manual

Introduction

TL-006175

-PR

Issue 5 © Telensa Ltd 2018

Page 9

This device is exempt from the standard RSS-102 RF exposure assessment requirements
section 2.5.2. This equipment must be installed and operated with a minimum distance of
20 cm between the radiator and passers-by.

Déclaration de conformité Industrie Canada (IC)

Le présent appareil est conforme aux CNR d’Industrie Canada (IC) applicables aux
appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

1) l’appareil ne doit pas produire de brouillage;

2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.

Les émetteurs radio (12199A-2TXD and 12199A-2NPD) ont été approuvés par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous avec les gains
maximaux admissibles indiqués. Les types d'antennes non inclus dans cette liste, ayant un
gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une
utilisation avec cet appareil.

Cet appareil est exempté des exigences habituelles d'évaluation de l'exposition RF de
RSS-102, section 2.5.2. Cet équipement doit être installé et utilisé avec une distance
minimale de 20 cm entre le radiateur et les passants.

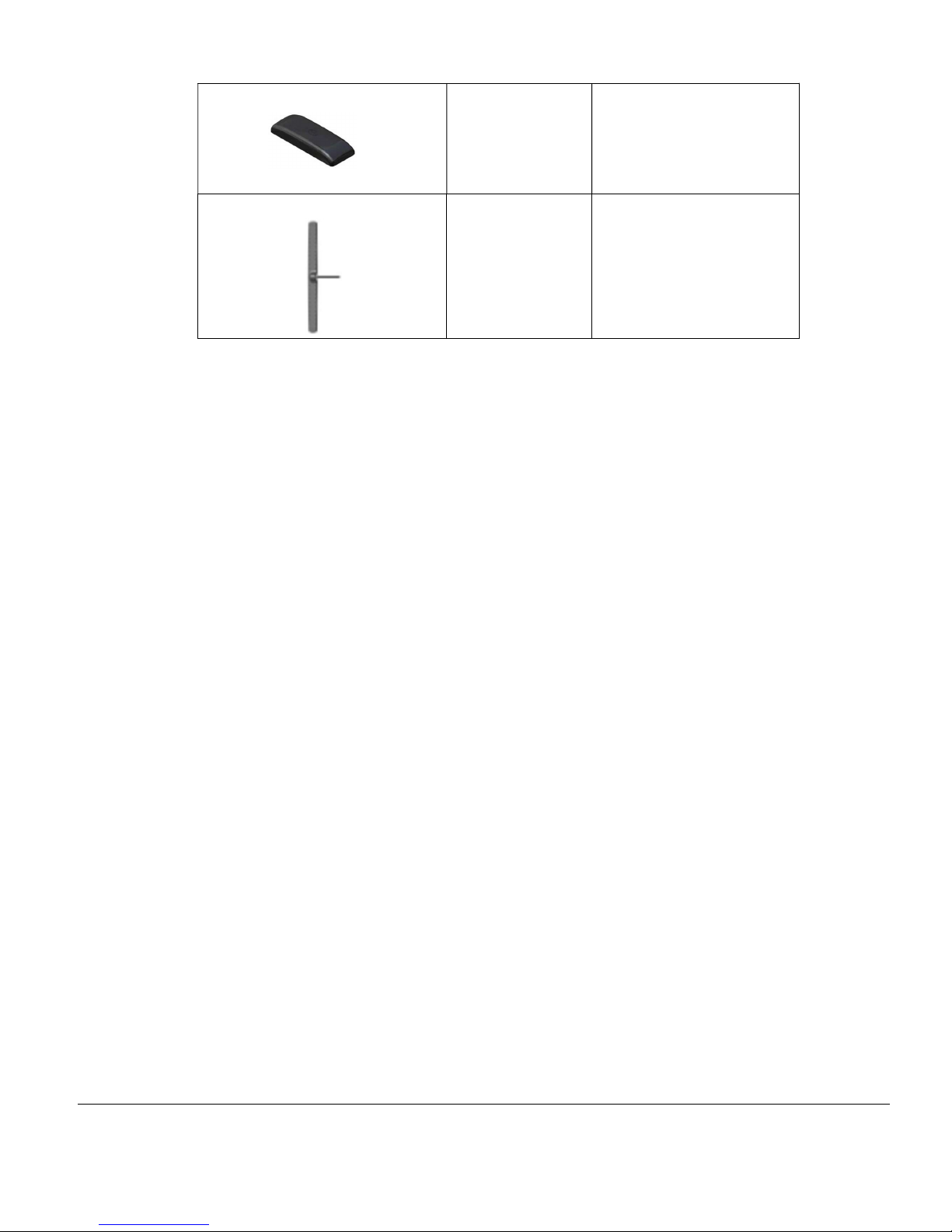

Telensa Part Number Isotropic Gain (dBi)

ANT-S-EF-M 2
ANT-S-TW-A 2

ANT-S-LP-A 0

ANT-S-HG-A 5

Transmit Band: 902.0 – 928.0 MHz
Transmit Power: 20 dBm

1.4.3 Europe (ETSI)

Essential requirements of Directive 2014/53/EU
Manufacturer: Telensa Limited, Iconix 3, CB22 3EG, UK
Transmit Band: 868.0 to 868.6 MHz
Transmit Power: 14 dBm ERP
