T-LightTM LCU (Light Control Unit) NEMA Galaxy
User Manual
Models: LCUN3HG
Revision 1.1, November 11, 2019
Copyright © Telematics Wireless Ltd.
All rights reserved
The document contains proprietary information of
containing restrictions on use and disclosure, and is also protected by copyright law.
Due to continued product development this information may change without notice. The information and intellectual property
contained herein is confidential between
Telematics Wireless Ltd. If you find any problems in the documentation, please report them to us in writing. Telematics
Wireless Ltd.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Telematics Wireless
Ltd.
does not warrant that this document is error-free.
Telematics Wireless Ltd. and the client, and remains the exclusive property of
Telematics Wireless, Ltd.; it is provided under a license agreement
Content
About Telematics Wireless Products ................................................................................................... 3
Description ........................................................................................................................................ 3
Smart Lighting System Overview ........................................................................................................ 4
LCU NEMA Galaxy .............................................................................................................................. 5
Standard Features .................................................................................................................................... 5
“Auto Detection and Verification” Software ............................................................................................ 5
Optional Features ..................................................................................................................................... 6
LCU NEMA Supported Data Transfer ........................................................................................................ 6
Technical Specifications ..................................................................................................................... 7
RF Radio Characteristics ........................................................................................................................... 7
Environment ............................................................................................................................................. 7
LCU NEMA Dimensions ............................................................................................................................. 7
LCU NEMA Electrical Structure............................................................................................................ 8
LCU NEMA Contacts/Wiring ..................................................................................................................... 8
LCU NEMA Contact Details ....................................................................................................................... 9
LCU NEMA Pinout ..................................................................................................................................... 9
Standards Compliance ...................................................................................................................... 10
Regulation Information .................................................................................................................... 11
FCC and Industry Canada Class B Digital Device Notice ......................................................................... 11
Industry Canada interference Notice ..................................................................................................... 11
FCC interference Notice .......................................................................................................................... 12
FCC and Industry Canada Radiation Hazard Warning............................................................................. 12
Installation Requirements
Mandatory Customer-Supplied Equipment............................................................................................ 13
Mandatory Voltage Surge Protection ................................................................................................. 13
Mandatory Current Surge Protection ................................................................................................. 13
Location 13
Post-Installation Commissioning ............................................................................................................ 14
Contact Details ................................................................................................................................ 14
................................................................................................................ 13
2
About Telematics Wireless Products
Telematics Wireless products have been evaluated as Information Technology Equipment (ITE), which
may be installed in Central Offices, Telecommunication Centers, offices, computer rooms, and similar
commercial type indoor or outdoor locations.
Telematics Wireless is an associate member of the TALQ Consortium, and its products are ELEXON
approved. The T-Light™ Wireless Light Control Unit (LCU) is also certified by Intertek.
Description
The T-Light™ Wireless Light Control Unit (LCU) and its communication interface with the T-Light
management software are key components in the Telematics Wireless Smart Lighting System. The LCU is
a wireless control unit installed in one of the following locations:
• On top of the luminaire fixture (External)
• In the luminaire fixture (Internal)
• In the base of the pole (Internal)
The LCU handles the collection and transmission of luminaire data and the execution of commands on the
luminaire from the Smart Lighting System Control Management Software (CMS) via a Data
Communication Unit (DCU) gateway.
3
Smart Lighting System Overview
The Smart Lighting System collects data from and manages the operation of remote street luminaires. The
System consists of the following components:
• LCU – Located on top of or inside the luminaire cover, or in the light pole, the LCU sends sensor data
and executes scheduled and unscheduled luminaire control commands, such as on/off and dim,
received from the CMS Application Server.
• DCU Gateway – Network gateway between LCU and CMS transmits luminaire data and luminaire
control commands.
• CMS – Web-based backend application server provides real-time management: receives LCU
communications from the DCU and sends luminaire control commands to the DCU for transmission
to LCUs.
CMS usually contains a database of static and dynamic LCU information: ambient light values, lighting
and dimming schedules, power usage, status, etc.
Figure 1 – System Topology
4
LCU NEMA Galaxy
The LCU NEMA Galaxy is an external luminaire control device which is installed on top of the luminaire
cover into a standard NEMA socket. Control features offer On/Off and dimming level operations.
Monitoring features include identification of lamp and electrical issues and measurement of electrical
parameters.
The LCU NEMA Galaxy uses standard NEMA socket “twist and lock” installation on top of a pole or
luminaire cover, according to ANSI C136.10 and C136.41 specifications.
Standard Features
• Light sensor - Operates as a photocell with the integrated microcontroller and is used as a backup light
control in the event of microcontroller failure.
• Energy meter - Continuous measurement collection and aggregation.
• Integrated RF antenna.
• Over the air firmware updates.
• Each unit is configurable as a repeater, resulting in one additional ‘hop’ from the DCU.
• Real Time Clock (only when connected to the system or when unit received its time zone from the
system and operates with GPS)
• Network data is protected by AES 128 encryption.
• Relay Control for LED driver/ballast power.
• Uses licensed frequency.
• Built in GPS receiver for auto-commissioning
• “Auto Detection and Verification” Software
“Auto Detection and Verification” Software
The LCU NEMA includes the Telematics “Auto Detection and Verification” software that automatically
detects and stores the ballast type (1-10V or DALI) in the LCU. The ballast type is then retrieved during the
commissioning process, thereby eliminating the need to enter it manually into the CMS (auto detection
process also occur each time the power turns on from off state)
5
Optional Features
• Built-in GPS receiver for full auto-commissioning.
LCU NEMA Supported Data Transfer
With the proper matching of LED driver, the following data information will be provided.
• Current
• Voltage
• Lamp energy (kWh)
• Metered/Active power (Watt)
• Power Factor
• Lamp Burning hours
• LED Driver Temperature (depend on LED driver characteristics)
6
Feature
Specification
Dimming – Ballast/Driver Communication Protocols
DALI
Operating Input Voltage
347-480V AC @50-60Hz
Load Current
2A
Internal Surge Protection
620J (20kA)
MTBF
>1M hours
Isolation
2.5kVac/5mA/5Sec
Power Consumption
Up to 2W
Parameter
Value
Unit
Operating Frequency:
450-470, License band
MHz
Network Topology
Star
Modulation
4GFSK
Maximum Transmitter output power
+28
dBm
Bandwidth
6.25
KHz
Data Rate
4.8kbps
Receiver sensitivity, typical
-115dBm@4.8kbps
dBm
Antenna Type
built in Antenna
-40° F to 158° F
IP Rating
IP 66 per IEC 60529-1
Model
Measurements
External – NEMA
3.50 in D x 3.86 in H
Weight
245 g
Technical Specifications
(different configurations depend on part number
ordering information)
RF Radio Characteristics
Analog 0-10V
PWM
Environment
Operating Temperature
LCU NEMA Dimensions
7
(-40° C to +70° C)
(89 mm D x 98 mm H)
Figure 2 - LCU NEMA 480 Galaxy Enclosure
LCU NEMA Electrical Structure
LCU NEMA Contacts/Wiring

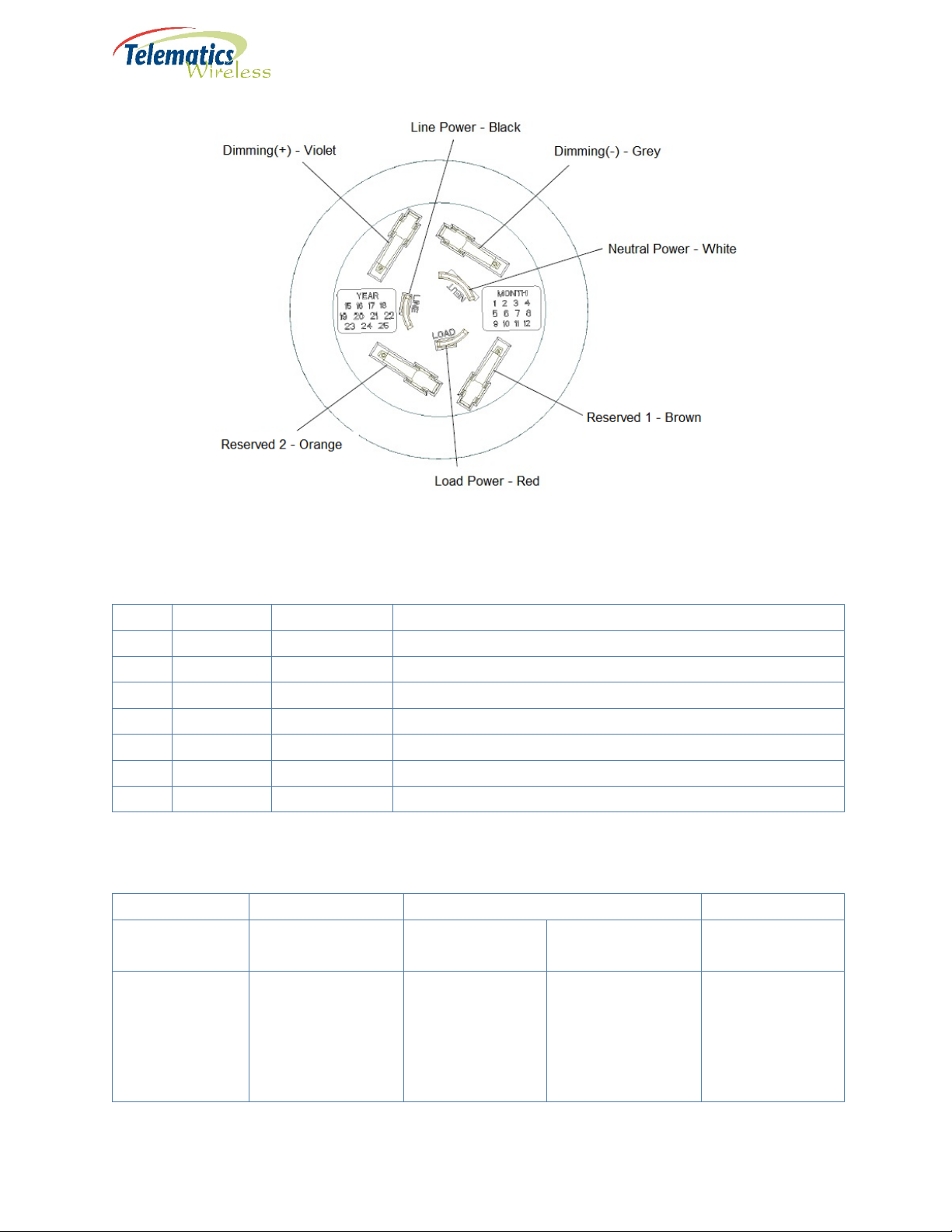

Following is a wiring diagram for a NEMA receptacle with dimming pads for use with the LCU NEMA:
Figure 3 - NEMA Receptacle Wiring Diagram for use with LCU NEMA
8
#
Wire Color
Name
Purpose
1
Black
Li
AC Line In
2
White
N
AC Neutral
3
Red
Lo
AC Line Out: Load
4
Violet
Dim+
DALI(+) or (+)0-10V or PWM or RS485-A
5
Gray
Dim-
Common GND: DALI(-) or (-) 0-10V or RS485-B
6
Brown
Reserved 1
Digital IO or Analog In or RS485-A (optional)
7
Orange
Reserved 2
Digital IO or RS485-B (optional)
LED Driver
Model
Pin 1-2
Pins 3-2
Pins 5-4
Pins 6-7
External NEMA
Main AC Line IN
AC for lamp Line
Dimming – 0-10V
For future user
Figure 4 - LCU NEMA 7-Pin Contact Interface
LCU NEMA Contact Details
LCU NEMA Pinout
Black-White
7-pin
Main AC Neutral IN
Red-White
OUT
Neutral IN
Gray-Violet
Analog, DALI, PWM,
Modbus RS485
Brown-Orange
purposes, for
example, sensors,
Modbus RS485,
GPIO-digital or
analog
9
Region
Category
Standard
All
Quality Management
ISO 9001:2008
Locking Type
ANSI C136.41
IP Rating
IP 66 per IEC 60529-1
United States
Safety
UL773
EMC/Radio
47CFR FCC Part 90 and Part 15 subpart B Class B
Standards Compliance
Systems
Canada
CSA C22.2#205
RSS-119 and ICES-003 Class B
10
Regulation Information
FCC and Industry Canada Class B Digital Device Notice
The digital circuit of this device has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Industry Canada interference Notice
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
11
FCC interference Notice
This device complies with part 90 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
FCC and Industry Canada Radiation Hazard Warning
WARNING! To comply with FCC and IC RF exposure compliance requirements, the device
should be located at a distance of at least 20 cm from all persons during normal operation.
The antennas used for this product must not be co-located or operated in conjunction with
any other antenna or transmitter.
Le dispositif doit être placé à une distance d'au moins 20 cm à partir de toutes les
personnes au cours de son fonctionnement normal. Les antennes utilisées pour ce produit
ne doivent pas être situés ou exploités conjointement avec une autre antenne ou
transmetteur.
WARNING! Changes or modifications to this equipment not expressly approved by the
party responsible for compliance (Telematics Wireless Ltd.) could void the user’s authority
to operate the equipment.
12
Installation Requirements
Mandatory Customer-Supplied Equipment
System integrity for the LCU NEMA is ensured with the mandatory installation of customersupplied voltage and current surge protection equipment.
Mandatory Voltage Surge Protection
Warning: To prevent damage due to power network voltage surges, it is
mandatory that you also provide and install a surge protection device to protect
the LCU and the luminaire driver.
Mandatory Current Surge Protection
Warning: To prevent damage due to power network current surges, it is
mandatory that you also provide and install a 10 amp slow-blow fuse or circuit
breaker to protect the LCU and the luminaire driver.
Location
The LCU NEMA is installed on the top surface of the luminaire cover utilizing a standard (twist and
lock) NEMA socket.
13
Post-Installation Commissioning
The serial numbers and GPS coordinates of the LCU NEMA units must be added to the CMS
Equipment Inventory as part of the commissioning process. The level of automation in the
Commissioning process depends on the optional equipment installed in the LCU NEMA:
• GPS – Commissioning is fully automated. Commissioning is complete after the CMS Administrator
executes the relevant command.
• No GPS – Commissioning is a partially manual process:
◦ Installer obtains the GPS coordinates of the LCU NEMA with a handheld GPS device.
◦ Installer records the serial number and GPS coordinates.
◦ CMS Administrator imports the recorded values into the CMS Equipment Inventory, one by
one or by batch.
Contact Details
Contact your local Telematics technical support representative, or contact us at:
Telematics Wireless, Ltd.
26 Hamelacha St., POB 1911
Holon 58117
ISRAEL
Phone: +972-3-557-5763
Fax: +972-3-557-5703
Sales: sales@tlmw.com
Support: support@tlmw.com
www.telematics-wireless.com
14
Loading...
