Telegesis ETRX2USB, ETRX2CF, ETRX2EAP, ETRX2RTR, ETRX351 Command Manual

Telegesis

TG-ETRXn-R305-AT-Commands

ETRX2 and ETRX3 series

AT-Command Dictionary 3.05

ETRX2 and ETRX3 Series ZigBee® Modules

AT-Command Dictionary

Current Firmware R305

R305 AT Commands

Table of Contents

1 INTRODUCTION ................................................................................................................. 3

1.1 Document Overview ......................................................................................................... 3

1.2 Network topology ............................................................................................................. 4

1.3 A Note on ZigBee® Compliance ....................................................................................... 4

1.4 Important notes ................................................................................................................ 4

1.4.1 Hardware compatibility ..................................................................................................... 4

1.4.2 Unexpected start-up in bootloader mode .......................................................................... 4

1.4.3 Compatibility with other devices ....................................................................................... 5

1.4.4 Persistence of network parameters .................................................................................. 5

2 AT STYLE COMMAND CONVENTIONS ............................................................................ 5

2.1 Parameters ...................................................................................................................... 6

2.2 Prompt Overview.............................................................................................................. 7

2.3 Device Overview .............................................................................................................. 9

2.3.1 ZigBee types .................................................................................................................... 9

2.3.2 Non-ZigBee types ............................................................................................................ 9

2.4 AT Command Overview ................................................................................................. 10

2.5 Module Control & Configuration Commands .................................................................. 12

2.6 Network Control & Configuration Commands ................................................................. 18

2.7 Messaging...................................................................................................................... 33

3 LIST OF ERROR CODES ................................................................................................. 46

4 S-REGISTERS .................................................................................................................. 48

4.1 Recovery of the Factory Default Settings ....................................................................... 50

4.2 S-Registers for Network Setup ....................................................................................... 51

4.3 S-Registers for Module Setup ........................................................................................ 56

4.4 I/O related S-Registers ................................................................................................... 62

4.5 S-Registers Defining the Functionality of the Module ..................................................... 72

4.6 Advanced Settings ......................................................................................................... 85

5 BUILD IN FUNCTIONALITY ............................................................................................. 93

6 ETRX2 POWER CONSUMPTION ..................................................................................... 95

7 ETRX357 POWER CONSUMPTION (PROVISIONAL DATA) .......................................... 96

8 NOTES ON ENERGY LEVELS AND LQI ......................................................................... 97

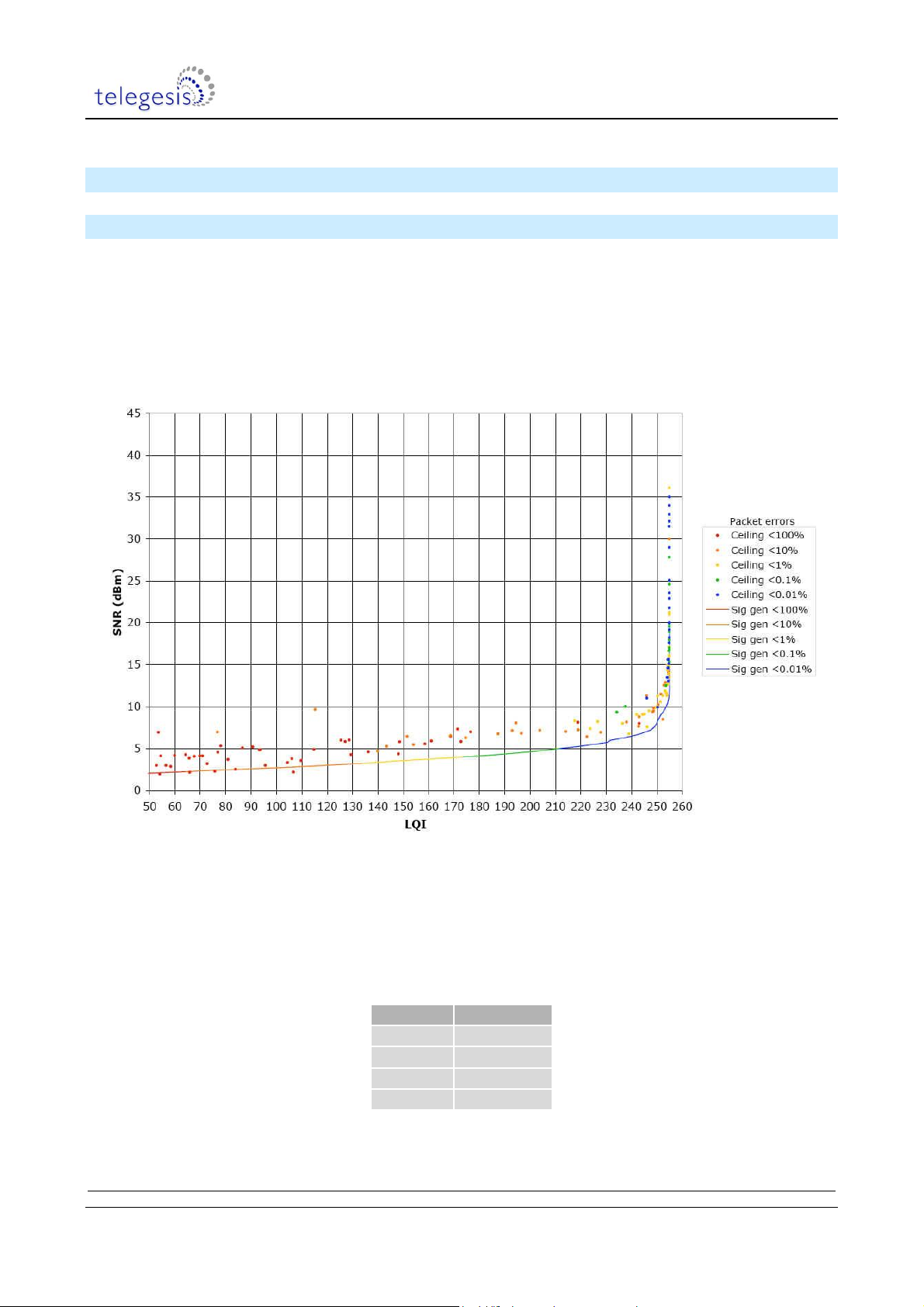

8.1 Interpreting LQI .............................................................................................................. 97

8.2 Interpreting RSSI Energy Levels .................................................................................... 98

9 UPGRADING FROM R2XX TO R305 ON THE ETRX2 SERIES ....................................... 99

10 TRADEMARKS ............................................................................................................... 100

11 DISCLAIMER .................................................................................................................. 100

12 CONTACT INFORMATION ............................................................................................. 100

13 REFERENCES ................................................................................................................ 100

14 APPENDIX A. FORMING A SECURE NETWORK ........................................................ 101

R305 AT Commands

1 Introduction

This document describes the AT-Command interface firmware of the ETRX2 and ETRX3 series ZigBee PRO wireless meshing modules. It applies to the R305 firmware, which can be loaded on to all products of the ETRX2 and ETRX3 module series, for example:

-ETRX2, ETRX2-PA, ETRX2HR, ETRX2HR-PA

-ETRX2USB

- ETRX2CF

- ETRX2EAP and ETRX2RTR

- ETRX351, ETRX357, ETRX351-LR, ETRX357-LR, ETRX351-LRS, ETRX357-LRS

- ETRX351HR, ETRX357HR, ETRX351HR-LR, ETRX357HR-LR, ETRX351HR-LRS, ETRX357HR-LRS The Telegesis ZigBee modules have been designed to be built into any device and provide a low

cost, low power ZigBee solution based on the industry leading EmberZNet ZigBee stack. Integration into a wide range of applications is made easy using a simple AT-style software interface and advanced hardware design.

No RF experience or expertise is required to add this powerful wireless networking capability to your products. Telegesis ZigBee Modules fast integration opportunities and the shortest possible time to market for your product.

Important note Using the AT-Command interface described in this document can shorten the time to market

significantly, however customers using the range of Telegesis modules also have the option of using Ember‟s EZSP interface firmware or of developing custom firmware using the Ember Development tools.

1.1 Document Overview

This document is meant as an AT-Command and S-Register reference for R3xx revisions of the firmware based on EmberZNet3.x and EmberZNet4.x. In order to learn how your products can benefit from wireless mesh networking please also refer to the following documents:

ETRX2/3 Product Manuals R3xx Firmware User Guide Migration guide for existing R2xx firmware customers ETRX2/3 Development Kit User Guides Application notes from www.telegesis.com The ETRX2/3 Product Manuals concentrate on the hardware specification of the modules. The

Development Kit Product Manuals contain all of the information required to set up your development kit and run firmware upgrades where necessary.

R305 AT Commands

1.2 Network topology

A network consists of a ZigBee Coordinator (ZC) which started the network, ZigBee Routers (ZR) and ZigBee End Devices (ZED). There do not have to be any routers (other than the coordinator, which functions as a router) or end devices in any given network. Each router can support up to 16 end devices (32 on the ETRX3 series) in any combination of non-sleepy, sleepy and mobile End Devices. The network is always formed as a mesh according to the ZigBee PRO featureset of the ZigBee standard; the tree structure is not available.

By default the module joins a PAN as a router, but modifying register S0A allows you to define it as an end device. The coordinator is simply the device that first establishes the PAN, and it should not be allowed to leave the PAN as it is not possible for a node that is already joined to the PAN to take over the role of a coordinator or Trust Centre.

1.3 A Note on ZigBee® Compliance

The Telegesis R300 firmware has been tested and certified for MSP (manufacturer specific profile) compliance by a test house appointed by the ZigBee Alliance.

This certification includes tests guaranteeing that:

- Modules running the Telegesis AT-Command set will not interfere with existing ZigBee Networks in a malicious way

- Modules running the Telegesis AT-Command set can join a 3rd party ZigBee PRO network and use its routing capabilities

- Modules running the Telegesis AT-Command set can allow 3rd party nodes to join into a network consisting of Telegesis nodes and use its routing capabilities

In addition to implementing a manufacturer specific application profile the AT-Command set allows for transparency allowing communication with 3rd party nodes running any public application profile. In addition to this a transparent endpoint has been added allowing a host processor to implement any public application profile in fully transparent mode.

If you want to use the term ZigBee or the ZigBee Logo in your product documentation the current regulations state that you have to

(i) Be at least an adopting member of the ZigBee Alliance in the year you release your product (ii) Implement a public application profile

If you intend to get your product certified feel free to contact Telegesis for additional information. Also if you intend to build a product compliant to a public application profile (e.g. Home Automation, Smart Energy) feel free to contact us to discuss your options.

1.4 Important notes

1.4.1 Hardware compatibility

R305 firmware will now run on the STRX2 series of modules. R2xx firmware will not run on the ETRX3 series of modules.

1.4.2 Unexpected start-up in bootloader mode

The bootloader on the ETRX2 can be triggered using the command AT+BLOAD as described in Section 2, but it can also be triggered in hardware. If the A/D2 pin is pulled low during the boot-up of the module, the module will also enter the bootloader, so exercise caution when doing hardware

R305 AT Commands

design and ensure that this pin is not grounded during start-up and reset. If unused the pad can be left floating and a pull-up is not required.

In analogy to this pulling down PA5 during a reset will cause an ETRX3 series module to enter the bootloader.

1.4.3 Compatibility with other devices

Most features of the R3xx Telegesis AT-Command line Interpreter are part of a Manufacturer Specific Profile using the ZigBee PRO feature set of ZigBee 2007. Interoperability with other devices that use the ZigBee PRO featureset is limited to a number of transparent commands.

R3xx is not compatible with earlier versions of ZigBee which are not implementing the ZigBee PRO featureset, including Telegesis R2xx firmware. Also, it is not compatible with the ZigBee Smart Energy profile as it lacks the required security key.

1.4.4 Persistence of network parameters

Once a device has joined a network as a coordinator, router or end device, it will retain its network parameters if it is powered off and on again. It will still be a member of its original PAN, assuming that PAN still exists, though an end device may need to find a new parent and it may have missed an update of the network key. Certain S-registers will have been reset to default values, though, which may change an end device‟s power mode for example.

2 AT Style Command Conventions

To simplify the communication with the modules, an AT-style command set, similar to the industry standard Hayes modem control language, is used.

Each command must be preceded by the "AT" or "at" prefix. To terminate a command enter <CR>. Any data not following this pattern is either not accepted by the module or will cause an error message in response. Every command must be terminated with a <CR>, they cannot be concatenated.

Commands are followed by an optional response that includes <CR><LF><Response><CR><LF> and/or a prompt <CR><LF><Prompt><CR><LF> where the prompt could also be an error message.

Example:

ATS00?<CR> <CR><LF>FFFF<CR><LF> <CR><LF>OK<CR><LF>

It is recommended to wait for an “OK” or “ERROR:XX” prompt before issuing the next command. Any data which is prompted to the user is delivered in the format <CR><LF><prompt><CR><LF>.

Unless disabled in S0E or S0F prompts may appear whenever the corresponding event occurs. Example:

A prompt intersecting a command being entered will not affect the command itself.

R305 AT Commands

Read Command

ATXXX?

Commands ending with a „?‟ return the currently set value of the

parameter or parameters

Write Command

ATXXX=<…>

This command sets user-definable parameters as indicated by the „=‟ sign.

Execute Command

ATXXX

This command executes routines of the module and returns parameters

XX

8-bit hexadecimal number. Valid characters are 0-9, a-f and A-F

XXXX

16-bit hexadecimal number. Valid characters are 0-9, a-f and A-F

n

Number from 0-9

s

Sign

b

Bit (0 or 1)

c

character

<PID>

16-bit hexadecimal PAN ID (0000 to FFFF)

<EPID>

64-bit hexadecimal extended PAN ID

decimal channel (802.15.4 channel 11-26)

8 character password

<EUI64>

64-bit IEEE 802.15.4 address in hexadecimal

32-bit hexadecimal number representing the reading of S1A

<data>

Custom Data

A list of 16 bit cluster identifiers in hexadecimal representation

The Firmware Revision Number

Throughout this document, only the responses and prompts are presented, <CR><LF> are omitted intentionally. Sequences of AT commands in a single line are not supported.

The ETRX2 and ETRX357 feature a 128-byte FIFO to buffer incoming characters from the host processor, which is sufficient to hold even the longest possible command. The ETRX357 features a 256 byte FIFO buffer for incoming radio messages, which allows rapid reception of multiple messages without loss of characters. To prevent a buffer overflow XON/XOFF handshaking is used. Optional hardware handshaking can be enabled as described in the register description of S12 in section 4.

Table 1: Types of AT commands

When bit 7 of S12 is set each individual reply or prompt is additionally started with the STX and ended with the ETX character to aid the interpretation of the incoming strings on a host processor.

2.1 Parameters

Each parameter must be entered in the correct format for any of the AT commands to execute correctly. Optional parameters are marked with square brackets […].

Table 2: Different formats of parameters

R305 AT Commands

Prompt Overview

OK

OK terminator

ERROR:XX

Error number XX occurred

ACK:XX

Acknowledgement for message XX was received

NACK:XX

Acknowledgement for message no XX was not received

SR:XX,<EUI64>,<NodeID>,…

Route Record Message received

BCAST:[<EUI64>,]XX=<data>

A Broadcast with XX characters has been received

MCAST:[<EUI64>,]XX=<data>

A Multicast with XX characters has been received

UCAST:[<EUI64>,]XX=<data>

A Unicast with XX characters has been received

SDATA:[<EUI64>,],<ioread>,<A/D1>,<A/D2>, <sequenceNo>,<Vcc>

A data message has been received at the sink. ADC data is A/D1 & A/D2 or ADC0 & ADC1

FN0130:[<EUI64>],<NodeID>,<ioread>, <sequence no>,<S46>,[<A/D1>],[<A/D2>], [<A/D3>],[<A/D4>]

A data message has been received at the sink. The number of ADC data fields depends on how many ADCs are activated at the sender

COO:<EUI64>,<NodeID>

A coordinator announcing itself

FFD:<EUI64>,<NodeID>

A router announcing itself

SED:<EUI64>,<NodeID>

A sleepy end device announcing itself

MED:<EUI64>,<NodeID>

A mobile sleepy end device announcing itself

ZED:<EUI64>,<NodeID>

An end device announcing itself

NEWNODE: <NodeID>,<EUI64>, <Parent NodeID>

Shown on Coordinator: New node has joined the PAN

LeftPAN

Local Node has left the PAN

LostPAN

End Device has lost contact with Parent

JPAN:<channel>,<PID>,<EPID>

Local Node has joined PAN with given parameters

SINK:<EUI64>,<NodeID>

Selected new Sink

ADSK:<EUI64>,<NodeID>

Received Sink Advertisement

SREAD:<NodeID>,<EUI64>,<Register>, <errorcode>[=<Data>]

Reply to a remote S Register Read operation

SWRITE:<NodeID>,<EUI64>,<errorcode>

Reply to a remote S Register Write operation

2.2 Prompt Overview

The following prompts can show up during the operation of the ETRXn modules. Most of the prompts can be disabled using register S0E and S0F.

R305 AT Commands

Prompt Overview

DataMODE:<NodeID>,<EUI64>

Datamode has been opened remotely

DataMODE:<NodeID>,<EUI64>,<errorcode>

Response to an attempt to open data mode

OPEN

Data mode is open

CLOSED

Data mode is closed

TRACK:<EUI64 R>,<EUI64 S>,<RSSI>, <i/o read>,<AD1>,<AD2>,<Vcc>,<S46>

Tracking message: EUIs of receiver and sender, RSSI, input data, Vcc & S46 counter of sender

TRACK2:<EUI64 R>,<EUI64 S>,<RSSI>,<I/O read>,<S46>

Tracking message: EUIs of receiver and sender, RSSI, I/O data, and S46 counter of sender

PWRCHANGE:XXXX

Local node has changed Power Mode to XXXX

AddrResp:<errorcode>[,<NodeID>,<EUI64>]

Response to an address request (also triggered when finding source routes)

RX:<EUI64>,<NodeID>,<profileID>, <destinationEndpoint>,<SourceEndpoint>, <clusterID>,<length>:<payload>

An incoming message not addressed to the AT command endpoint. EUI64 is only shown if included in network frame header

NM:ES REPORT WARNING

More than 16 energy scan reports have been recently received by the network manager indicating high packet loss

ENTERING BLOAD

Passthrough bootloading has been initiated from another node

Table 3: Prompt Overview

R305 AT Commands

Device Types

ZigBee Naming Convention

COO

Coordinator

ZigBee Coordinator (ZC)

FFD

Router

ZigBee Router (ZR)

ZED

End Device (non sleepy)

ZigBee End Device (ZED)

SED

Sleepy End Device

MED

Mobile Sleepy end Device

2.3 Device Overview

2.3.1 ZigBee types

Table 4 gives an overview of the ZigBee device types mentioned in this document.

Table 4: Device Overview

The terms Full Function device (FFD) and Reduced Function Device (RFD) are obsolete, but the

abbreviations are retained in the R302X firmware to avoid problems with users‟ legacy application

software. Each coordinator or router can support up to sixteen End Devices, in any combination of Sleepy

End Devices and Mobile End Devices. Only end devices should be put into a low-power state because routers and the coordinator must

always be powered up to maintain the network connectivity. ZigBee End Devices do not poll for data, instead their incoming messages are relayed immediately by their parent without being buffered. This means that ZEDs must not be put into a sleep mode.

2.3.2 Non-ZigBee types Sink. The sink is a Telegesis feature. When a node is defined as a sink by setting S10 bit 4, it

can broadcast its address to the rest of the network. Other nodes can then send messages to the sink node using AT+SCAST or various built-in functions. This simplifies the application software since it is not necessary to know the EUI64 of the sink in advance. Devices discover the sink when (1) they receive a regular advertisement broadcast from the sink (2) they are commanded to send a message without knowing the sink address and bit 8 of S10 is set (the first sink-cast message is therefore lost (3) the AT+SSINK command is used. To reduce traffic to end devices they do not receive the advertisement broadcasts, but will be informed of the sink address when they join the PAN. Otherwise, you should set bit 8 of S10 on end devices.

R305 AT Commands

Command Overview

Module control and configuration

ATI

Display Product Identification Information

ATZ

Software Reset

AT&F

Restore Factory Defaults

AT+BLOAD

Enter The Bootloader Menu

AT+CLONE

Clone Local Node To Remote Node (ETRX2 Series Only)

AT+PASSTHROUGH

Pass new Firmware Image To Remote Node (ETRX3 Series Only)

AT+RECOVER

Recover From A Failed Clone Attempt

ATS

S-Register Access

ATREMS

Remote S-Register Access

ATSALL

Remote S-Register Access

AT+TOKDUMP

Display All S-Registers

Network control and configuration

AT+ESCAN

Scan The Energy Of All Channels

AT+PANSCAN

Scan For Active Pans

AT+EN

Establish Personal Area Network

AT+JN

Join Network

AT+JPAN

Join Specific Pan

AT+SJN

Silent Join

AT+DASSL

Disassociate Local Device From Pan

AT+DASSR

Disassociate Remote Node From PAN (ZDO)

AT+N

Display Network Information

AT+NTABLE

Display Neighbour Table (ZDO)

AT+RTABLE

Display Routing Table (ZDO)

AT+IDREQ

Request Node’s NodeID (ZDO)

AT+EUIREQ

Request Node’s EUI (ZDO)

AT+NODEDESC

Request Node’s Descriptor (ZDO)

AT+POWERDESC

Request Node’s Power Descriptor (ZDO)

AT+ACTEPDESC

Request Node’s Active Endpoint List (ZDO)

AT+SIMPLEDESC

Request Endpoint’s Simple Descriptor (ZDO)

AT+MATCHREQ

Find Nodes which Match a Specific Descriptor (ZDO)

AT+ANNCE

Announce Local Device in the Network (ZDO)

AT+SR

Set Source Route To Remote Device

AT+FNDSR

Find The Source Route To A Remote Device

AT+POLL

Poll For Data From Parent

AT+REJOIN

Rejoin The Network

AT+SN

Scan Network

AT+KEYUPD

Update the Network Key (ZDO)

AT+BECOMETC

Make Local Device the Trust Centre

AT+BECOMENM

Make the local device Network Manager

AT+CCHANGE

Change the network’s channel

2.4 AT Command Overview

The following table gives a quick reference of all commands available.

R305 AT Commands

Command Overview (continued)

Messaging

AT+ATABLE

Display Address Table

AT+ASET

Set Address Table Entry

AT+MTABLE

Display Multicast Table

AT+MSET

Set Multicast Table Entry

AT+BCAST

Transmit A Broadcast

AT+BCASTB

Transmit A Broadcast Of Binary Data

AT+UCAST

Transmit A Unicast

AT+UCASTB

Transmit A Unicast Of Binary Data

AT+SCAST

Transmit Data To The Sink

AT+SCASTB

Transmit Binary Data To The Sink

AT+SSINK

Search For A Sink

AT+MCAST

Transmit A Multicast

AT+MCASTB

Transmit A Multicast Of Binary Data

AT+DMODE

Enter Data Mode (Serial Link Mode)

+++

Leave Data Mode

AT+IDENT

Play A Tune On Remote Devboard

AT+RDATAB

Send Binary Raw Data

Table 5: Command Overview

R305 AT Commands

I – Display Product Identification Information

Execute Command

ATI

Note

On modules manufactured before summer 2007 an invalid <DeviceName> is displayed. This does not affect the functionality of the module.

Response

Telegesis <DeviceName> R<Firmware Revision> <EUI64> OK

Where <DeviceName> is the order code of the device, <Firmware Revision> is the firmware

revision and <EUI64> is the Device‟s IEEE

802.15.4 identifier

SW release

R300 ●

Z – Software Reset

Execute Command

ATZ

Response

Module Performs a software reset All non-volatile S Registers keep the user defined values, if the module was part of a PAN it will remain part of it.

SW release

R300 ●

&F – Restore Factory Defaults

Execute Command

AT&F

Response

Module Performs a factory reset All non-volatile S Registers are updated with their factory defaults and the node leaves the network it is currently joined to.

SW release

R300 ●

+BLOAD – Enter The Bootloader Menu

Execute Command

AT+BLOAD

Response

The device leaves the AT command line and enters the bootloader menu for downloading new firmware. A description of the bootloading process can be found in the Development Kit Product Manual. Please note that the bootloader will run at a baudrate of 115k2, no parity, 8 data bits regardless of the current serial port settings.

SW release

R300 ●

2.5 Module Control & Configuration Commands

R305 AT Commands

+CLONE – Clone Local Node To Remote Node (ETRX2 Series only)

Execute Command

AT+CLONE:<EUI64>,<password>

Use on:

Source: FFD, COO Destination: All device types

Notes

The default password for R3xx nodes is “password”. A description of the cloning process can be found in the Development Kit Product Manual.

Response

Cloning…

Remote Response

ENTERING BLOAD

or

ERROR<errorcode>

Where <errorcode> represents the error code explained in section 3. This command clones the firmware of the local node to a remote node within the same PAN, whose address is given by <EUI64>. <password> represents the remote node‟s 8-character password. After completion a soft reset is caused on the remote end.

SW release

R304 ●

+PASSTHROUGH – Pass new Firmware Image To Remote Node (ETRX3 Series Only)

Execute Command

AT+PASSTHROUGH:<EUI64>,<password>

Use on:

Source: FFD, COO Destination: All device types

Notes

The default password for R3xx nodes is “password”. A description of the passthrough process can be found in the Development Kit Product Manual; it is the same procedure as cloning.

Response

PASSTHROUGH BLOAD... Please start .ebl upload image...

Remote Response

ENTERING BLOAD

or

ERROR<errorcode>

Where <errorcode> represents the error code explained in section 3.

<password> represents the remote node‟s

8-character password. After completion a soft reset is caused on the remote end.

SW release

R304 ●

R305 AT Commands

+RECOVER – Recover From A Failed Clone or Passthrough Attempt

Execute Command

AT+RECOVER

Use on:

Source: FFD, COO Destination: All device types

Note

Use this command in cases where the cloning (ETRX2 Series) or Passthrough Bootloading (ETRX3 Series) operation was interrupted and the target device therefore remains in the bootloader. In case the target device has been reset channel 13 must be used for recovering. For more information on over-the-air firmware upgrading please refer to the Development Kit Manual.

Response

Recovering…

or

ERROR<errorcode>

Where <errorcode> represents the error code explained in section 3. Enters clone (ETRX2 Series) or Passthrough (ETRX2 Series) mode to a remote node which is already in the bootloader.

SW release

R300 ●

R305 AT Commands

S – S-Register Access

Read Command

ATSXX[x[x]]?

Examples

ATS00? ATS0AE? ATS1812?

XX is the S-Register which is to be read. As an option for all 16 bit registers it is also possible to address an individual bit only by specifying the bit number [x]. For all 32 bit registers it is possible to address an individual bit by specifying the bit number in hexadecimal [xx]

Response

<data> OK

or ERROR:<errorcode> The module displays the contents of S-register xx

or an error message, where <errorcode> represents the error code explained in section 3. All 16- and 32-bit registers can also be accessed bit by bit. In order to do this [x[x]] may specify the bit which is to be read. The result when reading a single bit will always be 0 or 1.

Write Command

ATSXX[x[x]]=<data>[,<password>]

Examples

ATS00=3FFC ATS0AE=1:password

Notes

Some S-Registers require a password for write access. See S-Register description for details. The default password for R3xx is “password”. Some S-Registers are read-only and will return an error if you are trying to write to them. When writing an individual bit by specifying [x[x]], <data> can only be either 0 or 1.

Response

OK or ERROR:<errorcode> The data is written to S-register number XX and if

applicable stored in non-volatile memory. The data format for each individual S Register is given in the S-Register description. <errorcode> represents the error code explained in section 3. For all 16- and 32-bit registers individual bits can also be set or cleared by specifying the bit using hexadecimal [x[x]] and setting it to either 0 or 1.

SW release

R300 ●

R305 AT Commands

REMS – Remote S-Register Access

Read Command

ATREMS:<address>,XX[X[x]]?

Examples

ATREMS:000D6F00000AAC93,00? ATREMS:000D6F00000AAC93,0AE? ATREMS:000D6F00000AAC93,1812?

Where <address> can be the remote node‟s EUI64, NodeID or address table index and XX is the S-Register which is to be read. As an option for all 16 bit registers it is also possible to address an individual bit only by specifying the bit number [X]. For all 32 bit registers it is possible to address an individual bit by specifying the bit number in hexadecimal [xx] The result when reading a single bit will always be 0 or 1.

Response

SEQ:XX OK

or ERROR:<errorcode> The module asks for the contents of the remote S-

register using a unicast. The sequence number of the unicast is displayed (an ACK or NACK prompt will follow). <errorcode> represents the error code explained in section 3.

Prompt

SREAD:<NodeID>,<EUI64>,<Register>, <errorcode>[=<Data>]

Where NodeID is the remote NodeID, EUI64 is the remote EUI64, Register is the S-Register which was read and <errorcode> is indicating the success (00) or failure of the read operation. The contents of the remote S-Register are following in case of a successful read only.

Write Command

ATREMS:<address>,XX[x[x]]=<data> [,<password>]

Examples

ATREMS:000D6F0000012345,00=3FFC ATREMS:000D6F0000012345,0AE=1:passw ord

Where <address> can be the remote node‟s

EUI64, NodeID or address table index and XX is the S-Register which is to be written. As an option for all 16- and 32-bit registers it is also possible to address an individual bit only by specifying the bit number [x[x]].

Notes

Some S-Registers require a password for write access. See S-Register description for details. The default password for R3xx is “password”. Some S-Registers are read-only and will return an error if you are trying to write to them. When writing an individual bit by specifying [x[x]], <data> can only be either 0 or 1.

Response

SEQ:XX OK

or ERROR:<errorcode> The data is written to the remote S-register number

XX and if applicable stored in non-volatile memory. The data format for each individual S Register is given in the S-Register description. The sequence number of the unicast is displayed (an ACK or NACK prompt will follow). <errorcode> represents the error code explained in section 3.

Prompt

SWRITE:<NodeID>,<EUI64>,<errorcode >

Where <NodeID> is the remote NodeID, <EUI64> is the remote EUI64. Only in case the errorcode is 00 the write operation has been completed successfully.

SW release

R302 ●

R305 AT Commands

SALL – Remote S-Register Access

Write Command

ATSALL:<group ID>,XX[x[x]]=<data> [,<password>]

Examples

ATSALL:FFFF,00=3FFC ATSALL:FFFC,0AE=1:password

Where group IDs are remote node‟s

multicast IDs or FFFF - Broadcast to all devices FFFD - Broadcast to all non-sleepy devices FFFC – Broadcast to all Routers

Notes

Some S-Registers require a password for write access. See S-Register description for details. The default password for R3xx is “password”. Some S-Registers are read-only and cannot be written to.

Response

OK or ERROR:<errorcode> The data is written to the remote S-register number

XX on all nodes addressed by the multicast group ID. The data format for each individual S Register is given in the S-Register description. <errorcode> represents the error code explained in section 3. For all 16- and 32-bit registers individual bits can also be set or cleared by specifying the bit using hexadecimal [x[x]] and setting it to either 0 or 1.

SW release

R300 ●

+TOKDUMP – Display All S-Registers

Execute Command

AT+TOKDUMP

Notes

Only used on the local node. You cannot display all the registers of a remote device.

Response

<data> OK

The module displays the contents of all local SRegisters. The data format for each individual S Register is given in the S-Register description in section 4.

SW release

R300 ●

R305 AT Commands

+ESCAN – Scan The Energy Of All Channels

Execute Command

AT+ESCAN

Use on:

All nodes

Notes

Scanning all channels can take up to 16 seconds.

The results are the background radio power in each channel, not the RSSI of incoming ZigBee packets

Response

+ESCAN: 11:XX 12:XX … 26:XX OK

or ERROR:<errorcode> <errorcode> represents the error code explained in

section 3. XX represents the average energy on the respective channel (see description in Section

8). Channels masked out in S00 are not scanned.

SW release

R300 ●

+PANSCAN – Scan For Active PANs

Execute Command

AT+PANSCAN

Use on:

All nodes

Note

Scanning for active PANs can take up to 4 seconds.

Response

+PANSCAN:<channel>,<PID>,<EPID>,XX,b OK

or ERROR:<errorcode> <errorcode> represents the error code explained in

section 3. The node gives a list of all PANs found. <channel> represents the channel, <PID> the PAN ID, <EPID> the extended PAN ID, XX the ZigBee stack profile (00 = Custom, 01 = ZigBee, 02 = ZigBee PRO) and b indicates whether the network is allowing additional nodes to join (1 = joining permitted). The node does not join any of the PANs found.

SW release

R300 ●

2.6 Network Control & Configuration Commands

R305 AT Commands

+EN – Establish Personal Area Network

Execute Command

AT+EN

Use on:

All nodes which are not part of a PAN

Note

When issuing this command the local device becomes a Coordinator (and Trust Centre). Establishing a PAN can take up to 16 seconds. This command can only be executed if the local node is not part of a PAN already.

Response

JPAN:<channel>,<PID>,<EPID> OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3.

The local node becomes a coordinator and performs an energy scan on all channels selected in S00. It then starts a PAN with a random unused PAN ID and extended PAN ID on the quietest channel. If a PAN ID and/or extended PAN ID is specified in S02 or S03 the provided IDs are used instead of random ones, given the selected IDs are not already in use by other networks within range

SW release

R300 ●

+JN – Join Network

Execute Command

AT+JN

Use on:

All nodes which are not part of a PAN

Note

Joining a PAN can take up to 4 seconds, depending on the number of channels which need scanning. This command can only be executed if the local node is not part of a PAN already.

Response

JPAN:<channel>,<PID>,<EPID>

OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3. The local node scans all channels selected in register S00 for the existence of a PAN. When finding any PAN which allows joining it will automatically join in via the remote node with the highest RSSI. In case registers S02 and S03 differ from the default value of all zeros the node will only join a PAN with the specified Pan ID and/or extended PAN ID.

Remote Action On the Trust Centre / Coordinator

Prompt

NEWNODE:<node EUI64>,<NodeID>,<parent EUI64>

SW release

R300 ●

R305 AT Commands

+JPAN – Join Specific PAN

Execute Command

AT+JPAN:<channel>,<PID or EPID>

Examples

AT+JPAN:20,1234 AT+JPAN:24,0793E14FFB220A38

Use on

All nodes which are not part of a PAN

Notes

This command can only be executed if the local node is not part of a PAN already. The JPAN command ignores the channel mask in register S00 and the PID and EPID settings in S02 and S03.

Response

JPAN:<channel>,<PID>,<EPID> OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3. The local node joins a particular PAN on <CHANNEL> with the specified <PID> or <EPID> via the remote node with the highest RSSI.

Remote Action On the Trust Centre / Coordinator

Prompt

NEWNODE:<node EUI64>,<NodeID>,<parent EUI64>

SW release

R300 ●

+SJN – Silent Join

Execute Command

AT+SJN:<channel>,<TC EUI64>, <NM NodeID>,<nwk update ID>

“Silent” joining is joining via the commissioning method. All data required to enter the network is provided to the node, so that no joining procedure itself is required. The node will appear in the target network without any joining procedure given the supplied data is correct.

<channel> is a decimal number Other parameters are hexadecimal

Use on

All joining Devices

Example

AT+SJN:11,000D6F00000AAAD0,AFFE,00

Response

JPAN:<channel>,<PID>,<EPID> OK

or ERROR:<errorcode> >

<errorcode> represents the error code explained in section 3. The local node will become part of the network with the channel specified in <channel>, the trust centre EUI64 specified in <TC EUI64>, the NodeID of the network manager specified in <NM NodeID>, the 8 bit network update ID specified in <nwk update ID>, the network key provided in S08, the trust centre link key provided in S09, the PAN ID provided in S02 and the extended PAN ID provided in S03. It is assumed that the key-sequencenumber of the network key is 0 when issuing this command.

SW release

R305 ●

R305 AT Commands

+DASSL – Disassociate Local Device From PAN

Execute Command

AT+DASSL

Use on

All Devices

Note

Use with care on a Coordinator. It will not be able to rejoin the PAN

Response

OK or ERROR<errorcode>

Prompt

LeftPAN

<errorcode> represents the error code explained in section 3. Instruct local device to leave the PAN.

SW release

R300 ●

+DASSR – Disassociate Remote Node from PAN (ZDO)

Execute Command

AT+DASSR:<address>

Where <address> can be a node‟s EUI64,

NodeID or address table index

Use on

All Devices

Note

Use with care when targeting a Coordinator. It will not be able to rejoin the PAN

Response

SEQ:XX OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3. Instruct device to leave the PAN.

Remote Action

Node leaves PAN

Prompt

LeftPAN

SW release

R300 ●

+N – Display Network Information

Read Command

AT+N?

Use on

All Devices

Response

+N=<devicetype>,<channel>,<power>,<PID>,<EPID>

or +N=NoPAN followed by

OK

<devicetype> represents the node‟s functionality in the PAN (FFD,COO,ZED,SED,MED), <power> the node‟s output power in dBm, <channel> the IEEE 802.15.4 radio channel (11-26), <PID> the node‟s PAN ID and <EPID> the node‟s extended PAN ID.

SW release

R302 ●

R305 AT Commands

+NTABLE – Display Neighbour Table (ZDO)

Read Command

AT+NTABLE:XX,<address>

Where XX is the start index of the remote LQI table and <address> can be the remote node‟s EUI64, NodeID or address table entry.

Note: Also the local node can be the target of this command (e.g. use address table entry FF as the address)

Use on

FFD, COO as the target device

Response

SEQ:XX OK or ERROR<errorcode>

This command requests the target node to respond by listing its neighbour table starting from the requested index. Can be used to find the identity of all ZigBee devices in the network including non-Telegesis devices.

Prompt (example)

NTable:<NodeID>,<errorcode> Length:03 No.| Type | EUI | ID | LQI

00.| FFD | 000D6F000015896B | BC04 | FF

01.| FFD | 000D6F00000B3E77 | 739D | FF

02.| FFD | 000D6F00000AAD11 | 75E3 | FF

In this example the neighbour table of the remote node with the short ID shown in <NodeID> contains three entries (hexadecimal), which are displayed. In case the table contains more than three entries it may be required to repeat this command and increase the index count until the full table is derived. In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode.

SW release

R302 ●

R305 AT Commands

+RTABLE – Display Routing Table (ZDO)

Read Command

AT+RTABLE:XX,<address>

Where XX is the start index of the remote Routing table and <address> can be the remote node‟s EUI64, NodeID or address table entry.

Note: Also the local node can be the target of this command (e.g. use address table entry FF as the address)

Use on

FFD, COO as the target device

Response

SEQ:XX OK or ERROR<errorcode>

This command requests the target node to respond by listing its routing table starting from the requested index.

Prompt (example)

RTable:<NodeID>,<errorcode> Length:40 No.| Dest | Next | Status

00.| 1234 | ABCD | 00

01.| 4321 | 739D | 00

02.| 0000 | 0000 | 03

In this example the routing table of the remote node with the short ID shown in <NodeID> contains 64 entries (hexadecimal 0x40), of which the first three are displayed. When the table contains more than the displayed entries it may be required to repeat this command and increase the index count until the full table is derived. The status shown is as described in table 2.128 of the ZigBee Specification. In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode.

SW release

R303 ●

R305 AT Commands

+IDREQ – Request Node’s NodeID (ZDO)

Execute Command

AT+IDREQ:<Address>[,XX]

Where <Address> can be a node‟s EUI64, or

address table entry and XX is an optional index number. In case an index number is provided, an extended response is requested asking the remote device to list its associated devices. Sends a broadcast to obtain the specified

Device‟s NodeID and optionally also

elements of its associated devices list.

Use on

All Devices

Note

Providing FF as an address table entry addresses the local node

Response

OK

or ERROR:<errorcode> <errorcode> represents the error code explained in

section 3.

Prompt

AddrResp:<errorcode>[,<NodeID>,<EUI64>] [nn. <NodeID>]

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode.

<EUI64> is the Remote node‟s EUI64 and

<NodeID> is its NodeID. In case an extended response has been requested the requested NodeIDs from the associated devices list are listed as well.

SW release

R302 ●

+EUIREQ – Request Node’s EUI64 (ZDO)

Execute Command

AT+EUIREQ:< Address>,<NodeID>[,XX]

Where <Address> is the EUI64, NodeID or address table entry of the node which is to be interrogated about the node with the NodeID specified in <NodeID>. XX is an optional index number. In case an index number is provided, an extended response is requested asking the remote device to list its associated devices.

Sends a unicast to obtain the specified

device‟s EUI64 and optionally also elements

of its associated devices list (extended response).

Use on

All Devices

Note

Providing FF as an address table entry addresses the local node

Response

SEQ:XX OK

or ERROR:<errorcode> <errorcode> represents the error code explained in

section 3.

Prompt

AddrResp:<errorcode>[,<NodeID>,<EUI64>] [dd. <NodeID>]

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode. <EUI64> is the Remote node‟s EUI64 and <NodeID> is its NodeID. In case an extended response has been requested the requested NodeIDs from the associated devices list are listed.

As with all unicasts after successful transmission the sequence number of the unicast is stated using

the “SEQ:XX” prompt. When acknowledged (or not) the accompanying “ACK:XX” (or “NACK:XX”)

prompt is displayed.

SW release

R302 ●

R305 AT Commands

+NODEDESC – Request Node’s Descriptor (ZDO)

Execute Command

AT+NODEDESC:<Address>,<NodeID>

Where <Address> is the EUI64, NodeID or Address table entry of the node which is to be interrogated about the node with the NodeID specified in <NodeID>.

Sends a unicast to obtain the specified device‟s node descriptor.

Use on

All Devices

Note

Providing FF as an address table entry addresses the local node

Response

SEQ:XX OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3.

Prompt (example)

NodeDesc:<NodeID>,<errorcode> NodeDesc:0D57 Type:FFD ComplexDesc:No UserDesc:No APSFlags:00 FreqBand:40 MacCap:8E ManufCode:1010 MaxBufSize:52 MaxInSize:0080 SrvMask:0000 MaxOutSize:0080 DescCap:00

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode.

<NodeID> is the Remote node‟s NodeID. In

addition the node descriptor is displayed. The individual fields of the Node Descriptor are described in section 2.3.2.3 of the ZigBee specification.

As with all unicasts after successful transmission the sequence number of the unicast is stated using

the “SEQ:XX” prompt. When acknowledged (or not) the accompanying “ACK:XX” (or “NACK:XX”)

prompt is displayed.

SW release

R302 ●

R305 AT Commands

+POWERDESC – Request Node’s Power Descriptor (ZDO)

Execute Command

AT+POWERDESC:<Address>,<NodeID>

Where <Address> is the EUI64, NodeID or Address table entry of the node which is to be interrogated about the node with the NodeID specified in <NodeID>.

Sends a unicast to obtain the specified device‟s power descriptor.

Use on

All Devices

Response

SEQ:XX OK

or ERROR:<errorcode> <errorcode> represents the error code explained in

section 3.

Prompt

PowerDesc:<NodeID>,<errorcode> [,<PowerDescriptor>]

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode

<NodeID> is the Remote node‟s NodeID. In

addition the power descriptor is displayed as a 16 bit hexadecimal number as described in section

2.3.2.4. of the ZigBee specification. As with all unicasts after successful transmission

the sequence number of the unicast is stated using

the “SEQ:XX” prompt. When acknowledged (or

not) the accompanying “ACK:XX” (or “NACK:XX”) prompt is displayed.

SW release

R302 ●

+ACTEPDESC – Request Node’s Active Endpoint List (ZDO)

Execute Command

AT+ACTEPDESC:<Address>,<NodeID>

Where <Address> is the EUI64, NodeID or Address table entry of the node which is to be interrogated about the node with the NodeID specified in <NodeID>.

Sends a unicast to obtain the specified device‟s active endpoint list.

Use on

All Devices

Response

SEQ:XX OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3.

Prompt

ActEpDesc:<NodeID>,<errorcode>[,XX,…]

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode <NodeID> is the Remote node‟s NodeID. In addition all active endpoints are listed as 8-bit hexadecimal numbers separated by commas.

As with all unicasts after successful transmission the sequence number of the unicast is stated using

the “SEQ:XX” prompt. When acknowledged (or not) the accompanying “ACK:XX” (or “NACK:XX”)

prompt is displayed.

SW release

R302 ●

R305 AT Commands

+SIMPLEDESC – Request Endpoint’s Simple Descriptor (ZDO)

Execute Command

AT+SIMPLEDESC:<Address>,<NodeID>, <XX>

Where <Address> is the EUI64, NodeID or Address table entry of the node which is to be interrogated about the node with the NodeID specified in <NodeID> and XX is the number of the endpoint, which simple descriptor is to be read.

Sends a unicast to obtain the specified device‟s active endpoint list.

Use on

All Devices

Response

SEQ:XX OK

or ERROR:<errorcode>

<errorcode> represents the error code explained in section 3.

Prompt

SimpleDesc:<NodeID>,<errorcode> EP:XX ProfileID:XXXX DeviceID:XXXXvXX InCluster:<Cluster List> OutCluster:<Cluster List>

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode <NodeID> is the Remote node‟s NodeID. In addition all active endpoints are listed as 8 bit hexadecimal numbers separated by commas.

As with all unicasts after successful transmission the sequence number of the unicast is stated using

the “SEQ:XX” prompt. When acknowledged (or

not) the accompanying “ACK:XX” (or “NACK:XX”)

prompt is displayed.

SW release

R302 ●

R305 AT Commands

+MATCHREQ – Find Nodes which Match a Specific Descriptor (ZDO)

Execute Command

AT+MATCHREQ: <ProfileID>, <NumInClusters> [,<InClusterList>], <NumOutClusters> [,OutClusterList]

Where <ProfileID> Required profile ID of the device being searched for followed by a specification of required input and output clusters.

If a remote node has a matching ProfileID and matches at least one of the specified clusters it will respond to this broadcast listing the matching endpoint(s).

<NumInClusters> and <NumOutClusters> must be 2 hexadecimal digits

Example

at+matchreq:C091,01,0002,02,0004,000B

Use on

All Devices

Response

SEQ:XX OK

or ERROR:<errorcode> <errorcode> represents the error code explained in

section 3.

Prompt

MatchDesc:<NodeID>,<errorcode>,XX,…

In case of an error an errorcode other than 00 will be displayed and the prompt will end after the errorcode. Where <NodeID> is the Remote node‟s NodeID. In addition all endpoints of this node matching the search criterion are listed as 8 bit hexadecimal numbers separated by commas.

SW release

R302 ●

+ANNCE – Announce Local Device In The Network (ZDO)

Execute Command

AT+ANNCE

Send a ZigBee device announce Broadcast announcing the local node on the network.

Use on

All Devices

Response

OK or ERROR<errorcode> <errorcode> represents the error code explained in

section 3.

Remote Action

Prompt

FFD:<EUI64>,<NodeID> [,syy,zz] MED:<EUI64>,<NodeID> [,syy,zz] SED:<EUI64>,<NodeID> [,syy,zz] ZED:<EUI64>,<NodeID> [,syy,zz]

The prompt above will be displayed on all nodes which can hear the announcement. In case bit C of register S10 is set the RSSI level (syy dBm) and LQI (zz in hexadecimal) of the last hop are displayed. For a description of the LQI reading please see section 7. <EUI64> is the identifier and <NodeID> the NodeID of the sending device

SW release

R302 ●

R305 AT Commands

+SR – Set Source Route to Remote Device

Execute Command

AT+SR:<NodeID>,<NodeID>,…

Set the source route of a message sent to a remote device, starting with the NodeID of the remote device followed by all NodeIDs on the route from the remote node to the local node

Use on

All Devices Note: Setting up invalid routes may lead to

listed devices becoming unavailable. To confirm a route use AT+FNDSR.

Response

OK

or

ERROR<errorcode>

<errorcode> represents the error code explained in section 3. Stores route information for up to 30 hops which will be used when sending any message to a remote node, which is part of the listed devices.

SW release

R300 ●

+FNDSR – Find the Source Route to a remote device

Execute Command

AT+FNDSR:<address>

Where <address> can be the remote node‟s

EUI64 or address table index Tries to find source route information to the

specified device by sending a ZDO request to the remote device and thus triggering a reply.

Use on

Sink, COO

Use on

A Sink

Response

OK

or

ERROR<errorcode>

Prompt

SR:XX,<EUI64>,<NodeID>,<NodeID>…

Where XX represents the number of hops to the remote node, EUI64 its EUI64 number followed by a list of NodeIDs starting with the remote node listing all nodes along the path to the local node

<errorcode> represents the error code explained in section 3.

SW release

R302 ●

R305 AT Commands

+POLL – Poll The Parent Device

Execute Command

AT+POLL

Poll the parent device for new data. Note: Action 0010/8010 is recommended for

periodic polling using the built-in timers.

Use on

SED, MED

Response

OK

or

ERROR<errorcode>

<errorcode> represents the error code explained in section 3.

SW release

R300 ●

+REJOIN – Rejoin the network

Execute Command

AT+REJOIN:b

If b is set to 0 join without the known network key (unencrypted) and if b is set to 1 join encrypted.

Use on

SED,MED

Notes

Polling a parent on an end device that has lost its parent will automatically call AT+REJOIN:1. Furthermore functionality 0012 and 0013 make use of this command.

Response

OK

or

ERROR<errorcode>

If the contact with the network has been lost because an end device has lost its parent, the network has changed channel, or updated its encryption key the command AT+REJOIN can be used to rejoin the network.

<errorcode> represents the error code explained in section 3.

SW release

R300 ●

Telegesis ETRX2USB, ETRX2CF, ETRX2EAP, ETRX2RTR, ETRX351 Command Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
