Telegate VDRIVE Users Manual

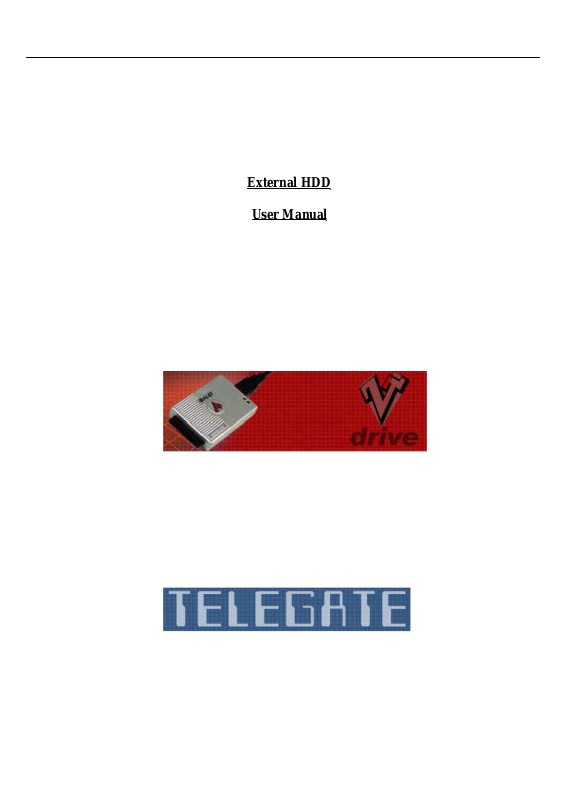

External HDD

User Manual

Introduction to V -Drive

V-Drive is a portable storage product that can compress, store and backup a variety of data.
Coding function is incorporated in the drive, which enables users to preserve his own
information. Extensibility with smart card used in digital camera and camcorder is the
greatest excellence of V-Drive. (Our products are engineered to meet the highest standards
of quality, functionality and design. We hope you thoroughly enjoy your V-Drive. )

Features

1. Extensible with smart card used as in digital camera

2. Function of file compression included.

3. Coding function incorporated, to protect personal information of a user

4. Provision of handy deluxe case for V-Drive

5. Easy driver installation

6. 10 year or more of data retention.

7. Fast data transfer rate: USB maximum speed of 12 M bit/sec.

8. Hot Plug & Play with USB Interface compliant

9. IBM PC/AT or compatible Desktop / Notebook / Sub-Notebook with Pentium 100MHz or
more compliant

10. High capacity of 32MB to 1GB, or Beyond with later version of V-drive

Introduction to V -drive

* Specification

1. Product name : V-Drive

2. Compatible PC : IBM PC/AT compatible PC with Pentium 100MHz or more

3. O/S Compatibility - Windows 98, Windows 98SE,Windows ME

- Windows 2000, Driver for MAC
(download the driver from Internet after the coming April)

4. Data Capacity: 32MB/ 64MB/ 128MB/ 256MB/ 1,000MB (without Smart Card)

5. Supported Interface - USB Spec 1.1

- UHCI(Universal Host Controller Interface)

- OHCI(Open Host Controller Interface)

6. Data Retention : 10 years or more

7. Data Transfer Rate: 12M bit /sec Max

8. Two LEDs - Green LED : V-Drive connected to USB port

- Red LED : V-Drive with Smart Card

9. Power Supply: Use USB-bus power (4.5V ~ 5.5V)

10. Extensibility : extensible with smart card (recognized as one extended disk)

11. Data Compression : file compression function incorporated

12. Coding : password used to protect personal information

13. Approval: FCC, VCCI, CE Compliant (Approval Expected)

14. Dimension (Hx Wx D): 12.5mm x 45mm x 70 mm

15. Environment - Temperature: - 20 C ~ 80 C

- Humidity : 5 % - 95 %

16. Operational Temperature : 0 C ~ 45 C

17. Included Accessories : long and short cable for USB, users’ manual,deluxe case
