T 898 WK
Schematic
2 pgs
460.51 Kb
0
Table of contents
Loading...

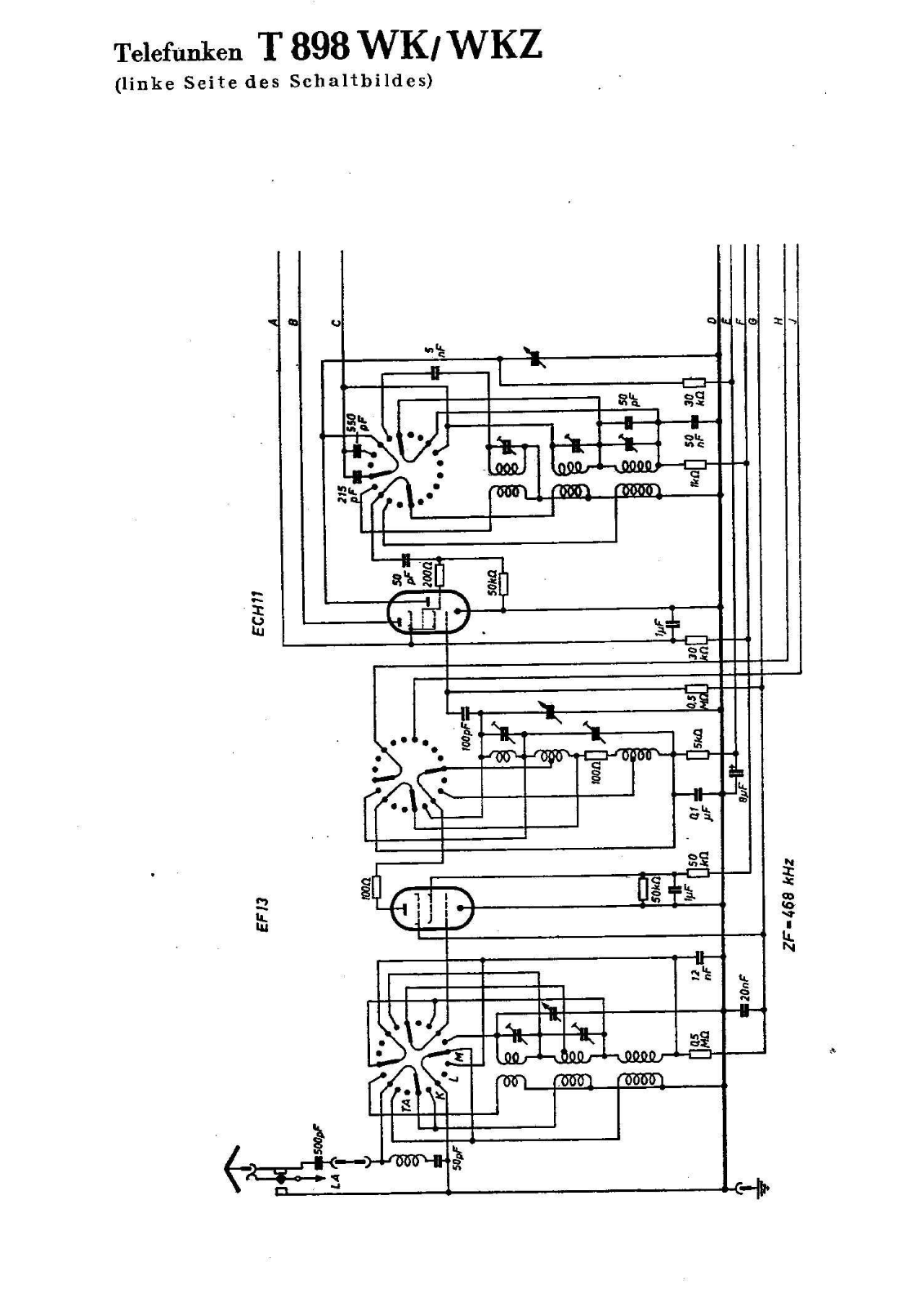

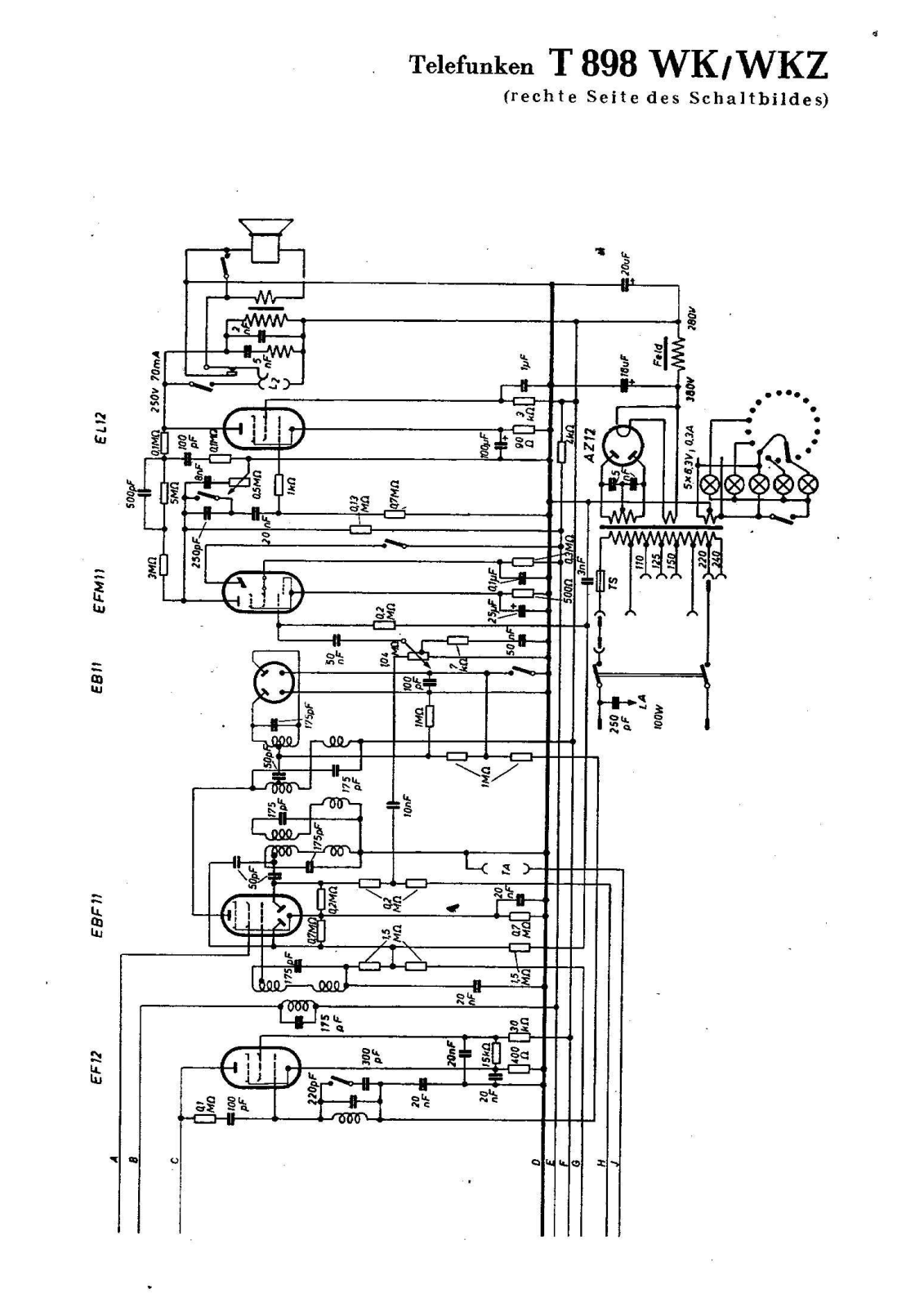

Telefunken T 898 WK, T 898 WKZ Schematic
...
Telefunken Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
