TeleEpoch C5620 Users Manual

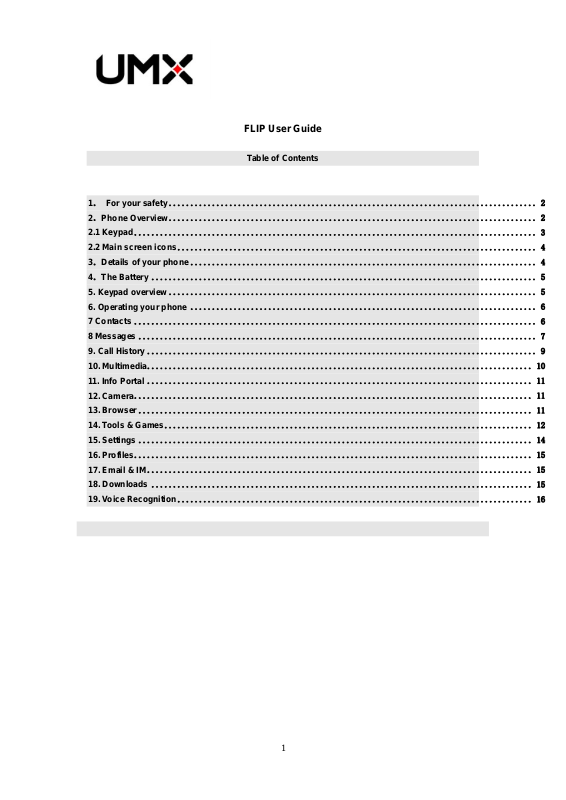

FLIP User Guide
Table of Contents
1． For your safety..................................................................................... 2
2．Phone Overview..................................................................................... 2
2.1 Keypad............................................................................................. 3
2.2 Main screen icons................................................................................... 4
3．Details of your phone................................................................................ 4
4．The Battery ......................................................................................... 5
5. Keypad overview..................................................................................... 5
6. Operating your phone ................................................................................ 6
7 Contacts ............................................................................................. 6
8 Messages ............................................................................................ 7
9. Call History .......................................................................................... 9
10. Multimedia......................................................................................... 10
11. Info Portal ......................................................................................... 11
12. Camera............................................................................................ 11
13. Browser ........................................................................................... 11
14. Tools & Games..................................................................................... 12
15. Settings ........................................................................................... 14
16. Profiles............................................................................................ 15
17. Email & IM......................................................................................... 15
18. Downloads ........................................................................................ 15
19. Voice Recognition.................................................................................. 16
1
1． For your safety
Please read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal.
Road Safety at All Times
Do not use a hand-held phone while driving; park the vehicle first.
Switching Off When Refueling
Do not use the phone at a gas station or near fuels or chemicals.
Switching Off in an Aircraft
Turn your phone off or put it in Airplane Mode while in an Aircraft, wireless phones can cause interference.
Switching Off in Hospitals
Switch your phone off near medical equipment. Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference, which could affect their performance.
Special Regulations
Please follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it,
or when it may cause interference or danger (in a hospital, for example.)
Emergency Call
Ensure the phone is switched on and in an area where there is wireless coverage. Key in the emergency number and press
the dial key. Give all the necessary information as accurately as possible. Do not end the call until given permission to do so.
Liquid Resistance
Your phone is not liquid resistant. Keep it dry.
Accessories and Batteries
Use only approved accessories and batteries. Use of any unauthorized accessories could damage your phone and may be
dangerous.
Important: For optimal use of the battery, fully charge the battery before you use the phone for the first time.
Important: Using a non-supported battery may cause damage to your phone.
Please dispose of used batteries appropriately, do not throw them in the garbage, you may return it to the store from where
you purchased the phone.
2．Phone Overview
To guarantee your phone is always in its best condition, read this manual carefully and keep it for future reference.
Note: The pictures and icons presented in this manual are meant for illustrative purposes only and may not accurately reflect the
actual pictures and icons found on the phone
2
2.1 Keypad
End/Power Key: Press and hold this key for a few seconds to turn the phone on/off. During a call, press
this key to end the call and return to the main menu.
Answer/Send key: Press to place or receive a call.
Left soft key/right soft key
Navigation key: Press the middle key to confirm (the OK key) and enter the main menu;
Camera key
Email key
Back/Delete key
Asterisk Key: Press the middle of the navigation key (ok key) and the asterisk key (＊) to lock the
phone. Press the left soft key and the asterisk key (＊) to unlock the phone. In edit mode, press ＊ to bring
up the symbol table.
-
3
Pound Key: Hold the # key to activate and deactivate vibration mode. In edit mode, press # to switch
between different entry method.
In edit mode use the 0 for a space or 0.
2.2 Main screen icons
Signal strength antenna
Alarm clock
Unread messages
Battery indicator
Ring icon
Vibration and ring
Silence icon
Keypad lock
USB
Bluetooth
CDMA 1x
3．Details of your phone
Phone mode
Specifications
Size 99 x 48.6 x 16 .8mm
Weight (excluding battery) 70g
Screen display resolution
Frequency Bands CDMA 800 MHz/1900 MHz, G-block
Bluetooth Included
Recording Included
MMS/ WAP Included
Contacts capacity 1,000 contacts
Message capacity 500 messages
Call history 20 records of missed, received and dialed calls
Preset ringtones 10 options
Message alert tone 10 options
FLIP
Main screen: 2.2” QVGA(320 x240)
Outside screen: 1.2” OLED
Call time Included
Speed dial Included
MP3 Included
Camera 1.3MP
4
Date and time display Supported
Alarm clock/calculator Supported
Games Snake and Blackjack
Incoming call display Supported
4．The Battery
Installing your battery
Remove the back cover. At the top of the phone there’s a slot to loosen the cover. Once loosened, peel around the cover and
remove it completely. Remove the battery from its protective packaging and insert it in the back of the phone so that the contacts on
the battery make contact to the contacts on the phone.
Be sure the battery sits flush with the inside of the phone.
Battery charging
The phone uses a rechargeable battery. The battery should be charged fully before using for the first time. Optimal
battery performance will occur after charging and discharging a few times.
For optimal battery performance let your battery run out completely once every month.
It is normal for the battery to heat up when charging. Your phone has automatic temperature adjustment protection.
When the battery is about to run out, the phone will notify you. When the battery runs out completely the phone
turns off automatically.
Note: The actual usage time for the battery will vary under different operating modes and settings. The phone may turn off when
battery is low, please charge when necessary.
Charging the battery
Connect the charger to a power outlet and then plug the charger into the micro USB port on the lower right side of the
phone.
When the phone is charging, the battery icon indicator bars will move from left to right.
You can charge the phone while the phone is powered on or off.
The battery icon indictor bars will stop automatically when the battery is fully charged and the battery icon will show four
green bars you can disconnect your charger at this time.
- Please use the original charger; the use of other chargers may damage your phone.
5. Keypad overview
Send and End keys
The Send key is used to make a phone call (after entering the numbers) or to view recent call history.
The End key is used to end a phone call or exit from the menu (when placing or receiving a call) and return to the standby menu.
Navigation keys
The up, down, left and right navigation keys are used to browse through a menu.
In standby mode, the up navigation key is the shortcut key for calendar; the down navigation key is the shortcut key to access the
Info portal the left navigation key is the shortcut key to access multimedia; and the right navigation key is the shortcut key to access
messages.
Standard key pad
5
The number keys of 0-9 and the #/* keys are used to dial, enter passwords, enter letters and symbols.
■Note: The screen will turn off when it is in standby mode for a length of time that can be adjusted by the user.
If the screen backlight turns off, press any key to turn it back on.
Language and entry method
To change the language from French to English, access the main menu, and then select Settings, Phone, Language.
The phone’s entry methods include French, English, numbers and symbols. When typing a message use the “＃” key to switch
entry methods (English, French, capital letters or lower case letters) and the “*” key to switch to the symbols.
Main Menu
Press the middle of the navigation keys the “OK key” in standby mode to enter the main menu.
The main menu includes 12 menu options. Each menu has several submenus. Various functions of the phone can be set, checked
or changed through the main menu.
Use the navigation keys in the main menu interface to navigate through the main menu options.
To select a function in the main menu scroll to the menu option you want to access and press the OK key.
Use the up\down navigation key to scroll through the submenus, use the left and right soft keys to navigate through the submenus
Press the End key to exit from the menu and return to the standby interface.
Personalizing the text message tone
From the main menu select Profiles, select your preferred mode (normal, loud, vibrate, silent), select personalize, select
message alert tone and scroll through the list to select your preferred tone.
Personalizing the Incoming call ring
From the main menu select Profiles, select your preferred mode (normal, loud, vibrate, silent), select personalize, select
ringtone and scroll through the list to select your preferred ringtone
6. Operating your phone
Power on
Press and hold the “On/Off” Power key for a few seconds to turn on the phone. The phone will automatically search for the
network. Once registered in the network, the signal strength will be displayed.
Power off
Press and hold the “On/Off” Power key for a few seconds to turn off the phone.
Note: If the battery is removed without powering down first, some information may be lost.
Making a phone call
In standby mode enter the numbers on the keypad and press the Send key to make a call.
Controlling the volume
You can press the up and down navigation keys to adjust the handset volume during a call, or press the up and down keys on the
left side of the phone to adjust the volume.
Answering a phone call
When a call comes in, press the Send key to answer the call, or press any key to answer (if the function of any key answer is set).
7 Contacts
Adding a new contact
1. From the main menu select the Contacts icon
2. Scroll to and select Create New Contact
3. Enter the contact information using the left soft key to edit and the key pad to enter the letter or numbers
6
