Teledyne LeCroy WaveSurfer 3054, WaveSurfer 3024, WaveSurfer 3022, WaveSurfer 3034 Getting Started Guide
WaveSurfer 3000
Getting Started Guide
924853-00
700 Chestnut Ridge Road
Chestnut Ridge, NY 10977
1.800.5.LECROY
teledynelecroy.com
•
WaveSurfer 3000
Getting Started Guide
© 2014 Teledyne LeCroy, Inc. All rights reserved.
Unauthorized duplication of Teledyne LeCroy documentation materials other than for internal sales
and distribution purposes is strictly prohibited. However, clients are encouraged to distribute and
duplicate Teledyne LeCroy documentation for their own internal educational purposes.
WaveSurfer, WaveScan and Teledyne LeCroy are trademarks of Teledyne LeCroy. Windows is a
registered trademark of Microsoft Corporation. Other product or brand names are trademarks or
requested trademarks of their respective holders. Information in this publication supersedes all
earlier versions. Specifications are subject to change without notice.
WaveSurfer 3000 Getting Started Guide
Welcome
Thank you for buying a Teledyne LeCroy product. We’re certain you’ll be pleased with the detailed features so unique to our instruments.
This Getting Started Guide is designed to cover important safety and installation information for your oscilloscope, along with some basic operating
procedures so you’re quickly working with waveforms.
Contents
Introduction
About the WaveSurfer 3000 Oscillosocopes 2
Specifications 3
Materials List 3
General Safety Information 4
Support 5
Set Up
The Front of Your Oscilloscope 8
The Back of Your Oscilloscope 10
Carrying 11
Powering On/Off 11
Connecting 11
Micro SD Card 12
Probes 12
Digital Leadset 13
Software Activation 14
Firmware Updates 14
User Interface
Touch Screen Display 16
Language Selection 18
Entering/Selecting Data 19
Front Panel 20
Basics
Turning On/Off Traces 24
Vertical 25
Horizontal (Timebase) 27
Triggers 28
Cursors 29
Zoom 30
Math 31
Measurements & Statistics 32

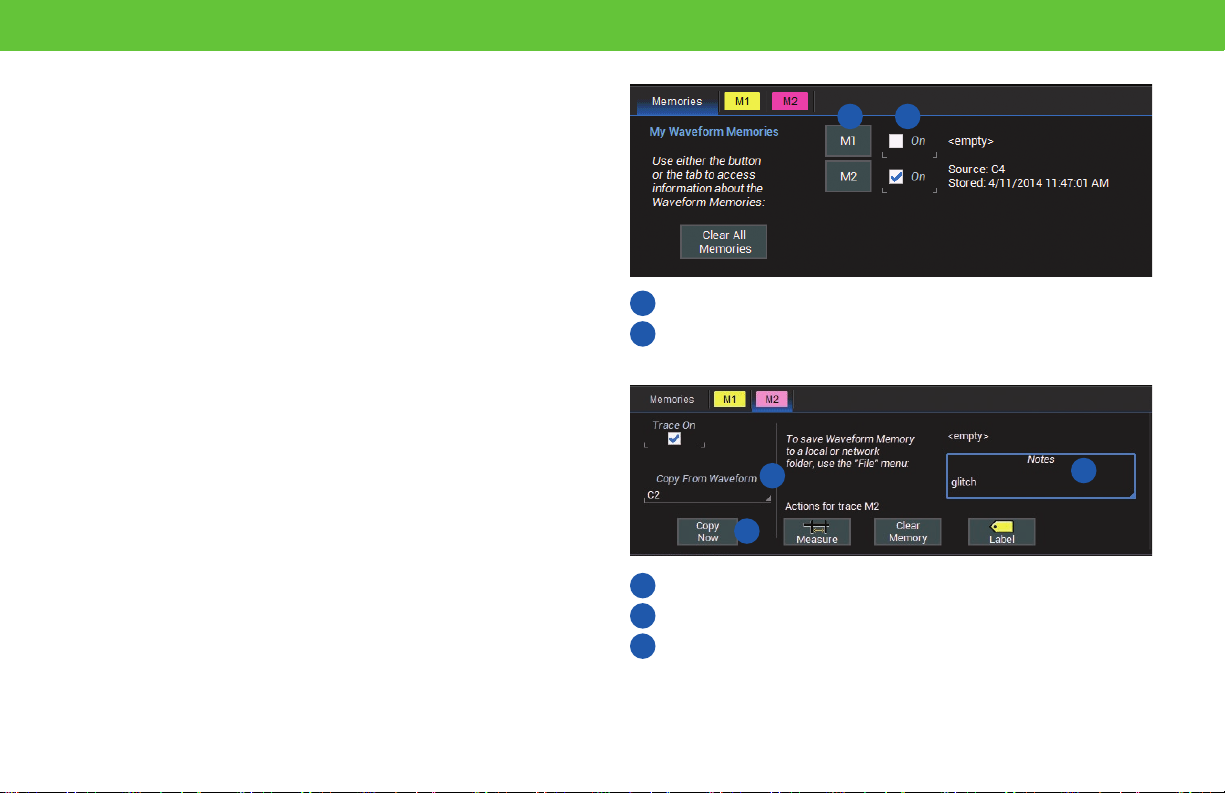

Memories (Reference Waveforms) 33
WaveSource 34
Documenting 35
Temperature Dependent Calibration 35
Software Options 36
Reference
Service 38
Teledyne LeCroy Service Centers 39
Certifications 40
Warranty 42
924853-00
INTRODUCTION
WaveSurfer 3000
INTRODUCTION
About the WaveSurfer 3000 Oscillosocopes
WaveSurfer 3000 oscilloscopes feature the MAUI advanced user interface
with touch screen simplicity to shorten debug time. Quickly identify and
isolate anomalies with WaveScan, Fast Display, and History mode for
faster troubleshooting; LabNotebook enables easy documentation and
convenient collaboration. The advanced probeinterface, upgradable
bandwidth and multi-instrument capabilities provide maximum versatility
and investment protection.
MAUI - A New Wave of Thinking
MAUI is the most advanced oscilloscope user interface. MAUI is designed
for touch; all important oscilloscope controls are accessed through the
intuitive touch screen. MAUI is made for simplicity; time saving shortcuts
and intuitive dialogs simplify setup. MAUI is built to solve; deep set of
debug and analysis tools help identify problems and find solutions quickly.
Advanced Anomaly Detection
Combining a fast waveform update rate of 130,000 waveforms/second
with History mode waveform playback and WaveScan search and find, the
WaveSurfer 3000 is an outstanding tool for waveform anomaly detection.
Capture, Debug, Analyze, Document
The advanced active probe interface gives tremendous flexibility for
capturing all types of signals. Debug, analyze and document problems
through the use of powerful math and measurement capabilities,
sequence mode segmented memory, and LabNotebook..
Multi-Instrument Capabilities
Beyond traditional oscilloscope functionality the WaveSurfer 3000 has a
variety of multi-instrument capabilities including waveform generation
through a built-in function generator with arbitrary waveform capabilities,
protocol analysis with serial data trigger and decode, a digital voltmeter,
and logic analysis with an available 16-channel mixed signal option.
2
924853-00
INTRODUCTION
Specications
Detailed specifications are maintained in the Datasheet on the product
page at teledynelecroy.com.
Key Specications
Bandwidth 200 MHz – 750 MHz
Channels 2 or 4
Sample Rate (all channels) 2 GS/s
Memory (per channel) 10 Mpts/ch
Digital Channels 16
Digital Sample Rate 500 MS/s
Minimum Detectable Pulse Width 4 ns
Maximum Input Frequency 125 MHz
Materials List
Check that you have all the parts listed here. Contact Teledyne LeCroy
immediately if any part is missing.
1 oscilloscope
•
2 or 4 passive probes (one for each channel)
•
1 Micro SD Card (installed)
•
1 AC power cord (rated for country)
•
1 protective front cover
•
1 Getting Started Guide
•
1 Oscilloscope Security Certificate
•
1 Oscilloscope Registration Card
•
1 Calibration Document
•
1 CE Certificate
•
WaveSurfer 3000 Getting Started Guide
3
INTRODUCTION
General Safety Information
This section contains instructions that must be observed to keep the
instrument operating in a correct and safe condition. You are required to
follow generally accepted safety procedures in addition to the precautions
specified in this section. The overall safety of any system incorporating
this instrument is the responsibility of the assembler of the system.
Symbols
These symbols appear on the instrument’s front or rear panels and in its
documentation to alert you to important safety considerations.
CAUTION of damage to instrument, or WARNING of hazard to
health. Attend to the accompanying information to protect against
personal injury or damage. Do not proceed until conditions are fully
understood and met.
WARNING. Risk of electric shock.
Measurement ground connection.
Alternating Current.
On/Standby power.
Precautions
Use proper power cord. Use only the power cord shipped with this
•
instrument and certified for the country of use.
Maintain ground. This product is grounded through the power cord
•
grounding conductor. To avoid electric shock, connect only to a
grounded mating outlet.
Connect and disconnect properly. Do not connect/disconnect probes
•
or test leads while they are connected to a voltage source.
Observe all terminal ratings. Do not apply a voltage to any input (C1,
•
C2, C3, C4, EXT or Dig) that exceeds the maximum rating of that input.
Refer to the front of the oscilloscope for maximum input ratings.
Use only within operational environment listed. Do not use in wet or
•
explosive atmospheres.
Use indoors only.
•
Keep product surfaces clean and dry.
•
Do not block the cooling vents. Leave a minimum six-inch gap
•
between the instrument and the nearest object.
Do not remove the covers or inside parts. Refer all maintenance to
•
qualified service personnel.
Do not operate with suspected failures. Inspect all parts regularly
•
and do not use the product if any part is damaged. Cease operation
immediately and sequester the instrument from inadvertent use.
4
924853-00
INTRODUCTION
Operational Environment
Temperature: 0° to 50° C
Humidity: Maximum relative humidity 90% for temperatures up to
31° C decreasing linearly to 50% relative humidity at 50° C
Altitudes: up to 3,048 m (at < 30° C)
Power and Ground Connections
The instrument operates from a single-phase, 100 to 240 Vrms (± 10%)
AC power source at 50/60 Hz (± 5%), or a 100 to 120 Vrms (± 10%) AC
power source at 400 Hz (± 5%). The instrument automatically adapts to
the line voltage. Manual voltage selection is not required.
The AC inlet ground is connected directly to the frame of the instrument.
For adequate protection again electric shock, connect to a mating outlet
with a safety ground contact.
WARNING. Interrupting the protective conductor inside or outside
the oscilloscope, or disconnecting the safety ground terminal,
creates a hazardous situation. Intentional interruption is prohibited.
Maximum power consumption with all accessories installed (e.g., active
probes, USB peripherals, digital leadsets) is 150 W (150 VA) for fourchannel models and 100 W (100 VA) for two-channel models. Power
consumption in standby mode is 4 W.
Cleaning
Clean only the exterior of the oscilloscope using a damp, soft cloth. Do
not use harsh chemicals or abrasive elements. Under no circumstances
submerge the instrument or allow moisture to penetrate it. Avoid electric
shock by unplugging the power cord from the AC outlet
before cleaning.
CAUTION. Do not attempt to clean internal parts.
Fuse Replacement
Disconnect the power cord before inspecting or replacing the fuse. Open
the fuse holder (located at the rear of the instrument below the AC power
inlet) using a small, flat-bladed screwdriver. Replace the old fuse with a
new 5 x 20 mm T-rated 3.15 A/250 V fuse. Close the fuse holder before
powering on.
WARNING. For continued fire protection at all line voltages, replace
the fuse with one of the specified type and rating only. Always
disconnect the power cord before replacing the fuse.
Support
Online Documentation
Teledyne LeCroy publishes a free Technical Library on its website.
Manuals, tutorials, application notes, white papers, and videos are
available to help you get the most out of your Teledyne LeCroy products.
The WaveSurfer 3000 Oscillosocopes Operator’s Manual can be
downloaded from teledynelecroy.com/wavesurfer3000. This .PDF
document contains more extensive procedures for operating your
oscilloscope than are found here.
The Datasheet published on the product page contains the detailed
product specifications.
Technical Support
Registered users can contact their local Teledyne LeCroy service center
at the number listed in this guide to make Technical Support requests by
phone or email. You can also submit Technical Support requests via the
website at teledynelecroy.com/support/techhelp.
WaveSurfer 3000 Getting Started Guide
5
INTRODUCTION
6
924853-00
SET UP
WaveSurfer 3000
SET UP
The Front of Your Oscilloscope
A
Touch Screen Display
B
A
Front Panel
B
WaveSource Waveform
C
Generator Button
Ground and Calibration
D
Outut Terminals
USB Ports
E
Mixed Signal Interface
F
8
924853-00
C
G
H
F
E
D
Channel Inputs
G
Power Button
H
Rotating / Tilting Feet
I
I

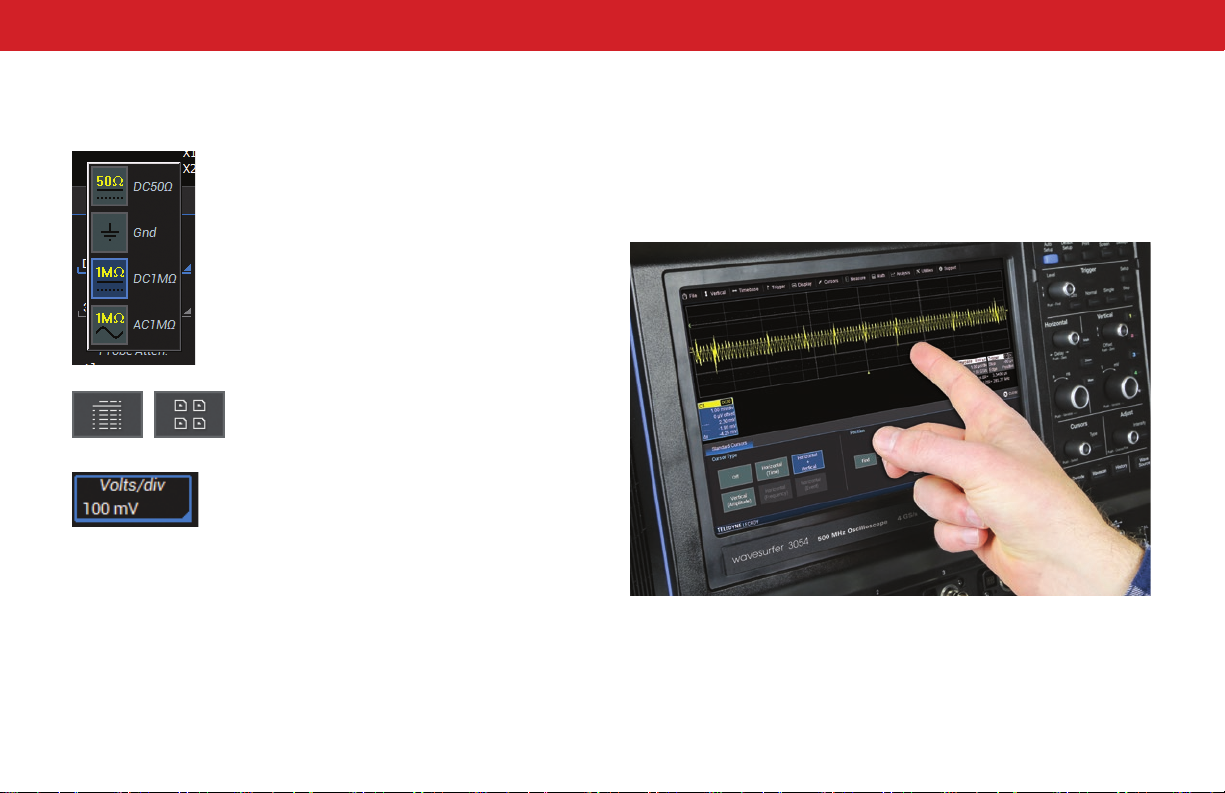

The touch screen display is the principal viewing and control center
of the oscilloscope. See “Touch Screen Display” for an overview of its
components.
The front panel houses buttons and knobs that control different
oscilloscope settings. Operate the instrument using front panel hard
controls, display soft controls, or a mix of both that is convenient for you.
All front panel knobs have multiple modes of
operation: pressing them invokes one action and
turning them another. The second label describes
what happens when you “push” instead of turn.
Front mounted host USB ports
can be used for transferring
data or connecting peripherals
such as a mouse or keyboard.
SET UP
The mixed signal intereface connects the digital leadset to input up-to-16
digital lines (with MSO option).
Ground and calibration output terminals are used to compensate passive
probes.
Channel inputs 1–4 (or 1–2 depending on model) are signal inputs to the
oscilloscope.
The Power button turns on/off the oscilloscope. See “Powering On/Off” for
more information.
The rotating, tilting feet enable four different viewing positions.
WaveSurfer 3000 Getting Started Guide
9
SET UP
The Back of Your Oscilloscope
Built-in Carrying Handle
A
WaveSource Waveform Generator
B
output connector
Kensington Lock
A
C
Micro SD Card Slot
D
EXT TRIG connector to input an
E
external trigger signal
AUX OUT connector to send device
F
trigger enabled or trigger out signal to
another device
G
VGA Video Output for connecting to
external monitors
10
924853-00
B
Ethernet Port for connecting to
H
networks
K
I
L
C
D
E
F
H
G
J
I
USBTMC Port for remote control
USB Ports (2) for connecting external
J
USB devices
AC Power Inlet for the AC line cord
K
Fuse Holder
L
SET UP
Carrying
The oscilloscope’s case contains a built-in carrying handle. Always
unplug the instrument from the power source before lifting and carrying it.
Powering On/Off
Connect the line cord rated for your country to the AC power inlet on the
back of the instrument, then plug it into a grounded AC power outlet. (see
Power and Ground Connections in “General Safety Information”).
The Power button controls the operational state of the oscilloscope.
Press the button to switch on the instrument; the LED on the button lights to
show the oscilloscope is on. Press it again to switch “off” (Standby power).
CAUTION. Do not power on or calibrate the oscilloscope with a
signal attached.
Always use the Power button or the File > Shutdown menu option to
execute a proper shut down process and preserve settings.
The Power button does not disconnect the oscilloscope from the AC
power supply; some “housekeeping” circuitry continues to draw power.
The only way to fully power down the instrument is unplug the AC line
cord from the outlet.
CAUTION. Do not place the instrument so that it is difficult to reach
the power cord in case you need to disconnect from power.
We recommend unplugging the instrument if it will remain unused for a
long period of time.
Connecting
After start up, configure the connection on the oscilloscope using the menu
options listed below. See the WaveSurfer 3000 Oscilloscopes Operator’s
Manual for more detailed instructions.
USB Peripherals
Connect the device to a USB port on the front or back of the instrument. Go
to Utilities > Utilities Setup > Hardcopy to configure printer settings.
External Controller
Connect a USB-A/B cable from the USBTMC port on the back of the
instrument to the controller. Go to Utilities > Preference Setup > Remote to
configure remote control.
WaveSource Waveform Generator (to other device)
Connect a BNC cable from the WaveSource connector on the back of the
instrument to the other device. Go to Utilities > WaveSource or touch the
front panel WaveSource button to configure the output signal.
Other Auxiliary Device
Connect a BNC cable from Aux Out on the back of the instrument to the
other device. Go to Utilities > Utilities Setup > Aux Output to configure the
connection.
WaveSurfer 3000 Getting Started Guide
11
SET UP
LAN
WaveSurfer 3000 accepts DHCP network addressing. Connect a cable from
either Ethernet port on the back panel to a network access device. Go to
Utilities > Utilities Setup > Remote and select TCPIP to obtain a network
connection and IP address.
To configure a Static IP address, touch Net Connections on the Remote
dialog and enter the address.
Go to Utilities > Preference Setup > Email to configure email settings.
External Monitor
WaveSurfer 3000 supports external monitors with 1028 x 600 resolution.
Connect the monitor cable to the VGA video output on the back of the
instrument. The connection is “plug-and-play” and does not require any
further configuration on the oscilloscope. If necessary, configure the
monitor to receive output.
Printer
WaveSurfer 3000 supports PictBridge-compliant printers. Connect the
printer to any host USB port. The connection is “plug-and-play.”
Micro SD Card
The Micro SD Card acts as the oscilloscope’s removable hard drive. Use
it to store and easily share setup files, waveform trace files, LabNotebook
notebooks, and related data.
When using the oscilloscope Disk Utilities, the Micro SD Card appears as
Storage Card, while a connected USB drive appears as USB Disk.
Probes
WaveSurfer 3000 oscilloscopes are compatible with the included passive
probes and all Teledyne LeCroy ProBus active probes that are rated for
the oscilloscope’s bandwidth. Probe specifications and documentation
are available at teledynelecroy.com/wavesurfer3000.
12
924853-00
Digital Leadset
Available with the purchase of an MS probe, the digital leadset enables
input of up-to-16 lines of digital data. Lines can be organized into two
logical groups and can be named appropriately.
The digital leadset features two digital banks with separate threshold
controls, making it possible to simultaneously view data from different
logic families.
Each flying lead has a signal and a ground connection. A variety of
ground extenders and flying ground leads are available for different probing
needs. To achieve optimal signal integrity, connect the ground at the tip
of the flying lead for each channel used in measurements. Use either the
provided ground extenders or ground flying leads to make the ground
connection.
SET UP
To connect the leadset to the oscilloscope, push the connector into the
mixed signal interface below the front panel until you hear a click.
To remove the leadset, press in and hold the buttons on each side of the
connector, then pull out to release it.
WaveSurfer 3000 Getting Started Guide
13
SET UP
Software Activation
The oscilloscope operating software (firmware and standard applications)
is active upon delivery.
To purchase an option, contact your Teledyne LeCroy sales representative at
the number listed in this guide. You will receive a license key via email that
activates the optional features on the oscilloscope. To install the key:
1. Go to Utilities > Utilities Setup > Options.
2. Touch Add Key.
3. Enter the new license key and click OK.
4. Reboot the oscilloscope.
Firmware Updates
Free firmware updates are available periodically from the Teledyne LeCroy
website at teledynelecroy.com/support/softwaredownload. Registered
users will receive email notification when a new update is released. To
download and install the update:
1. From a remote PC, visit our download page and click the link to
Oscilloscope Downloads > Firmware Upgrades.
2. Select your oscilloscope series and model number.
3. Enter your registration login information, or create a new account.
4. Click the download link, and choose to Save the installer to a USB
storage device.
5. Insert the USB device into one of the ports on the front of the
oscilloscope.
6. Go to Utilities > Utilities Setup.
7. On the Utilities dialog, choose Update Firmware.
8. Browse to the installer file in the USB Disk folder, then select Upgrade.
9. When installation is complete, power cycle the instrument.
CAUTION. The installation may take several minutes, depending on
the length of time since your last upgrade. Do not power down the
oscilloscope at any point during the installation process.
14
924853-00
USER INTERFACE
WaveSurfer 3000
924853-00
USER INTERFACE
Touch Screen Display
The entire display is a touch screen. Use your finger to touch, double-touch, touch-and-drag, or draw a selection box. Many controls that display
information also work as “buttons” to access other functions. If you have a mouse installed, you can click anywhere you can touch to activate a control;
in fact, you can alternate between clicking and touching, whichever is convenient.
A
A
Menu Bar
Grid Area
B
16
924853-00
B
D
F
G
C
E
H
Trigger Level Indicator
C
Cursor
D
Channel Descriptor Box
E
Trigger Position Indicator
F
Timebase and Trigger
G
Descriptor Boxes
Dialog Tabs
H
USER INTERFACE
A menu bar of drop-down menus lets you access set up dialogs and
other functions. All functionality can be accessed through either the menu
bar or other shortcuts.
The grid area displays the waveform traces. You can adjust the
brightness of the grid lines to make other objects more visible.
Trigger level (vertical axis) and trigger position (horizontal axis) indicators
appear on the grid when a trigger is set, color-coded to match the input.
Cursors show where measurement points have been set. Touch-anddrag cursor indicators to quickly reposition the measurement point.
Channel (C1-C4), Zoom (Z1-Z4), Math (F1-F2), Memory (M1-M2), and
Digital (Digital1-Digital2, with MSO option) descriptor boxes appear
immediately below the grid and summarize current settings for each open
trace. Touch the descriptor box to open the corresponding set up dialog.
Timebase and Trigger descriptor boxes appear at the right of the display.
Timebase and Trigger settings only apply to channel traces. Touch the
descriptor box to open the corresponding set up dialog.
Dialogs appear at the bottom of the display for entering set up data. The
top dialog will be the main entry point for the selected function.
For convenience, related dialogs appear as a series of tabs behind the
main dialog. Touch the tab to open the dialog
Timebase Descriptor Box
E
D
Channel Descriptor Box
A
F
Digital Descriptor Box
Trigger Delay (Position)
A
A
B
C
B
C
D
E
A
B
C
Time/div
B
Sample Rate
C
# Samples
D
Sampling Mode
E
(blank when in real-time mode)
Pre-Processing Summary
A
Listing (summarizes changes
from default states)
Coupling
B
Gain Setting
C
Offset Setting
D
E
Cursor Positions
Channel Abbreviation
F
A
# Digital Lines in Group
Digital Sample Rate
B
Digital Memory
C
WaveSurfer 3000 Getting Started Guide
17
USER INTERFACE
Action Toolbar Context Menu
These buttons on the main Channel, Math, and Memory dialogs offer
shortcuts to useful functions so that you don’t have to leave the
underlying dialog. They always apply to the active (highlighted) trace.
Apply up-to-six measurement parameters.
Display a zoom of the trace.
Apply up-to-two math functions.
Open decoder software (installed option
required, else disabled)
Copy the active trace to a memory trace (e.g.,
copy C2 to M2).
Scale the waveform to fit the grid.
Touching a trace opens a context menu of actions that can be applied to that
trace, such as create math function, apply measurements or label.
Language Selection
To change the language that appears on the display, go to Utilities >
Preference Setup > Preferences and make your Language selection.
The oscilloscope software must be restarted after the language is selected.
18
Apply a custom label to a waveform.
924853-00
Entering/Selecting Data
Touch & Type
Touching once activates a control. In some cases, you’ll
immediately see a pop-up menu of options. Touch one
to select it.
On some pop-up menus, options can be
displayed as a list or as icons. Touch the
respective button to change the appearance.
In other cases, data entry fields appear highlighted on
the display. When a data entry field is highlighted (as
shown here), it is active and can be modified by using
the front panel Adjust knob.
If you have a keyboard installed, you can type your entry in the active field. Or,
you can touch again, then select your entry from the pop-up menu or keypad.
You’ll see a pop-up keypad when you double-touch a numerical data entry
field. Touch the soft keys to use it exactly as you would a calculator. When
you touch OK, the value is entered in the field.
USER INTERFACE
Touch & Drag
Touch-and-drag waveforms, cursors and trigger indicators to reposition
them on the grid; this is the same as setting the values on the dialog. Quickly
zoom areas of the grid by touching and dragging to draw a selection box
around a portion of the trace.
WaveSurfer 3000 Getting Started Guide
19
USER INTERFACE
Front Panel
Most of the front panel controls duplicate functionality available through the
touch screen display. They are covered in more detail in the Basics section
and in the WaveSurfer 3000 Oscilloscopes Operator’s Manual. Below are a
few useful front panel controls.
Shortcut buttons arranged across the top of the front panel give quick
access to commonly used functions.
The Print button captures the entire screen and handles it according to your
Hardcopy settings (e.g., print, email, or save to file), or creates a Notebook
Entry in LabNotebook if configured for it.
The Touch Screen button enables or disables touch screen functionality.
Other shortcut buttons arranged across the bottom open special
applications.
All of the knobs on the front panel function one way if turned and another
if pushed like a button. The top label describes the knob’s principal “turn”
action, and the bottom label describes its “push” action.
Front panel buttons light up to indicate which functions and traces are active.
20
924853-00
The Adjust knob changes the value in any
highlighted data entry field when turned.
Pushing the Adjust knob toggles between
coarse (large increment) or fine (small
increment) adjustments when the knob
is turned.
USER INTERFACE
The Intensity button sets the Adjust knob to control the waveform trace
intensity. When more data is available than can actually be displayed, the
Intensity button helps to visualize significant events by applying an algorithm
that dims less frequently occurring samples.
With Intensity 100%
With Intensity 40%
WaveSurfer 3000 Getting Started Guide
21
USER INTERFACE
22
924853-00
BASICS
USER INTERFACE
WaveSurfer 3000
WaveSurfer 3000 Getting Started Guide
23
BASICS
Turning On/Off Traces
From the Front Panel
Press the corresponding Channel button (1–4) to turn on a trace and make it
active. To turn off an active trace, press the button again.
A trace (waveform pattern) appears on the grid with a color-coded Channel
descriptor box below it. This box always displays the current settings for the
trace and is labeled C1–C4.
To open digital traces (MSO option only), press the Dig button. Digital trace
descriptors are labeled Digital1-Digital2.
From the Display
Choose Vertical > Channel<#> Setup to turn on the trace and make it active.
To turn off the trace, touch the descriptor box, then clear the Trace On
checkbox on the Channel dialog.
For digital traces, choose Vertical > Digital<#> Setup. Turn off the trace by
clearing the Group checkbox.
Zoom, Math, and Memory Traces
In addition to the channel and digital traces, you can view a zoom (close-up
portion) of a trace (Z1-Z4), a trace previously stored to the oscilloscope’s
memory (M1-M2), or a trace that displays the result of a math function
applied to one or more source traces (F1-F2). The quickest way to turn on
these traces is to use the front panel Zoom, Math, and Memory buttons,
which open the corresponding trace setup dialogs. Adjust a trace individually
by touching its descriptor box and changing dialog settings.
If multiple channel traces are open and you press Zoom, zoom traces are
created for each channel.
Active vs. Inactive Trace
A highlighted descriptor box indicates the “active” trace, and all display and
front panel actions will apply to that trace until another is selected. This is
true for all traces, regardless of the type. Although several traces may be
open and appear on the grid, only one at a time is active.
Inactive. Controls will not
work for this trace.
Also, the front panel Channel buttons (1-4) and the Dig, Mem, Zoom, and
Math buttons will light to indicate the active trace.
Active. Controls will
work for this trace.
Viewing Multiple Traces
By default, the oscilloscope has Auto Grid enabled. This divides the screen
into a maximum of three grids, one each for channels/memories, math
functions, and zooms. All traces of the same type appear on a single grid.
Two special grid layouts are available: XY Grid, which puts the oscilloscope in
XY mode, and XY Single Grid, which creates one XY grid and one single grid
for the rest of your traces.
24
924853-00
Vertical
These controls adjust the channel trace along the Y axis.
BASICS
From the Front Panel
A
B
C
Analog Traces From the Display
A
Press to activate analog trace.
Turn to raise or lower Offset (analog)
B
or Vertical Position (digital). Push to
return to zero.
Turn to raise or lower Vertical Scale
C
(analog) or Group Height (digital).
Push to adjust with more precision.
Press to activate digital trace
D
(MSO option only).
Touch to activate the trace and
again to open the Channel dialog.
A
B
D
A
Touch any control to change the value.
Use the Up/Down buttons to change Vertical Scale or Offset.
B
WaveSurfer 3000 Getting Started Guide
25
BASICS
Digital Traces From the Display
Touch to activate the digital trace and
again to open the Digital dialog.
Choose a standard
Logic Family, or enter
custom values for
Threshold. Separate
controls allow you to set
different values for each
bank.
26
A
B
F
D
C
G
Touch tab to choose digital group (1-2).
A
Choose to display individual digital lines, bus trace or both.
B
Touch arrows to switch between banks 0-7 and 8-15.
C
Touch checkbox to select the lines in the group.
D
Enter Vertical Position (top of lowest bit relative to center) and Group
E
Height (vertical space occupied by group) in divisions.
Touch to open Logic Setup dialog.
F
Watch Line Activity Indicators instead of line traces to quickly see the
G
state of each digital line.
924853-00
E
Line trace shows high, low and transition points for each line.
Bus trace collapses lines into hex values.
Line Activity Indicators
High
Low
Transitioning
Horizontal (Timebase)
These controls adjust the trace along the X axis.
BASICS
From the Front Panel
A
A
B
B
Turn to raise or lower trigger Delay. Push to return
Delay to zero.
Turn to raise or lower Horizontal Scale (Time/div).
Push to adjust scale with more precision on math,
memory, or zoom traces.
From the Display
Touch to open the Timebase dialog.
A
A
Touch to select a Sampling Mode.
Use the Up/Down buttons to change Time/Division.
B
Enter a Delay or use the button to Set To Zero.
C
B
C
WaveSurfer 3000 Getting Started Guide
27
BASICS
Triggers
Triggers tell the oscilloscope when to perform an acquisition.
Available trigger types are described at more length in the
WaveSurfer 3000 Oscilloscopes Operator’s Manual.
From the Front Panel
F
G
E
A
Opens the Trigger dialog.
Stops the oscilloscope from acquiring data.
B
Triggers once (single-shot acquisition) when all conditions are met.
C
Triggers repeatedly whenever all conditions are met.
D
Same as Normal when there is a valid trigger; triggers after a preset
E
period when there is no valid trigger.
Turn to change Trigger Level (V). Push to automatically find the level.
F
Lights up when a trigger is armed.
G
Lights up when a trigger has fired.
H
H
D
C
A
B
From the Display
Touch to open Trigger dialog.
A
B
A
B
C
F
E
C
D
D
E
F
G
H
Touch to choose trigger Type.
G
Touch to set Trigger Level (V).
H
Touch to let the software automatically find trigger level
I
based on the input signal.
I
Trigger Indicators
Trigger Source
Trigger Coupling
Trigger Level
Trigger Slope
Trigger Type
Trigger Status
28
924853-00
Level
Indicator
Position
Indicator
Pre/Post-Trigger Indicator appears at
the edge of the grid when trigger point
is no-longer visible.
Cursors
Cursors set measurement points on a trace. There are five preset cursor
types, each with a unique appearance on the display. These are described
in more detail in the WaveSurfer 3000 Oscilloscopes Operator’s Manual.
From the Front Panel
Press to apply cursor. Continue
A
pressing to cycle through all cursor
B
A
types.
Turn to adjust cursor position. Push
B
to select different cursor lines to
adjust.
From the Display
A
C
D
B
Choose Cursor > Cursor Setup to open the Cursor dialog.
A
Touch to choose Cursor Type.
B
Touch-and-drag cursor line to reposition cursor.
C
Vertical Cursor readout appears on descriptor boxes.
D
Horizontal Cursor readout appears below Timebase.
E
BASICS
E
WaveSurfer 3000 Getting Started Guide
29
BASICS
Zoom
Zoom traces display a close-up portion of a channel trace.
From the Front Panel
From the Display
Draw a zoom box on a portion of a
Channel trace.
Press the Zoom button.
Zoom trace opens for every channel trace. The un-zoomed portion of the
original trace is shaded (grey), so that the zoomed portion is more visible.
Use Horizontal knobs to adjust Time/div.
924853-00
30
Repeat on another section to reposition
the zoom trace.
OR
A
C
B
Touch Channel descriptor box to activate the trace.
A
Touch the Zoom shortcut button.
B
Touch Zoom descriptor to open the Zoom dialog and adjust scale.
C
BASICS
Math
Math traces display the result of applying a mathematical function (e.g., FFT) to one or more channel traces. One important distinction between math
functions and measurement parameters is that the result of math is always another waveform, whereas the result of measurement is a number.
Choose Math > Math Setup or press
A
A
B
E
C
D
front panel Math button to open Math
dialog.
Select an existing function (F1-F2)
B
to turn it on. Math trace opens in
separate grid.
Touch F<#> tab to set up or change a
C
function. (Deselect Trace On to close
trace.)
Choose Source channel and math
D
Operator (function).
Math descriptor box shows math
E
scaling. Touch to re-open F<#> tab
if closed.
WaveSurfer 3000 Getting Started Guide
31
BASICS
Measurements & Statistics
Measurements are waveform parameters that can be expressed as numerical values, such as amplitude or frequency. You can set up-to-six
simultaneous measurements on one or more channel traces and view the active readout in a table. Statistical measurements can be added to the table
of parameter values. You can also view measurements as a histicon, a miniature histogram, or open a second grid showing the trend, a plot of the values
showing how the measurement has changed over time. Measurements gates can be used to only perform measurements on a specific portion of the
waveform.
Choose Measure > Measure Setup to open the
A
A
B
D
C
I
H
Measure dialog.
Touch Measure cell to re-open Measure dialog
B
if closed.
Readout of parameter values.
C
Touch to show/hide table of parameter values.
D
Touch to choose parameter.
E
Touch to choose source channel.
F
Touch to set measurement gates.
G
Select to display histicons.
H
I
Select to add statistics to the table.
32
924853-00
E
F
G
Memories (Reference Waveforms)
Memories are traces stored for reference. They can be recalled to the
display for comparison with other traces. A memory can be zoomed or
measured for better analysis of historical data. You can store up-to-two
internal memories (M1-M2). After that, new memories will overwrite
previously stored data.
Internal memories only persist until the oscilloscope is rebooted. To store
memories indefinitely, save them to an external file by choosing File >
Save Waveform. The file can then be recalled into one of the two internal
memories for viewing by choosing File > Recall Waveform. Only memory
files saved with the extension .trc can be recalled.
Press the front panel Mem(ory) button to open the Memory dialog.
A
B
To turn on stored memory, check On next to M1-M2.
A
To store new memory, touch M1-M2 button or tab.
B
C
E
Select source trace in Copy From Waveform.
C
Add notes describing contents of memory.
D
E
Touch to copy to internal memory.
BASICS
D
WaveSurfer 3000 Getting Started Guide
33
BASICS
WaveSource
The optional WaveSource Waveform Generator allows you to output
sine, square, triangle, pulse, DC, Noise, and Arbitrary waveforms from the
WaveSurfer 3000.
Connect a BNC cable from the WaveSource output on the back of the
oscilloscope to the input device.
From the Front Panel
Press the WaveSource button.
From the Display
Choose Utilities > WaveSource.
34
A
B
C
D
Select a waveform type.
A
Choose setup group (e.g., Frequency or Period, Amplitude or Level).
B
To adjust a parameter, select it and turn the Front Panel Adjust knob or type a new value.
C
To setup Arbitrary waveforms, select ARB waveform type, then go to the Arbitrary dialog that appears.
D
924853-00
BASICS
Documenting
Print/Screen Capture
Pressing the Print button captures an image of the display, which is then
handled according to your chosen Hardcopy method. Go to Utilities >
Utilities Preferences > Hardcopy Setup to configure how the oscilloscope
handles the capture. To make the Print button create a new Notebook
Entry when pressed twice, go to File > LabNotebook > Preferences and
select Create Entry when Hardcopy Pressed.
Sharing Data
The oscilloscope can be added to a LAN via TCP/IP or directly connected
to a PC via USBTMC. Saved files can be emailed directly from the
instrument or transferred to a USB drive through any of the host USB
ports on the instrument.
LabNotebook
The integrated LabNotebook tool lets you record waveform images and
waveform files right on the oscilloscope. You create individual Notebook
Entries as you work, which are saved to Micro SD Card. When you choose
File > LabNotebook, the LabNotebook dialog opens showing all your
Notebook entries. You can also use the LabNotebook Flashback feature to
put the oscilloscope back to the exact state it was in when the Notebook
Entry was saved. See the WaveSurfer 3000 Oscilloscopes Operator’s
Manual for more information on using LabNotebook.
.
Temperature Dependent Calibration
The WaveSurfer 3000 is calibrated at the factory prior to being shipped.
This calibration is run at 23° C (± 2° C) and is valid for temperatures
± 5° C of the original calibration temperature. Within this temperature
range the WaveSurfer 3000 will meet all of the specifications. When the
oscilloscope is used outside of this temperature range a temperature
dependent calibration is recommended. There are two options for this
calibration: Calibrate All or Calibrate Current Setting.
Calibrate All - All possible combinations of vertical and horizontal settings
are calibrated at the current temperature. This calibration is valid for the
current temperature ± 5° C. This calibration takes about 120 minutes.
Calibrate Current Setting - The oscilloscope is calibrated at the current
vertical and horizontal setting. This calibration is valid for this setting for
the current temperature ± 5° C. This calibration takes under 30 seconds.
It is recommended that the WaveSurfer 3000 be calibrated when the
temperature range is outside of the ± 5° C of the original calibration
temperature or when it has been more than 1 month since the previous
calibration.
It is recommended that the WaveSurfer 3000 be warmed up for at least
20 minutes prior to use. During the WaveSurfer 3000 warm-up period, the
specifications are not guaranteed.
It is required that all inputs be removed from the oscilloscope prior to
performing calibration.
WaveSurfer 3000 Getting Started Guide
35
BASICS
Software Options
Software options are available to enhance the operation of a WaveSurfer
3000 oscilloscope. After activating your license key (see p.14), these
functions are added to the oscilloscope’s Analysis menu.
Multi-Instrument Options
The Mixed Signal option (WS3K-MSO) enables mixed analog and digital
input and triggering. The digital leadset is delivered with the purchase of
this option. See p.13 and p.26.
The WaveSource Waveform Generator option (WS3K-FG) provides
stimulus output of Sine, Square, Ramp, Pulse, DC, Noise, and Arbitrary
waveforms. See p.36.
The Digital Voltmeter option (WS3K-DVM) activates an integrated 4-digit
digital voltmeter and 5-digit frequency counter that operates through the
same probes already attached to the oscilloscope channels. View realtime and statistical (Min, Max, Avg, Range) measurements through a
dedicated user interface display that continues even when your triggering
system is stopped. The WS3K-DVM license key can be downloaded from
teledynelecroy.com/redeem/dvm at no charge.
Serial Trigger and Decode Options
Serial trigger and decode options provide added insight when
debugging serial data standards (see table below). For the most up-todate list, go to: teledynelecroy.com/serialdata.
To access serial trigger and decode functions, press the front panel
Decode button or choose Analysis > Serial Decode from the menu bar.
Serial trigger and decoder setup differs depending on the protocol. For
detailed instructions, see the Trigger and Decode Instruction Manual
linked to each serial data standard on our website.
Part Number Description
WS3K-AUTO TD CAN and LIN Trigger and Decoder
WS3K-EMB TD I
2
C, SPI, UART/RS-232 Trigger and Decoder
36
924853-00
INTRODUCTION
37
REFERENCE
WaveSurfer 3000
924853-00
REFERENCE
Service
Contact your local Teledyne LeCroy service center for calibration or
other service.
Returning a Product
If the product cannot be serviced on location, the service center will give
you a Return Material Authorization (RMA) code and instruct you where
to ship the product. All products returned to the factory must have an
RMA.
Return shipments must be prepaid. Teledyne LeCroy cannot accept COD
or Collect shipments. We recommend air-freighting. Insure the item you’re
returning for at least the replacement cost.
Follow these steps for a smooth product return.
1. Remove all accessories from the device. Do not include the manual.
2. Pack the product in its case, surrounded by the original packing
material (or equivalent).
3. Label the case with a tag containing:
The RMA
•
Name and address of the owner
•
Product model and serial number
•
Description of failure or requisite service
•
4. Pack the product case in a cardboard shipping box with adequate
padding to avoid damage in transit.
5. Mark the outside of the box with the shipping address given to you
by Teledyne LeCroy; be sure to add the following:
ATTN: <RMA code assigned by Teledyne LeCroy>
•
FRAGILE
•
6. If returning a product to a different country:
Mark the shipment as a Return of US manufactured goods for
•
warranty repair/recalibration.
If there is a cost for the service, list the cost in the Value column and
•
the original purchase price For insurance purposes only.
Be very specific about the reason for shipment. Duties may have to
•
be paid on the value of the service.
Service Plans
Extended warranty, calibration, and upgrade plans are available for
purchase. Contact your Teledyne LeCroy sales representative or
customersupport@teledynelecroy.com to purchase a service plan.
38
924853-00
Teledyne LeCroy Service Centers
REFERENCE
United States and Canada
World Wide Corporate Ofce
Teledyne LeCroy
700 Chestnut Ridge Road
Chestnut Ridge, NY, 10977-6499
Ph: 800-553-2769 / 845-425-2000
Fax: 845-578-5985
teledynelecroy.com
Support:
contact.corp@teledynelecroy.com
Sales:
customersupport@teledynelecroy.com
Taiwan
LeColn Technology Co Ltd.
Far East Century Park, C3, 9F
No. 2, Chien-8th Road
Chung-Ho Dist., New Taipei City,
Taiwan
Ph: ++ 886 2 8226 1366
Fax: ++ 886 2 8226 1368
sales_twn@teledynelecroy.com
US Protocol Solutions Group
Teledyne LeCroy
3385 Scott Boulevard
Santa Clara, CA, 95054
teledynelecroy.com
Sales and Service:
Ph: 800-909-7211 / 408-727-6600
Fax: 408-727-0800
contact.corp@teledynelecroy.com
Support:
Ph: 800-909-7112/408-653-1260
psgsupport@teledynelecroy.com
Korea
Teledyne LeCroy Korea
10th fl. Ildong Bldg.
968-5 Daechi-dong, Gangnam-gu
Seoul 135-280, Korea
Ph: ++82 2 3452 0400
Fax: ++82 2 3452 0490
Europe
Teledyne LeCroy SA
4, Rue Moïse Marcinhes
Case postale 341
1217 Meyrin 1
Geneva, Switzerland
Ph: +41 22 719 2228 / 2323 / 2277
Fax: +41 22 719 2233
contact.sales@teledynelecroy.com
applications.indirect@teledynelecroy.com
teledynelecroy.com/europe
Protocol Analyzers:
Ph: +44 12 765 0397 1
China
Teledyne LeCroy Beijing
Rm. 2001 Unit A, Horizon Plaza
No. 6 Zhichun Rd., Haidian Dist.
Beijing 100088, China
Ph: ++86 10 8280 0318 / 0319 / 0320
Fax: ++86 10 8280 0316
Service:
Rm. 2002
Ph: ++86 10 8280 0245
Singapore
Genetron Singapore Pte Ltd.
37 Kallang Pudding Road, #08-08
Tong Lee Building Block B
Singapore 349315
Ph: ++ 65 9760-4682
Japan
Teledyne LeCroy Japan
Hobunsya Funchu Bldg, 3F
3-11-5, Midori-cho, Fuchu-Shi
Tokyo, 183-0006 Japan
Ph: ++ 81 4 2402 9400
Fax: ++ 81 4 2402 9586
teledynelecroy.com/japan
WaveSurfer 3000 Getting Started Guide
39
REFERENCE
Certications
This section certifies the instrument’s Electromagnetic Compatibility
(EMC), Safety and Environmental compliance.
EMC Compliance
EC DECLARATION OF CONFORMITY - EMC
The oscilloscope meets intent of EC Directive 2004/108/EC for
Electromagnetic Compatibility. Compliance was demonstrated to the
following specifications listed in the Official Journal of the European
Communities:
EN 61326-1:2013, EN 61326-2-1:2013 EMC requirements for electrical
equipment for measurement, control, and laboratory use.
Electromagnetic Emissions:
EN 55011:2010, Radiated and Conducted Emissions Group 1, Class A
EN 61000-3-2/A2:2009 Harmonic Current Emissions, Class A
EN 61000-3-3:2008 Voltage Fluctuations and Flickers, Pst = 1
Electromagnetic Immunity:
EN 61000-4-2:2009 Electrostatic Discharge, 4 kV contact, 8 kV air, 4 kV
vertical/horizontal coupling planes
EN 61000-4-3/A2:2010 RF Radiated Electromagnetic Field, 3 V/m,
80-1000 MHz; 3 V/m, 1400 MHz - 2 GHz; 1 V/m, 2 GHz - 2.7 GHz
EN 61000-4-4/A1:2010 Electrical Fast Transient/Burst, 1 kV on power
supply lines, 0.5 kV on I/O signal data and control lines
EN 61000-4-5:2006 Power line Surge, 1 kV AC Mains, L-N, L-PE, N-PE
EN 61000-4-6:2009 RF Conducted Electromagnetic Field, 3 Vrms,
0.15 MHz - 80 MHz
EN 61000-4-11:2004 Mains Dips and Interruptions, 0%/1 cycle, 70%/25
cycles, 0%/250 cycles
40
924853-00
4 5
4
4
1
To ensure compliance with all applicable EMC standards, high quality shielded interface cables should
be used.
2
Emissions which exceed the levels required by this standard may occur when the oscilloscope is
connected to a test object.
3
This product is intended for use in nonresidential areas only. Use in residential areas may cause
electromagnetic interference.
4
Meets Performance Criteria “B” limits of the respective standard: during the disturbance, product
undergoes a temporary degradation or loss of function or performance which is self-recoverable.
5
Performance Criteria “C” applied for 70%/25 cycle voltage dips and for 0%/250 cycle voltage
interruption test levels per EN61000-4-11.
European Contact:
1
Teledyne LeCroy Europe GmbH
Waldhofer Str 104
D-69123 Heidelberg
2 3
Germany
Tel: (49) 6221 82700
AUSTRALIA & NEW ZEALAND DECLARATION OF CONFORMITY – EMC
Oscilloscope complies with the EMC provision of the Radio Communications
Act per the following standards, in accordance with requirements imposed by
Australian Communication and Media Authority (ACMA):
EN 55011:2010 Radiated and Conducted Emissions, Group 1, Class A, in
accordance with EN61326-1:2013 and EN61326-2-1:2013.
Australia / New Zealand Contacts:
Vicom Australia Ltd. Vicom New Zealand Ltd.
1064 Centre Road 60 Grafton Road
4
Oakleigh, South Victoria 3167 Auckland
Australia New Zealand
Safety Compliance
EC DECLARATION OF CONFORMITY – LOW VOLTAGE
The oscilloscope meets intent of EC Directive 2006/95/EC for Product
Safety. Compliance was demonstrated to the following specifications as
listed in the Official Journal of the European Communities:
EN 61010-1:2010 Safety requirements for electrical equipment for
measurement, control, and laboratory use – Part 1: General requirements
EN 61010-2:030:2010 Safety requirements for electrical equipment
for measurement, control, and laboratory use – Part 2-030: Particular
requirements for testing and measuring circuits
The design of the instrument has been verified to conform to the following
limits put forth by these standards:
•
Mains Supply Connector: CAT II local distribution level, equipment
connected to the mains supply (AC power source).
•
Measuring Terminals: CAT 0 signal level, equipment measuring
terminals connected to source circuits where measures are taken to
limit transient voltages to an appropriately low level.
•
Unit: Pollution Degree 2, operating environment where normally only
dry, non-conductive pollution occurs. Conductivity caused by temporary
condensation should be expected.
•
Unit: Protection Class I, grounded equipment in which protection
against electric shock is achieved by Basic Insulation and a connection
to the protective ground conductor in the building wiring.
U.S. NATIONALLY RECOGNIZED AGENCY CERTIFICATION
The oscilloscope has been certified by Underwriters Laboratories (UL) to
conform to the following safety standard and bears UL Listing Mark:
UL 61010-1 Third Edition – Safety standard for electrical measuring and
test equipment.
REFERENCE
CANADIAN CERTIFICATION
The oscilloscope has been certified by Underwriters Laboratories (UL) to
conform to the following safety standard and bears cUL Listing Mark:
CAN/CSA-C22.2 No. 61010-1-12. Safety requirements for electrical
equipment for measurement, control and laboratory use.
Environmental Compliance
END-OF-LIFE HANDLING
The instrument is marked with this symbol to indicate that it
complies with the applicable European Union requirements to
Directives 2002/96/EC and 2006/66/EC on Waste Electrical and
Electronic Equipment (WEEE) and Batteries.
The instrument is subject to disposal and recycling regulations
that vary by country and region. Many countries prohibit the disposal
of waste electronic equipment in standard waste receptacles. For more
information about proper disposal and recycling of your Teledyne LeCroy
product, please visit teledynelecroy.com/recycle.
RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS)
This instrument and its accessories conform to the 2011/65/EU RoHS2
Directive, as it has been classified as Industrial Monitoring and Control
Equipment (per Article 3, Paragraph 24) and is exempt from RoHS compliance
until 22 July 2017 (per Article 4, Paragraph 3).
ISO Certification
Manufactured under an ISO 9000 Registered Quality Management System.
Visit teledynelecroy.com to view the certificate.
WaveSurfer 3000 Getting Started Guide
41
REFERENCE
Warranty
THE WARRANTY BELOW REPLACES ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS, OR ADEQUACY
FOR ANY PARTICULAR PURPOSE OR USE. TELEDYNE LECROY SHALL
NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, WHETHER IN CONTRACT OR OTHERWISE. THE CUSTOMER
IS RESPONSIBLE FOR THE TRANSPORTATION AND INSURANCE
CHARGES FOR THE RETURN OF PRODUCTS TO THE SERVICE FACILITY.
TELEDYNE LECROY WILL RETURN ALL PRODUCTS UNDER WARRANTY
WITH TRANSPORT PREPAID.
The oscilloscope is warranted for normal use and operation, within
specifications, for a period of three years from shipment. Teledyne LeCroy
will either repair or, at our option, replace any product returned to one of
our authorized service centers within this period. However, in order to do
this we must first examine the product and find that it is defective due to
workmanship or materials and not due to misuse, neglect, accident, or
abnormal conditions or operation.
Teledyne LeCroy shall not be responsible for any defect, damage,
or failure caused by any of the following: a) attempted repairs or
installations by personnel other than Teledyne LeCroy representatives or
b) improper connection to incompatible equipment, or c) for any damage
or malfunction caused by the use of non-Teledyne LeCroy supplies.
Furthermore, Teledyne LeCroy shall not be obligated to service a product
that has been modified or integrated where the modification or integration
increases the task duration or difficulty of servicing the oscilloscope.
Spare and replacement parts, and repairs, all have a 90-day warranty.
The oscilloscope’s firmware has been thoroughly tested and is presumed
to be functional. Nevertheless, it is supplied without warranty of any
kind covering detailed performance. Products not made by Teledyne
LeCroy are covered solely by the warranty of the original equipment
manufacturer.
42
924853-00
WaveSurfer 3000 Getting Started Guide
924853-00
September, 2014
© 2014 Teledyne LeCroy, Inc. All rights reserved.
Loading...
