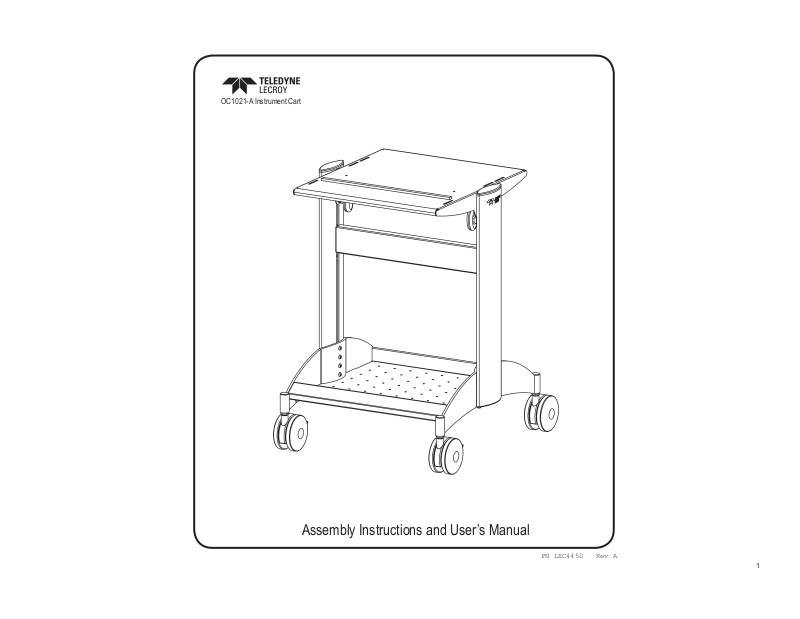

OC1021-A Instrument Cart
Assembly Instructions and User’s Manual
PN LEC4450 Rev A
1
4 Set Screws
Small Hex Wrench (1/8)
Large Hex Wrench (5/32)
2 Knobs
2 Wing Nuts
2 Long Screws
14 Short Screws
4 Small Screws
2 Shoulder Screws
6 Plastic Washers
1 Retaining Bar
1 Top Shelf
2 Posts
1 Bottom Tray
6 Rods
2 Straps
16 Large Lock
Washers
2 Legs
2 Metal Washers
1 Support Bar
4 Small Lock
Washers
2
Note: Correct installation of Set Screw
and Long Screw necessary for proper
performance of cart.
3
1
2
Small Wrench
2 Metal
Washers
Metal Washer
Plastic Washers
Plastic Washer
2 Knobs
2 Rods
6 Plastic
Washers
4 Set Screws
3
2 Shoulder
Screws
Illustration 1: Loosely preassemble 2 Rods and all Shoulder Screws, Knobs, Plastic Washers, and Metal Washers to the Top
Shelf using the placement as shown. Use the small wrench to insert the Set Screws into the Rod through the Top Shelf.
Illustration 2 and 3: Slide the assembly to the end of the Posts and tighten the knobs.
4
4
5
Large Wrench
4 Short
Screws
2 Rods
4 Large
Lock Wash-
ers
!
6
!
Illustration 4: Loosely preassemble the Support Bar, Short Screws, Rods and Large Lock Washers as shown.
Illustration 5 and 6: Orientate the Support Bar to the Top Shelf using the two slots as shown, and slide it a few inches below the
Top Shelf. Lightly tighten screws.
5
7
Small Wrench
8
4 Small Lock
Washers
4 Small
Screws
Illustration 7 and 8: Firmly tighten the Leg to the Bottom Tray with the Small Screws and Small Lock Washers as shown.
6
9
11
!
Large Wrench
2 Large Lock
Washers
!
2 Long
Screws
10
2 Rods
Illustration 9: Loosely preassemble the two Long Screws and two Rods with Large Lock Washers to the Legs.
Illustration 10: Orient the nonlocking caster and the slots in the Top Shelf and slide the Leg and Tray Assembly onto the Posts.
Illustration 11: Fit the Long Screws into the mating hole inside the Posts, lightly tighten the screw ensuring it has correctly
engaged the hole.
7
12
14
!
Large Wrench
13
Small Wrench
10 Large
Lock Wash-
ers
10 Short
Screws
!
15.5”
Illustration 12: Firmly tighten the 4 Short Screws and Large Lock Washers into the Bottom Tray as shown.
Illustration 13: Firmly tighten the 6 Short Screws and Large Lock Washers into the Legs as shown.
Illustration 14: Carefully stand the cart upright as it will sway somewhat. Adjust the Support Bar so that the bottom is 15.5” from
the Bottom Tray, ensure that the cart is vertical, then rmly tighten the screws on the Support Bar. Adjust the Top Shelf to the topof
the Posts, rmly tighten the 4 Set Screws, Knobs, Shoulder Screws, and the 2 Long Screws in the Legs.
8
15
16
Slots
2 Wing Nuts
2 Straps
Illustration 15: The Retaining Bar attaches to the Top Shelf in one of two places. Measure the scope from the front to the front
most feet and rmly tighten the bar in the appropriate position with the Wing Nuts. Strap the scope to the cart using the front
most slot and one of the two rearmost slots on the Top Shelf.
Illustration 16: Loosen the Knobs, tilt the Top Shelf to the desired position, and then tighten the Knobs to secure the Top Shelf.
