Features:

❍ Analyzes O2, CO, SO2, NO, NO2, and stack

temperature - Calculates CO2, combustion
efficiency and pollutants emitted.

❍ Long-term stability and performance

❍ Microprocessor-based design

❍ RS-232 serial interface

❍ Logical, menu-driven LCD graphic readout with

5 button front panel

❍ Internal batter y or AC-powered operation

❍ Lightweight (27 pounds) and compact

❍ Heavy-duty, aluminum case

❍ Integral sample pumps

❍ Printer for emissions results

❍ 99-test memory

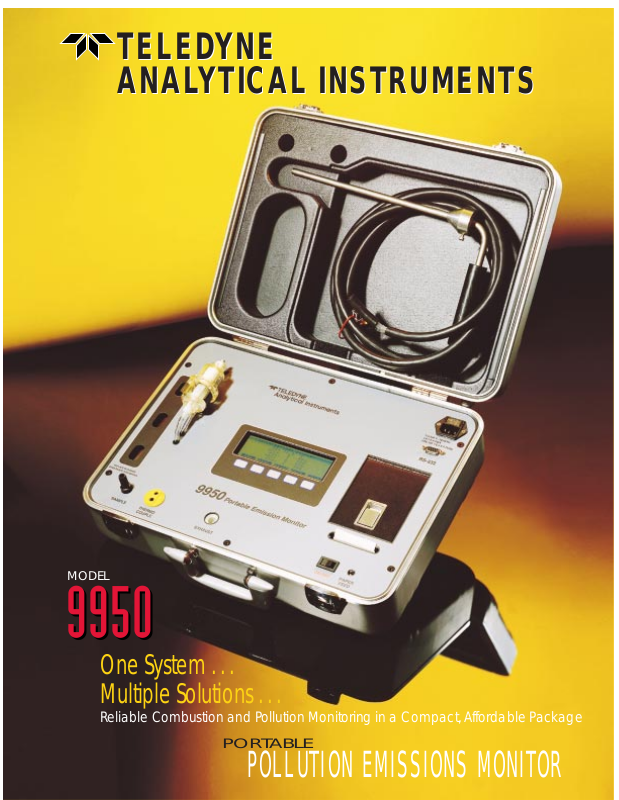

Model 9950
Portable Pollution Emissions Monitor

Reliable Combustion and Pollution
Monitoring in an Affordable Package

Model 9950 is a full-featured monitor offering fast,
cost-effective analysis of stack gas emissions. As many
as five parameters can be displayed at once, allowing
the operator to optimize combustion efficiency while
minimizing pollution. Teledyne incorporates advanced
microprocessor technology which provides a menu­driven interface with all functions through front panel
controls and a large LCD display. In other words, we put
all the best features in one affordable package.

High accuracy is expected of any pollution
emissions monitor, but the 9950 accomplishes the task
in record time. This model provides an emissions
analysis and a hard copy printout in less than 5 minutes
with an accuracy of better than +/-3% of full scale.

Self-Contained and Easy to Operate

Light weight and compact with both an internal
battery and AC powered operation, the Model 9950 is
housed in a rugged aluminum case, tough enough for
the worst you have to offer. Completely portable, the
monitor is ideal for spot-checking in even the most
difficult environments. Typical applications include
boilers, furnaces, fireboxes and compressor engines,
and other stationary combustion processes.

Precise Measurement of Combustion
Efficiency and Pollution Levels

Enter the fuel type to be measured by means of the
5-button panel and take a sample. Model 9950
automatically calculates the net combustion efficiency
making it easy for you to fine-tune the combustion
process and reduce unwanted emissions.

SO2 and NOx (NO + NO2 ) measurements provide
valuable data about combustion process performance
versus emission standards. In addition, the Model 9950
calculates the concentration of CO2 for any given fuel to
assist with adjustments.

Hard copy printouts of emissions concentrations
are available at the push of a button to document
compliance with various state and federal regulations.
