Telecell Mobile I232 User Manual

Horizon Vision I232-S LTE CPE

Model:I232

Model:I232
FCC ID:2ADX3I232

FCC ID:2ADX3I232

Quick Start

Legal Information

Copyright Horizon 2017. All rights reserved.

No part of this manual may be reproduced or transmitted in any form or by any means without

prior written consent of Horizon and its affiliates.

Horizon reserves the right to change or modify any information or specification contained in this

manual without prior notice and without any liability.

Limitation of Liability

Due to the nature of wireless communications, transmission, and reception of data can never be

guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost.

Horizon shall not be liable for any loss of profits or indirect, special, incidental or consequential

damages resulting from or arising out of or in connection with using of this product, whether or

not Horizon had been advised, knew or should have known of the possibility of such damages,

including, but not limited to lost profits, interruption of business, cost of capital, cost of

substitute facilities or product, or any downtime cost.

1 Introduction of Router

Your router is for indoor use only and multiple devices like computer, landline phone, or external

storage device can be connected to the router to access the Internet, make telephone calls, files

sharing, and more.

Please ensure the 4 external antennas are plugged into the External antenna ports following

the indicator below the ports.

Application Scenarios:

Scenario 1: 3G/4G mobile network service using a SIM card

Scenario 2: Data service from Ethernet cord Internet connection (Ethernet Port)

Scenario 3: Data service from Ethernet cord and VOLTE voice using a SIM card

1

Internet status indicator

USB port

2

WAN/LAN indicator

Telephone port

3

Power indicator

Reset button

4

WIFI/WPS indicator

12

Power button

5

Signal strength indicator

13

WPS button

6

Power Input

14

Standard SIM card slot

7

LAN ports

15

WiFi External antennas

8

WAN port

16

4G External antennas

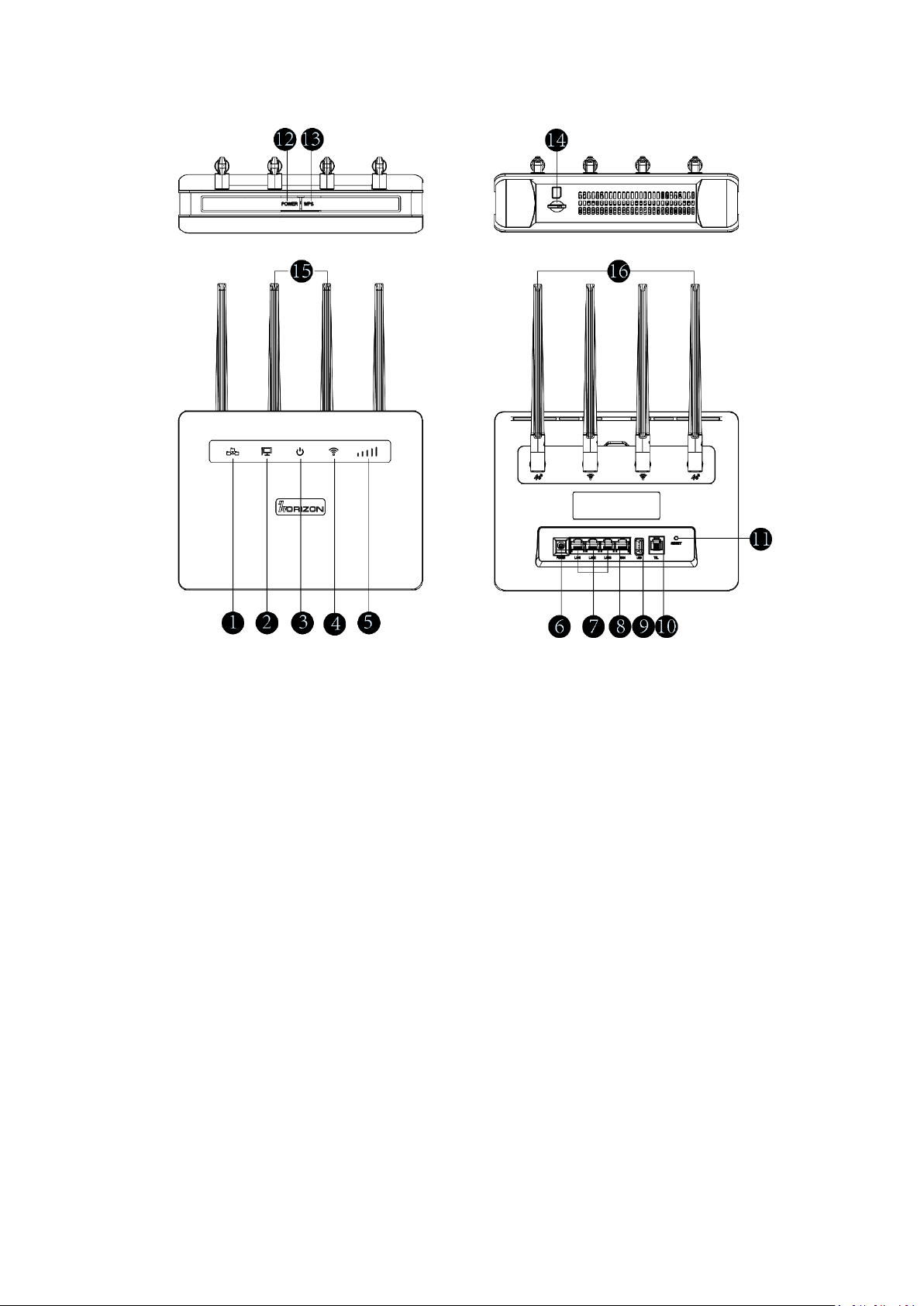

Appearance

9

10

11

Important: Router does not support Micro/Nano SIM card or any other non-standard SIM

cards.
