Tekxon Technology Still Camera K5 User Manual
English
DIGITAL still CAMERA
DIGITAL still CAMERA
US ER S M AN UA L
US ER S M AN UA L
CONTENTS
1
E-2
E-3
E-6
E-16
ENGLISH
Basic Reference
Safety Precautions....................................................
Quick Reference.......................................................
General Information...................................................
Trouble Shooting.......................................................
Thanks for your selection of this camera.
Please read the instruction carefully before using. And
do as the followings to avoid the damages caused by
improper operations to the camera.
Safety Precautions
2
Should you ever notice smoke( or a strange smell coming out of the camera) burn your
finger sound strange or any other abnormal status , immediately remove the camera's
battery.
You should be responsible for the damage to the camera or materials caused by your
improper operation to the Digital Camera.
Do not attempt to modify this Digital Camera.
Do not open the battery cover while turn on the camera.
Do not expose the Digital camera to moisture and make sure no water get into the camera.
Turn off the power and remove the battery once water get into the camera.
Do not operate the Digital Camera when you are driving.
Do not cover or swap the Digital Camera with a cloth. It should be placed in well-ventilated
locations.
Do not make the camera stricken with hard.
If the Digital Camera will not be used for a long time, you would better to remove the battery.
3

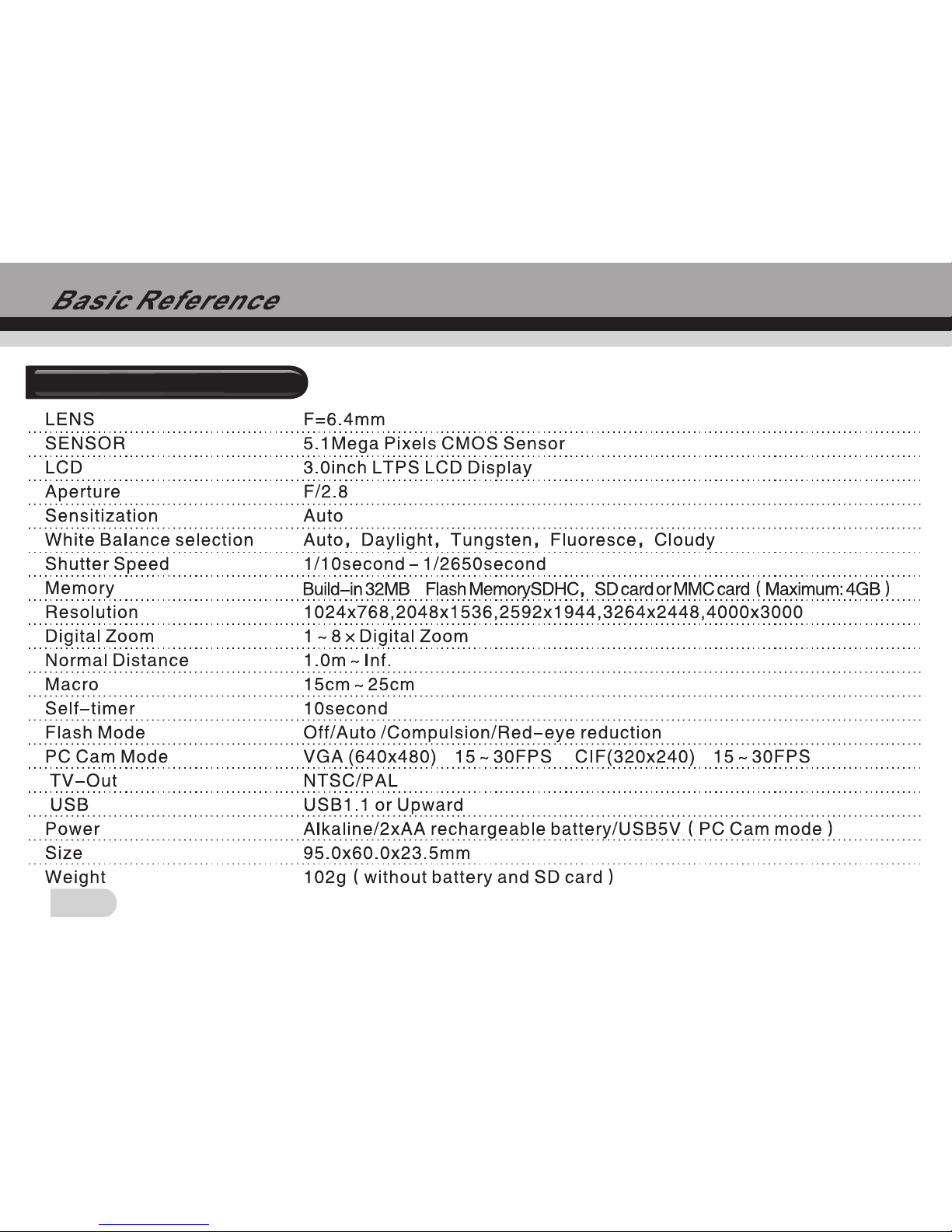

5.1Mega Pixels CMOS sensor, and up to maximun of 12 Mega Pixels by
interpolated
3.0 inch LTPS LCD Display
8 Digital Zoom
32MB flash memory, and supports up to 4GB SDHC SD or MMC card
10sec Self-timer 20sec Self-timer
DPS
PC-Camera
Function Characteristic
4
Package Contents
Check to make sure that all of the items
shown on the below are included with
your package.
Camera
Strap
USB/TV cable
Pouch User manual
Alkaline/2xAA rechargeable battery
CD-ROM
Getting to know your Digital Video Camera
Shutter
MENU button
Display button
SET button
Direction button
Zoom button
USB/TV
5
Getting to know your Digital Video Camera
LensFlash
Macro
Battery
cover
Busy
Charge
Shutter Mode
button
playback
button
Slide cover
Sd card slot
6
Loading the battery into the camera
1.Slide the battery cover and then swing it open.
2.Align the mark on the battery with mark on the camera and slide the battery into the
camera.
3.Close the battery cover.
[+-] [+-]
Using Memory Card
1.The Camera has 32MB built-in memory for recording.
2.The camera supports up to 4GB SDHC SD or MMC card.
Note:
When there is a memory card inserted, it will be the top priority for saving data.
The camera supports SDHC SD and MMC card, and the range of usage specification of
the card is from 32MB to 4GB.
Be sure to orient the card correctly when inserting it. Never try to force a memory card into
the slot when you feel resistance.
While the camera cannot read the memory card, please clean the metal interface softly with
soft cloth and then reload.
Never remove a card from the camera while the camera is working. Doing so can cause the
file save operation to fail, and even damage the memory card.
