TekExpress

C-PHY Tx Essentials

Printable Application Help

*P077110800*

077-1108-00

TekExpress

C-PHY Tx Essentials

Printable Application Help

Supports C-PHY-Tx Product Firmware V1.0 and above.

www.tektronix.com

077-1108-00

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.

14150 SW Karl Braun Drive P.O. Box 500 Beaverton, OR 97077 USA

For product information, sales, service, and technical support:

■

In North America, call 1-800-833-9200.

■

Worldwide, visit www.tektronix.com to find contacts in your area.

Welcome .............................................................................................................................................................. v

Getting help and support

Related documentation .................................................................................................................................. 1

Conventions used in help ............................................................................................................................... 1

Technical support ........................................................................................................................................... 1

Getting started

Installing the software .................................................................................................................................... 3

Install the software ................................................................................................................................... 3

Activate the license .................................................................................................................................. 3

View software version and license information ........................................................................................ 3

Application overview ...................................................................................................................................... 5

C-PHY Tx Essentials key features ........................................................................................................... 5

Supported oscilloscopes and probes ....................................................................................................... 5

Minimum system requirements ................................................................................................................ 6

Application directories and files ................................................................................................................ 7

File name extensions ............................................................................................................................... 7

Operating basics

Run the application ........................................................................................................................................ 9

Exit the application ......................................................................................................................................... 9

Application controls and menus ................................................................................................................... 10

Application controls ................................................................................................................................ 10

Options menu ......................................................................................................................................... 11

Application panels ........................................................................................................................................ 14

Application panel overview ..................................................................................................................... 14

Setup panel ............................................................................................................................................ 15

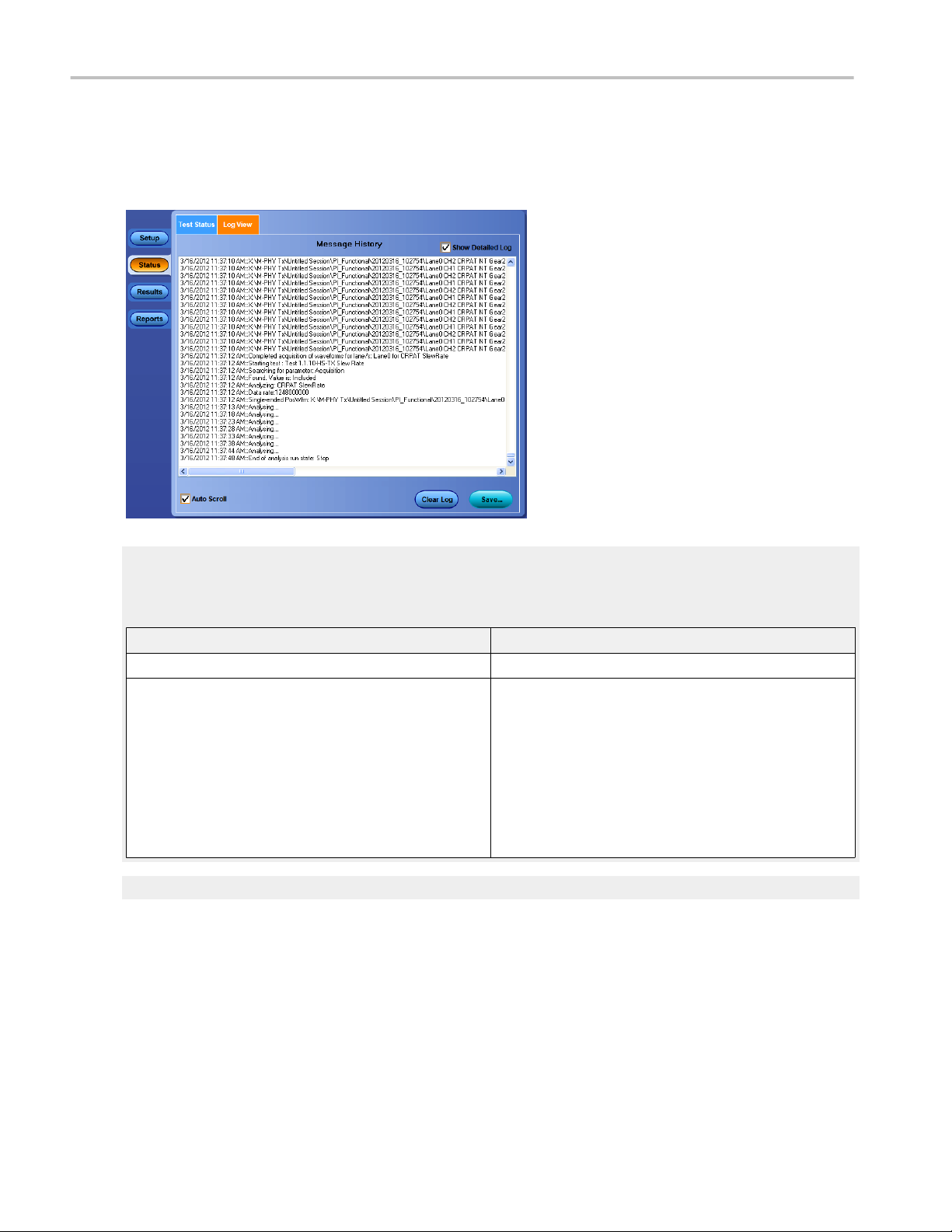

Status panel overview ............................................................................................................................ 22

Results panel .......................................................................................................................................... 23

Reports panel ......................................................................................................................................... 25

Setting up and configuring tests

About setting up tests ................................................................................................................................... 29

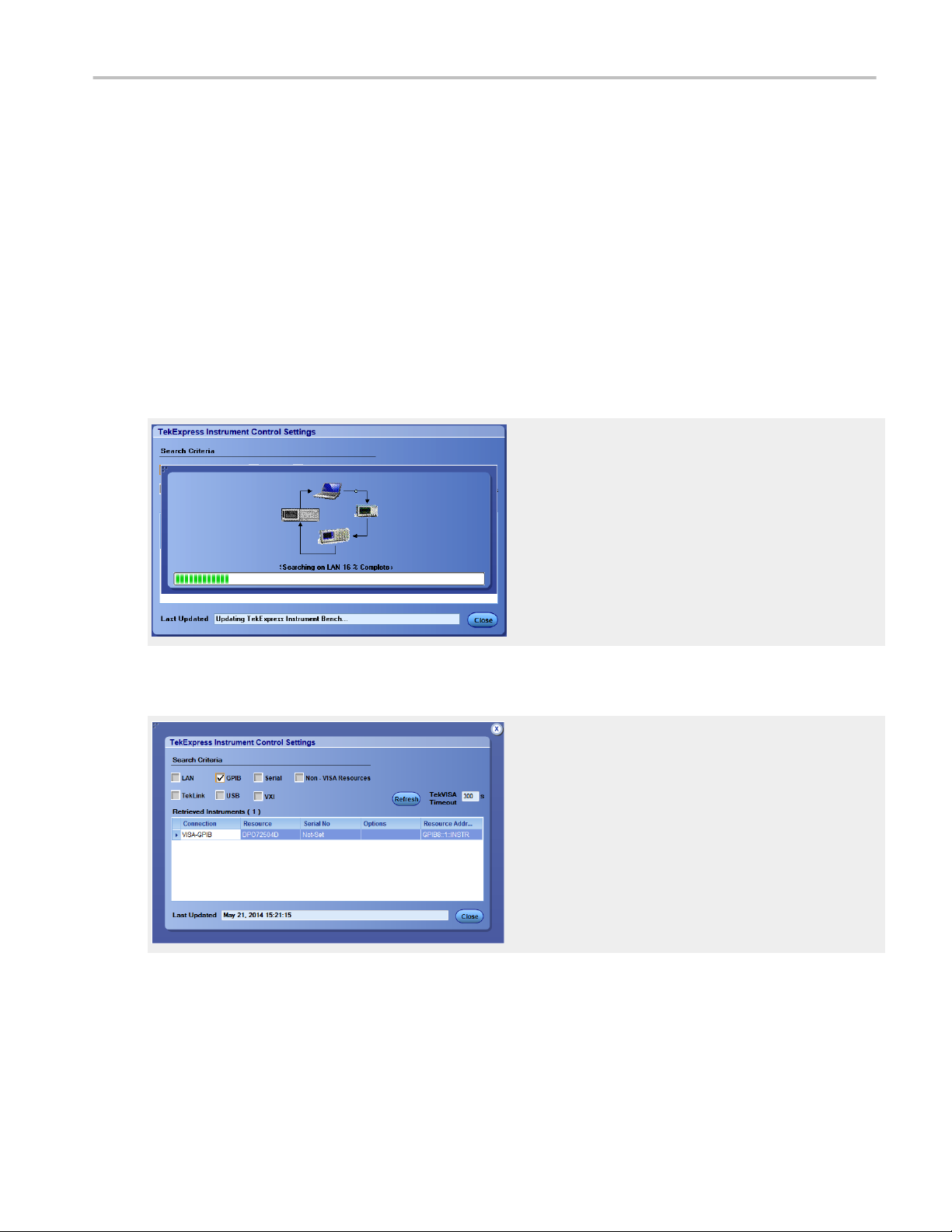

Instrument connection setup ........................................................................................................................ 29

C-PHY Tx Essentials Printable Application Help

Table of Contents

View connected instruments ........................................................................................................................ 31

Test setup overview ..................................................................................................................................... 32

Running tests

About running tests ...................................................................................................................................... 33

Before you click start .................................................................................................................................... 33

Pre-test checklist .......................................................................................................................................... 35

Saving and recalling test setups

Test setups overview ................................................................................................................................... 37

Save a test setup ......................................................................................................................................... 37

Recall a saved test setup ............................................................................................................................. 38

Create a new test setup based on an existing one ...................................................................................... 38

TekExpress programmatic interface

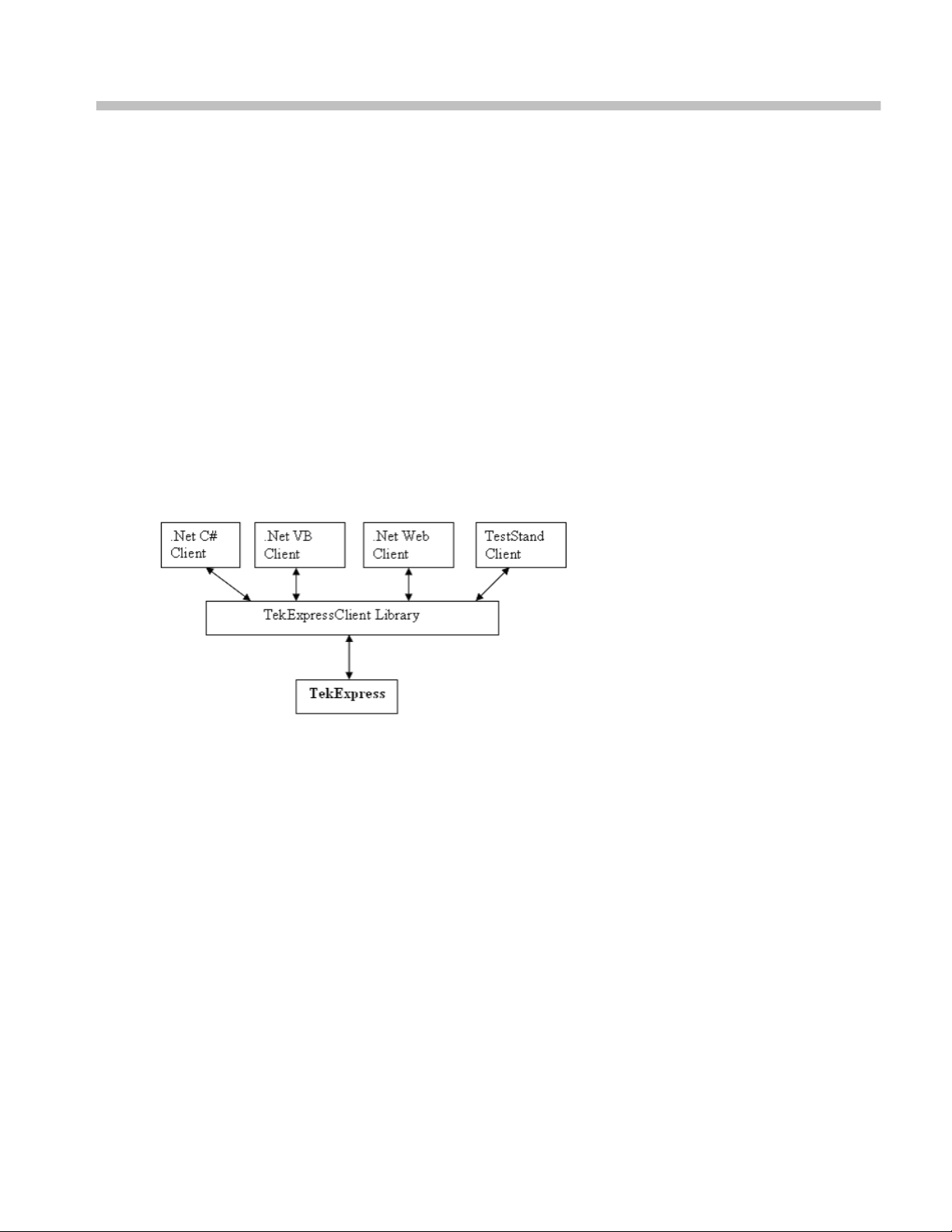

Programmatic interface overview ................................................................................................................. 39

Requirements for developing TekExpress client .......................................................................................... 40

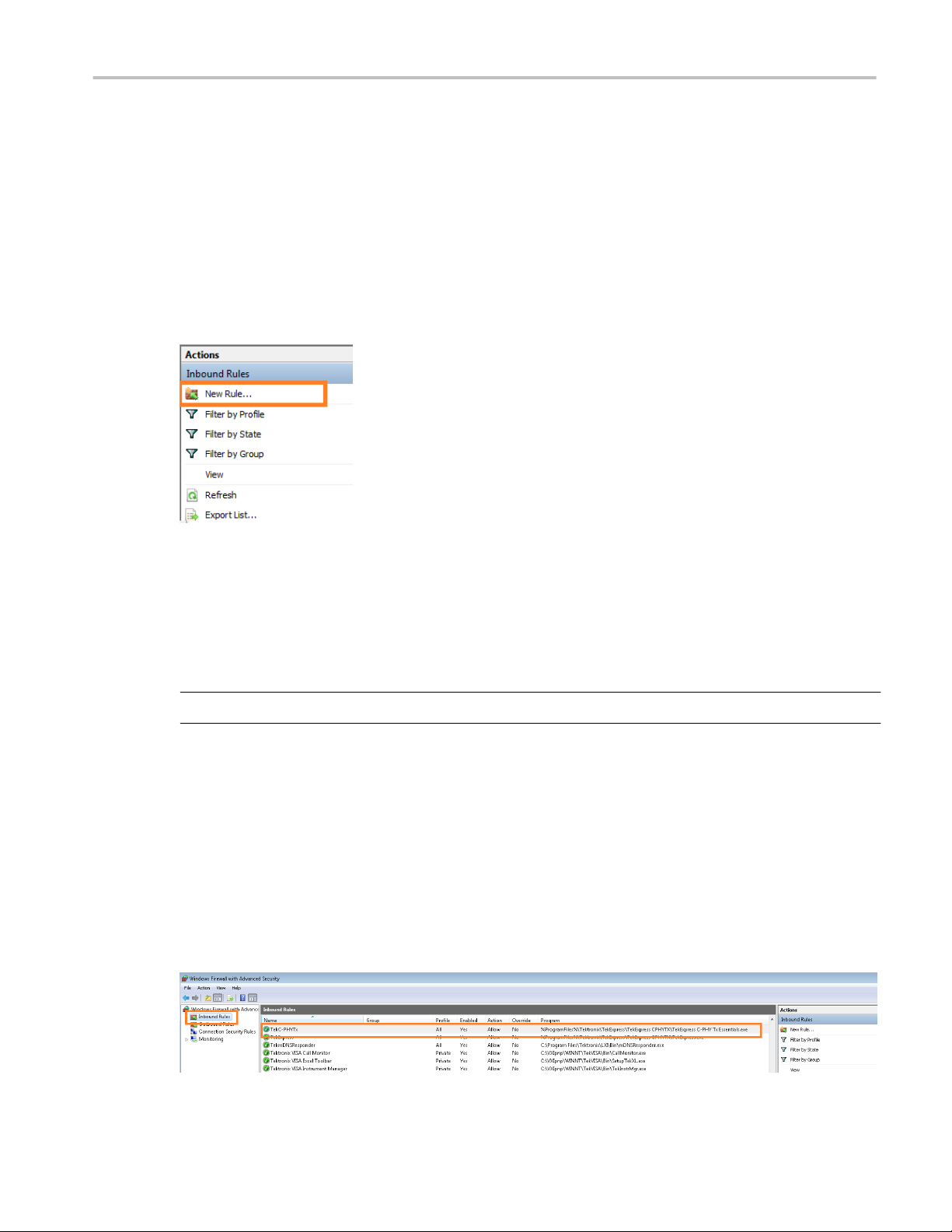

To enable remote access ............................................................................................................................. 40

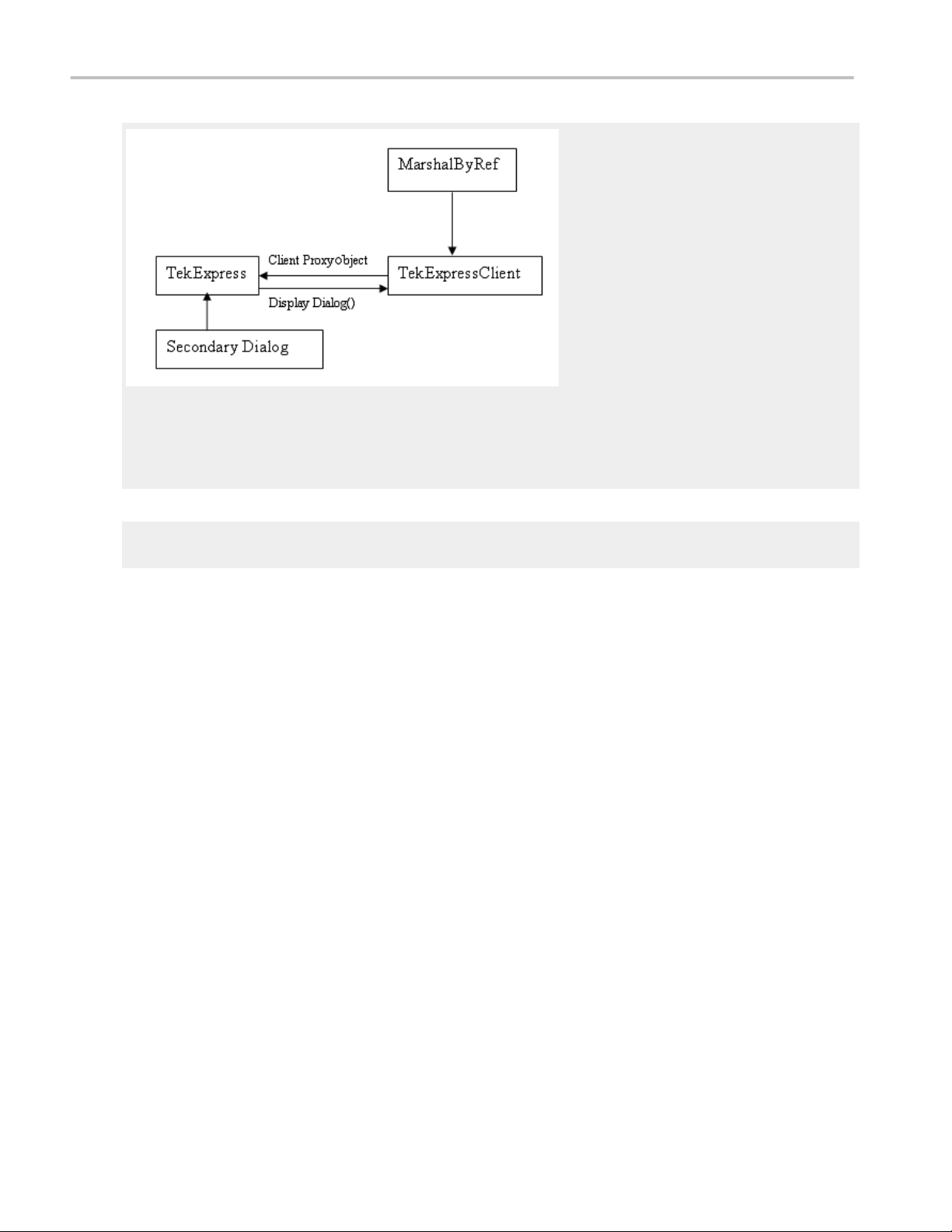

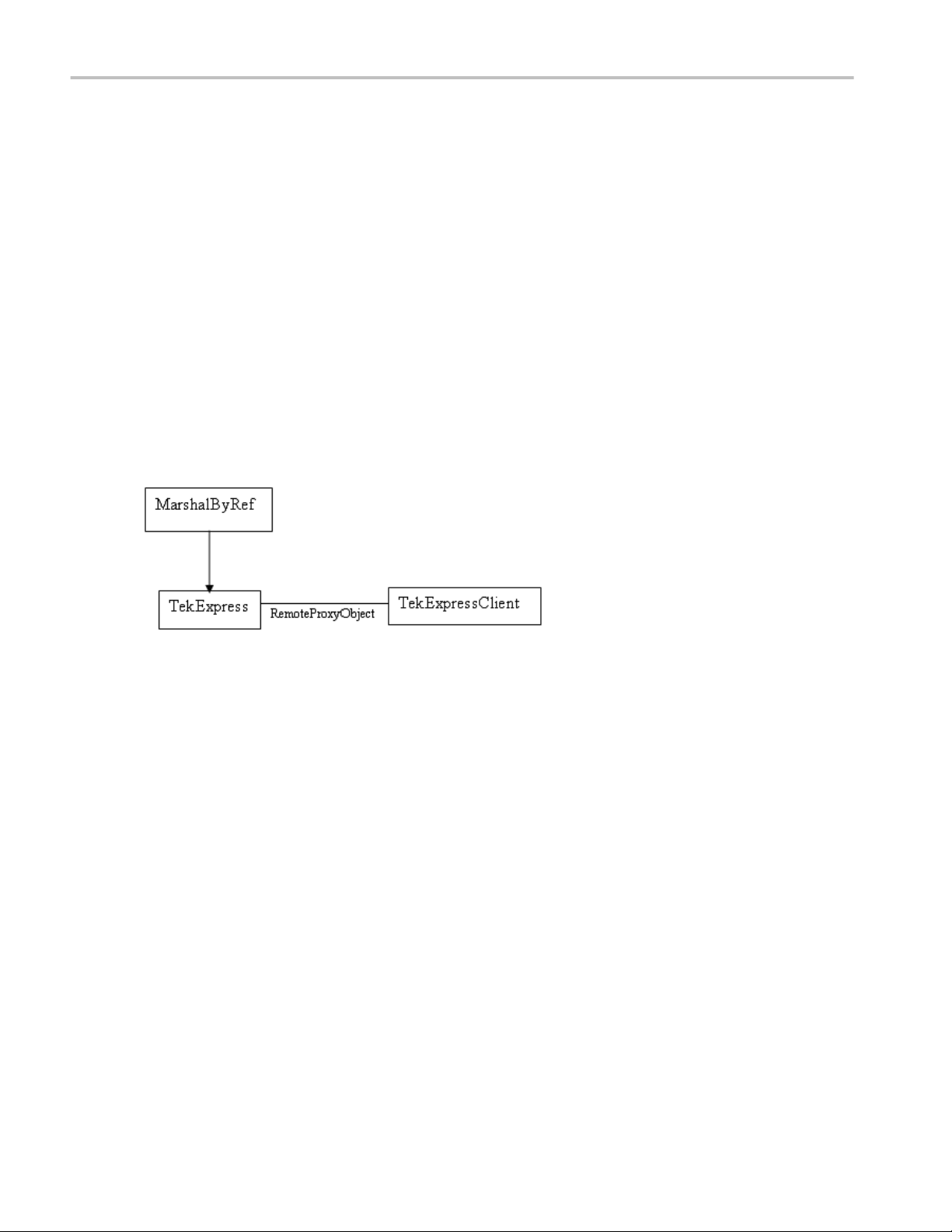

Remote proxy object .................................................................................................................................... 42

Client proxy object ........................................................................................................................................ 43

Client programmatic interface overview ....................................................................................................... 44

Program remote access code example ........................................................................................................ 46

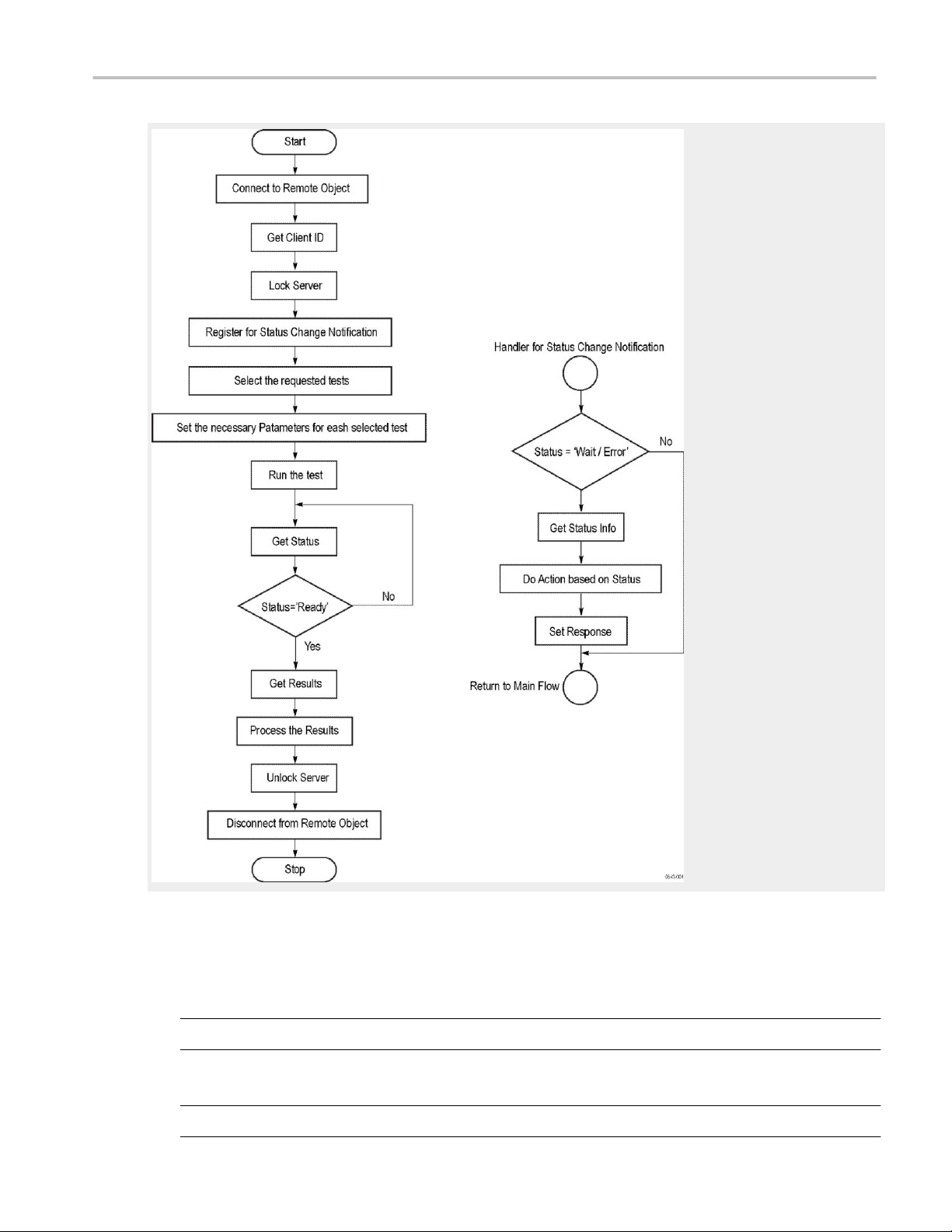

C-PHY Tx Essentials command flow ........................................................................................................... 47

Connect through an IP address ................................................................................................................... 48

Lock the server ............................................................................................................................................. 49

Disable popup messages ............................................................................................................................. 50

Set or get the DUT ID ................................................................................................................................... 51

Set the configuration parameters for a suite or measurement ..................................................................... 52

Query the configuration parameters for a suite or measurement ................................................................. 55

Select a test ................................................................................................................................................. 58

Select a channel ........................................................................................................................................... 59

Configure the selected measurement .......................................................................................................... 62

Run with set configurations or stop the run operation .................................................................................. 63

Handle error codes ....................................................................................................................................... 64

Get or set the timeout value ......................................................................................................................... 65

Wait for the test to complete ........................................................................................................................ 66

After the test is complete .............................................................................................................................. 70

Save recall or query a saved session .......................................................................................................... 76

ii C-PHY Tx Essentials Printable Application Help

Table of Contents

Unlock the server ......................................................................................................................................... 78

Disconnect from the server .......................................................................................................................... 79

Reference

C-PHY Tx Essentials Parameters ................................................................................................................ 81

General parameters ............................................................................................................................... 81

Test parameters ..................................................................................................................................... 82

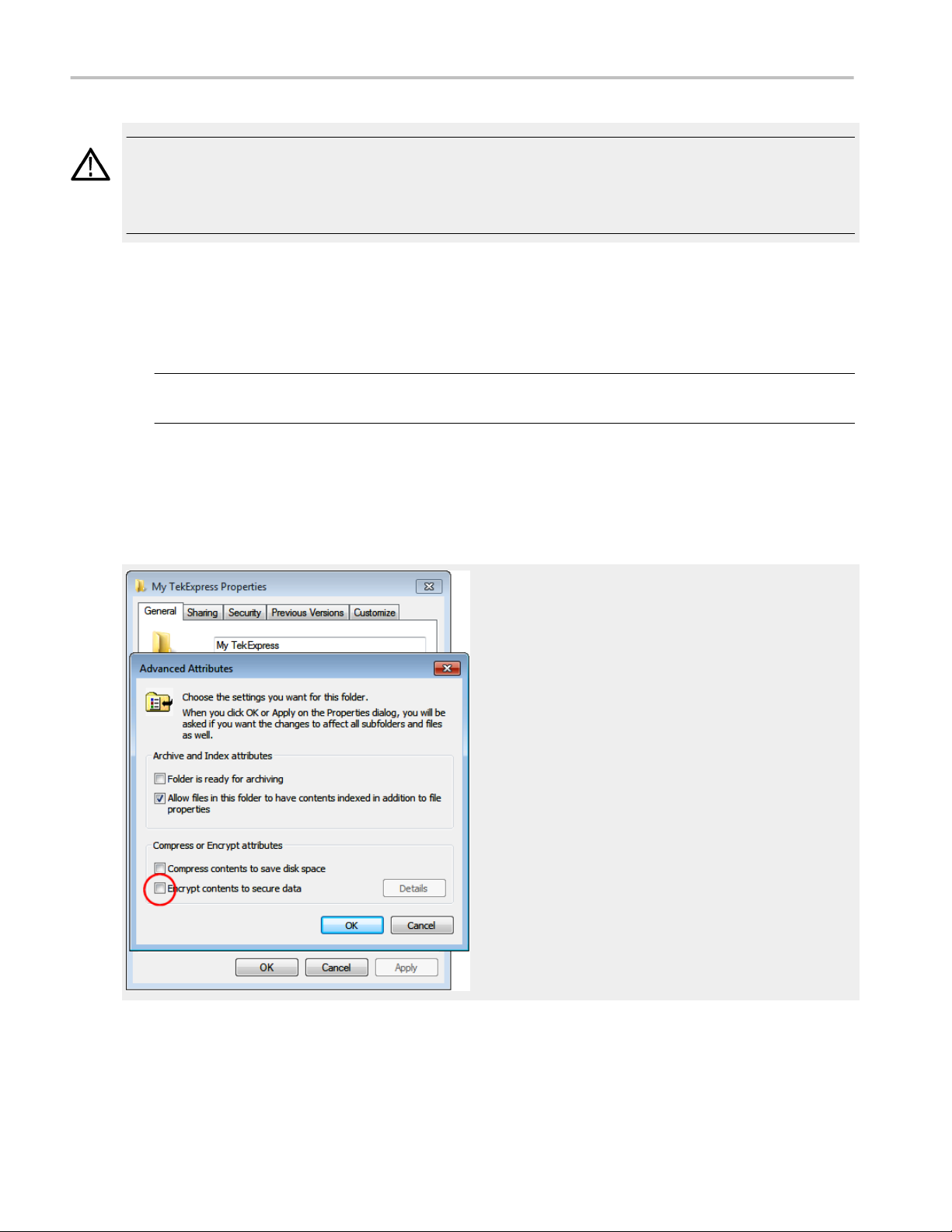

Map my TekExpress folder ..................................................................................................................... 83

Rise time ................................................................................................................................................ 83

Fall time .................................................................................................................................................. 83

Eye measurement .................................................................................................................................. 83

DC common mode measurement .......................................................................................................... 83

AC common mode mismatch measurement .......................................................................................... 83

AC common mode level variation ΔVCPTX(LF) between (50 MHz to 450 MHz) ................................... 84

AC common mode level variation ΔVCPTX(HF)(Above 450 MHz) ........................................................ 84

Intra-pair skew ........................................................................................................................................ 84

C-PHY Tx Essentials Printable Application Help iii

Table of Contents

iv C-PHY Tx Essentials Printable Application Help

Welcome

The Tektronix C-PHY Tx Essentials Automated Test software runs on Tektronix real-time oscilloscopes that are based on Windows 7 computer operating systems. C-PHY Tx Essentials delivers the TekExpress 3.0 based C-PHY automation solution with Tx measurement. It verifies the Eye diagram and performs width, and height measurement for C-PHY signals.

C-PHY Tx Essentials Printable Application Help v

Welcome

vi C-PHY Tx Essentials Printable Application Help

Getting help and support

Technical support

Conventions used in help

Online Help uses the following conventions:

■

The term “DUT” is an abbreviation for Device Under Test.

■

The terms “click” and “select” are generic terms that mean to select an item in the application user interface (UI). You can use a mouse or the touch screen to select UI items.

Technical support

Tektronix values your feedback on our products. To help us serve you better, please send us your suggestions, ideas, or comments on your application or oscilloscope. Contact Tektronix through mail, telephone, or the Web site. See Contacting

Tektronix for more information.

When you contact Tektronix Technical Support, please include the following information (be as specific as possible):

General Information

■

All instrument model numbers

■

Hardware options, if any

■

Probes used

■

Your name, company, mailing address, phone number, FAX number

■

Please indicate if you would like to be contacted by Tektronix about your suggestion or comments.

C-PHY Tx Essentials Printable Application Help 1

Getting help and support

Application Specific Information

■

Software version number

■

Description of the problem such that technical support can duplicate the problem

■

If possible, save the setup files for all the instruments used and the application.

■

If possible, save the TekExpress setup files, log.xml, *.TekX (session files and folders), and status messages text file.

2 C-PHY Tx Essentials Printable Application Help

Getting started

Installing the software

Install the software

The TekExpress C-PHY Tx web installer page provides a link to the software package TekExpressC-PHYTXWebInstaller.exe used to install the application on a supported oscilloscope. For a list of compatible instruments, see Supported oscilloscopes and

probes.

To download and install the files:

1. Close the TekScope application.

2. Go to the www.tek.com Web site and search for C-PHY Tx to locate the installation file. Download the file TekExpressC-

PHYTxWebInstaller.exe.

3. If you downloaded the file to a PC, copy the file to a supported Tektronix oscilloscope model.

4. Double-click the executable file to extract the installation files and automatically start the installer program. The software is

installed at the following location:

Windows 7 instruments: C:\Program Files (x86)\Tektronix\TekExpress\TekExpress C–PHYTx

Essentials

5. To run the application, open the TekScope application and select Analyze > C-PHY Tx Essentials.

Activate the license

Activate the license using the Option Installation wizard on the oscilloscope. The oscilloscope Online Help has instructions for using the Options Installation window to activate licenses for installed applications. Follow these steps to activate the TekExpress C-PHY Tx license:

1. From the oscilloscope menu, click Utilities > Option Installation.

The TekScope Option Installation wizard opens.

2. Press the F1 key on the oscilloscope keyboard to open the Option Installation help topic.

Follow the directions in the topic to activate the license.

See also. View software version and license information

View software version and license information

The following instructions show how to view version and license information for the application and associated modules such as the Programmatic Interface and the Programmatic Interface Client.

C-PHY Tx Essentials Printable Application Help 3

Getting started

To view the version information:

1. Select Options > About TekExpress.

2. You can view the version numbers of the installed test suites. Click OK to close the dialog box when finished.

To view the end-user license agreement:

1. Select Options > About TekExpress.

Click View End-User Agreement. You can view the TekExpress End-User License Agreement.

2. Click Print to print the software license agreement.

3. Click Close, to close the dialog box.

To view the license information:

1. In the TekScope application, select Help > About TekScope.

The Options drop-down displays a list of installed options, including C-PHY Tx Essentials: C-PHY Tx Essentials solution.

2. Look in the Option Installation Key section for option key information.

Application overview

C-PHY Tx Essentials key features

The Tektronix C-PHY TX Essentials Automated Test software runs on Tektronix real-time oscilloscopes that are based on Windows 7 computer operating systems. C-PHY Tx Essentials delivers the TekExpress 3.0 based C-PHY automation solution with Tx measurement.

■

Supports De embed and Embed software for three port on either side (6-port parameter support for de-embedding).

■

Verifies the rise time and fall time of the DUT C-PHY signals.

■

Performs both eye height and eye height measurements, and also verifies the eye diagram on C-PHY signals.

■

Verifies that the static point common mode voltage VCPTX of the Trio signal are within the Transmitter limit.

■

Verifies that the common-mode voltage mismatch (ΔVCMTPX)) of the DUT Data Lane HS Transmitter is less than the maximum conformance limit.

■

Verifies that the common mode level variation is between 50 MHz to 450 MHz.

■

Verifies that the common mode level variation is above 450Mhz.

■

Measures the Intra pair skew of the trio signal.

Supported oscilloscopes and probes

The C-PHY Tx Essentials application runs on the following Tektronix oscilloscopes:

■

MSO/DPO70604C

■

MSO/DPO70804C

■

MSO/DPO/DSA 71254C

■

MSO/DPO/DSA71604C

■

MSO/DPO/DSA72004C

■

DPO/DSA72504D

■

DPO/DSA73304D

■

MSO/DPO72304DX

■

MSO/DPO72504DX

■

MSO/DPO73304DX

You need the following accessories to run C-PHY Tx Essentials:

■

Two Bias tees

■

Three 100psec RT/FT filters

■

Two BNC T connectors

■

Three matched pair SMA cables

■

Six male to male SMA connectors

■

Three binding posts (Female to Female)

■

Three TTC convertors

■

Amplifier

C-PHY Tx Essentials Printable Application Help 5

Getting started

Minimum system requirements

The following table shows the minimum system requirements for an oscilloscope to run TekExpress.

Table 2: System requirements

Component Requirement

Oscilloscope Supported oscilloscopes and probes

Processor Same as the oscilloscope

Operating System Same as the oscilloscope:

Win 7 64-bit

Memory Same as the oscilloscope

Hard Disk Same as the oscilloscope

Display Same as the oscilloscope

Firmware DPO/DSA/MSO TekScope v7.3.0.9 or later and DPOJET

verrsion is 6.2.1.8

Software

■

Microsoft .NET 4.0 Framework

■

Microsoft Excel 2002 or above

■

Microsoft Internet Explorer 6.0 SP1 or later

■

Adobe Reader 7.0 or equivalent software for viewing portable document format (PDF) files

Probes Supported oscilloscopes and probes

Other Devices

■

Matched pair of SMA cables, two-set minimum for single lane

■

Microsoft compatible mouse or compatible pointing device

NOTE. If TekExpress is installed on a Tektronix oscilloscope, TekExpress uses a virtual GPIB port to communicate with oscilloscope applications. If external GPIB communication devices such as USB-GPIB-HS or equivalent are used for instrument connectivity, make sure that the Talker Listener utility is enabled in the DPO/DSA/MSO oscilloscope GPIB menu. For ease of use, connect to an external (secondary) monitor.

See also. Supported oscilloscopes and probes

Instrument connection setup

If TekExpress is running on an instrument having a video resolution lower than 800x600 (for example, sampling oscilloscope), it is recommended that you connect a secondary monitor. The secondary monitor must be configured and active before launching the application.

6 C-PHY Tx Essentials Printable Application Help

Getting started

Application directories and files

The following table lists the default application directory names and their usage:

Table 3: Application directories

Directory names Contains

InstallDir\TekExpress\TekExpress CPHYTX Path to the root application directory and associated sub-

folders. The folders described in this table (ACP, Bin, and so on) are all in this root directory

Bin Miscellaneous C-PHY Tx Essentials application libraries

Compliance Suites Compliance-specific files

Examples Various support files

ICP Instrument and C-PHY Tx Essentials application-specific

interface libraries

Lib Utility files specific to the C-PHY Tx Essentials application

Report Generator Excel Active X interface Library for Report Generation

Images Images related to C-PHY Tx Essentials are saved

Tools Instrument and C-PHY Tx Essentials application-specific files

File name extensions

The C-PHY Tx Essentials application uses the following file name extensions:

File name extension Description

.TekX Saved session files. The extensions may not be displayed.

.seq Test sequence files

.xml Encrypted XML files that contain test-specific configuration

information Note that the log file extension is also xml

.wfm Test waveform files

.mht .mhtml .pdf

Operating basics

Run the application

To run the C-PHY Tx Essentials application, do either of the following:

■

Select Analyze > C-PHY Tx Essentials from the TekScope menu, OR

■

Double-click any saved C-PHY Tx Essentials session file.

When you open the application after installation, the application checks for a file called Resources.xml located in the My

TekExpress folder. If this file is not found, instrument discovery is performed before launching C-PHY Tx Essentials. The Resources.xml file contains information regarding instruments that are available on your network.

If the application license was not installed using the TekScope menu Utilities > Option Installation selection, you can open and demo the application 10 times. Each time you open the application without supplying a valid license key, one of the free trials is used.

See also

Activate the license

Exit the application

Use the following method to exit the application:

NOTE. Using other methods to exit the application results in abnormal termination of the application.

Click on the application title bar.

2. Do one of the following:

■

If you have an unsaved session or test setup open, you are asked to save it before exiting. To save it, click Yes. Otherwise click No.

The application closes, OR

■

A message box appears asking if you really want to exit TekExpress. To exit, click Yes.

C-PHY Tx Essentials Printable Application Help 9

Operating basics

Application controls and menus

Application controls

Table 4: Application control descriptions

Item Description

Options menu Opens the Options menu for access to global controls

Panels Visual frames with sets of related options

Command buttons Buttons that initiate an immediate action such as the Start,

Stop, Pause, Continue, and Clear command buttons

Start button

Starts measurement acquisition and analysis.

Stop button

Stops (aborts) the current test run.

Pause \ Continue button

Clear button

Clear Log

Save

Application window move icon

Use the Pause button to temporarily interrupt the current test run. When a test is paused, the button name changes to Continue.

Clears all existing measurement results. Adding or deleting a measurement, or changing a configuration parameter of an existing measurement, also clears measurements. This prevents the accumulation of measurement statistics or sets of statistics that are not coherent. This button is available only on the Results panel.

This button is available only on the Status panel.

Place the cursor over the three-dot pattern in the upper left corner of the application window. When the cursor changes to a hand, drag the window to the desired location.

10 C-PHY Tx Essentials Printable Application Help

Operating basics

Options menu

Options menu overview. The Options menu is located in the upper right corner of the application.

The Options menu has the following selections:

Options Menu

Menu Function

Default Test Setup Opens an untitled test setup with defaults selected

Open Test Setup Opens a saved test setup

Save Test Setup Saves the current test setup selections

Save Test Setup As Creates a new test setup based on an existing one

Open Recent Displays a menu of recently opened test setups from which to

select

Instrument control settings Shows the list of instruments connected to the test setup and

allows you to locate and refresh connections to connected instruments

Keep On Top Keeps the TekExpress C-PHY Tx utility on top of other open

windows on the desktop

Email settings Use to configure email options for test run and results

notifications

Help Displays TekExpress Help

About TekExpress

■

Displays application details such as software name, version number, and copyright

■

Provides access to software version and license

information for your C-PHY Tx installation

■

Provides a link to the Tektronix Web site

Application panels

Application panel overview

Panels group related configuration, test and results settings.

The TekExpress C-PHY Tx Essentials panels are:

14 C-PHY Tx Essentials Printable Application Help

Operating basics

Table 5: Application panels

Panel name Description

Setup Set the DUT, test, acquisition, and report parameters.

Status View the progress and analysis status of the selected tests,

and view test logs.

Results View a summary of test results and select results viewing

preferences.

Reports Browse for reports, save reports as specific file types, specify

report naming conventions, select report content to include (such as summary information, detailed information, user comments, setup configuration, application configuration), and select report viewing options.

Setup panel

Setup panel overview. The Setup panel contains sequentially ordered tabs that help guide you through a typical test setup

process.

Set the DUT parameters

Select test(s)

Set lane acquisition source

Configure tests

Select test notification preferences

Items selected in one Setup tab may change options available in the following tabs. You can switch between the tabs in any order to modify your test parameters.

C-PHY Tx Essentials Printable Application Help 15

Operating basics

DUT tab controls. Use the Setup panel DUT tab to select parameters for the device under test. The settings are global and apply to all tests for the current session. DUT settings also affect the list of available tests in the Test Selection tab.

Figure 1: DUT tab settings

1. Click Setup > DUT.

2. (Optional) Enter the ID for the device. The default value is DUT001. The DUT ID parameter is added to reports.

(Optional) To add comments to the test report, click the notepad icon ( ) to the right of the DUT ID field. Enter comment text up to 256 characters. To enable or disable displaying comments in the test report, see Select report options.

4. Select from the following parameters. Settings that do not apply to compliance testing cannot be changed and are grayed out.

Table 6: DUT tab settings

Control or field Description

Acquire live waveforms Acquire active signals from the oscilloscope for testing.

Use pre-recorded waveform files Run an analysis on a saved run session file. Select a file

from the Run Session field.

Data Rate Enter the data rate to include in the tests

NOTE. Values should be between 0.05 - 4.5

Status panel overview

The Status panel provides status on test acquisition and analysis (Test status tab) and a listing of test tasks performed (Log View tab). The application opens the Test Status tab when you start a test run. You can select the Test Status or the Log View tab to view these items while tests are running.

The Test Status tab lists a high level status for each test.

Table 9: Test Status tab

Column Description

Test Name Name of the test

Acquire Status, Analysis Status Status of the signal acquisition or test analysis

■

To be started

■

In progress

■

Testing

■

Completed

■

Aborted

The Log View tab provides a list of the actions executed during the test. Use this information to review or troubleshoot tests.

22 C-PHY Tx Essentials Printable Application Help

Operating basics

Table 10: Log View fields

Item Description

Message History Displays all run messages with timestamp information.

Show Detailed Log Records a detailed history of test execution.

Auto Scroll Sets the program to automatically scroll down the Message

History window as information is added to the log during the test.

Clear Log Clears all messages in the Message History window.

Save Saves the log file as a text file for examination. Displays a

standard Save File window and saves the status messages in the file that you specify.

Results panel

Results panel overview. When a test finishes, the application switches to the Results panel to display a summary of test results.

Set viewing preferences for this panel from the Preferences menu in the upper right corner. Viewing preferences include showing whether a test passed or failed, summary results or detailed results, and enabling wordwrap. For information on using this panel, see View test results.

C-PHY Tx Essentials Printable Application Help 23

Operating basics

View test results. When a test finishes, the application switches to the Results panel, which displays a summary of test results. The Overall Test Result is displayed at the top left of the Results table. If all of the tests for the session pass, the overall test result will be Pass. If one or more tests fail, the overall test result will show Fail.

Each test result occupies a row in the Results table. By default, results are displayed in summary format with the measurement details collapsed and with the Pass/Fail column visible. Change the view in the following ways:

■

To expand all tests listed, select View Results Details from the Preferences menu in the upper right corner.

■

To expand and collapse tests, click the plus and minus buttons.

■

To collapse all expanded tests, select Preferences > View Results Summary.

■

To remove or restore the Pass/Fail column, select Preferences > Show Pass/Fail.

■

To enable or disable the wordwrap feature, select Preferences > Enable Wordwrap.

■

To expand the width of a column, place the cursor over the vertical line that separates the column from the column to the right. When the cursor changes to a double-ended arrow, hold down the mouse button and drag the column to the desired width.

■

To sort the test information by column, click the column head. When sorted in ascending order, a small up arrow is displayed. When sorted in descending order, a small down arrow is displayed.

■

To clear all test results displayed, click Clear.

Reports panel

Reports panel overview. Use the Reports panel to open reports, name and save reports, select report content to include, and

select report viewing options.

For information on setting up reports, see Select report options. For information on viewing reports, see View a report.

C-PHY Tx Essentials Printable Application Help 25

Operating basics

Select report options. Use the Reports panel to select which test information to include in the report, and the naming conventions to use for the report. For example, always give the report a unique name or select to have the same name increment each time you run a particular test. Generally, you would set your report options before running a test or when creating and saving test setups. Report settings are included in saved test setups.

In the Reports panel, select from the following options:

Table 11: Report options

Setting Description

Generate new report Creates a new report.

Append with previous run session Apppends the last run session and the previous run session.

Replace current test results in previous run session Replaces the current test results in the previous run session.

Newly added tests results are appended to the end of the report.

Report Name Displays the name and location from which to open a report.

The default location is at \My TekExpress\ C-PHY Tx \Untitled Session). The report file in this folder gets overwritten each time you run a test unless you specify a unique name or select to auto increment the report name. Change the report name or location.

Do one of the following:

■

In the Report Name field, type over the current folder path and name.

■

Double-click in the Report Name field. Make selections from the popup keyboard and then click the Enter button.

Be sure to include the entire folder path, the file name, and the file type. For example: C:\Documents and Settings\your user name\My Documents\My TekExpress\C-PHY Tx \DUT001_Test_211.mht.

NOTE. You cannot change the file location using the Browse button.

Open an existing report.

Click Browse, to locate and select the report file and then click View at the bottom of the panel.

Save As Type Saves a report in the specified file type. Supported file types

are: .mht (Web archive), .html (HTML page), .csv (commaseperated values), and .xls (Microsoft Excel spreadsheet).

NOTE. If you select a file type different from the default, be sure to change the report file name extension in the Report Name field to match. The application will not automatically do this when the file is saved.

26 C-PHY Tx Essentials Printable Application Help

Operating basics

Setting Description

Auto increment report name if duplicate Automatically increment the name of the report file if the

application finds a file with the same name as the one being generated. For example: DUT001, DUT002, DUT003. This option is enabled by default.

Create report automatically at the end of the run Creates the report automatically at the end of the run.

Include Pass/Fail Results Summary Includes the color block labeled Test Result (indicating whether

the test passed or failed) in the report. For details, see Report Contents in View a report.

Include Detailed Results Includes parameter limits, execution time, and test-specific

comments generated during the test.

Include Plot Images Includes waveform plots in the report.

Include Setup Configuration Includes information about hardware and software used in the

test in the summary box at the top of the report. Information includes: the oscilloscope model and serial number, probe model and serial number, the oscilloscope firmware version, SPC and factory calibration status, and software versions for applications used in the measurements.

Include User Comments Select to include any comments about the test that you or

another user added in the DUT tab of the Setup panel. Comments appear in the Comments section under the summary box at the beginning of each report.

View Report After Generating Automatically opens the report in your Web browser when the

test completes. This option is selected by default.

Setting up and configuring tests

About setting up tests

Set up tests using the tabs in the Setup panel. Settings in the DUT tab use a top-down, left-to-right logic flow, so that any parameter that affects or acts as a filter for other parameters appears either to the top of or to the left of the affected parameters.

Tests are saved when you save a test setup. To avoid overwriting test results, remember to assign a unique name to the test either before running it or immediately after.

All listed tests are required for compliance testing.

See also

About test setups

Before you click Start

About running tests

Instrument connection setup

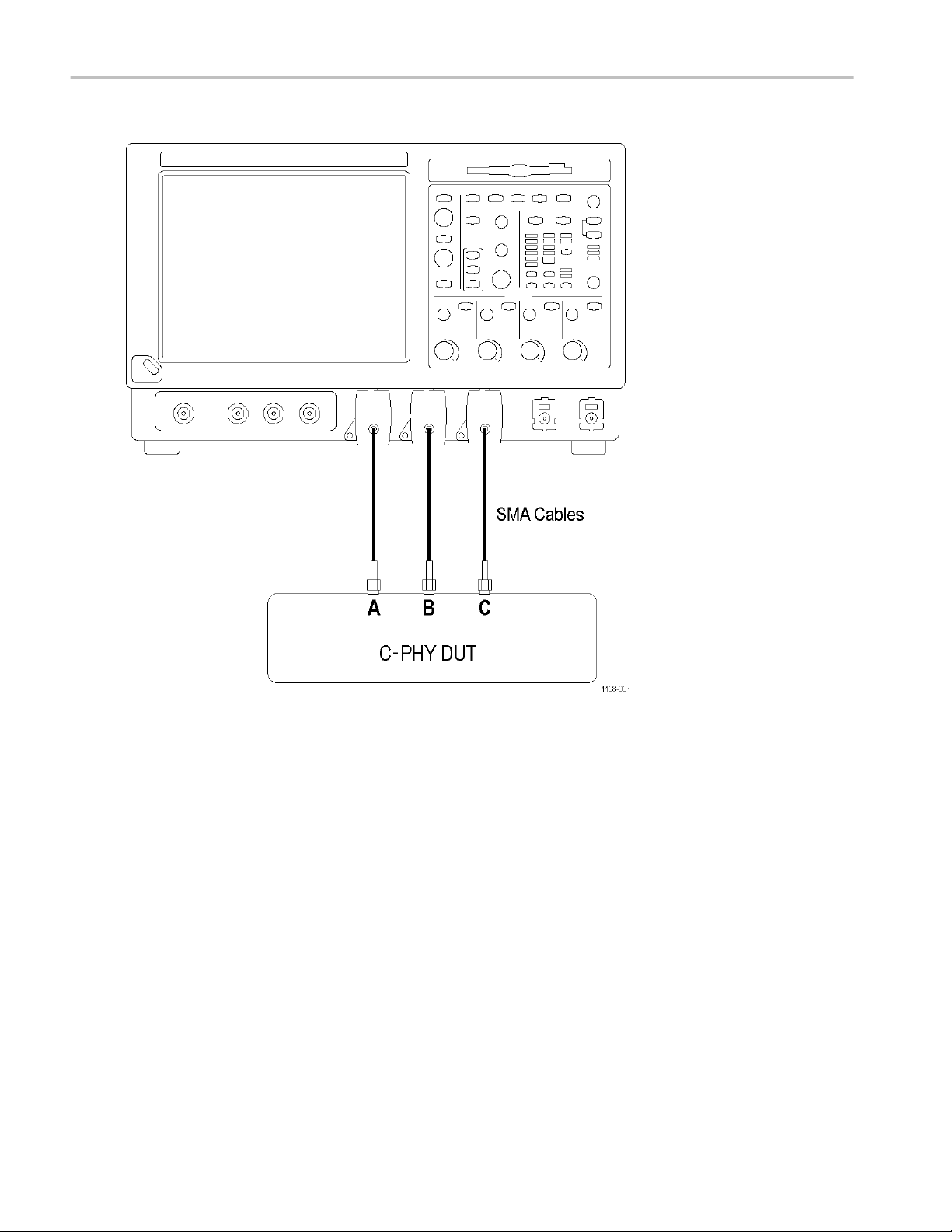

The following diagram shows how to connect the DUT to the oscilloscope for all the C-PHY Tx Essentials measurements.

C-PHY Tx Essentials Printable Application Help 29

Setting up and configuring tests

See also

Minimum system requirements

View connected instruments

About setting up tests

30 C-PHY Tx Essentials Printable Application Help

Setting up and configuring tests

View connected instruments

Use the Instrument Control Settings dialog box to view or search for connected instruments required for the tests. The application uses TekVISA to discover the connected instruments.

To refresh the list of connected instruments:

1. From the Options menu, select Instrument Control Settings.

2. In the Search Criteria section of the Instrument Control Settings dialog box, select the connection types of the instruments to

search for.

Instrument search is based on the VISA layer but different connected cables determine the resource type, such as LAN, GPIB, and USB. For example, if you choose LAN, the search will include all the instruments supported by TekExpress that are communicating over the LAN. If the search does not find any instruments that match a selected resource type, a message appears telling you that no such instruments were found.

3. Click Refresh. TekExpress searches for connected instruments.

4. After discovery, the dialog box lists the instrument-related details based on the search criteria you selected. For example, if

you selected LAN and GPIB as the search criteria, the application checks for the availability of instruments over LAN, then GPIB.

The details of the instruments are displayed in the Retrieved Instruments table. The time and date of instrument refresh is displayed in the Last Updated field.

C-PHY Tx Essentials Printable Application Help 31

Setting up and configuring tests

See also

Configure test parameters

Instrument connection setup

Test setup overview

A test setup includes configuration parameters and report options. Use the options in the Setup panel and Reports panel to select and configure tests.

1. Select the DUT parameters.

2. Select one or more tests.

3. Configure test parameters.

4. Select test notification preferences.

5. Select report options.

See also

Test setups overview

Pre-run checklist

Before you click Start

About running tests

32 C-PHY Tx Essentials Printable Application Help

Running tests

About running tests

After selecting and configuring the test, review the pre-run checklist and then click Start to run the tests. While tests are running, you cannot access the Setup or Reports panels. To monitor the test progress, switch back and forth between the Status panel and the Results panel.

The application displays a report when the tests are complete. While the tests are running, other applications may display windows in the background. The TekScope application takes precedence over other applications, but you can switch to other applications by using the Alt + Tab key combination. To keep the TekExpress C-PHY Tx Essentials application on top, select

Keep On Top from the C-PHY Tx Essentials Options menu.

See also

Configure test parameters

About setting up tests

Before you click Start

Before you click start

Before you run tests for the first time, do the following:

1. Understand where your test files are stored on the instrument.

After you install and launch TekExpress C-PHY Tx Essentials, it creates the following folders on the oscilloscope:

■

\Program Files\Tektronix\TekExpress\TekExpress CPHYTX

NOTE. The Program Files folder for Windows 7 is for 64-bit.

■

\My Documents\My TekExpress\C-PHY Tx Essentials

■

\My Documents\My TekExpress\C-PHY Tx Essentials\Untitled Session

Every time you launch TekExpress C-PHY Tx Essentials, an Untitled Session folder is created in the x:C-PHY Tx

Essentials folder. The Untitled Session folder is automatically deleted when you exit the C-PHY Tx Essentials application (you are prompted to save the session before exiting if it has not already been saved or if there

are unsaved changes).

C-PHY Tx Essentials Printable Application Help 33

Running tests

CAUTION.

Do not directly edit or modify any of the session files or folders because this may result in loss of data or corrupted session files. Each session has multiple files associated with it. When you save a session, the application creates a .TekX file, and a folder named for the session that contains associated files, on the oscilloscope X: drive.

2. Map my TekExpress folder as X: (X drive) on all instruments used in test setup running Microsoft Windows Operating System.

The My TekExpress folder has the shared name format <domain><user ID>My TekExpress. Or, if the instrument is not connected to a domain, then the shared name format is <instrument name><user ID>My

TekExpress. This shared folder is used to save the test session files and is used during any other file transfer operations.

NOTE. If the X: drive is mapped to any other shared folder, the application will display a warning message asking you to disconnect the X: drive manually.

3. Make sure that the My TekExpress folder has read and write access and that the contents are not set to be encrypted:

a. Right-click the My TekExpress folder and select Properties.

b. Select the General tab and then click Advanced.

c. In the Advanced Attributes dialog box, make sure that the option Encrypt contents to secure data is NOT selected.

Example

4. Review the pre-run checklist before you run a test.

34 C-PHY Tx Essentials Printable Application Help

Running tests

See also

View test-related files

Application directories and file types

File name extensions

Pre-test checklist

Do the following before you click Start to run a test. If this is the first time you are running a test for a setup, refer to the information in Before you click Start.

On the oscilloscope:

■

Make sure that all the required instruments are properly warmed up (approximately 20 minutes).

■

Perform Signal Path Compensation (SPC).

1. On the oscilloscope main menu, select the Utilities menu.

2. Select Instrument Calibration and run the SPC utility.

■

Perform deskew on any cables.

■

Make sure that all the required instruments are properly warmed up (approximately 20 minutes).

■

Perform Signal Path Compensation (SPC).

1. On the oscilloscope main menu, select the Utilities menu.

2. Select Instrument Calibration and run the SPC utility.

■

Perform deskew on any cables.

In the C-PHY TX Essentials application:

■

Verify that the application is able to find the instrument. If it cannot, perform a search for connected instruments.

1. Select Setup > Test Selection. Select any test and then click Configure.

2. In the Configuration section, click Global Settings.

3. In the Instruments Detected section, click the drop-down arrow to the right of the listed instruments and make sure that the

instrument is listed.

See also

Instrument connection setup

C-PHY Tx Essentials Printable Application Help 35

Running tests

36 C-PHY Tx Essentials Printable Application Help

Saving and recalling test setups

Test setups overview

A test setup file contains the oscilloscope connection and setting information, general parameters, measurement limits, test selections, and other settings for the current application configuration. This information is saved to a file under the setup name. Use a saved test setup to quickly load and run a test without having to do any other setup except ensuring that the correct oscilloscope is connected and accessible by C-PHY Tx Essentials.

See also

About setting up tests

Save a test setup

Recall a saved test setup

Create a new test setup based on an existing one

Save a test setup

Save a test setup before or after running a test using the parameters you want to save. Create a new test setup from any open setup or from the default setup. When you select the default test setup, all application settings are returned to their defaults.

The following instructions start from the default test setup:

1. Select Options > Default Test Setup.

2. Select Setup and set required options and parameters in the tabs (DUT, Test Selection, and so on).

3. Select Reports and set your report options.

4. Click Start to run the test and verify that it runs correctly and captures the information you want. If it does not, edit the

parameters and repeat this step until the test runs to your satisfaction.

5. Select Options > Save Test Setup. Enter the file name for the setup file. The application saves the file to X:\C-PHY Tx Essentials\<session_name>.

See also

About setting up tests

Configure test parameters

Test setup overview

C-PHY Tx Essentials Printable Application Help 37

Saving and recalling test setups

Recall a saved test setup

To recall a saved test setup:

1. Select Options > Open Test Setup.

2. Select the setup from the list, and click Open.

See also

Test setups overview

Create a new test setup based on an existing one

Use this procedure to create a variation on a test setup without having to create the entire setup from the beginning.

1. Select Options > Open Test Setup.

2. Select a setup from the list and then click Open.

3. Use the Setup and Reports panels to modify the parameters to meet your testing requirements.

4. Select Options > Save Test Setup As.

5. Enter a test setup name, and click Save.

See also

Test setups overview

38 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Programmatic interface overview

The Programmatic interface allows you to seamlessly integrate the TekExpress test automation application with the high-level automation layer. This also allows you to control the state of the TekExpress application running on a local or a remote computer.

For simplifying the descriptions, the following terminologies are used in this section:

■

TekExpress Client: A high-level automation application that communicates with TekExpress using TekExpress Programmatic Interface.

■

TekExpress Server: The TekExpress application when being controlled by TekExpress Client.

TekExpress leverages .Net Marshalling to enable the Programmatic Interface for TekExpress Client. TekExpress provides a client library for TekExpress clients to use the programmatic interface. The TekExpress client library is inherited from .Net MarshalByRef class to provide the proxy object for the clients. The TekExpress client library maintains a reference to the TekExpress Server and this reference allows the client to control the server state.

See also

Requirements for developing a TekExpress client

Remote proxy object

Client proxy object

C-PHY Tx Essentials Printable Application Help 39

TekExpress programmatic interface

Requirements for developing TekExpress client

While developing the TekExpress Client, use the TekExpressClient.dll. The client can be a VB .Net, C# .Net, TestStand or Web application. The examples for interfaces in each of these applications are in the Samples folder.

References Required

■

TekExpressClient.dll has an internal reference to IIdlglib.dll and IRemoteInterface.dll.

■

IIdlglib.dll has a reference to TekDotNetLib.dll.

■

IRemoteInterface.dll provides the interfaces required to perform the remote automations. It is an interface that forms the communication line between the server and the client.

■

IIdlglib.dll provides the methods to generate and direct the secondary dialog messages at the client-end.

NOTE. The end-user client application does not need any reference to the above mentioned DLL files. It is essential to have these DLLs (IRemoteInterface.dll, IIdlglib.dll and TekDotNetLib.dll) in the same folder as that of TekExpressClient.dll.

Required Steps for a Client

The following steps are used by the client to programmatically control the server using TekExpressClient.dll:

Develop a client UI to access the interfaces exposed through the server. This client loads TekExpressClient.dll to access the interfaces. After TekExpressClient.dll is loaded, the client UI can call the specific functions to run the operations requested by the client. When the client is up and running, it does the following to run a remote operation:

1. To connect to the server, the client provides the IP address of the PC where the server is running.

2. The client locks the server application to avoid conflict with any other Client that may try to control the server

simultaneously. “Lock” would also disable all user controls on the server so that server state cannot be changed by manual operation.

If any other client tries to access a server that is locked, it will receive a notification that the server is locked by another client.

3. When the client has connected to and locked the server, the client can access any of the programmatic controls needed to run the remote automations.

4. After the client operations finish, the client unlocks the server.

To enable remote access

To access and remotely control an instrument using the TekExpress programmatic interface, you need to change specific firewall settings as follows:

1. Access the Windows Control Panel and open the Windows Firewall tool (Start > Control Panel > All Control Panel Items > Windows Firewall).

2. Click Advance Settings > Inbound Rules.

3. Scroll through the Inbound Rules list to see if the following items (or with a similar name) are shown:

■

TekExpress C-PHY Tx Essentials

■

TekExpress

40 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

4. If both items are shown, you do not need to set up any rules. Exit the Windows Firewall tool.

5. If one or both are missing, use the following procedure to run the New Inbound Rule Wizard and add these executables to

the rules to enable remote access to the TekExpress application.

6. On the client side include the Client application.exe through which TekExpress application is remotely controlled. For example if the application is controlled using python scripts then "ipy64.exe" should be included as part of Inbound rules.

Run the New Inbound Rule Wizard

1. Click on New Rule (in Actions column) to start the New Inbound Rule Wizard.

2. Verify that Program is selected in the Rule Type panel and click Next.

3. Click Browse in the Program panel and navigate to and select one of the following TekExpress applications (depending on

the one for which you need to create a rule):

4. TekExpress C-PHY Tx Essentials.exe

5. TekExpress.exe

NOTE. See Application directories and content for the path to the application files.

6. Click Next.

7. Verify that Allow the connection is selected in the Action panel and click Next.

8. Verify that all fields are selected (Domain, Private, and Public) in the Profile panel and click Next.

9. Use the fields in the Name panel to enter a name and optional description for the rule. For example, a name for the

TekExpress C-PHY Tx Essentials application could be TekExpress C-PHY Tx Essentials. Add description text to further identify the rule.

10. Click Finish to return to the main Windows Firewall screen.

11. Scroll through the Inbound Rules list and verify that the list shows the rule that you just entered.

12. Repeat steps 1 through 11 to enter the other TekExpress executable if it is missing from the list. Enter TekExpress PI as

the name.

C-PHY Tx Essentials Printable Application Help 41

TekExpress programmatic interface

13. Scroll through the Inbound Rules list and verify that the list shows the rule that you just entered.

14. Exit the Windows Firewall tool.

To use the remote access:

1. Obtain the IP address of the instrument on which you are running TekExpress C-PHY Tx Essentials. For example,

134.64.235.198.

2. On the PC from which you are accessing the remote instrument, use the instrument IP address as part of the C-PHY Tx Essentials PI code to access that instrument. For example:

object obj = piClient.Connect(“134.64.235.198”,out clientid);

Remote proxy object

The server exposes a remote object to let the remote client access and perform the server-side operations remotely. The proxy object is instantiated and exposed at the server-end through marshalling.

The following is an example:

RemotingConfiguration.RegisterWellKnownServiceType (typeof (TekExpressRemoteInterface), “TekExpress Remote interface”, WellKnownObjectMode.Singleton);

This object lets the remote client access the interfaces exposed at the server side. The client gets the reference to this object when the client gets connected to the server.

For example,

//Get a reference to the remote object

remoteObject = (IRemoteInterface)Activator.GetObject(typeof(IRemoteInterface), URL.ToString());

42 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Client proxy object

Client exposes a proxy object to receive certain information.

For example,

//Register the client proxy object

WellKnownServiceTypeEntry[] e = RemotingConfiguration.GetRegisteredWellKnownServiceTypes();

clientInterface = new ClientInterface();

RemotingConfiguration.RegisterWellKnownServiceType(typeof(ClientInterface), “Remote Client Interface”, WellKnownObjectMode.Singleton);

//Expose the client proxy object through marshalling

RemotingServices.Marshal(clientInterface, "Remote Client Inteface");

The client proxy object is used for the following:

■

To get the secondary dialog messages from the server.

■

To get the file transfer commands from the server while transferring the report.

Examples

clientObject.clientIntf.DisplayDialog(caption, msg,iconType, btnType);

clientObject.clientIntf.TransferBytes(buffer, read, fileLength);

For more information, click the following links:

Secondary Dialog Message Handling

C-PHY Tx Essentials Printable Application Help 43

TekExpress programmatic interface

The secondary dialog messages from the Secondary Dialog library are redirected to the client-end when a client is performing the automations at the remote end.

In the secondary dialog library, the assembly that is calling for the dialog box to be displayed is checked and if a remote connection is detected, the messages are directed to the remote end.

File Transfer Events

When the client requests the transfer of the report, the server reads the report and transfers the file by calling the file transfer methods at the client-end.

Client programmatic interface overview

The following is an overview of the client programmatic interface:

Process flowchart

44 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Process overview:

1. Connect to a server or remote object using a programmatic interface.

2. Get the client ID that is created when connecting to the remote object. This client ID is one of the required parameters to

communicate with the server.

NOTE. The server identifies the client with this ID only and rejects any request if the ID is invalid.

3. Lock the server for further operations. This disables the application interface.

NOTE. You can get values from the server or set values from the server to the client only if the application is locked.

C-PHY Tx Essentials Printable Application Help 45

TekExpress programmatic interface

4. Register for receiving notifications on status change events on the server. To register you need to give a handler as a parameter. For details, see Handler of Status Change Notification.

NOTE. Whenever there is a change in the status of the server, all the clients registered with the server receive a notification from the server.

5. Select the tests to run through the programmatic interface.

6. Set the necessary parameters for each test.

7. Run the tests.

8. Poll for the status of the application.

NOTE. Skip this step if you are registered for the status change notification and the status is Ready.

9. After completing the tests, get the results.

10. Create a report or display the results and verify or process the results.

11. Unlock the server after completing all the tasks.

12. Disconnect from the remote object.

Handler of Status Change Notification

1. Get the status. If the status is Wait or Error, get the information that contains the title, message description, and the

expected responses for the status.

2. Perform the actions based on the status information.

3. Set the response as expected.

See also

Program remote access code example

This code example shows how to communicate between a remote PC and TekExpress C-PHY Tx Essentials.

Table 12: Remote access code example

Task Code

Start the application

Connect through an IP address. m_Client.Connect("localhost") 'True or False

clientID = m_Client.getClientID

Lock the server m_Client.LockServer(clientID)

Disable the Popups m_Client.SetVerboseMode(clientID, false)

Set the DUT ID m_Client.SetDutId(clientID, "DUT_Name")

Select a test mClient.SelectsingleTest(clientID,

"Transmitter", "Essentials", “”, "Rise Time", true)

46 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Task Code

Select an amplitude mClient.SetGeneralParameter(clientID,

"Transmitter", "Esentials", " Rise Time ", "Amplitude$Large Amplitude")

Select a termination mClient.SetGeneralParameter(clientID,

"Transmitter", "Essentials", " Rise Time ", "Termination$Unterminated")

Run with set configurations m_Client.Run(clientID)

Wait for the test to complete. Do

Thread.Sleep(500) m_Client.Application_Status(clientID) Select Case status Case "Wait"

Get the current state information mClient.GetCurrentStateInfo(clientID,

WaitingMsbBxCaption, WaitingMsbBxMessage, WaitingMsbBxButtontexts)

Send the response mClient.SendResponse(clientID,

WaitingMsbBxCaption, WaitingMsbBxMessage, WaitingMsbBxResponse) End Select Loop Until status = "Ready"

Save results 'Save all results values from folder for current run

m_Client.TransferResult(clientID, logDirname)

Unlock the server m_Client.UnlockServer(clientID)

Disconnect from server m_Client.Disconnect()

Exit the application

C-PHY Tx Essentials command flow

Click a client action link to see the associated command name, description, parameters, return value, and an example.

Connect through an IP address

Lock the server

Disable popup messages

Set or get the DUT ID

Set the configuration parameters for a suite or measurement

Query the configuration parameters for a suite or measurement

Select a test

Select a channel

Run with set configurations or stop the run operation

Handle error codes

Get or set the timeout value

After the test is complete

C-PHY Tx Essentials Printable Application Help 47

TekExpress programmatic interface

Wait for the test to complete

Save, recall, or query a saved session

Unlock the server

Disconnect from the server

Connect through an IP address

Command name Parameters Description Return value Example

Connect() string ipAddress

out string clientID

This method connects the client to the server. Note The client provides the IP address to connect to the server. The server provides a unique client identification number when connected to it.

Return value is either True or False

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as boolean returnval = m_Client.Connect(ipadd ress,m_clientID)

string ipAddress

Name Type Direction Description

ipAddress string IN The ip address of the server to

which the client is trying to connect. This is required to establish the connection between the server and the client.

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

NOTE. The server must be active and running for the client to connect to the server. Any number of clients can be connected to the server at a time.

48 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Lock the server

Command name Parameters Description Return value Example

LockSession() string clientID This method locks the

server. Note The client must call this method before running any of the remote automations. The server can be locked by only one client.

String value that gives the status of the operation after it has been performed The return value is "Session Locked...” on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval = m_Client.LockServer(cli entID)

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

NOTE. When the client tries to lock a server that is locked by another client, the client gets a notification that the server is already locked and it must wait until the server is unlocked. If the client locks the server and is idle for a certain amount of time then the server is unlocked automatically from that client.

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

C-PHY Tx Essentials Printable Application Help 49

TekExpress programmatic interface

Disable popup messages

Use these commands to disable popup messages that require user intervention. Popup messages will interfere with remote access testing procedures.

Command name Parameters Description Return value Example

SetVerboseMode() string clientID

bool _verbose

This method sets the verbose mode to either true or false. When the value is set to true, any message boxes that appear during the application will be routed to the client machine that is controlling TekExpress. When the value is set to false, all the message boxes are shown on the server machine.

String that gives the status of the operation after it has been performed When Verbose mode is set to true, the return value is “Verbose mode turned on. All dialog boxes will be shown to client”. When Verbose mode is set to false, the return value is “Verbose mode turned off. All dialog boxes will be shown to server”.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

Verbose mode is turned on

return=m_Client.SetVerb oseMode(clientID, true)

Verbose mode is turned off

returnval=m_Client.SetV erboseMode(clientID, false)

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

bool_verbose

Name Type Direction Description

_verbose bool IN Specifies whether the verbose

mode should be turned ON or OFF

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

50 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Set or get the DUT ID

Command name Parameters Description Return value Example

SetDutId() string clientID

string dutName

GetDutId() string clientID

string dutId

This method changes the DUT ID of the setup. The client must provide a valid DUT ID.

This method gets the DUT ID of the current setup.

String that gives the status of the operation after it has been performed Return value is “DUT Id Changed” on success

String that gives the status of the operation after it has been performed

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string return=m_Client.SetDutI d(clientID,desiredDutId) Note

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string return=m_Client.GetDuti d(clientID, out DutId)

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string dutName

Name Type Direction Description

dutName string IN The new DUT ID of the setup

string dutId

Name Type Direction Description

dutId string OUT The DUT ID of the setup

The dutId parameter is set after the server processes the request.

C-PHY Tx Essentials Printable Application Help 51

TekExpress programmatic interface

NOTE. If the dutName parameter is null, the client is prompted to provide a valid DUT ID.

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Set the configuration parameters for a suite or measurement

Command name Parameters Description Return value Example

SetGeneralParameter string clientID

string device string suite string test string parameterString

This method sets the number of video lanes for the selected measurement.

NOTE. Use this command to select a lane, channel, or source type.

String that gives the status of the operation after it has been performed The return value is "" (an empty String) on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

SetAnalyzeParameter() string clientID

string device string suite string test string parameterString

SetAcquireParameter() string clientID

string device string suite string test string parameterString

This method sets the configuration parameters in the Analyze panel of the Configuration Panel dialog box for a suite or measurement.

This method sets the configuration parameters in the Acquire panel of the Configuration Panel dialog box for a suite or measurement.

String that gives the status of the operation after it has been performed The return value is "" (an empty String) on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnVal = remoteObject.SetAcquir eParameter(id, device, suite, test, parameterString) if ((OP_STATUS) returnVal != OP_STATUS.SUCCES S) return CommandFailed(returnV al)

52 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

C-PHY Tx Essentials Printable Application Help 53

TekExpress programmatic interface

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

54 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

Query the configuration parameters for a suite or measurement

Command name Parameters Description Return value Example

GetGeneralParameter() string clientID

string device string suite string test string parameterString

GetAnalyzeParameter() string clientID

string device string suite string test string parameterString

GetAcquireParameter() string clientID

string device string suite string test string parameterString

This method gets the general configuration parameters for a suite or measurement.

This method gets the configuration parameters set in the Analyze panel of the Configuration Panel dialog box for a specified suite or measurement.

This method gets the configuration parameters set in the Acquire panel for a specified suite or measurement.

The return value is the general configuration parameter for a specified suite or measurement that is set.

The return value is the configuration parameter set in the Analyze panel of the Configuration Panel dialog box for a specified suite or measurement.

The return value is the configuration parameter set in the Acquire panel for a specified suite or measurement.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string Query Channel

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

C-PHY Tx Essentials Printable Application Help 55

TekExpress programmatic interface

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

56 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Query channel for trigger example

returnval = mClient.SetGeneralParameter(clientID, "Transmitter", "Essentials", "Rise Time", "Scope Channel for Trigger$CH1")

C-PHY Tx Essentials Printable Application Help 57

TekExpress programmatic interface

Select a test

Command name Parameters Description Return value Example

SelectTest() string clientID

string device string suite string test bool isSelected

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

This method selects or deselects a specified test. If this Setting parameter is set to true, you can select a measurement. If this Setting parameter is set to false, you can deselect a measurement.

String that displays the status of the operation after it has been performed The return value is "" (an empty String) on success.

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL returnval as string Select test example

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

bool isSelected

Name Type Direction Description

isSelected bool IN Selects or deselects a test

58 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Select test example

To select measurement test 1.1.6-HS-TX Minimum Differential AC Eye Opening:

returnval = mClient.SelectTest(clientID, "Transmitter", "Essentials", "Rise Time", true)

Select a channel

Command name Parameters Description Return value Example

SetGeneralParameter() string clientID

string device string suite string test string parameterString

This method sets the parameters that are not specific to any one test.

NOTE. Using this command we can select a lane, channel, or source type.

String that gives the status of the operation after it has been performed The return value is "" (an empty String) on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string Set data rate

SetAnalyzeParameter() string clientID

string device string suite string test string parameterString

SetAcquireParameter() string clientID

string device string suite string test string parameterString

This method sets the configuration parameters in the Analyze panel of the Configuration Panel dialog box for a specified suite or measurement.

This method sets the configuration parameters in the Acquire panel of the Configuration Panel dialog box for a specified suite or measurement.

The return value is "" (an empty String) on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

C-PHY Tx Essentials Printable Application Help 59

TekExpress programmatic interface

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

60 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

C-PHY Tx Essentials Printable Application Help 61

TekExpress programmatic interface

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Set data rate

returnval = mClient.SetGeneralParameter(clientID, "Transmitter", "Essentials", "Data Rate (Gbps)$4.5")

Configure the selected measurement

Command name Parameters Description Return value Example

SetAnalyzeParameter() string clientID

string device string suite string test string parameterString

This method sets the Analyze parameters (Configuration parameters) for a specified test.

The return value is "" (an empty String) on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

62 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Run with set configurations or stop the run operation

Command name Parameters Description Return value Example

Run() string clientID Runs the selected tests

Note After the server is set up and configured, run it remotely using this function.

Stop() string clientID Stops the currently

running tests Note

String that gives the status of the operation after it has been performed. The return value is "Run started..." on success.

String that gives the status of the operation after it has been performed The return value is "Stopped..." on success.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Run( clientID)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Sto p(clientID)

NOTE. When the session is stopped, the client is prompted to stop the session and is stopped at the consent.

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

C-PHY Tx Essentials Printable Application Help 63

TekExpress programmatic interface

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

NOTE. When the run is performed, the status of the run is updated periodically using a timer.

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Handle error codes

The return value of the remote automations at the server-end is OP_STATUS, which changes to a string value depending on its code, and returned to the client. The values of OP_STATUS are:

Code Value Description

-1 FAIL The operation failed

1 SUCCESS The operation succeeded

2 NOT FOUND Server not found

3 LOCKED The server is locked by another client, so

4 UNLOCK The server is not locked; lock the server

0 NULL Nothing

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

the operation cannot be performed

before performing the operation

When none of these fail conditions occur, then the message displayed is "Failed...".

64 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Get or set the timeout value

Command name Parameters Description Return value Example

GetTimeOut() string clientID Returns the current

timeout period set by the client

SetTimeOut() string clientID

string time

Sets a timeout period specified by the client. After this timeout period expires, the server is unlocked automatically.

String that gives the status of the operation after it has been performed The default return value is 1800000.

String that gives the status of the operation after it has been performed On success the return value is “TimeOut Period Changed”.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.GetT imeOut()

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.SetTi meOut(clientID, desiredTimeOut)

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string time

Name Type Direction Description

time string IN The time in seconds that refers

to the timeout period

The time parameter gives the timeout period, which is the time the client is allowed to be locked and idle. After the timeout period if the client is still idle, it gets unlocked.

The time parameter should be a positive integer; otherwise, the client is prompted to provide a valid timeout period.

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

C-PHY Tx Essentials Printable Application Help 65

TekExpress programmatic interface

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Wait for the test to complete

The commands in this group execute while tests are running. The GetCurrentStateInfo() and SendResponse() commands are executed when the application is running and in the wait state.

66 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Command name Parameters Description Return value Example

ApplicationStatus() string clientID This method gets the

status of the server application. The states are Ready, Running, Paused, Wait, or Error.

QueryStatus() string clientID

out string[] status

GetCurrentStateInfo()

NOTE. This command is used when the application is running and is in the wait or error state.

SendResponse()

NOTE. This command is used when the application is running and is in the wait or error state.

string clientID out string WaitingMsbBxCaption out string WaitingMsbBxMessage out string[] WaitingMsbBxButtontext s

string clientID out string WaitingMsbBxCaption out string WaitingMsbBxMessage string WaitingMsbBxResponse

An interface for the user to transfer Analyze panel status messages from the server to the client

This method gets the additional information of the states when the application is in Wait or Error state. Except client ID, all the others are Out parameters.

After receiving the additional information using the method GetCurrentStateInfo(), the client can decide which response to send and then send the response to the application using this function. The response should be one of the strings that was received earlier as a string array in the GetCurrentStateInfo function. The _caption and _message should match the information received earlier in the GetCurrentStateInfo function.

String value that gives the status of the server application

String that gives the status of the operation after it has been performed On success the return value is “Transferred...”.

This command does not return any value. This function populates the Out parameters that are passed when invoking this function.

This command does not return any value.

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Appli cationStatus(clientID)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string Query status example

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL mClient.GetCurrentState Info(clientID, WaitingMsbBxCaption, WaitingMsbBxMessage, WaitingMsbBxButtontext s)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL mClient.SendResponse( clientID, WaitingMsbBxCaption, WaitingMsbBxMessage, WaitingMsbBxResponse )

C-PHY Tx Essentials Printable Application Help 67

TekExpress programmatic interface

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string[] status

Name Type Direction Description

status string array OUT The list of status messages

generated during the run

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string WaitingMsbBxCaption

Name Type Direction Description

caption string OUT The wait state or error state

message sent to you

68 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

out string WaitingMsbBxMessage

Name Type Direction Description

message string OUT The wait state/error state

message sent to you

out string[] WaitingMsbBxButtontexts

Name Type Direction Description

buttonTexts string array OUT An array of strings containing

the possible response types that you can send

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string WaitingMsbBxCaption

Name Type Direction Description

caption string OUT The wait state or error state

message sent to you

out string WaitingMsbBxMessage

Name Type Direction Description

message string OUT The wait state/error state

message sent to you

out string[] WaitingMsbBxResponse

Name Type Direction Description

response string IN A string containing the

response type that you can select (it must be one of the strings in the string array button Texts)

Ready: Test configured and ready to start

Running: Test running

Paused: Test paused

Wait: A popup that needs your inputs

Error: An error is occurred

C-PHY Tx Essentials Printable Application Help 69

TekExpress programmatic interface

Query status example

returnVal=m_Client.QueryStatus(clientID, out statusMessages)

if ((OP_STATUS)returnVal == OP_STATUS.SUCCESS)

return “Status updated...”

else

return CommandFailed(returnVal)

After the test is complete

Command name Parameters Description Return value Example

GetPassFailStatus() string clientID

string device string suite string test

This method gets the pass or fail status of the measurement after test completion.

NOTE. Execute this command after completing the measurement.

String that gives the status of the operation after it has been performed Returns the pass or fail status in the form of a string

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.GetP ass- FailStatus(clientID, device, suite, test)

GetResultsValue() string clientID

string device string suite string test string parameterString

GetResultsValueForSub Measurements()

string clientID string device string suite string test string parameterString int rowNr

This method gets the result values of the measurement after the run.

This method gets the result values for individual submeasurements after the run.

String that gives the status of the operation after it has been performed Returns the result value in the form of a string

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.GetR esultsValue( clientID, device, suite, test, "Measured Value")

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

70 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Command name Parameters Description Return value Example

GetReportParameter() string clientID

string device string suite string test string parameterString

TransferReport() string clientID

string filePath

TransferImages() string clientID

string filePath

This method gets the general report details such as oscilloscope model, TekExpress version, and C-PHY Tx Essentials version.

This method transfers the report generated after the run. The report contains the summary of the run. The client must provide the location where the report is to be saved at the client-end.

This method transfers all the images (screen shots) from the specified client and folder for the current run (for a suite or measurement).

NOTE. Every time you click Start, a folder is created in the X: drive. Transfer the waveforms before clicking Start.

The return value is the oscilloscope model, TekExpress version, and C-PHY Tx Essentials version.

String that gives the status of the operation after it has been performed Transfers all the result values in the form of a string

String that gives the status of the operation after it has been performed Transfers all the images in the form of a string

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string

Oscilloscope Model

returnval=m_Client.GetR eportParameter(clientID, "Scope Model")

TekExpress Essentials Version

returnval=m_Client.GetR eportParameter(clientID, "TekExpress Version")

C-PHY Tx Essentials Version

returnval=m_Client.GetR eportParameter(clientID, "Application Version")

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Tran sferReport(clientID,"C: \Report”)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Tran sferImages(clientID, "C: \Waveforms”)

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

C-PHY Tx Essentials Printable Application Help 71

TekExpress programmatic interface

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

72 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string device

Name Type Direction Description

device string IN Specifies the name of the

device

C-PHY Tx Essentials Printable Application Help 73

TekExpress programmatic interface

string suite

Name Type Direction Description

suite string IN Specifies the name of the suite

string test

Name Type Direction Description

test string IN Specifies the name of the test

to obtain the pass or fail status

string parameterString

Name Type Direction Description

parameterString string IN Selects or deselects a test

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

string parameterString

Name Type Direction Description

parameterString string IN Specifies the oscilloscope

model, TekExpress version, and C-PHY Tx Essentials version

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string filePath

Name Type Direction Description

filePath string IN The location where the report

must be saved in the client

NOTE. If the client does not provide the location to save the report, the report is saved at C:\ProgramFiles.

74 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

string filePath

Name Type Direction Description

filePath string IN The location where the report

must be saved in the client

NOTE. If the client does not provide the location to save the report, the report is saved at C:\ProgramFiles.

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

int rowNr

Name Type Direction Description

rowNr int IN Specifies the zero based row

index of the sub-measurement for obtaining the result value

C-PHY Tx Essentials Printable Application Help 75

TekExpress programmatic interface

Save recall or query a saved session

Command name Parameters Description Return value Example

CheckSessionSaved() string clientID

out bool saved

RecallSession() string clientID

string name

SaveSession() string clientID

string name

SaveSessionAs() string clientID

string name

This method checks whether the current session is saved.

Recalls a saved session. The client provides the session name.

Saves the current session. The client provides the session name.

Saves the current session under a different name every time this method is called. The client provides the session name.

Return value is either True or False

String that gives the status of the operation after it has been performed The return value is “Session Recalled...”

String that gives the status of the operation after it has been performed The return value is "Session Saved..."/"Failed..."

String that gives the status of the operation after it has been performed The return value is "Session Saved..."

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Chec kSessionSaved(m_client ID, out savedStatus)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Reca llSession(clientID, savedSessionName)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Save Session(clientID, desiredSessionName)

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Save SessionAs(clientID, desiredSessionName)

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

76 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out bool saved

Name Type Direction Description

saved bool OUT Boolean representing whether

the current session is saved

This parameter is used as a check in SaveSession() and SaveSessionAs() functions.

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

string name

Name Type Direction Description

name string IN The name of the session being

recalled

The name parameter cannot be empty. If it is empty, the client is prompted to provide a valid name.

string name

Name Type Direction Description

name string IN The name of the session being

recalled

The name parameter cannot be empty. If it is empty, the client is prompted to provide a valid name.

C-PHY Tx Essentials Printable Application Help 77

TekExpress programmatic interface

string name

Name Type Direction Description

name string IN The name of the session being

recalled

The name parameter cannot be empty. If it is empty, the client is prompted to provide a valid name.

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

Unlock the server

Command name Parameters Description Return value Example

UnlockSession() string clientID This method unlocks the

server from the client. The ID of the client to be unlocked must be provided. Note

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

NOTE. When the client is disconnected, the client is unlocked automatically.

NOTE. The Fail condition for PI commands occurs in any of the following cases:

String that gives the status of the operation after it has been performed The return value is "Session Un-Locked..."

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Unlo ckServer(clientID)

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

78 C-PHY Tx Essentials Printable Application Help

TekExpress programmatic interface

Disconnect from the server

Command name Parameters Description Return value Example

Disconnect() string clientID This method

disconnects the client from the server. Note

out string clientID

Name Type Direction Description

clientid string OUT Identifier of the client that is

Integer value that gives the status of the operation after it has been performed 1 for Success –1 for Failure

connected to the server clientId = unique number + ipaddress of the client. For example, 1065+192.157.98.70

m_Client = new Client() //m_Client is a reference to the Client class in the Client DLL. returnval as string returnval=m_Client.Disc onnect(m_clientID)

NOTE. When the client is disconnected, it is unlocked from the server and then disconnected. The id is reused.

NOTE. The Fail condition for PI commands occurs in any of the following cases:

The server is LOCKED and the message displayed is "Server is locked by another client".

The session is UNLOCKED and the message displayed is "Lock Session to execute the command".

The server is NOTFOUND and the message displayed is "Server not found...Disconnect!".

When none of these fail conditions occur, then the message displayed is "Failed...".

C-PHY Tx Essentials Printable Application Help 79

TekExpress programmatic interface

80 C-PHY Tx Essentials Printable Application Help

Reference

C-PHY Tx Essentials Parameters

General parameters

This table lists the general parameters that can be changed in the User Defined Mode.

Table 13: General parameters list

Parameter Return Values Default Minimum Maximum

Data Rate (Gbps) NA 2.5 0.05 4.5

VA CH1,CH2,CH3,CH4,REF1

,REF2,REF3,REF4,MATH 1,MATH2,MATH3,MATH4

VB CH1,CH2,CH3,CH4,REF1

,REF2,REF3,REF4,MATH 1,MATH2,MATH3,MATH4

VC CH1,CH2,CH3,CH4,REF1

,REF2,REF3,REF4,MATH 1,MATH2,MATH3,MATH4

Enable DeEmbed Filter

Filter Type Insertion Loss

DeEmbed Filter 1 NA C:\Program Files

DeEmbed Filter 2 NA C:\Program Files

DeEmbed Filter 3 NA C:\Program Files

Yes No

Insertion Loss and Cross Talk

CH1 NA NA

CH2 NA NA

CH3 NA NA

No NA NA

Insertion Loss and Cross Talk

\Tektronix\TekExpress \TekExpress CPHYTx \Compliance Suites \CPHY\FilterFiles \sdlaTp3DIFFSrcA_AB.flt

\Tektronix\TekExpress \TekExpress CPHYTx \Compliance Suites \CPHY\FilterFiles \sdlaTp3DIFFSrcB_AB.flt

\Tektronix\TekExpress \TekExpress CPHYTx \Compliance Suites \CPHY\FilterFiles \sdlaTp3DIFFSrcB_BC.fl t

NA NA

C-PHY Tx Essentials Printable Application Help 81

Reference

Parameter Return Values Default Minimum Maximum

DeEmbed Filter 4 NA C:\Program Files

\Tektronix\TekExpress \TekExpress CPHYTx \Compliance Suites \CPHY\FilterFiles \sdlaTp3DIFFSrcC_BC.fl t

DeEmbed Filter 5 NA C:\Program Files

\Tektronix\TekExpress \TekExpress CPHYTx \Compliance Suites \CPHY\FilterFiles \sdlaTp3DIFFSrcC_CA.fl t

DeEmbed Filter 6 NA C:\Program Files

\Tektronix\TekExpress \TekExpress CPHYTx \Compliance Suites \CPHY\FilterFiles \sdlaTp3DIFFSrcA_CA.fl t

NA NA

Test parameters

This table lists which test parameters can be changed in the User Defined Mode.

Table 14: Test parameters list (User Defined mode)

Parameter group Parameter name Range Default Units

Ref levels Reference levels Absolute, Percentage Percentage NA

Reference level-High (%) 70 to 90 (in %) 40 to

60 (in Absolute)

Reference level-Low (%) 10 to 30 (in %) -60 to

-40 (in Absolute)

Reference levelHysteresis (%)

Clock Settings Clock recovery method EXPEDGE

Signal Type CLOCK

Clock Edge RISE

Loop bandwidth (MHz) 1 to 10 4 MHz

MaskHitType Auto

5 to15 (in %) 5 to 25 (in Absolute)

EXPPLL

DATA AUTO

FALL BOTH

Manual

80 (in %) 58 (in Absolute)

20 (in %) -58 (in Absolute)

10 (in %) 10 (in Absolute)

EXPEDGE NA

CLOCK NA

RISE NA

Auto NA

% or V

82 C-PHY Tx Essentials Printable Application Help

Reference

Parameter group Parameter name Range Default Units

Others Accumulation True

False

Eye Height Percentage 10 to 90 50 %

Hysteresis 5 to 15 10 %

True NA

Map my TekExpress folder

In the case where you operate the TekExpress application on one oscilloscope, but acquire data from another (remotelyaccessed) oscilloscope, you need to share and map the My TekExpress folder on the remote instrument with the C-PHY T Essentials application.

To map the My TekExpress folder on a remote instrument:

1. Open Windows Explorer.

2. From the Windows Explorer menu, click Computer.

3. In the menu bar, click Map network drive.

4. Select the Drive letter as X: (if there is any previous connection on X:, disconnect it first through Tools > Disconnect Network drive menu of Windows Explorer. Windows 7 users: if you do not see the Tools menu, press the Alt key).

5. In the Folder field, enter the remote My TekExpress folder path (for example, \\192.158.97.65\ My TekExpress).

6. Click Finish.

To determine the IP address of the instrument where the My TekExpress folder exists, do the following:

1. On the instrument where the My TekExpress folder exists, click Start and select Run.

2. Type cmd and press Enter.

3. At the command prompt, type ipconfig and press Enter.

Rise time

Verifies that the rise time of the DUT C-PHY Tx HS (80% - 20%) signals.

Fall time

Verifies the fall time of the DUT C-PHY Tx HS (80% - 20%) signals.

Eye measurement

Verifies the eye diagram and performs both eye widths and eye height measurement on C-PHY Tx Essentials signals.

DC common mode measurement

Verifies that the static point common mode voltage VCPTX of the Trio signal are within the transmitter limit.

AC common mode mismatch measurement

Verifies that the common-mode voltage mismatch (ΔV conformance limit.

C-PHY Tx Essentials Printable Application Help 83

) of the DUT Data Lane HS Transmitter is less than the maximum

CMTPX)

Reference

AC common mode level variation ΔVCPTX(LF) between (50 MHz to 450 MHz)

Verifies that the AC common-point signal level variations between 50 and 450 MHz (∆V the maximum allowable limit.

AC common mode level variation ΔVCPTX(HF)(Above 450 MHz)

Verifies that the AC common-mode signal level variations above 450 MHz (∆V the maximum allowable limit.

CPTX(HF)

Intra-pair skew

Measures the intra pair skew of the trio signal.

) of the transmitter are less than

CPTX(LF)

) of the DUT HS transmitter are less than

84 C-PHY Tx Essentials Printable Application Help

Index

Acquire status, 22 Acquisitions tab, 20 Activating the license (C-PHY Tx), 3 Analysis Status, 22 Application

exit, 9 license, 9 version information, 4

ApplicationStatus(), 67 Auto Scroll, 23

CheckSessionSaved(), 76 Clear test log, 23 Client (TekExpress), 39 Client proxy object, 43 Client requirements, TekExpress, 40 Code example, remote access, 46 Command buttons, 10 Commands

ApplicationStatus(), 66 error codes, 64 GetCurrentStateInfo(), 66 QueryStatus(), 66 SendResponse(), 66 SetVerboseMode(), 50

Configure email, 14 Configure email setting, 13 Configuring tests, 18 Connect(), 48 Connected instrument(s), 19 Connected instruments, 31 Contact Tektronix, 1 Conventions, 1

Disconnect(), 79 Download the software, 3 DUT

definition, 1 settings, 16 tab, 16

Email notifications, 14 Email settings, 13 Error codes, 64 Evaluation mode, 9 Exiting the application, 9 Extensions, file name, 7

File name extensions, 7

Gear selection, 16 GetAcquireParameter(), 55 GetAnalyzeParameter(), 55 GetCurrentStateInfo(), 67 GetDutId(), 51 GetGeneralParameter(), 55 GetPassFailStatus(), 70 GetReportParameter(), 71 GetResultsValue(), 70 GetResultsValueForSubMeasurements(), 70 GetTimeOut(), 65 Global settings, 18 Global Settings tab, 19

Demo mode, 9 Description of main application panels, 14 Disable Popups command, 50

C-PHY Tx Essentials Printable Application Help 85

Installing the software, 3 Instruments

connected, 19 selecting, 19

Index

viewing connected, 12, 31

Instruments detected, 19 Interface error codes, 64

Keep On Top, 9

License, 9 License activation (C-PHY Tx), 3 License information, 4 LockSession(), 49 Log files, 23 Log View tab (Status panel), 22

Main application panels, 14 Measurements tab, 19 Menus

Options, 11 Preferences, 24

Message History, 23 Minimum system requirements, 6 My TekExpress folder

locating, 33

Programmatic interface

client, 39 client proxy object, 43 client requirements, 40 example, 46 overview, 39 remote proxy object, 42 server, 39

QueryStatus(), 67

Recall a test setup, 38 RecallSession(), 76 Related documentation, 1 Remote proxy object, 42 Reports

file type (.mht, .html, .csv, .xls), 26 main panel, 25 names, 26 options, 26 selecting contents, 26 viewing, 27

Results panel, 23, 24 Run(), 63 Running tests, 33

Options menu

Instrument Control Settings, 12 Keep On Top, 9

Panels

Reports, 25 Results, 23 Setup, 15 Status, 22

Panels overview, 14 Pass/Fail summary, 27 Pre-run checklist, 33, 35 Program example, 46

86 C-PHY Tx Essentials Printable Application Help

SaveSession(), 76 SaveSessionAs(), 76 Saving test setups, 37 Select Channel, 20 Selecting a connected instrument, 19 SelectTest(), 58 SendResponse(), 67 Server (TekExpress), 39 Server control, 40 Session files, 24 Session folders, 24 Set DUT parameters, 16 Set email parameters, 13

Index

SetAcquireParameter(), 52 SetAnalyzeParameter(), 52, 62 SetDutId(), 51 SetGeneralParameter(), 52, 59 SetTimeOut(), 65 Setting up tests, 32 Setup panel, 15 Setup tabs

Acquisitions, 20 DUT, 16

SetVerboseMode(), 50 Show application version, 4 Show Detailed Log, 23 Signal Path Compensation (SPC), 33 Signal source validation

setting, 20

Software download and installation, 3 Status panel, 22 Stop(), 63 System requirements, 6

Test groups, 29 Test Results, 24 Test Selection button, 19 Test setup files, 24 Test setup overview, 29 Test setup steps, 32 Test setups

creating based on existing, 38 recalling, 38 saving, 37

Test setups overview, 37 Test Status commands, 66 Test Status tab (Status panel), 22 Tests

running, 33 setting up, 29

TransferImages(), 71 TransferReport(), 71

Tab

Acquisitions, 20 Configuration, 18 DUT, 16

Tabs

Log View, 22 Test Status, 22

Technical support, 1 Tektronix support, 1 Test configuration, 18

UnlockSession(), 78 Untitled Session folder, 33 User Comments

including in test reports, 26 location in reports, 27

User Defined Mode, 19

View test parameters, 18 View test reports, 27

C-PHY Tx Essentials Printable Application Help 87

Index

88 C-PHY Tx Essentials Printable Application Help

Tektronix TekExpress C-PHY Tx Help, C-PHY Tx Online Help

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Welcome

Getting help and support

Related documentation

Technical support

Conventions used in help

Getting started

Installing the software

Install the software

Activate the license

View software version and license information

Application overview

C-PHY Tx Essentials key features

Supported oscilloscopes and probes

Minimum system requirements

Application directories and files

File name extensions

Operating basics

Run the application

Exit the application

Application controls and menus

Application controls

Options menu

Application panels

Application panel overview

Setup panel

Status panel overview

Results panel

Reports panel

See also. View a report

Setting up and configuring tests

About setting up tests

Instrument connection setup

View connected instruments

Test setup overview

Running tests

About running tests

Before you click Start

Pre-test checklist

Saving and recalling test setups

Test setups overview

Save a test setup

Recall a saved test setup

Create a new test setup based on an existing one

TekExpress programmatic interface

Programmatic interface overview

Requirements for developing TekExpress client

To enable remote access

Remote proxy object

Client proxy object

Client programmatic interface overview

Program remote access code example

C-PHY Tx Essentials command flow

Connect through an IP address

Lock the server

Disable popup messages

Set or get the DUT ID

Set the configuration parameters for a suite or measurement

Query the configuration parameters for a suite or measurement

Select a test

Select a channel

Configure the selected measurement

Run with set configurations or stop the run operation

Handle error codes

Get or set the timeout value

Wait for the test to complete

After the test is complete

Save recall or query a saved session

Unlock the server

Disconnect from the server

Reference

C-PHY Tx Essentials Parameters

General parameters

Test parameters

Map my TekExpress folder

Rise time
