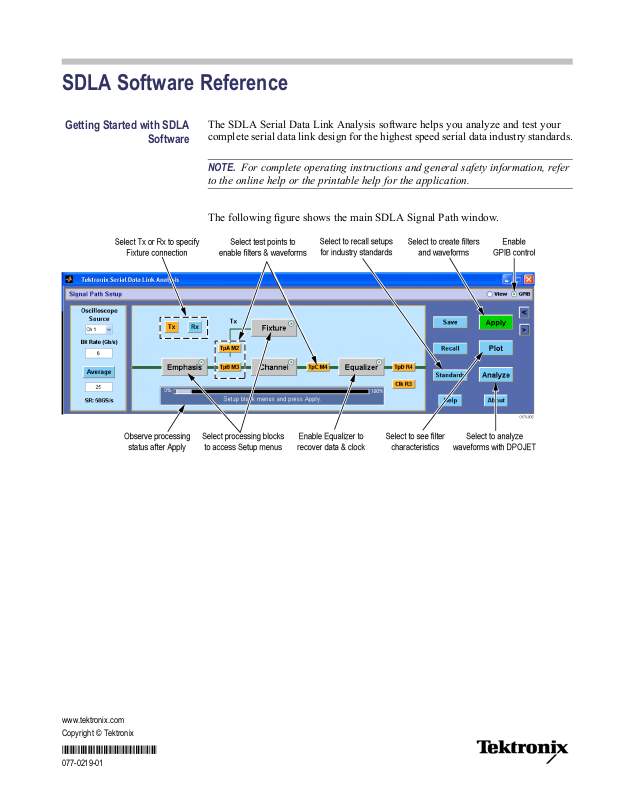

SDLA Software Reference

Getting Started with SDLA

Software

The SDLA Serial Data Link Analysis software helps you analyze and test your
complete serial data link design for the highest speed serial data industry standards.

NOTE. For complete operating instructions and general safety information, refer

to the online help or the printable help for the application.

The follow

ing figure shows the main SDLA Signal Path window.

www.tektronix.com
Copyright © Tektronix

*P077021901*

077-0219-01

SDLA Software Reference

This figure show
waveform TpC after the Channel, and the TpD waveform after the Equalizer.

For up-t
Link Analysis, access the www.tektronix.com/Measurement/scopes Web page.

o-date information on Tektronix oscilloscope solutions for Serial Data

s the DPOJET plots of three waveforms: the SDLA Source, the

SDLA Ordering Information

This software runs on Tektronix DPO/DSA70000 Series and Tektronix
DPO/D
Software on Windows-Based Oscilloscopes Installation Manual for a complete
list of supported models and software requirements.

SA70000B Series oscilloscopes. Refer to the Optional Applications

Option SLA: SDLA Advanced – Advanced data link analysis functions
including equalization

Option SLE: SDLA Essentials – Serial Data Link Analysis Software without
equalization

Option EQ: SDLA software upgrade from Option SLE to Option SLA

2 SDLA Reference
