Instructions
RTX13UPM1, RTX13UPM2, RTX13UPM3, and
RTX13UPM4 Modulation Option Upgrades
RTX130 QAM & VSB RF Signal Generator
075-0910-00
Warnin g
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P075091000*
075091000
Copyright © Tektronix, Inc. All rights reserved. Lice nsed software products are owned by Tektronix or its subsidiaries or
suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
H In North America, call 1-800-833-9200.
H Worldwide, visit www.tektronix.com to find contacts in your area.
Kit Description
Product
This kit provides a document with your option authorization key and instructions
to upgrade your RTX130A QAM & VSB RF Signal Generator to Option M1,
M2, M3, or M4.
These instructions apply for the following upgrades:
H RTX13UPM1 (Option M 1): adds DVB-C/ITU-T J.83 Annex A modulation
mode
H RTX13UPM2 (Option M2): adds ITU-T J.83 Annex B modulation mode
H RTX13UPM3 (Option M3): adds ITU-T J.83 Annex C modulation mode
H RTX13UPM4 (Option M4): adds ATSC modulation mode
RTX130A
Kit Parts List
Table 1 lists the items that ship with the RTX13UPM1, RTX13UPM2,
RTX13UPM3, and RTX13UPM4 field upgrades.
Table 1: Kit part list
Quantity Part number Description
1ea NS DATA SHEET; OPTION KEY INFORMATION
1 ea 334-1377-50
1ea 075-0910-00
NS - Not Saleable
MARKER, IDENT: MARKED Option M1/M2/M3/M4
MANUAL, TECH: INSTRUCTIONS, UPGRADE KIT
RTX130A Modulation Option Upgrade
1
Kit Description
RTX130A Modulation Option Upgrade
2
Installation Instructions
This section provides information on how to enable the modulation option on
your RTX130 QAM & VSB RF Signal Generator.
Entering the Option Key
Perform the following steps to enter the option key that is supplied with the
upgrade kit. This enables the modulation option on the instrument.
1. Connect a keyboard and mouse to the USB connectors of the instrument
(if they are not already installed).
2. Power on the instrument, and wait for it to boot.
3. In the Play screen, select Utility > Option Key to open the Option Key
dialog box. See Figure 1.

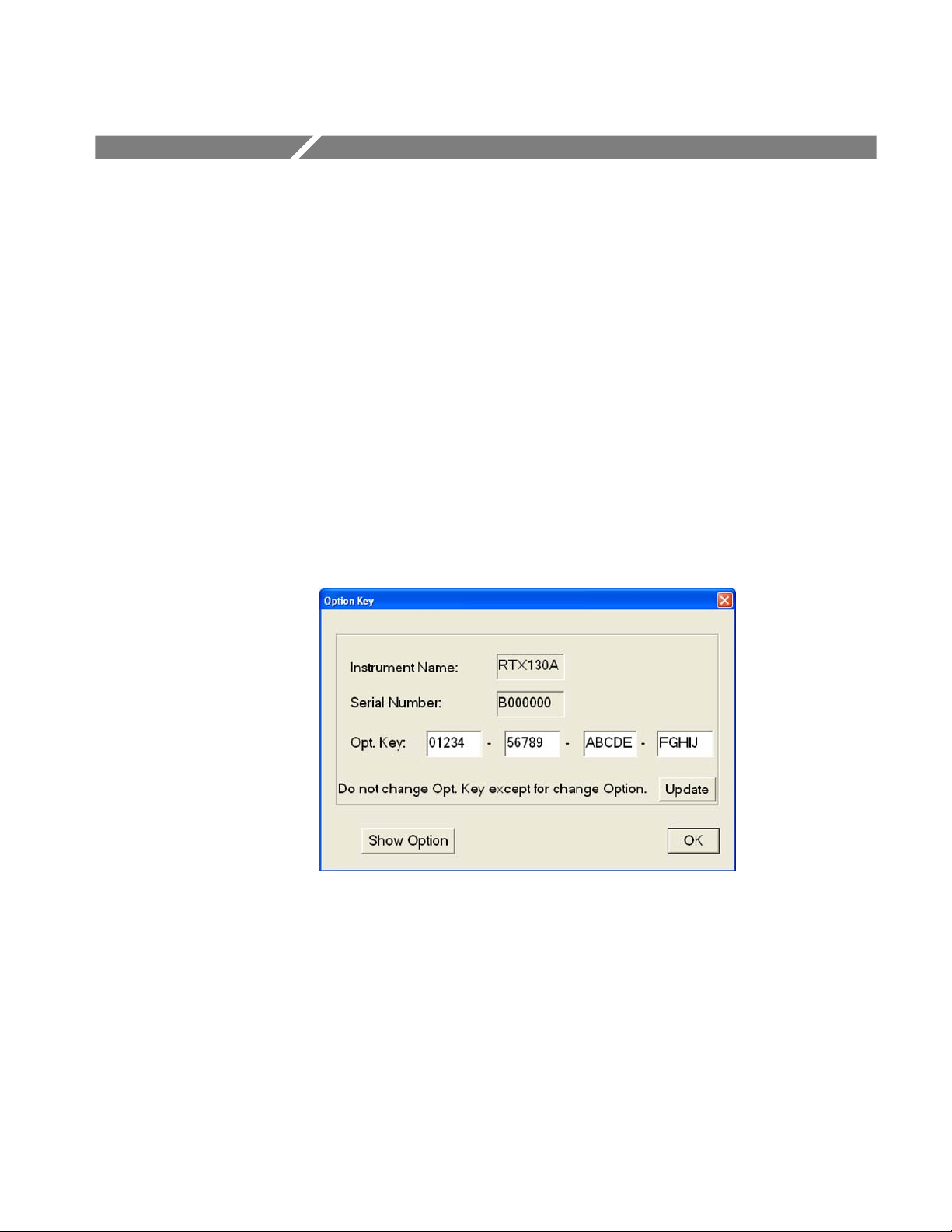

Figure 1: Option Key dialog box
4. Consult the option key document that is supplied with the kit and identify
the option key numbers.
5. Enter the four 5-character alphanumeric numbers in the Option Key entry
fields, and then click the Update button.
6. Remove the protective backing from the Option label provided in this kit.
Apply the label to the right side of the cabinet.
RTX130A Modulation Option Upgrade
3
Installation Instructions
Verifying the Upgrade
Perform the following steps to verify that the upgrade was successful:
1. Select QAM/VSB > RF Output > On.
2. Select QAM/VSB > Modulation to open the Modulation dialog box.
SeeFigure2.
Figure 2: Modulation dialog box
3. Verify that the installed modulation standard appears in the Standard list
box.
g End of document g
