RSA6BUP Option WIN7
Windows 7 Upgrade for
ZZZ
RSA6120B Real-Time Signal Analyzers with Option WINXP
Instructions
www.tektronix.com
P071309700*
*
071-3097-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries
or suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. Box 500
Beaverto
USA
For product information, sales, service, and technical support:
n, OR 97077
In North America, call 1-800-833-9200.
Worl dwid e, visi t www.tektronix.com to find contacts in your area.
Table of Contents
Kit Description............................... .................................. ................................ ..... 1
Products................ ................................ ................................ ......................... 1
Kit Parts List ............ ................................ .................................. ..................... 1
Installati
Update the Instrument BIOS Configuration ..................................................................... 2
on Instructions ............................................................................................ 1
Installing the Windows 7 Removable Hard Drive .... . . .... . ..... . ..... . ..... . .... . ..... . ..... . ..... . .... . 1
Installing the Windows Certificate of Authenticity Label................................................. 4
RSA6120B Option WINXP Windows 7 Upgrade i
Table of Contents
ii RSA6120B Option WINXP Windows 7 Upgrade
Kit Description
Products
Kit Parts List
This kit describes the installation of the RSA6BUP Option WIN7 Upgrade for
RSA6120B instruments with Option WINXP.
RSA6120B. All serial numbers, Option WINXP only
Quantity Part numbe
1ea
1 ea 071-2179-03
1 ea 071-3097-00
1 ea 650–5486-00
1
NS — Not saleable
Installation Instructions
Upgrading to Windows 7 on an RSA6120B Option WINXP consists of replacing
the Windows XP-based removable hard drive with a Windows 7-based removable
hard drive and changing a BIOS setting to improve instrument performance under
ndows 7.
Wi
NS
r
1
Descripti
SOFTWARE C
AUTHENTICITY); MICROSOFT WINDOWS 7
PRO FOR EMBEDDED SYSTE MS 32/64BIT
MANUAL, TECH; SMPLP; TEKTRONIX
SUPPLEM
THE PEOPLES REPUBLIC OF CHINA; CHINA
ROHS
MANUAL, TECH; INSTALLATION, RSA6BUP
WIN7, O
DISK D
REMOVABLE HARD DRIVE, RSA6000B
OPTION 56, WINDOWS 7
on
OA (CERTIFICATE OF
ENTAL INFORMATION SHEET FOR
NLY FOR RSA6120B UPGRADE
RIVE ASSY; P RO GRAMME D,
Installing the Windows 7 Removable Hard Drive
o install the Windows 7-based removable hard drive:
T
1. From the Start menu, shut down the instrument.
2. After the instrument has shut down, loosen the two thumb screws that secure
the removable hard drive. Pull the removable hard drive out of the instrument.
RSA6120B Option WINXP Windows 7 Upgrade 1
Update the Instrument BIOS Configuration
Place the remov
protected location for possible future use or discard the drive, according to
your organization’s security protocols.
3. Install the new Windows 7-based removable hard drive into the instrument.
Tighten the thumb screws to secure the removable hard drive.
ed drive assembly in anti-static packaging and store it in a
Update the Instrument BIOS Configuration
To update the instrument BIOS:
1. With the instrument still shut down, connect a keyboard (either PS/2 or USB)
to the instrument.
2. Turn on the instrument.
3. To enter the BIOS setup utility:
While the Tektronix screen is displayed, tap the DELETE key on the keyboard
to enter BIOS setup.
2 RSA6120B Option WINXP Windows 7 Upgrade
Update the Instrument BIOS Configuration

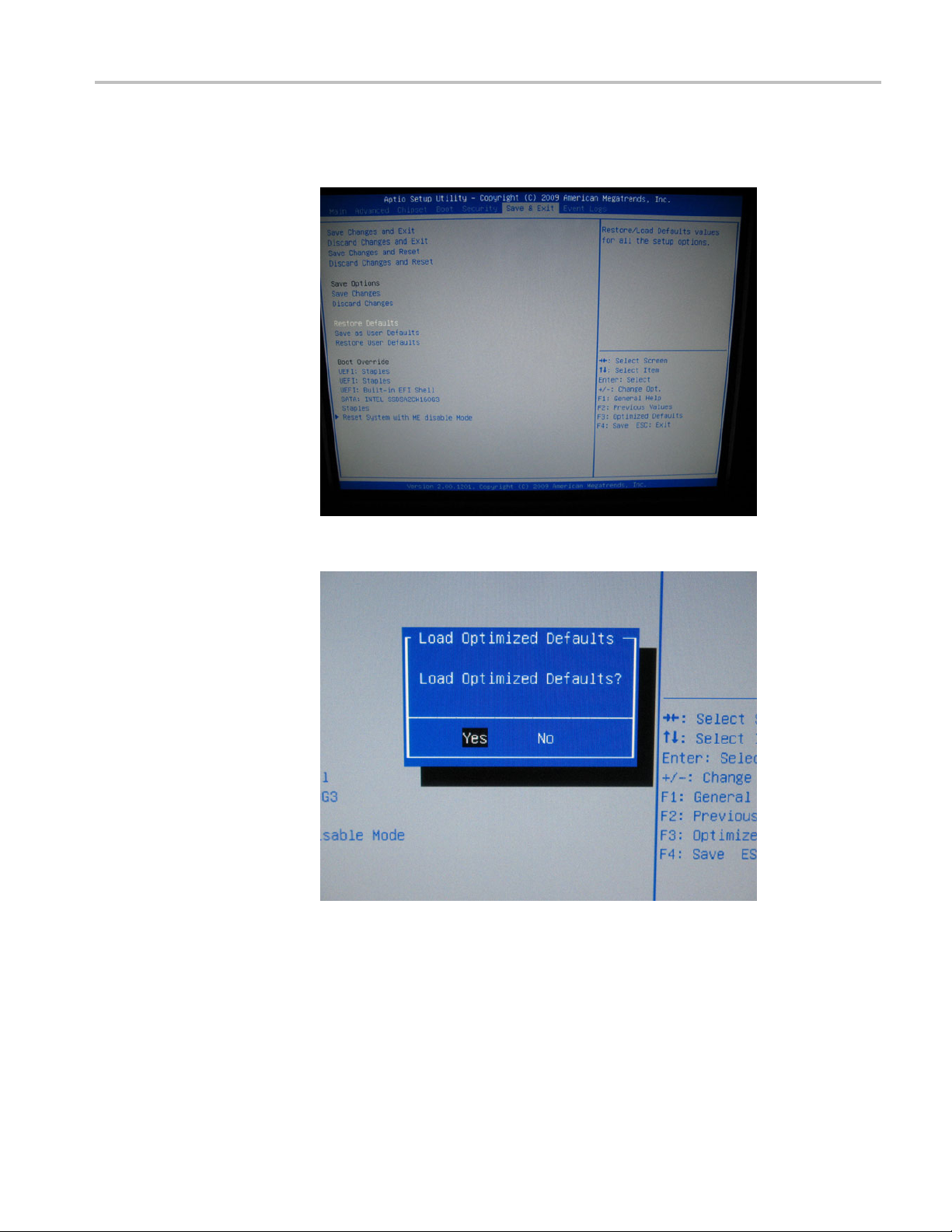

4. Use the right ar
arrow keys to select Restore Defaults and then press Enter.
5. Confirm Load Optimized Defaults by selecting Yes,thenEnter.
row key to select the Save & Exit menu, then use the up/down
6. Use up/down arrow keys to select Save Changes and Exit.
RSA6120B Option WINXP Windows 7 Upgrade 3
Update the Instrument BIOS Configuration
7. Use up/down arrow keys to select Save Changes and Exit.
8. Confirm Save by selecting Ye s ,thenEnter.
The system will now boot to Windows 7 and launch the RSA application.
Installing the Windows Certificate of Authenticity Label
Place the Windows 7 Certificate of Authenticity on the instrument rear panel.
This completes the installation of the RSA6BUP WIN7 upgrade kit.
■ End of Document ■
