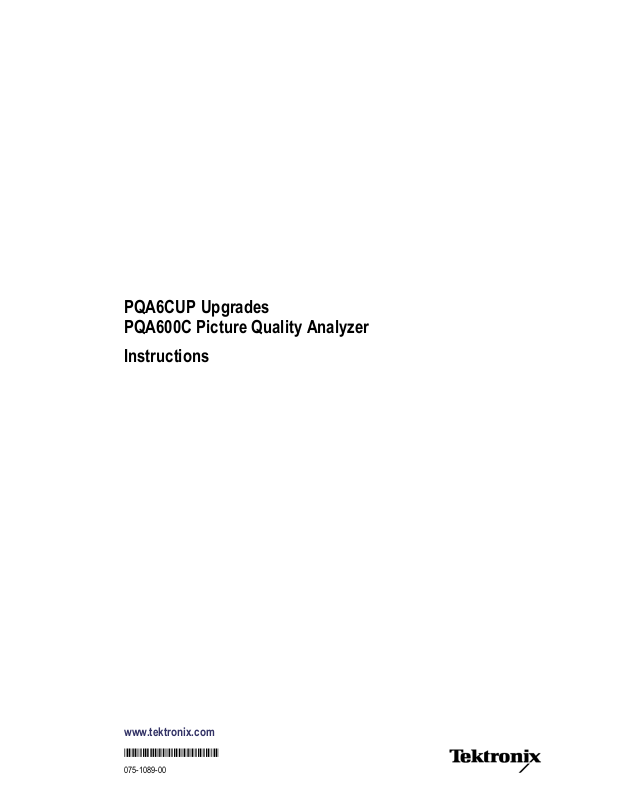

PQA600C Picture Quality Analyzer
Instructions
www.tektronix.com
P075108900*
*
075-1089-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries
or suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O . B ox 5 00
Beaverto
USA
For product information, sales, service, and technical support:
n, OR 97077
In North America, call 1-800-833-9200.
Worl d wide , v is it www.tektronix.com to find contacts in your area.
Table of Contents
Kit description ..................... ................................ ................................ ................. 1
Supported products ............................................................................................ 1
Kit parts list..................................................................................................... 1
Installati
on instructions ............................................................................................ 2
PQA6CUP Upgrade Instructions i
Table of Contents
ii PQA6CUP Upgrade Instructions
Kit description
Supported products
Kit parts list
This kit describes the installation of the following software options in a PQA600C
Picture Quality Analyzer.
Option ADV: Advanced measurement package (script execution,
user-configurable measurement, artifact/attention weighting measurement)
Option BAS: Base measurement package
Option IP: IP generation and capture
PQA600C. All serial numbers.
Quantity Part number Description
1 ea 075-1089-xx
1ea
—
MANUAL, TECH INS TALLATION, PQA6CUP OPTIONS
BAS, AD
IMPORT
SOFTWARE OPTION KEY
V, AND IP (this document)
ANT DOCUMENTS ENV ELOPE CONTAINING
PQA6CUP Upgrade Instructions 1
Installation instructions
Installation instructions
Install Options BAS, ADV, and IP in a PQA600C as follows:
1. Find the software option key included in the important papers envelope that
originally shipped with these instructions. If you ordered Option ADV, the
Requested Options will be listed as MI, SE, FM, UM, and BS.
2. Double-click the PQA icon on the PQA600C or PC desktop to start the PQA
software.
3. Click Help > License Manager in the menu bar and the License Manager
screen will appear.
4. Type in the new option key in the New Option Key field.
5. Click Apply.
6. Check that the following descriptions related to the options(s) you installed
appear in the list under Available Options.
Option Description
BAS Basic Software
ADV
IP
7. Click Close.
8. Click OK when a screen appears telling you that the application will close.
9. The new options in the PQA software are now ready to use. When you are
ready,double-clickthePQAicononthe desktop to start the application.
Load Full Template Measurements
Loading Custom/User Measurements
Multiple Instance Execution
Script Execution
IP Generation/Capture
2 PQA6CUP Upgrade Instructions
