Tektronix AFG3022C Data Sheet

Page 1

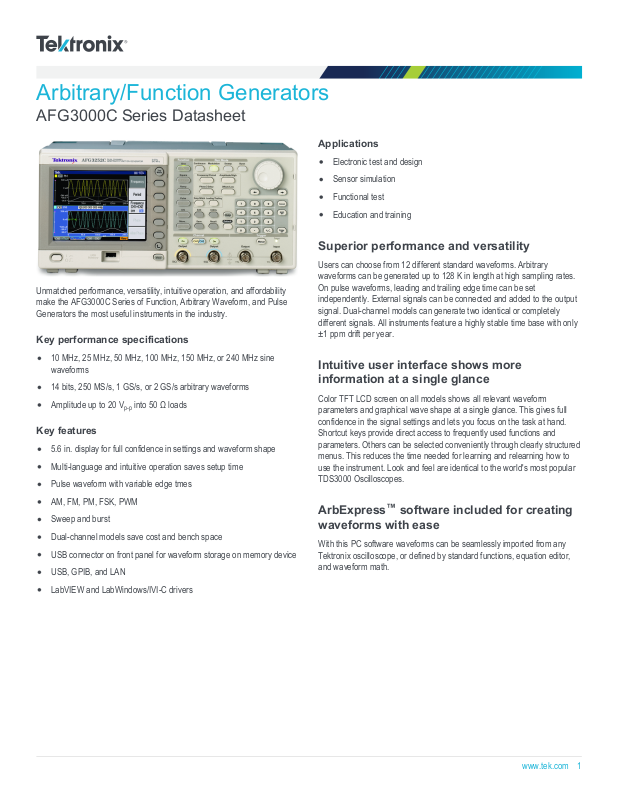

Arbitrary/Function Generators
AFG3000C Series Datasheet
Applications
Superior performance and versatility
Users can choose from 12 different standard waveforms. Arbitrary waveforms can be generated up to 128 K in length at high sampling rates.
Unmatched performance, versatility, intuitive operation, and affordability make the AFG3000C Series of Function, Arbitrary Waveform, and Pulse Generators the most useful instruments in the industry.
Key performance specifications
On pulse waveforms, leading and trailing edge time can be set independently. External signals can be connected and added to the output signal. Dual-channel models can generate two identical or completely different signals. All instruments feature a highly stable time base with only ±1 ppm drift per year.
Electronic test and design
Sensor simulation
Functional test
Education and training
10 MHz, 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 240 MHz sine waveforms
Amplitude up to 20 V
Key features
5.6 in. display for full confidence in settings and waveform shape
Multi-language and intuitive operation saves setup time
Pulse waveform with variable edge tmes
AM, FM, PM, FSK, PWM
Sweep and burst
Dual-channel models save cost and bench space
USB connector on front panel for waveform storage on memory device
USB, GPIB, and LAN
LabVIEW and LabWindows/IVI-C drivers
into 50 Ω loads
p-p
Intuitive user interface shows more information at a single glance
Color TFT LCD screen on all models shows all relevant waveform parameters and graphical wave shape at a single glance. This gives full confidence in the signal settings and lets you focus on the task at hand. Shortcut keys provide direct access to frequently used functions and parameters. Others can be selected conveniently through clearly structured menus. This reduces the time needed for learning and relearning how to use the instrument. Look and feel are identical to the world's most popular TDS3000 Oscilloscopes.
ArbExpress™ software included for creating waveforms with ease
With this PC software waveforms can be seamlessly imported from any Tektronix oscilloscope, or defined by standard functions, equation editor, and waveform math.
www.tek.com 1
Page 2
Datasheet
Specifications
1
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Model overview
AFG3011C AFG3021C,
AFG3022C
Channels 1 1 / 2 1 / 2 1 / 2 1 / 2 1 / 2
Waveforms Sine, Square, Pulse, Ramp, Triangle, Sin(x)/x, Exponential Rise and Decay, Gaussian, Lorentz, Haversine, DC, Noise
AFG3051C, AFG3052C
AFG3101C, AFG3102C
AFG3151C, AFG3152C
General characteristics (AFG3000 series)
Sine waves
AFG3021C, AFG3022C AFG3051C, AFG3052C
1 µHz to 12.5 MHz 1 µHz to 25 MHz
25 MHz 50 MHz
<5 MHz: ±0.15 dB ≥5 MHz to 20 MHz: ±0.3 dB ≥20 MHz to 25 MHz: ±0.5 dB
<5 MHz: ±0.15 dB ≥5 MHz to 45 MHz: ±0.3 dB ≥45 MHz to 50 MHz: ±0.5 dB
Frequency range
Sine wave in Burst Mode
Effective maximum frequency out
Amplitude flatness (1 V
)
p-p
AFG3011C
1 µHz to 10 MHz 1 µHz to 25 MHz 1 µHz to 50 MHz
1 µHz to 5 MHz
10 MHz
<5 MHz: ±0.15 dB ≥5 MHz to 10 MHz: ±0.3 dB
AFG3251C, AFG3252C
Amplitude flatness (1 V typical
Harmonic distortion (1 V
Harmonic distortion (1 V typical
THD
Spurious(1 V
Spurious(1 V
p-p
p-p
Phase noise, typical
Residual clock noise
Square waves
Frequency range
Rise/fall time
)
), typical
),
p-p
<5 MHz: ±0.11 dB ≥5 MHz to 10 MHz: ±0.2 dB
)
p-p
10 Hz to 20 kHz: < -60 dBc ≥20 kHz to 1 MHz: < -55 dBc ≥1 MHz to 5 MHz: < -45 dBc ≥5 MHz to 10 MHz: < -45 dBc
),
p-p
10 Hz to 20 kHz: < -73 dBc ≥20 kHz to 1 MHz: < -72 dBc ≥1 MHz to 5 MHz: < -65 dBc ≥5 MHz to 10 MHz: < -56 dBc
≤0.2% (<0.15%, typical), 10 Hz to 20 kHz, 1 V
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 10 MHz: < -50 dBc
10 Hz to 1 MHz: < -61 dBc ≥1 MHz to 10 MHz: < -68 dBc
< -110 dBc/Hz at 10 MHz, 10 kHz offset, 1 V
p-p
-63 dBm
AFG3011C
<5 MHz: ±0.06 dB ≥5 MHz to 25 MHz: ±0.02 dB
10 Hz to 20 kHz: < -70 dBc ≥20 kHz to 1 MHz: < -60 dBc ≥1 MHz to 10 MHz: < -50 dBc ≥10 MHz to 25 MHz: < -40 dBc
10 Hz to 20 kHz: < -77 dBc ≥20 kHz to 1 MHz: < -72 dBc ≥1 MHz to 25 MHz: < -55 dBc
<5 MHz: ±0.06 dB ≥5 MHz to 50 MHz: ±0.02 dB
10 Hz to 20 kHz: < -70 dBc ≥20 kHz to 1 MHz: < -60 dBc ≥1 MHz to 5 MHz: < -50 dBc ≥5 MHz to 50 MHz: < -40 dBc
10 Hz to 20 kHz: < -75 dBc ≥20 kHz to 1 MHz: < -72 dBc ≥1 MHz to 5 MHz: < -65 dBc ≥5 MHz to 50 MHz: < -56 dBc
p-p
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 25 MHz: < -50 dBc
10 Hz to 1 MHz: < -71 dBc ≥1 MHz to 25 MHz: < -68 dBc
< -110 dBc/Hz at 20 MHz, 10 kHz offset, 1 V
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 50 MHz: < -50 dBc
10 Hz to 1 MHz: < -71 dBc ≥1 MHz to 50 MHz: < -69 dBc
p-p
-63 dBm -63 dBm
AFG3021C, AFG3022C AFG3051C, AFG3052C
1 µHz to 5 MHz 1 µHz to 25 MHz 1 µHz to 40 MHz
≤50 ns
≤9 ns ≤7 ns
1
The given typical values are not warranted. But 80% or more manufactured units will perform to the level indicated at room temperature (approximately 25 °C).
2 www.tek.com
Page 3
General characteristics (AFG3000 series)
Jitter (RMS)
500 ps 500 ps 300 ps
Arbitrary/Function Generators AFG3000C Series
Jitter (RMS), typical
Ramp waves
Frequency range
Linearity, typical
Symmetry
Pulse waves
Frequency range
Pulse width
Resolution
Pulse duty
Edge transition time
Resolution
Lead delay: range
<210 ps <60 ps <60 ps
AFG3011C AFG3021C, AFG3022C AFG3051C, AFG3052C
1 µHz to 100 kHz 1 µHz to 500 kHz 1 µHz to 800 kHz
≤0.2% of peak output ≤0.1% of peak output ≤0.1% of peak output
0% to 100.0%
AFG3011C
1 mHz to 5 MHz 1 mHz to 25 MHz 1 mHz to 40 MHz
80.00 ns to 999.99 s
10 ps or 5 digits
0.001% to 99.999% (Limitations of pulse width apply)
50 ns to 625 s
10 ps or 4 digits
(Continuous Mode): 0 ps to Period (Triggered/Gated Burst Mode): 0 ps to Period - [Pulse Width + 0.8 * (Leading Edge Time + Trailing Edge Time)]
AFG3021C, AFG3022C AFG3051C, AFG3052C
16 ns to 999.99 s 12 ns to 999.99 s
9 ns to 625 s 7 ns to 625 s
Lead delay: resolution
Overshoot, typical
Jitter (RMS)
Jitter (RMS), typical
Other waveforms
Frequency range
Noise bandwidth (-3 dB)
Noise type:
Internal noise add
Level
Resolution
DC (into 50 Ω)
10 ps or 8 digits
<5%
500 ps
<210 ps
AFG3011C
1 µHz to 100 kHz 1 µHz to 500 kHz 1 µHz to 800 kHz
10 MHz
White Gaussian
When activated, output signal amplitude is reduced to 50%
0.0% to 50% of amplitude (V
1%
-10 V to +10 V
) setting
p-p
500 ps 300 ps
<60 ps <60 ps
AFG3021C, AFG3022C AFG3051C, AFG3052C
25 MHz 50 MHz
-5 V to +5 V -5 V to +5 V
www.tek.com 3
Page 4
Datasheet
General characteristics (AFG3000 series)
Arbitrary waveforms
AFG3011C AFG3021C, AFG3022C AFG3051C, AFG3052C
Frequency range
Arbitrary waveforms in Burst Mode
Effective analog bandwidth (-3 dB)
Nonvolatile memory
1 mHz to 5 MHz 1 mHz to 12.5 MHz 1 mHz to 25 MHz
1 mHz to 2.5 MHz 1 mHz to 6.25 MHz 1 mHz to 12.5 MHz
8 MHz 70 MHz
4 waveforms
Memory: Sample rate (1K=1024 points)
Vertical resolution
Rise/fall time
Jitter (RMS)
Amplitude
Range, 50 Ω Load
Range (open circuit or High Z)
Accuracy
Accuracy, typical
Resolution
Units
Output impedance
2 to 128 K: 250 MS/s 2 to 128 K: 250 MS/s 2 to 16 K: 1 GS/s
>16 K to 128 K: 250 MS/s
14 bits
≤80 ns
4 ns
≤14 ns ≤10 ns
4 ns 1 ns at 1 GS/s
4 ns at 250 MS/s
AFG3011C
20 mV
to 20 V
40 mV
p-p
p-p
to 40 V
p-p
p-p
±(2% of setting +2 mV) (1 kHz sine wave, 0 V offset, >20 mV
AFG3021C, AFG3022C AFG3051C, AFG3052C
10 mV
20 mV
to 10 V
p-p
to 20 V
p-p
p-p
p-p
10 mV
20 mV
p-p
p-p
±(1% of setting +1 mV) (1 kHz sine wave, 0 V offset, >10 mV
p-p
to 10 V
to 20 V
amplitude)
±(1% of setting +5 mV) (1 kHz sine wave, 0 V offset, >20 mV
±(0.5% of setting +0.5 mV) (1 kHz sine wave, 0 V offset, >10 mV
p-p
amplitude)
0.1 mV
, V
V
p-p
, 0.1 mV
p-p
, dBm (sine wave only) and Volt (high/low setting)
RMS
, 1 mV, 0.1 dBm or 4 digits
RMS
50 Ω
p-p
p-p
amplitude)
p-p
p-p
amplitude)
Load impedance setting
Isolation
Short-circuit protection
External voltage protection
DC offset
Range (50 Ω load)
Range (open circuit or High Z)
Accuracy
Resolution
4 www.tek.com
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance)
maximum to earth
42 V
pk
Signal outputs are robust against permanent shorts against floating ground
To protect signal outputs against external voltages use fuse adapter 013-0345-xx
AFG3011C
±(10 Vpk - Amplitude
±(20 V
- Amplitude
pk
÷ 2) ±(5 Vpk - Amplitude
p-p
÷ 2) ±(10 Vpk - Amplitude
p-p
±(2% of |setting| + 10 mV + 1% of amplitude (V
))
p-p
AFG3021C, AFG3022C AFG3051C, AFG3052C
÷ 2) ±(5 Vpk - Amplitude
p-p
÷ 2) ±(10 Vpk - Amplitude
p-p
±(1% of |setting| + 5 mV + 0.5% of amplitude (V
))
p-p
p-p
1 mV
p-p
÷ 2)
÷ 2)
Page 5
General characteristics (AFG3100 & AFG3200 series)
Sine waves
AFG3101C, AFG3102C AFG3151C, AFG3152C AFG3251C, AFG3252C
Frequency range
Sine wave in Burst Mode
1 µHz to 100 MHz 1 µHz to 150 MHz 1 µHz to 240 MHz
1 µHz to 50 MHz 1 µHz to 75 MHz 1 µHz to 120 MHz
Arbitrary/Function Generators AFG3000C Series
Effective maximum frequency out
Amplitude flatness (1 V
Amplitude flatness (1 V
)
p-p
),
p-p
typical
Harmonic distortion (1 V
Harmonic distortion (1 V
)
p-p
),
p-p
typical
THD
Spurious(1 V
)
p-p
100 MHz 150 MHz 240 MHz
<5 MHz: ±0.15 dB ≥5 MHz to 25 MHz: ±0.3 dB ≥25 MHz to 100 MHz: ±0.5 dB
<5 MHz: ±0.15 dB ≥5 MHz to <25 MHz: ±0.3 dB ≥25 MHz to ≤150 MHz: ±0.5 dB
<5 MHz: ±0.15 dB ≥5 MHz to 25 MHz: ±0.3 dB ≥25 MHz to 100 MHz: ±0.5 dB ≥100 MHz to 200 MHz: ±1.0 dB ≥200 MHz to 240 MHz: ±2.0 dB
<5 MHz: ±0.03 dB ≥5 MHz to 50 MHz: ±0.02 dB ≥50 MHz to 100 MHz: ±0.03 dB
>5 MHz: ±0.04 dB ≥5 MHz to 50 MHz: ±0.02 dB ≥50 MHz to 150 MHz: ±0.03 dB
<5 MHz: ±0.03 dB ≥5 MHz to 50 MHz: ±0.02 dB ≥50 MHz to 100 MHz: ±0.02 dB ≥100 MHz to 200 MHz: ±0.03 dB ≥200 MHz to 240 MHz: ±0.04 dB
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 5 MHz: < -50 dBc ≥5 MHz to 100 MHz: < -37 dBc
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to <5 MHz: < -50 dBc ≥5 MHz to ≤150 MHz: < -37 dBc
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 5 MHz: < -50 dBc ≥5 MHz to 25 MHz: < -37 dBc ≥25 MHz to 240 MHz: < -30 dBc
10 Hz to 1 MHz: < -72 dBc ≥1 MHz to 5 MHz: < -66 dBc ≥5 MHz to 100 MHz: < -43 dBc
10 Hz to 1 MHz: < -72 dBc ≥1 MHz to 5 MHz: < -66 dBc ≥5 MHz to 100 MHz: < -42 dBc ≥100 MHz to 150 MHz: < -48 dBc
≤0.2% (<0.15%, typical), 10 Hz to 20 kHz, 1 V
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 25 MHz: < -50 dBc ≥25 MHz to 100 MHz: < - 50 dBc + 6 dBc/ octave
10 Hz to 1 MHz: < -60 dBc ≥1 MHz to 25 MHz: < -50 dBc ≥25 MHz to 150 MHz: - 50 dBc + 6 dBc/ octave
p-p
10 Hz to 1 MHz: < -67 dBc ≥1 MHz to 5 MHz: < -74 dBc ≥5 MHz to 25 MHz: < -57 dBc ≥25 MHz to 240 MHz: < -43 dBc
10 Hz to 1 MHz: < -50 dBc ≥1 MHz to 25 MHz: < -47 dBc ≥25 MHz to 240 MHz: < - 47 dBc + 6 dBc/ octave
Spurious(1 V
Phase noise, typical
Residual clock noise
Square waves
Frequency range
Rise/fall time
Jitter (RMS)
Jitter (RMS), typical
), typical
p-p
10 Hz to 1 MHz: < -71 dBc ≥1 MHz to 25 MHz: < -63 dBc ≥25 MHz to 50 MHz: < -87 dBc ≥50 MHz to 100 MHz: < - 52 dBc
< -110 dBc/Hz at 20 MHz, 10 kHz offset, 1 V
10 Hz to 1 MHz: < -70 dBc ≥1 MHz to 25 MHz: < -54 dBc ≥25 MHz to 50 MHz: < -66 dBc ≥50 MHz to 100 MHz: < - 68 dBc ≥100 MHz to 150 MHz: < - 38 dBc
p-p
10 Hz to 1 MHz: < -63 dBc ≥1 MHz to 25 MHz: < -57 dBc ≥25 MHz to 50 MHz: < -51 dBc ≥50 MHz to 100 MHz: < - 69 dBc ≥100 MHz to 240 MHz: < - 55 dBc
-57 dBm
AFG3101C, AFG3102C
AFG3151C, AFG3152C AFG3251C, AFG3252C
1 µHz to 50 MHz 1 µHz to 100 MHz 1 µHz to 120 MHz
≤5 ns
200 ps
<35 ps
≤3.5 ns ≤2.5 ns
150 ps 100 ps
<35 ps <35 ps
www.tek.com 5
Page 6
Datasheet
General characteristics (AFG3100 & AFG3200 series)
Ramp waves
AFG3101C, AFG3102C AFG3151C, AFG3152C AFG3251C, AFG3252C
Frequency range
Linearity, typical
1 µHz to 1 MHz 1 µHz to 1.5 MHz 1 µHz to 2.4 MHz
≤0.15% of peak output ≤0.15% of peak output ≤0.2% of peak output
Symmetry
Pulse waves
Frequency range
Pulse width
Resolution
Pulse duty
Edge transition time
Resolution
Lead delay: range
Lead delay: resolution
Overshoot, typical
Jitter (RMS)
Jitter (RMS), typical
Other waveforms
Frequency range
Noise bandwidth (-3 dB)
0% to 100.0%
AFG3101C, AFG3102C
1 mHz to 50 MHz 1 mHz to 100 MHz 1 mHz to 120 MHz
8.00 ns to 999.99 s
10 ps or 5 digits
0.001% to 99.999% (Limitations of pulse width apply)
5 ns to 625 s
10 ps or 4 digits
(Continuous Mode): 0 ps to Period (Triggered/Gated Burst Mode): 0 ps to Period - [Pulse Width + 0.8 * (Leading Edge Time + Trailing Edge Time)]
10 ps or 8 digits
<5%
200 ps
<35 ps
AFG3101C, AFG3102C
1 µHz to 1 MHz 1 µHz to 1.5 MHz 1 µHz to 2.4 MHz
100 MHz
AFG3151C, AFG3152C AFG3251C, AFG3252C
5.00 ns to 999.99 s 4.00 ns to 999.99 s
3 ns to 625 s 2.5 ns to 625 s
150 ps 100 ps
<25 ps <35 ps
AFG3151C, AFG3152C AFG3251C, AFG3252C
180 MHz 240 MHz
Noise type:
Internal noise add
Level
Resolution
DC (into 50 Ω)
Arbitrary waveforms
Frequency range
Arbitrary waveforms in Burst Mode
Effective analog bandwidth (-3 dB)
Nonvolatile memory
6 www.tek.com
White Gaussian
When activated, output signal amplitude is reduced to 50%
0.0% to 50% of amplitude (V
1%
-5 V to +5 V
AFG3101C, AFG3102C
1 mHz to 50 MHz 1 mHz to 100 MHz 1 mHz to 120 MHz
1 mHz to 25 MHz
100 MHz
4 waveforms
) setting
p-p
-5 V to +5 V -2.5 V to +2.5 V
AFG3151C, AFG3152C AFG3251C, AFG3252C
1 mHz to 50 MHz 1 mHz to 60 MHz
180 MHz 225 MHz
Page 7
General characteristics (AFG3100 & AFG3200 series)
Memory: Sample rate (1K=1024 points)
2 to 16 K: 1 GS/s >16 K to 128 K: 250 MS/s
Arbitrary/Function Generators AFG3000C Series
2 to 16 K: 1 GS/s >16 K to 128 K: 250 MS/s
2 to 16 K: 2 GS/s >16 K to 128 K: 250 MS/s
Vertical resolution
Rise/fall time
Jitter (RMS)
Amplitude
Range, 50 Ω Load
Range (open circuit or High Z)
Accuracy
Accuracy, typical
Resolution
Units
Output impedance
Load impedance setting
Isolation
Short-circuit protection
14 bits
≤8 ns 5 ns ≤3 ns
1 ns at 1 GS/s 4 ns at 250 MS/s
AFG3101C, AFG3102C
20 mV
to 10 V
40 mV
p-p
p-p
to 20 V
p-p
p-p
±(1% of setting +1 mV) (1 kHz sine wave, 0 V offset, >10 mV
±(0.5% of setting +0.5 mV) (1 kHz sine wave, 0 V offset, >10 mV
0.1 mV
, V
V
p-p
, 0.1 mV
p-p
, dBm (sine wave only) and Volt (high/low setting)
RMS
, 1 mV, 0.1 dBm or 4 digits
RMS
750 ps at 1 GS/s 4 ns at 250 MS/s
500 ps at 2 GS/s 4 ns at 250 MS/s
AFG3151C, AFG3152C AFG3251C, AFG3252C
≤100 MHz: 20 mV >100 MHz: 20 mV
≤100 MHz: 40 mV >100 MHz: 40 mV
to 10 V
p-p
to 8 V
p-p
to 20 V
p-p
to 16 V
p-p
amplitude)
p-p
amplitude)
p-p
p-p
p-p
p-p
p-p
≤200 MHz: 50 mV >200 MHz: 50 mV
≤200 MHz: 100 mV >200 MHz: 100 mV
p-p
p-p
p-p
p-p
50 Ω
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance)
maximum to earth
42 V
pk
Signal outputs are robust against permanent shorts against floating ground
to 5 V to 4 V
to 10 V to 8 V
p-p
p-p
p-p
p-p
External voltage protection
To protect signal outputs against external voltages use fuse adapter 013-0345-xx
DC offset
AFG3101C, AFG3102C
Range (50 Ω load)
Range (open circuit or High Z)
Accuracy
Resolution
±5 Vpk DC ±5 Vpk DC ±2.5 Vpk DC
DC ±10 Vpk DC ±5 Vpk DC
±10 V
pk
±(1% of |setting| + 5 mV + 0.5% of amplitude (V
1 mV
System characteristics
Frequency resolution 1 μHz or 12 digits
Internal frequency reference
Stability All except ARB: ±1 ppm, 0 °C to 50 °C
ARB: ±1 ppm ± 1 µHz, 0 °C to 50 °C
Aging ±1 ppm per year
Phase (except DC, noise, pulse)
Range -180° to +180°
Resolution 0.01° (sine), 0.1° (other waveforms)
AFG3151C, AFG3152C AFG3251C, AFG3252C
))
p-p
www.tek.com 7
Page 8
Datasheet
System characteristics
Internal noise add When activated, output signal amplitude is reduced to 50%
Level 0.0% to 50% of amplitude (V
Resolution 1%
Main output 50 Ω
) setting
p-p
Remote programming: configuration times, max, typical
Function change
Frequency change (except Pulse)
Frequency change (Pulse)
Amplitude change
Select user ARB (4k points from USB Memory)
Select user ARB (128k points from USB Memory)
Remote programming: data download time for 4000 point waveform data, typical
Power source 100-240 V, 47-63 Hz, or 115 V, 360-440 Hz
Power consumption Less than 120 W
Warm up time, typical 20 minutes
GPIB, LAN 10BASE-T / 100BASE-TX, USB 1.1
Compatible with SCPI-1999.0 and IEEE 488-2 standards
USB LAN GPIB
81 ms 81 ms 81 ms
2.5 ms
40 ms
90 ms
48 ms
260 ms
USB
47 ms 78 ms 320 ms
6 ms 3.2 ms
37 ms 32 ms
97 ms 90 ms
50 ms 49 ms
266 ms 240 ms
LAN GPIB
Power on self-diagnosis, typical <10 s
Acoustic noise, typical <50 dBA
Display 5.6 in. Color TFT LCD
User interface and Help languages English, French, German, Japanese, Korean, Portuguese, Simplified and Traditional Chinese, Russian (user selectable)
Modulation characteristics
AM, FM, PM
Carrier waveforms All except Pulse, Noise, and DC
Source Internal/external
Internal modulating waveform Sine, square, ramp, noise, ARB
(AM: maximum waveform length 4,096; FM/PM: maximum waveform length 2,048)
Internal modulating frequency 2 mHz to 50.00 kHz
AM modulation depth 0.0% to +120.0%
Min FM peak deviation DC
Max FM peak deviation See following table,
PM phase deviation -360.0° to +360.0°
8 www.tek.com
Page 9
Modulation characteristics
Pulse width modulation
Carrier waveform Pulse
Source Internal/external
Internal modulating waveform Sine, square, ramp, noise, ARB
(maximum waveform length 2,048)
Internal modulating frequency 2 mHz to 50.00 kHz
Deviation 0% to 50.0% of pulse period
Max FM peak deviation
AFG3011C
Sine
Square
5 MHz 12.5 MHz 25 MHz 50 MHz 75 MHz 120 MHz
2.5 MHz
Arbitrary/Function Generators AFG3000C Series
AFG3021C, AFG3022C
12.5 MHz 20 MHz 25 MHz 50 MHz 60 MHz
AFG3051C, AFG3052C
AFG3101C, AFG3102C
AFG3151C, AFG3152C
AFG3251C, AFG3252C
ARB
Others
Frequency shift keying
Carrier waveforms All, except Pulse, Noise, and DC
Source Internal/external
Internal modulating frequency 2 mHz to 1.000 MHz
Number of keys 2
Sweep
Waveforms All, except Pulse, Noise, and DC
Type Linear, logarithmic
Sweep time 1 ms to 300 s
Hold/return time 0 ms to 300 s
Max total sweep time 300 s
Resolution 1 ms or 4 digits
Total sweep time accuracy, typical
Min start/stop frequency All except ARB: 1 µHz
Max start/stop frequency See chart, below
2.5 MHz
50 kHz
≤0.4%
ARB: 1 mHz
6.25 MHz 12.5 MHz 25 MHz 50 MHz 60 MHz
250 kHz 400 kHz 500 kHz 750 kHz 1.2 MHz
Sweep: max start/stop frequency
AFG3011C
Sine
Square
ARB
Others
Burst
Waveforms All, except Noise and DC
Type Triggered, gated (1 to 1,000,000 cycles or Infinite)
10 MHz 25 MHz 50 MHz 100 MHz 150 MHz 240 MHz
5 MHz
5 MHz
100 kHz
AFG3021C, AFG3022C
25 MHz 40 MHz 50 MHz 100 MHz 120 MHz
12.5 MHz 25 MHz 50 MHz 100 MHz 120 MHz
500 kHz 800 kHz 1 MHz 1.5 MHz 2.4 MHz
AFG3051C, AFG3052C
AFG3101C, AFG3102C
AFG3151C, AFG3152C
AFG3251C, AFG3252C
www.tek.com 9
Page 10
Datasheet
Modulation characteristics
Internal trigger rate 1 μs to 500.0 s
Gate and trigger sources Internal, external, remote interface
Auxiliary input characteristics
Modulation inputs Channel 1, Channel 2
Input range All except FSK: ±1 V
FSK: 3.3 V logic level
Impedance 10 kΩ
Frequency range DC to 25 kHz (122 kS/s)
External Triggered/Gated Burst input
Level TTL compatible
Impedance 10 kΩ
Pulse width 100 ns minimum
Slope Positive/negative, selectable
Trigger delay 0.0 ns to 85.000 s
Trigger delay resolution 100 ps or 5 digits
Jitter (RMS), typical Burst: <500 ps (trigger input to signal output)
10 MHz reference input
Impedance 1 kΩ, AC coupled
Required input voltage swing 100 mV
Lock range 10 MHz ±35 kHz
External channel 1 add input AFG3101C, AFG3102C, AFG3151C, AFG3152C, AFG3251C, AFG3252C only
Impedance 50 Ω
Input range -1 V to +1 V (DC + peak AC)
Bandwidth DC to 10 MHz (-3 dB) at 1 V
p-p
to 5 V
p-p
p-p
Auxiliary output characteristics
Trigger output (Channel 1)
Level Positive TTL level pulse into 1 kΩ
Impedance 50 Ω
Jitter (RMS), typical AFG3011C/21C/22C: 500 ps
AFG3051C/52C: 300 ps
AFG3101C/02C: 200 ps
AFG3151C/52C: 150 ps
AFG3251C/52C: 100 ps
Max frequency 4.9 MHz
(4.9 MHz to 50 MHz: A fraction of the frequency is output;
>50 MHz: no signal is output)
10 www.tek.com
Page 11
Arbitrary/Function Generators AFG3000C Series
Auxiliary output characteristics
Clock reference out (10 MHz) AFG3011C, AFG3101C, AFG3102C, AFG3151C, AFG3152C, AFG3251C, AFG3252C only
Impedance 50 Ω, AC coupled
Amplitude 1.2 V
Physical characteristics
Benchtop configuration
Dimensions
Height 156 mm (6.2 in.)
Width 329.6 mm (13.0 in.)
Depth 168.0 mm (6.6 in.)
Weight
Net 4.5 kg (9.9 lb.)
Shipping 5.9 kg (12.9 lb.)
EMC environmental and safety characteristics
Temperature
Operating 0 °C to +50 °C
Non-operating -30 °C to +70 °C
into 50 Ω load
p-p
Humidity
Operating ≤ +40 °C: ≤80%
> +40 °C to 50 °C: ≤60%
Altitude Up to 3,000 m (10,000 ft.)
EMC compliance
European Union EU Council Directive 2004/108/EC
Safety UL 61010-1:2004
CAN/CSA C22.2 No. 61010-1:2004
IEC 61010-1:2001
Ordering information
Arbitrary function generators
AFG3011C 1 µHz to 10 MHz sine wave, 1-channel arbitrary function generator
AFG3021C 1 µHz to 25 MHz sine wave, 1-channel arbitrary function generator
AFG3022C 1 µHz to 25 MHz sine wave, 2-channel arbitrary function generator
AFG3051C 1 µHz to 50 MHz sine wave, 1-channel arbitrary function generator
AFG3052C 1 µHz to 50 MHz sine wave, 2-channel arbitrary function generator
AFG3101C 1 µHz to 100 MHz sine wave, 1-channel arbitrary function generator
www.tek.com 11
Page 12
Datasheet
AFG3102C 1 µHz to 100 MHz sine wave, 2-channel arbitrary function generator
AFG3151C 1 µHz to 150 MHz sine wave, 1-channel arbitrary function generator
AFG3152C 1 µHz to 150 MHz sine wave, 2-channel arbitrary function generator
AFG3251C 1 µHz to 240 MHz sine wave, 1-channel arbitrary function generator
AFG3252C 1 µHz to 240 MHz sine wave, 2-channel arbitrary function generator
Instrument options
Power plug options
Opt. A0 North America power plug (115 V, 60 Hz)
Opt. A1 Universal Euro power plug (220 V, 50 Hz)
Opt. A2 United Kingdom power plug (240 V, 50 Hz)
Opt. A3 Australia power plug (240 V, 50 Hz)
Opt. A5 Switzerland power plug (220 V, 50 Hz)
Opt. A6 Japan power plug (100 V, 50/60 Hz)
Opt. A10 China power plug (50 Hz)
Opt. A11 India power plug (50 Hz)
Opt. A12 Brazil power plug (60 Hz)
Opt. A99 No power cord
Manual options
Opt. L0 English (071-1631-xx)
Opt. L1 French (071-1632-xx)
Opt. L2 Italian (071-1669-xx)
Opt. L3 German (071-1633-xx)
Opt. L4 Spanish (071-1670-xx)
Opt. L5 Japanese (071-1634-xx)
Opt. L6 Portuguese (071-3042-xx)
Opt. L7 Simple Chinese (071-1635-xx)
Opt. L8 Traditional Chinese (071-1636-xx)
Opt. L9 Korean (071-1637-xx)
Opt. L10 Russian (071-1638-xx)
Opt. L99 No manual
12 www.tek.com
Page 13
Arbitrary/Function Generators AFG3000C Series
Service options
Opt. C3 Calibration Service 3 Years
Opt. C5 Calibration Service 5 Years
Opt. D1 Calibration Data Report
Opt. D3 Calibration Data Report 3 Years (with Opt. C3)
Opt. D5 Calibration Data Report 5 Years (with Opt. C5)
Opt. R5 Repair Service 5 Years (including warranty)
Opt. R5DW Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
Opt. SILV400 Standard warranty extended to 5 years
Standard accessories
Accessories
— AFG3000C Series Generators Compliance and Safety Instructions
— Power cord
— USB cable
— BNC cables
— CD-ROM with quick start user manual, specifications and performance verification manual, programmer manual, service manual,
and links to download the LabView and IVI drivers
— CD-ROM with ArbExpress™ software
— NIST-traceable calibration certificate
— 3-year warranty on parts and labor
Warranty
Three-year warranty on parts and labor.
Recommended accessories
Accessories
Rackmount kit RM3100
BNC cable shielded, 3 ft. 012-1732-xx
GPIB cable, double shielded 012-0991-xx
50 Ω BNC terminator 011-0049-02
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.
Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with Tektronix Standard Codes and Formats.
www.tek.com 13
Page 14
Datasheet
ASEAN / Australasia (65) 6356 3900 Austria 00800 2255 4835* Balkans, Israel, South Africa and other ISE Countries +41 52 675 3777 Belgium 00800 2255 4835* Brazil +55 (11) 3759 7627 Canada 1 800 833 9200 Central East Europe and the Baltics +41 52 675 3777 Central Europe & Greece +41 52 675 3777 Denmark +45 80 88 1401 Finland +41 52 675 3777 France 00800 2255 4835* Germany 00800 2255 4835* Hong Kong 400 820 5835 India 000 800 650 1835 Italy 00800 2255 4835* Japan 81 (3) 6714 3086 Luxembourg +41 52 675 3777 Mexico, Central/South America & Caribbean 52 (55) 56 04 50 90 Middle East, Asia, and North Africa +41 52 675 3777 The Netherlands 00800 2255 4835* Norway 800 16098 People's Republic of China 400 820 5835 Poland +41 52 675 3777 Portugal 80 08 12370 Republic of Korea +822 6917 5084, 822 6917 5080 Russia & CIS +7 (495) 6647564 South Africa +41 52 675 3777 Spain 00800 2255 4835* Sweden 00800 2255 4835* Switzerland 00800 2255 4835* Taiwan 886 (2) 2656 6688 United Kingdom & Ireland 00800 2255 4835* USA 1 800 833 9200
* European toll-free number. If not accessible, call: +41 52 675 3777
For Further Information. Tektronix maintains a comprehensive, constantly expanding collection of application notes, technical briefs and other resources to help engineers working on the cutting edge of technology. Please visit www.tek.com.
Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
29 Sep 2016 75W-28281-7
www.tek.com
Loading...
