Tektronix 2260B-RMK-Series Rack Mount Kit Assembly,Mounting Instructions User manual
2260B-RMK-Series Rack Mount Kit
Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Assembly and Mounting Instructions
Introduction
The 2260B-RMK-Series Rack Mount Kit is suited for Series 2260B Multi Range DC Power Supplies.
2260B-RMK-Series supports both the EIA (2260B-RMK-EIA) and JIS (2260B-RMK-JIS) standards for use with
standard sized rack units. Incorporating a strong frame and robust design, the 2260B-RMK-Series can fit up to six
360W models or three 720W models 2260B power supplies.
Please check to make sure all the components of the 2260B-RMK-Series rack mount kit are provided. The JIS
and EIA rack mounts have slightly different component sets.
NOTE
Part lists
2260B-RMK-EIA Assembly
D
escription Part number Quantity
1 Rack Screw 59CA-04017NS1 3
2 Front Bracket 62RA-410HP201 1
3 BLANK PANEL 62RA-410HP801 1
4 BLANK PANEL 62RA-410HP701 1
5 BLANK PANEL 62RA-410HP601 1
6 SR-3S 5320-00403001 4
7 Middle Bracket 62RA-410HP101 1
8 PMS-W-3*8 592B-W3008NS1 3
9 EIA BRACKET 3U 62RA-410HPAA1 2
10 FMS-3*8 593B-03008NS1 4
11 FMS-3*5 593B-03005NS1 4
12 Right Bracket 62RA-410HP5B1 1
13 Left Bracket 62RA-410HP4A1 1
14 Rear Bracket 62RA-410HP3A1 1
15 IMS 3*6 599B-03006NS1 4
16 Rack HP 62RA-410HP9A1 5
17 Rack HP 62RA-410HPD01 1
18 BMS-W-3*8 594B-W3008NS1 5
March 2014 1
2260B-RMK-Series Rack Mount Kit

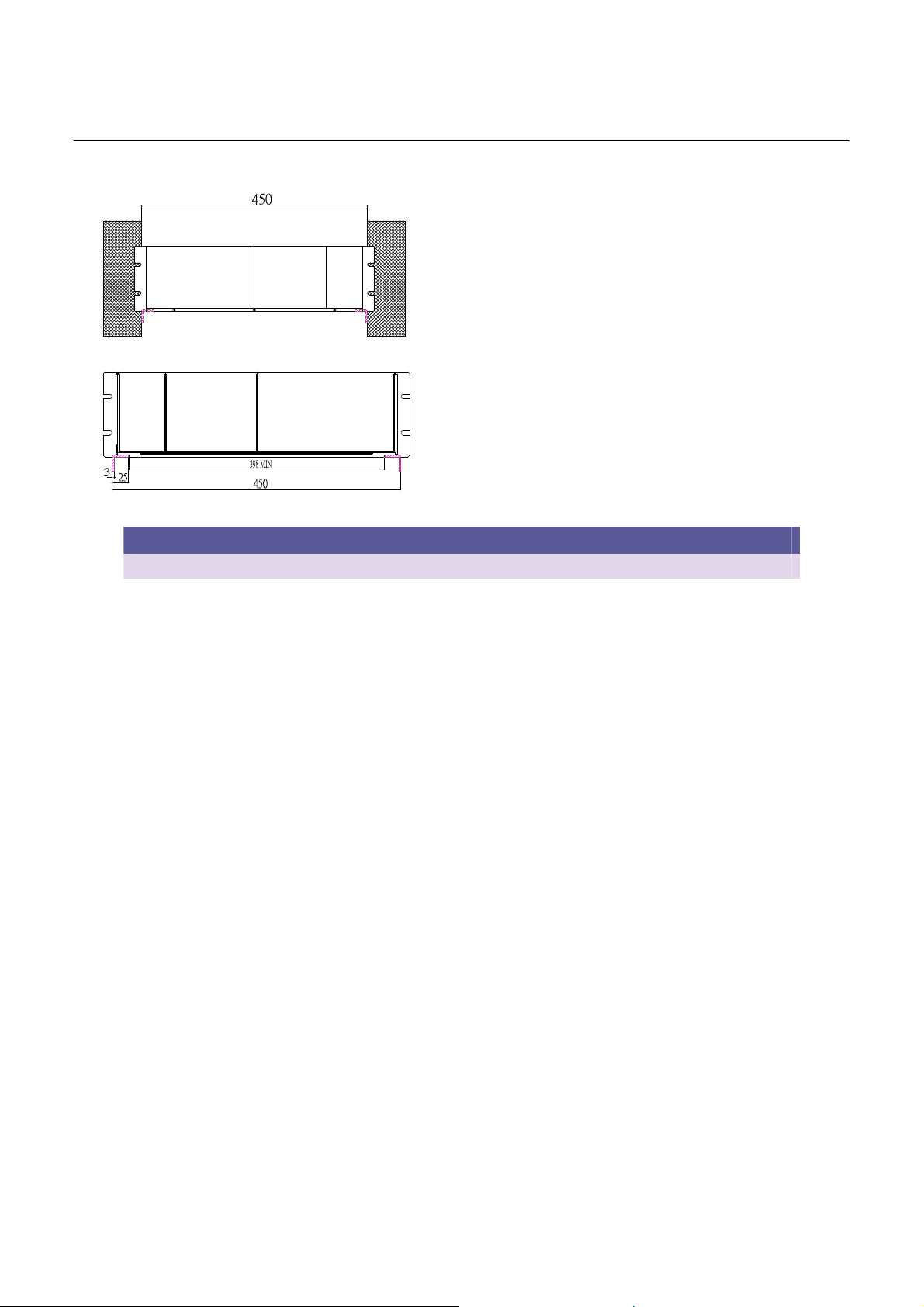

Figure 1: 2260A-RMK-ELA
2260B-RMK-JIS Assembly
D
escription Part number Quantity
1 Rack Screw 59CA-04017NS1 3
2 Front Bracket 62RA-410HP201 1
3 BLANK PANEL 62RA-410HP801 1
4 BLANK PANEL 62RA-410HP701 1
5 BLANK PANEL 62RA-410HP601 1
6 SR-3S 5320-00403001 4
7 Middle Bracket 62RA-410HP101 1
8 PMS-W-3*8 592B-W3008NS1 3
9 JIS BRACKET 3U 62RA-410HPBA1 2
10 FMS-3*8 593B-03008NS1 8
11 FMS-3*5 593B-03005NS1 4
12 Right Bracket 62RA-410HP5B1 1
13 Left Bracket 62RA-410HP4A1 1
14 Rear Bracket 62RA-410HP3A1 1
15 IMS 3*6 599B-03006NS1 4
16 Rack HP 62RA-410HP9A1 5
17 Rack HP 62RA-410HPD01 1
18 BMS-W-3*8 594B-W3008NS1 5
19 TOP Bracket 62RA-410HPC01 1
2 March 2014
Installation
2260B-RMK-Series Rack Mount Kit
Figure 2: 2260A-RMK-JIS

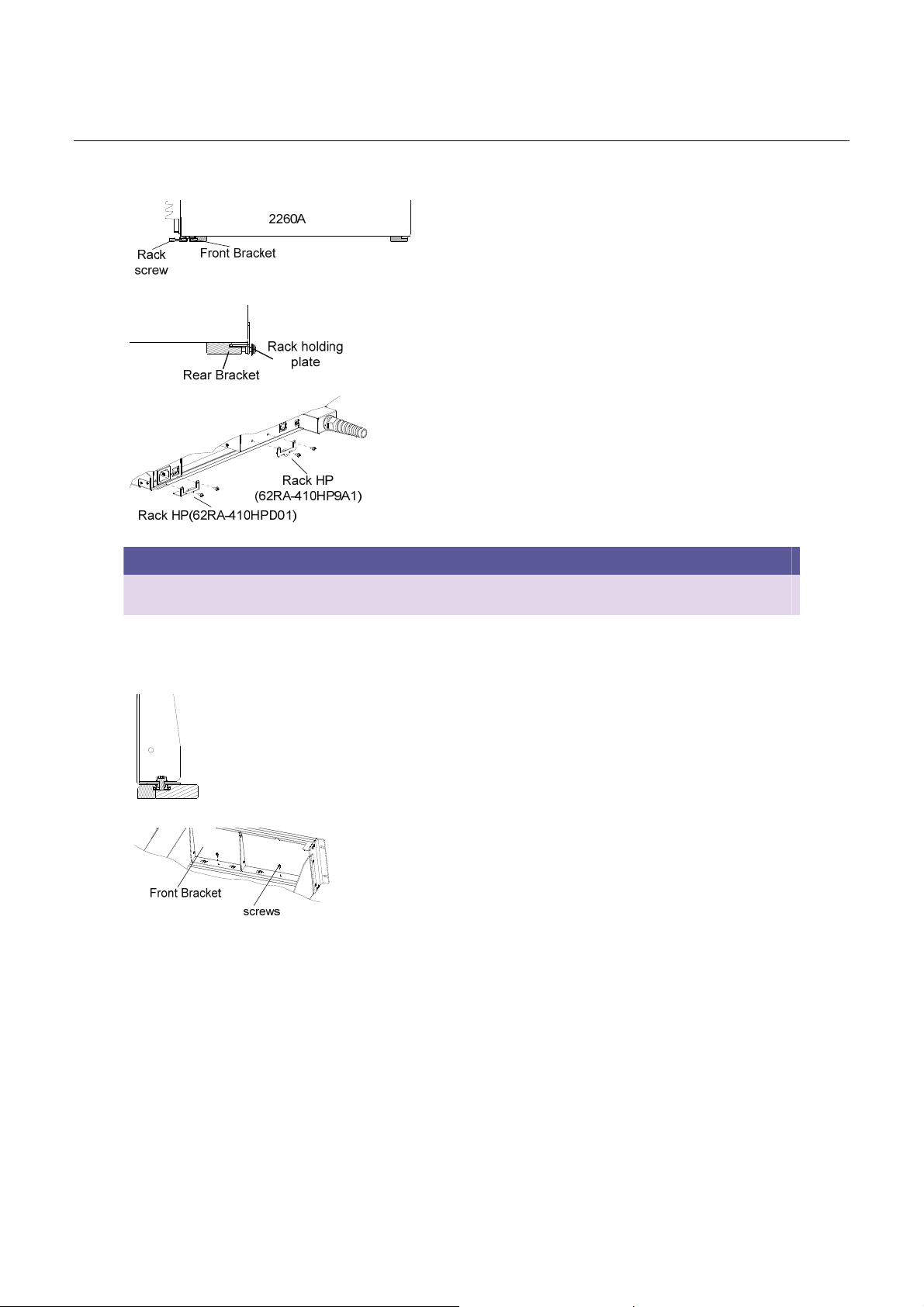

Initial steps
1. Remove the handle (from) the power supply units.
•
Remove the handle cover.
•
Remove the screws securing the handle to the case.
•
Remove the handle.
¨
Remove the feet from the underside of the 2260B.
2.
Instrument insertion
1. Ensure the Middle Bracket is latched onto the catch on the underside of the 2260B.
March 2014 3
