V1.0
TBCP1-200
RF CURRENT MONITORING PROBE
1

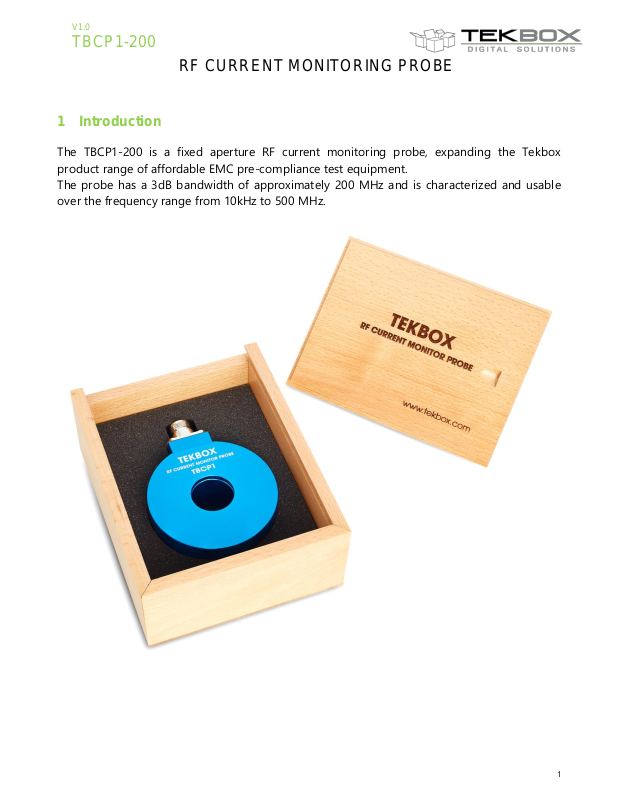

1 Introduction

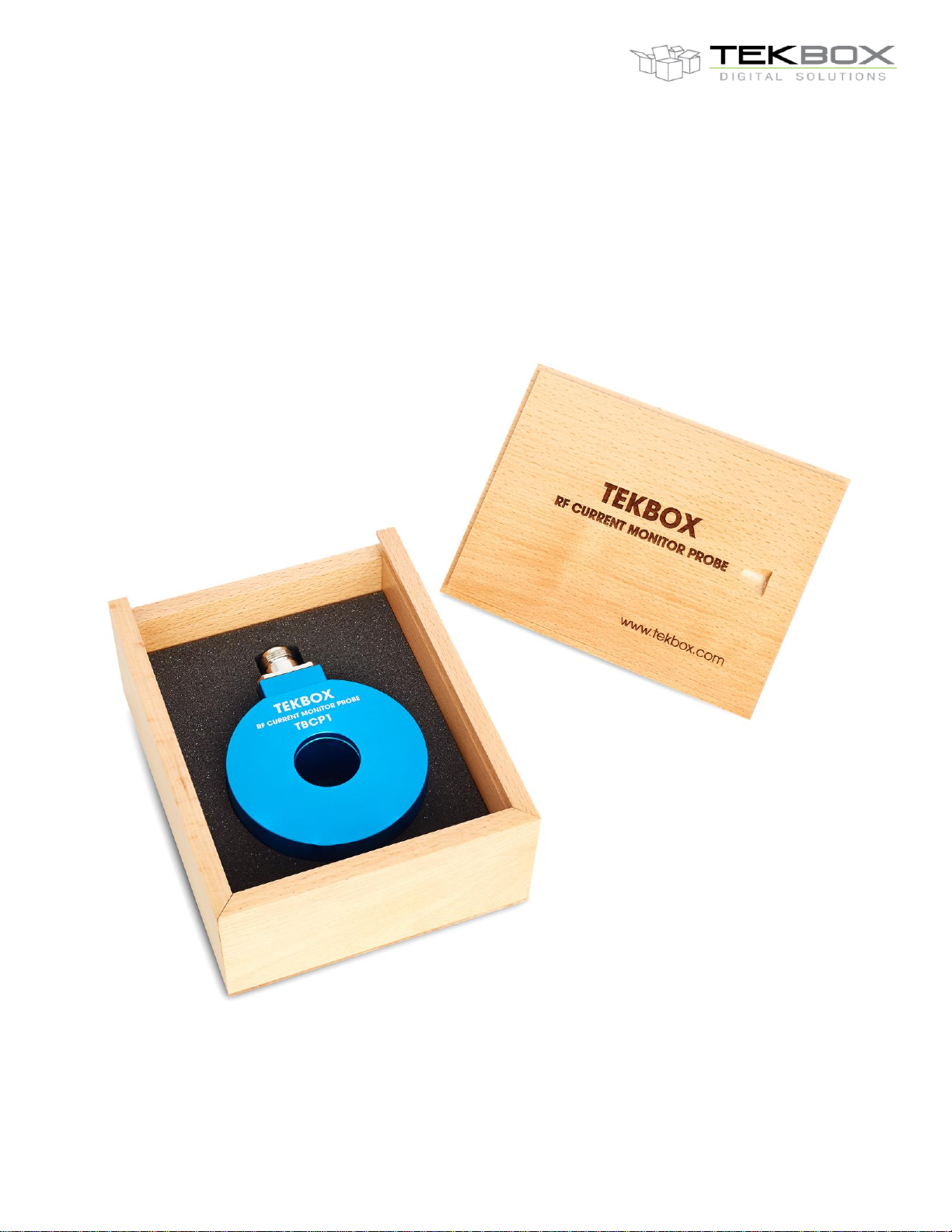

The TBCP1-200 is a fixed aperture RF current monitoring probe, expanding the Tekbox
product range of affordable EMC pre-compliance test equipment.
The probe has a 3dB bandwidth of approximately 200 MHz and is characterized and usable
over the frequency range from 10kHz to 500 MHz.
Page 2
V1.0
TBCP1-200
RF CURRENT MONITORING PROBE
2
The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 14 dB
Ohm in the range from 40 kHz to 200 MHz.
2 Specification
Characterized frequency range: 10 kHz to 500 MHz
Aperture diameter: 25 mm
Outside diameter: 76 mm
Height: 31 mm
Weight: 320 g
Connector type: N female
Transfer impedance: 3 to 17 dBΩ
Max. primary current (DC - 400 Hz): 80 A
Max. primary current (RF): 3 A
Max. core temperature: 125 °C
3 Typical transfer impedance

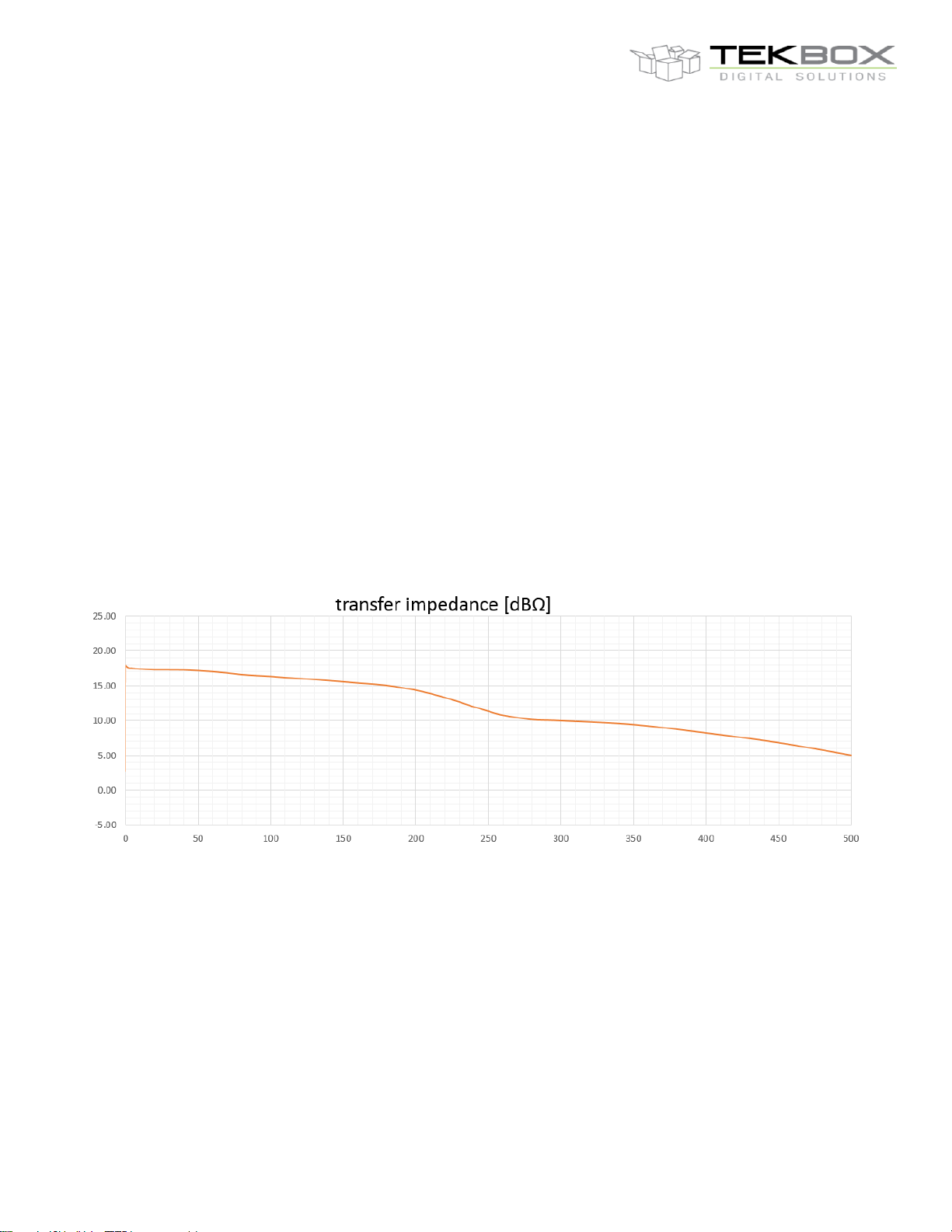

Figure1: Transfer impedance: 10 kHz to 500 MHz, linear
Page 3
V1.0
TBCP1-200
RF CURRENT MONITORING PROBE
3

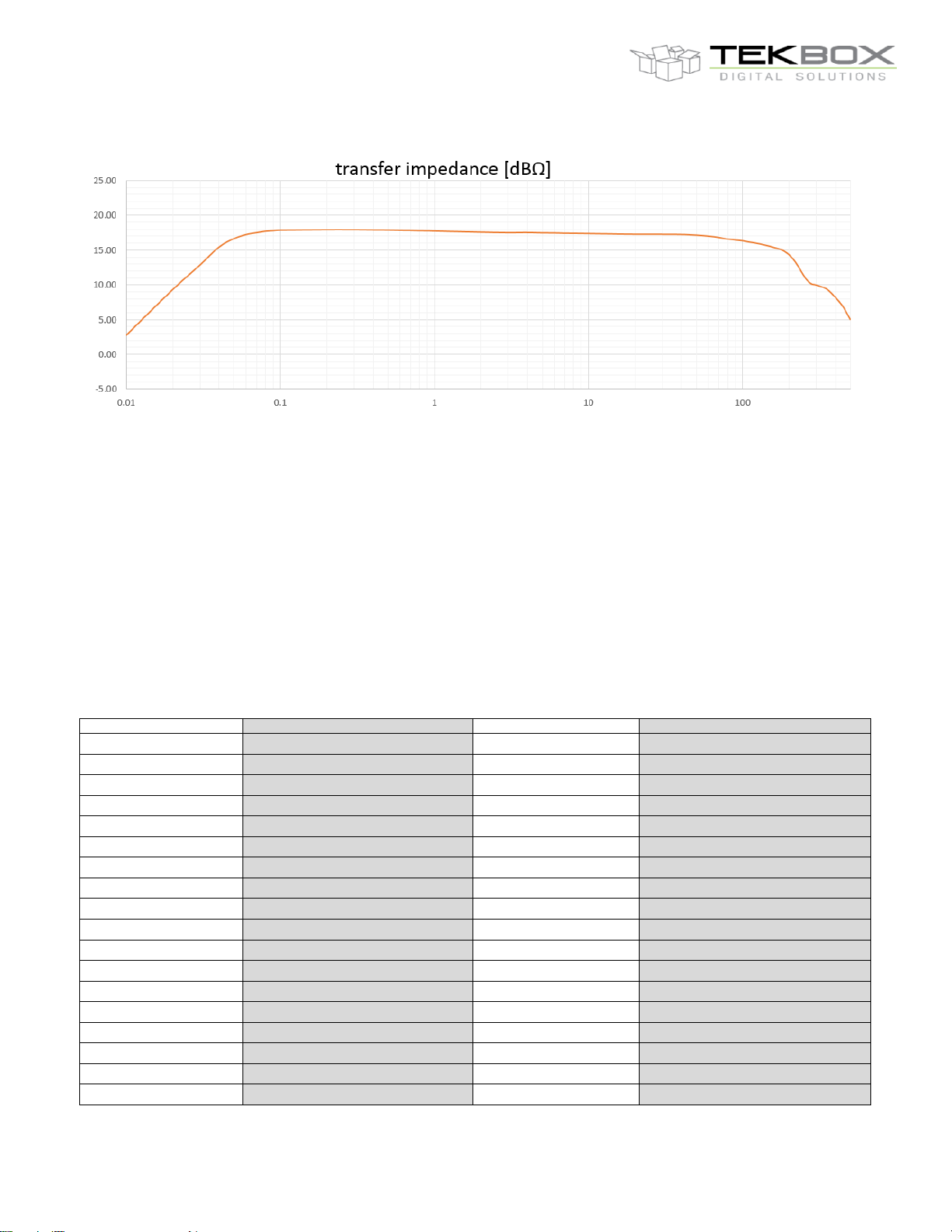

Figure2: Transfer impedance: 10 kHz to 500 MHz, logarithmic
4 Typical transfer impedance table
The table below shows typical transfer impedance data of a TBCP-200 current probe. Each
current probe is delivered with its corresponding measurement protocol. This data can be
used for the creation of a correction file for EMCview or similar EMC measurement software.
The transfer impedance in dBΩ subtracted from the analyzer reading in dBµV gives the
corrected reading in dBµA.
Refer to the application notes of EMCview on how to create a current probe correction file.
Frequency [MHz]
transfer impedance [dBΩ]
Frequency [MHz]
transfer impedance [dBΩ]
0.01
2.79
40
17.30
0.02
9.34
50
17.20
0.03
12.86
60
17.06
0.04
15.47
70
16.87
0.05
16.68
80
16.63
0.06
17.28
90
16.49
0.07
17.54
100
16.38
0.08
17.74
110
16.21
0.09
17.82
120
16.08
0.1
17.89
130
15.93
0.2
17.96
140
15.77
0.3
17.96
150
15.61
0.4
17.93
160
15.43
0.5
17.91
170
15.28
0.6
17.87
180
15.08
0.7
17.85
190
14.77
0.8
17.82
200
14.41
0.9
17.81
210
13.93
Page 4
V1.0
TBCP1-200
RF CURRENT MONITORING PROBE
4
1
17.78
220
13.36
2
17.62
230
12.71
3
17.55
240
12.01
4
17.57
250
11.38
5
17.52
260
10.82
6
17.51
280
10.19
7
17.47
300
10.03
8
17.46
350
9.47
9
17.44
400
8.27
10
17.43
450
6.88
20
17.33
500
5.08
30
17.32
Table1: Transfer impedance: 10 kHz to 250 MHz
5 Ordering Information
Part Number
Description
TBCP1-200
Fixed aperture RF current monitoring probe, beech-wood
box, calibration protocol
6 History
Version
Date
Author
Changes
V 1.0
5.05.2019
Mayerhofer
Creation of the document
