Teka NFL 460 SS User guide
User Manual
NFL 460 SS
EN DE IT FR ES PT GR PL RO
www.teka.com
1. SAFETY INFORMATION ................................................................3
2. PROPER USE OF REFRIGERATOR ............................................11
2.1 Placement ........................................................................................... 11
2.2 Energy Saving Tips ........................................................................ 12
2.3 Changing The Light ..................................................................... 12
2.4 Start To Use ..................................................................................... 12
2.5 Names Of Components ............................................................... 13
2.6 Functions .......................................................................................... 14
2.7 Door Right-Left Change .............................................................. 17
2.8 Leveling Feet ...................................................................................19
3. MAINTENANCE OF REFRIGERATOR ...................................... 20
3.1 Overall Cleaning .............................................................................20
3.2 Defrosting ......................................................................................... 21
3.3 Out Of Operation ........................................................................... 21
3.4 Cleaning Of Glass Shelf ............................................................... 21
4. TROUBLE SHOOTING .................................................................22
5. APPENDIX .....................................................................................23
1. SAFETY INFORMATION
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage, including death.
The level of risk is shown by the following indications.
This is a prohibition symbol.
Any incompliance with instructions marked with this symbol may result in damage
Prohibition
symbol
to the product or endanger the personal safety of the user.
Information
Safety
Proper use of
Refrigerator
This is a warning symbol.
It is required to operate in strict observance of instructions marked with this
Warning
symbol
symbol; or otherwise damage to the product or personal injury may be caused.
This is a cautioning symbol.
Cautioning
symbol
Instructions marked with this symbol require special caution. Insufficient caution
may result in slight or moderate injury, or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
Risk Of Fire / Flammable Materials
WARNING
• This appliance is intended to be used in household and similar
applications such as staff kitchen areas in shops, ofces and other working
environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments;
catering and similar non-retail applications.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Maintenance of
Refrigerator
shooting
Trouble
Appendix
EN-3
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
Trouble
Appendix
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
• Do not store explosive substances such as aerosol cans with a ammable
propellant in this appliance.
• The appliance has to be unplugged after use and before carrying out
user maintenance on the appliance.
• WARNI N G: Keep ventilation openings, in the appliance enclosure
or in the built-in structure,clear of obstruction.
• WARNI N G: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
• WARNI N G: Do not damage the refrigerant circuit.
• WARNI N G: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• WARNI N G: Please abandon the refrigerator according to local
regulators for it use ammable blowing gas and refrigerant.
• WARNI N G: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
• WARNI N G: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
• Do not use extension cords or ungrounded two prong adapters.
• WARNI N G: Connect to potable water supply only. (suitable for ice
cube maker)
EN-4
DANGER
• The refrigerator must be disconnected from the source of electrical supply
before attempting the installation of accessory.
• Rerigerant and cyclopentane foaming material used for the appliance
are ammable. Therefore, when the appliance is scrapped, it shall be
kept away from any re source and be recovered by a special recovering
company with corresponding qualication other than be disposed by
combustion, so as to prevent damage to the environment or any other
harm.
WARNING
• Risk of child entrapment.Before you throw away your old refrigerator or
freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
Trouble
Appendix
EN-5
WARNING
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
Trouble
Appendix
For EU standard:
• This appliance can be used by children aged from 8 years and above
• To avoid contamination of food, please respect the following instructions:
• For a freestanding appliance: this refrigerating appliance is not intended to

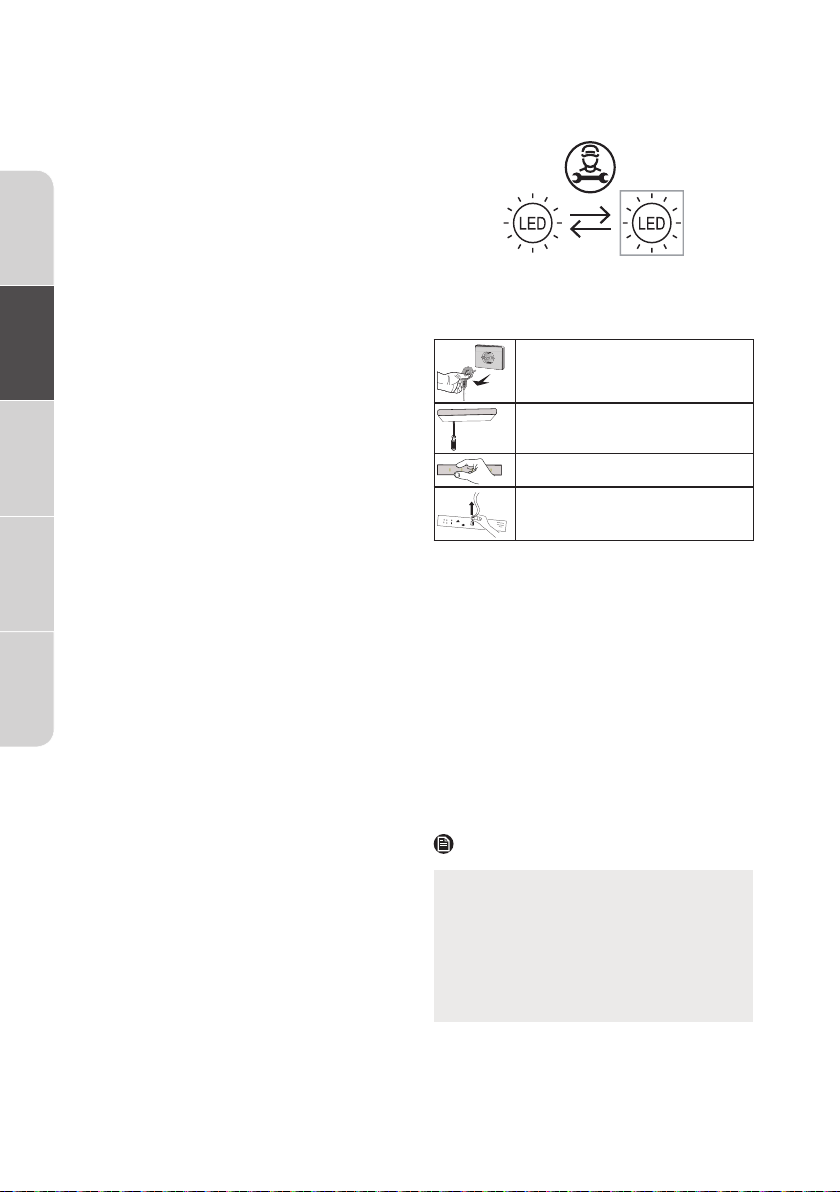

• ANY replacement or maintenance of the LED lamps is intended to be
• This product contains a light source of energy efciency class (G)
and persons with reduce physical sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
– Opening the door for long periods can cause a signicant increase of the
temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
– Clean water tanks if they have not been used for 48h; ush the water
system connected to a water supply if water has not been drawn for 5
days. (Note 1)
– Store raw meat and sh in suitable containers in the refrigerator, so that
it is not in contact with or drip onto other food.
– Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice-cream and making ice cubes. (Note
2)
– One- , two- and three-star compartments are not suitable
for the freezing of fresh food. (note 3)
– For appliances without a 4-star compartment: this refrigerating
appliance is not suitable for freezing foodstuffs. (note 4)
– If the refrigerating appliance is left empty for long periods, switch off,
defrost, clean, dry, and leave the door open to prevent mould developing
within the appliance.
Note 1,2,3,4: Please conrm whether it is applicable according to your
product compartment type.
be used as a built-in appliance.
made by the manufacturer, its service agent or similar qualied person.
EN-6
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
State of California Proposition 65 Warnings:
WARNING: Cancer and Reproductive Harm
-www.P65Warnings.ca.gov.
PROPER DISPOSAL
Information
Safety
Proper use of
Refrigerator
WARNING
Suffocation Hazard
Before you throw away your old freezer or refrigerator:
• Remove the door or lid so that children cannot hide or get trapped inside
your old appliance.
• Leave any shelves in place so that children may not easily climb inside.
• Failure to follow these instructions can result in death or brain damage.
• To avoid a hazard due to instability of the appliance, it must be xed in
accordance with the instructions.
• Connect to potable water supply only. (Suitable for ice making machine)
• TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of
Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for
products with locks)
IMPORTANT:
Flammable gas and refrigerant used. It is the consumer’s responsibility to comply
with Federal and Local regulations when disposing of this product. Refrigerants must
be evacuated by a licensed, EPA certied refrigerant technician in accordance with
established procedures.
Maintenance of
Refrigerator
shooting
Trouble
Appendix
EN-7

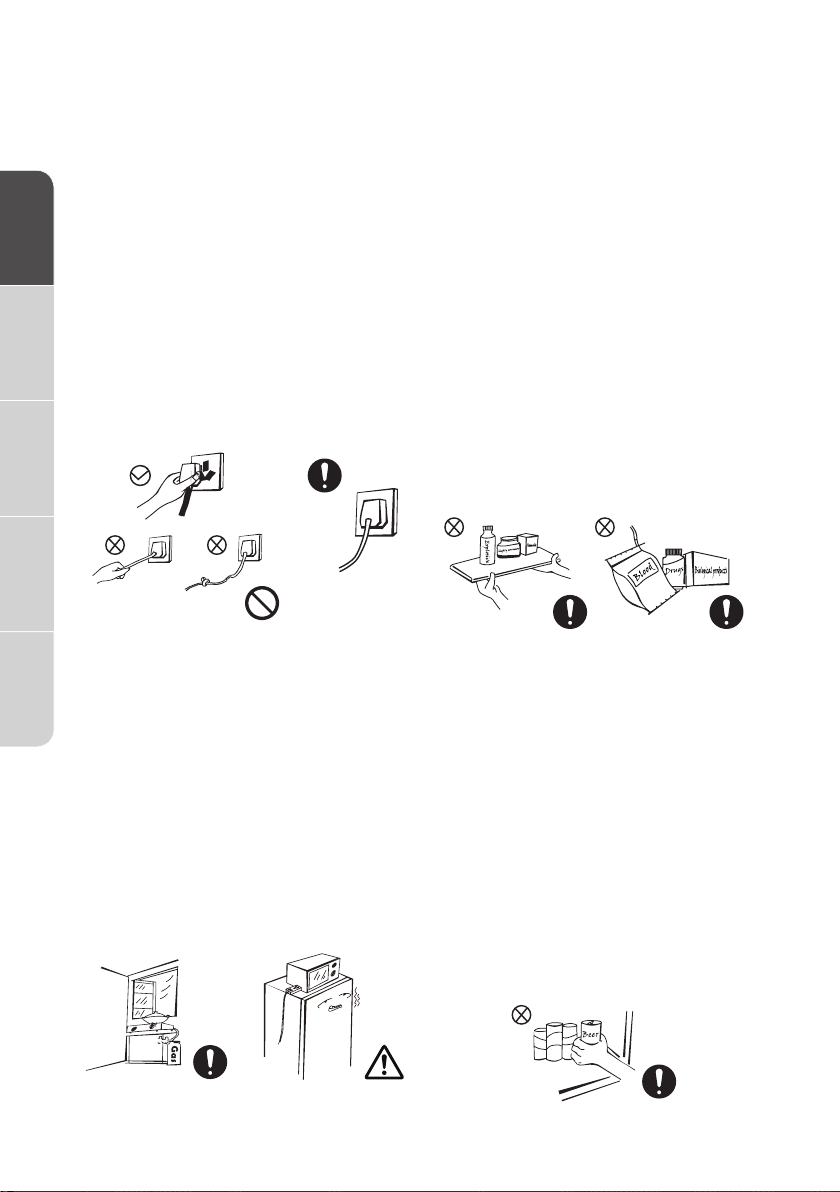

ELECTRICITY RELATED
WARNINGS
Information
Refrigerator
Refrigerator
shooting
Appendix

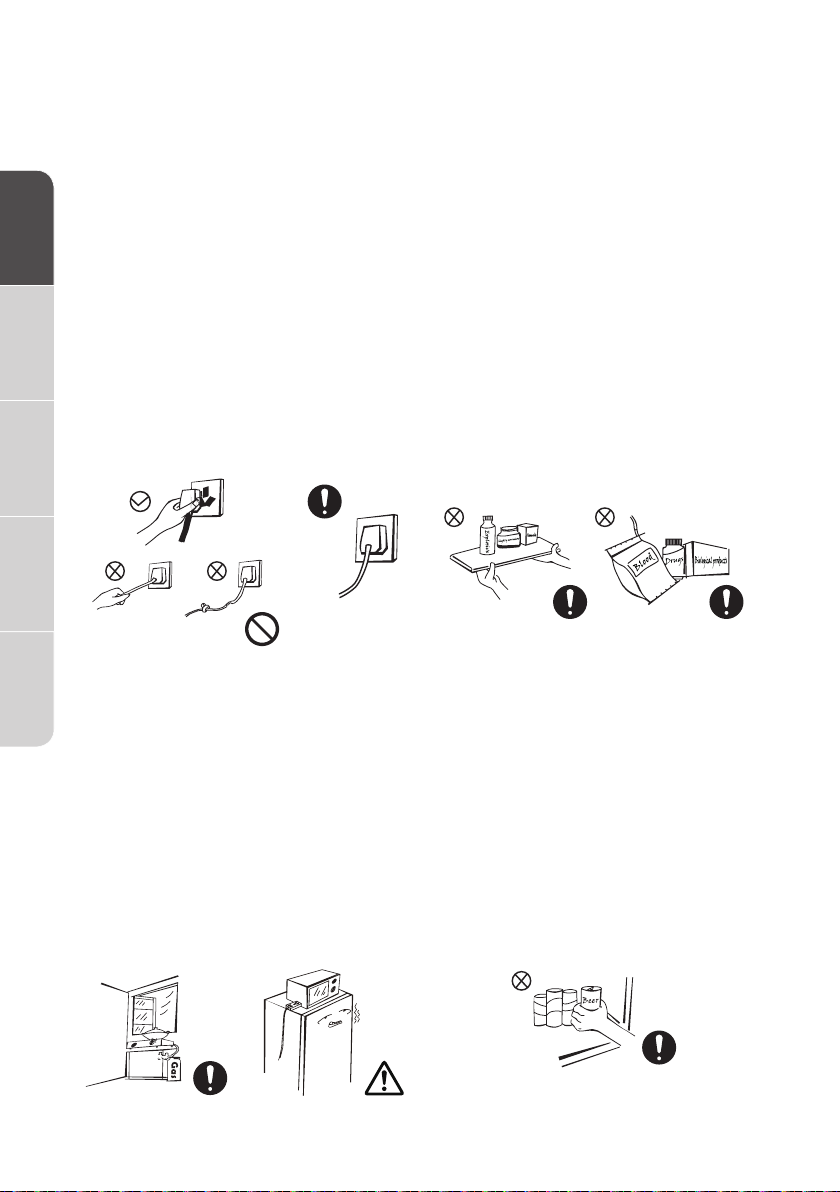

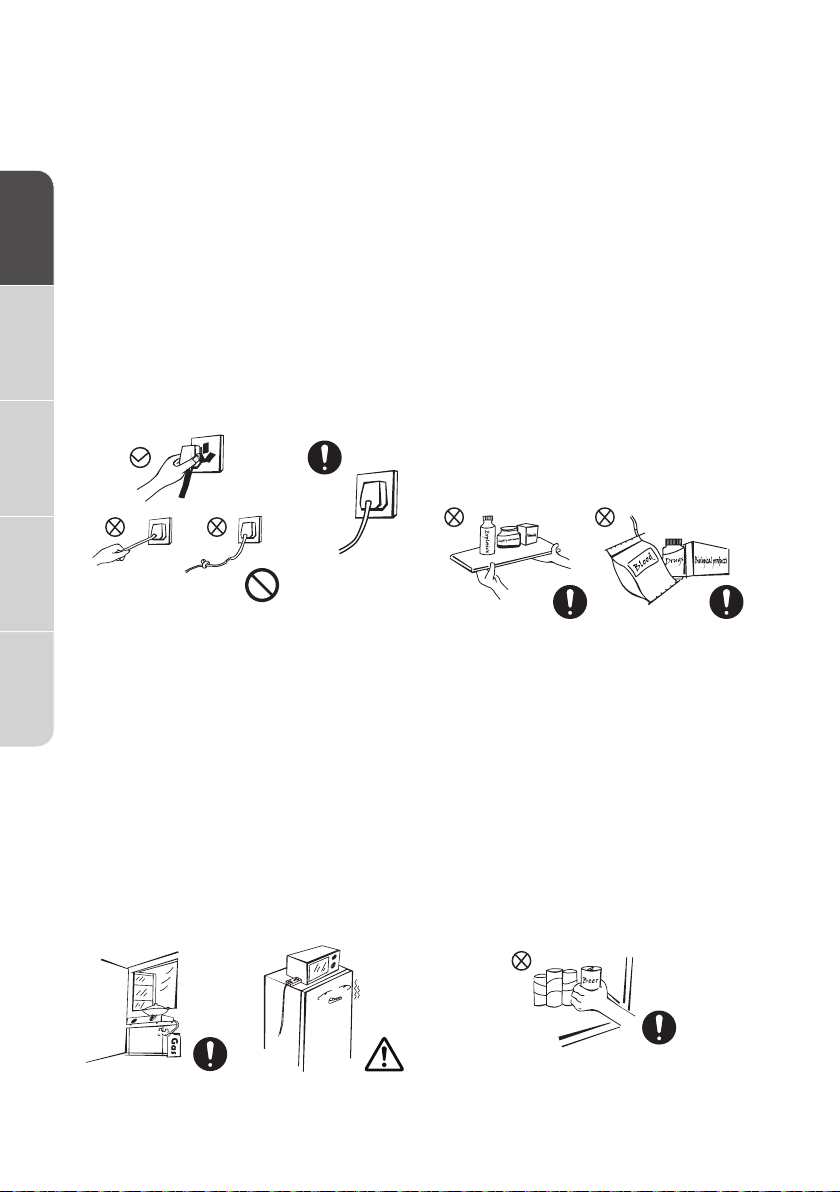

• Do not pull the power cord when
Safety
• To ensure safe use, do not
Proper use of
• Please use a dedicated power
Maintenance of
Trouble
• The power cord should be rmly
• Please ensure that the grounding
• Please turn off the valve of leaking
pulling the power plug of the
refrigerator. Please rmly grasp
the plug and pull out from the
socket.
damage the power cord or
use the power cord when it is
damaged or worn.
socket; the power socket shall
not be shared with other electrical
appliances.
contacted with the socket,
otherwise re may be caused.
electrode of the power socket
is equipped with a reliable
grounding line .
gas and then open doors and
windows in case of leakage of gas
and other ammable substances.
Do not unplug the refrigerator
and other electrical appliances
considering that spark may cause
a re.
• Do not use electrical
appliances on top of the
appliance,unless they are of
the type recommended by the
manufacturer.
WARNINGS RELATED
TO PLACING ITEMS

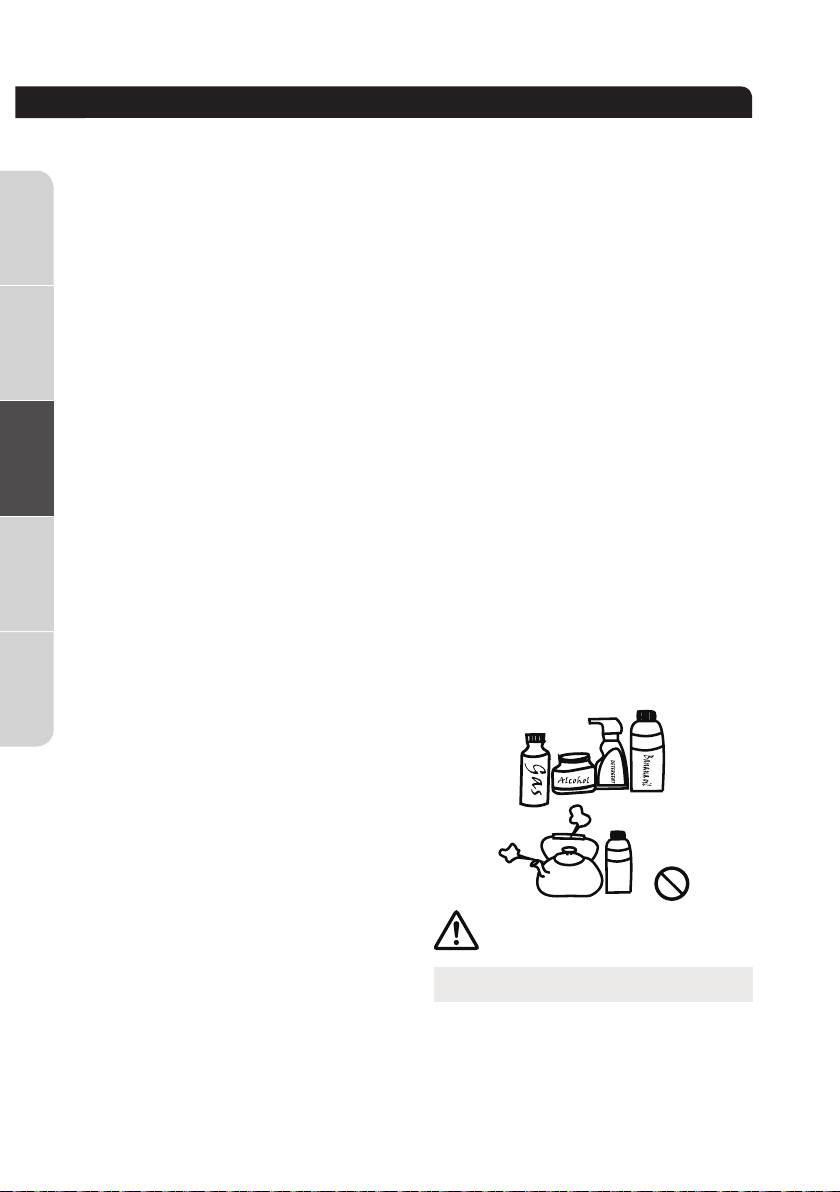

• Do not place ammable,
explosive, volatile and highly
corrosive items in the refrigerator
to prevent damages to the
product or re accidents.
• Do not place ammable items
near the refrigerator to avoid res.
• This product is a household
refrigerator and is only suitable for
the storage of foods. According
to national standards, a household
refrigerator shall not be used for
other purposes, such as storage
of blood, drugs or biological
products.
• Do not store beer, beverages
or other uids contained in
bottles or enclosed containers
in the freezing chamber of the
refrigerator, otherwise the bottles
or enclosed containers may
crack due to freezing and cause
damages.
EN-8
WARNINGS FOR USE

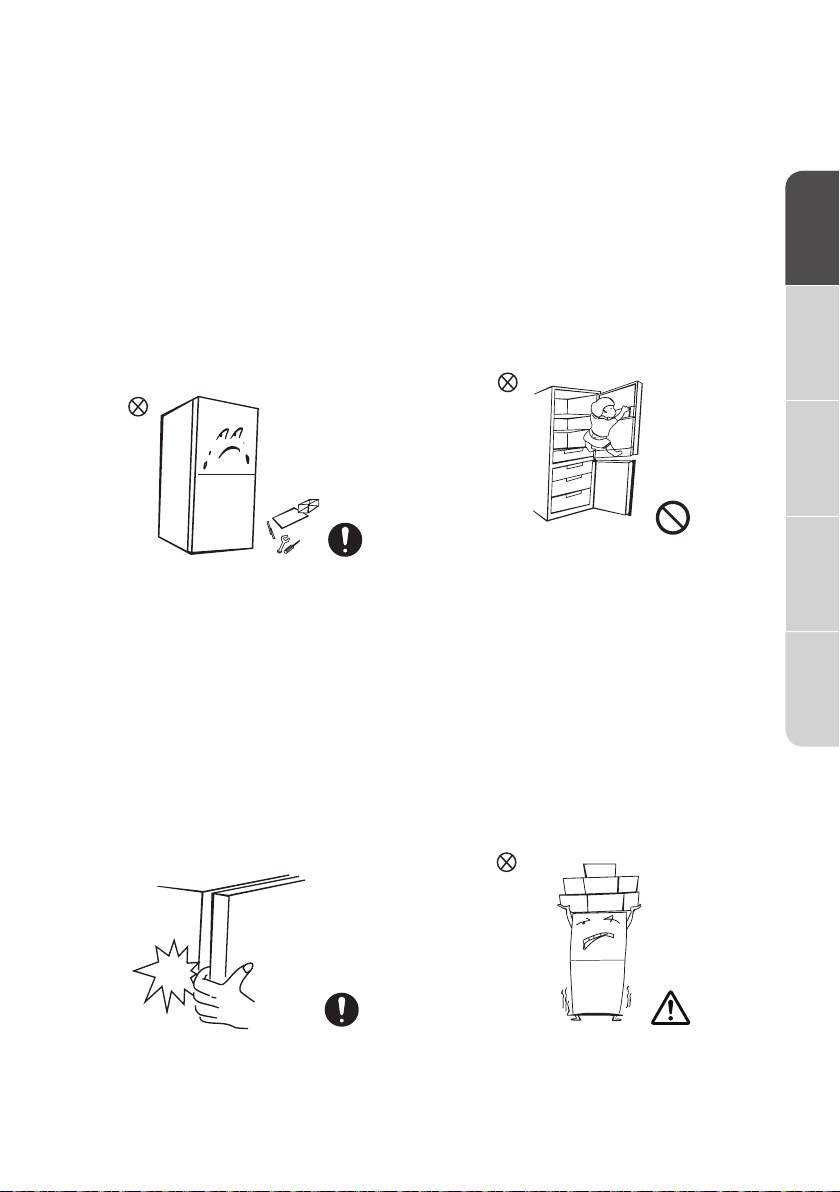

• Do not arbitrarily disassemble or
reconstruct the refrigerator, nor
damage the refrigerant circuit;
maintenance of the appliance
must be conducted by a specialist.
• A damaged power cord must be
replaced by the manufacturer,
its maintenance department or
related professionals in order to
avoid danger.

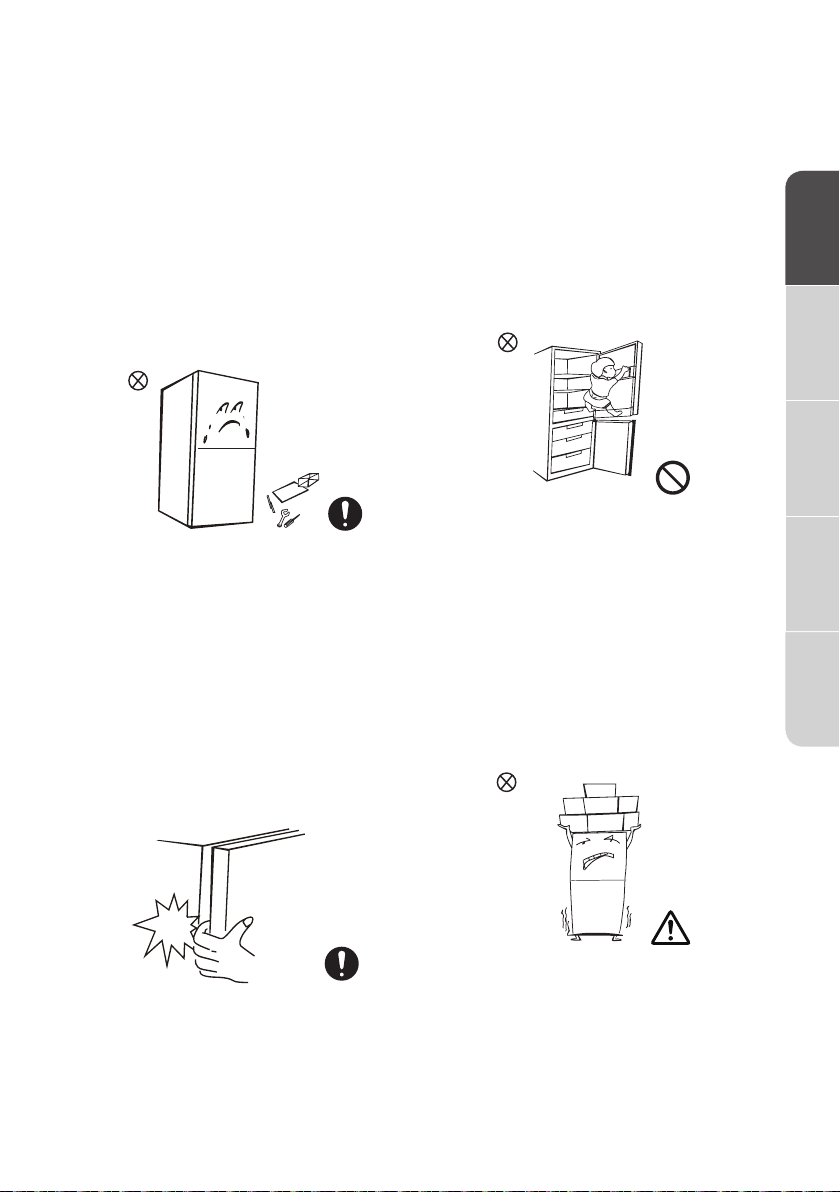

• The gaps between refrigerator
doors and between doors and
refrigerator body are small, do not
place your hands in these areas to
prevent squeezing your ngers.
Please be gentle when opening
the refrigerator door to avoid
articles falling out.
• Do not pick up food or containers
with wet hands in the freezing
chamber when the refrigerator
is running, especially metal
containers in order to avoid
frostbite.

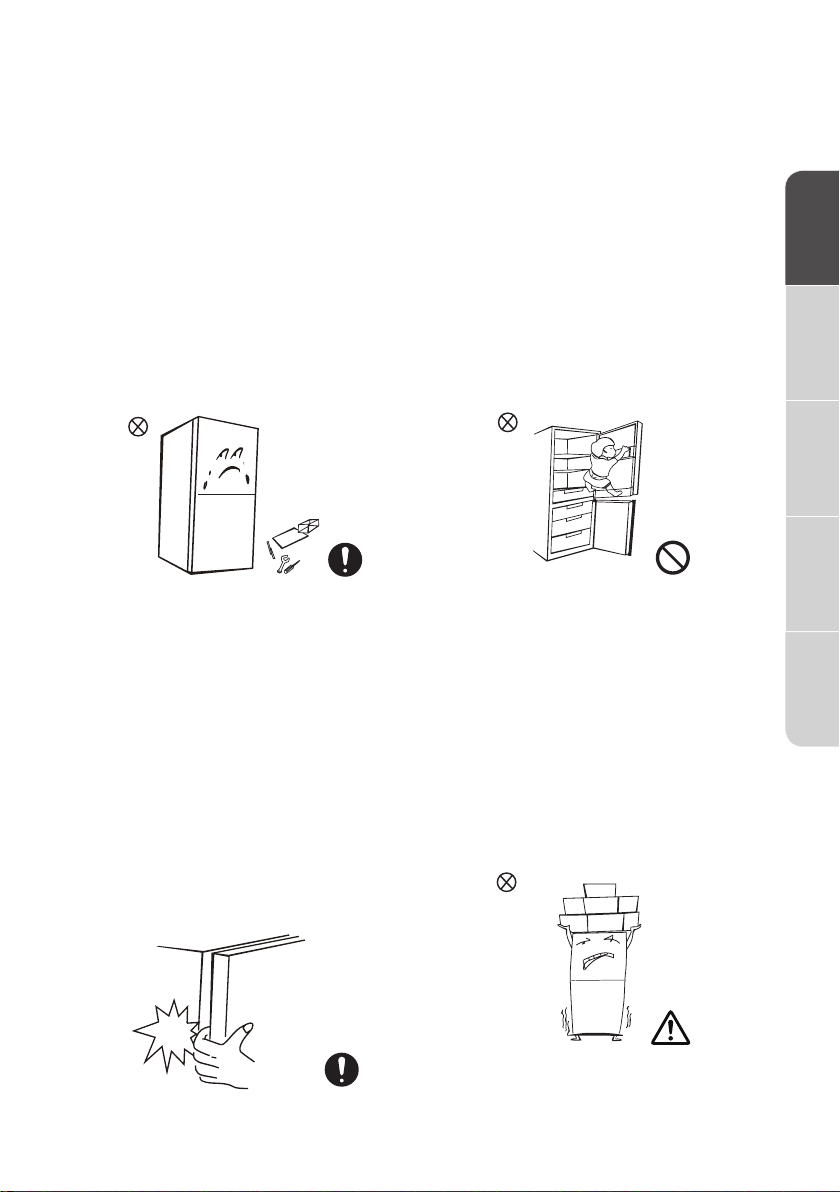

• Do not allow children to enter or
climb inside the refrigerator to
prevent that children are sealed in
the refrigerator or injured by the
falling refrigerator.
• Do not spray or wash the
refrigerator; do not place the
refrigerator in moist places easy
to be splashed with water so
as not to affect the electrical
insulation properties of the
refrigerator.
• Do not place heavy objects on
top of the refrigerator considering
that objects may fall when
opening the door, and accidental
injuries might be caused.
• Please pull out the plug in case
of power failure or cleaning. Do
not connect the refrigerator to
power supply within ve minutes
to prevent damages to the
compressor due to successive
starts.
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
Trouble
Appendix
EN-9
Refrigerant and cyclopentane foaming material used for the
refrigerator are flammable. Therefore, when the refrigerator is
scrapped, it shall be kept away from any fire source and be
recovered by a special recovering company with corresponding
qualification other than be disposed by combustion, so as to
prevent damage to the environment or any other harm.
When the refrigerator is scrapped, disassemble the doors, and
remove gasket of door and shelves; put the doors and shelves in
a proper place, so as to prevent trapping of any child.
ENERGY WARNINGS
1. Refrigerating appliances
Information
Safety
Proper use of
Refrigerator
2. Effervescent drinks should
Maintenance of
Refrigerator
shooting
Trouble
DISPOSAL
Appendix
might not operate consistently
(possibility of defrosting of
contents or temperature
becoming too warm in the
frozen food compartment) when
set for an extended period of
time below the cold end of the
temperature range for which
the refrigerating appliance is
designed.
not be stored in food freezer
compartments or cabinets or in
low-temperature compartments
or cabinets because some
products such as water ice
should not be consumed too
cold;
3. Do not exceed the storage
time(s) recommended by the
food manufacturers for any
kind of food and particularly
for commercially quick-frozen
food in food-freezer and frozen-
food storage compartments or
cabinets
4. Prevent an undue rise in
temperature of frozen food
while defrosting the refrigerating
appliance, such as wrapping the
frozen food in several layers of
newspaper.
5. A rise in temperature of frozen
food during manual defrosting,
maintenance or cleaning can
shorten the storage life
Correct Disposal of this product:
This marking indicates that this product should not be disposed
with other household waste. To prevent possible harm to
the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer
where the product was purchased. They take this product in for
environmental safe recycling.
EN-10
2. PROPER USE OF REFRIGERATOR

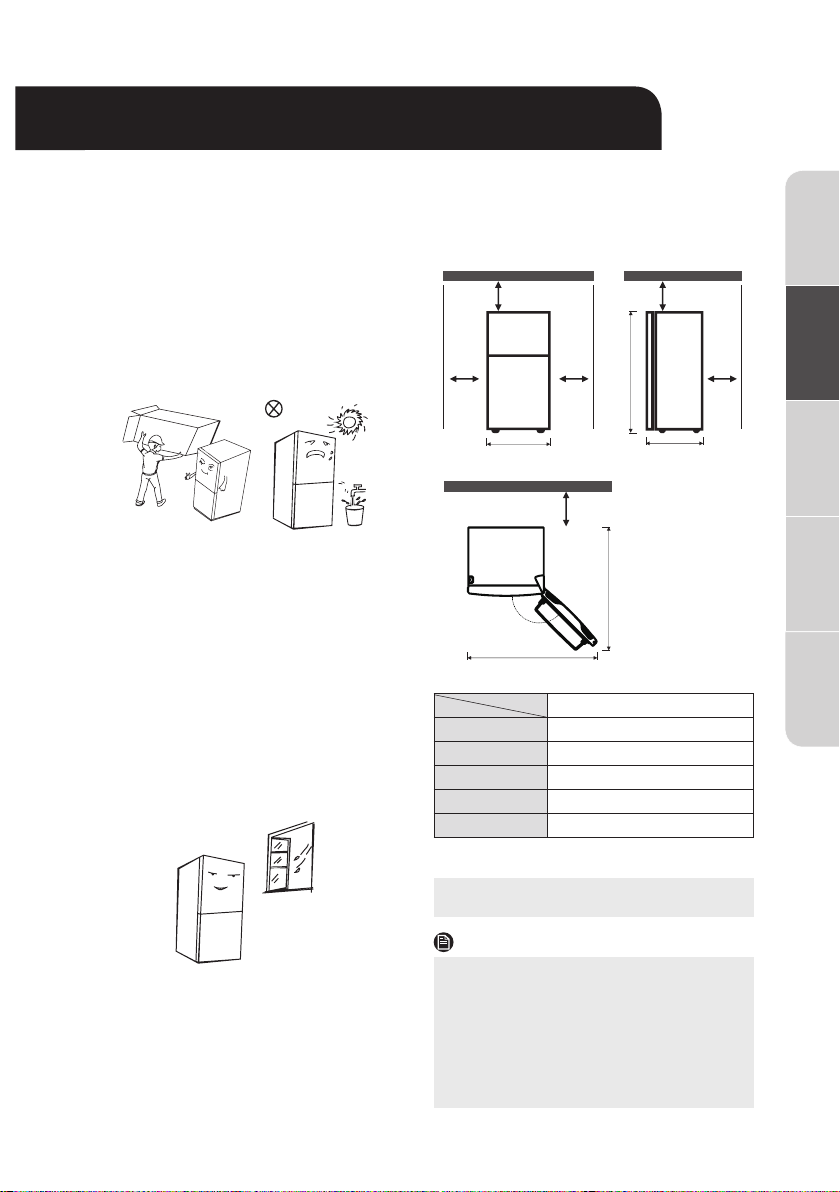

2.1 PLACEMENT
• Before use, remove all packing
materials, including bottom pads,
foam pads and tapes inside of
the refrigerator; tear off the
the refrigerator body.
• Keep away from heat and avoid
direct sunlight. Do not place the
freezer in moist or wet places to
prevent rust or reduction of the
insulating effect.
• Do not spray or wash the
refrigerator; do not put the
refrigerator in moist places easy
to be splashed with water so
as not to affect the electrical
insulation properties of the
refrigerator.
Spare enough space for convenient
opening of the doors and drawers or
statement by the distributor.
H
595
660
2010
1020
1250
10cm
10cm
D
10cm
10cm 10cm
W
10cm
B
125°
A
NFL 460 SS
Width “w”
Depth “D”
Height “H”
A
B
(unit: mm)
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
• The space on top of the
refrigerator shall be greater than
10cm, and the refrigerator should
be placed against a wall with a
distance of more than 10cm to
facilitate heat dissipation.
The measurements in the above table
may differ, depending on the measuring
method.
NOTE:
This refrigerator needs to be installed
independently and cannot be used as a
built-in. Otherwise, it will cause problems
such as failure to install into the cabinet,
the performance and life of the product
are reduced. And the manufacturer does
not provide basic product warranty.
EN-11
2.2 ENERGY SAVING TIPS
• The appliance should be located
Information
Safety
• Let hot foods cool to room
Proper use of
Refrigerator
• Be sure to wrap foods properly,
Maintenance of
Refrigerator
• Appliance storage bin should not
shooting
shooting
Trouble
Trouble
Appendix
• Organize and label food to reduce

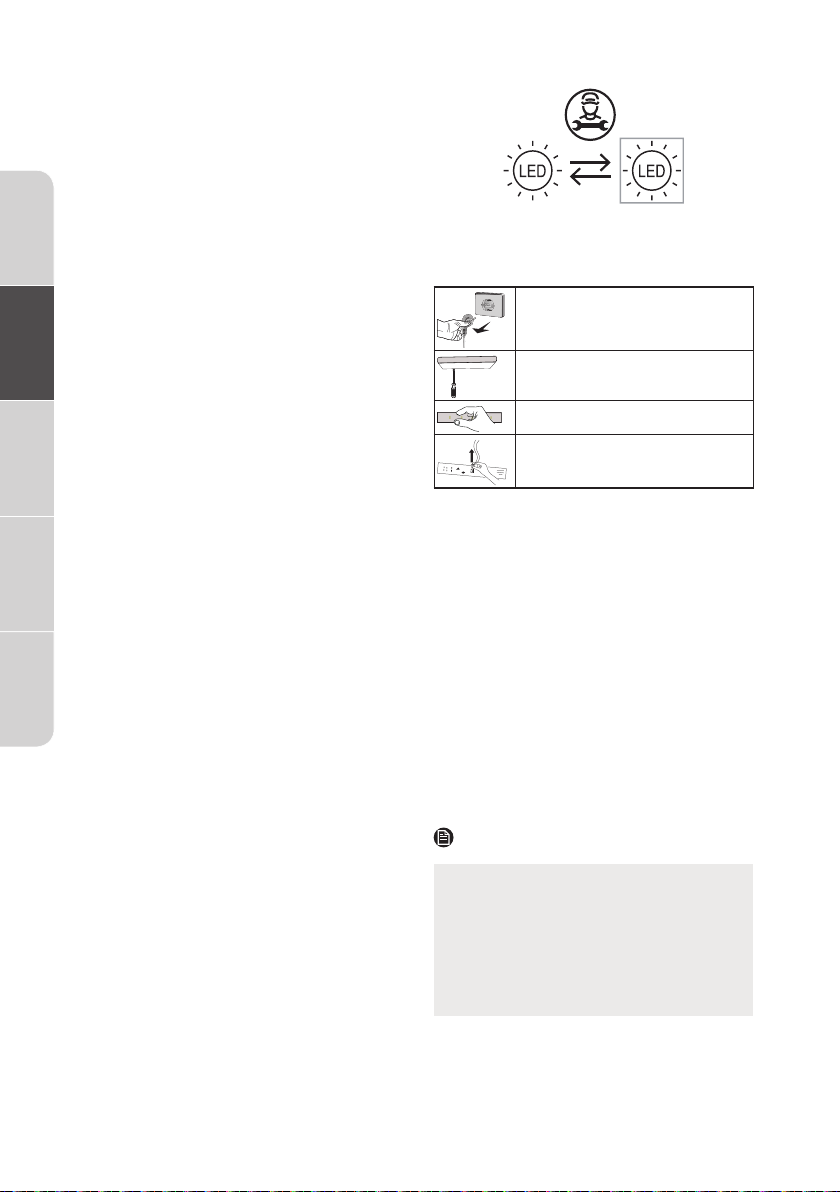

2.3 CHANGING THE LIGHT
• Any replacement or maintenance
in the coolest area of the room,
away from heat producing
appliances or heating ducts, and
out of the direct sunlight.
temperature before placing in
the appliance. Overloading the
appliance forces the compressor
to run longer. Foods that freeze
too slowly may lose quality, or
spoil.
and wipe containers dry before
placing them in the appliance.
This cuts down on frost build-up
inside the appliance.
be lined with aluminum foil, wax
paper, or paper toweling.Liners
interfere with cold air circulation,
making the appliance less
efcient.
door openings and extended
searches.Remove as many items
as needed at one time, and close
the door as soon as possible.
of the LED lamps is intended to
be made by the manufacturer, its
service agent or similar qualied
person.
• Light source in this product is
replaceable only by qualied
engineers.
1. Please take out the plug before
removal.
2. Remove the lampshade with a
screwdriver.
3. Take down the lamp panel.
4. Remove the connection terminal.
2.4 START TO USE
• Before initial start, keep the
refrigerator still for two hours
before connecting it to power
supply.
• Before placing any fresh or frozen
foods, the refrigerator should
have run for 2 - 3 hours, or for
above 4 hours in summer when
the ambient temperature is high.
NOTE
This product is not recommended for use
with sockets or main switch with the A/
GFCI function, otherwise it may cause
false tripping.
1. it’s not pose a safety risk when tripped.
2. If tripping persists, it is recommended
to replace the sockets or main switch
without A/GFCI function.
EN-12

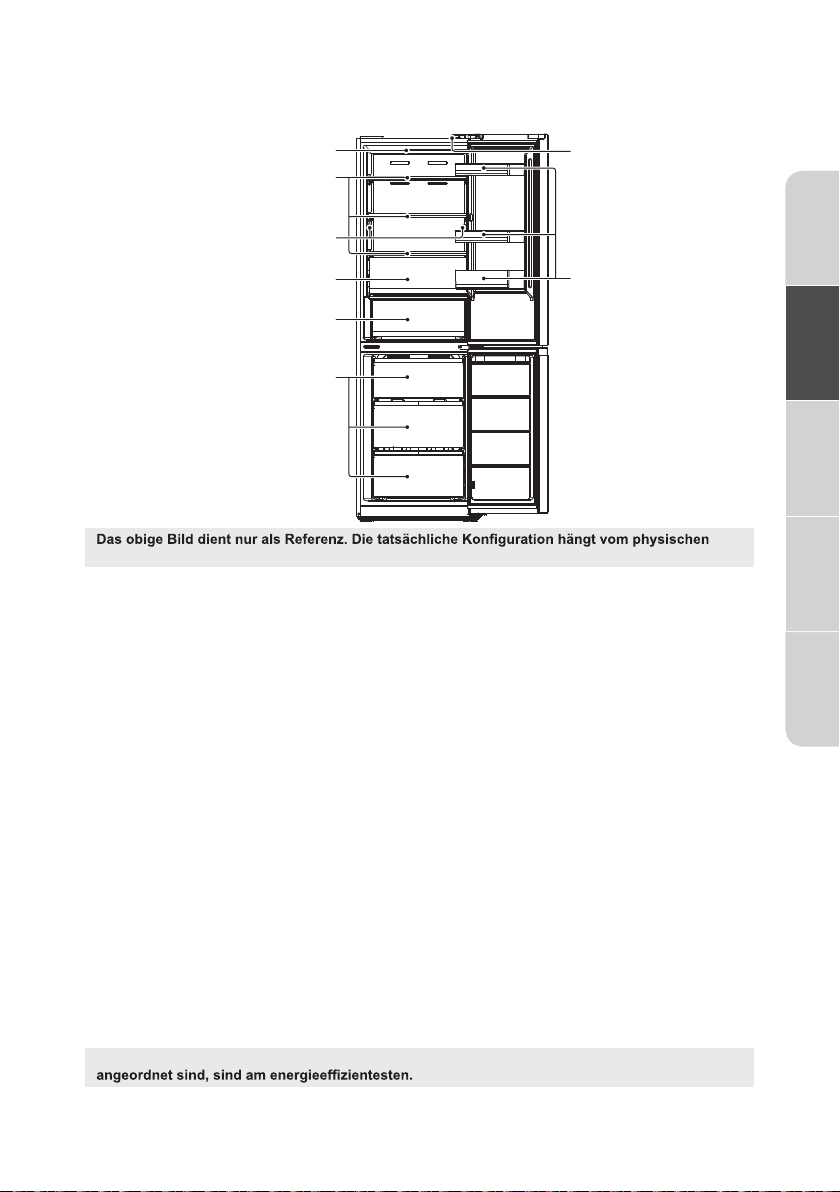

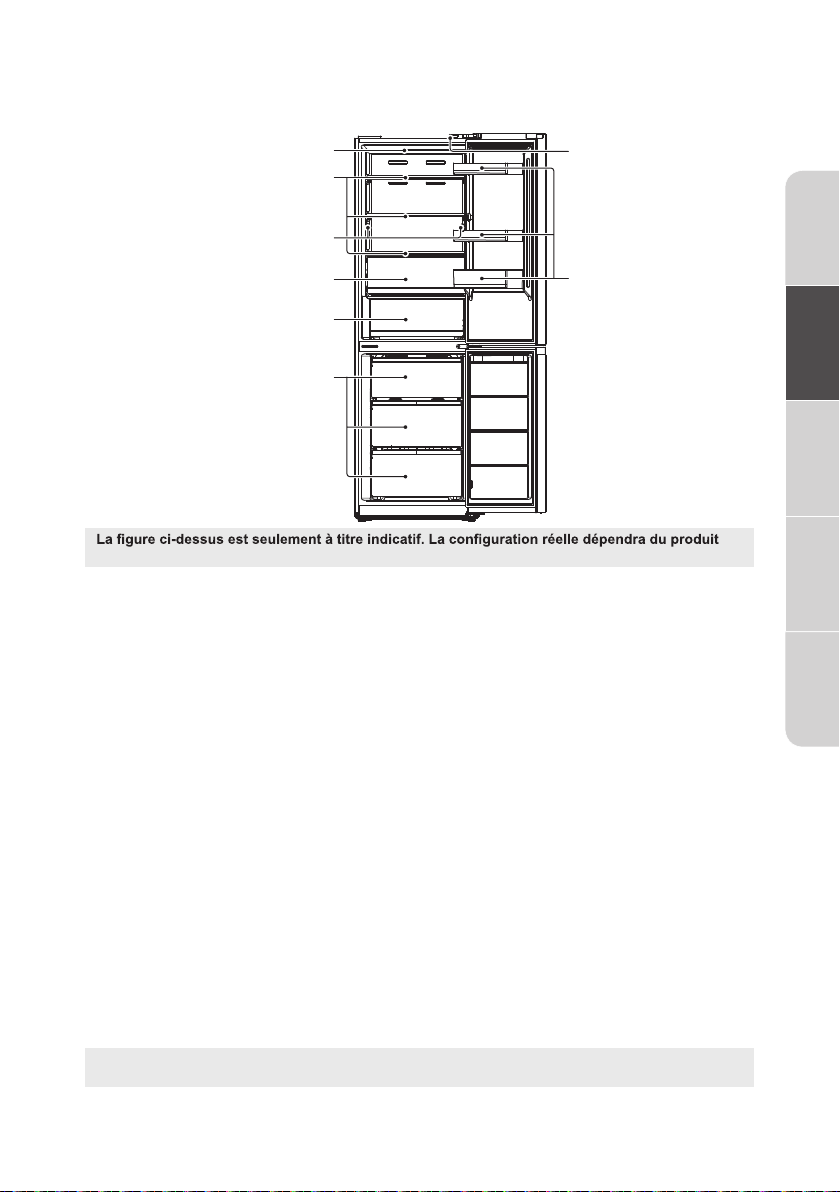

2.5 NAMES OF COMPONENTS
LED light
Shelf
LED light
(for some models)
Fruits And
Vegetables Box
Drawer
physical product or statement by the distributor
Refrigerating chamber
• The Refrigerating Chamber is
suitable for storage of a variety of
fruits, vegetables, beverages and
other food consumed in the short
term,suggested storage time
3days to 5days.
Freezing chamber
• The low temperature freezing
chamber may keep food fresh for
a long time and it is mainly used
to store frozen foods and making
ice.
• The freezing chamber is suitable
Door switch
Door Tray
end on the
• Cooking foods shall not be put
in the refrigerating chamber until
cooled to room temperature.
• Foods are recommended to be
sealed up before putting into the
refrigerator.

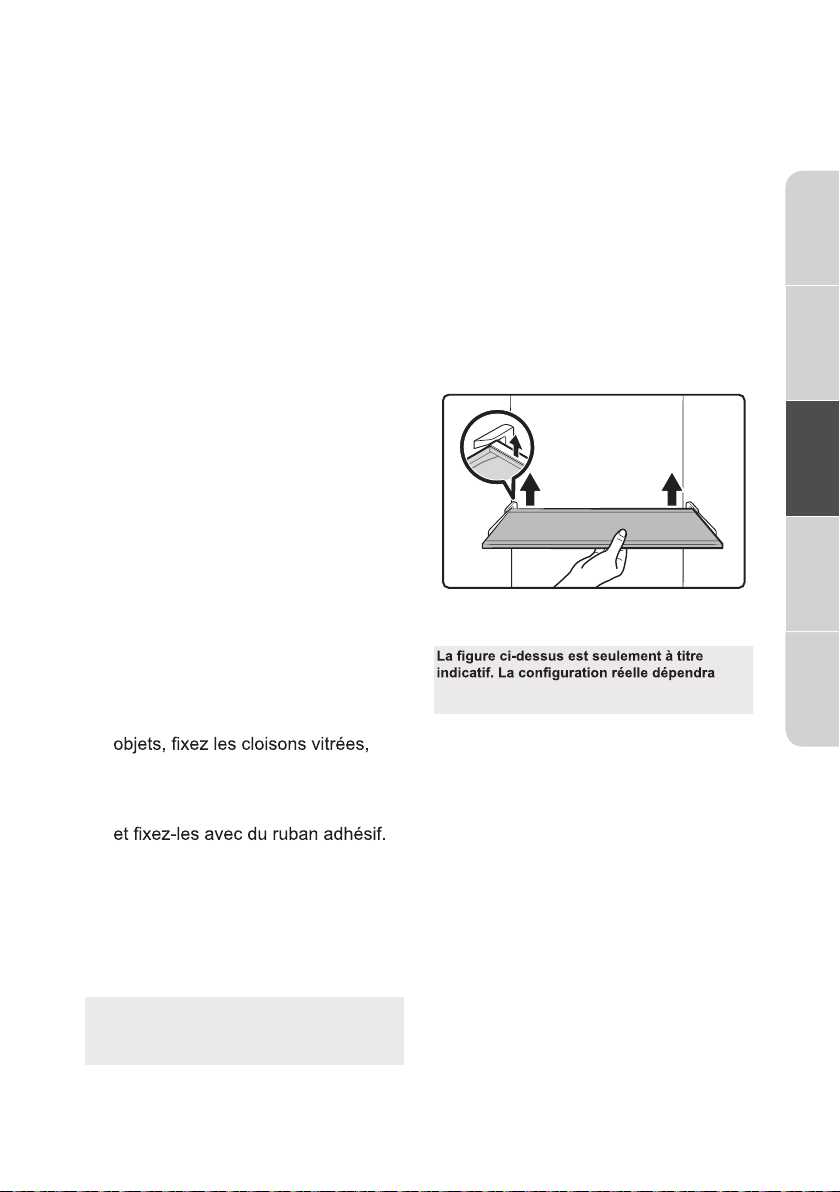

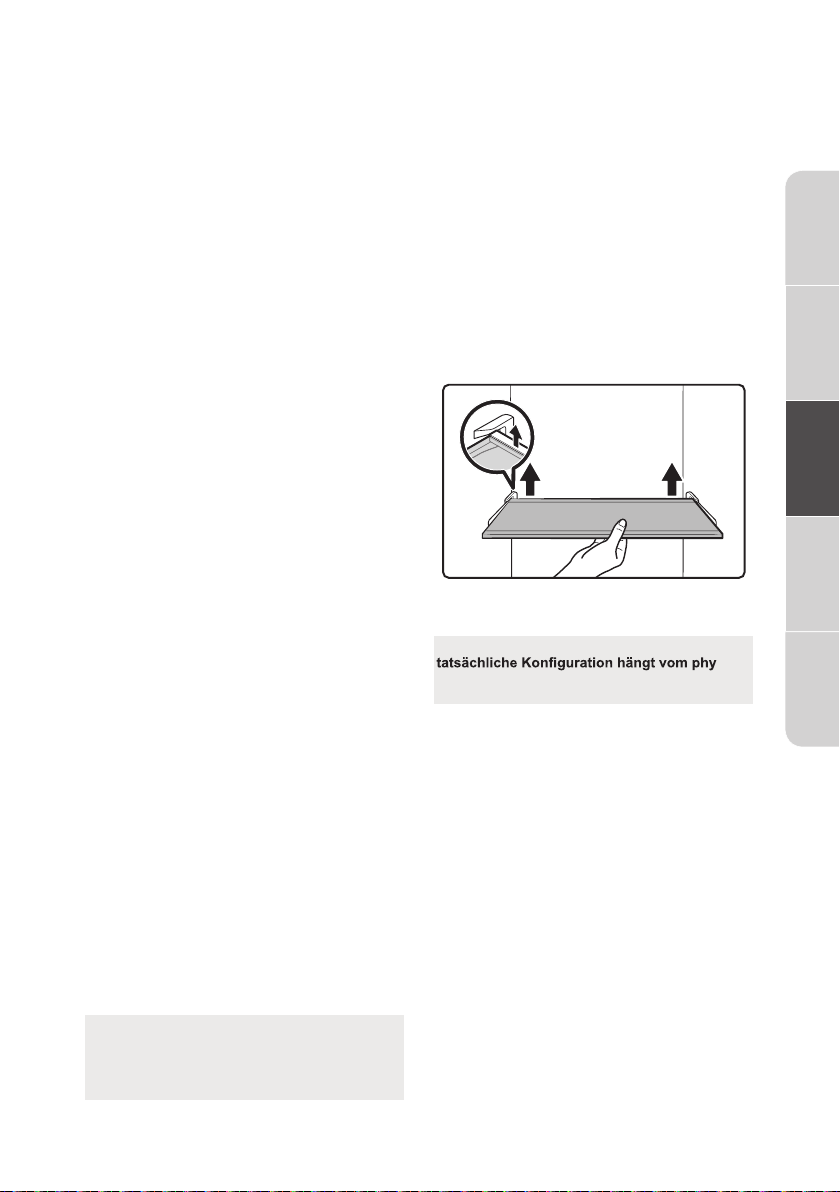

• The glass shelves can be adjusted
up or down for a reasonable
amount of storage space and
easy use.
Drawers, food boxes, shelves, etc. placed according to the position in the picture above
balls and other foods not to be
consumed in short term.
• Chunks of meat are preferably to
be divided into small pieces for
quick freezing and easy access.
Please be noted food shall be
consumed within the shelf time.
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
EN-13
2.6 FUNCTIONS
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix

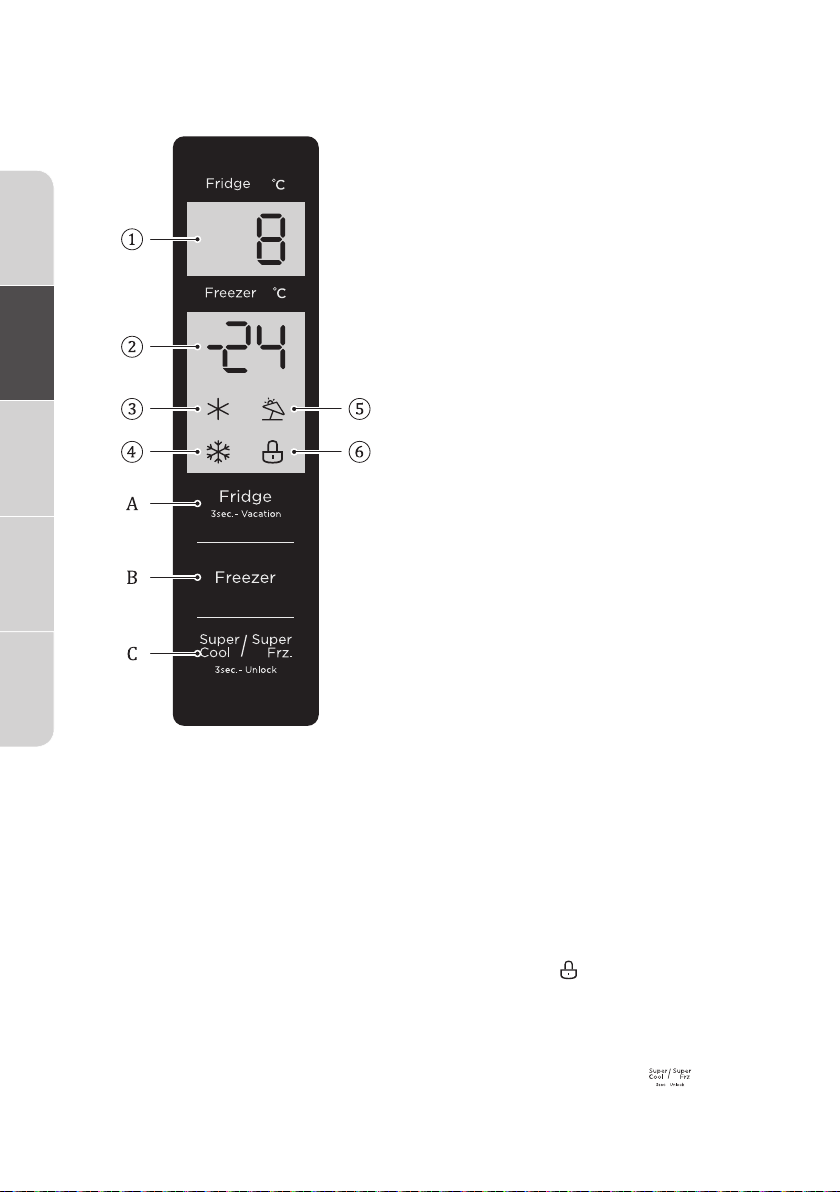

① Refrigerating chamber
temperature display area
② Freezing chamber temperature
display area
③ Quick cool icon
④ Quick freeze icon
⑤ Vacation icon
⑥ Lock icon
A. Temperature setting button of
refrigerating chamber
B. Temperature setting button of
freezing chamber
• Display
When power on the refrigerator
for the 1st time, the whole display
panel will shine for 3 seconds.
Then the display panel enters the
normal display. The rst time for
using the refrigerator, the default
set temperatures of refrigerating
chamber, freezing chamber is
5°C / -18°C respectively.
When the error occurs, the
display panel shows the error
code (see next page); during
normal running, the display panel
shows the set temperature of
refrigerating chamber, freezing
chamber.
C. Super cool/super freezing button
Under normal running, if there
is no operation or opening door
action within 30s, the display
panel will be locked, the light of
display panel will go out after the
locked state continued for 30s
• Lock / unlock
In the non-locking state, press
and hold the button for 3
seconds to enter the locked state
and the lock buzzer will sound.
In the locked state, press and hold
the button for 3 seconds to
enter the unlocked state and the
unlocking buzzer will sound.
EN-14
After 30 seconds of no button
operation, it will automatically
enter the locked state, and the
external display board with a
music buzzer will sound the lock
buzzer at the same time.
The alarm sound release
operation can be carried out in
the locked state, and all other key
operations must be carried out in
the unlocked state.
If the operation is in the locked
state, an error buzzer will be
displayed.
• Temperature setting of refrigerating
chamber
Click the button to
change the set temperature of
refrigerating chamber, each click
of temperature adjusting button
of the refrigerating chamber, the
set temperature will be reduced
1°C.
The temperature setting range of
refrigerating chamber is 2°C ~ 8°C.
When the set temperature is 2°C.
Click the button again, the set
temperature of refrigerating
chamber will switch to 8°C.
• Temperature setting of freezing
chamber
Click the button to
change the set temperature of
freezing chamber, each click of
temperature adjusting button
of the freezing chamber, the set
temperature will be reduced 1°C.
The temperature setting range for
freezing chamber is -24 ~ -16°C.
When the temperature is -24°C,
click the button again, the set
temperature of freezing chamber
will switch to -16°C
• Vacation mode
Long press the refrigeration
temperature adjustment button
(3s) to set/cancel the holiday
mode.
When setting the holiday mode,
the refrigeration is turned off, the
refrigeration temperature display
area is extinguished, and the
freezing is automatically set to
-18°C;
Adjusting the refrigeration/
freezing/super cool and super
freezer buttons will exit the
holiday mode.
When exiting the holiday mode,
the refrigeration set temperature
will automatically return to the
set temperature before the
holiday mode; the freezing set
temperature will automatically
return to the set temperature
before the holiday mode; enter
the normal operation mode.
• Super freeze mode
Super cool and super freezer
mode, press the button, the
setting sequence is: super cool ->
super freezer -> cancel.
When setting/cancelling the super
cool mode, the corresponding
super cool icon is on/off.
When setting the super cool
mode, the refrigeration is
automatically set to 2°C.
When exiting the super-cool
mode, the set temperature
of the refrigerating room will
automatically return to the set
temperature before the quickcooling mode.
When the super-freezer mode
is set, the corresponding super-
freezer icon is lit.
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
EN-15
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
When the super-freezer mode is
set, the freezing is automatically
set to -24°C;
When exiting the super-freezer
mode, the set temperature of
the freezer compartment will
automatically return to the set
temperature before the super-
freezer mode;
Super cool mode automatically
disabled for 6H.
Super freezer mode automatically
disabled for 24H.
Recommended setting:
Refrigerated chamber 4°C,freezing
chamber -18°C.
NOTE
The quick-freezing function is designed
to maintain the nutritional value of the
food in the freezer. It can freeze the
food in the shortest time. If a large
amount of food is frozen at one time, it is
recommended that the user turn on the
quick-freezing function and put the food
in. At this time, the freezing speed of the
freezer compartment is increased, which
can quickly freeze the food, effectively
lock the nutrition of the food, and
facilitate storage.
Fault indication
The following warnings
appearing on the display
indicate corresponding faults
of the refrigerator. Though
the refrigerator may still have
cold storage function with the
following faults, the user shall
contact a maintenance specialist
for maintenance, so as to ensure
optimized operation of the
appliance.
Fault
Code
Fault Description
Temperature sensor failure of
E1
refrigerating chamber
Temperature sensor failure of
E2
freezing chamber
Temperature sensor failure of
E3
meat & fish zone
Freezing defrost sensor
E5
detection circuit error
E6 Communication error
Ambient temperature sensor
E7
error
• Opening warning and alarm
control
If the refrigerator door is open
for 120 seconds without closing,
the buzzer will alarm until the
refrigerator door is closed; any
key will cancel the buzzer alarm.
EN-16

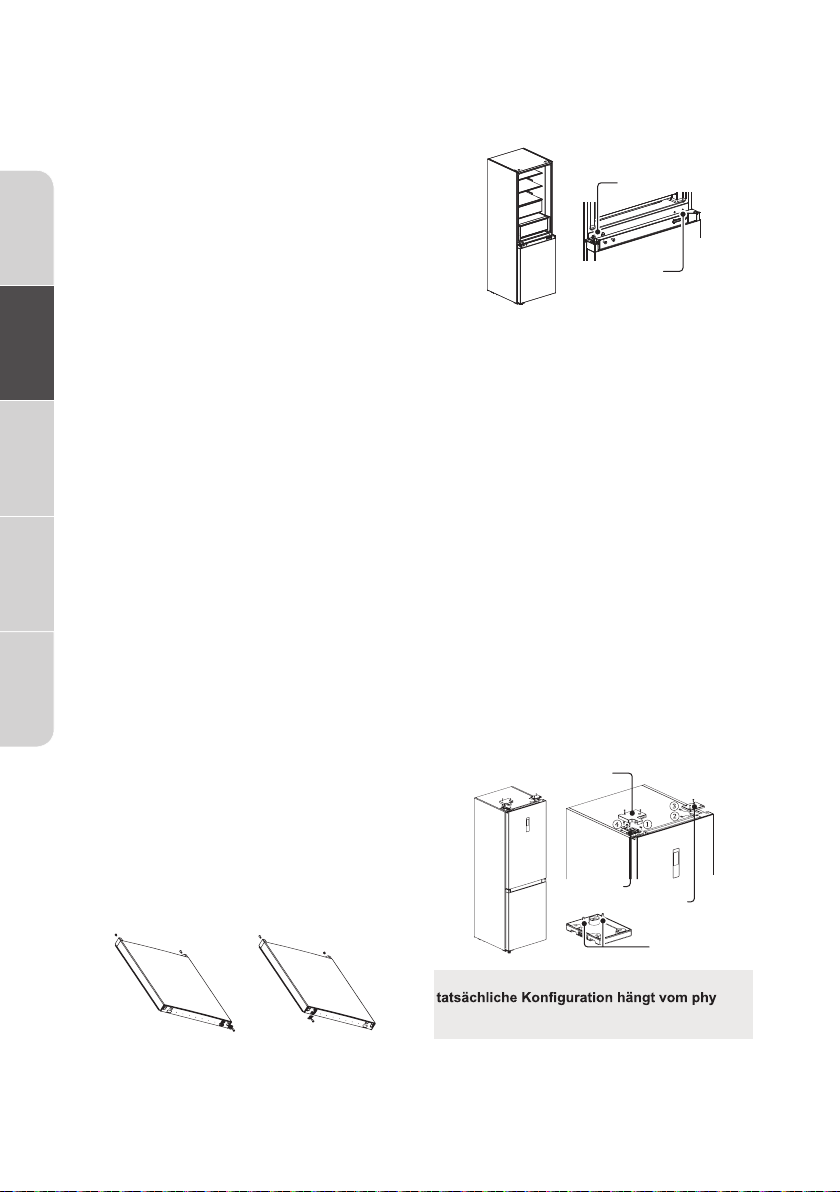

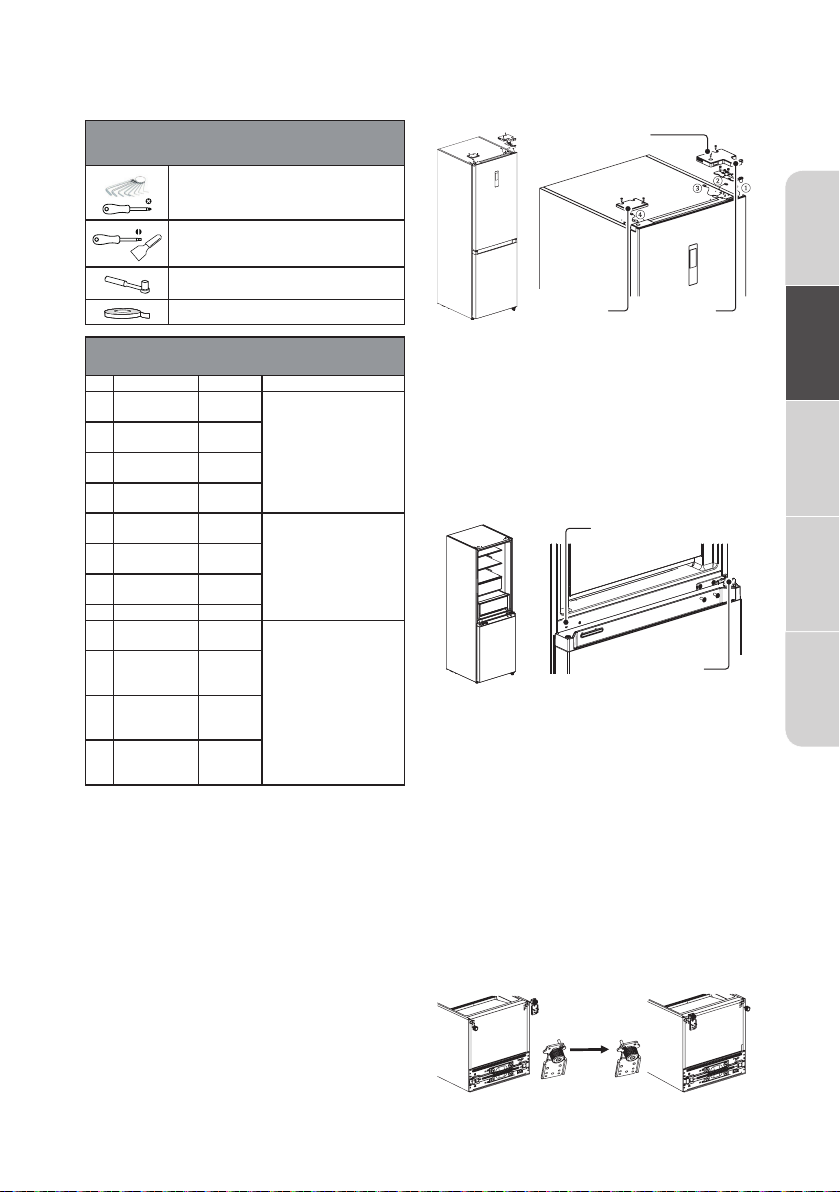

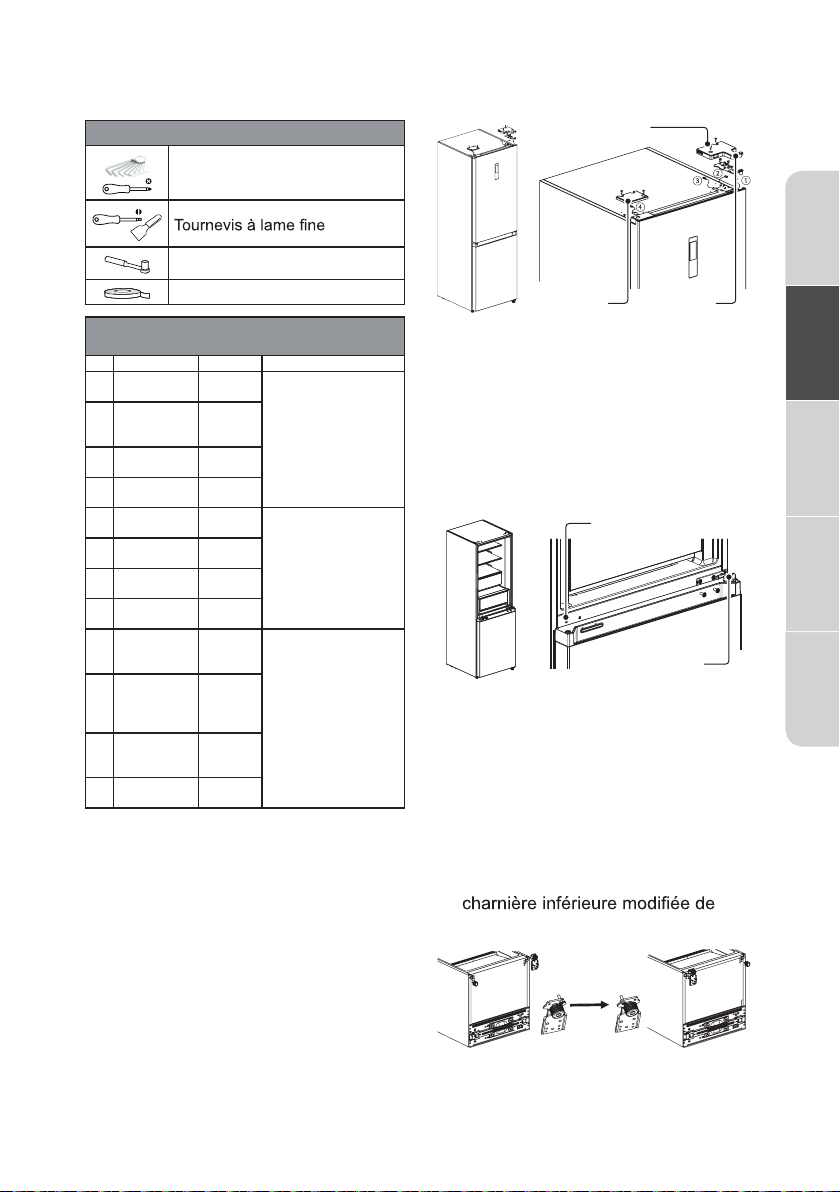

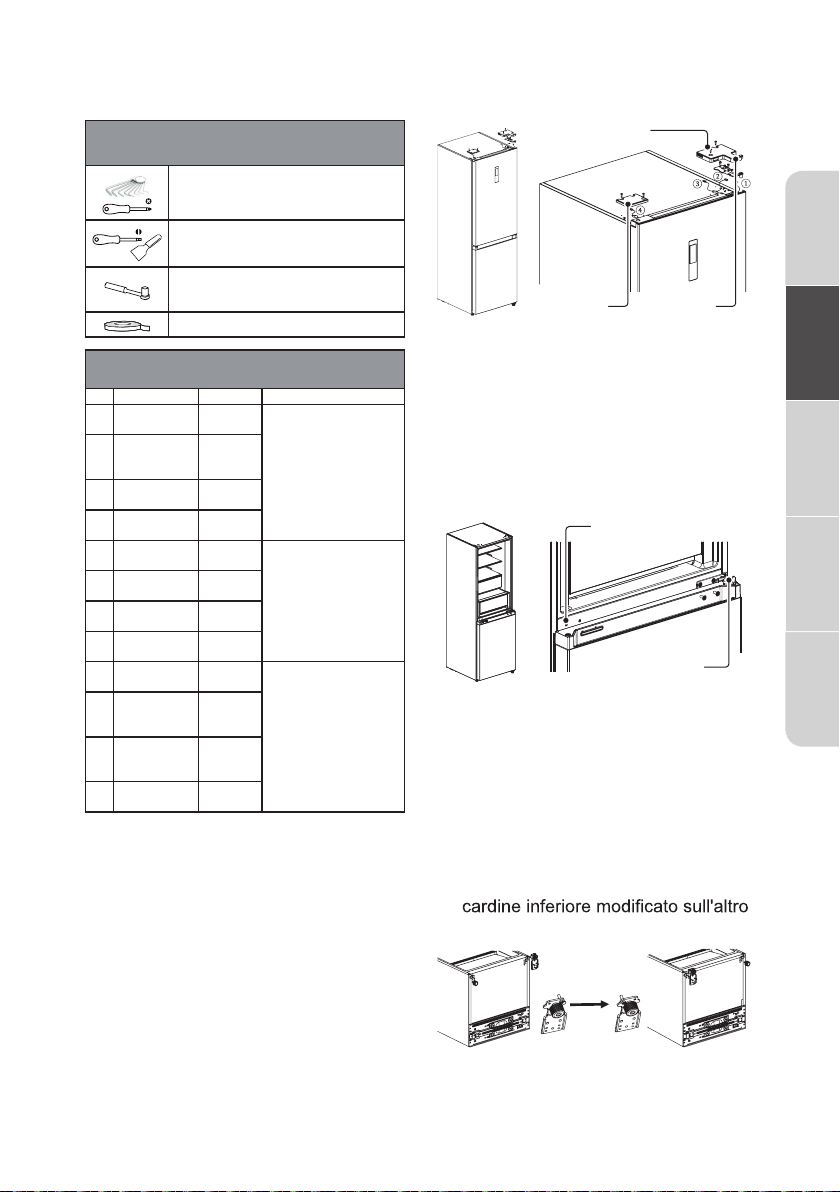

2.7 DOOR RIGHT-LEFT CHANGE
List of tools to be provided by the user
Cross screwdriver
Putty knife thin-blade screwdriver
5 / 16 socket and ratchet
Masking tape
upper hinge cover
decorative
cover
upper hinge
Information
Safety
Proper use of
Refrigerator
Parts to be used for door reverse
SN Part Quantity Notes
1 Upper hinge 1
Upper hinge
2
cover
Decorative
3
cover
Door
4
self-locking
5 Middle hinge 1
Decorative
6
cover
7 Lower hinge 1
8 Levelling feet 1
Left upper
9
hinge
Left upper
10
hinge cover
Left door
11
self-locking
Right plastic
12
cover
Pre-installed on
1
refrigerator, removed
and retained it when
1
changing the door
2
Pre-installed on the
1
refrigerator and to be
used when changing
the door
1
In the attached plastic
1
bag, take them out
for use when door is
2
reversed
1
• Please power off this appliance
before c
Remove all food from door
shelves.
onduct this operation.
• Remove the upper left hinge
cover decorative cover, upper
right hinge cover and upper right
hinge, and disconnect the right
signal line (signal line terminal 1, 2)
at the top of the box body
• Remove the refrigerated door
body (be careful not to lose small
parts such as the shaft sleeve and
stop on the door);
Remove the middle hinge and
remove the decorative cover of
hinge hole on the other side.
decorative cover
middle hinge
• Remove the freezing door body
(be careful not to lose small parts
such as the shaft sleeve and stop
on the door).
Remove the hinge and adjust the
angle. Remove and install the
lower hinge shaft to the other
side of the hinge, and install the
side of the box.
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
EN-17
Change the refrigerator door:
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
• Change the freezing door
Appendix
Remove the cover plate of
the upper end cover of the
refrigeration door and the left
decorative cover. Install the
upper shaft sleeve and the signal
line of the door body to the
other side and cover the upper
end cover plate. Take out the
right decorative cover from the
accessory bag and install it to the
other side of the upper end cover.
Remove the door self-locking,
door stop and shaft sleeve of the
refrigeration door, take out the
left door self-locking from the
accessory bag, install it on the
left side of the lower end cover of
the refrigeration door, change the
door stop and shaft sleeve to the
left side of the lower end cover of
the refrigeration door
Remove the shaft sleeve and cap
of the upper end cover of the
freezing door and install them at
the left and right swap positions.
Remove the door self-locking,
door stop and shaft sleeve of
the freezing door, take out the
left door self-locking from the
accessory bag, install it on t
he left
side of the lower end cover of the
freezing door, change the door
stop and shaft sleeve to the left
side of the lower end cover of the
freezing door.
middle hinge
decorative cover

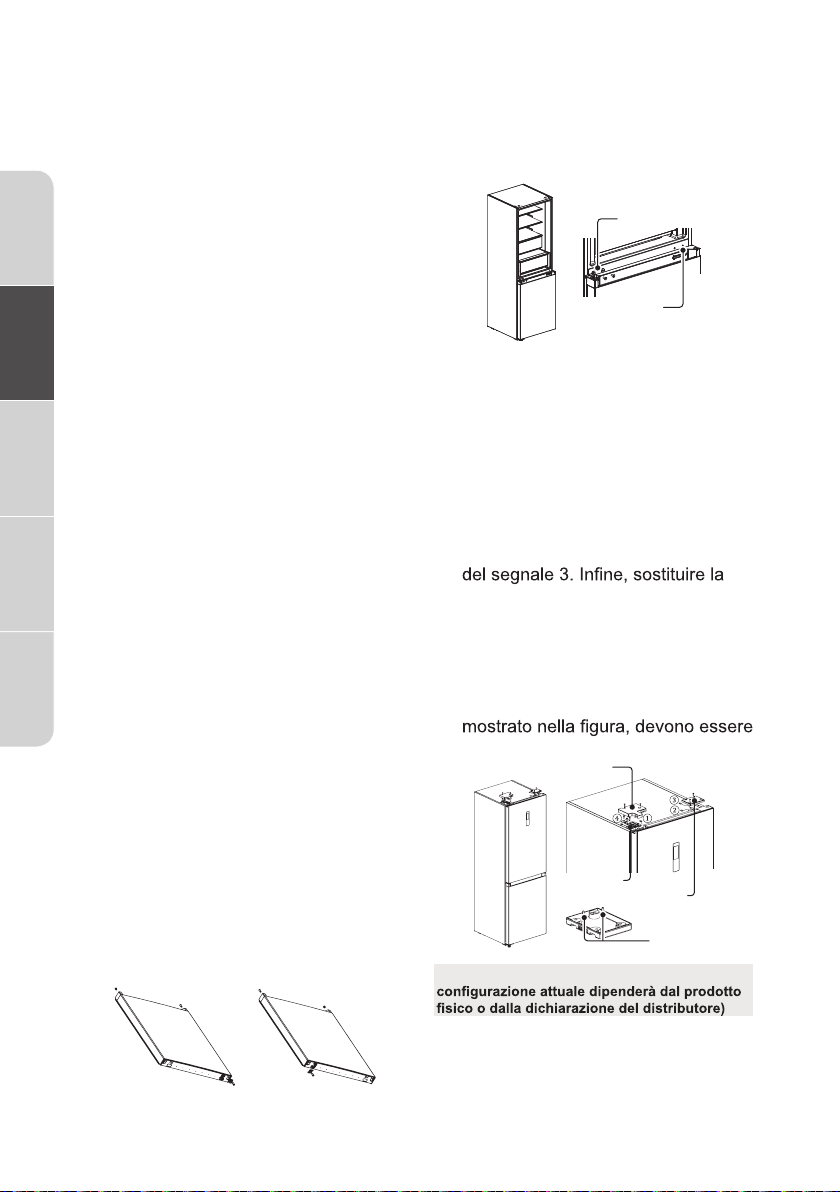

• Remove the upper left hinge
cover and upper left hinge from
the accessory bag.
Place the refrigerated door body
on the middle hinge and install
the upper left hinge. Connect
the refrigerator top signal line
4 to the door body signal line 1,
and connect the signal line 2 to
the signal line 3. Finally, replace
the hinge decorative cover to
the right side of the box body
(note: when replacing the hinge
decorative cover to the right side
of the box body, the two inserts
on the hinge decorative cover
cut off)
middle hinge
upper hinge
decorative cover
inserts
The picture above is only for reference.
the physical product or statement by the
distributor
• Install the replaced freezing door
on the lower hinge, then install the
middle hinge and cover the hinge
hole decorative cover.
EN-18
2.8 LEVELING FEET
• Precautions before operation:
Before operation of accessories,
it shall be ensured that the
refrigerator is disconnected from
power.
Before adjusting the leveling feet,
precautions shall be taken to
prevent any personal injury.

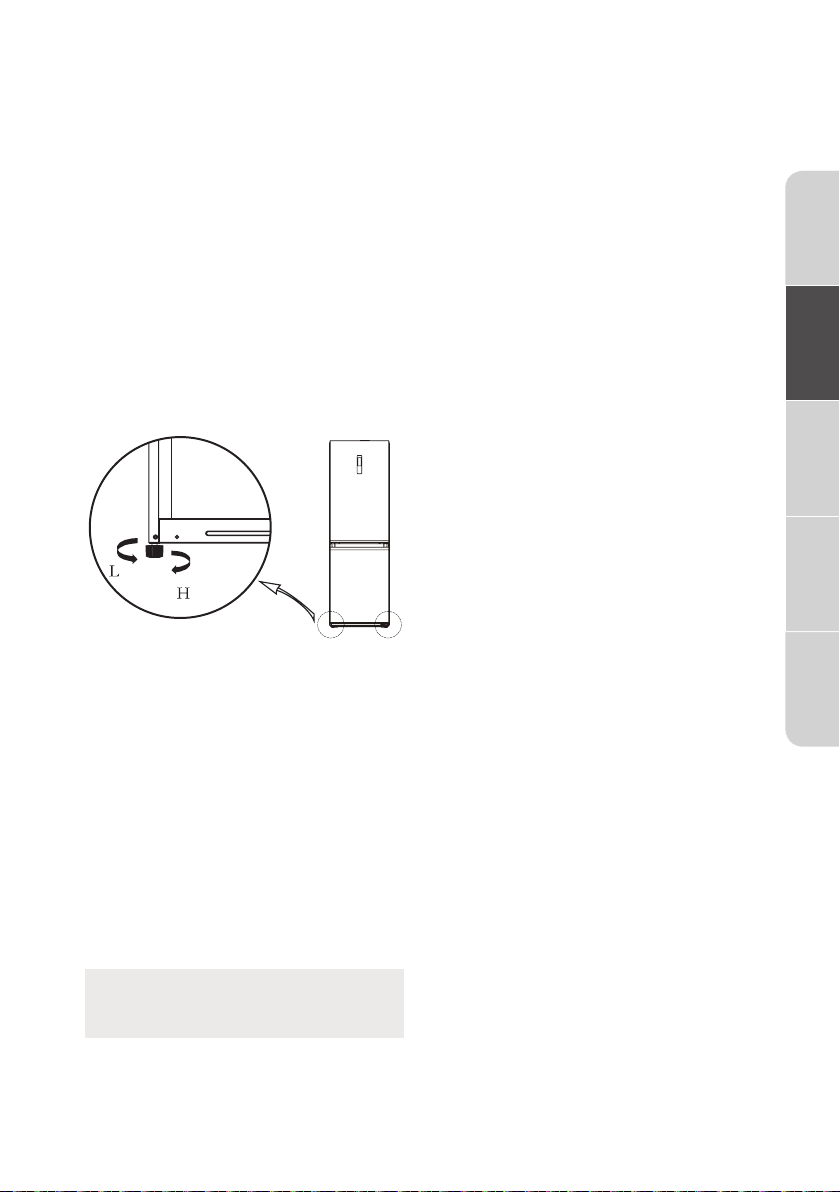

• Schematic diagram of the leveling
feet.
• Adjusting procedures:
a. Turn the feet clockwise to raise
the refrigerator;
b. Turn the feet counterclockwise
to lower the refrigerator;
c. Adjust the right and left feet
based on the procedures above to
a horizontal level.
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
IMPORTANT:
The picture above is only for reference.
The actual conguration will depend on
the physical product or statement by the
distributor
EN-19
3. MAINTENANCE OF REFRIGERATOR
Information
Refrigerator
Refrigerator
3.1 OVERALL CLEANING
Safety
• Dusts behind the refrigerator and
Proper use of
• Check the door gasket regularly
Maintenance of
• The interior of the refrigerator
• Please turn off the power before
shooting
Trouble
• Use a soft cloth or sponge to
Appendix
• For areas that are difcult to
• Do not use soap, detergent, scrub
on the ground shall be timely
cleaned to improve the cooling
effect and energy saving.
to make sure there are no debris.
Clean the door gasket with a soft
cloth dampened with soapy water
or diluted detergent.
should be cleaned regularly to
avoid odor.
cleaning interior, remove all foods,
drinks ,shelves, drawers, etc.
clean the inside of the refrigerator,
with two tablespoons of baking
soda and a quart of warm water.
Then rinse with water and wipe
clean. After cleaning, open the
door and let it dry naturally before
turning on the power.
clean in the refrigerator (such
as narrow sandwiches, gaps or
corners), it is recommended to
wipe them regularly with a soft
rag, soft brush, etc. and when
necessary, combined with some
auxiliary tools (such as thin sticks)
to ensure no contaminants or
bacterials accumulation in these
areas.
powder, spray cleaner, etc., as
these may cause odors in the
interior of the refrigerator or
contaminated food.
• Clean the bottle frame, shelves
and drawers with a soft cloth
dampened with soapy water or
diluted detergent. Dry with a soft
cloth or dry naturally.
• Wipe the outer surface of the
refrigerator with a soft cloth
dampened with soapy water,
detergent, etc., and then wipe dry.

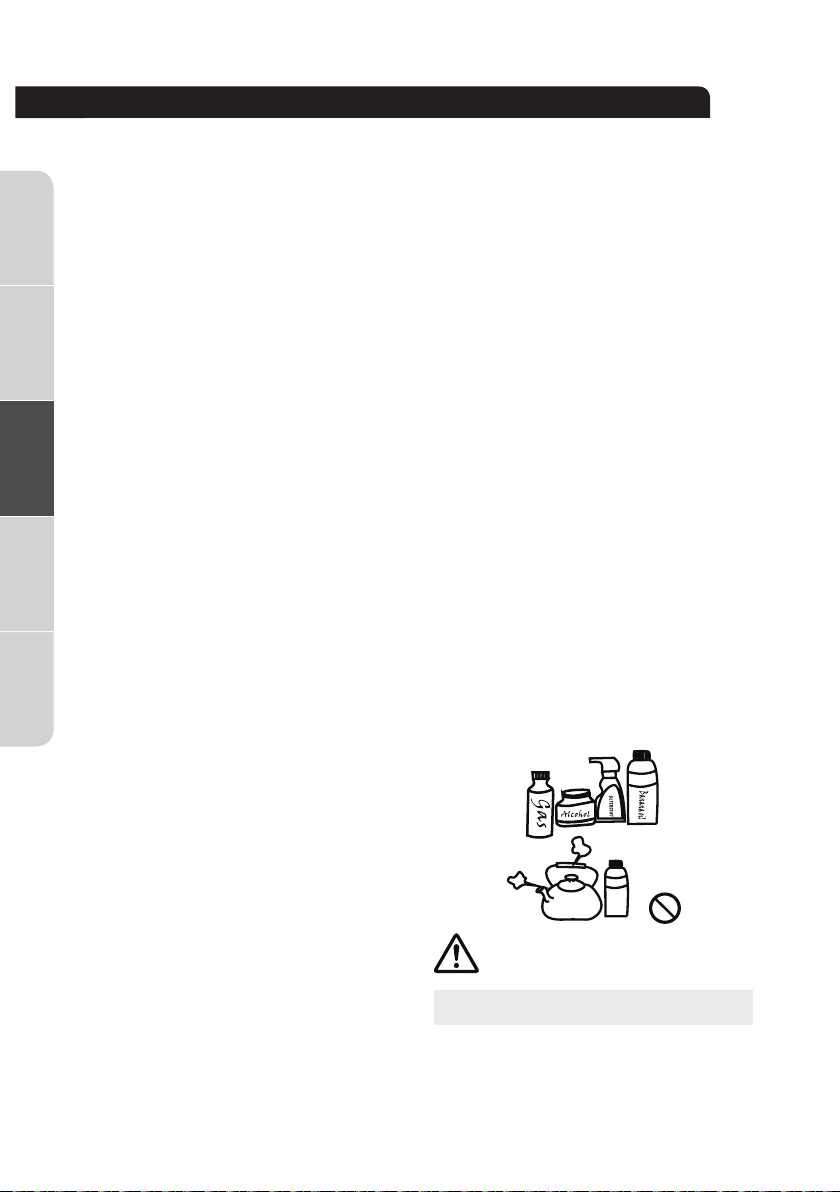

• Do not use hard brushes, clean
steel balls, wire brushes, abrasives
(such as toothpastes), organic
solvents (such as alcohol, acetone,
banana oil, etc.), boiling water,
acid or alkaline items, which may
damage the fridge surface and
interior. Boiling water and organic
solvents such as benzene may
deform or damage plastic parts.
• Do not rinse directly with water
or other liquids during cleaning
to avoid short circuits or
affect electrical insulation after
immersion.
Please unplug the refrigerator for defrost
and cleaning.
EN-20
3.2 DEFROSTING
• The refrigerator is made based
on the air-cooling principle and
thus has automatic defrosting
function. Frost formed due to
change of season or temperature
may also be manually removed
by disconnection of the appliance
from power supply or by wiping
with a dry towel.
3.3 OUT OF OPERATION
3.4 CLEANING OF GLASS

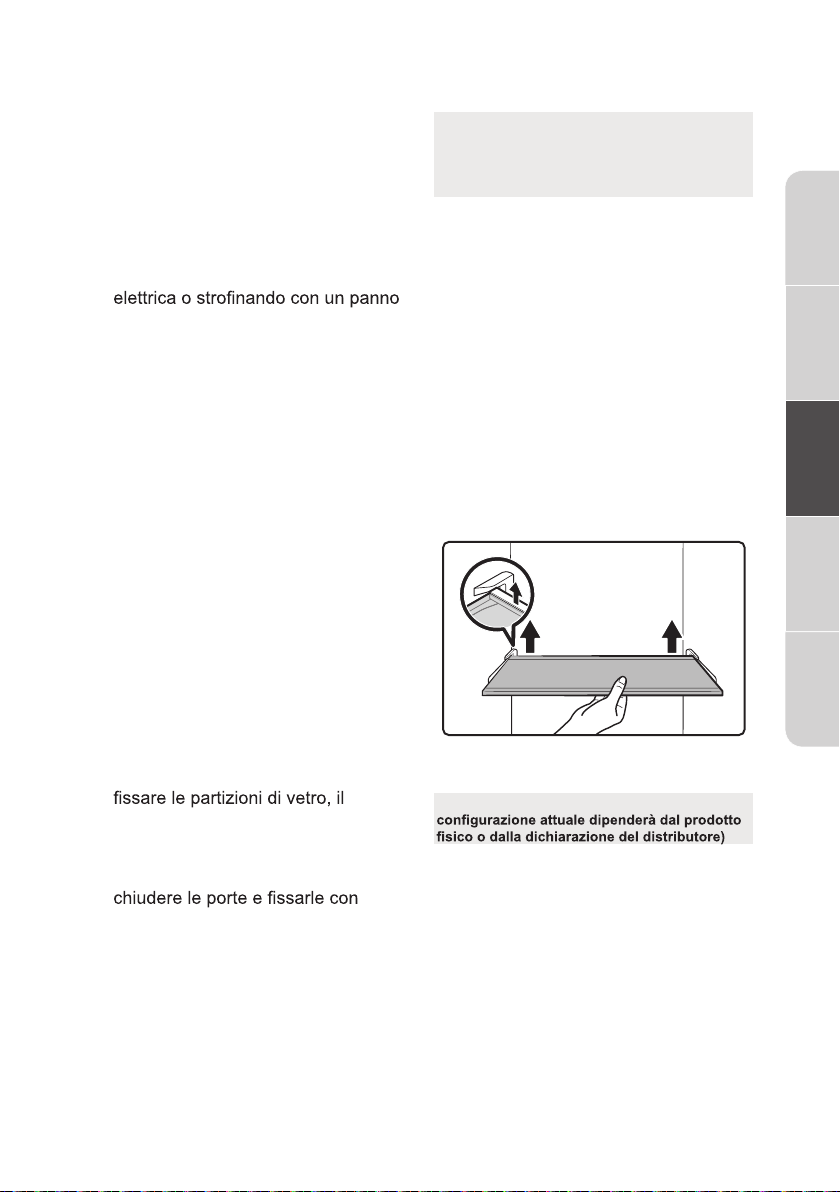

SHELF
• Remove the drawer on the glass
shelf;
• Lift up the front of glass
shelf(about 60°), and then pull
out;
• Remove the glass shelf and clean
as needed;
• The reverse operation is for
installation of glass shelf.
Information
Safety
Proper use of
Refrigerator
• Power failure: In case of power
failure, even if it is in summer,
foods inside the appliance can be
kept for several hours; during the
power failure, the times of door
opening shall be reduced, and no
more fresh food shall be put into
the appliance.
• Long-time nonuse: The appliance
shall be unplugged and then
cleaned; then the doors are left
open to prevent odor.
• Moving: Before the refrigerator is
moved, take all objects inside out,
holder, freezing chamber drawers
and etc. with tape, and tighten the
leveling feet; close the doors and
the appliance shall not be laid
upside down or horizontally, or
be vibrated; the inclination during
movement shall be no more than
45°.
IMPORTANT:
The appliance shall run continuously
once it is started. Generally, the
operation of the appliance shall not be
nterrupted;otherwise the service life may
be impaired
The picture above is only for reference.
the physical product or statement by the
distributor
Maintenance of
Refrigerator
shooting
Trouble
Appendix
EN-21
4. TROUBLE SHOOTING
The following simple issues can be handled by the user. Please call the after-
Information
Refrigerator
Refrigerator
shooting
Appendix
sale service department if the issues are not solved.
Safety
Failed operation
Proper use of
Odor
Maintenance of
Trouble
Long-time operation
of the compressor
Light fails to get lit
Door can not be
properly closed
Loud noises
Door seal fails to
be tight
Water pan overows
Hot housing
Surface
condensation
Abnormal noise
Check whether the appliance is connected to power or whether the plug is
in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have tripped
Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Long operation of the refrigerator is normal in summer
when the ambient temperature is high It is not suggestible having too much
food in the appliance at the same time
Food shall get cool before being put into the appliance
The doors are opened too frequently
Check whether the refrigerator is connected to power supply and whether
the illuminating light is damaged
Have the light replaced by a specialist
The door is stuck by food packages Too much food is placed
The refrigerator is tiltedr.
Check whether the oor is level and whether the refrigerator is placed stably
Check whether accessories are placed at proper locations
Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration
(or blow it with an electrical drier or use a hot towel for heating)
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting
The doors are not closed properly, resulting in frosting due to entry of air
and increased water due to defrosting
Heat dissipation of the built-in condenser via the housing, which is normal
When housing becomes hot due to high ambient temperature, storage of
too much food or shutdown of the compressor is shut down, provide sound
ventilation to facilitate heat dissipation
Condensation on the exterior surface and door seals of the refrigerator is
normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the
buzzes are loud particularly upon start or stop. This is normal.
Creak: Refrigerant owing inside of the appliance may produce creak, which
is normal.
EN-22
5. APPENDIX
Installation Instructions
For refrigerating appliances with climate class
Depending on the climate class, this refrigerating appliance is intended to be
used at ambient temperature ranges as specied following table.
The climate class can be found on the rating plate. The product may not
operate properly at temperatures outside of the specied range.
You can nd the climate class on the label inside your refrigerator.
Effective temperature range
The refrigerator is designed to operate normally in the temperature range
specied by its class rating.
Class Symbol
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43
NOTE
The cooling performance and power consumption of the refrigerator may be affected by
the ambient temperature, the door-opening frequency, and the location of the refrigerator.
We recommend adjusting the temperature settings as appropriate.
Ambient temperature range °C
IEC 62552 (ISO 15502) ISO 8561
Information
Safety
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
EN-23
How to store for best preservation (applicable models only)
Cover foods to retain moisture and prevent them from picking up odors from
other foods. A large pot of food like soup or stew should be divided into small
portions and put in shallow containers before being refrigerated. A large cut
Information
of meat or whole poultry should be divided into smaller pieces or placed in
Safety
shallow containers before being refrigerated.
Placement of Foods
Proper use of
Refrigerator
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
Shelves Shelves are adjustable to accommodate a variety of packages.
Specialized
compartment
(applicable
models only)
Sealed crisper drawers provide an optimal storage
environment for fruit and vegetables.Vegetables require
higher humidity while fruit requires lower humidity Crispers
are equipped with control devices to control
the humidity level. (*Depending on model and options) An
adjustable temperature meat drawer maximizes the storage
time of meats and cheeses.
Stored on the
door
Don’t store perishable foods in the door. Eggs should be
stored in the carton on a shelf. The temperature of the storage
bins in the door uctuate more than the temperature in the
cabinet. Keep the door closed as much as possible.
Freezer
Compartment
You can store frozen food, make ice cubes and freeze fresh
food in the freezer compartment.
NOTE
Freezer fresh, undamaged food only. Keep food which is to be frozen away from food
which is already frozen. To prevent food from losing its avour or drying out, place in
airtight containers.
EN-24
Refrigerator & Freezer Storage Chart
The freshness longevity depends on temperature and exposure to moisture.
Since product dates aren’t a guide for safe use of a product, consult this chart
and follow these tips.
Milk products
Product Refrigerator Freezer
Milk 1 week 1 month
Butter 2 weeks 12 months
Ice cream - 2-3 weeks
Natural cheese 1 month 4-6 months
Cream cheese 2 weeks Not recommended
Yogurt 1 month -
Information
Safety
Proper use of
Refrigerator
Meat
Product Refrigerator Freezer
Fresh roasts, steaks, chops 3-4 days 2-3 months
Fresh ground meat, stew meat 1-2 days 3-4 months
Bacon 7 days 1 month
Sausage, Raw from pork, beef,
turkey
1-2 days 1-2 months
Poultry / Eggs
Product Refrigerator Freezer
Fresh poultry 2 days 6-8 months
Poultry salad 1 day Eggs, Fresh in shell
2-4 weeks Not recommended
Fish / Seafood
Product Refrigerator Freezer
Fresh sh
Cooked sh 3-4 days 1 month
Fish salad 1 day Not recommended
Dried or pickled sh 3-4 weeks -
1-2 days 3-6 months
Fruits
Product Refrigerator Freezer
Apples 1 month Peaches 2-3 weeks Pineapple 1 week Other fresh fruit 3-5 days 9-12 months
Vegetables
Product Refrigerator Freezer
Asparagus 2-3 days Broccoli, Brussels sprouts, green
peas, mushrooms
Cabbage, cauliower, celery,
cucumbers, lettuce
Carrots, beets, radishes 2 weeks -
3-5 days -
1 week -
Maintenance of
Refrigerator
shooting
shooting
Trouble
Trouble
Appendix
EN-25
Information
Safety
SPECIAL FOR NEW EUROPEAN STANDARD
The ordered parts in the following table can be acquired from Service provider
channel
Ordered part Provided by Minimum time required for
Provision
Thermostats Professional maintenance
Proper use of
Refrigerator
Temperature
sensors
Printed circuit
Maintenance of
Refrigerator
boards
Light sources Professional maintenance
Door handles Professional repairers and
shooting
shooting
Trouble
Trouble
Door hinges Professional repairers and
Trays Professional repairers and
Appendix
Baskets Professional repairers and
Door gaskets Professional repairers and
Dear customer
1. If you want to return or replace the product, please contact the store where
you buy.
(Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact aftersales service provider.
personnel
Professional maintenance
personnel
Professional maintenance
personnel
personnel
nal users
nal users
nal users
nal users
nal users
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 7 years after the last model is
launched on the market
At least 10 years after the last model
is launched on the market
NOTE
The model information inthe product database, as well as the model identier, can be
obtained througha weblink scanned by a QR code, if any, on the energy efciency label of
the product.
EN-26
DE
Sicherheitsinfo
rmationen
Verwendung des
Kühlschranks
Richtige
Kühlschranks
Wartung des
1. SICHERHEITSINFORMATIONEN ....................................................... 3
2. RICHTIGE VERWENDUNG DES KÜHLSCHRANKS ........................11
2.1 PLATZIERUNG ..........................................................................11
2.2 ENERGIESPARTIPPS .............................................................. 12
2.3 DAS LICHT WECHSELN .......................................................... 12
2.4 BENUTZUNG BEGINNEN ........................................................ 12
2.5 NAMEN DER KOMPONENTEN ............................................... 13
2.6 FUNKTIONEN ........................................................................... 14
2.7 NIVELLIERFÜSSE .................................................................... 17
2.8 NIVELLIERFÜSSE .................................................................... 19
3. WARTUNG DES KÜHLSCHRANKS ................................................. 20
Störungsbes
eitigung
Anhang
3.1 GESAMTREINIGUNG ............................................................... 20
3.2 ENTFROSTEN .......................................................................... 21
3.3 AUSSER BETRIEB ................................................................... 21
3.4 REINIGUNG DES GLASBODENS ............................................ 21
4. FEHLERSUCHE ................................................................................ 22
5. ANHANG ......................................................................................... 23
Sicherheitsinfo
rmationen
Richtige
Verwendung des
Kühlschranks
Wartung des
Kühlschranks
Problembeh
andlung
Anhang
1. SICHERHEITSINFORMATIONEN
IHRE SICHERHEIT UND DIE SICHERHEIT DER ANDEREN IST SEHR
WICHTIG.
Um Verletzungen des Benutzers oder anderer Personen sowie Sachschäden zu
vermeiden, müssen die hier aufgeführten Anweisungen befolgt werden. Ein falscher
Betrieb aufgrund von Nichtbeachtung der Anweisungen kann zu Verletzungen oder
Schäden bis hin zum Tod führen.
Das Ausmaß des Risikos wird durch die folgenden Angaben verdeutlicht.
Dies ist ein Verbotssymbol.
Die Nichtbeachtung der mit diesem Symbol gekennzeichneten Hinweise kann zu Schäden am Produkt führen oder die
Verbotssymbol
Warnsymbol
Warnendes
Symbol
persönliche Sicherheit des Anwenders gefährden.
Dies ist ein Warnsymbol.
Es ist erforderlich, die mit diesem Symbol gekennzeichneten Anweisungen strikt zu befolgen; andernfalls kann es zu
Schäden am Produkt oder zu Personenschäden kommen.
Dies ist ein warnendes Symbol.
Anweisungen, die mit diesem Symbol gekennzeichnet sind, erfordern besondere Vorsicht. Ungenügende Vorsicht kann zu
leichten oder mittelschweren Verletzungen oder zur Beschädigung des Produkts führen.
WICHTIGE SICHERHEITSHINWEISE

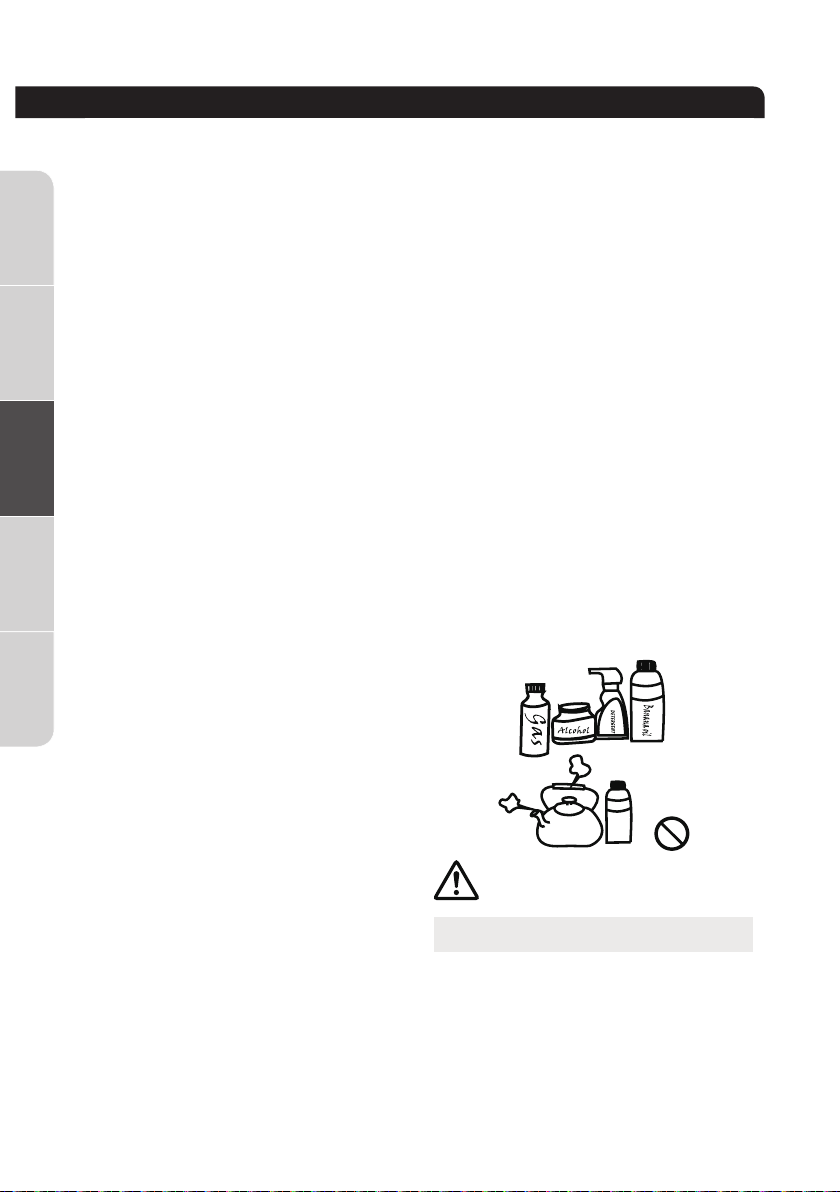

Brandgefahr / Entammbare Materialien
WARNUNG
• Dieses Gerät ist für die Verwendung in Haushalten und ähnlichen Bereichen
vorgesehen, wie z. B. in Personalküchen in Geschäften, Büros und anderen
Arbeitsumgebungen, auf Bauernhöfen und von Kunden in Hotels, Motels
und anderen Wohnumgebungen, in Bed-and-Breakfast-Umgebungen, in der
Gastronomie und ähnlichen Nicht-Einzelhandelsanwendungen.
• Dieses Gerät ist nicht dafür bestimmt, durch Personen (einschließlich Kinder)
mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder
mangels Erfahrung und mangels Wissen benutzt zu werden, es sei denn, sie
werden durch eine für ihre Sicherheit zuständige Person beaufsichtigt oder
erhielten von ihr Anweisungen, wie das Gerät zu benutzen ist.
DE-3
