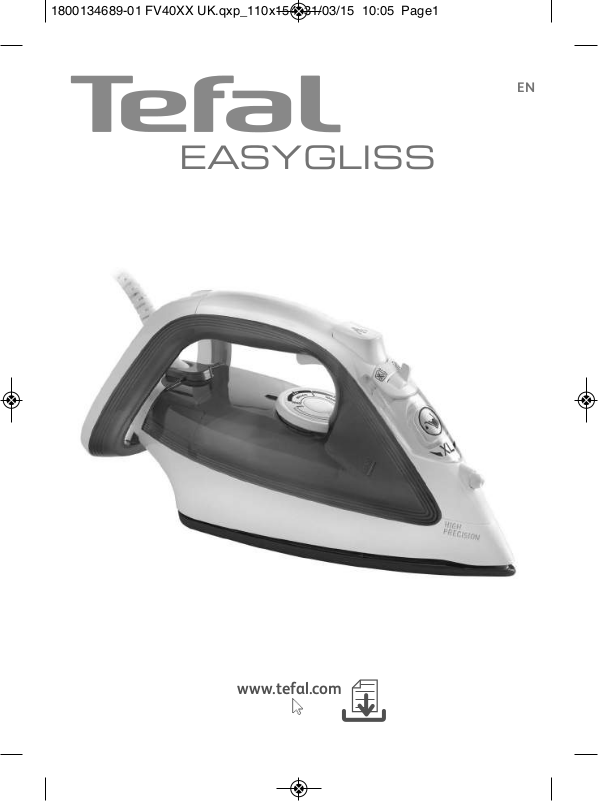

EASYGLISS
www.tefal.com
EN
2
SUMMARY
IMPORTANT SAFETY RECOMMENDATIONS
Important safety recommendations ........................................................ p. 6
Before first use................................................................................................. p. 10
PREPARATION
Which water should I use?.......................................................................... p. 11
Filling the water tank.................................................................................... p. 11
USE
Adjusting the temperature and steam.................................................. p. 12
Dry ironing ........................................................................................................ p. 13
Getting more steam...................................................................................... p. 13
Vertical steam ironing .................................................................................. p. 14
Dampening clothing (Spray) ..................................................................... p. 15
While ironing ................................................................................................... p. 15
Auto-Stop Function (according to model)............................................ p. 15
IRON STORAGE AND MAINTANANCE
Iron storage...................................................................................................... p. 16
Cleaning the anti-limescale collector (once per month) ................ p. 17
Descaling the steam chamber (once per month).............................. p. 18
Cleaning the soleplate................................................................................... p.19
IS THERE A PROBLEM WITH YOUR IRON?
Problems, possible causes, solutions....................................................... p. 20
3
EN According to model
*
4
5
IMPORTANT SAFETY RECOMMENDATIONS
• Ple
ase read these instructions carefully before
first use. This product has been designed for
domestic and indoor use only. Any commercial
use, inappropriate use or failure to comply with
the instructions, the manufacturer accepts no
responsibility and the guarantee will not apply.
• Never unplug the appliance by pulling the power
cord. Always unplug your appliance: before filling
the water tank or rinsing the water tank, before
cleaning the appliance, after each use.
• The appliance must be used and placed on a flat,
stable, heat-resistant surface. When you place
the iron on the iron rest, make sure that the
surface on which you place it is stable.
• This appliance is not intended to be used by
persons (including children) with reduced or
impaired physical, sensory or mental capabilities
or persons lacking appropriate knowledge or
experience, unless a person responsible for their
safety provides either supervision or appropriate
instructions concerning use of the appliance
prior to its use.
• Children should be supervised to ensure they do
not play with the appliance.
6
• This appliance may be used by children aged 8
or over and persons lacking appropriate
knowledge or experience or persons with
reduced or impaired physical, sensory or mental
capabilities provided that they have been
thoroughly instructed regarding the use of the
appliance, are supervised, and understand the
risks involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Keep the iron and its cord out of reach of
children less than 8 years of age when it is
energized or cooling down.
• The surfaces of your appliance can reach
very high temperatures when functioning,
which may cause burns. Do not touch the
hot surfaces of the appliance (accessible
metal parts and plastic parts adjacent to the
metallic parts).
• Never leave the appliance unattended when it is
connected to the mains. Before storing the
appliance, once it is unplugged, please wait until
it has cooled down (around 1 hour).
• The appliance must not be used if it has been
dropped, if it has any visible damage, if it leaks,
7
or if it functions abnormally in any way. Do not
attempt to dismantle your appliance: have it
examined at an Approved Service Centre to
avoid any danger.
• Do not allow the power cord to rest close to or
come into contact with sources of heat or sharp
edges.
• Check the electrical power cord for signs of wear
or damage prior to use. If the electrical power
cord is damaged, it must be replaced at an
Approved Service Centre to avoid any danger.
• For your safety, this appliance conforms to all applicable regulations
(Low Voltage Directive, Electromagnetic Compatibility, Environment,
etc).
• Your steam iron is an electrical appliance: it must be used under
normal conditions of use. It is designed for domestic use only.
• Always plug your steam iron:
- into a mains circuit with voltage between 220 V and 240 V,
- into an earthed electrical socket.
Connecting to the wrong voltage may cause irreparable damage to
the appliance and will invalidate your guarantee. If you are using a
mains extension lead, ensure that it is correctly rated (16A) with an
earth, and is fully extended.
• Completely unwind the power cord before plugging into an earthed
socket.
• The soleplate of your iron can reach extremely high temperatures,
and can cause burns: do not touch them. Never touch the electrical
power cords with the soleplate of the iron.
• Your appliance emits steam, which can cause burns. Always handle
the iron with care, especially when ironing vertically. Never direct the
8
steam towards people or animals.
• Never immerse your steam iron in water or any other liquid. Never
place it under a running tap.
• The plug must be removed from the power socket outlet before the
water reservoir is filled with water.
PLEASE RETAIN THIS INSTRUCTION
BOOKLET FOR FUTURE REFERENCE
Environment protection first !
i Your appliance contains valuable materials which can be
recovered or recycled.
‹ Leave it at a local civic waste collection point.
9
BEFORE FIRST USE
Remove any labels from the soleplate before
heating the iron.
Before using the steam function in your iron for
the rst time, we recommend that you allow the
iron to operate a few moments in a horizontal
position without coming into contact with your
laundry. Keeping the iron in this position, push
the steam button several times.
During the rst few uses, the appliance may
produce smoke, a harmless odour and a light
emission of particles. These are simply the
engineering residues from the manufacturing
process burning off. These are harmless and will
quickly disappear.
10
PREPARATION
Max.
Which water should I use?
• Your appliance was designed to operate using untreated tap water.
However, it is necessary to periodically clean the steam chamber to
remove any mineral deposits.
• Do not use pure demineralised or pure distilled water, water from
clothes dryers, scented or softened water, rain water, filtered,
bottled or boiled water, water from refrigerators, batteries or air
conditioners, pure distilled water or rain water as these may
damage the iron. These types of water contain organic waste,
mineral elements that become concentrated when heated and
cause spitting, brown staining, leaking or premature wear on your
iron
If your water is very hard, mix 50% untreated tap water
with 50% distilled water (available in hardware stores).
Filling the water tank
• Unplug the iron before filling it.
• Set the steam control to
• Lift the iron and, holding it at a slight incline, point the soleplate
up.
• Open the water tank cover.
• Fill the water tank to the mark “MAX”.
• Close the water tank cover.
11
OK
USE
• Plug in the appliance.
Adjusting the temperature and steam
• Set the steam control to
• Adjust the temperature control, referring to the table below.
FABRIC
LINEN
COTTON
WOOL
SILK/SYNTHETIC
(Polyester, Acetate, Acrylic,
Polyamide))
• The temperature indicator light turns on.
TEMPERATURE CONTROL
POSITION
MAX
•••
••
•
= STEAM ZONE
• It will turn off automatically once the soleplate achieves the desired
temperature.
Set the temperature control dial to match the type of fabric
you wish to iron. Your iron automatically and accurately
determines the exact temperature and steam flow that are
suitable, in order to guarantee the best results.
12
max.
Your iron heats quickly: begin with fabrics that require
lower temperatures.
When ironing fabrics with most delicate bres: set the
ironing temperature for the most fragile bre.
The iron will not heat up if the thermostat control is set to
"MIN".
Dry ironing
• Set the temperature according to the fabric to be ironed.
• Set the steam control to
• You may continue to iron when the indicator light turns off.
Getting more steam
• Set the thermostat control to “MAX” or “•••”.
1
sec.
• Press the turbo steam button periodically (turbo steam).
• To avoid water dripping on the laundry, maintain an interval of a
few seconds in between each press.
13
NO
max.
1
sec.
Vertical steam ironing
• Hang the item on a hanger and keep the fabric taut with one
hand. The steam is very hot; never steam iron clothing while
it is being worn - always use a hanger.
• Set the thermostat control to “MAX”
• Press the turbo steam button (turbo steam) in pulses, moving
the iron from top to bottom.
• Hold the iron at a distance of a few centimetres from the
clothing to avoid burning delicate fabrics.
14
Dampening clothing (Spray)
• When dry or steam ironing, press repeatedly on the spray
button to moisten clothing and remove stubborn creases.
• Ensure that there is water in the tank before using the spray
button.
OR
NO
OK
While ironing
• Do not lay the iron down on the soleplate; use the heel rest for
this purpose.
Auto-Stop Function (according to model)
• If the iron remains unused for more than 8 minutes on the heel
rest or more than 30 seconds laid flat or on its side, the
electronic system will cut the power, the iron will stop heating
and the auto-stop indicator will begin to flash.
• To restart the iron, move it gently until the indicator stops
flashing.
15
45 min.
IRON STORAGE AND
MAINTANANCE
Storing your iron
• Unplug the iron and wait for the soleplate to cool (approx. 45 min.).
• Empty the water tank.
• Set the steam control to .
• Wrap the cord around the bottom of the iron's body. Store the iron
on its heel rest.
16
Cleaning the anti-limescale collector
Click
(once per month)
• Unplug your iron and empty the water tank.
• To remove the anti-limescale collector, open the water tank cover
and pull on the collector near the steam control.
h
4
• Soak the collector for 4 hours in a glass of water with lemon juice.
• Rinse the collector under the tap.
• Insert the collector in place, pushing it until you hear a click.
Beware!
Never touch the end of the collector.
The iron will not function without the anti-limescale collector.
17
Descaling the steam chamber
Max.
Click
(once per month)
• Allow your iron to heat up with a full water tank while on its heel
rest and with the temperature control set to maximum.
• Once the indicator light switches off, unplug the iron and place it
over a sink.
• Remove the anti-limescale collector.
• Shake the iron gently in a horizontal position above the sink until
some of the water (containing the impurities) leaks from the
soleplate.
2
min.
• To finish the process, replace the anti-limescale collector, pushing
it until you hear a click.
• Plug in your iron for 2 minutes on the heel rest to dry the soleplate.
18
NO
NO
• Unplug your iron and, once cooled, wipe it with a soft cloth.
• Never use chemical or abrasive products.
During the next use, turn on your iron in a horizontal position
without putting it into contact with your laundry in order to
eliminate any water containing mineral residues that remain
in the soleplate.
Cleaning the soleplate
• While the soleplate is still cool, clean it with a damp non-metallic
pad.
• Never use chemical or abrasive products.
19
IS THERE A PROBLEM WITH YOUR IRON?
PROBLEMS
Water is leaking
from the holes in
the soleplate.
The iron leaks at
the start of
ironing.
A brown
discharge coming
from the
soleplate is
staining the
clothing.
The soleplate is
dirty or brown
and may stain
clothing.
POSSIBLE CAUSES
You are using the steam when
the iron is not hot enough.
You are using the turbo steam
button (turbo steam) too often.
You have stored the iron
horizontally without emptying
the water tank or setting the
steam control to .
You have removed the antilimescale collector to fill up your
iron.
The steam control dial is not set
to when filling the water
tank.
You are using chemical
descaling agents.
You are not using the right type
of water.
Clothing fibres are building up in
the holes of the soleplate and
burning.
The temperature of the iron is
too hot.
You are using starch. Clean the soleplate as indicated
Your laundry has not been
rinsed sufficiently or you are
ironing a new item of clothing
before washing it.
SOLUTIONS
Wait for the indicator light to turn
off.
Wait a few seconds between each
use.
See the chapter on "Storing your
iron".
Do not remove the anti-limescale
collector when filling the iron.
Ensure that the steam control dial is
set to when filling the water tank.
Do not introduce a descaling agent
into the water tank.
Clean the steam chamber and see
the chapter on "What water should
I use?"
Clean the steam chamber and the
soleplate with a damp sponge.
Periodically vacuum the holes the
holes in the soleplate.
Clean the soleplate as indicated
above. Consult the table of
temperatures to adjust the
temperature.
above. Spray the starch on the
reverse side of the clothing to be
ironed.
Ensure that your laundry is
sufficiently rinsed to eliminate
potential soap deposits or chemical
products on new items of clothing.
20
PROBLEMS
Your iron
produces little
to no steam.
POSSIBLE CAUSES
The water tank is empty. Fill it up.
The anti-limescale collector is
dirty.
Your iron is clogged up with
limescale.
SOLUTIONS
Clean the anti-limescale collector.
Clean the anti-limescale collector and
steam chamber.
The soleplate is
scratched or
damaged.
The iron steams
once the water
tank has been
filled.
The spray does
not spray water.
Your iron has been used for too
long in the dry ironing function.
You have placed your iron on a
metallic iron rest or ironed over
metal zips or fastners.
The steam control dial is not
set to .
The water tank is too full. Do not exceed the max level for filling.
The water tank is not full
enough.
Clean the steam chamber.
Always place your iron on its heel rest
when not in use.
Do not iron over metal zips or fastners.
Ensure that the steam control dial is
set to .
Add water to the water tank.
If you have any problems or queries please call our Customer Relations
team first for expert help and advice: consult our website for contact
details: www.tefal.co.uk
21
Loading...
