For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 1 of 9
Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 2 of 9
Engine Parts List #1
Ref # Part Number Qty Description
1 32748A Cylinder Assy. (2-5/8" Bore)0
2 26727 Pin, Dowel0
4 29183 Seal, Oil0
5 29314B Valve, Intake (Standard) (Conventional0
5 29315C Valve, Exhaust (1/32" oversize)0
6 29313C Valve, Exhaust (Standard) (Conventional0
6 29315C Valve, Exhaust (1/32" oversize)0
8 31671 Cap, Upper valve spring0
9 31672 Spring, Valve0
10 31673 Cap, Lower valve spring0
11 31742A Crankshaft Assy.0
12 29783 Pin, Crankshaft gear0
13 27613 Gear, Crankshaft0
14 34851 Piston, Pin & Ring Assy. (Std.) (2-5/8")0
14 34852 Piston, Pin & Ring Assy. (.010 oversize)0
14 34853 Piston, Pin & Ring Assy. (.020 oversize)0
14A 32603B Piston & Pin Assy. (Std.) (2-5/8")0
14A 32604B Piston & Pin Assy. (.010 oversize)0
14A 32605B Piston & Pin Assy. (.020 oversize)0
15 34854 Ring Set, Piston (Standard) (2-5/8")0
15 34855 Ring Set, Piston (.010 oversize)0
15 34856 Ring Set, Piston (.020 oversize)0
16 20381 Ring, Piston pin retaining0
17 30963B Rod Assy., Connecting0
18B 26706 Bolt, Connecting rod0
19 20747 Washer, Connecting rod bolt0
20 27573 Nut, Connecting rod bolt0
21A 27241 Lifter, Valve0
21 27241 Lifter, Valve0
22 32758 Camshaft0
23 29914 Pump Assy., Oil0
24 35261 Gasket, Mounting flange0
25 34831 Flange Assy., Mounting0
26 26208 Seal, Oil0
27 28833 Gasket, Oil drain0
28 30572 Plug, Drain (Hex hd. 3/8-18)0
30 650488 Screw0
43 610961 Key, Flywheel (Std. Pt. Ign.)0
44 650694A Screw, Hex flange hd., 5/16-18 x 20
44A 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20
45 33636 Plug, Spark (Champion J-8 or equivalent)0
45 34251 Resistor Spark Plug0
46 32643 Gasket, Cylinder head0
47 32751 Head, Cylinder0
48 26073 Washer, Connecting rod bolt0
49A 32928 Spacer0
49 650628A Screw, Hex hd. cap, 5/16-18 x 2-3/80
50 34215 Breather Assy.0
51 30200 Screw0
52 32760 Gasket, Breather0
55 32755 Cover, Valve spring box0
56 27234 Gasket, Breather cover0
57 30063 Screw0
58 32756 Stud, Spacer0
59 32649 Gasket, Intake0
60 32757 Pipe, Intake0
61 6201 Screw0
61A 650451 Screw0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 3 of 9
Engine Parts List #1
Ref # Part Number Qty Description
62 650451 Screw0
67 32544 Gasket, Carburetor (1/8 thick)0
99 650831 Screw, Hex washer hd. Powerlok thread,0
101 31862A Tank Assy., Fuel (Charcoal Poly) (1 qt.)0
102 34118 Cap, Fuel filler (Red Plastic) (Spurt0
102 410144B Cap, Fuel filler (White Plastic) (Std.)0
103 29774 Line, Fuel (Braided 8.25")0
103 30705 Line, Fuel (Braided 16")0
103 34357 Line, Fuel (Epichlorohydrin 6-3/4")0
104 26460 Clamp, Fuel line0
115 610973 Terminal Assy.0
120 32749 Muffler (Holes)0
121 650493 Screw, Hex hd. Sems, 1/4-20 x 1-3/40
123 32752 Gasket, Exhaust0
124 650562 Screw0
125 30139 "O" Ring0
125 34282 "O" Ring (.612 I.D. x .812 O.D. x .1030
126 32750 Tube, Oil filler0
127 29985 "O" Ring0
128 30140 Dipstick, Oil (Screw In)0
129 610118 Cover, Spark plug0
130 650607 Nut, Flywheel0
131 650815 Washer, Belleville0
192A 0 Rivet, Pop (3/16" Dia.)0
201 730207 Magneto-to-Solid State Conversion Kit0
250C 31353 Decal, Instruction0
251A 631371 Inlet Needle & Spring Assy.0
255 631487 Carburetor0
258 33238C Gasket Set0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 4 of 9
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 5 of 9
Engine Parts List #2
Ref # Part Number Qty Description
1 32748A Cylinder Assy. (2-5/8" Bore)0
2 26727 Pin, Dowel0
50 34215 Breather Assy.0
51 30200 Screw0
52 32760 Gasket, Breather0
63 650506 Screw0
64 631036 Shutter, Throttle0
65 631530 Shaft Assy., Throttle0
66 631066 Spring, Return0
72 650489 Screw0
115 610973 Terminal Assy.0
192A 0 Rivet, Pop (3/16" Dia.)0
192 650737 Screw, Hex washer hd. taptite, 1/4-20 x 1/20
252 30548B Condenser0
253 30547A Contact Assy., Breaker0
254 610793 Magneto, Tecumseh (w/ring gear)0
256 590429A Starter, Side mount rewind0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 6 of 9
Engine Parts List #3
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 7 of 9
Engine Parts List #3
Ref # Part Number Qty Description
98 32753B Housing, Blower0
99 650831 Screw, Hex washer hd. Powerlok thread,0
102 34118 Cap, Fuel filler (Red Plastic) (Spurt0
102 410144B Cap, Fuel filler (White Plastic) (Std.)0
105 27275 Clip, Hi-tension wire0
130 650607 Nut, Flywheel0
131 650815 Washer, Belleville0
132 32237 Screen, Flywheel0
192 650737 Screw, Hex washer hd. taptite, 1/4-20 x 1/20
250D 32546 Decal, Speed control0
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 8 of 9

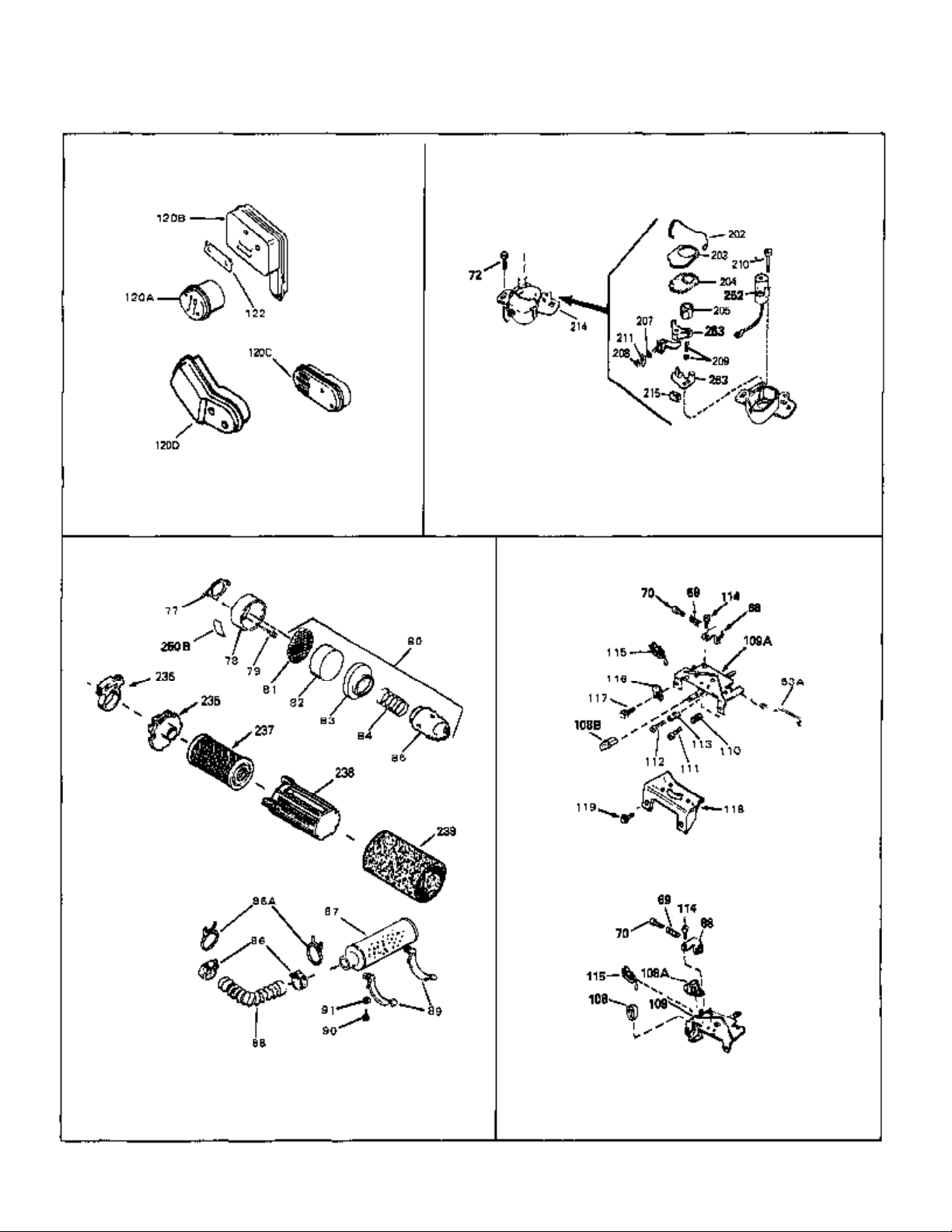

Engine Parts List #4
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145002 Page 9 of 9
Engine Parts List #4
Ref # Part Number Qty Description
77 27272 Gasket, Air cleaner0
78 31312 Body, Air cleaner0
79 28820 Screw0
80 730510 Kit, Pre-cleaner0
81 29962 Screen, Air cleaner0
82 29961 Element, Air cleaner0
83 31612 Cover, Air cleaner0
84 450150 Spring, Pre-cleaner0
85 450124 Bag, Pre-cleaner0
115 610973 Terminal Assy.0
239 35435 Filter, Pre-Air (Poly)0
250B 32547 Decal, Air cleaner0
252 30548B Condenser0
253 30547A Contact Assy., Breaker0
www.mymowerparts.com
