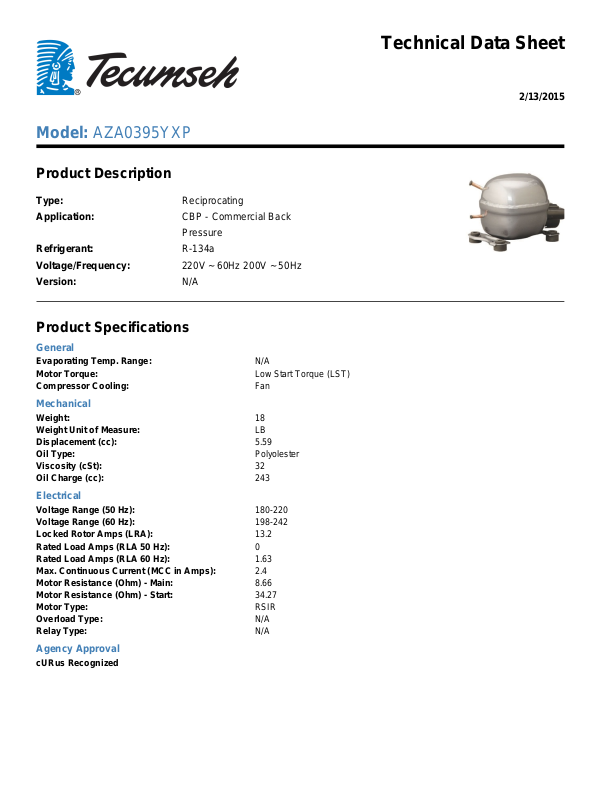

Tecumseh AZA0395YXP Technical Data Sheet

Model: AZA0395YXP

Product Description

Type: Reciprocating
Application: CBP - Commercial Back

Pressure

Refrigerant: R-134a
Voltage/Frequency: 220V ~ 60Hz 200V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

General

Evaporating Temp. Range: N/A
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 18
Weight Unit of Measure: LB
Displacement (cc): 5.59
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 243

Electrical

Voltage Range (50 Hz): 180-220
Voltage Range (60 Hz): 198-242
Locked Rotor Amps (LRA): 13.2
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 1.63
Max. Continuous Current (MCC in Amps): 2.4
Motor Resistance (Ohm) - Main: 8.66
Motor Resistance (Ohm) - Start: 34.27
Motor Type: RSIR
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
