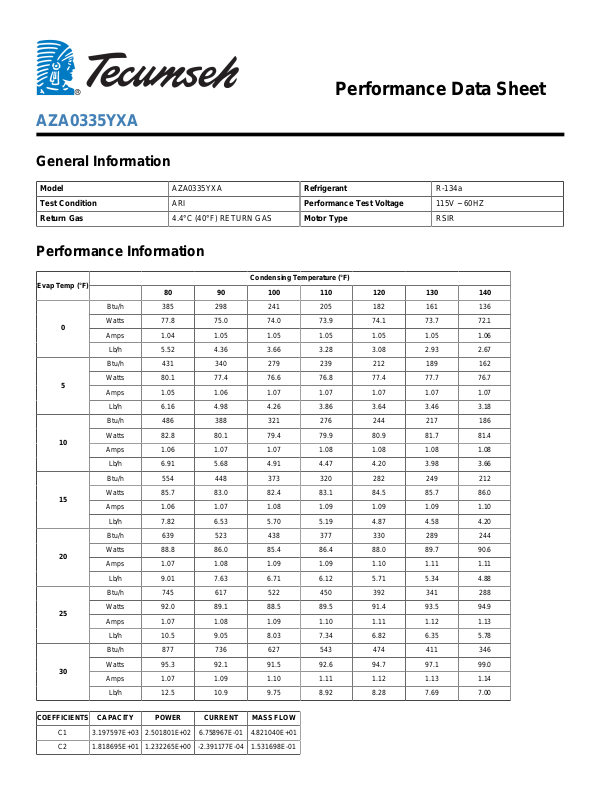

Tecumseh AZA0335YXA Performance Data Sheet

Performance Data Sheet
AZA0335YXA
General Information
Model AZA0335YXA Refrigerant R-134a Test Condition ARI Performance Test Voltage 115V ~ 60HZ Return Gas 4.4°C (40°F) RETURN GAS Motor Type RSIR
Performance Information
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 385 298 241 205 182 161 136 Watts 77.8 75.0 74.0 73.9 74.1 73.7 72.1 Amps 1.04 1.05 1.05 1.05 1.05 1.05 1.06
Lb/h 5.52 4.36 3.66 3.28 3.08 2.93 2.67
Btu/h 431 340 279 239 212 189 162 Watts 80.1 77.4 76.6 76.8 77.4 77.7 76.7 Amps 1.05 1.06 1.07 1.07 1.07 1.07 1.07
Lb/h 6.16 4.98 4.26 3.86 3.64 3.46 3.18
Btu/h 486 388 321 276 244 217 186 Watts 82.8 80.1 79.4 79.9 80.9 81.7 81.4 Amps 1.06 1.07 1.07 1.08 1.08 1.08 1.08
Lb/h 6.91 5.68 4.91 4.47 4.20 3.98 3.66
Btu/h 554 448 373 320 282 249 212 Watts 85.7 83.0 82.4 83.1 84.5 85.7 86.0 Amps 1.06 1.07 1.08 1.09 1.09 1.09 1.10
Lb/h 7.82 6.53 5.70 5.19 4.87 4.58 4.20
Btu/h 639 523 438 377 330 289 244 Watts 88.8 86.0 85.4 86.4 88.0 89.7 90.6 Amps 1.07 1.08 1.09 1.09 1.10 1.11 1.11
Lb/h 9.01 7.63 6.71 6.12 5.71 5.34 4.88
Btu/h 745 617 522 450 392 341 288 Watts 92.0 89.1 88.5 89.5 91.4 93.5 94.9 Amps 1.07 1.08 1.09 1.10 1.11 1.12 1.13
Lb/h 10.5 9.05 8.03 7.34 6.82 6.35 5.78
Btu/h 877 736 627 543 474 411 346 Watts 95.3 92.1 91.5 92.6 94.7 97.1 99.0 Amps 1.07 1.09 1.10 1.11 1.12 1.13 1.14
Lb/h 12.5 10.9 9.75 8.92 8.28 7.69 7.00
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 3.197597E+03 2.501801E+02 6.758967E-01 4.821040E+01 C2 1.818695E+01 1.232265E+00 -2.391177E-04 1.531698E-01
C3 -6.913143E+01 -4.714729E+00 9.830233E-03 -1.073473E+00 C4 3.726276E-01 1.572367E-02 -1.024019E-04 3.399462E-03 C5 -1.592979E-01 -2.034665E-02 3.319911E-05 -3.861129E-04 C6 5.408844E-01 4.187218E-02 -8.437046E-05 8.618689E-03 C7 5.726710E-03 -1.008726E-04 4.567205E-07 1.140598E-04 C8 -3.566490E-03 -9.569520E-05 6.020367E-07 -4.080289E-05 C9 4.976767E-04 1.292053E-04 -7.157305E-08 6.079603E-07
C10 -1.451961E-03 -1.234291E-04 2.393152E-07 -2.339023E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
