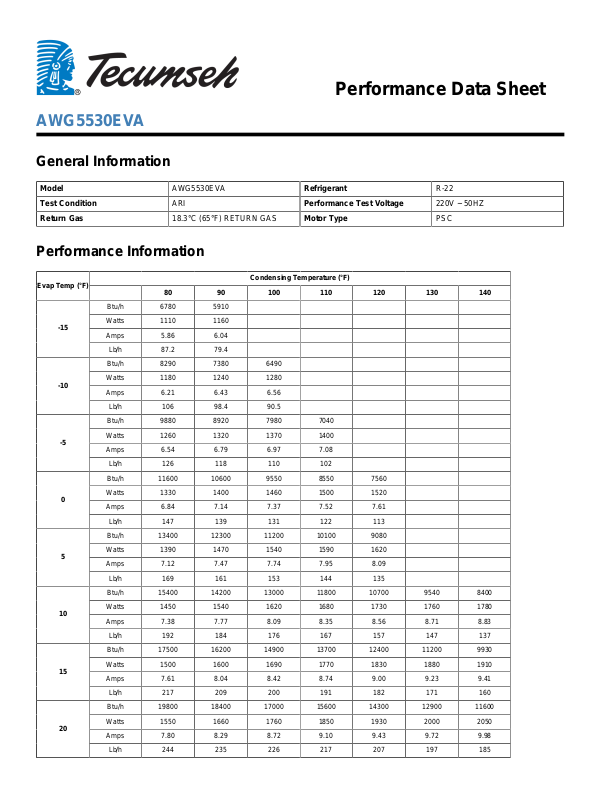

Performance Data Sheet
AWG5530EVA
General Information
Model AWG5530EVA Refrigerant R-22
Test Condition ARI Performance Test Voltage 220V ~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 6780 5910
Watts 1110 1160
Amps 5.86 6.04
Lb/h 87.2 79.4
Btu/h 8290 7380 6490
Watts 1180 1240 1280
Amps 6.21 6.43 6.56
Lb/h 106 98.4 90.5
Btu/h 9880 8920 7980 7040
Watts 1260 1320 1370 1400
Amps 6.54 6.79 6.97 7.08
Lb/h 126 118 110 102
Btu/h 11600 10600 9550 8550 7560
Watts 1330 1400 1460 1500 1520
Amps 6.84 7.14 7.37 7.52 7.61
Lb/h 147 139 131 122 113
Btu/h 13400 12300 11200 10100 9080
Watts 1390 1470 1540 1590 1620
Amps 7.12 7.47 7.74 7.95 8.09
Lb/h 169 161 153 144 135
Btu/h 15400 14200 13000 11800 10700 9540 8400
Watts 1450 1540 1620 1680 1730 1760 1780
Amps 7.38 7.77 8.09 8.35 8.56 8.71 8.83
Lb/h 192 184 176 167 157 147 137
Btu/h 17500 16200 14900 13700 12400 11200 9930
Watts 1500 1600 1690 1770 1830 1880 1910
Amps 7.61 8.04 8.42 8.74 9.00 9.23 9.41
Lb/h 217 209 200 191 182 171 160
Btu/h 19800 18400 17000 15600 14300 12900 11600
Watts 1550 1660 1760 1850 1930 2000 2050
Amps 7.80 8.29 8.72 9.10 9.43 9.72 9.98
Lb/h 244 235 226 217 207 197 185
Page 2
Btu/h 22200 20800 19300 17800 16300 14800 13300
25
30
35
40
45
50
55
Watts 1590 1710 1820 1930 2020 2110 2180
Amps 7.97 8.51 9.00 9.44 9.84 10.2 10.5
Lb/h 273 264 255 245 235 224 212
Btu/h 24900 23300 21700 20100 18500 16900 15200
Watts 1620 1750 1880 2000 2110 2220 2310
Amps 8.11 8.71 9.25 9.76 10.2 10.7 11.1
Lb/h 304 295 285 275 264 253 240
Btu/h 27900 26100 24300 22600 20800 19100 17300
Watts 1640 1790 1930 2070 2200 2320 2430
Amps 8.22 8.87 9.48 10.0 10.6 11.1 11.6
Lb/h 337 328 318 307 296 284 271
Btu/h 31000 29100 27200 25300 23400 21500 19600
Watts 1660 1820 1980 2130 2270 2420 2550
Amps 8.29 9.00 9.68 10.3 10.9 11.5 12.1
Lb/h 373 364 353 342 330 318 304
Btu/h 34500 32400 30300 28300 26200 24100 22000
Watts 1670 1840 2010 2180 2350 2510 2670
Amps 8.33 9.10 9.84 10.5 11.2 11.9 12.6
Lb/h 412 402 391 380 367 354 340
Btu/h 38200 35900 33700 31400 29200 26900 24700
Watts 1680 1860 2040 2230 2410 2600 2780
Amps 8.34 9.17 9.98 10.8 11.5 12.3 13.0
Lb/h 454 444 432 420 407 393 378
Btu/h 42200 39800 37300 34900 32500 30000 27600
Watts 1670 1870 2070 2270 2480 2680 2880
Amps 8.30 9.20 10.1 10.9 11.8 12.6 13.4
Lb/h 500 488 476 463 450 435 420
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.044233E+04 2.536465E+02 1.150637E+00 2.132053E+02
C2 4.487713E+02 1.351558E+01 2.328930E-02 4.176675E+00
C3 -1.204748E+02 1.743853E+01 1.138720E-01 -1.012550E+00
C4 4.174621E+00 -1.870407E-01 -8.526838E-04 3.185098E-02
C5 -1.110471E+00 -1.531365E-01 8.201881E-05 3.536530E-03
C6 1.457295E-01 -3.611786E-02 -6.019332E-04 3.731961E-03
C7 2.359014E-02 -4.421327E-04 -1.637969E-06 2.680642E-04
C8 -2.174530E-02 1.075753E-03 4.481410E-06 -9.303310E-05
C9 -1.385774E-03 1.862971E-03 4.505569E-06 -3.021713E-05
C10 -3.035120E-04 -1.791309E-04 8.468730E-07 -1.850595E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
AWG5530EVA
General Information
Model AWG5530EVA Refrigerant R-22
Test Condition ARI Performance Test Voltage 265V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 7650 6680
Watts 1400 1430
Amps 5.56 5.59
Lb/h 98.7 89.6
Btu/h 9350 8310 7310
Watts 1500 1540 1560
Amps 5.96 6.04 6.07
Lb/h 120 111 102
Btu/h 11200 10100 9020 7970
Watts 1600 1640 1670 1690
Amps 6.34 6.46 6.54 6.59
Lb/h 143 134 125 115
Btu/h 13300 12100 10900 9760 8640
Watts 1690 1740 1780 1810 1830
Amps 6.68 6.86 6.99 7.08 7.15
Lb/h 168 159 149 140 129
Btu/h 15500 14200 13000 11700 10500
Watts 1780 1840 1890 1940 1970
Amps 7.00 7.23 7.41 7.56 7.68
Lb/h 195 186 176 166 156
Btu/h 18000 16600 15200 13800 12500 11200 9840
Watts 1860 1930 2000 2050 2100 2140 2170
Amps 7.30 7.57 7.81 8.01 8.19 8.34 8.46
Lb/h 225 215 205 195 184 173 160
Btu/h 20600 19100 17600 16100 14700 13200 11800
Watts 1930 2020 2100 2170 2230 2280 2330
Amps 7.57 7.89 8.18 8.44 8.68 8.88 9.07
Lb/h 256 246 236 226 215 203 190
Btu/h 23500 21800 20200 18600 17000 15400 13800
Watts 2000 2100 2190 2270 2350 2420 2490
Amps 7.81 8.19 8.53 8.85 9.14 9.41 9.66
Lb/h 289 279 269 258 247 235 222
Page 4
Btu/h 26500 24800 23000 21300 19500 17800 16100
25
30
35
40
45
50
55
Watts 2060 2170 2280 2380 2470 2560 2640
Amps 8.03 8.46 8.86 9.23 9.58 9.91 10.2
Lb/h 325 315 305 293 282 269 256
Btu/h 29800 27900 26000 24100 22300 20400 18500
Watts 2120 2240 2360 2470 2590 2690 2800
Amps 8.22 8.71 9.16 9.59 10.0 10.4 10.8
Lb/h 364 353 342 331 319 306 292
Btu/h 33400 31300 29300 27200 25200 23100 21100
Watts 2170 2300 2430 2570 2700 2820 2940
Amps 8.39 8.93 9.44 9.93 10.4 10.8 11.3
Lb/h 404 393 382 370 358 344 330
Btu/h 37100 34900 32700 30500 28300 26100 23800
Watts 2210 2360 2500 2650 2800 2940 3090
Amps 8.53 9.12 9.69 10.2 10.8 11.3 11.8
Lb/h 447 436 424 412 399 386 371
Btu/h 41200 38800 36400 34000 31600 29200 26800
Watts 2240 2400 2570 2730 2900 3060 3220
Amps 8.64 9.29 9.92 10.5 11.1 11.7 12.3
Lb/h 493 481 469 457 443 429 414
Btu/h 45400 42900 40300 37700 35100 32500 29900
Watts 2260 2440 2620 2800 2990 3170 3360
Amps 8.73 9.44 10.1 10.8 11.4 12.1 12.7
Lb/h 541 529 517 504 490 475 459
Btu/h 49900 47200 44400 41700 38900 36100 33300
Watts 2280 2470 2670 2870 3070 3270 3480
Amps 8.79 9.56 10.3 11.0 11.8 12.5 13.2
Lb/h 592 579 567 553 539 523 507
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.451519E+04 9.868206E+02 3.446955E+00 2.563422E+02
C2 5.548300E+02 1.139172E+01 2.382694E-03 5.167269E+00
C3 -1.644077E+02 1.109825E+01 6.506133E-02 -1.444356E+00
C4 5.285724E+00 -1.785057E-01 -6.420010E-04 4.476762E-02
C5 -1.333045E+00 -2.829530E-02 6.447673E-04 3.611229E-03
C6 3.611456E-01 -1.890976E-02 -3.527930E-04 6.369346E-03
C7 9.066283E-03 -5.104551E-04 -4.655990E-08 7.997489E-05
C8 -1.852057E-02 9.689234E-04 1.597564E-06 -5.113238E-05
C9 -2.833102E-03 1.350168E-03 2.004651E-06 -3.647217E-05
C10 -7.802611E-04 -1.233502E-04 5.632057E-07 -2.622443E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
