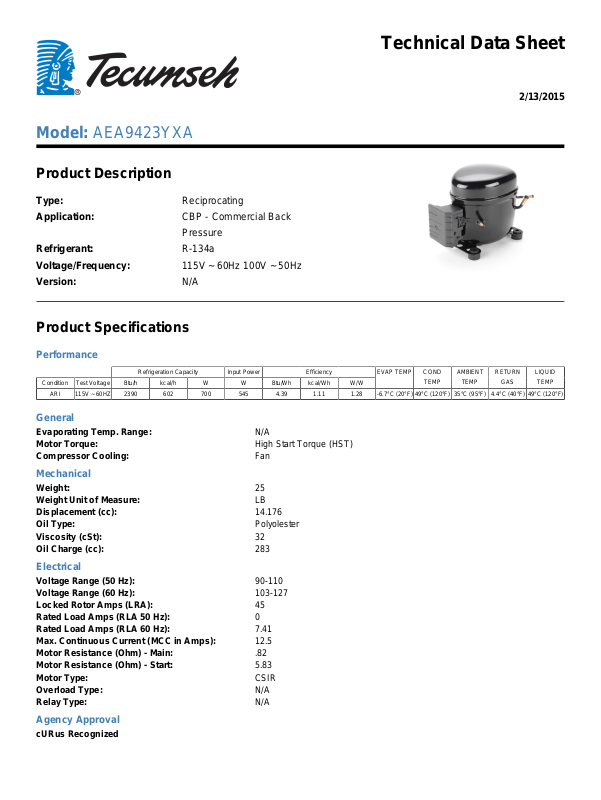

Tecumseh AEA9423YXA Technical Data Sheet

Model: AEA9423YXA

Product Description

Type: Reciprocating
Application: CBP - Commercial Back

Pressure

Refrigerant: R-134a
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 115V ~ 60HZ 2390 602 700 545 4.39 1.11 1.28 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 25
Weight Unit of Measure: LB
Displacement (cc): 14.176
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 283

Electrical

Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 45
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 7.41
Max. Continuous Current (MCC in Amps): 12.5
Motor Resistance (Ohm) - Main: .82
Motor Resistance (Ohm) - Start: 5.83
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

LIQUID

TEMP

Agency Approval

cURus Recognized
