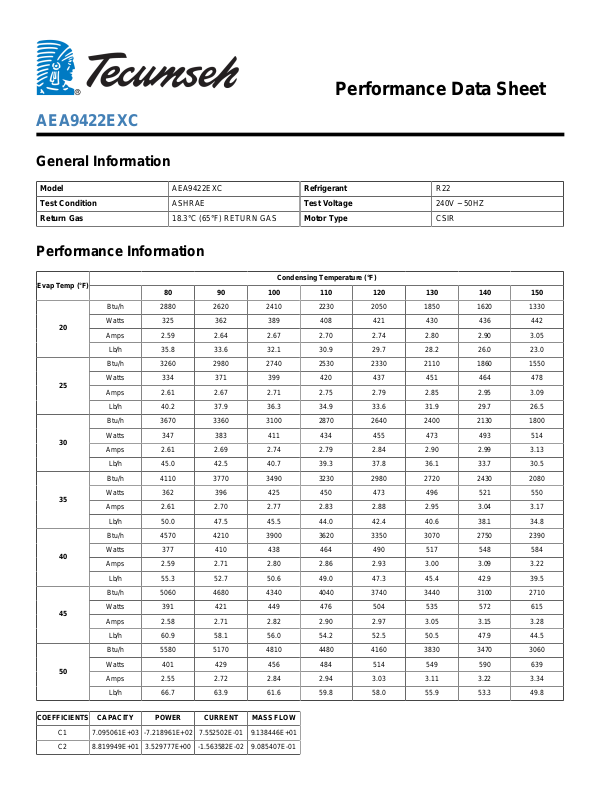

Performance Data Sheet
AEA9422EXC
General Information
Model AEA9422EXC Refrigerant R22
Test Condition ASHRAE Test Voltage 240V ~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140 150
Btu/h 2880 2620 2410 2230 2050 1850 1620 1330
Watts 325 362 389 408 421 430 436 442
Amps 2.59 2.64 2.67 2.70 2.74 2.80 2.90 3.05
Lb/h 35.8 33.6 32.1 30.9 29.7 28.2 26.0 23.0
Btu/h 3260 2980 2740 2530 2330 2110 1860 1550
Watts 334 371 399 420 437 451 464 478
Amps 2.61 2.67 2.71 2.75 2.79 2.85 2.95 3.09
Lb/h 40.2 37.9 36.3 34.9 33.6 31.9 29.7 26.5
Btu/h 3670 3360 3100 2870 2640 2400 2130 1800
Watts 347 383 411 434 455 473 493 514
Amps 2.61 2.69 2.74 2.79 2.84 2.90 2.99 3.13
Lb/h 45.0 42.5 40.7 39.3 37.8 36.1 33.7 30.5
Btu/h 4110 3770 3490 3230 2980 2720 2430 2080
Watts 362 396 425 450 473 496 521 550
Amps 2.61 2.70 2.77 2.83 2.88 2.95 3.04 3.17
Lb/h 50.0 47.5 45.5 44.0 42.4 40.6 38.1 34.8
Btu/h 4570 4210 3900 3620 3350 3070 2750 2390
Watts 377 410 438 464 490 517 548 584
Amps 2.59 2.71 2.80 2.86 2.93 3.00 3.09 3.22
Lb/h 55.3 52.7 50.6 49.0 47.3 45.4 42.9 39.5
Btu/h 5060 4680 4340 4040 3740 3440 3100 2710
Watts 391 421 449 476 504 535 572 615
Amps 2.58 2.71 2.82 2.90 2.97 3.05 3.15 3.28
Lb/h 60.9 58.1 56.0 54.2 52.5 50.5 47.9 44.5
Btu/h 5580 5170 4810 4480 4160 3830 3470 3060
Watts 401 429 456 484 514 549 590 639
Amps 2.55 2.72 2.84 2.94 3.03 3.11 3.22 3.34
Lb/h 66.7 63.9 61.6 59.8 58.0 55.9 53.3 49.8
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 7.095061E+03 -7.218961E+02 7.552502E-01 9.138446E+01
C2 8.819949E+01 3.529777E+00 -1.563582E-02 9.085407E-01
Page 2
C3 -1.375851E+02 2.452089E+01 5.223429E-02 -1.887032E+00
C4 8.120067E-01 2.973134E-01 -8.182537E-04 7.274131E-03
C5 -6.204097E-01 -2.310880E-01 7.706258E-04 -5.349982E-03
C6 1.155911E+00 -1.626687E-01 -5.774437E-04 1.683597E-02
C7 -1.987870E-03 -2.286645E-03 3.279789E-06 -3.405390E-05
C8 -6.136765E-04 -6.705321E-04 3.945250E-06 2.223391E-05
C9 8.882690E-04 1.460072E-03 -3.875110E-06 7.855352E-06
C10 -3.469291E-03 3.114457E-04 2.151970E-06 -5.149179E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
AEA9422EXC
General Information
Model AEA9422EXC Refrigerant R22
Test Condition ASHRAE Test Voltage 240V ~ 50HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140 150
Btu/h 1730 1530 1400 1300 1210 1100 928 666
Watts 355 335 331 338 350 360 363 352
Amps 2.24 2.46 2.57 2.61 2.61 2.62 2.65 2.75
Lb/h 21.3 19.3 18.3 17.8 17.4 16.4 14.6 11.3
Btu/h 2010 1770 1600 1470 1340 1190 989 695
Watts 356 342 344 355 370 382 386 376
Amps 2.31 2.49 2.58 2.62 2.62 2.64 2.70 2.83
Lb/h 24.9 22.4 21.0 20.1 19.3 17.9 15.7 12.1
Btu/h 2320 2040 1840 1680 1530 1360 1130 813
Watts 362 353 358 371 388 401 405 393
Amps 2.38 2.54 2.61 2.64 2.65 2.68 2.77 2.94
Lb/h 28.8 26.0 24.3 23.2 22.0 20.5 18.1 14.2
Btu/h 2640 2340 2120 1940 1770 1580 1340 1010
Watts 373 366 373 388 404 417 419 405
Amps 2.45 2.58 2.64 2.67 2.69 2.74 2.85 3.07
Lb/h 32.8 29.9 28.1 26.8 25.6 24.0 21.5 17.6
Btu/h 2960 2650 2410 2220 2050 1850 1600 1270
Watts 389 384 391 405 420 430 429 410
Amps 2.50 2.61 2.67 2.69 2.73 2.80 2.95 3.21
Lb/h 36.9 34.0 32.1 30.9 29.7 28.2 25.8 22.0
Btu/h 3260 2950 2710 2520 2350 2150 1910 1580
Watts 411 405 411 423 435 441 435 411
Amps 2.54 2.63 2.68 2.71 2.76 2.86 3.04 3.35
Lb/h 40.7 38.0 36.3 35.2 34.3 33.0 30.8 27.3
Btu/h 3550 3240 3010 2830 2660 2480 2240 1930
Watts 438 430 434 442 450 450 438 406
Amps 2.55 2.63 2.67 2.71 2.78 2.91 3.13 3.49
Lb/h 44.2 41.8 40.4 39.7 39.1 38.2 36.4 33.3
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 9.836606E+03 1.842504E+03 -7.172409E+00 1.313265E+02
C2 1.338492E+02 -1.754205E+01 1.419439E-01 1.671462E+00
Page 4
C3 -2.120491E+02 -4.057637E+01 2.436086E-01 -3.005403E+00
C4 -6.998744E-01 3.340049E-01 -3.097347E-04 -1.516593E-02
C5 -1.126454E+00 2.907613E-01 -2.484408E-03 -1.390430E-02
C6 1.816902E+00 3.554119E-01 -2.020053E-03 2.685711E-02
C7 -1.604519E-02 4.307210E-04 -1.011451E-05 -2.120179E-04
C8 1.805094E-02 -3.114547E-03 6.640102E-06 3.044717E-04
C9 1.395221E-03 -9.184705E-04 1.083665E-05 1.890052E-05
C10 -5.405551E-03 -1.007658E-03 5.580109E-06 -8.104945E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
