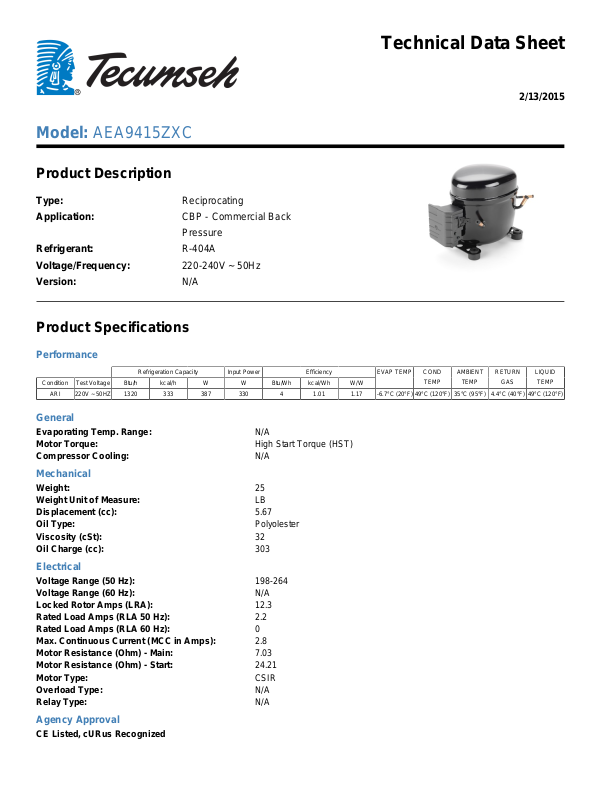

Tecumseh AEA9415ZXC Technical Data Sheet

Model: AEA9415ZXC

Product Description

Type: Reciprocating
Application: CBP - Commercial Back

Pressure

Refrigerant: R-404A
Voltage/Frequency: 220-240V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 220V ~ 50HZ 1320 333 387 330 4 1.01 1.17 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: N/A

Mechanical

Weight: 25
Weight Unit of Measure: LB
Displacement (cc): 5.67
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 303

Electrical

Voltage Range (50 Hz): 198-264
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 12.3
Rated Load Amps (RLA 50 Hz): 2.2
Rated Load Amps (RLA 60 Hz): 0
Max. Continuous Current (MCC in Amps): 2.8
Motor Resistance (Ohm) - Main: 7.03
Motor Resistance (Ohm) - Start: 24.21
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

LIQUID

TEMP

Agency Approval

CE Listed, cURus Recognized
