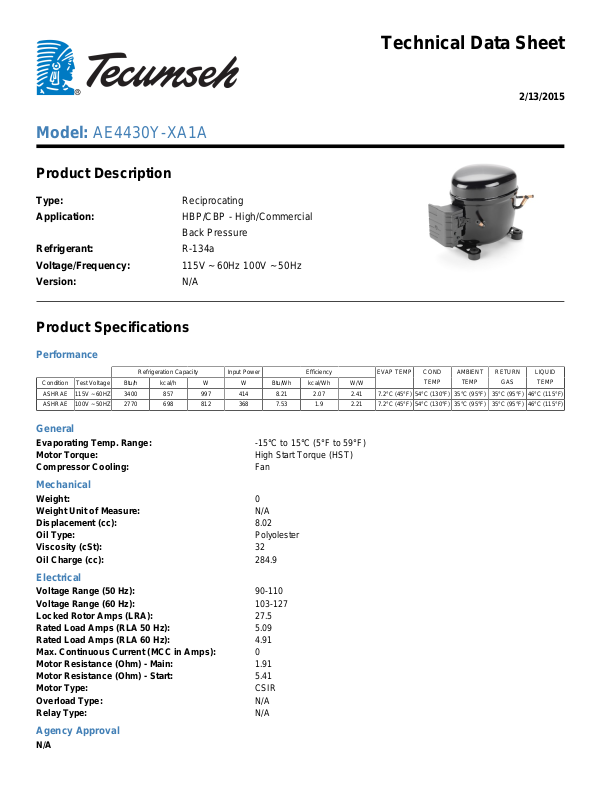

Tecumseh AE4430Y-XA1A Technical Data Sheet

Model: AE4430Y-XA1A

Product Description

Type: Reciprocating
Application: HBP/CBP - High/Commercial

Back Pressure

Refrigerant: R-134a
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 115V ~ 60HZ 3400 857 997 414 8.21 2.07 2.41 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)
ASHRAE 100V ~ 50HZ 2770 698 812 368 7.53 1.9 2.21 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: -15°C to 15°C (5°F to 59°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 0
Weight Unit of Measure: N/A
Displacement (cc): 8.02
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 284.9

Electrical

Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 27.5
Rated Load Amps (RLA 50 Hz): 5.09
Rated Load Amps (RLA 60 Hz): 4.91
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: 1.91
Motor Resistance (Ohm) - Start: 5.41
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

Agency Approval

N/A
