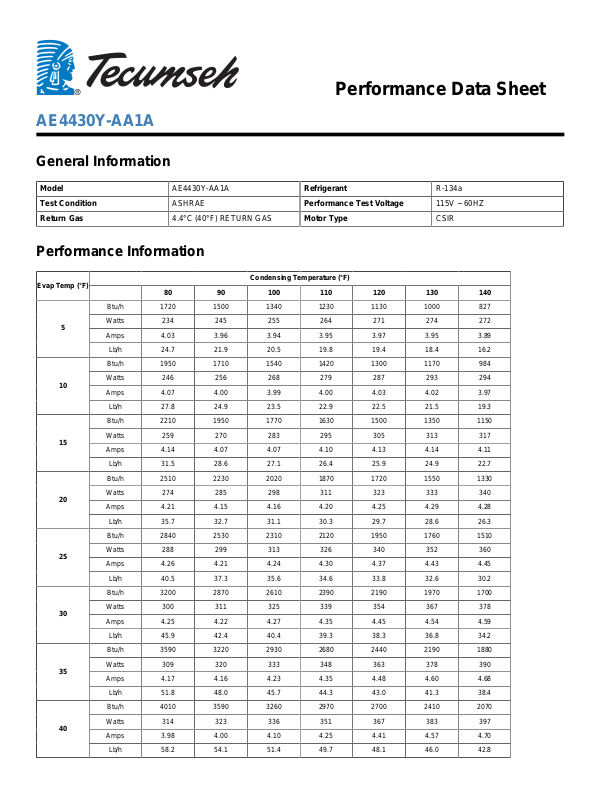

Performance Data Sheet
AE4430Y-AA1A
General Information
Model AE4430Y-AA1A Refrigerant R-134a
Test Condition ASHRAE Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
5
10
15
20
25
30
35
40
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 1720 1500 1340 1230 1130 1000 827
Watts 234 245 255 264 271 274 272
Amps 4.03 3.96 3.94 3.95 3.97 3.95 3.89
Lb/h 24.7 21.9 20.5 19.8 19.4 18.4 16.2
Btu/h 1950 1710 1540 1420 1300 1170 984
Watts 246 256 268 279 287 293 294
Amps 4.07 4.00 3.99 4.00 4.03 4.02 3.97
Lb/h 27.8 24.9 23.5 22.9 22.5 21.5 19.3
Btu/h 2210 1950 1770 1630 1500 1350 1150
Watts 259 270 283 295 305 313 317
Amps 4.14 4.07 4.07 4.10 4.13 4.14 4.11
Lb/h 31.5 28.6 27.1 26.4 25.9 24.9 22.7
Btu/h 2510 2230 2020 1870 1720 1550 1330
Watts 274 285 298 311 323 333 340
Amps 4.21 4.15 4.16 4.20 4.25 4.29 4.28
Lb/h 35.7 32.7 31.1 30.3 29.7 28.6 26.3
Btu/h 2840 2530 2310 2120 1950 1760 1510
Watts 288 299 313 326 340 352 360
Amps 4.26 4.21 4.24 4.30 4.37 4.43 4.45
Lb/h 40.5 37.3 35.6 34.6 33.8 32.6 30.2
Btu/h 3200 2870 2610 2390 2190 1970 1700
Watts 300 311 325 339 354 367 378
Amps 4.25 4.22 4.27 4.35 4.45 4.54 4.59
Lb/h 45.9 42.4 40.4 39.3 38.3 36.8 34.2
Btu/h 3590 3220 2930 2680 2440 2190 1880
Watts 309 320 333 348 363 378 390
Amps 4.17 4.16 4.23 4.35 4.48 4.60 4.68
Lb/h 51.8 48.0 45.7 44.3 43.0 41.3 38.4
Btu/h 4010 3590 3260 2970 2700 2410 2070
Watts 314 323 336 351 367 383 397
Amps 3.98 4.00 4.10 4.25 4.41 4.57 4.70
Lb/h 58.2 54.1 51.4 49.7 48.1 46.0 42.8
Btu/h 4440 3980 3610 3270 2960 2620 2240
45
50
55
60
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 9.720597E+03 2.787547E+02 9.727442E+00 1.759980E+02
C2 4.364565E+01 2.978153E+00 2.077653E-02 3.549930E-01
C3 -2.113530E+02 -3.521181E+00 -1.608875E-01 -4.157640E+00
C4 1.686502E+00 1.454287E-01 8.860667E-04 2.154985E-02
C5 -2.044484E-01 -6.421290E-02 -5.991895E-04 4.903652E-04
C6 1.786068E+00 5.214080E-02 1.484566E-03 3.667781E-02
C7 -4.392345E-03 -1.938351E-03 -3.502113E-05 -2.260595E-05
C8 -9.359608E-03 -4.753286E-04 8.914596E-06 -1.127825E-04
C9 5.830457E-04 4.883689E-04 2.764105E-06 6.012262E-06
C10 -5.266693E-03 -2.024314E-04 -4.525316E-06 -1.091260E-04
Watts 311 320 332 347 363 380 396
Amps 3.66 3.72 3.85 4.03 4.24 4.44 4.61
Lb/h 65.0 60.5 57.5 55.3 53.4 50.9 47.3
Btu/h 4890 4390 3960 3580 3210 2830 2400
Watts 302 309 320 335 351 368 385
Amps 3.19 3.28 3.45 3.67 3.92 4.17 4.39
Lb/h 72.4 67.4 63.9 61.3 58.9 56.0 52.0
Btu/h 5360 4800 4320 3880 3460 3030 2550
Watts 283 288 298 312 329 347 364
Amps 2.53 2.66 2.88 3.15 3.45 3.75 4.02
Lb/h 80.2 74.7 70.7 67.6 64.7 61.3 56.8
Btu/h 5840 5210 4670 4180 3710 3220 2680
Watts 253 257 266 279 295 313 331
Amps 1.67 1.84 2.10 2.42 2.78 3.13 3.47
Lb/h 88.4 82.4 77.8 74.1 70.7 66.7 61.7
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
AE4430Y-AA1A
General Information
Model AE4430Y-AA1A Refrigerant R-134a
Test Condition ASHRAE Performance Test Voltage 115V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
5
10
15
20
25
30
35
40
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 1500 1560 1530 1420 1290 1160 1060
Watts 242 248 255 263 270 276 280
Amps 3.93 3.94 3.97 4.00 4.04 4.06 4.07
Lb/h 17.5 19.5 20.1 19.6 18.7 17.7 17.2
Btu/h 1740 1810 1770 1660 1510 1370 1260
Watts 254 261 269 278 287 294 300
Amps 3.99 4.00 4.03 4.07 4.11 4.15 4.17
Lb/h 20.4 22.7 23.3 22.9 22.0 21.0 20.4
Btu/h 2000 2070 2020 1900 1750 1590 1460
Watts 265 273 283 293 303 312 320
Amps 4.04 4.06 4.09 4.14 4.19 4.24 4.28
Lb/h 23.6 26.0 26.8 26.4 25.5 24.4 23.7
Btu/h 2280 2350 2300 2170 2000 1820 1670
Watts 276 285 295 307 319 330 340
Amps 4.10 4.11 4.15 4.21 4.27 4.34 4.39
Lb/h 27.0 29.6 30.5 30.2 29.2 28.1 27.3
Btu/h 2590 2650 2600 2460 2270 2070 1900
Watts 286 296 308 321 335 348 360
Amps 4.15 4.17 4.21 4.28 4.36 4.43 4.51
Lb/h 30.8 33.5 34.5 34.3 33.3 32.1 31.1
Btu/h 2940 2990 2920 2770 2560 2350 2150
Watts 295 306 320 335 350 365 379
Amps 4.20 4.22 4.28 4.35 4.44 4.54 4.63
Lb/h 35.0 37.8 38.9 38.7 37.7 36.4 35.3
Btu/h 3310 3350 3270 3100 2880 2640 2420
Watts 303 316 331 348 365 383 399
Amps 4.24 4.27 4.34 4.42 4.53 4.64 4.75
Lb/h 39.6 42.6 43.8 43.6 42.5 41.2 39.9
Btu/h 3720 3750 3660 3470 3230 2960 2710
Watts 310 325 342 361 380 400 419
Amps 4.29 4.32 4.40 4.50 4.62 4.75 4.88
Lb/h 44.7 47.9 49.1 49.0 47.9 46.4 45.0
Btu/h 4170 4190 4080 3870 3600 3310 3020
45
50
55
60
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 -6.987532E+03 3.353125E+02 5.191012E+00 -1.130763E+02
C2 7.939755E+00 2.539822E+00 3.514291E-02 -1.806368E-01
C3 2.323385E+02 -3.955328E+00 -4.194573E-02 3.456561E+00
C4 6.145737E-01 -3.114899E-02 -2.190373E-04 3.230602E-03
C5 7.379179E-01 -1.279652E-02 -5.141699E-04 1.368965E-02
C6 -2.084942E+00 4.433492E-02 4.246519E-04 -2.996647E-02
C7 4.088823E-03 -6.318650E-06 -2.292465E-07 7.672337E-05
C8 -4.067325E-03 2.166259E-04 2.301604E-06 -1.389786E-05
C9 -3.767105E-03 1.659055E-04 2.844310E-06 -5.816999E-05
C10 5.903930E-03 -1.422352E-04 -1.336463E-06 8.408253E-05
Watts 317 334 352 373 395 417 438
Amps 4.33 4.37 4.46 4.57 4.71 4.86 5.01
Lb/h 50.4 53.7 55.0 54.9 53.7 52.2 50.6
Btu/h 4660 4660 4530 4310 4010 3690 3370
Watts 323 341 362 385 409 434 457
Amps 4.36 4.42 4.51 4.64 4.80 4.97 5.15
Lb/h 56.7 60.1 61.5 61.4 60.2 58.5 56.8
Btu/h 5190 5180 5030 4780 4460 4100 3750
Watts 329 349 372 397 423 450 477
Amps 4.40 4.46 4.57 4.72 4.89 5.08 5.29
Lb/h 63.7 67.2 68.7 68.6 67.3 65.5 63.6
Btu/h 5770 5750 5580 5300 4950 4560 4170
Watts 333 355 381 408 437 467 496
Amps 4.43 4.50 4.63 4.79 4.98 5.20 5.43
Lb/h 71.4 75.1 76.6 76.4 75.2 73.2 71.2
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
