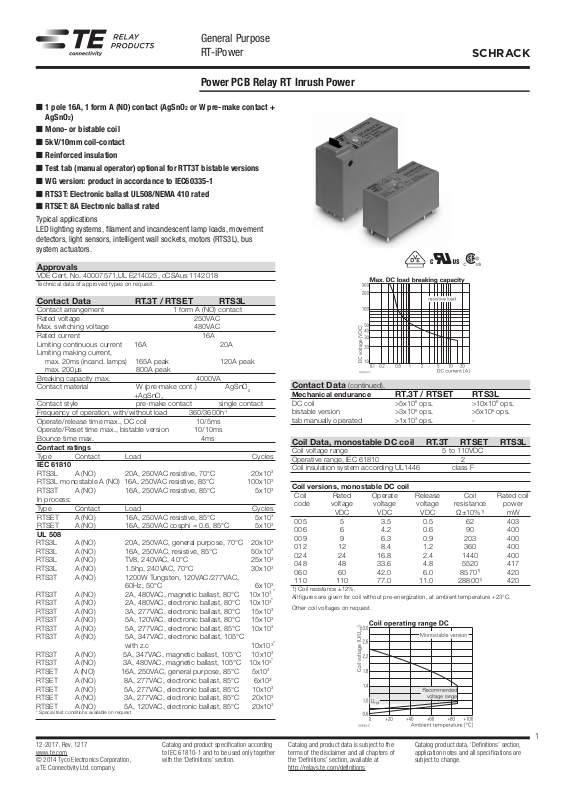

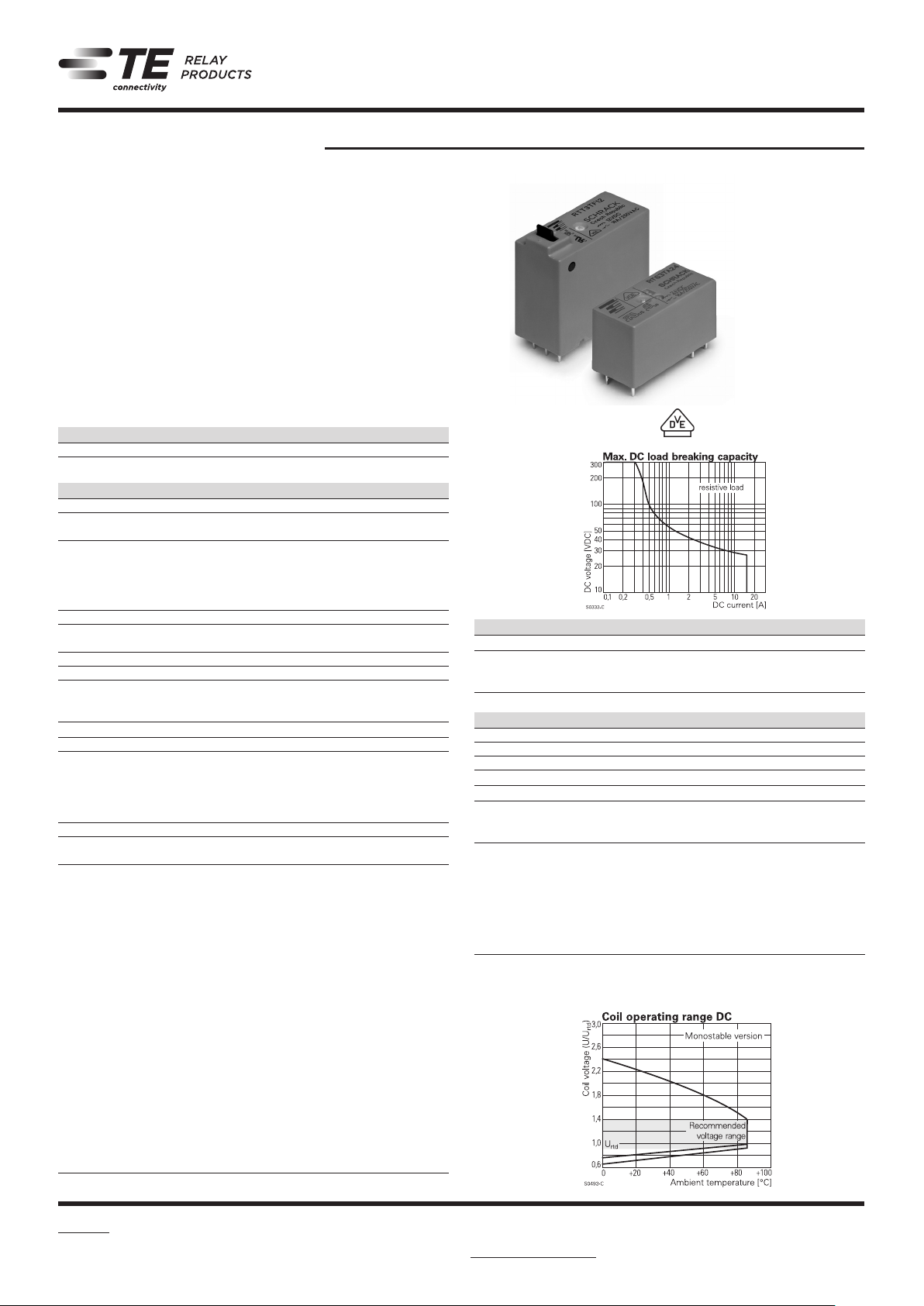

TE CONNECTIVITY RTS3T024 Datasheet

General Purpose

Z

b

RT-iPower

Power PCB Relay RT Inrush Power

n

1 pole 16A, 1 form A (NO) contact (AgSnO2 or W pre-make contact +

AgSnO2)

n

Mono- or bistable coil

n

5kV/10mm coil-contact

n

Reinforced insulation

n

Test tab (manual operator) optional for RTT3T bistable versions

n

WG version: product in accordance to IEC60335-1

n

RTS3T: Electronic ballast UL508/NEMA 410 rated

n

RTSET: 8A Electronic ballast rated

Typical applications
LED lighting systems, filament and incandescent lamp loads, movement
detectors, light sensors, intelligent wall sockets, motors (RTS3L), bus
system actuators.

Approvals

VDE Cert. No. 40007571,UL E214025, cCSAus 1142018

Technical data of approved types on request.

Contact Data RT.3T / RTSET RTS3L

Contact arrangement 1 form A (NO) contact
Rated voltage 250VAC
Max. switching voltage 480VAC
Rated current 16A
Limiting continuous current 16A 20A
Limiting making current,
max. 20ms (incand. lamps)
max. 200µs 800A peak
Breaking capacity max. 4000VA
Contact material W (pre-make cont.) AgSnO2
+AgSnO
Contact style pre-make contact single contact
Frequency of operation, with/without load 360/3600h
Operate/release time max., DC coil 10/5ms
Operate/Reset time max., bistable version 10/10ms
Bounce time max. 4ms

Contact ratings

Type Contact Load Cycles

IEC 61810

RTS3L A (NO) 20A, 250VAC resistive, 70°C 20x103
RTS3L monostable A (NO) 16A, 250VAC resistive, 85°C 100x10
RTS3T A (NO) 16A, 250VAC resistive, 85°C 5x10

In process:
Type Contact Load Cycles
RTSET A (NO) 16A, 250VAC resistive, 85°C 5x10
RTSET A (NO) 16A, 250VAC cosphi = 0.6, 85°C 5x10

UL 508

RTS3L A (NO) 20A, 250VAC, general purpose, 70°C 20x103
RTS3L A (NO) 16A, 250VAC, resistive, 85°C 50x103
RTS3L A (NO) TV8, 240VAC, 40°C 25x103
RTS3L A (NO) 1.5hp, 240VAC, 70°C 30x10
RTS3T A (NO) 1200W Tungsten, 120VAC/277VAC,
60Hz, 50°C 6x10
RTS3T A (NO) 2A, 480VAC, magnetic ballast, 80°C 10x10
RTS3T A (NO) 2A, 480VAC, electronic ballast, 80°C 10x10
RTS3T A (NO) 3A, 277VAC, electronic ballast, 80°C 15x10
RTS3T A (NO) 5A, 120VAC, electronic ballast, 80°C 15x10
RTS3T A (NO) 5A, 277VAC, electronic ballast, 85°C 10x10
RTS3T A (NO) 5A, 347VAC, electronic ballast, 105°C
with z.c 10x10
RTS3T A (NO) 5A, 347VAC, magnetic ballast, 105°C 10x103
RTS3T A (NO) 3A, 480VAC, magnetic ballast, 105°C 10x10
RTSET A (NO) 16A, 250VAC, general purpose, 85°C 5x10

RTSET A (NO) 8A, 277VAC, electronic ballast, 85°C 6x10³
RTSET A (NO) 5A, 277VAC, electronic ballast, 85°C 10x10
RTSET A (NO) 3A, 277VAC, electronic ballast, 85°C 20x10
RTSET A (NO) 5A, 120VAC, electronic ballast, 85°C 20x10

* Special test conditions available on request

165A peak 120A peak

2

-1

3

SCHRACK

Contact Data (continued),

Mechanical endurance RT.3T / RTSET RTS3L

DC coil >5x106 ops. >10x106 ops.
bistable version >3x106 ops. >5x106 ops.
tab manually operated >1x103 ops. -

Coil Data, monostable DC coil RT.3T RTSET RTS3L

Coil voltage range 5 to 110VDC
Operative range, IEC 61810 2
Coil insulation system according UL1446 class F

3

Coil versions, monostable DC coil

3

Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10%1) mW

3

005 5 3.5 0.5 62 403

3

006 6 4.2 0.6 90 400
009 9 6.3 0.9 203 400
012 12 8.4 1.2 360 400
024 24 16.8 2.4 1440 400
048 48 33.6 4.8 5520 417

3

060 60 42.0 6.0 85701) 420
110 110 77.0 11.0 288001) 420

3

1) Coil resistance ±12%.

3 *

All figures are given for coil without pre-energization, at ambient temperature +23°C.

*

3

Other coil voltages on request.

3

3

3

*

3

3*

3

3

3

12-2017, Rev. 1217
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.

Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.

Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

1

application notes and all specifications are
subject to change.

General Purpose
RT-iPower

Power PCB Relay RT Inrush Power (Continued)

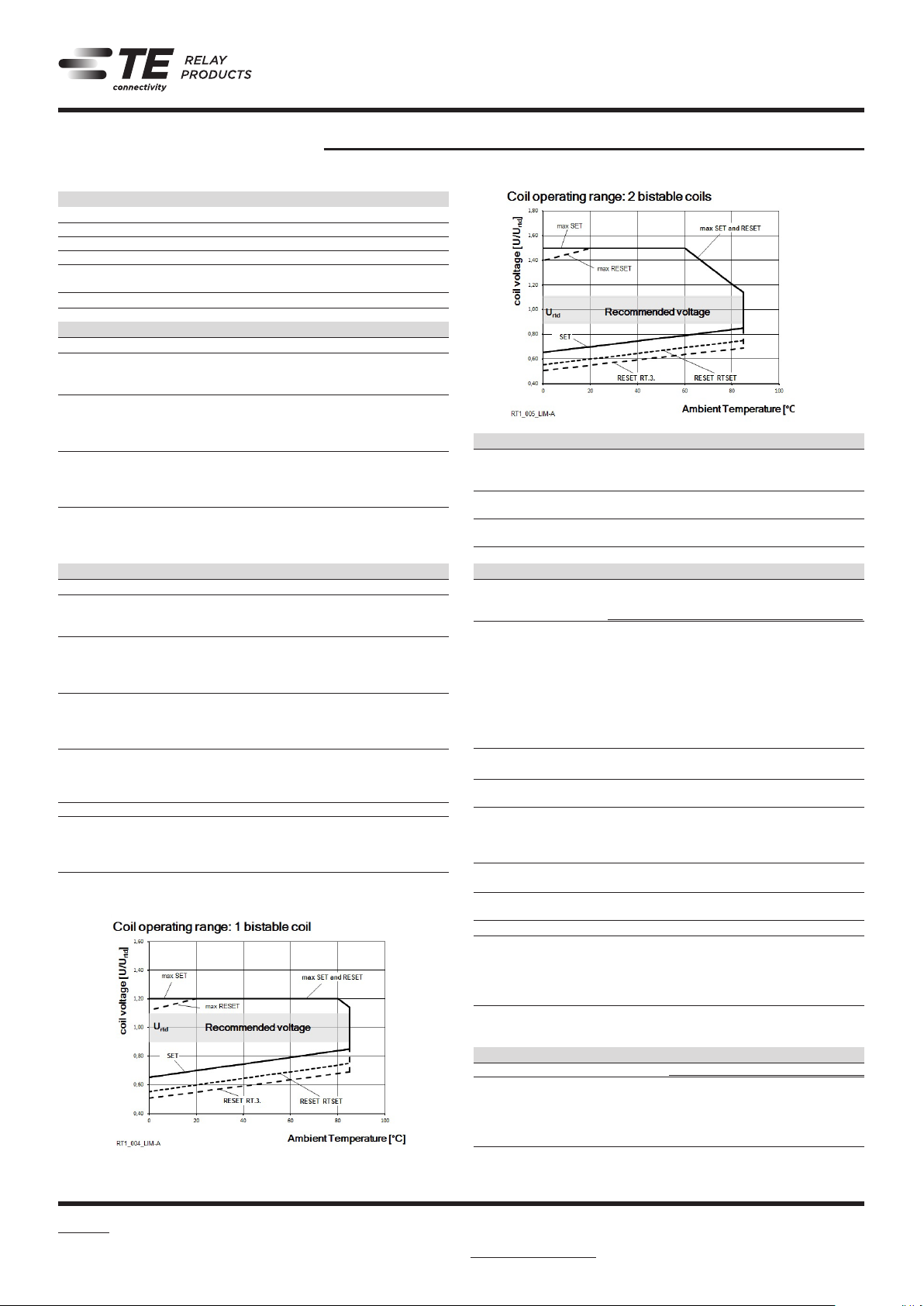

Coil Data (continued),
bistable coils 1 coil 2 coils

Magnetic system polarized, bistable
Coil voltage range 3 to 24VDC
Operative range, IEC 61810 2
Limiting voltage, % of rated coil voltage 120% 150%
Min./Max. energization duration 30ms/1min at <10% duty factor

Coil insulation system according UL1446 class F

Coil Data RT.3T RTS3L

Coil versions, bistable

Coil Rated Set Reset Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW

Coil versions, bistable 1 coil

A03 3 2.1 1.7 21 429
A12 12 8.4 6.6 360 400
A24 24 16.8 13.2 1440 400

Coil versions, bistable 2 coils

F03 3 2.1 1.7 15 600
F12 12 8.4 6.6 240 600
F24 24 16.8 13.2 886 650

All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.

SCHRACK

Insulation Data

Initial dielectric strength
between open contacts 1250V
between contact and coil 5000V
Clearance/creepage
between contact and coil ≥10/10mm
Material group of insulation parts IIIa
Tracking index of relay base PTI 250V

rms

rms

Coil Data RTSET

Coil versions, bistable

Coil Rated Set Reset Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW

Coil versions, bistable 1 coil

A03 3 2.1 1.8 21 429
A12 12 8.4 7.2 360 400
A24 24 16.8 14.4 1440 400

Coil versions, bistable 2 coils

F03 3 2.1 1.8 15 600
F12 12 8.4 7.2 240 600
F24 24 16.8 14.4 886 650

All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.

Bistable coils - operation

Version 1 coil 2 coils
Coil terminals A1 A2 A1 A3 A2
Operate + - + -
Reset - + - +
Contact position not defined at delivery

Other Data

Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature RT.3T / RTS3L
monostable DC coil -40 to 105°C
bistable 1 coil -10 to 105°C
bistable 2 coils -40 to 105°C
Ambient temperature RTSET
monostable DC coil -40 to 85°C
bistable 1 coil -10 to 85°C

bistable 2 coils -40 to 85°C

RT.3T / RTSET RTS3L

Category of environmental protection
IEC 61810 RTII - flux proof
RTIII - wash tight available upon request
Vibration resistance (functional), 10g 20g
monostable version
Shock resistance (destructive) 100g
Terminal type PCB-THT, plug-in

Weight, without / with test tab 14/16g 14g/-
Resistance to soldering heat THT
IEC 60068-2-20 270°C/10s

RT.3T / RTSET RTS3L
Packaging/unit
without test tab tube/20 pcs., tube/20 pcs.,
box/500 pcs. box/500 pcs.
with test tab tray/25 pcs., ­ box/100 pcs. -

2) RTT3T or bistable 2 coil version: PCB mounting only. See Accessories.

2)

2

12-2017, Rev. 1217
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.

Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.

Accessories RTS.

For details see datasheet
Socket available for 1 coil version only.

NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.

Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions

Accessories Industrial Power Relay RT

Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.

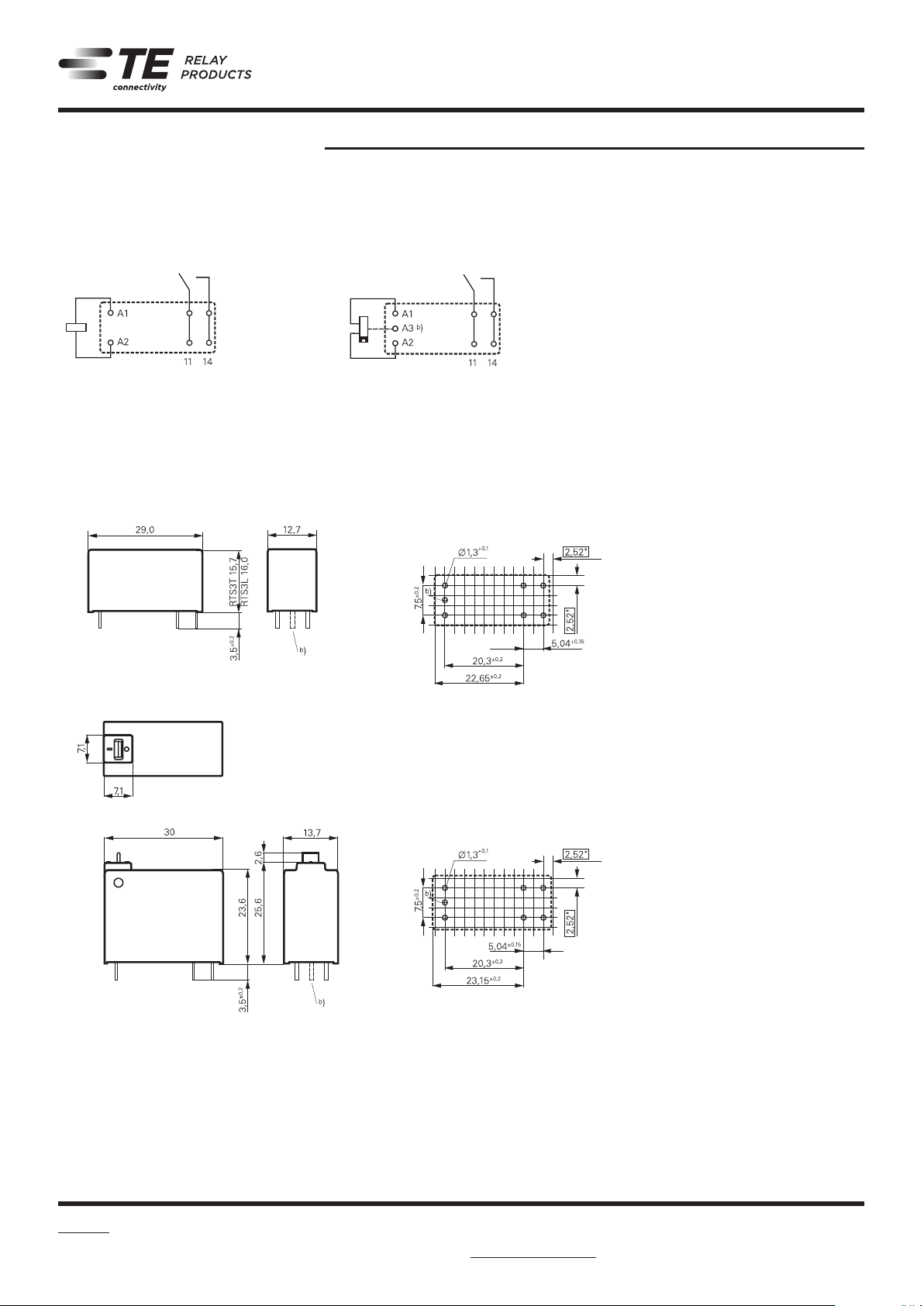

Terminal assignment

Bottom view on solder pins

General Purpose
RT-iPower

Power PCB Relay RT Inrush Power (Continued)

SCHRACK

monostable version

Dimensions / PCB layout

version without test tab

S0272-BW

version with test tab

bistable version

16 A, pinning 5 mm

a)

a) Indicated contact position during or after coil

energization with reset voltage.

b) for 2 coil version only

b) for 2 coil version only

*) With the recommended PCB hole

sizes a grid pattern from 2.5 mm to

2.54 mm can be used.

12-2017, Rev. 1217
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.

Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.

Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

3

application notes and all specifications are
subject to change.

General Purpose
RT-iPower

SCHRACK

Power PCB Relay RT Inrush Power (Continued)

Product code structure Typical product code RT S 3 T A12

Type
RT Power PCB Relay RT1 Inrush Power
Version

S Without test tab T With test tab (manual operator)
for version ‚RTT3T‘ bistable coil only

Contact configuration
3 1 form A (NO) contact E 1 form A(NO) ‚electronic ballast‘ contact
Contact material
L AgSnO2 T Tungsten (W) pre-make + AgSnO
Coil
Coil code: please refer to coil versions table

Version

Blank Standard Version
WG Product in accordance to IEC 60335-1

Product code Version Contacts Contact material Coil version Coil Version Part number

RTS3L005 Without test tab, 1 form A (NO) AgSnO
RTS3L006 16mm high contact 6VDC 4-1415898-4
RTS3L012 12VDC 1-1415898-9
RTS3L024 24VDC 1-1415898-4
RTS3LA12 Bistable, 1 coil 12VDC 2-1415898-3
RTS3LF12 Bistable, 2 coils 2-1415898-5
RTS3T005 Without test tab, W pre-make + AgSnO
RTS3T012 15.7mm high 12VDC 1415898
RTS3T024 24VDC 1415898-1
RTS3T048 48VDC 1-1415898-1
RTS3T060 60VDC 1-1415898-2
RTS3TA05 Bistable, 1 coil 5VDC 1-1415898-5
RTS3TA06 6VDC 3-1415898-1
RTS3TA12 12VDC 1415898-2
RTS3TF03 Bistable, 2 coils 3VDC 1415898-4
RTS3TF12 12VDC 1415898-5
RTS3TF24 24VDC 1415898-6
RTT3TA12 With test tab, Bistable, 1 coil 12VDC 1415898-7
RTT3TF24 23.6mm high Bistable, 2 coils 24VDC 1-1415898-0
RTS3L012WG Without test tab, 1form A (NO) AgSnO
RTS3L024WG 15.7 mm high contact 24VDC compliant 5-1415898-1
RTS3T012WG W pre-make + AgSnO
RTS3TA24WG Bistable 1 coil 24VDC 4-1415898-7
RTSET005 Without test tab, 1 form A (NO) W pre-make + AgSnO
RTSET012 15.7mm high contact 12VDC 7-1415898-9
RTSET024 24VDC 8-1415898-0
RTSETA12 Bistable, 1 coil 12VDC 8-1415898-6
RTSETA24 24VDC 8-1415898-7
RTSETF12 Bistable, 2 coils 12VDC 9-1415898-1
RTSETF24 24VDC 9-1415898-3

2

2

This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request.

2

Monostable 5VDC Standard 1-1415898-8

Monostable 5VDC 1-1415898-6

2

Monostable 12VDC IEC60335-1 2-1415898-7

2

Monostable 5VDC Standard 7-1415898-7

2

12VDC 5-1415898-6

4

12-2017, Rev. 1217
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.

Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.

Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
