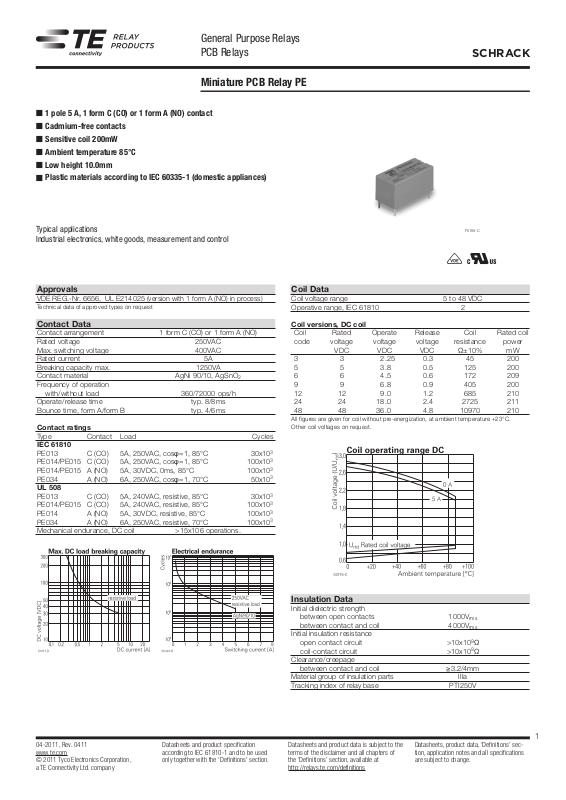

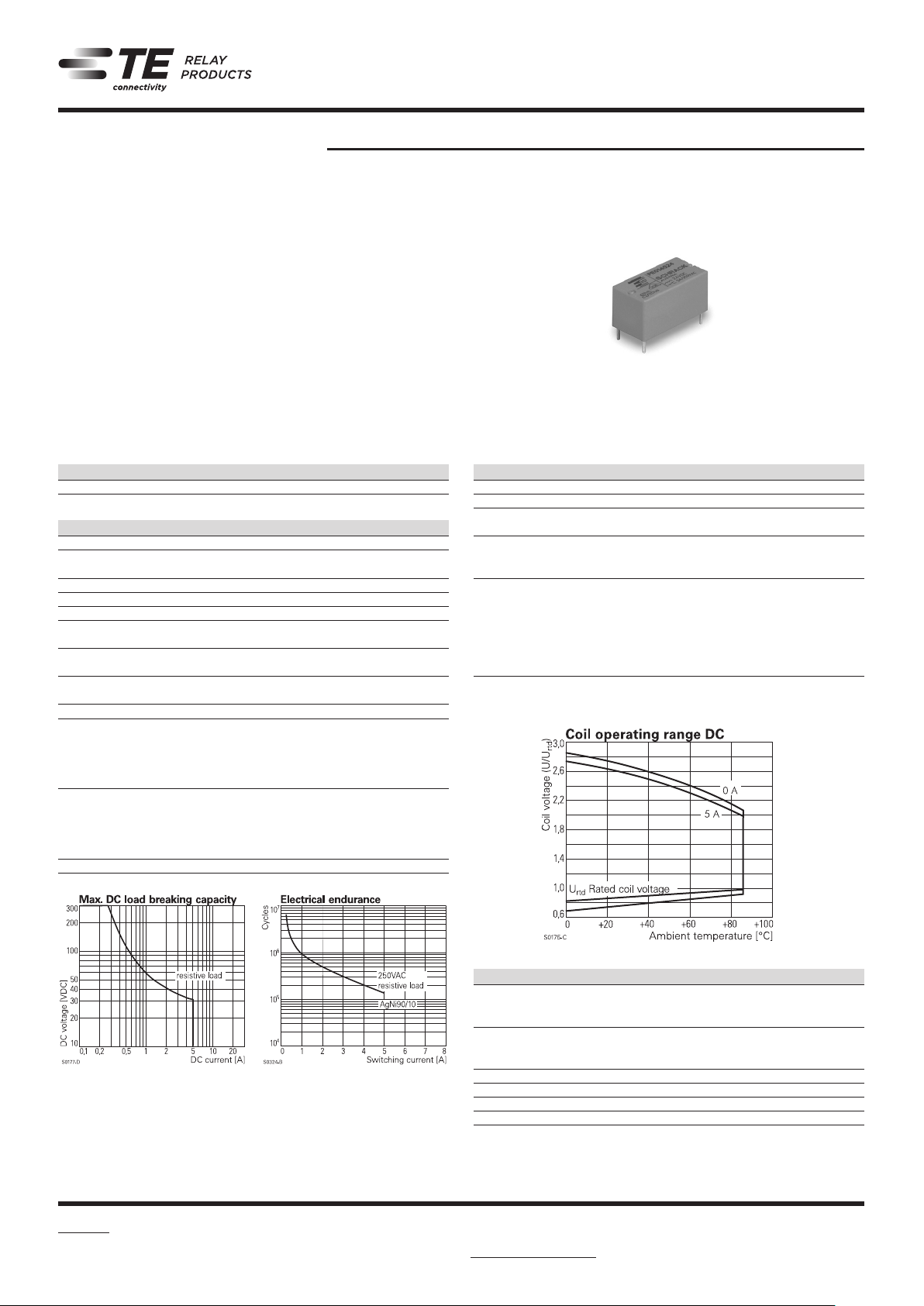

General Purpose Relays
V
PCB Relays
Miniature PCB Relay PE
n
1 pole 5 A, 1 form C (CO) or 1 form A (NO) contact
n
Cadmium-free contacts
n
Sensitive coil 200mW
n
Ambient temperature 85°C
n
Low height 10.0mm
n
Plastic materials according to IEC 60335-1 (domestic appliances)
SCHRACK
Typical applications
Industrial electronics, white goods, measurement and control
Approvals
VDE REG.-Nr. 6656, UL E214025
Technical data of approved types on request
(version with 1 form A (NO) in process)
Contact Data
Contact arrangement 1 form C (CO) or 1 form A (NO)
Rated voltage 250VAC
Max. switching voltage 400VAC
Rated current 5A
Breaking capacity max. 1250VA
Contact material AgNi 90/10, AgSnO
Frequency of operation
with/without load 360/72000 ops/h
Operate/release time typ. 8/8ms
Bounce time, form A/form B typ. 4/6ms
Contact ratings
Type Contact Load Cycles
IEC 61810
PE013 C (CO) 5A, 250VAC, cosφ=1, 85°C 30x10
PE014/PE015 C (CO) 5A, 250VAC, cosφ=1, 85°C 100x10
PE014/PE015 A (NO) 5A, 30VDC, 0ms, 85°C 100x10
PE034 A (NO) 6A, 250VAC, cosφ=1, 70°C 50x10
UL 508
PE013 C (CO) 5A, 240VAC, resistive, 85°C 30x10
PE014/PE015 C (CO) 5A, 240VAC, resistive, 85°C 100x10
PE014 A (NO) 5A, 30VDC, resistive, 85°C 100x10
PE034 A (NO) 6A, 250VAC, resistive, 70°C 100x10
Mechanical endurance, DC coil >15x106 operations.
2
F0169-C
Z
Coil Data
Coil voltage range 5 to 48 VDC
Operative range, IEC 61810 2
Coil versions, DC coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
3 3 2.25 0.3 45 200
5 5 3.8 0.5 125 200
6 6 4.5 0.6 172 209
9 9 6.8 0.9 405 200
12 12 9.0 1.2 685 210
24 24 18.0 2.4 2725 211
48 48 36.0 4.8 10970 210
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
3
3
3
3
3
3
3
3
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Insulation Data
Initial dielectric strength
between open contacts 1000V
between contact and coil 4000V
Initial insulation resistance
open contact circuit >10x109Ω
coil-contact circuit >10x109Ω
Clearance/creepage
between contact and coil ≥3.2/4mm
Material group of insulation parts IIIa
Tracking index of relay base PTI250V
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
rms
rms
1
Page 2
General Purpose Relays
PCB Relays
Miniature PCB Relay PE (Continued)
SCHRACK
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire according EN60335, par.30
Ambient temperature -40 to 85°C
Category of environmental protection,
IEC 61810 RTII - flux proof
(RTIII - wash tight on request)
Vibration resistance (functional), form A/form B >15/5g
Shock resistance (destructive) >100g
Terminal type PCB-THT
Weight 5g
Resistance to soldering heat THT
IEC 60068-2-20 270°C/10s (flux proof version)
Packaging/unit tube/25 pcs., box/500 pcs.

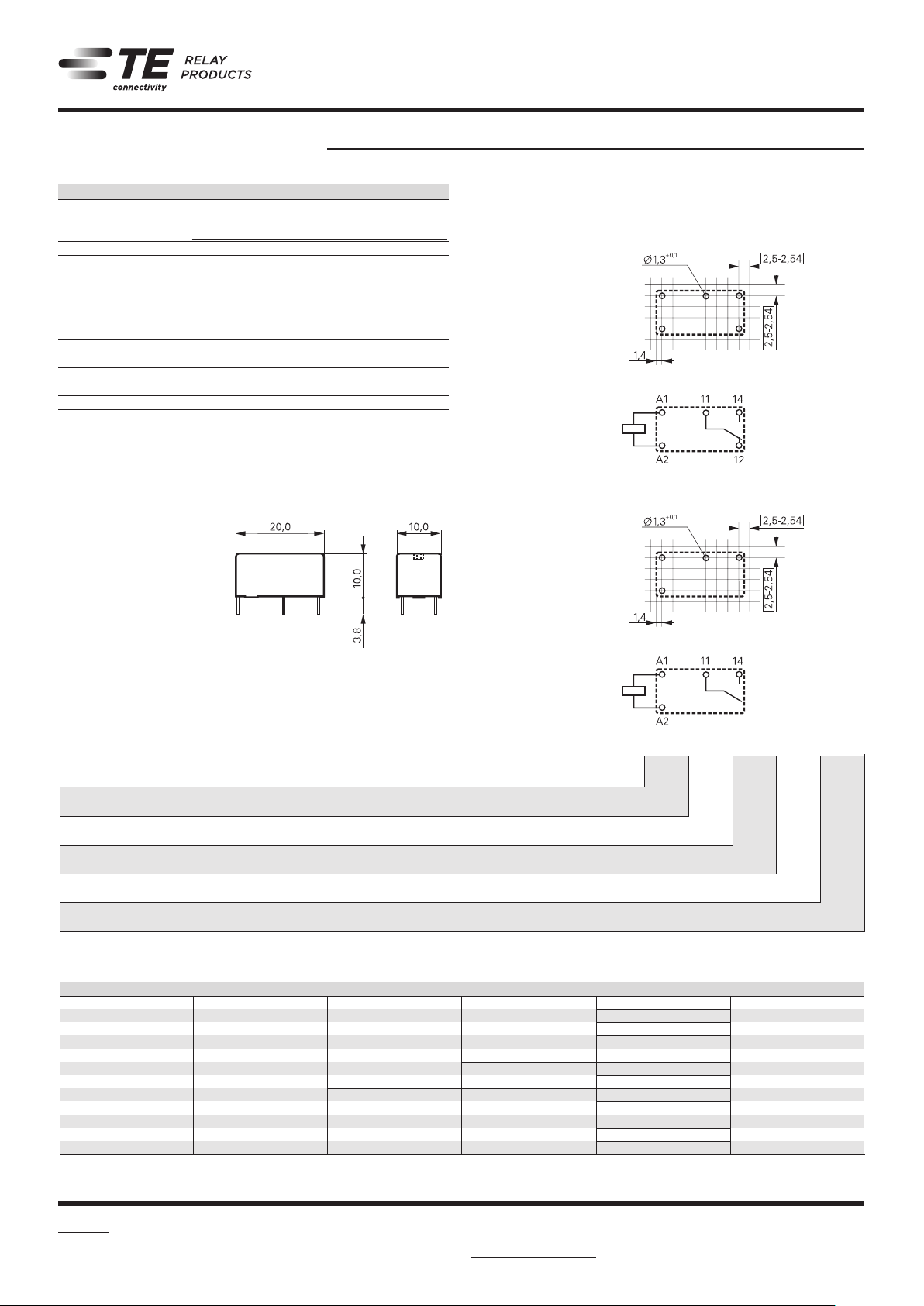

Dimensions
S0271-AA
PCB layout / terminal assignment
Bottom view on solder pins
1 form C (CO) version
S0176-BA
S0176-BB
1 form A (NO) version
S0176-BC
S0176-BD
Product code structure Typical product code PE 0 1 4 012
Type
PE Miniature PCB Relay PE
Version
0 Flux proof
Contact arrangement
1 1 form C (CO) contact 3 1 form A (NO) contact
Contact material
4 AgNi 90/10 3 AgSnO2 5 AgNi 90/10 gold plated
Coil
Coil code: please refer to coil versions table
Product code Version Contacts Contact material Coil Part number
PE014005 flux proof 1 form C AgNi 90/10 5VDC 1393219-3
PE014006 1 CO contact 6VDC 1393219-4
PE014012 12VDC 1393219-6
PE014024 24VDC 1-1393219-0
PE014048 48VDC 1-1393219-3
PE015012 AgNi 90/10 12VDC 1-1393219-4
PE015024 gold plated 24VDC 1-1393219-5
PE034005 1 form A AgNi 90/10 5VDC 4-1415535-6
PE034006 1 NO contact 6VDC 4-1415535-7
PE034012 12VDC 4-1415535-9
PE034024 24VDC 5-1415535-1
PE034048 48VDC 5-1415535-2
