Page 1
Signal Relays
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Contact Data
IM-A IM-B IM-C IM-D IM-E
Number of contacts and type
1ÊPoleÊbreak 1ÊPoleÊmake 1ÊPoleÊÊ
changeover
2ÊPoleÊbreak 2ÊPoleÊmake
Contact assembly
BifurcatedÊcontacts
Contact material
Palladium-ruthenium,Êgold-covered
Limiting continuous current
at max. ambient temperature
2ÊA2ÊA 4ÊA2ÊA 2ÊA
Maximum switching current
2ÊA 2ÊA 3ÊA 2ÊA 2ÊA
Maximum swichting voltage
220ÊVdc
250ÊVac
Maximum switching capacity
60ÊW,Ê62.5ÊVA
Thermoelectric potential
<Ê10ʵV
Minimum switching voltage
100ʵV
Initial contact resistance /
measuring condition: 10 mA / 20 mV
< 100 mΩ < 100 mΩ NO < 100 mΩ < 50 mΩ < 50 mΩ
Electrical CC0 Contact category 0
endurance (≤ 30 mV / ≥ 10 mA)
cable load open end
Resistive load at 125 Vdc / 0.24 A - 30 W
at 220 Vdc / 0.27 A - 60 W
at 250 Vac / 0.25 A - 62.5
VA
at 30 Vdc / 1 A - 30 W
at 30 Vdc / 2 A - 60 W
min.Ê2.5ÊxÊ10
6
Êoperations
min.Ê2.0ÊxÊ106Êoperations
min.Ê5ÊxÊ105Êoperations
min.Ê1ÊxÊ105Êoperations
min.Ê1ÊxÊ105Êoperations
min.Ê5ÊxÊ105Êoperations
min.Ê1ÊxÊ105Êoperations
Mechanical endurance
typ.Ê108Êoperations
UL contact ratings 220 Vdc / 0.24 A - 60 W
125 Vdc / 0.24 A - 30 W
250 Vac / 0.25 A - 62.5 VA
125 Vac / 0.5 A - 62.5 VA
30 Vdc / 2 A - 60 W
Max. DC Load Breaking Capacity
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Coil Operating Range
U
nom
= Nominal coil voltage
U
max.
= Upper limit of the operative range of
the coil voltage (limiting voltage) when
coils are continously energized
U
op. min.
= Lower limit of the operative range of
the coil voltage (reliable operate voltage)
For latching relays Uset min. resp.
Ureset min.
U
rel. min.
= Lower limit of the operative range of
the coil voltage (reliable release voltage)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
3.2
3.4
-50-40 -30-20 -100 10 20 30 40 50 60 70 80 90 10 0110 12 0
Coil Voltage [U/Unom]
Umax. at 0A
Umax. at 2x2A
Umax. at 2x1A
U
nom.
nominal coil voltage
Ambient Temperature [°C]
Ambient Temperature [°C]
Urel. min.
50mW coil
100mW coil
Uop min.
Umax. at 0A
U

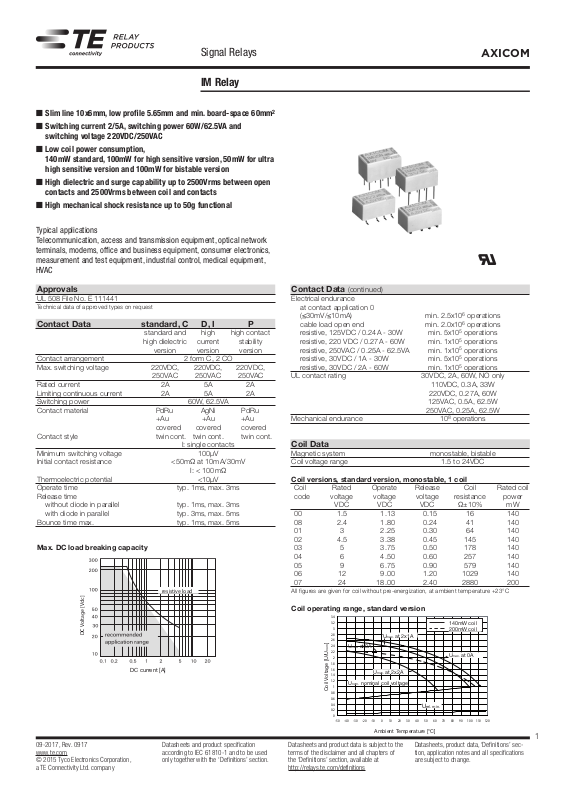

IM Relay
AXICOM
n
Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm
n
Switching current 2/5A, switching power 60W/62.5VA and
switching voltage 220VDC/250VAC
n
Low coil power consumption,
140mW standard, 100mW for high sensitive version, 50mW for ultra
high sensitive version and 100mW for bistable version
n
High dielectric and surge capability up to 2500Vrms between open
contacts and 2500Vrms between coil and contacts
n
High mechanical shock resistance up to 50g functional
Typical applications
Telecommunication, access and transmission equipment, optical network
terminals, modems, office and business equipment, consumer electronics,
measurement and test equipment, industrial control, medical equipment,
HVAC
Approvals
UL 508 File No. E 111441
Technical data of approved types on request
Contact Data standard, C D, I P
standard and high high contact
high dielectric current stability
version version version
Contact arrangement 2 form C, 2 CO
Max. switching voltage 220VDC, 220VDC, 220VDC,
250VAC 250VAC 250VAC
Rated current 2A 5A 2A
Limiting continuous current 2A 5A 2A
Switching power 60W, 62.5VA
Contact material PdRu AgNi PdRu
+Au +Au +Au
covered covered covered
Contact style twin cont. twin cont. twin cont.
I: single contacts
Minimum switching voltage 100µV
Initial contact resistance <50mΩ at 10mA/30mV
I: < 100mΩ
Thermoelectric potential <10µV
Operate time typ. 1ms, max. 3ms
Release time
without diode in parallel typ. 1ms, max. 3ms
with diode in parallel typ. 3ms, max. 5ms
Bounce time max. typ. 1ms, max. 5ms
Max. DC load breaking capacity
DC Voltage [Vdc]
resistive load
DC current [A]
2
Contact Data (continued)
Electrical endurance
at contact application 0
(≤30mV/≤10mA) min. 2.5x106 operations
cable load open end min. 2.0x106 operations
resistive, 125VDC / 0.24A - 30W min. 5x105 operations
resistive, 220 VDC / 0.27A - 60W min. 1x105 operations
resistive, 250VAC / 0.25A - 62.5VA min. 1x105 operations
resistive, 30VDC / 1A - 30W min. 5x105 operations
resistive, 30VDC / 2A - 60W min. 1x105 operations
UL contact rating 30VDC, 2A, 60W, NO only
110VDC, 0.3A, 33W
220VDC, 0.27A, 60W
125VAC, 0.5A, 62.5W
250VAC, 0.25A, 62.5W
Mechanical endurance 108 operations
Coil Data
Magnetic system monostable, bistable
Coil voltage range 1.5 to 24VDC
Coil versions, standard version, monostable, 1 coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
00 1.5 1.13 0.15 16 140
08 2.4 1.80 0.24 41 140
01 3 2.25 0.30 64 140
02 4.5 3.38 0.45 145 140
03 5 3.75 0.50 178 140
04 6 4.50 0.60 257 140
05 9 6.75 0.90 579 140
06 12 9.00 1.20 1029 140
07 24 18.00 2.40 2880 200
All figures are given for coil without pre-energization, at ambient temperature +23°C
Coil operating range, standard version
3.4
3.2
3
2.8
2.6
]
2.4
Umax. at 0A
2.2
2
1.8
1.6
1.4
1.2
Unom. nominal coil voltage
1
Coil Voltage [U/Unom
0.8
0.6
0.4
0.2
0
-50 -40 -30 -20 -10 0102030405060708090 100 110 120
Umax. at 2x1A
Umax. at 2x2A
Urel. min.
140mW coil
200mW coil
Umax. at 0A
09-2017, Rev. 0917
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
1
tion, application notes and all specifications
are subject to change.
Page 2
Signal Relays
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Coil Operating Range
U
nom
= Nominal coil voltage
U
max.
= Upper limit of the operative range of
the coil voltage (limiting voltage) when
coils are continously energized
U
op. min.
= Lower limit of the operative range of
the coil voltage (reliable operate voltage)
For latching relays Uset min. resp.
Ureset min.
U
rel. min.
= Lower limit of the operative range of
the coil voltage (reliable release voltage)
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Coil Operating Range
U
nom
= Nominal coil voltage
U
max.
= Upper limit of the operative range of
the coil voltage (limiting voltage) when
coils are continously energized
U
op. min.
= Lower limit of the operative range of
the coil voltage (reliable operate voltage)
For latching relays Uset min. resp.
Ureset min.
U
rel. min.
= Lower limit of the operative range of
the coil voltage (reliable release voltage)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
3.2
3.4
-50-40 -30-20 -100 10 20 30 40 50 60 70 80 90 10 0110 12 0
Coil Voltage [U/Unom]
Umax. at 0A
Umax. at 2x2A
Umax. at 2x1A
U
nom.
nominal coil voltage
Ambient Temperature [°C]
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
3.2
3.4
-50 -40 -30 -20 -10 0102030405060708090 100 110 120
Ambient Temperature [°C]
Coil Voltage [U/Unom
]
Umax. at 0A
Umax. at 2x2A
Umax. at 2x1A
Unom. nominal coil voltage
Urel. min.
Coil Voltage [U/U
]
Umax. at 0A
140mW coil
200mW coil
Urel. min.
50mW coil
100mW coil
Uop min.
Umax. at 0A
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay 2 Pole Changeover / 2 Form C / DPDT
Latching Type, 1 Coil
reset condition
IMÊTHT
Standard
IMÊTHT
Narrow
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
mm inch mm inch mm inch mm inch
10.00ʱÊ0.08
6.00ʱÊ0.08
5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
5.70ʱÊ0.30
5.80ʱÊ0.08
0.393ʱÊ0.003
0.224ʱÊ0.012
0.230ʱÊ0.003
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Narrow Version
Solder Pad Layout
View onto the component side of the PCB (top view)
Gull Wings J-Legs
Narrow Version
Gull Wings
¯Êmin.Ê0.75
¯Êmin.Ê0.75
ContactsÊ inÊresetÊ position.Ê ContactÊ
positionÊ mightÊchangeÊ duringÊtrans-
portationÊ andÊ mustÊ beÊresetÊ beforeÊ
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
3.2
N/A
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.40
0.75
0.125
N/A
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.029
3.2
N/A
3.20ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
0.30ʱÊ0.05
0.125
N/A
0.126ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.011ʱÊ0.002
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.65-0.2
0.75
10.0±0.08
5.7±0.3
3.2±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.8±0.08
0.3±0.05
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
IMÊTHT
Narrow
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
10.00ʱÊ0.08
5.70ʱÊ0.30
5.80ʱÊ0.08
0.393ʱÊ0.003
0.224ʱÊ0.012
0.230ʱÊ0.003
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Solder Pad Layout
View onto the component side of the PCB (top view)
Gull Wings J-Legs
Gull Wings
¯Êmin.Ê0.75
ContactsÊ inÊresetÊ position.Ê ContactÊ
positionÊ mightÊchangeÊ duringÊtrans-
portationÊ andÊ mustÊ beÊresetÊ beforeÊ
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
3.2
N/A
3.20ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
0.30ʱÊ0.05
0.125
N/A
0.126ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.011ʱÊ0.002
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
10.0±0.08
5.7±0.3
3.2±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.8±0.08
0.3±0.05
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
AXICOM
Coil Data (continued)
Coil versions, sensitive version, monostable, 1 coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
11 3 2.40 0.30 91 100
12 4.5 3.60 0.45 194 100
13 5 4.00 0.50 234 100
16 12 9.60 1.20 1315 110
17 24 19.20 2.40 4120 140
Coil versions, ultra high sensitive version, monostable, 1 coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
21 3 3.00 0.30 180 50
22 4.5 4.50 0.45 405 50
23 5 5.00 0.50 500 50
26 12 12.00 1.20 2880 50
All figures are given for coil without pre-energization, at ambient temperature +23°C
Coil operating range, sensitive and ultra high sensitive coil
Coil versions, standard, bistable 1 coil
Coil Rated Set Reset Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
40 1.5 1.13 -1.13 23 100
48 2.4 1.80 -1.80 58 100
41 3 2.25 -2.25 90 100
42 4.5 3.38 -3.38 203 100
43 5 3.75 -3.75 250 100
3.4
3.2
3
2.8
2.6
2.4
2.2
2
1.8
1.6
1.4
1.2
Coil Voltage [U/Unom]
Unom. nominal coil voltage
1
0.8
0.6
0.4
0.2
0
-50-40 -30-20 -100 10 20 30 40 50 60 70 80 90 10 0110 12 0
44 6 4.50 -4.50 360 100
45 9 6.75 -6.75 810 100
46 12 9.00 -9.00 1440 100
47 24 18.00 -18.00 2880 200
All figures are given for coil without pre-energization, at ambient temperature +23°C
Coil operating range, bistable 1 coil
3.4
3.2
3
2.8
2.6
2.4
2.2
nom
2
1.8
1.6
1.4
1.2
U
nom.
1
0.8
0.6
0.4
0.2
0
-50-40 -30-20 -100 10 20 30 40 50 60 70 80 90 100 110 120 130 140
2
09-2017, Rev. 0917
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
U
Ambient Temperature [°C]
Umax. - 100% coil duty at
0A (100mW)
Umax. - 100% coil duty at
0A (200mW)
nominal coil voltage
Ambient Temperature [°C]
IM Relay (Continued)
Umax. at 2x1A
at 0A
max.
Umax. at 2x2A
Uop min.
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
50mW coil
100mW coil
Urel. min.
max
U
. - 5%coil
duty at
2x2A (100mW)
Uset min.
100 mW Latching
200 mW Latching
Insulation Data standard* C* D,P, I
standard, high high current,
sensitive, dielectric high contact
ultra high version stability
sensitive version
version
Initial dielectric strength
between open contacts 1000V
between contact and coil 1800V
between adjacent contacts 1000V
Initial surge withstand voltage
Umax. at 0A
between open contacts 1500V 2500V 1000V
between contact and coil 2500V 2500V 2000V
between adjacent contacts 1500V 2500V 1000V
Initial insulation resistance
between insulated elements >109Ω >109Ω >109Ω
Capacitance
between open contacts max. 1pF
between contact and coil max. 2pF
between adjacent contacts max. 2p
*this relay contains SF6 (Sulfur hexafluoride, CAS number: 2551-62-4) for dielectric strength
enhancement, SF6 is hermetically sealed in relay without leaks to air during normal application as recommended per the applicable product specification. It is clarified that the usage
of SF6 in mini signal relay is not prohibited by related regulations. Please contact TE local
sales or field engineer for further information and detailed material declaration.
RF Data
Isolation at 100MHz/900MHz 37.0dB/18.8dB
Insertion loss at 100MHz/900MHz 0.03dB/0.33dB
Voltage standing wave ratio (VSWR)
at 100MHz/900MHz 1.06/1.49
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature -40°C to +85°C
Thermal resistance <150K/W
Category of environmental protection
IEC 61810 RT V - hermetically sealed
Vibration resistance (functional) 20g, 10 to 500Hz
Shock resistance (functional), half sinus 11ms 50g
Shock resistance (destructive), half sinus 0.5ms 500g
Mounting position any
Weight max. 0.75g
Resistance to soldering heat SMT
IEC 60068-2-58
Moisture sensitive level, JEDEC J-Std-020D MSL3
related only to SMT relays
packed in orginal dry-packs
Ultrasonic cleaning not recommended
U
.-5%coil
max
duty at 0A(100mW)
Umax.-5%coil
duty at 0A (200mW)
Umax. -5% coil
duty at 2x1A (100mW)
Packaging/unit
THT version tube/50pcs., box/1000 pcs.
SMT version
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Monostable version
rest condition
Contacts are shown in reset condition. Contact position might change during
transportation and must be reset before use.
1500V
rms
1800V
rms
1800V
rms
750V
rms
1500V
rms
750V
rms
reel/1000 pcs., box/1000 or 5000 pcs.
Bistable version, 1 coil
reset condition
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
rms
rms
rms
Page 3
Dimensions
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay 2 Pole Changeover / 2 Form C / DPDT
Dimensions Dimensions in mm
THT Version
IMÊTHT
Standard
IMÊTHT
Narrow
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
mm inch mm inch mm inch mm inch
L
W
H
10.00ʱÊ0.08
6.00ʱÊ0.08
5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
5.70ʱÊ0.30
5.80ʱÊ0.08
0.393ʱÊ0.003
0.224ʱÊ0.012
0.230ʱÊ0.003
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Standard Version
Narrow Version
Gull Wings J-Legs
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
T
T1
T2
D1
D2
Tw
S
3.2
N/A
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.40
0.75
0.125
N/A
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.029
3.2
N/A
3.20ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
0.30ʱÊ0.05
0.125
N/A
0.126ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.011ʱÊ0.002
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
3.2±0.15
2.2±0.15
2.2±0.15
10.0±0.08
5.7±0.3
3.2±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.8±0.08
0.3±0.05
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay 2 Pole Changeover / 2 Form C / DPDT
IMÊTHT
Narrow
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
10.00ʱÊ0.08
5.70ʱÊ0.30
5.80ʱÊ0.08
0.393ʱÊ0.003
0.224ʱÊ0.012
0.230ʱÊ0.003
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Narrow Version
Gull Wings J-Legs
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
3.2
N/A
3.20ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
0.30ʱÊ0.05
0.125
N/A
0.126ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.011ʱÊ0.002
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
3.2±0.15
2.2±0.15
2.2±0.15
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Gull Wings J-Legs
Coplanarity ≤ 0.1mm
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
3.2±0.15
2.2±0.15
2.2±0.15
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
IMÊSMT
J-Legs
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
N/A
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
3.2±0.15
2.2±0.15
2.2±0.15
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay 2 Pole Changeover / 2 Form C / DPDT
Dimensions Dimensions in mm
THT Version
Mounting Hole Layout
View onto the component side of the PCB (top view)
IMÊTHT
Standard
IMÊTHT
Narrow
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
mm inch mm inch mm inch mm inch
L
W
H
10.00ʱÊ0.08
6.00ʱÊ0.08
5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
5.70ʱÊ0.30
5.80ʱÊ0.08
0.393ʱÊ0.003
0.224ʱÊ0.012
0.230ʱÊ0.003
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Standard Version
Narrow Version
Solder Pad Layout
View onto the component side of the PCB (top view)
Gull Wings J-Legs
Standard Version
Narrow Version
Gull Wings
¯Êmin.Ê0.75
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
T
T1
T2
D1
D2
Tw
S
3.2
N/A
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.40
0.75
0.125
N/A
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.029
3.2
N/A
3.20ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
0.30ʱÊ0.05
0.125
N/A
0.126ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.011ʱÊ0.002
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.65-0.2
0.75
10.0±0.08
5.7±0.3
3.2±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.8±0.08
0.3±0.05
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay 2 Pole Changeover / 2 Form C / DPDT
IMÊTHT
Narrow
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
10.00ʱÊ0.08
5.70ʱÊ0.30
5.80ʱÊ0.08
0.393ʱÊ0.003
0.224ʱÊ0.012
0.230ʱÊ0.003
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Narrow Version
Solder Pad Layout
View onto the component side of the PCB (top view)
Gull Wings J-Legs
Narrow Version
Gull Wings
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
3.2
N/A
3.20ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
0.30ʱÊ0.05
0.125
N/A
0.126ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
0.011ʱÊ0.002
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
10.0±0.08
5.7±0.3
3.2±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
3.2
5.8±0.08
0.3±0.05
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
IMÊSMT
GullÊWings
IMÊSMT
J-Legs
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.20
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
10.00ʱÊ0.08
ÊÊ6.00ʱÊ0.08
ÊÊ5.65ÊÐÊ0.02
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
SMT Version
Solder Pad Layout
View onto the component side of the PCB (top view)
Gull Wings J-Legs
Gull Wings
Coplanarity ≤ 0.1mm
Coplanarity ≤ 0.1mm
N/A
7.50ʱÊ0.30
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.295ʱÊ0.011
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
N/A
2.80ʱÊ0.20
5.08ʱÊ0.10
3.20ʱÊ0.15
2.20ʱÊ0.15
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
7.5±0.3
Coplanarity ≤0.1mm
2.8±0.2
Coplanarity ≤0.1mm
108-98001 Rev. M
IMÊSMT
J-Legs
0.393ʱÊ0.003
0.236ʱÊ0.003
0.222ÊÐÊ0.008
Coplanarity ≤ 0.1mm
N/A
0.4
N/A
N/A
0.110ʱÊ0.007
0.200ʱÊ0.004
0.126ʱÊ0.006
0.087ʱÊ0.006
0.015
N/A
10.0±0.08
6.0±0.08
5.08±0.1
0.4
3.2±0.15
2.2±0.15
2.2±0.15
5.65-0.2
2.8±0.2
Coplanarity ≤0.1mm
full line: typical
dotted line: process limits
external preheating
240°C
180°C
130°C
100°C
forced cooling
20 to 40s
Time [s]
Temperature [°C]
Vapour phase soldering
temperature/time profile
(lead and housing peak temp.)
Recommended soldering conditions
Vapour phase soldering
Signal Relays
IM Relay (Continued)
AXICOM
THT version
SMT version
Standard version Narrow version Gull wings J-legs
6.0±0.08
0.4
5.08±0.1
Coplanarity ≤0.1mm
0.4
5.7±0.3
0.3±0.05
3.2±0.1
10.0±0.08
0.4
5.65-0.2
3.2
10.0±0.08
0.4
0.75
6.0±0.08
5.08±0.1
10.0±0.08
5.8±0.08
3.2
Coplanarity ≤ 0.1mm
PCB layout
TOP view on component side of PCB
6.0±0.08
5.08±0.1
7.5±0.3
Coplanarity ≤0.1mm
10.0±0.08
5.65-0.2
Coplanarity ≤ 0.1mm
Standard version Narrow version Gull wings J-legs
Processing
Recommended soldering conditions
Recommended reflow soldering profile IEC 61760-1
¯Êmin.Ê0.75
¯Êmin.Ê0.75
Resistance to soldering heat - reflow profile IEC 60068-2-58
5.65-0.2
2.8±0.2
09-2017, Rev. 0917
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
3
Page 4
Signal Relays
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Packing Dimensions in mm
Tube for THT version
50 relays per tube
1,000 relays per box
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Packing Dimensions in mm
Tube for THT version
50 relays per tube
1,000 relays per box
Tape and reel for SMT version
1,000 relays per reel
108-98001 Rev. M
AXICOMÊSignalÊRelays
IM Relay
Tube for THT version
50 relays per tube
1,000 relays per box
Tape and reel for SMT version
1,000 relays per reel
1,000 or 5,000 relays per box
108-98001 Rev. M
IM Relay (Continued)
AXICOM
Packing
Tube for THT version
50 relays per tube, 1000 relays per box
Tape and reel for SMT version
1000 relays per reel, 1000 or 5000 relays per box
Reel dimensions
Product code structure Typical product code IM 03 G R
Type
IM Signal Relays IM Series
Contact arrangement
Blank 2 form C, 2 CO
Coil
Coil code: please refer to coil versions table
Performance type
Blank Standard version I High current version single contact
C High dielectric version
D High current version
P High contact stability version
Terminals
T THT - standard J SMT - J-leg
N THT - narrow version G SMT - gull wing
Packing
S Tube R Reel
4
09-2017, Rev. 0917
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
Page 5
Signal Relays
Signal Relays
IM Relay (Continued)
AXICOM
Product code Arrangement Perf. type Coil Coil type Coil Terminals Part number
IM00GR 2 form C, Standard 1.5VDC Monostable Standard
IM00JR 2 CO SMT J-leg 3-1462037-9
IM00NS contacts THT narrow 1-1462038-0
IM01GR
IM01JR SMT J-leg 4-1462037-0
IM01NS THT narrow 1-1462038-1
IM01TS THT standard 1462037-4
IM02GR
IM02JR SMT J-leg 1-1462037-1
IM02NS THT narrow 1-1462038-2
IM03GR
IM03JR SMT J-leg 1-1462037-6
IM03NS THT narrow 1-1462038-3
IM03TS THT standard 1-1462037-8
IM04GR
IM04JR SMT J-leg 4-1462037-4
IM04NS THT narrow 1-1462038-4
IM05GR
IM05JR SMT J-leg 4-1462037-5
IM05NS THT narrow 1-1462038-5
IM05TS THT standard 2-1462037-2
IM06GR
IM06JR SMT J-leg 4-1462037-6
IM06NS THT narrow 1-1462038-6
IM07GR
IM07JR SMT J-leg 4-1462037-8
IM07NS THT narrow 1-1462038-7
IM08GR 2.4VDC
IM11GR 3VDC
IM12GR 4.5VDC 1462039-3
IM13GR 5VDC 1462039-4
IM16GR 12VDC 1462039-5
IM17GR
IM17TS THT standard 4-1462039-6
*IM21GR
*IM21TS high THT standard 1-1462039-5
*IM22GR
*IM22TS THT standard 2-1462039-8
*IM23GR
*IM23TS THT standard 3-1462039-0
*IM26GR
*IM26TS THT standard 3-1462039-2
IM40GR
IM40JR SMT J-leg 5-1462037-2
IM40NS THT narrow 1-1462038-8
IM40TS THT standard 5-1462037-0
IM41GR
IM41JR SMT J-leg 5-1462037-5
IM41NS THT narrow 1-1462038-9
IM41TS THT standard 5-1462037-3
IM42GR
IM42JR SMT J-leg 5-1462037-7
IM42NS THT narrow 2-1462038-0
IM42TS THT standard 5-1462037-6
IM43GR
IM43JR SMT J-leg 6-1462037-0
IM43NS THT narrow 2-1462038-1
IM43TS THT standard 5-1462037-8
IM44GR
IM44JR SMT J-leg 6-1462037-3
IM44NS THT narrow 2-1462038-2
IM44TS THT standard 6-1462037-1
IM45GR
IM45JR SMT J-leg 6-1462037-5
IM45NS THT narrow 2-1462038-3
IM46GR
IM46JR SMT J-leg 6-1462037-8
IM46NS THT narrow 2-1462038-4
IM46TS THT standard 6-1462037-6
IM47GR
IM47JR SMT J-leg 7-1462037-1
IM47NS THT narrow 2-1462038-5
IM47TS THT standard 6-1462037-9
*
please check with application first for further details
09-2017, Rev. 0917
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
3VDC
4.5VDC
5VDC
6VDC
9VDC
12VDC
24VDC
High sens.
24VDC
3VDC Ultra
4.5VDC
5VDC
12VDC
1.5VDC Bistable Standard
3VDC
4.5VDC
5VDC
6VDC
9VDC
12VDC
24VDC
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
sensitive SMT gull wing 2-1462039-7
SMT gull wing
SMT gull wing 1462037-1
SMT gull wing 1462037-9
SMT gull wing 1-1462037-4
SMT gull wing 4-1462037-2
SMT gull wing 3-1462037-4
SMT gull wing 2-1462037-3
SMT gull wing 4-1462037-7
SMT gull wing
SMT gull wing 2-1462039-6
SMT gull wing 2-1462039-9
SMT gull wing 3-1462039-1
SMT gull wing 5-1462037-1
SMT gull wing 5-1462037-4
SMT gull wing 3-1462037-1
SMT gull wing 5-1462037-9
SMT gull wing 6-1462037-2
SMT gull wing 6-1462037-4
SMT gull wing 6-1462037-7
SMT gull wing 7-1462037-0
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
3-1462037-7
6-1462039-3
9-1462038-5
1462039-6
5
Page 6
Signal Relays
AXICOM
IM Relay (Continued)
Product code Arrangement Perf. type Coil Coil type Coil Terminals Part number
IM48GR 2.4VDC SMT gull wing 1462039-8
IM01CGR 2 form C High 3VDC Monostable Standard
IM01CTS 2 CO dielectric THT standard 9-1462038-6
IM02CGR contacts 4.5VDC
IM03CGR
IM03CJR SMT J-leg 4-1462039-8
IM03CTS THT standard 4-1462039-7
IM05CGR 9VDC
IM06CGR
IM06CJR SMT J-leg 3-1462039-4
IM06CTS THT standard 4-1462037-9
IM07CGR
IM07CTS THT standard 1462039-1
IM17CGR High sens.
IM41CGR 3VDC
IM42CGR 4.5VDC 4-1462039-1
IM43CGR 5VDC 9-1462038-7
IM48CGR 2.4VDC 9-1462039-0
IM02DGR
IM02IJR current SMT J-leg 1462047-8
IM02IGR SMT gull wing 1462047-9
IM03DGR
IM03DJR SMT J-leg 3-1462039-3
IM05DGR 9VDC
IM06DGR
IM06DJR SMT J-leg 7-1462039-0
IM06DTS THT standard 3-1462039-8
IM07DGR
IM07DJR SMT J-leg 7-1462039-4
IM07DTS
IM22DTS 4.5VDC U.h.sens. 7-1462039-6
IM41DGR 3VDC
IM42DGR
IM42DNS
IM46DNS 12VDC 1-1462039-2
IM47DJR 24VDC SMT J-leg 7-1462039-5
IM48DGR 2.4VDC
IM49DGR 2VDC 2-1462039-2
IM40IGR 1.5VDC 1462047-7
IM48IGR 2.4VDC 1462047-1
IM49IGR 2VDC 1462047-4
IM02PGR
IM02PNS contact THT narrow 5-1462039-8
IM03PGR stability
IM03PJR SMT J-leg 6-1462039-6
IM03PNS THT narrow 5-1462039-9
IM06PGR
IM06PNS THT narrow 6-1462039-0
IM42PGR
IM42PNS THT narrow 7-1462039-8
IM43PGR SMT gull wing 7-1462039-3
IM46PNS
High
High 4.5VDC Monostable Standard
5VDC
12VDC
24VDC
Bistable Standard
4.5VDC
5VDC
12VDC
24VDC
4.5VDC
5VDC
12VDC
4.5VDC Bistable Standard
12VDC THT narrow
Monostable Standard
Bistable Standard SMT gull wing
SMT gull wing
SMT gull wing
SMT gull wing
SMT gull wing 1462039-2
SMT gull wing
SMT gull wing
SMT gull wing
SMT gull wing 3-1462039-7
THT standard
THT narrow
SMT gull wing
SMT gull wing 5-1462039-5
SMT gull wing 5-1462039-6
SMT gull wing 5-1462039-7
1462038-4
1462038-1
1462038-2
1462038-3
9-1462037-9
1462039-7
4-1462039-2
9-1462038-8
9-1462038-9
1-1462039-7
1-1462039-8
7-1462039-2
6-1462039-8
1-1462039-9
1-1462039-6
1462039-9
5-1462039-4
6-1462039-1
6
09-2017, Rev. 0917
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
Loading...
