Page 1
Page 1
UL 60079-0 6th Edition
CSA C22.2 No. 60079-0-11
UL 61010-1 3rd Edition
ANSI/ISA 12.12.01-2013
CSA C22.2 No. 61010-1-12
CSA C22.2 No. 213-M1987
CSA C22.2 No. 157-92 Reaffirmed 2012
EN 60079-0:2018, EN 60079-7:2015, IEC 60079-0:2017, IEC 60079-7:2014/A1:2017
CAN/CSA C22.2 No 60079-0:11
ANSI/ISA 60079-0:05
CAN/CSA E60079-15:02
ANSI/ISA 60079-15:12
ANSI/ISA 12.12.01-2007
CSA C22.2 No. 213-M1987
End of model # features “-SS” or “-Z”
Class I Division 2 Groups A, B, C, D
Ambient Temperature: -40 to +80°C
Code T4, 28Vdc, 0.025A
Process Temperature: -40° to 125°C
Metal Conduit Only:
Sira 14ATEX4112X
IECEx CSA 14.0061X
Ex ec IIC T4 Gc
Class I Zone 2 AEx nA IIC T4

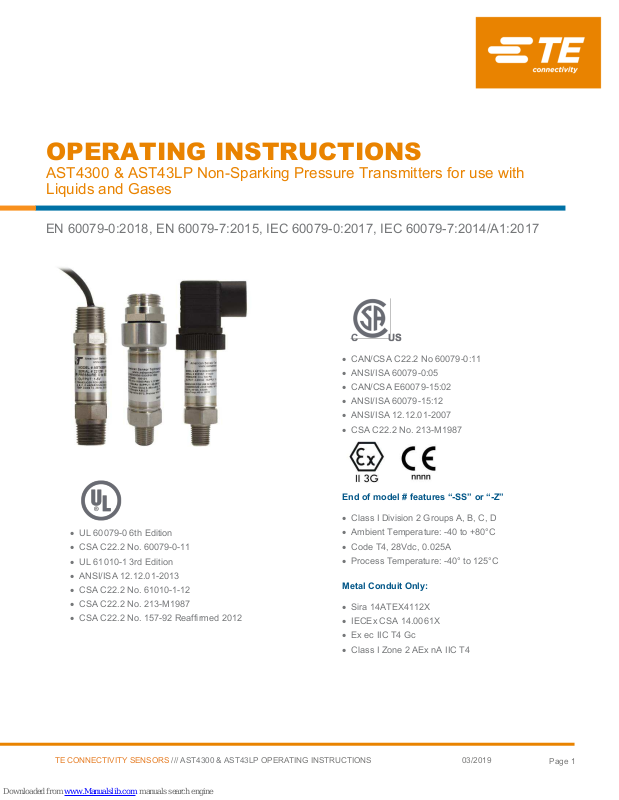

OPERATING INSTRUCTIONS
AST4300 & AST43LP Non-Sparking Pressure Transmitters for use with
Liquids and Gases
TE CONNECTIVITY SENSORS /// AST4300 & AST43LP OPERATING INSTRUCTIONS 03/2019
Page 2
OPERATING INSTRUCTIONS
Page 2
AST4300 & AST43LP
WARNING & IMPORTANT SAFETY INSTRUCTIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, could result in minor or moderate injury.
ELECTRICAL INSTALLATION (Raccordement électrique)
To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.
(AVERTISSEMENT) Pour éviter l'inflammation d'atmosphères inflammables ou combustibles, débrancher l'alimentation avant
l'entretien.
Suitable for use in Class I, Division 2, Groups A, B, C and D Hazardous Locations, or Non-Hazardous locations
only.
(AVERTISSEMENT) Uniquement adapté à un usage dans les Zones dangereuses de la classe 1, division 2 des groupes A, B,
C, et D ainsi que dans les zones non dangereuses.
EXPLOSION HAZARD
Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
This equipment must be powered by a Non-hazardous live source in accordance with CAN/CSA-C22.2 No. 61010-1-04 e.g.
limited energy source, or a Class 2 Source.
(AVERTISSEMENT) Risque d’explosion
Déconnecter l’appareil uniquement après avoir coupé l’alimentation électrique ou avoir vérifié qu’il n’est pas installé en zone
dangereuse. Cet équipement doit être alimenté par une source directe non dangereuse conformément aux normes CAN/CSAC22.2 No. 61010-1-04 par exemple en source d’énergie limitée ou en source Classe2.
EXPLOSION HAZARD: Substitution of components may impair suitability for Class I Div 2
(AVERTISSEMENT)
Risque d’explosion - Remplacement d’un composant peut empêcher la conformité de Classe I, Division 2.
The enclosure is manufactured from light metal. In rare cases, ignition sources due to impact and friction sparks
could occur. This shall be considered during installation, particularly if the equipment is installed in a zone 0 location.
(AVERTISSEMENT) Le boîtier est fabriqué en métal léger. Dans de rares cas, des sources d’inflammation due à des
étincelles d’impact et de friction pourraient survenir. Ceci doit être considéré lors de l’installation, en particulier si le matériel
est installé dans un emplacement 0 de la zone.
Potential Electrostatic Discharge Hazard - clean the surface with a damp cloth.
(AVERTISSEMENT) Décharge potentiel électrostatique Hazard - nettoyer la surface avec un chiffon humide.
NOTE: Sensor case must be bonded to ground/earth according to Section 18 of the Canadian Electric Code, Part 1,
and/or Articles 501 and 505 of the National Electric Code (US) during installation.
TE CONNECTIVITY SENSORS /// AST4300 & AST43LP OPERATING INSTRUCTIONS 03/2019
Page 3
OPERATING INSTRUCTIONS
Page 3
Cable / Hookup
Wire Connections
Conduit with Cable
Output Type
Green
Black
Red
White
3 Wire Voltage
Case
GND
+V
S
4-20mA (2 wire
loop powered)
Case
-V
+V
N/C
AST4300 & AST43LP
Special Conditions for Safe Use
i. Since models AST4300 and AST43LP Pressure Transducers are not earthed and a charge-generating mechanism may be
present when in contact with non-metallic charge generating materials, the device shall be grounded before use.
ii. This product is manufactured from light metal and in rare cases, potential ignition sources or sparks may result due to
impact or friction. User is recommended to use caution during installation, particularly if the equipment is utilized in Zone 2
locations.
iii. The product label indicates that the process temperature range is -40°C to +125°C. Taking this into account, the
user/installer shall take the precautions to ensure the operating service temperature of the overall pressure transducer
assembly is between -40°C to +92°C.
Process Connection Installation
For threaded installations, use the 7/8” hex above the thread of the process
connection to install the process. Do not use the body / housing for installation.
Maximum working pressure for the lowest pressure sensors 0.34MPa (50 psi)
and maximum working pressure for the highest pressure sensors 137.9MPa
(20,000 PSI) -- SINGLE SEAL.

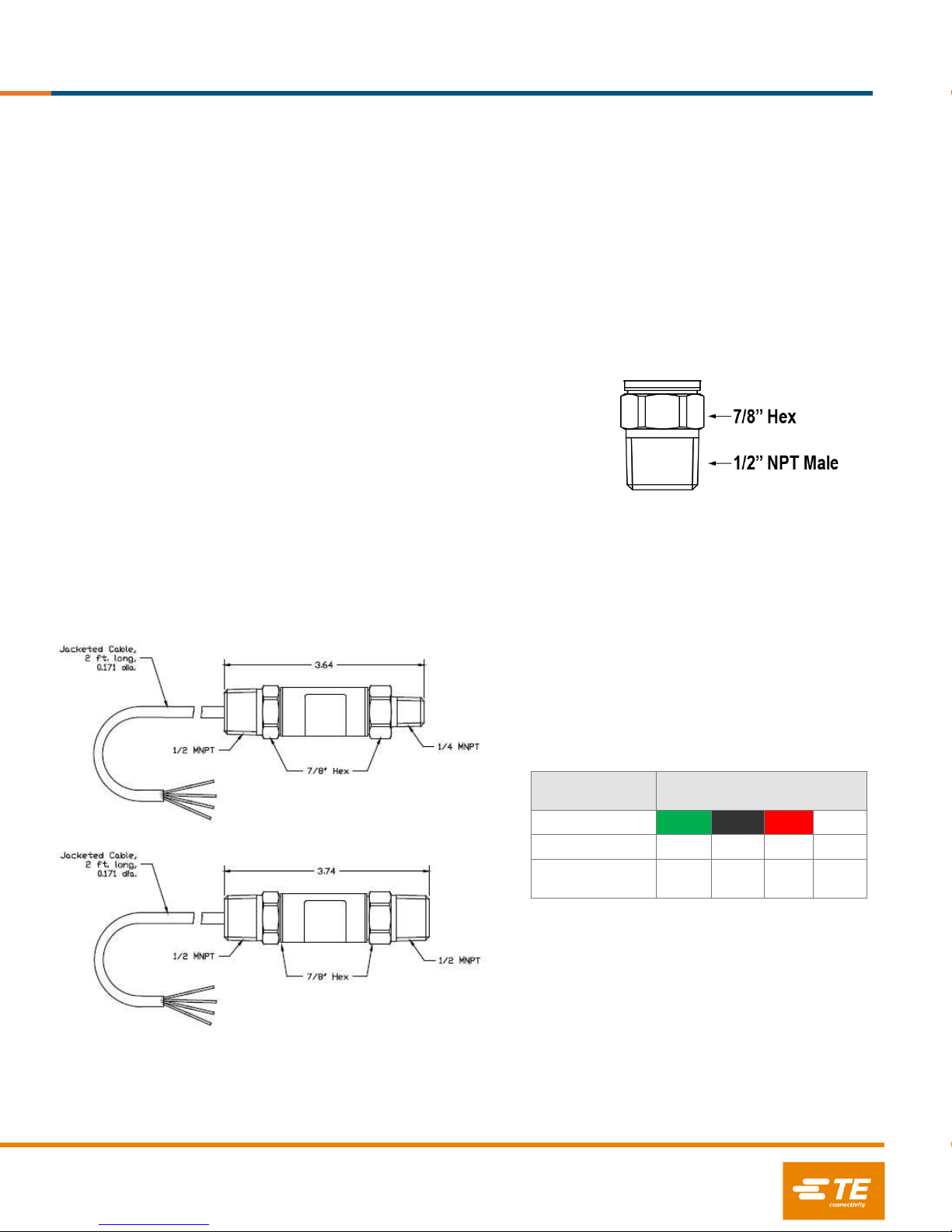

Outlines & Wiring
AST4300 / AST43LP with Metal Conduit & Cable
TE CONNECTIVITY SENSORS /// AST4300 & AST43LP OPERATING INSTRUCTIONS 03/2019
Page 4
OPERATING INSTRUCTIONS
Page 4
Output Type
Pin 1
Pin 2
Pin 3
Wide
Pin
3 Wire Voltage
+V
GND
S
Case
4-20mA
(2 wire loop
powered)
+V
GND
Case
N/C
Option Code
3 Wire Voltage
Pin 1
Pin 2
Pin 3
Pin 4
000
-V S +V
Case
607/617
S
+V
Case
-V
Option Code
4-20mA
Pin 1
Pin 2
Pin 3
Pin 4
000
-V
N/C
+V
Case
615
-V
+V
N/C
Case
Option Code
mV & 4-Wire
Voltage
Pin 1
Pin 2
Pin 3
Pin 4
000
-V
+S
+V
-S
NORTH AMERICA
Measurement Specialties, Inc.,
a TE Connectivity Company
6801 Kaiser Drive
Fremont, CA, 94555
Tel +1 800 522 6752
[email protected]
te.com/sensorsolutions
Measurement Specialties, Inc., a TE Connectivity Company.
AST, TE Connectivity, and TE Connectivity (logo) are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes o nly, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity ‘s obligations shall only be as set forth in TE Connectivity ‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse
of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2016 TE Connectivity Ltd. family of companies All Rights Reserved.
Rev 00
06.22.2016
AST4300 & AST43LP

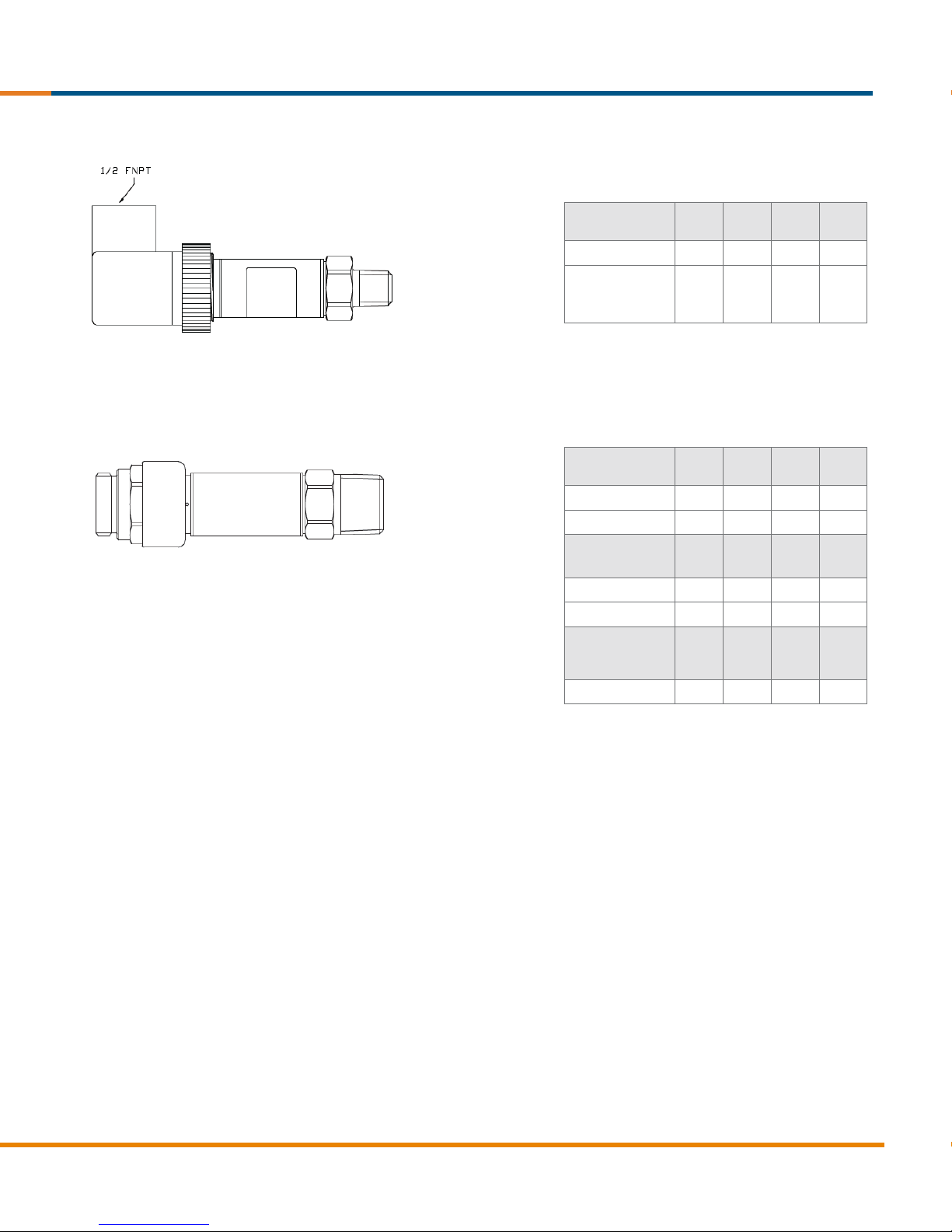

AST4300 / AST43LP with DIN43650A
AST4300 / AST43LP with Minifast (CSA Only)
TE CONNECTIVITY SENSORS /// AST4300 & AST43LP OPERATING INSTRUCTIONS 03/2019
