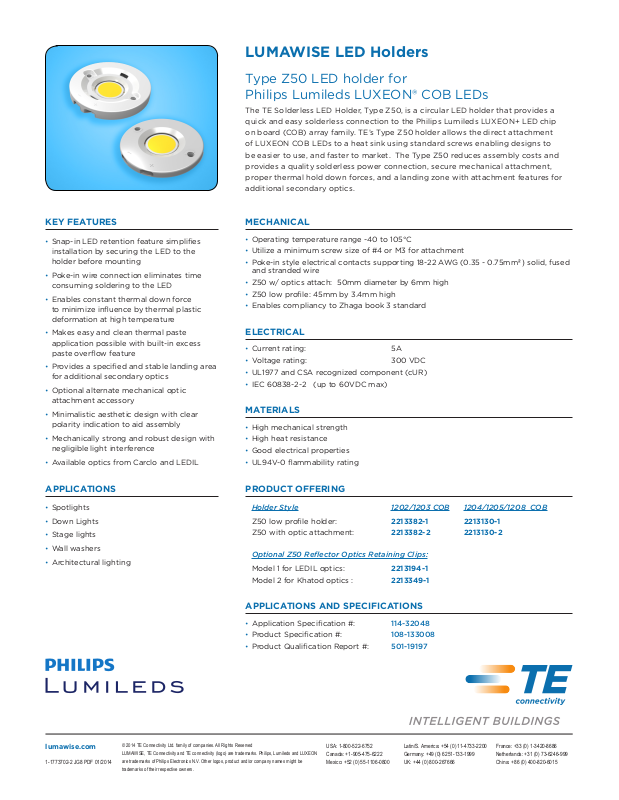

LUMAWISE LED Holders
Type Z50 LED holder for
Philips Lumileds LUXEON® COB LEDs
The TE Solderless LED Holder, Type Z50, is a circular LED holder that provides a
quick and easy solderless connection to the Philips Lumileds LUXEON+ LED chip
on board (COB) array family. TE’s Type Z50 holder allows the direct attachment
of LUXEON COB LEDs to a heat sink using standard screws enabling designs to
be easier to use, and faster to market. The Type Z50 reduces assembly costs and
provides a quality solderless power connection, secure mechanical attachment,
proper thermal hold down forces, and a landing zone with attachment features for
additional secondary optics.
KEY FEATURES
• Snap-in LED retention feature simplifies
installation by securing the LED to the
holder before mounting
• Poke-in wire connection eliminates time
consuming soldering to the LED
• Enables constant thermal down force
to minimize influence by thermal plastic
deformation at high temperature
• Makes easy and clean thermal paste
application possible with built-in excess
paste overflow feature
• Provides a specified and stable landing area
for additional secondary optics
• Optional alternate mechanical optic
attachment accessory
• Minimalistic aesthetic design with clear
polarity indication to aid assembly
• Mechanically strong and robust design with
negligible light interference
• Available optics from Carclo and LEDIL
APPLICATIONS
• Spotlights
• Down Lights
• Stage lights
• Wall washers
• Architectural lighting
MECHANICAL
• Operating temperature range -40 to 105°C
• Utilize a minimum screw size of #4 or M3 for attachment
• Poke-in style electrical contacts supporting 18-22 AWG (0.35 - 0.75mm² ) solid, fused
and stranded wire
• Z50 w/ optics attach: 50mm diameter by 6mm high
• Z50 low profile: 45mm by 3.4mm high
• Enables compliancy to Zhaga book 3 standard
ELECTRICAL
• Current rating: 5A
• Voltage rating: 300 VDC
• UL1977 and CSA recognized component (cUR)
• IEC 60838-2-2 (up to 60VDC max)
MATERIALS
• High mechanical strength
• High heat resistance
• Good electrical properties
• UL94V-0 flammability rating
PRODUCT OFFERING
Holder Style 1202/1203 COB 1204/1205/1208 COB
Z50 low profile holder: 2213382-1 2213130-1
Z50 with optic attachment: 2213382-2 2213130-2
Optional Z50 Reflector Optics Retaining Clips:
Model 1 for LEDIL optics: 2213194-1
Model 2 for Khatod optics : 2213349-1
lumawise.com
1-1773702-2 JG8 PDF 01/2014
APPLICATIONS AND SPECIFICATIONS
• Application Specification #: 114-32048
• Product Specification #: 108-133008
• Product Qualification Report #: 501-19197
© 2014 TE Connectivity Ltd. family of companies. All Rights Reserved
LUMAWISE, TE Connectivity and TE connectivity (logo) are trademarks. Philips, Lumileds and LUXEON
are trademarks of Philips Electronics N.V. Other logos, product and/or company names might be
trademarks of their respective owners.
USA: 1-800-522-6752 Latin/S. America: +54 (0) 11-4733-2200 France: +33 (0) 1-3420-8686
Canada: +1-905-475-6222 Germany: +49 (0) 6251-133-1999 Netherlands: +31 (0) 73-6246-999
Mexico: +52 (0) 55-1106-0800 UK: +44 (0) 800-267666 China: +86 (0) 400-820-6015
Page 2

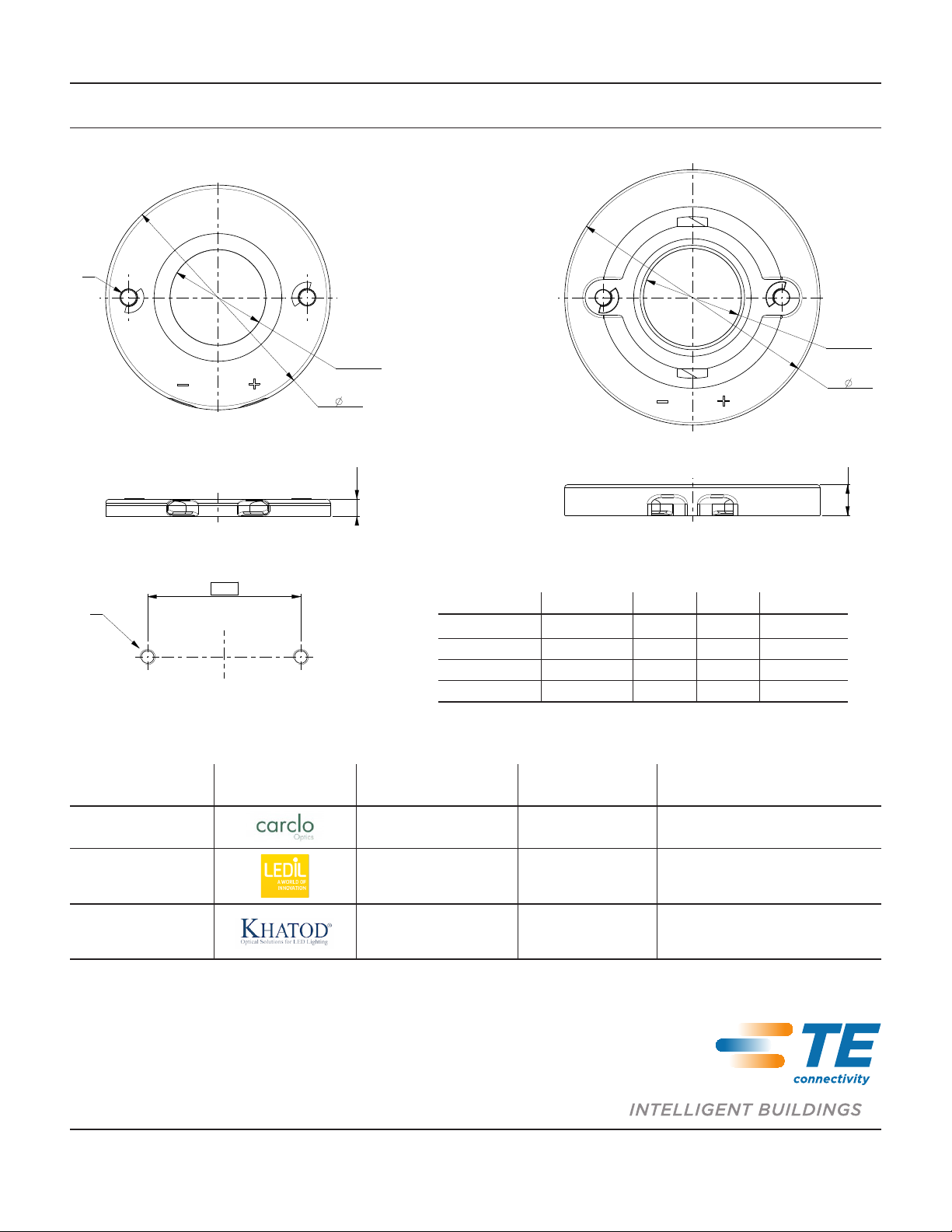

PRODUCT DIMENSIONS
M3
LUMAWISE LED Holder, Type Z50TE Connectivity
“A”
“A”
( )50
( )44
“B”
35,0
M3
Depth:
4MM MIN.
Recommended Mounting Hole Pattern
Available Optics
TE Holder Optics Partner Product Website
2213130-2
2213382-2
2213130-2
2213382-2
NEWTON Series Reflectors www.carclo-optics.com None
ANGELA and ANGELINA
Series Reflectors
For COB LED Profile “A” “B” TE Part No.
1202/1203 Low Profile 15 mm 3.4 mm 2213382-1
1202/1203 Optics Attach 15 mm 6 mm 2213382-2
1204/1205/1208 Low Profile 19 mm 3.4 mm 2213130-1
1204/1205/1208 Optics Attach 19 mm 6 mm 2213130-2
www.ledil.com
“B”
Z50 with optic attachment featuresZ50 Low Profile
TE Attachment
Accessory Required
2213194-1
(Reflector Optics Retaining Clip Model 1)
2213130-2
2213382-2
LYRA series reflectors www.khatod.com
Dimensions are shown for reference purposes only. Specifications subject to change.
Customer drawing should be used for all design activity.
lumawise.com
1-1773702-2 JG8 PDF 01/2014
© 2014 TE Connectivity Ltd. family of companies. All Rights Reserved
LUMAWISE, TE Connectivity and TE connectivity (logo) are trademarks. Philips, Lumileds and LUXEON
are trademarks of Philips Electronics N.V. Other logos, product and/or company names might be
trademarks of their respective owners.
USA: 1-800-522-6752 Latin/S. America: +54 (0) 11-4733-2200 France: +33 (0) 1-3420-8686
Canada: +1-905-475-6222 Germany: +49 (0) 6251-133-1999 Netherlands: +31 (0) 73-6246-999
Mexico: +52 (0) 55-1106-0800 UK: +44 (0) 800-267666 China: +86 (0) 400-820-6015
2213349-1
(Reflector Optics Retaining Clip Model 2)
