Page 1
EXCITE, ENGAGING CARDIO
SYNCHRO
User manual
Page 2
Contents
Important safety instruction ......................................................................... 3
Personal safety ...............................................................................................5
Manufacturer and equipment identication ................................................ 7
Description of the equipment ........................................................................8
Technical data .................................................................................................. 9
Accessories....................................................................................................11
Safety devices and warnings ...................................................................... 12
Place of usage ...............................................................................................14
Moving the equipment .................................................................................15
Levelling ......................................................................................................... 16
Electrical connection (mains powered version) .......................................17

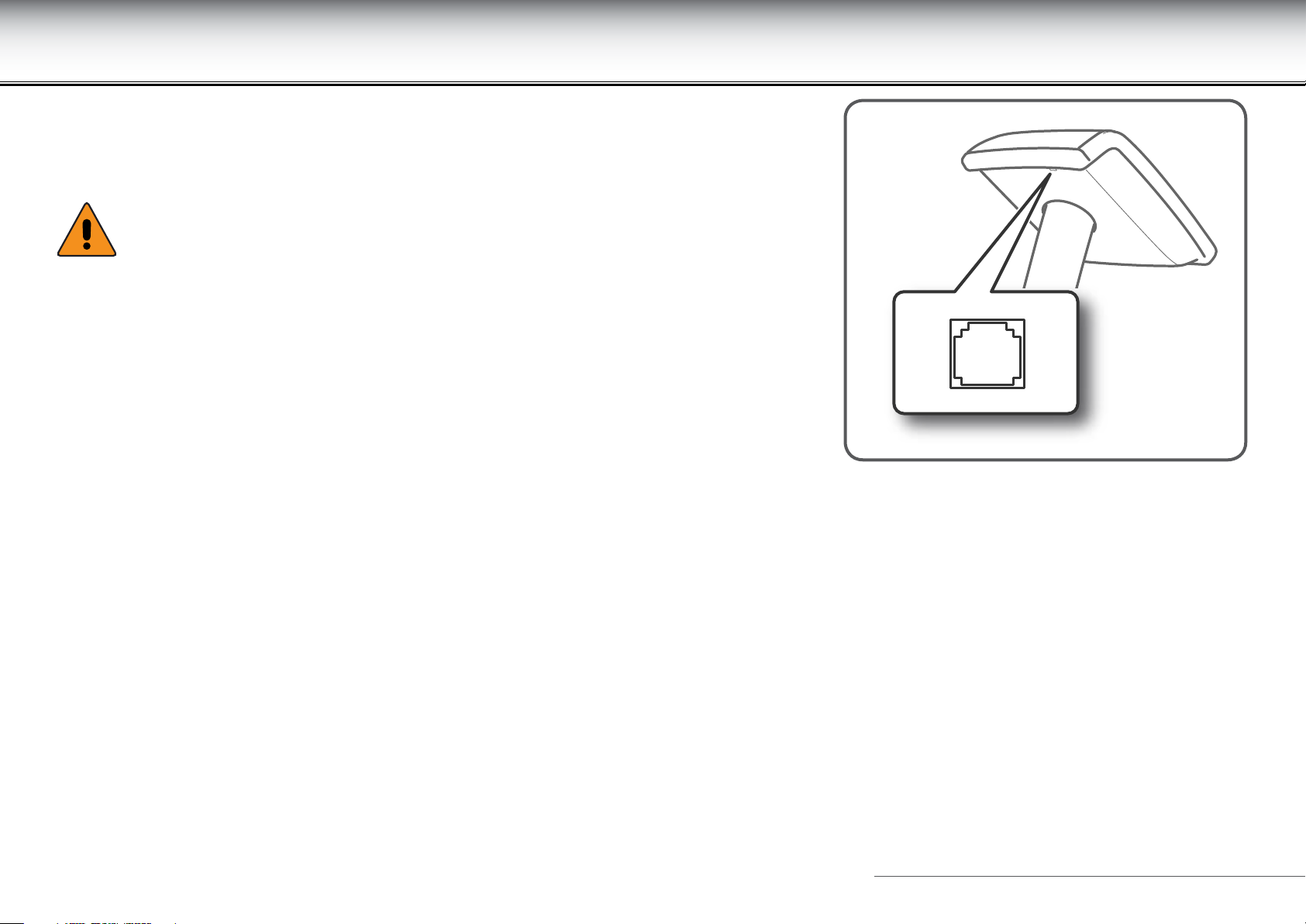

Connection to another device......................................................................19

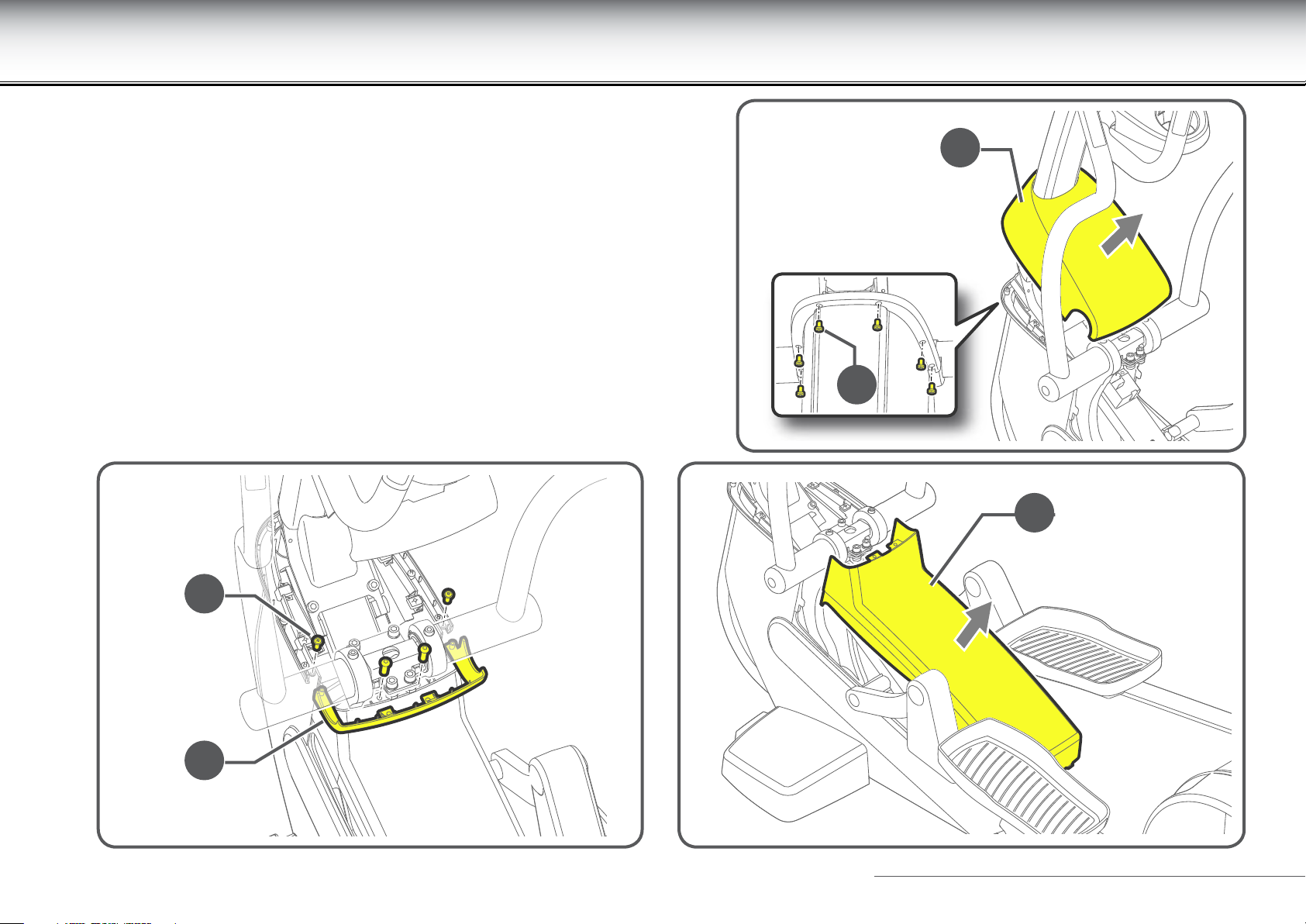

Routine maintenance .................................................................................. 21
Changing the fuses (mains powered version) ..........................................23

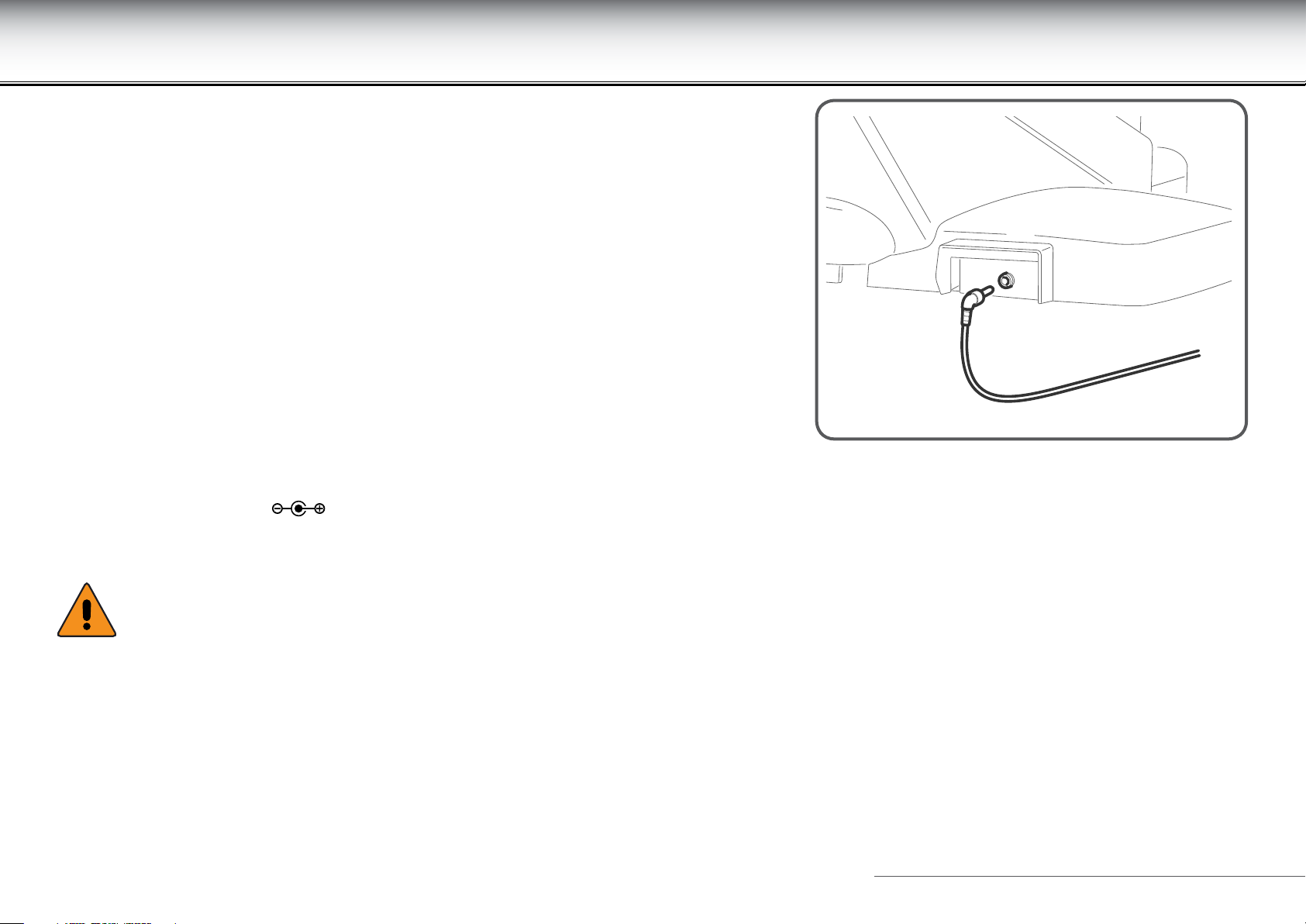

Recharging the battery (battery-powered version) ................................ 24
Troubleshooting .............................................................................................25
Technical assistance ....................................................................................27
Storage ...........................................................................................................28
Disposal .........................................................................................................29
Switching on and o ..................................................................................... 32

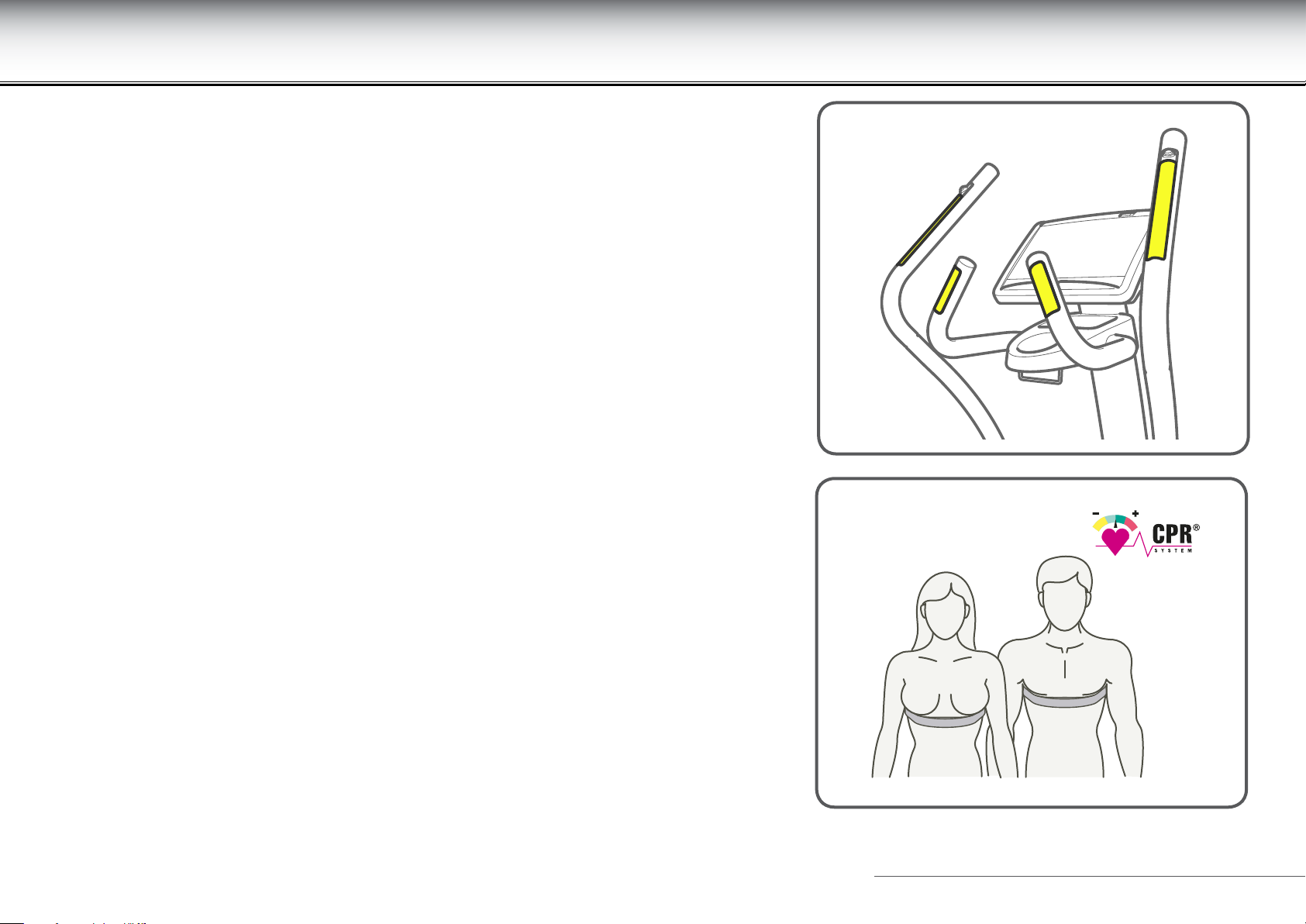

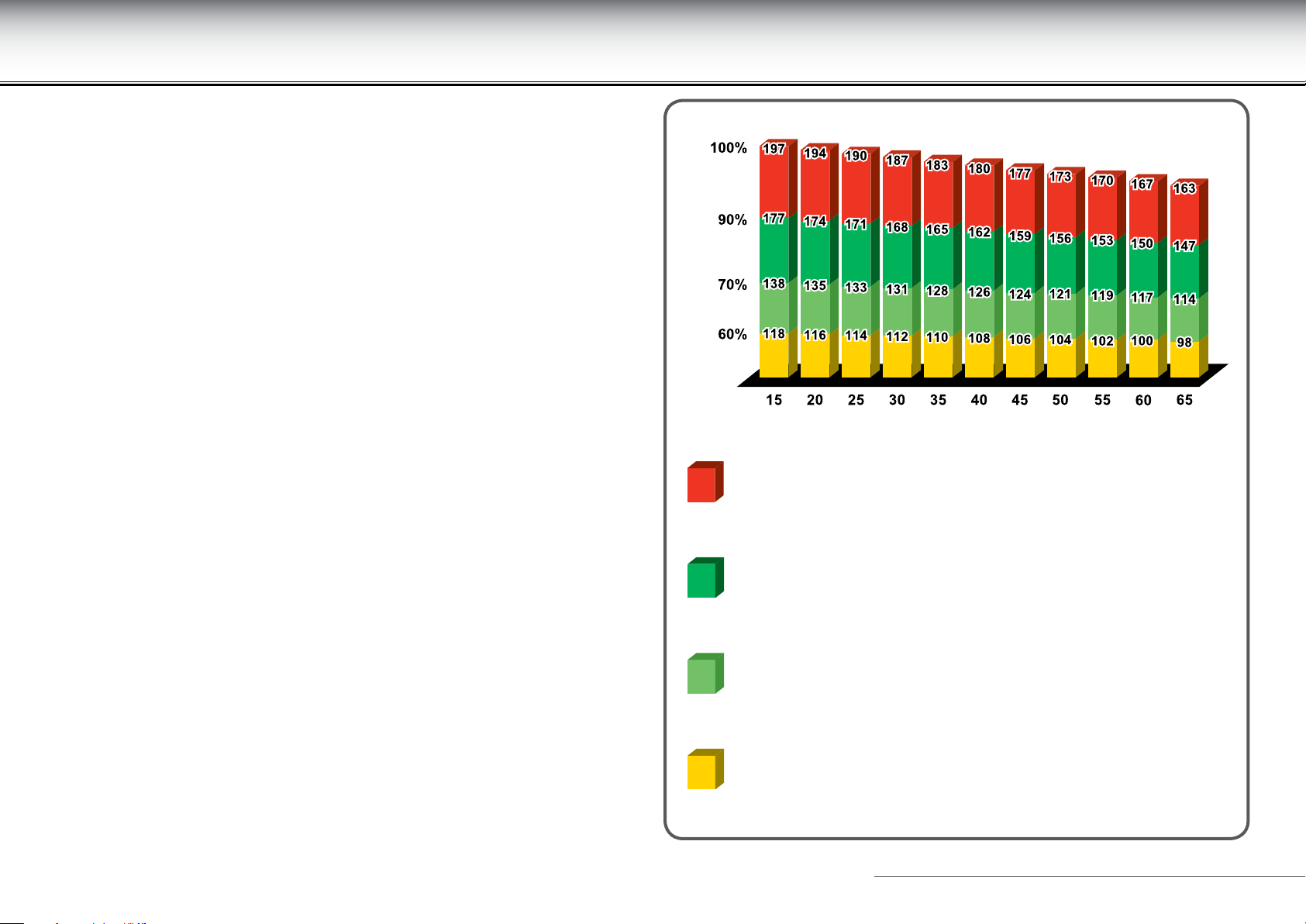

Monitoring the heart rate .............................................................................34

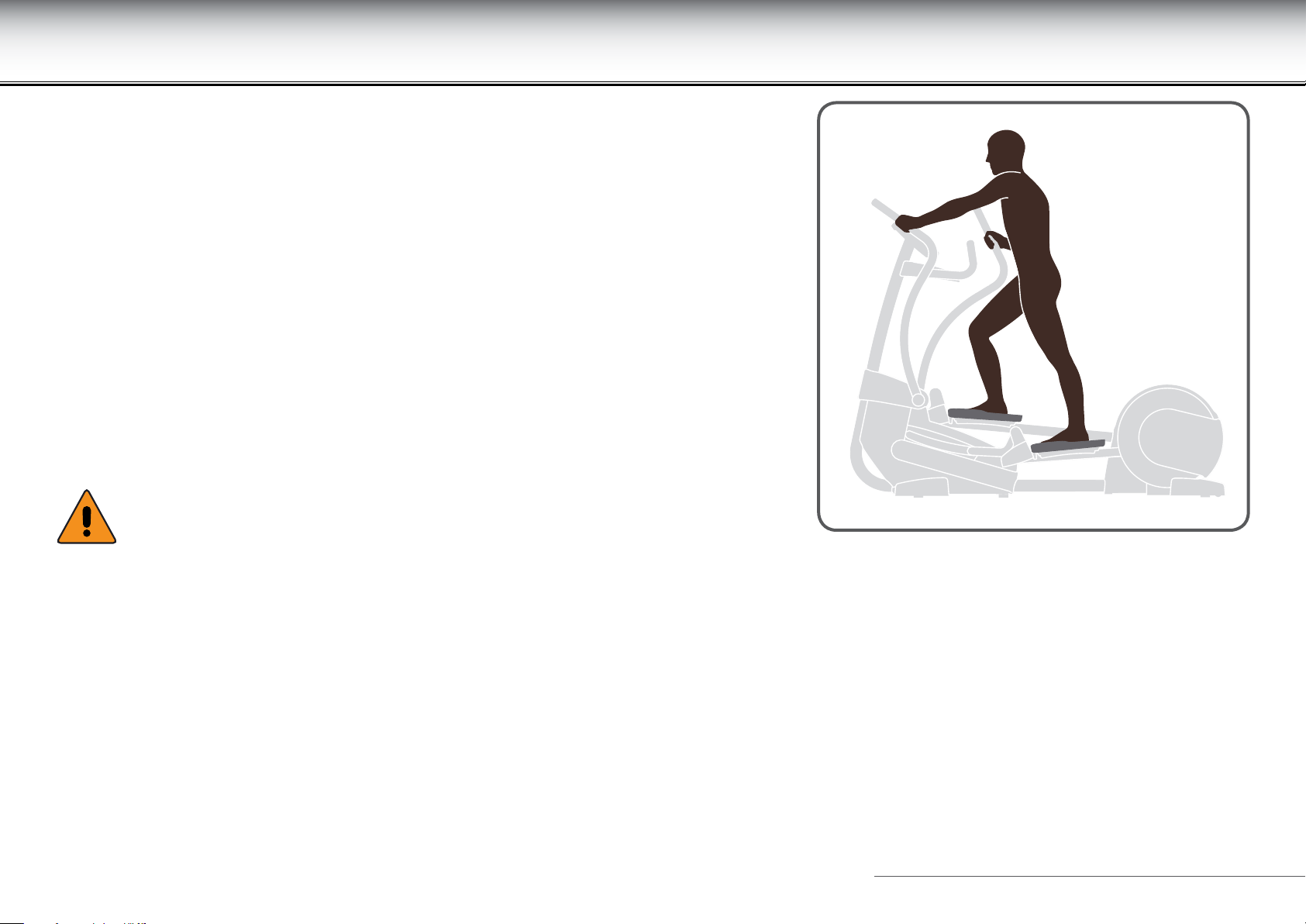

Using the equipment ....................................................................................37
Synchro Excite
2
Page 3
Important safety instruction
You should always consult with a qualied and licensed medical professional or healthcare practitioner before starting any nutritional, diet, stretching
or exercise program. You are advised to investigate and inform yourself about any health related actions and choices you make.
Please read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the unit.
When using an electrical appliance, basic precautions should be always followed, including the following.
D
To reduce the risk of electric shock, always unplug the unit from the electrical outlet immediately after using and before cleaning
or performing any maintenance tasks.
W
To reduce the risk of burns, re, electric shock or injury to person, take the following precautions.
The equipment should never be left unattended when plugged in. Unplug from outlet when not in use, before cleaning it, and before putting on or taking
o electrical parts.
Do not allow unsupervised children close to the equipment.
Close supervision by qualied personnel is necessary when the equipment is used by or near children, invalids or disabled persons.
Use the equipment only for its intended use as described in the user manual. Only perform the exercises for which the equipment has been designed,
following the instructions given in the manual. Any other use is to be considered improper and therefore dangerous.
Do not use attachments not recommended by Technogym.
Never operate the equipment if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. In
this case, contact the Technogym Technical Support service.
Do not carry the equipment by supply cord or use cord as handle.
Synchro Excite
3
Page 4
Important safety instruction
Keep the cord away from heated surfaces.
Keep hands and feet away from moving parts.
Never drop or insert any object into any opening.
To disconnect, turn all controls to the o position, then remove plug from outlet.
SAVE THESE INSTRUCTIONS
W
Do not connect a device with load exceeding 7A.
Risk Of Electric Shock. Do Not Disconnect Under Load.
Do not connect to a circuit operating at more than 150V to Ground.
Synchro Excite
4
Page 5
Personal safety
Use of the equipment is subject to a medical examination in relation to the intended type of exercise, and compliance with the conditions of use laid down
by the manufacturer.
Persons suering from certain physical conditions may only use the equipment under the strict supervision of a specialist doctor.
If, during exercise, the message “HIGH HEART RATE” appears, your heart rate is too high and you should slow down the exercise.
Before starting an exercise, make sure your position on the equipment is correct, and be careful with any components that might constitute an obstruction.
Choose suitable exercises for your physical characteristics and state of health, starting out with light loads.
Do not overexert yourself or work to exhaustion. Incorrect or excessive exercise may cause serious physical harm or even death. If you feel any pain or
abnormal symptoms, stop your workout immediately and consult your physician.
Wear proper exercise clothing and shoes during a workout, no loose clothing. Tie long hair back. Keep garments or towels away from moving parts.
During use people must remain at a safe distance.
Do not use the equipment in presence of small children or pets.
The person in charge of the gym must explain to the users about proper and improper use of the equipment.
Completely assemble the equipment before using it. Check the equipment before each use. Do not continue to operate the equipment when it is not
working properly.
Assemble and operate the equipment on a solid, level surface.
Keep all electrical components, such as the power cable and I/0 switch, away from liquids to prevent shock.
Maintain the equipment in good working condition. If there are signs of wear, contact the Technogym Technical Support service.
Do not attempt to service the equipment yourself other than the maintenance instructions found in the user manual.
The installation, maintenance and setting must be done by qualied Technogym sta or persons authorised by Technogym.
The electrical system must conform to the standards and legal requirements in the country of use.
Synchro Excite
5
Page 6
Personal safety
Do not set anything on the casing or control panel.
Technogym is not responsible for any damages due to any failures or damage caused by unauthorized service, misuse, accident, negligence, improper
assembly or installation, debris resulting from any construction activities in the product’s environment, rust or corrosion as a result of the product’s
location, alterations or modications without Technogym’s written authorization or for failure on your part to use, operate and maintain the products
as set out in this User Manual.
W
There are high voltages inside the equipment, therefore the guard must be removed by authorised personnel only.
Synchro Excite
6
Page 7

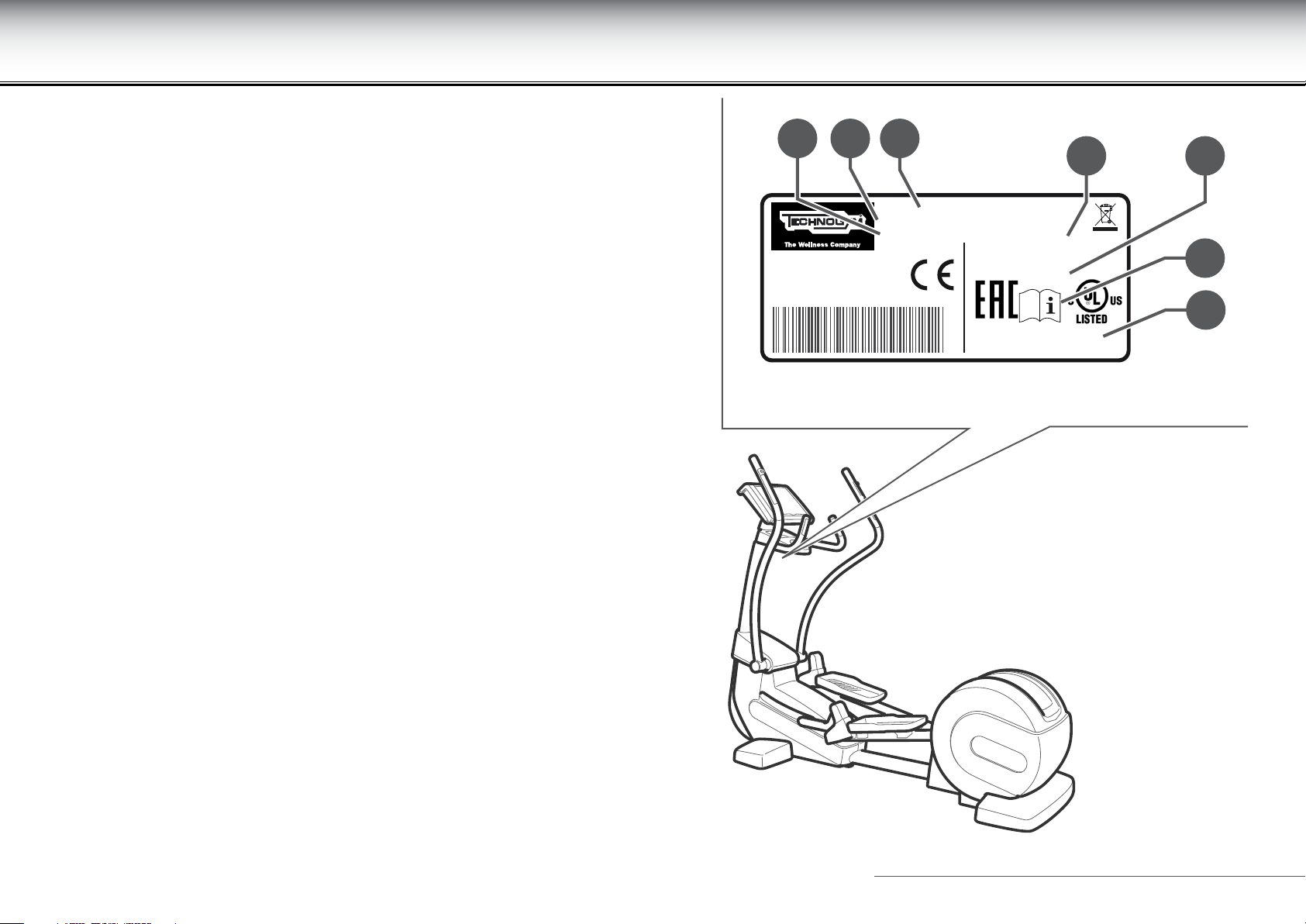

Manufacturer and equipment identication
A - Manufacturer’s name and address
B - Place of manufacture
C - Description of product
D - Electrical specications
E - Tells you to consult the User manual
F - Serial number and date of manufacture
G - Product model
The Synchro is a commercial device, designed for use in residential and
professional environments. It is a class SA device, pursuant to ISO EN 20957-1.
Equipment marked with the code DE58M... is intended for medical use and
has been designed and manufactured for use in doctors' surgeries, hospitals,
clinics and gyms, for muscle treatment and rehabilitation. These are class
IA devices, pursuant to ISO EN 20957-1. They are not suitable for use in the
presence of anaesthetic mixtures which are ammable in air, oxygen or
nitrous oxide.
C B A
Technogym S.p.A. via Calcinaro 2861, Cesena (FC)
Made in Italy
SYNCHRO 1000
WARNING replace with same type and rating
of fuses: 2 x 3,15 A (F) 250V
Maximum User’s Weight: 180 kg
Class: SA ISO EN20957-1 EN957-9
G
Contains FCC ID: Z64 - WL18DBMOD
XZRBD01793, XZRBRD01794
100 - 240 Vac 1.0-0.5A 50/60 Hz
Massage and exercise machine: 2AD3
S/N DE583U15000001
Model no. DE583U
10/15
D
E
F
Products marked with the code DE58M... can be used by or close to children,
invalids, disabled persons or people with evident physical problems only under
close supervision of a doctor or a qualied professional.
Synchro Excite
7
Page 8

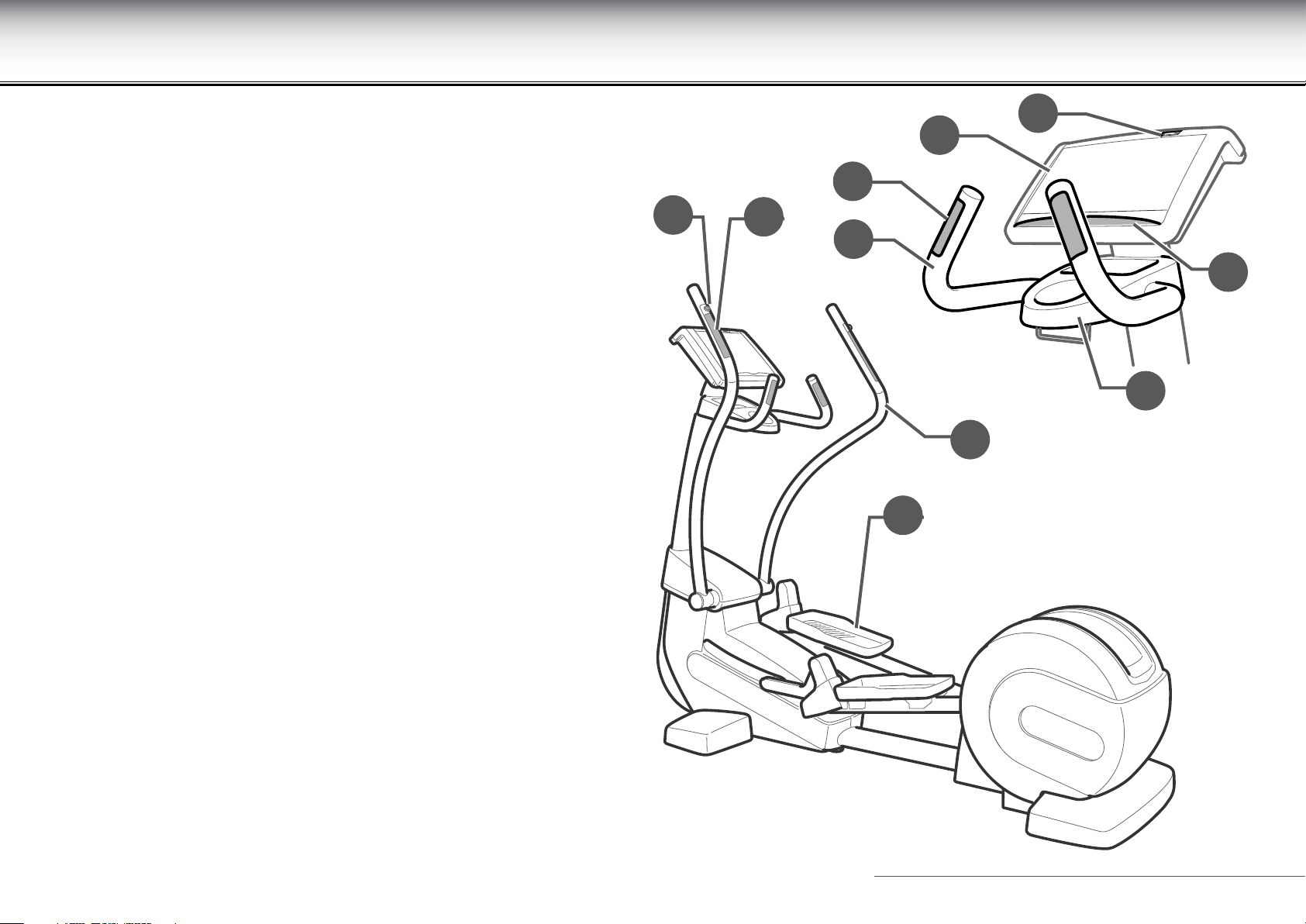

Description of the equipment
Control panel (A): controls all available functions, from setting up workout
programmes to viewing messages and related workout information. It also
permits control of audio and video contents with USB and iPod devices and
with compatible audio/video equipment (e.g. headphones).
Please see the control panel's manual to see how it works.
TGS input (B): for the TGS or mywellness key (optional).
Fixed handgrips (C): they are gripped when working out only with legs.
Hand sensor (D): the metal plate sensors permit constant heart rate
monitoring.
Fast Track Control (E): they allow users to change the eort level of the
exercise without removing their hands from the levers, ensuring a correct
and safe posture.
Levers (F): they are gripped during the exercise to combine training of
legs and arms.
Pedals (G): the special conguration of the pedals permit the ankles to
work under optimum conditions.
E
B
A
D
D
C
L
H
F
G
Tray (H): for standing the water bottle or other useful items on during the
workout.
Reading stand (L): for standing magazines or books on.
Synchro Excite
8
Page 9
Technical data
Mains powered Synchro Battery-powered Synchro
Power supply 100÷240 Vac 50/60 Hz _
Mains power input 65 VA max (160 VA max with Unity) _
Fuses 2 x 3,15A (F) _
Maximum braking power 500 W at 120 spm 500 W at 120 spm
Minimum braking power 20 W at 60 spm 45 W at 60 spm
Weight of equipment
Maximum user weight 180 kg (396 lb) 180 kg (396 lb)
User heigh for which performance indicated
is guaranteed
Time 0÷999 min ± 1% 0÷999 min ± 1%
Distance 0÷99.99 km ± 5% (0÷99.99 mls ± 5%) 0÷99.99 km ± 5% (0÷99.99 mls ± 5%)
Protection grade IP 20 IP 20
Electric isolation class Class I Class I
148 kg (326 lb) 150 kg (330 lb)
155 cm÷205 cm (6"÷8") 155 cm÷205 cm (6"÷8")
Synchro Excite
9
Page 10

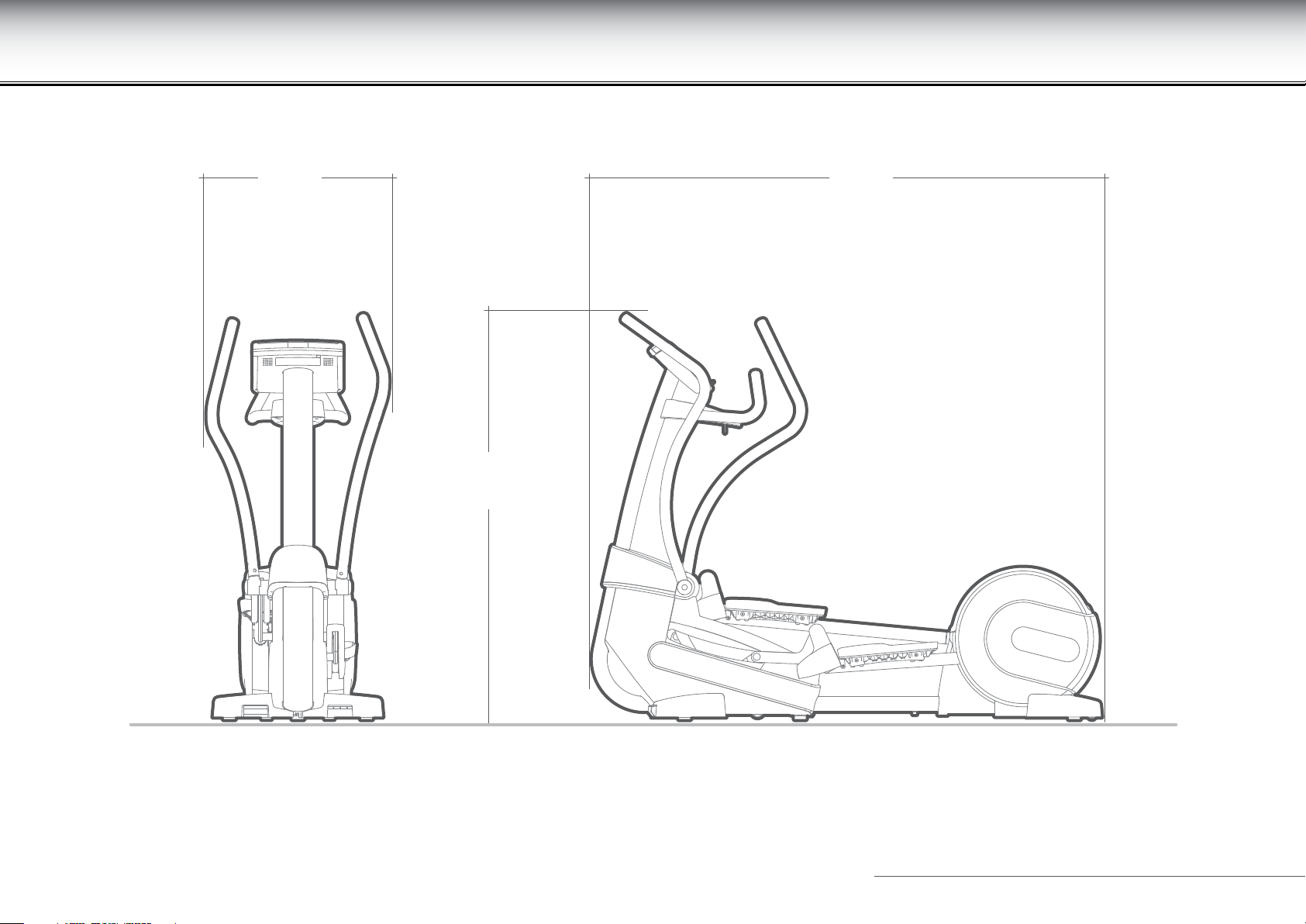

Technical data
752 mm
(30")
2042 mm
(80")
1609 mm
(63")
Synchro Excite
10
Page 11

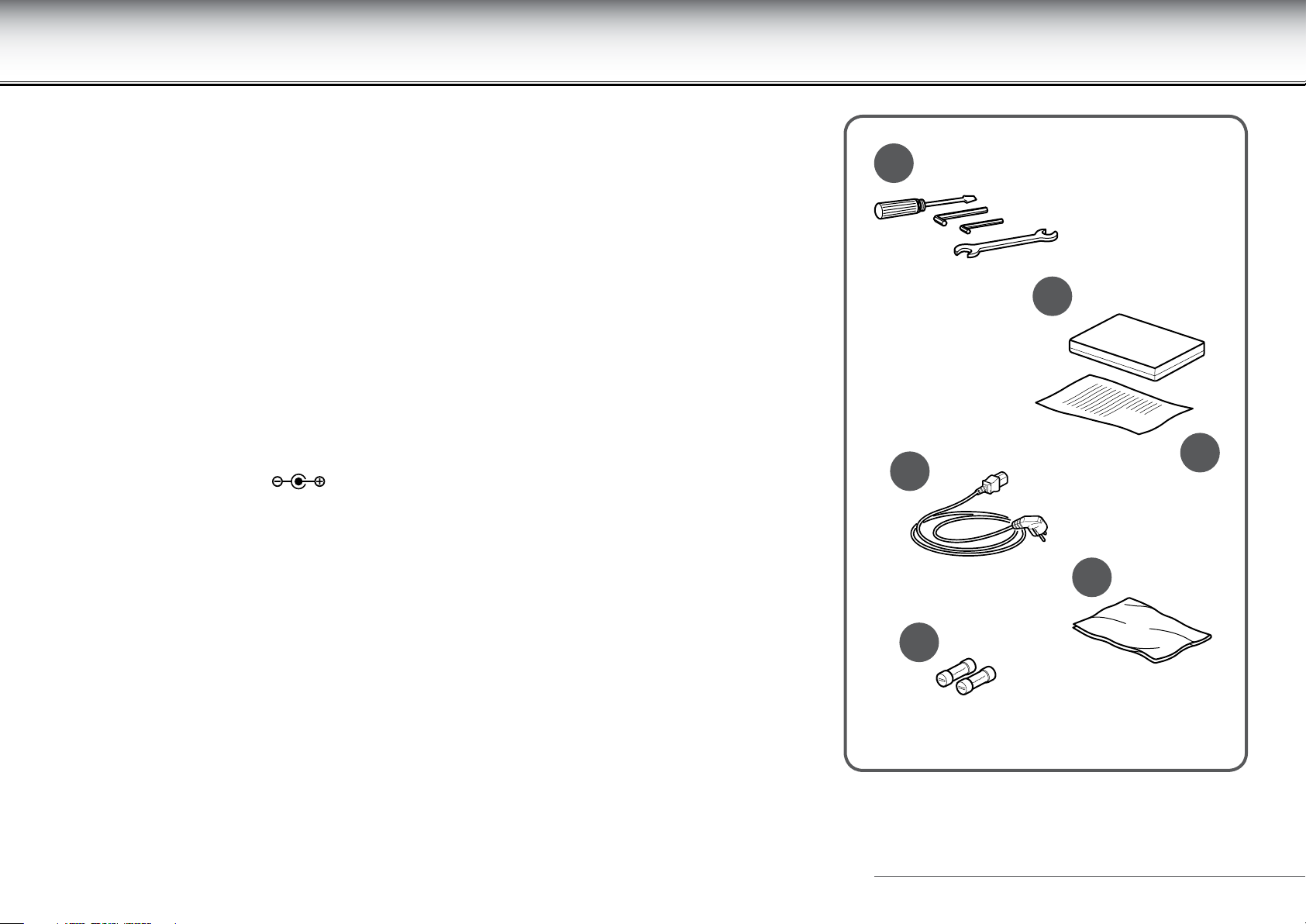

Accessories
The equipment’s standard outt comprises:
A Set of wrenches
B User manual
C Warranty certicate
D CEE Power Supply cable with SH socket (mains powered version)
E Cloth for cleaning
F Two replacement fuses (2 x 3.15A (F) (mains powered version)
The charger comes with the battery-powered version.
Charger electrical specications:
A
B
Input 100÷240 Vac 0,8 A 50/60 Hz
Output 15 V dc 24W
Class II
D
F
E
Synchro Excite
C
11
Page 12

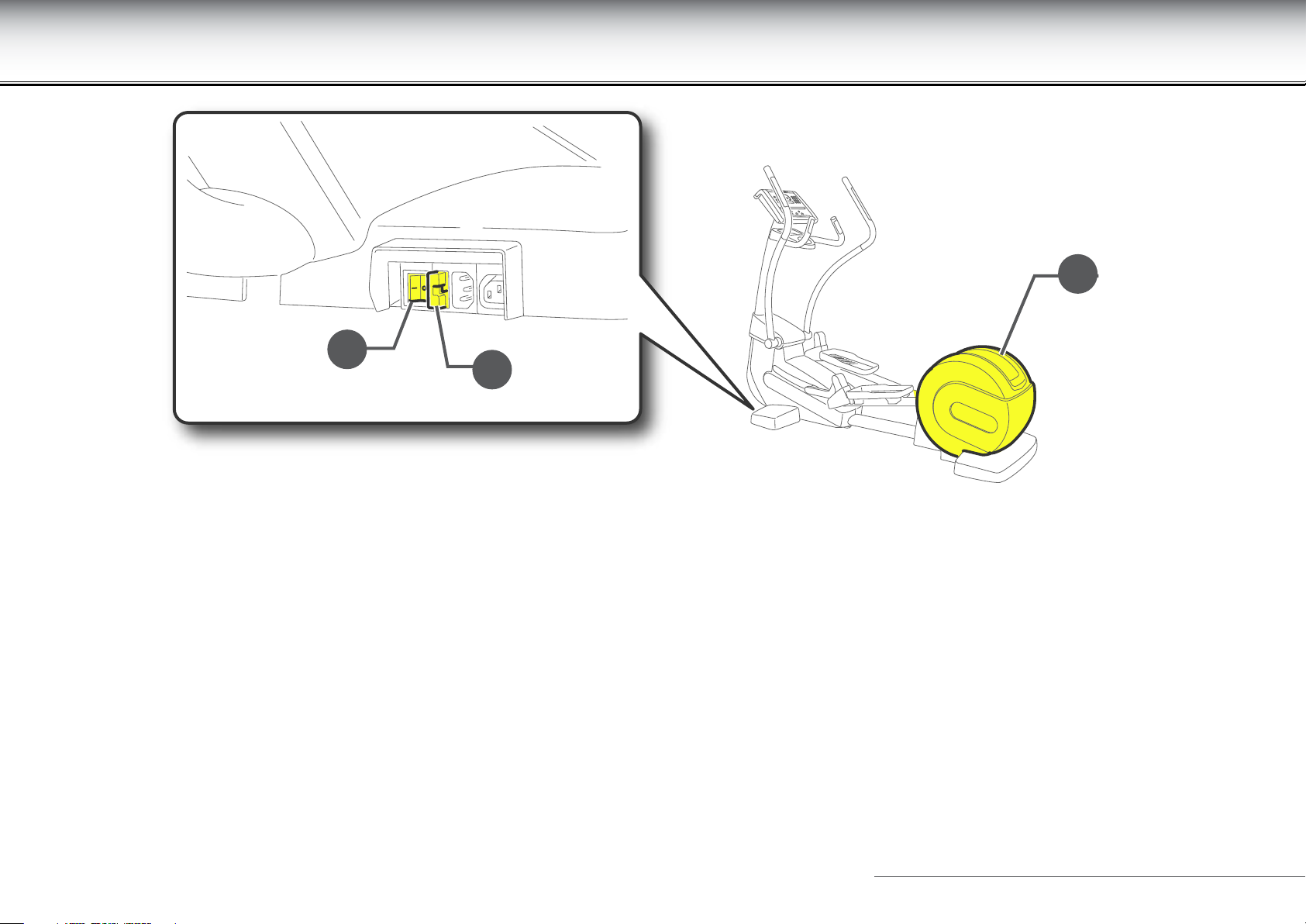

Safety devices and warnings
B
C
A
In all versions:
A Fixed guard: guards against access to the inside of the equipment.
In the mains powered version:

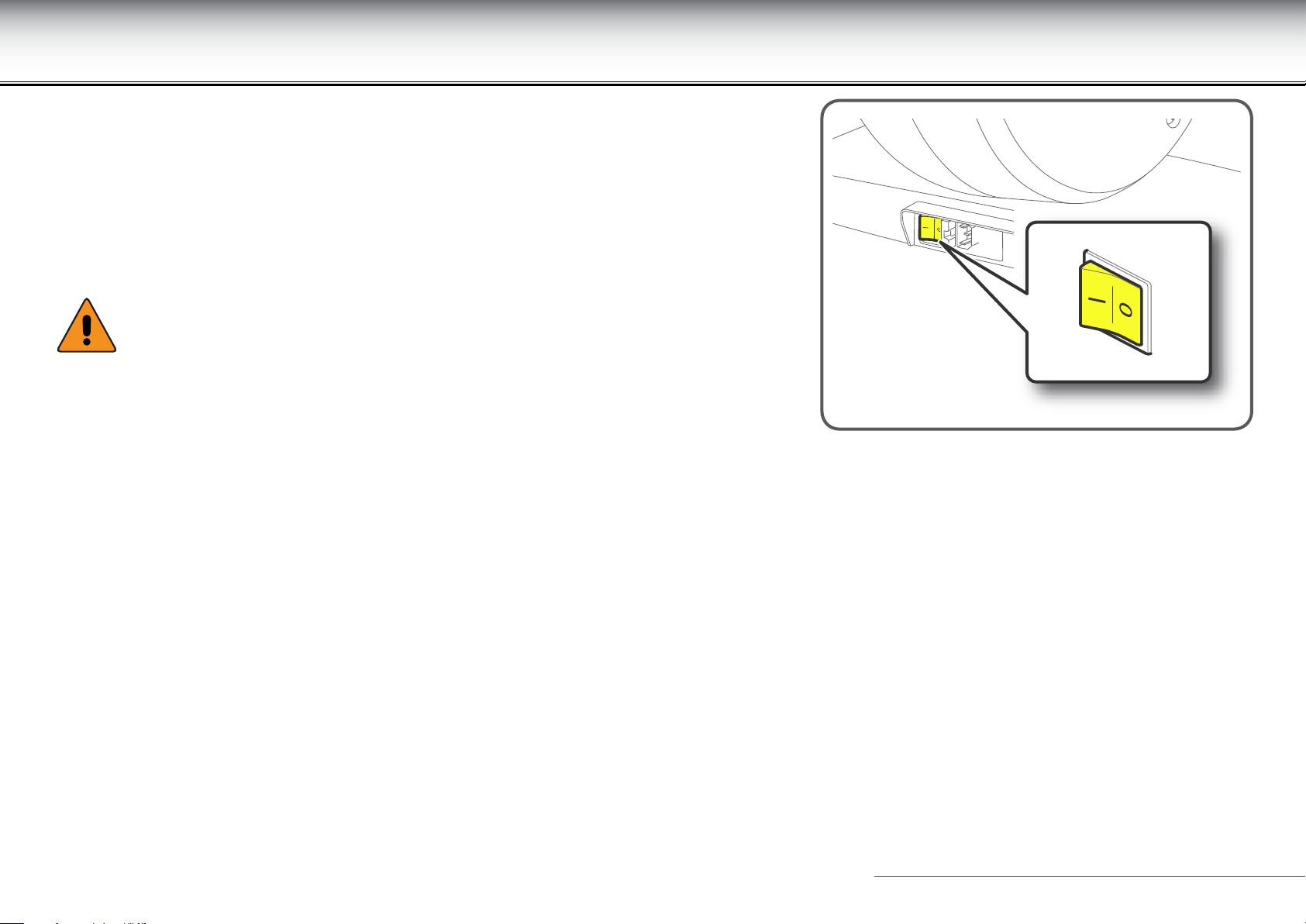

B Main switch: turns the equipment’s power on and o.
C Fuses: they protect the equipment’s electrical parts. When the current reaches an excessive value, the fuses melt thus protecting the internal electronics.
Synchro Excite
12
Page 13

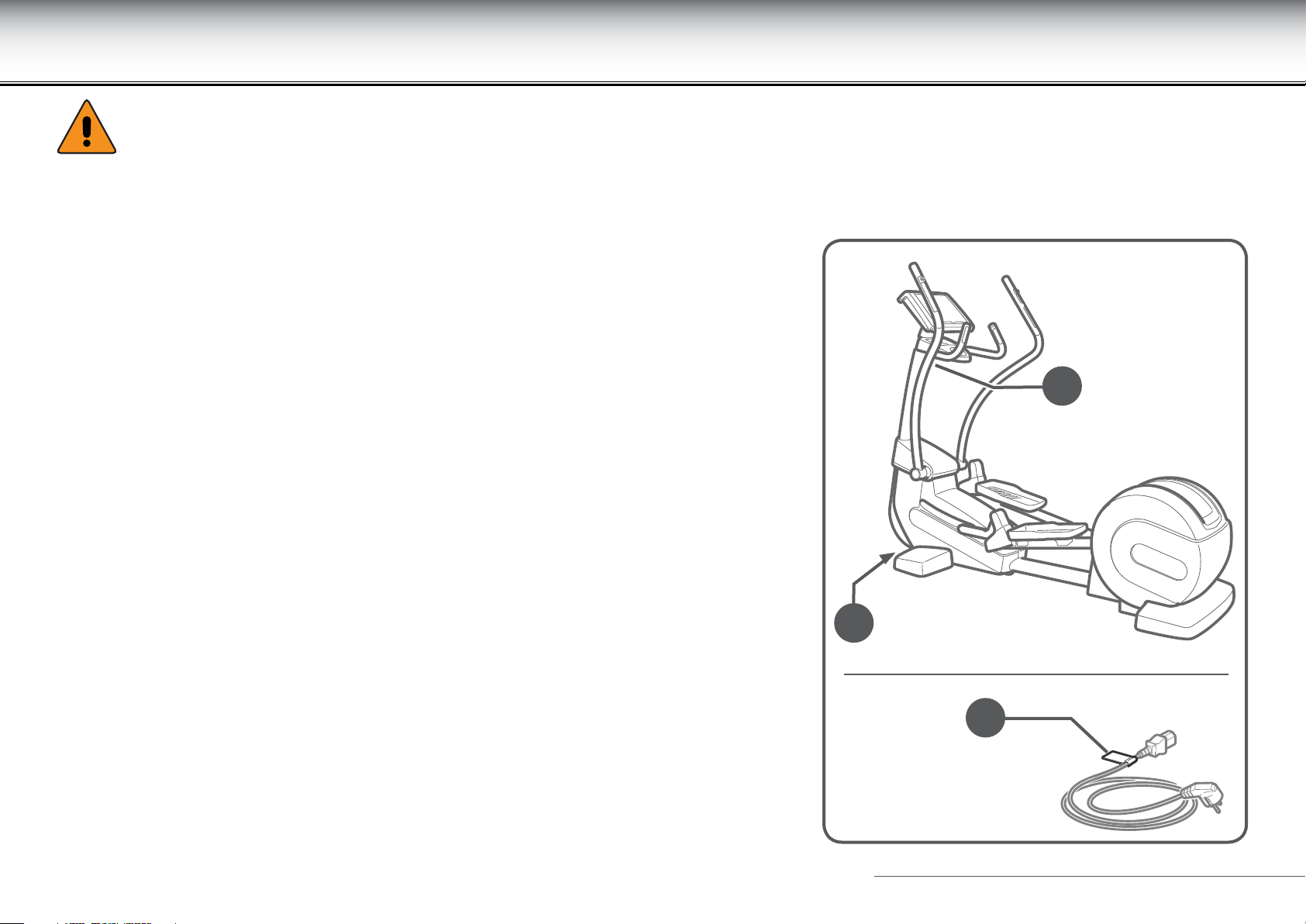

Safety devices and warnings
W
Please read the adhesive labels on the equipment, which provide information about possible risks and hazards.
D The label axed to the frame under the control panel states the electrical specications.
E The label, which can be axed close to the main switch, states safety indications.
D The label which can be axed to the power supply cable states the electrical specications
for the cable.
D
E
F
Synchro Excite
13
Page 14
Place of usage
To ensure that exercising with the equipment is easy, safe and eective, the place where it is used should comply with certain specic requirements; in
particular, before choosing the place where the equipment will be installed, please ensure that the following conditions are satised:
- the temperature is between +10°C and +25°C;
- enough air is circulating to keep humidity during exercise to between 20% and 90%;
- the lighting is good enough to make the area safe and relaxing place to exercise in;
- free space of at least 60 cm around the entire perimeter of each product;
- that the oor is at, stable and vibration-free, and strong enough to bear the weight of the equipment plus user.
Do not expose the equipment to direct sunlight.
Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the equipment to water jets.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
Do not install the equipment in areas with high humidity levels, for example close to swimming pools, whirlpools or saunas.
The place of installation must comply with all the suitability requirements laid down in current legislation on this matter.
In order to guarantee the performance indicated by the manufacturer, you are advised against using the equipment in zones with high short-wave
presence or similar.
Synchro Excite
14
Page 15

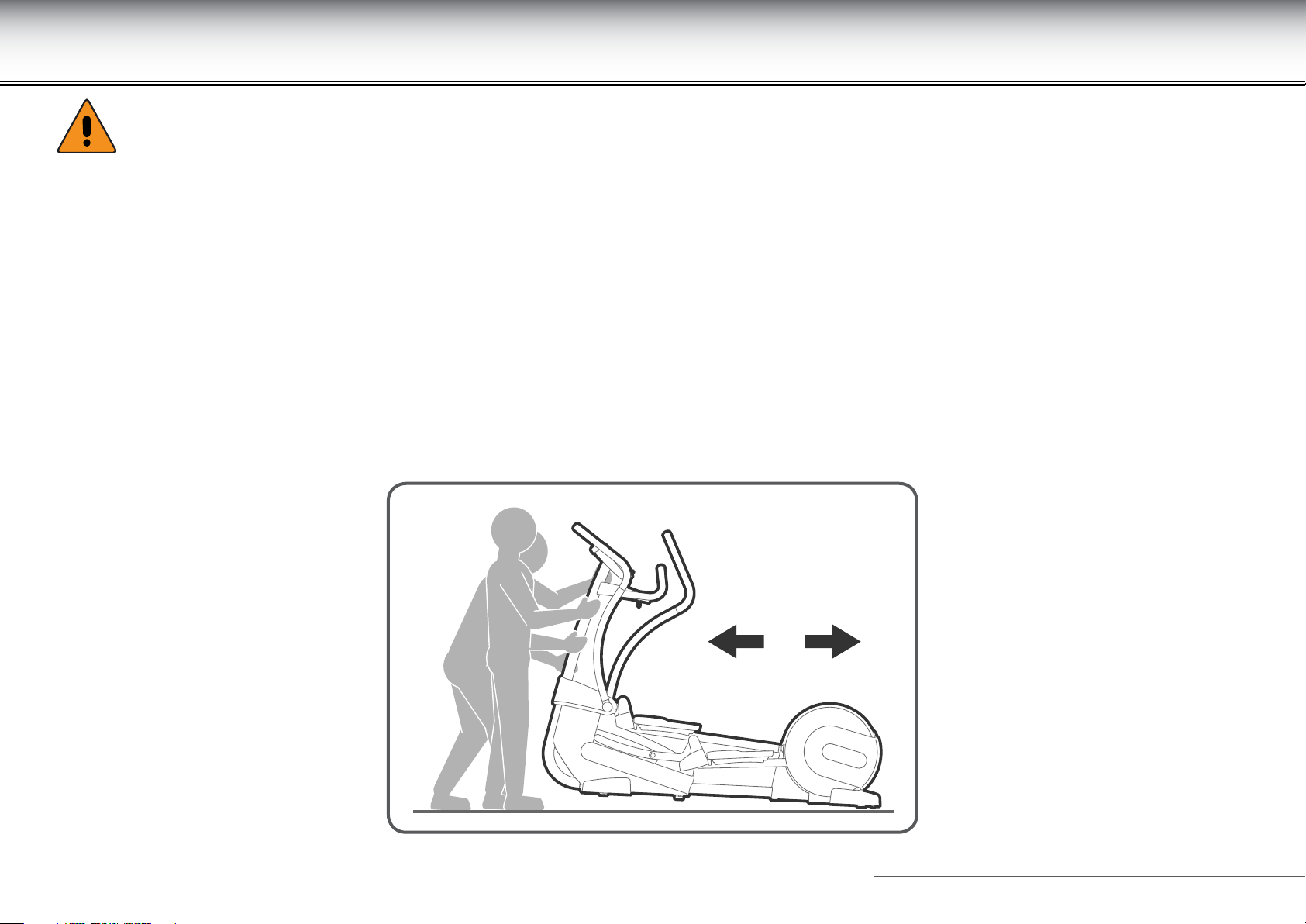

Moving the equipment
W
Take great care when moving the equipment, as it may overbalance.
When lifting or moving the equipment, do not take hold of the platforms, levers or the control panel as hand holds.
The equipment has two xed rear wheels. To move the equipment, lift it up slightly, as shown in the illustration, and push it forwards and backwards.
Given the weight of the equipment, we recommend that more than one person be involved in lifting it.
If wheels cannot be used on the oor, move the equipment with normal lifting and transport methods.
Synchro Excite
15
Page 16

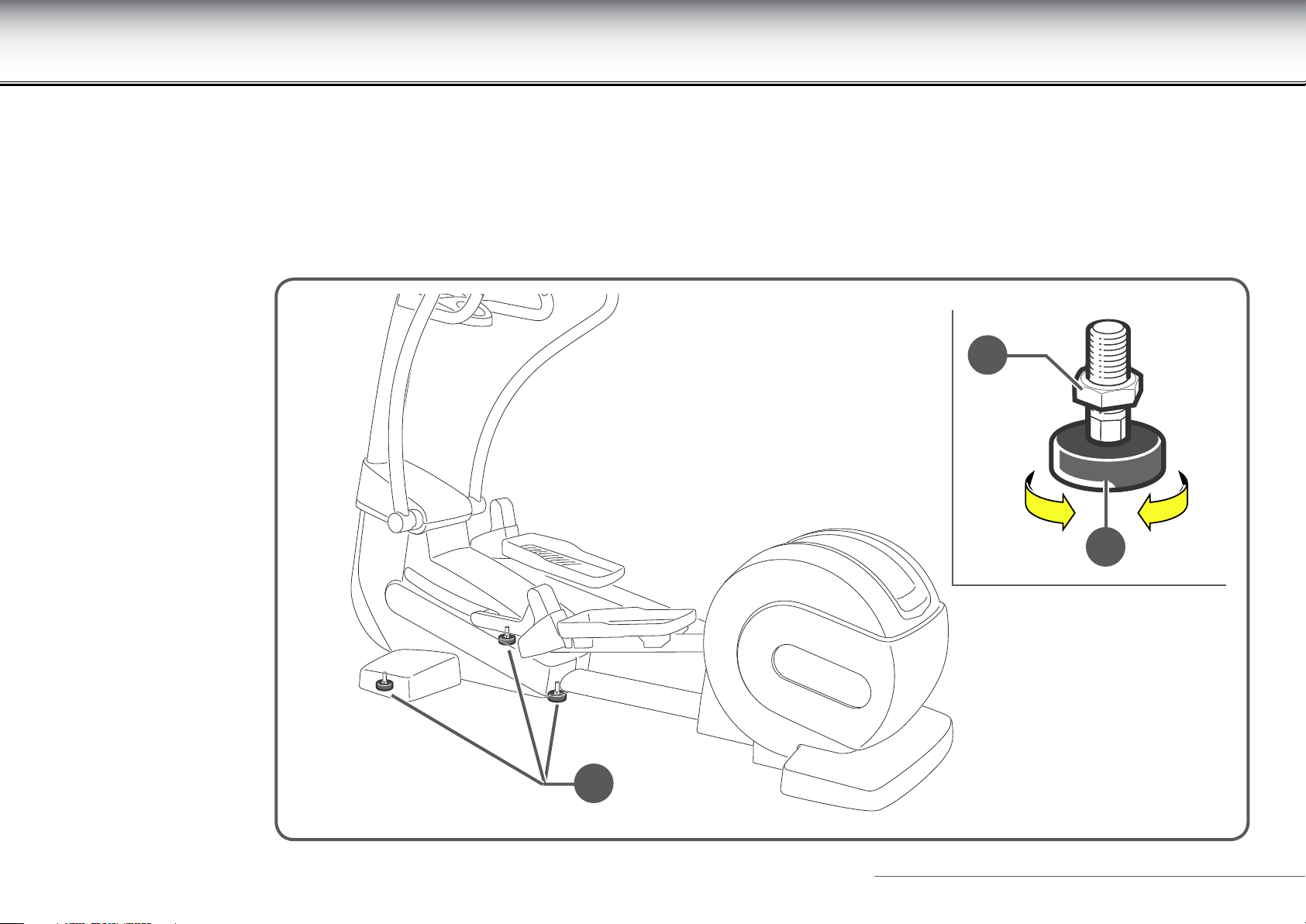

Levelling
Use the two front feet and the central foot to level the equipment:
- loosen the lock nut (B);
- screw the front feet (A) in or out until the frame is in a stable position;
- tighten up the lock nut (B) after adjusting.
B
A
A
Synchro Excite
16
Page 17

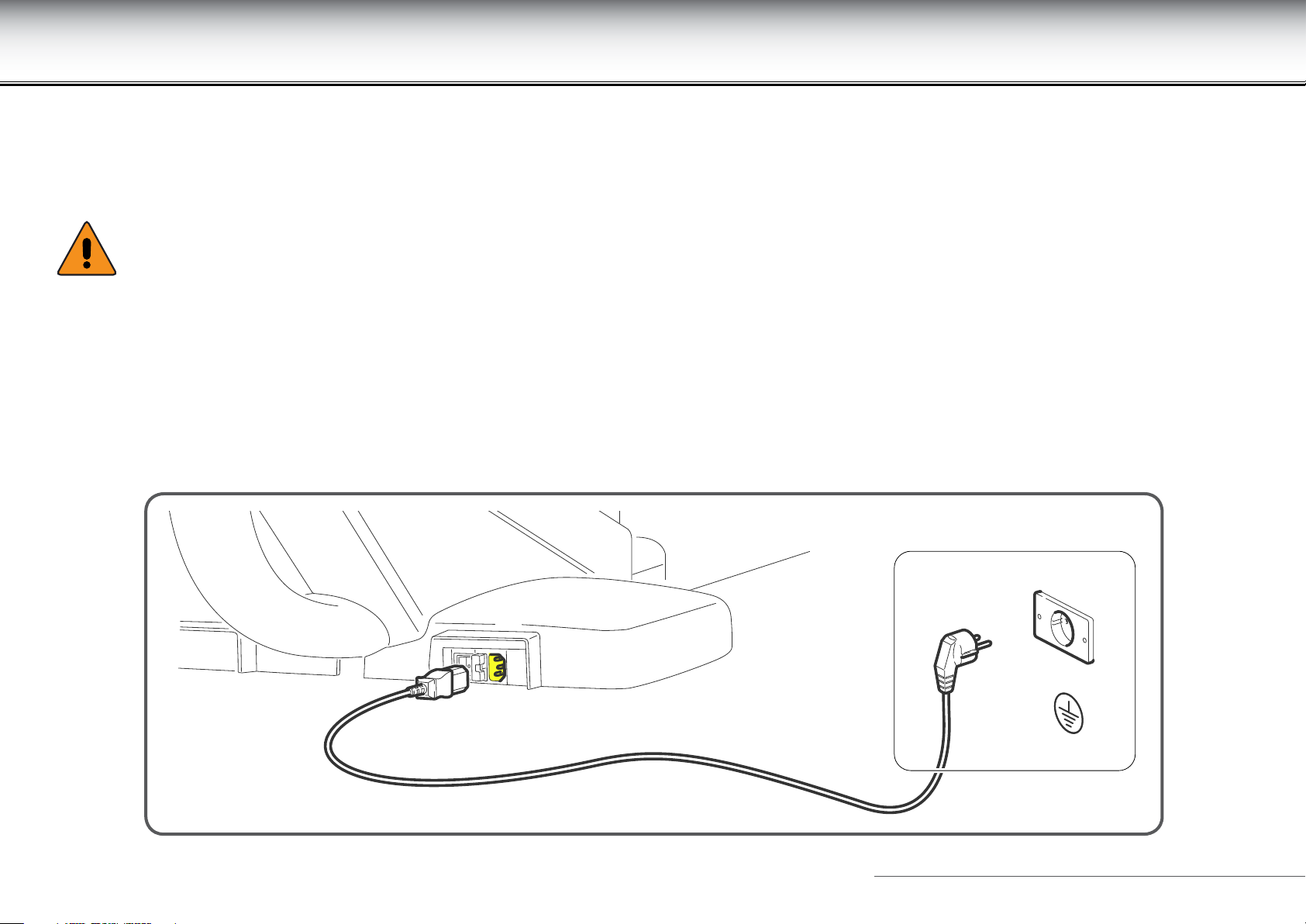

Electrical connection (mains powered version)
Before connecting the equipment to the mains power supply, ensure that the electrical system specications comply to binding regulations. Check the
mains power supply specications on the label applied to the frame under the control panel.
Plug the power cable rst into the equipment socket and then into the wall socket.
W
The wall socket must be located in a place where the plugging and unplugging can be done easily and safely.
When plugging in, the switch on the equipment must be in the 0 position (i.e. the equipment must be switched o).
Check the state of the power supply cable periodically.
Synchro Excite
17
Page 18
Electrical connection (mains powered version)
The power supply socket must be grounded . If not, a ground connection must be installed by a qualied electrician before connecting
the equipment to the electricity mains.
The product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk
of electric shock. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
W
Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualied electrician
or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product;
if it will not t in the outlet, have a proper outlet installed by a qualied electrician.
Synchro Excite
18
Page 19
Connection to another device
The equipment can be connected to an audio/video reception device such as the Cardio
Theater. Besides, if the equipment has not TV, it can be connected to a network of devices
conforming to the CSAFE protocol.
W
The devices connected must comply with international standards.
Equipment with codes DE58M.... can be connected to devices conforming to the CSAFE protocol only for setting and maintenance functions. Additional
devices connected to the digital interface must conform to the respective IEC standards (that is IEC 60950 for information technology equipment and
IEC 60601-1 for medical electrical equipment). Whoever connects additional equipment to the input or output signal ports, congures a medical system
and therefore is responsible for the system’s conformity to the IEC 60601-1 standard about systems. Consult the technical support department or your
local representative if you have any doubts.
Synchro Excite
19
Page 20
Connection to another device

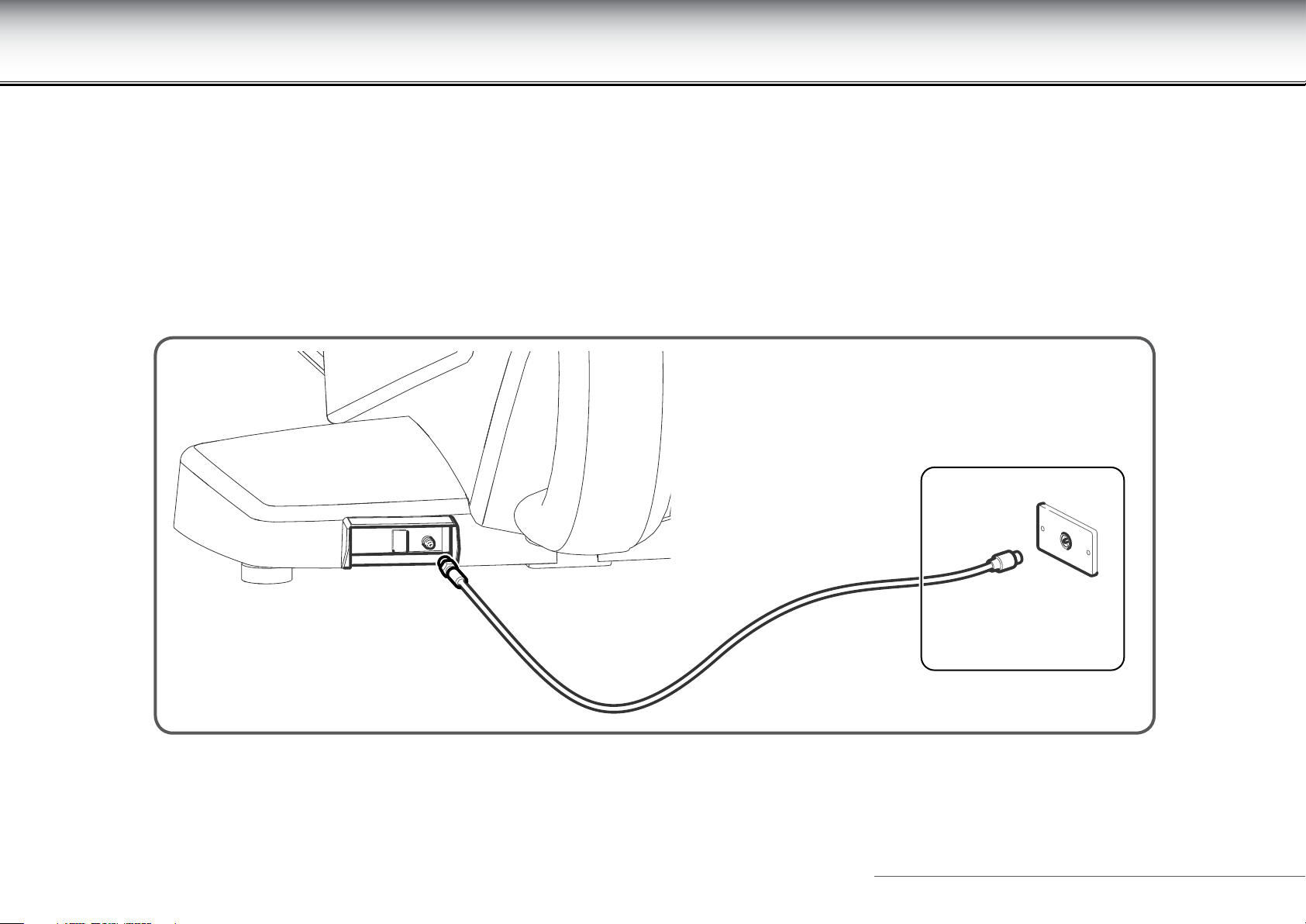

If the equipment has TV, connect the aerial cable to the equipment and to the wall socket. Use an RF coaxial cable for the connection with an F type of
connector for the equipment.
The wall socket of the aerial cable must be positioned so that the plug can be easily inserted and removed.
A network socket can be found next to the aerial socket for the Ethernet connection.
Synchro Excite
20
Page 21
Routine maintenance
As the equipment is used in a sports centre by more than one person, it should always be kept clean and free of dust, in accordance with normal hygiene
and sanitary rules.
To clean the control panel, proceed as follows:
- turn the equipment o by switching the switch to the 0 position (mains powered version);
- unplug the equipment power cable from the wall socket (mains powered version);
- clean the control panel with a damp, but not wet, cloth.
Every week, clean the equipment completely:
- turn the equipment o by switching the switch to the 0 position (mains powered version);
- unplug the equipment power cable from the wall socket (mains powered version);
- clean the external parts with a damp sponge;
- move the equipment to one side so that you can vacuum clean underneath it.
Do not use chemical products or solvents.
W
Do not rub too hard on the control panel and diagrams, or on the written instructions on the stickers.
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs of damage
and/or wear.
For maintenance actions not described in this manual, call in the Technogym Technical Service.
Synchro Excite
21
Page 22
Routine maintenance
W
The routine maintenance, adjustment and lubrication jobs must be performed by the Technogym Technical Support Service.
Before starting any job, turn the equipment o by switching the switch to the 0 position and unplug the power cable from the wall
socket.
Synchro Excite
22
Page 23

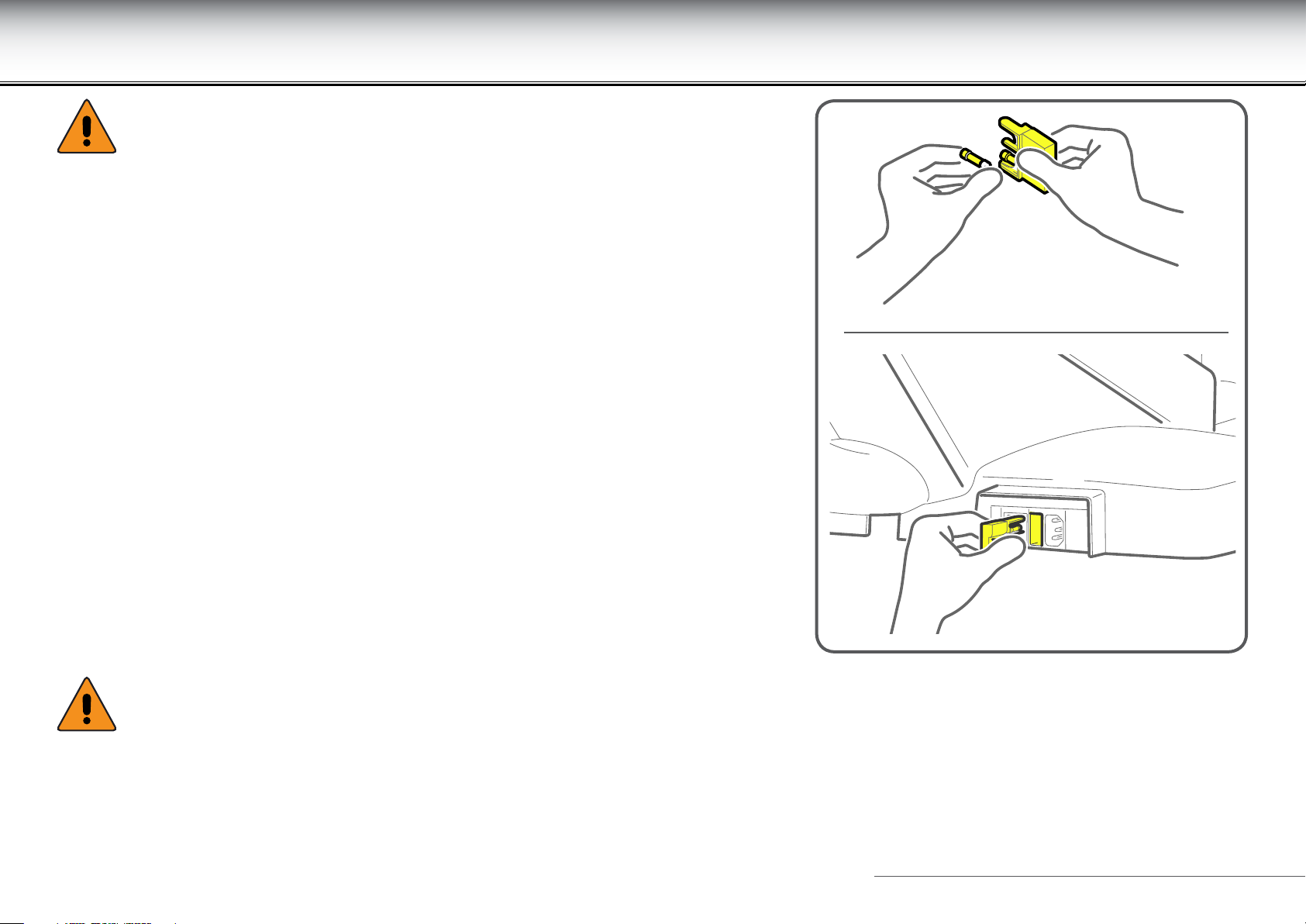

Changing the fuses (mains powered version)
W
Before changing the fuses, switch the equipment o by switching the switch
to 0 and unplug the power cable plug from the wall socket.
Remove the fuse holder, to the right of the switch, by pushing the lever.
Replace the blown fuse with a new one as supplied (3.15A (F).
Fit the fuse holder back into its housing, making sure it clicks in properly.
W
If no more of the supplied fuses are available, use certied fuses with identical electrical specications (3.15A (F) for the replacement.
Synchro Excite
23
Page 24
Recharging the battery (battery-powered version)
In the battery-powered version, the platforms must be kept in motion to ensure that the
equipment remains switched on. If, when you stop moving the platforms, the control panel
switches o without warning, the battery will have to be recharged.
Charger electrical specications:
Input 100÷240 Vac 0,8 A 50/60 Hz
Output 15 V dc 24W
Class II
W
Only use devices that comply with applicable standards.
Do not use the equipment while the battery is recharging.
Synchro Excite
24
Page 25
Troubleshooting
Below is a list of problems that may arise during normal use of the equipment. If the described remedies do not solve the problem, contact the Technical
Support Service. f
Problem Cause Remedy
Equipment doesn’t switch
on
Too noisy
Check the power supply at the wall socket used by the
Mains power failure (mains powered version).
Power supply cable damaged (mains powered version).
Installation problems with the power supply cable (mains
powered version).
Burnt-out fuses (mains powered version).
The control panel connector has been accidentally
disconnected.
Equipment not properly levelled. Check the position and level the adjustment feet.
Damaged bearings. Contact the Technogym Technical Support Service.
Worn belt. Contact the Technogym Technical Support Service.
equipment by plugging in an appliance that denitely
works.
Contact the Technogym Technical Support Service.
Check the connection.
To replace the blown fuse with a spare contact Technogym
Technical Support Service.
Contact the Technogym Technical Support Service.
Data incorrect or unreliable
with equipment running
Equipment next to source of radio interference (e.g.
electrical domestic appliances).
Move the equipment to another place or move the
domestic appliances.
Synchro Excite
25
Page 26
Troubleshooting
Problem Cause Remedy
Problems in monitoring
heart rate with the chest
band
Other transmitters situated nearby.
Strong interference sources nearby.
Worn heart rate monitor chest band. Change the chest band.
Chest band transmitter not making proper skin contact.
Damaged transmitter.
Move the equipment far enough away to stop signal
interference (minimum distance between two units 80 cm).
Find the interference source (e.g. an electrical domestic
appliance) and move it away, or move the equipment.
Dampen the inside of the chest band with water.
Change the chest band.
Synchro Excite
26
Page 27
Technical assistance
The Technogym Technical Support Service provides:
- telephone consultation
- information about which services are covered by the warranty and which must
be paid for
- on-site servicing
- supply of original spare parts.
When you contact the Technogym Technical Support Service you must give the following information:
- model,
- date of purchase,
- serial number,
Technical Support Service
Technogym s.p.a.
Via Calcinaro 2861, 47521 Cesena Italy
tel: +39 0547 56047
http://www.technogym.com/Support
- precise description of the problem.
W
Work on the equipment by persons unauthorised by Technogym invalidates the warranty.
Technogym supplies the electrical and wiring diagrams to companies with technical support.
Synchro Excite
27
Page 28
Storage
If a long period of non-use is expected, you are advised to store the equipment in the following way:
- in a clean dry place, with a dust cover;
- at a room temperature between -10°C and 70°C and relative humidity between 20% and 90%.
For better storage, use the original packing materials.
Synchro Excite
28
Page 29
Disposal
It is always good practice to ensure that the unit can never constitute a hazard; therefore do not leave the equipment where children may play with it.
For this reason, when it is not used for long periods it must be turned o by disconnecting the power cable.
Do not dump the equipment in the environment, or in public or private areas accessible to the public.
The equipment is made from recyclable materials such as steel, aluminium and plastic, which must be disposed of in the manner required by the urban
refuse collection regulations in force, by specialised urban hygiene and environmental rms.
Electrical and electronic waste must not be put out for normal waste collection. A specic waste collection system is provided for with this type of product,
in conformity with applicable legislation requiring appropriate handling, recovery and recycling.
Unauthorised dumping or disposal of electrical and electronic equipment or improper use of the same can cause serious damage to the environment and
human health.
Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic
equipment to authorised collection centres for disposal.
If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical
or electronic waste.
Contact the local authorities for disposal of electrical or electronic waste in countries outside the European Union.
Disposal of the battery
Do not dump the battery or dispose of it in landll, as it is composed of non-recyclable materials. The battery must be disposed of pursuant to applicable
legislation in the place of use. Contact a specialised waste disposal company.
There is a lead-acid battery inside the product. Follow the instructions given below to remove the battery safely.
Synchro Excite
29
Page 30
Disposal
- Undo the screws (A) and remove the cover (B).
- Undo the screws (C) and remove the cover (D).
- Remove the cover (E).
B
A
E
C
D
Synchro Excite
30
Page 31
Disposal

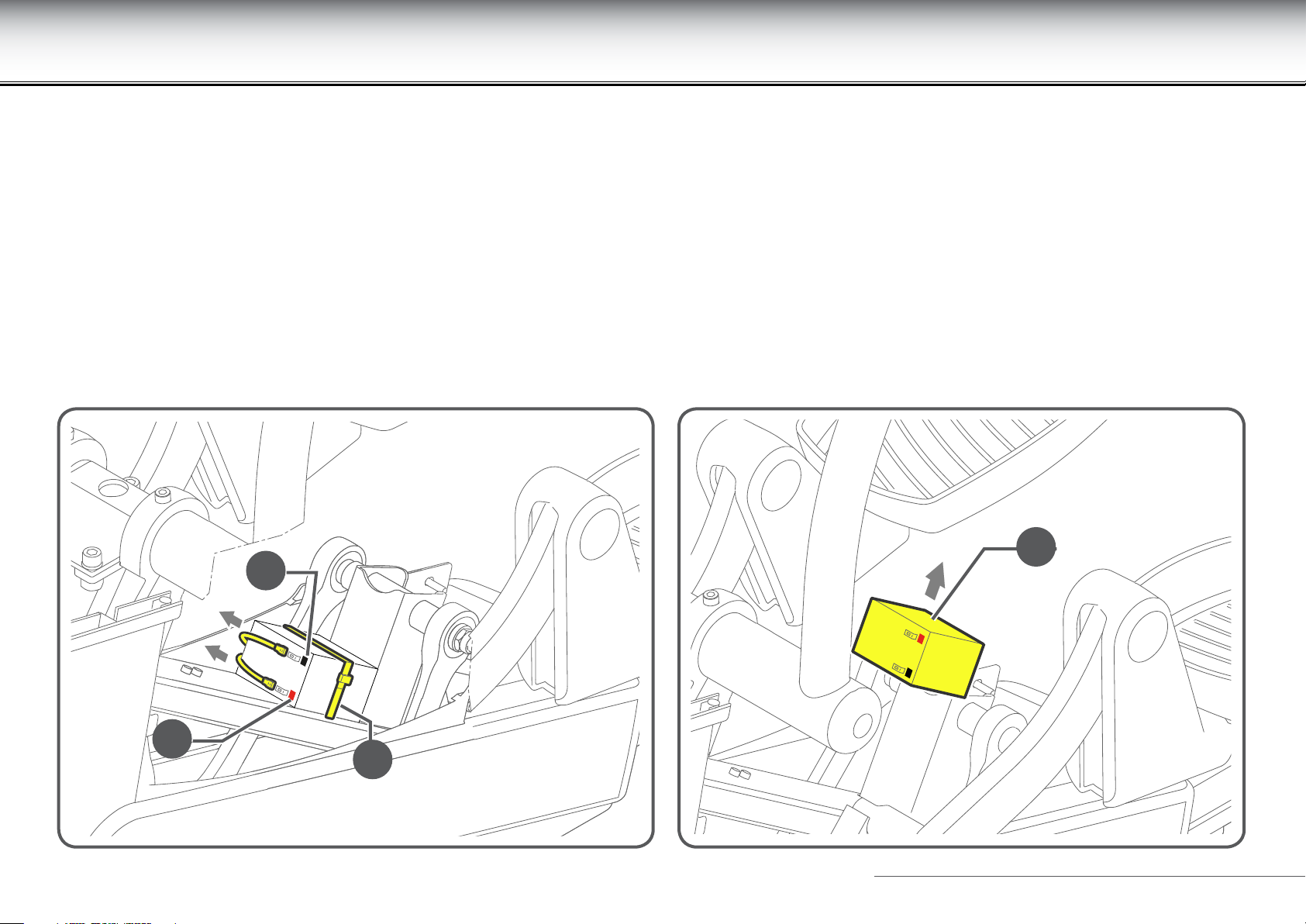

- Disconnect the cable on the red terminal (F) rst, then the cable on the black terminal (G).
- Cut the strap (H).
- Remove the battery (L).
F
G
H
L
Synchro Excite
31
Page 32
Switching on and o
To turn the mains powered version of the equipment on, switch the main switch to “I” (ON)
position.
To turn the battery-powered version of the equipment on, start moving.
After a quick system check (reset), the equipment is ready for use.
In this mode, the following functions are enabled:
- calculation of heart rate, if measured;
- reading of access codes for conguration menu (see the Conguration Menu section in the software part).
Synchro Excite
32
Page 33
Switching on and o

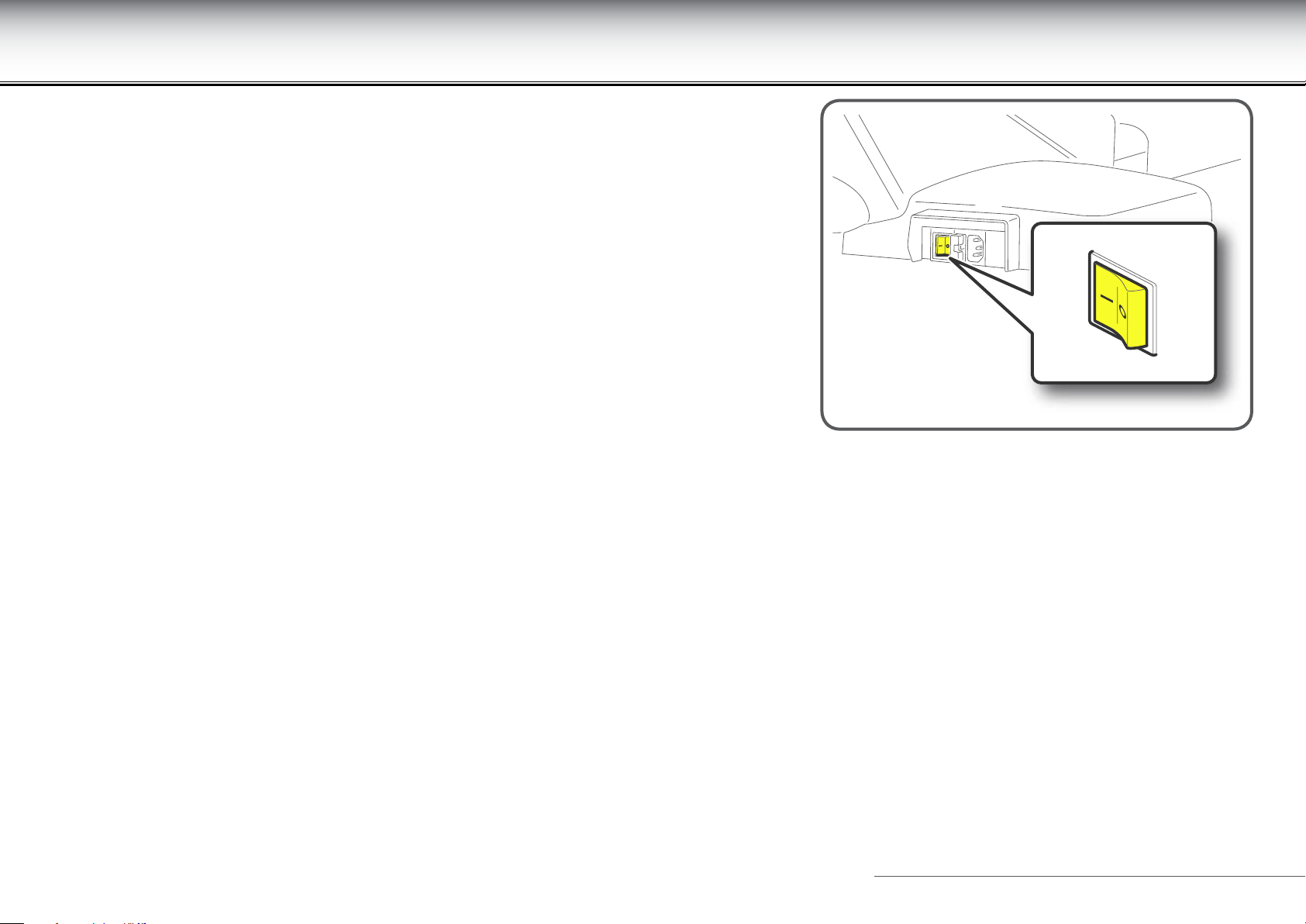

To turn the mains powered version of the equipment o, switch the main switch to “0” (OFF)
position.
The equipment must be switched o only at the end of the exercise, when in standby.
If the equipment isn’t going to be used for a long time, as well as turning it o you should also
pull the plug out of the wall socket.
W
The switch is for turning the equipment on and o but does not isolate it
completely from the mains voltage, even in the “0” position (o). For complete
isolation you must unplug the power supply plug.
To turn the battery-powered version of the equipment o, just stop moving.
Synchro Excite
33
Page 34
Monitoring the heart rate
The equipment is able to measure heart rate trends, in two dierent ways:
- with a device applied to the xed handgrips or to the levers (hand sensor), that switches
on when you grip the handgrips or levers in the sensor region;
- with a chest band with a heart rate transmitter (Polar T31).
There must be no more than one transmitter in the reception range: otherwise the receiver
may receive dierent signals at the same time and give incorrect heart readings. If there
are several equipment units with heart rate receivers in the same area, the recommended
minimum distance between them is 80 cm.
Heart rate readings will not be accurate near electromagnetic radiation sources (TVs,
cellphones, etc.).
Should you have any doubts about the accuracy of the readings, contact the Technical Support
Service.
Synchro Excite
34
Page 35
Monitoring the heart rate
The table below shows optimum heart rate levels in relation to age and the
purpose pursued.
Theoretical maximum heart rate (100%) is calculated on the basis of age
using the formula: Max HR = 207 - 0.7 x age (R. L. Gelish et alii, Med Sci
Sports Exerc., 2007 May, 39 (5): 281).
To read the graph, simply nd your age on the horizontal axis and scan up
the vertical until you reach the 60%, 70% and 90% values.
Aerobic exercise performed at a heart rate between 60% and 70% mainly
burns fat as an energy source.
When doing aerobic exercise at a heart rate of 70% to 90% the
cardiocirculatory component prevails.
For example, if someone aged 30 wants to burn o fat, the heart rate during
exercise should be kept to between 112 (60%) and 131 (70%); if he or she
wants to improve cardio-respiratory capacity, the heart rate should be kept
to between 131 (70%) and 168 (90%).
HEART RATE PER MINUTE
AGE
Prevalent use of sugars.
Competitive athletes' workouts (requiring a doctor’s certicate).
Combined use of fats and sugars
Signicant improvement of aerobic eciency.
Prevalent use of fats and increased use of sugars
Moderate improvement of aerobic eciency.
Prevalent use of fats, and modest use of sugars
Limited improvement of aerobic eciency.
Synchro Excite
35
Page 36
Monitoring the heart rate
W
During a workout it is very important that your heart rate never goes above 90% of your maximum rate (unless you are an athlete
engaged in competitive sport).
The sole function of the heart rate monitor is to display the heart rate during exercise and cannot be used for medical cardiac
diagnoses of any kind. The heart rate shown on the display is purely indicative and cannot be considered absolutely certain.
You are advised not to use a chest band with heart rate monitor if you have a cardiac support device such as a pacemaker or similar.
Synchro Excite
36
Page 37
Using the equipment
Step onto the equipment from one side and put one foot on each pedal.Grasp one of the xed
handgrips with one hand, and with the other set a program on the control panel.
To perform the movement with your lower limbs only, hold on to the xed handgrips. To perform
movement with your arms as well, hold the levers.
At the beginning move slowly until you become familiar with the equipment and acquire balance.
It is important that you get used to the movement without leaning forward and assuming
unnatural positions.
Once you become more condent, gradually increase the eort level.
Constantly check your position: head held high, shoulders in line with the hips, abdomen
sucked in and trunk erect. To maintain correct posture you must keep legs and feet parallel
and gaze straight ahead.
W
Any distractions in the area around the equipment may cause the user to lose
his/her balance.
Synchro is to be used solely for its intended purpose, i.e. for aerobic exercise of the
legs and arms. Any other use of the equipment is to be considered improper and
therefore dangerous.
Synchro Excite
37
Page 38
Synchro_Excite_en-AA
0SM00977
Loading...
