Page 1
S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
Glute
User manual
All equipment
1
Page 2
Contents
Identification of the manufacturer and equipment ............................ 3
Description of the equipment ............................................................ 4
Technical data ................................................................................... 5
Safety devices and warnings ............................................................ 6
Place of installation ........................................................................... 8
Fitting the cam covers ....................................................................... 9
Fitting the number holder ................................................................ 10
Lifting and moving the equipment ................................................... 11
Adjusting the equipment ................................................................. 14
Routine maintenance ...................................................................... 15
Replacing the padded parts ............................................................ 16
Replacing the cable ......................................................................... 17
Adjusting cable tension ................................................................... 19
Removing the front weight stack panel ........................................... 20
Technical Service ............................................................................. 21
Storage ............................................................................................ 22
Disposal ........................................................................................... 23
Using the equipment ....................................................................... 24
Glute
2
Page 3

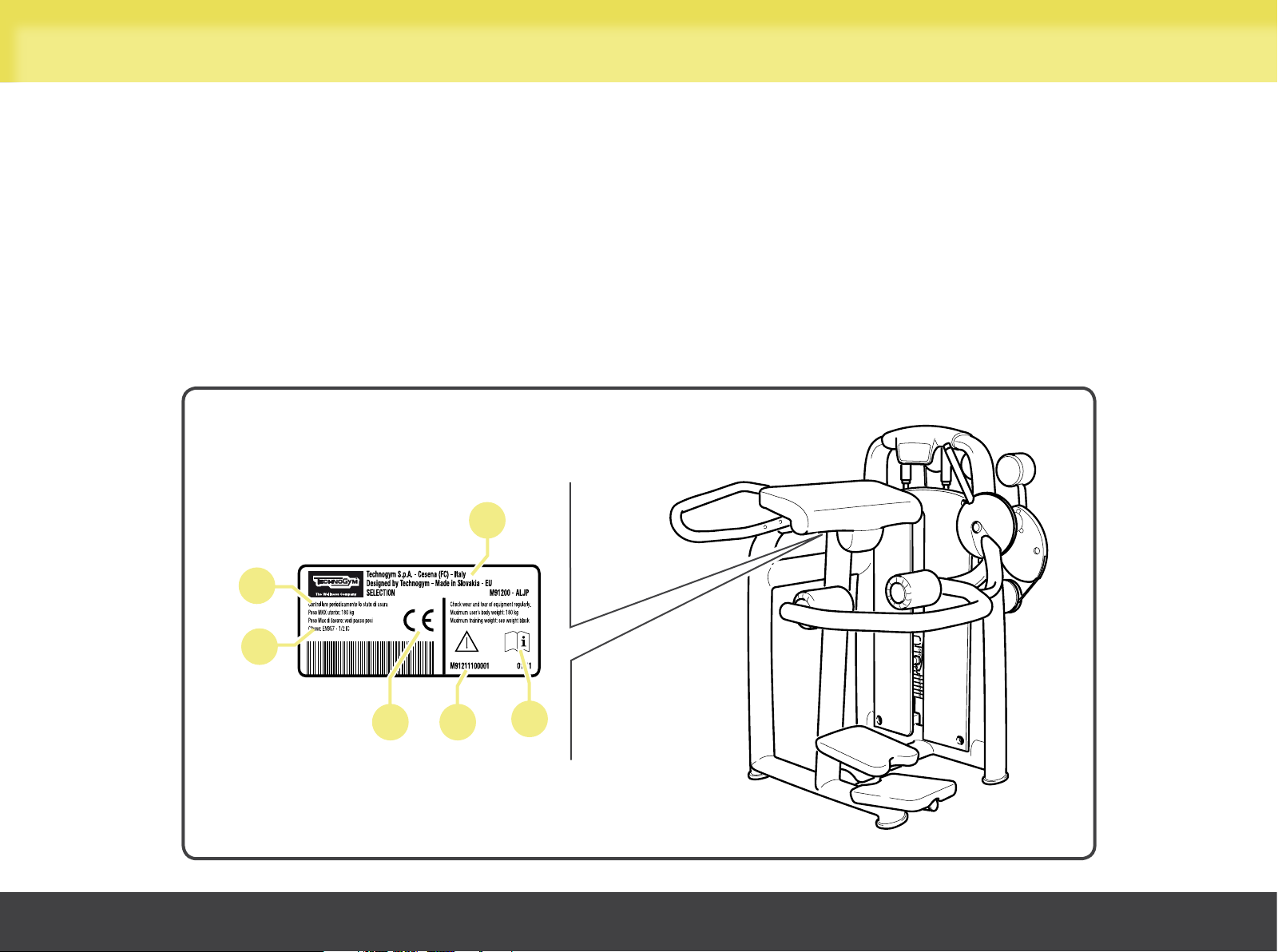

Identification of the manufacturer and equipment
The identification plate of the equipment and manufacturer, placed under the padding, gives the following details:
A Manufacturer's name and address
B CE Mark
C Serial number
D Maximum user weight
E Equipment classification
F Consultation of user manual required
Glute
D
E
B C
A
F
3
Page 4

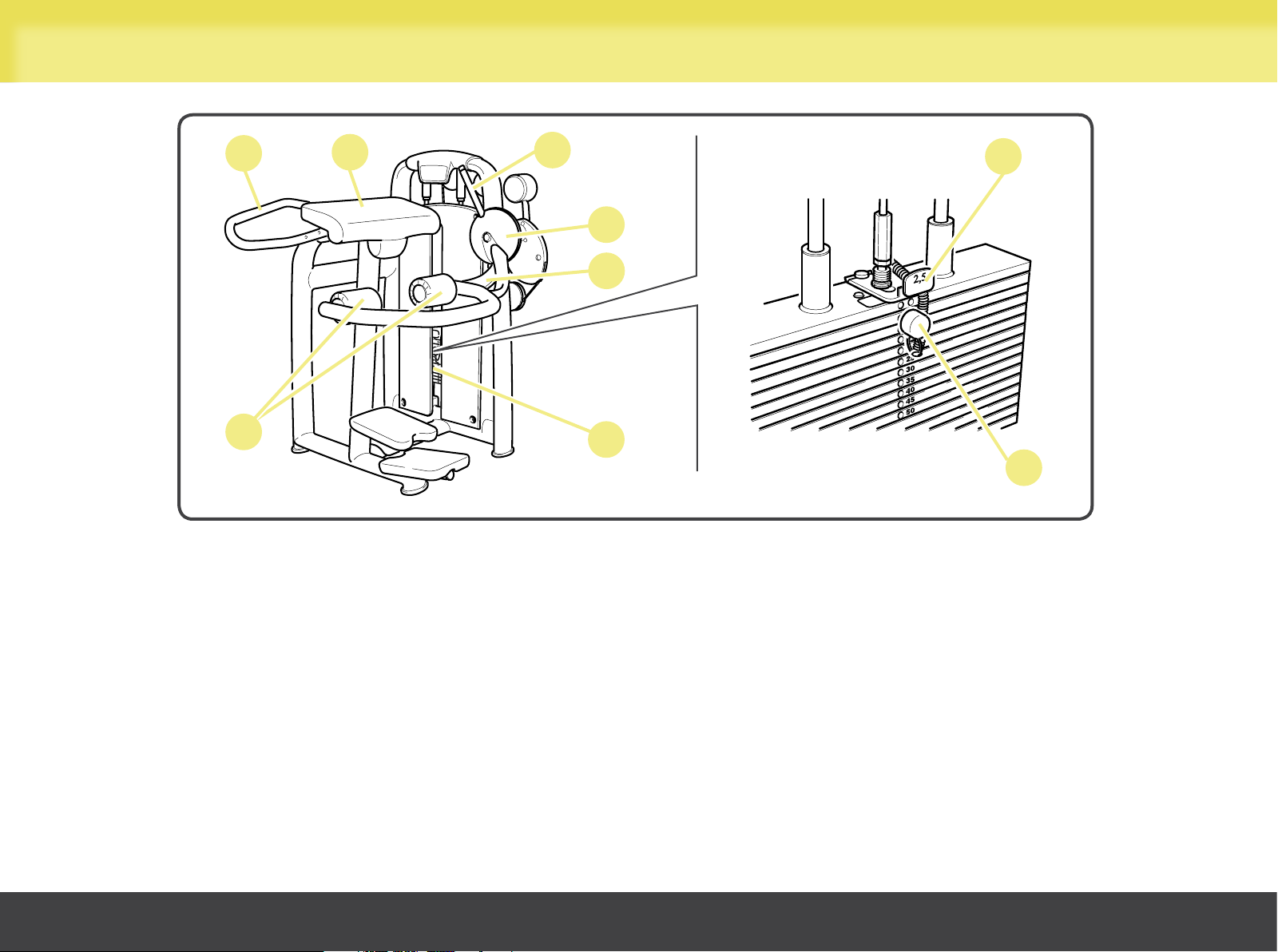

Description of the equipment
I
A
E
H
D
B
C
F
G
A Padding: the user rests his abdomen against it when exercising.
B Lever: operated by the user by means of rollers (C); before starting to exercise, or between one set and the next, the ROM device
may be used to adjust the starting position thus modifying the range of motion.
D ROM device: system for adjusting the Range of Motion and the starting position. Adjustments are made by means of ROM lever (E)
after releasing it by pressing the button provided on it.
F Weight stack: lever (B), operated by the user, moves the weights along two guides by means of a cable. Pin (G) is used to select
the load and adjust the level of intensity of the exercise. Cursor (H) is used to vary the selected workload by 2.5 kg.
I Front handgrip: the user must hold it to ensure a correct position during exercises.
Glute
4
Page 5

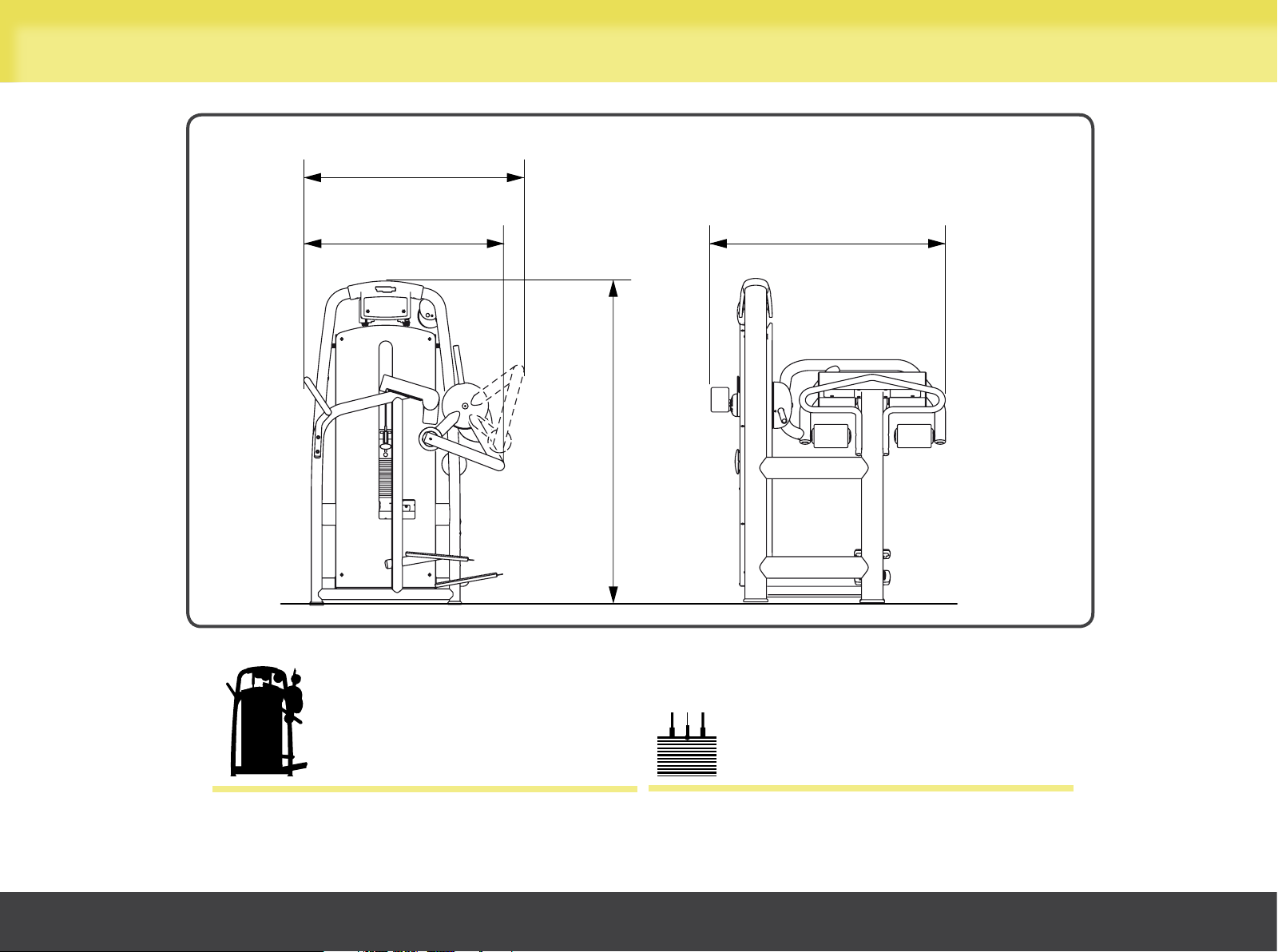

Technical data
1316 mm
(52")
1240 mm
(48")
1307mm
(52")
(71")
1800 mm
Glute
262 kg (578 lb)
70 kg (140 lb)
5
Page 6
Safety devices and warnings
The maximum user weight is 180 kg (397 lb).
The outside of the weight stack is covered by a protective panel.
The equipment has no sharp corners.
All parts which come into contact with the user's body are suitably protected with rubber coverings or padding.
Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF
CRUSHING”.
This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal injury. Pay attention
to all safety warnings accompanied by this symbol to avoid possible injury.
WARNING
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.
Glute
cont.
6
Page 7

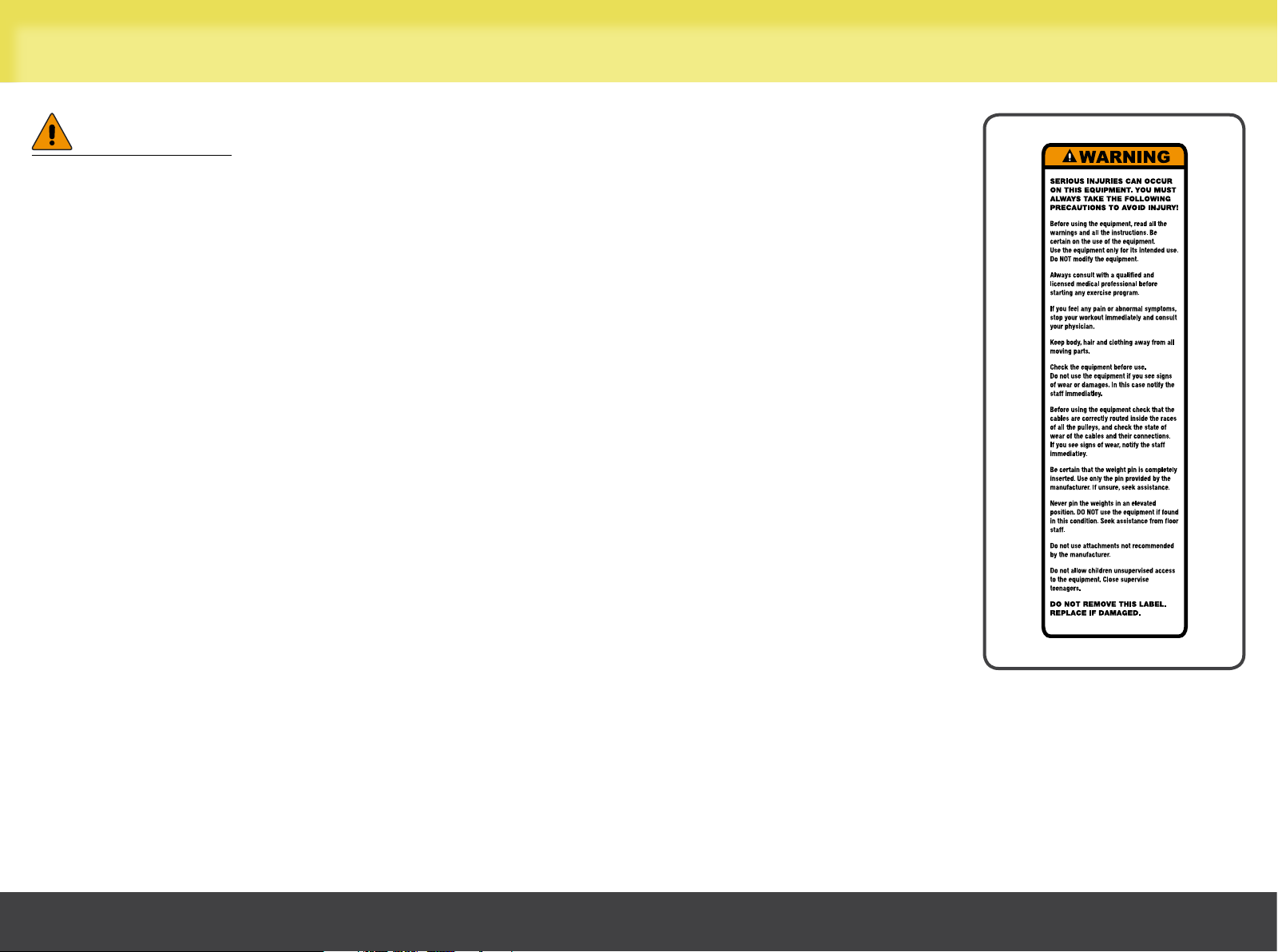

Safety devices and warnings
WARNINGS
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.
Glute
7
Page 8
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
Glute
When installing the equipment, use suitable personal protective equipment.
8
Page 9

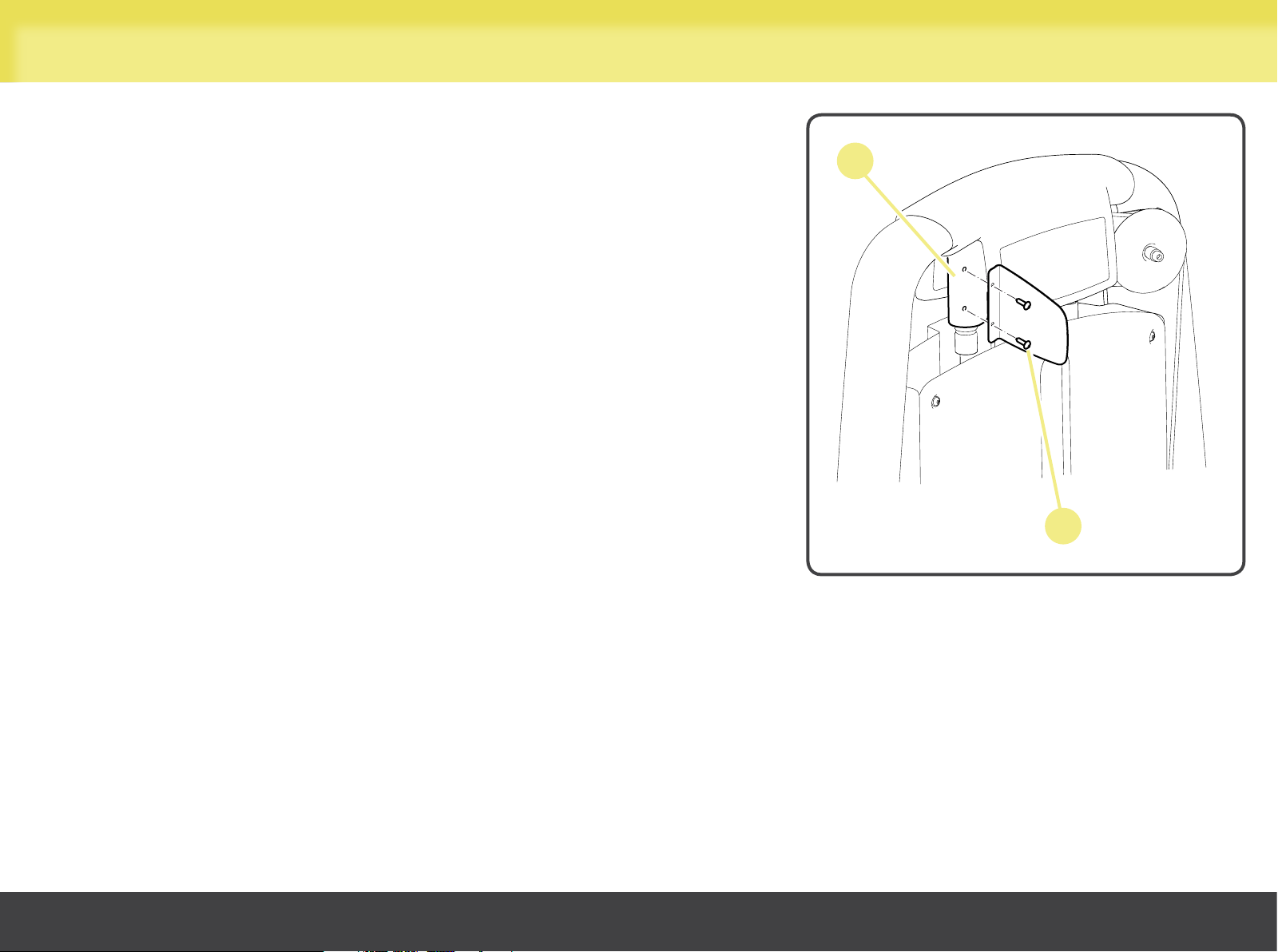

Fitting the number holder
The number holder must be installed immediately under the top: standing facing
the equipment, attach the number holder on the left, on the cover of guide rail (A).
Find the place where the two screws (B) are to be inserted.
Attach the number holder using the two screws; the pressure used to tighten the
screws is enough to open the holes provided in the cover.
The number holder is optional.
A
Glute
B
9
Page 10
Lifting and moving the equipment
Use the castors (optional) to move the equipment.
WARNING
Move the equipment very carefully, because it may become unstable
and tip over.

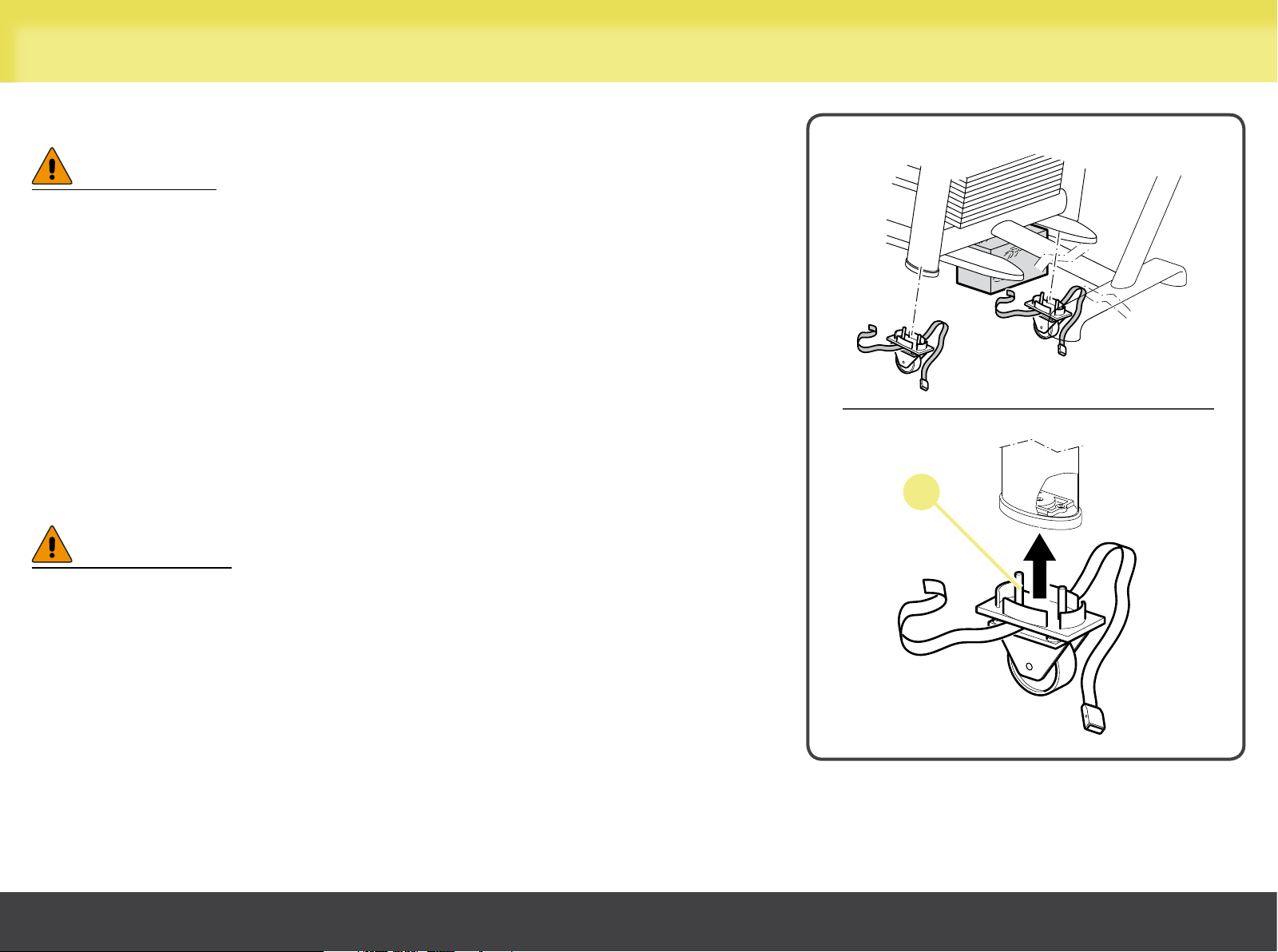

The wheels for moving the equipment snap on underneath the feet of the
equipment, after it has been raised, and are held in place by the special straps.
Raise the equipment using a pallet truck or fork-lift truck from the weight stack
side; and for greater safety place a wedge under the frame to keep the equipment
raised.
Insert the two fixed wheels first on one side and then on the other side of the
weight stack: fit wheel stems (A) into the holes provided under the equipment
feet, then push hard until they snap in.
A
01083016
WARNINGS
We recommend placing padded material between the frame and the
wedge and between the frame and the machinery used to lift it.
The fixed wheels must always be placed underneath the weight stack.
Glute
cont.
10
Page 11
Lifting and moving the equipment

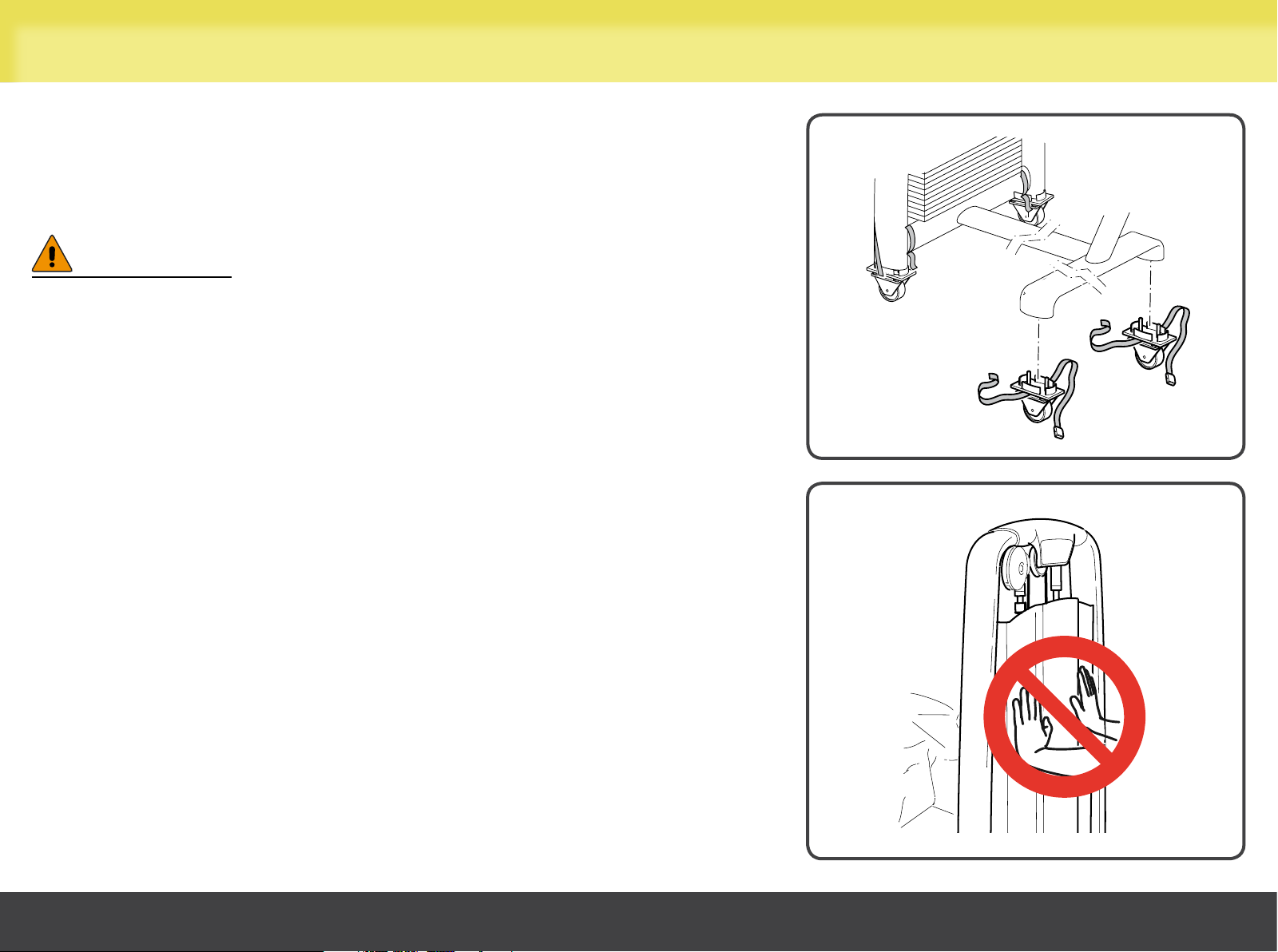

Proceeding in the same way, lift the equipment on the padding side and insert
the castors.
Lastly, lift the equipment again, remove the safety wedges and place the wheels
on the floor.
WARNINGS
When moving the equipment, push it only from the weight stack side,
and not from the other sides.
Do not use the equipment with the wheels and castors fitted. The
wheels and castors are to be used only for moving the equipment and
must be removed before exercising on it.
When lifting the equipment, do not press against the protective panels
covering the weight stack.
Glute
cont.
11
Page 12
Lifting and moving the equipment
WARNING

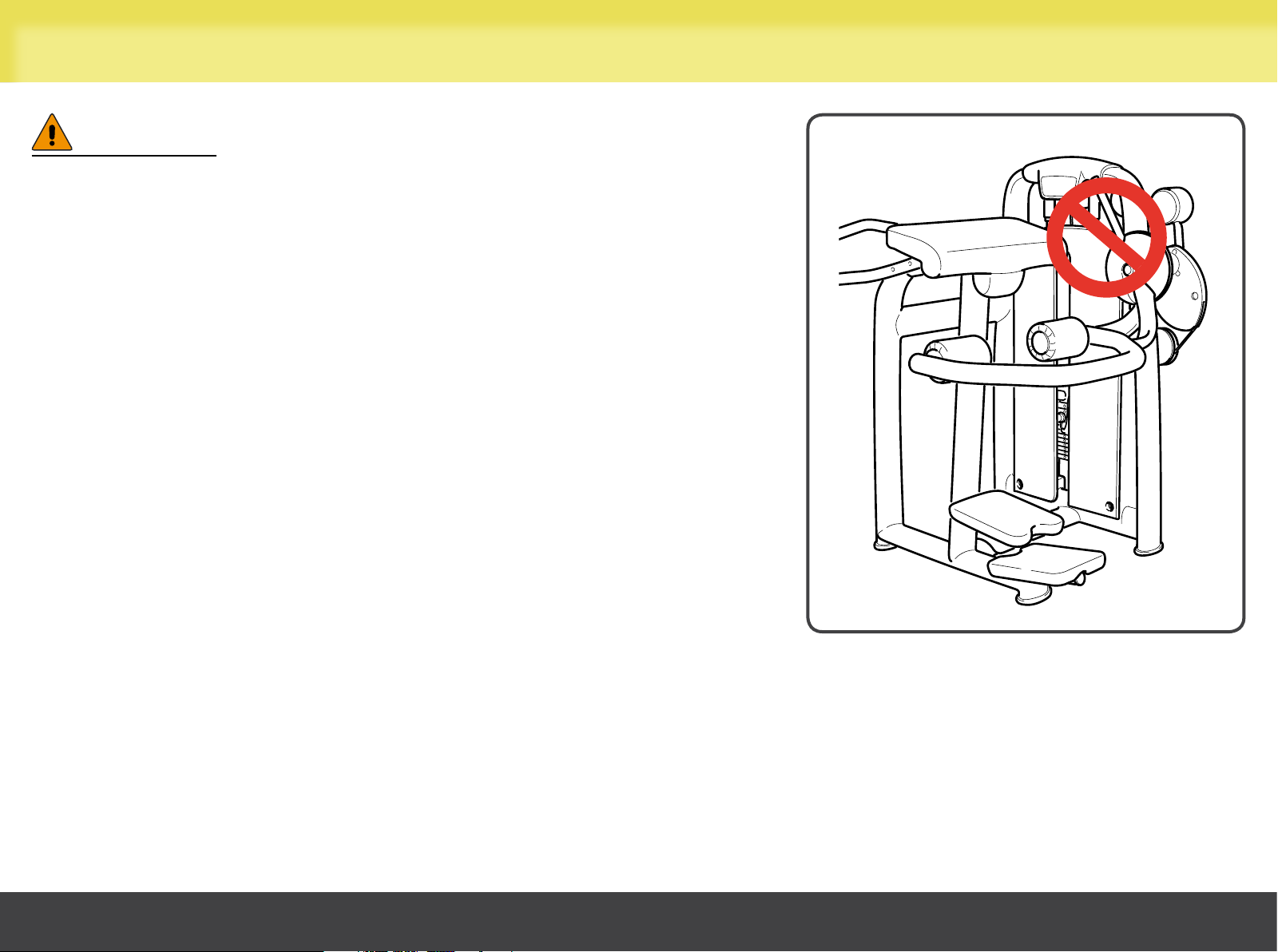

Do not push against the range of motion (ROM) adjustment lever to
move the equipment: this may lead to damage and instability.
Glute
12
Page 13

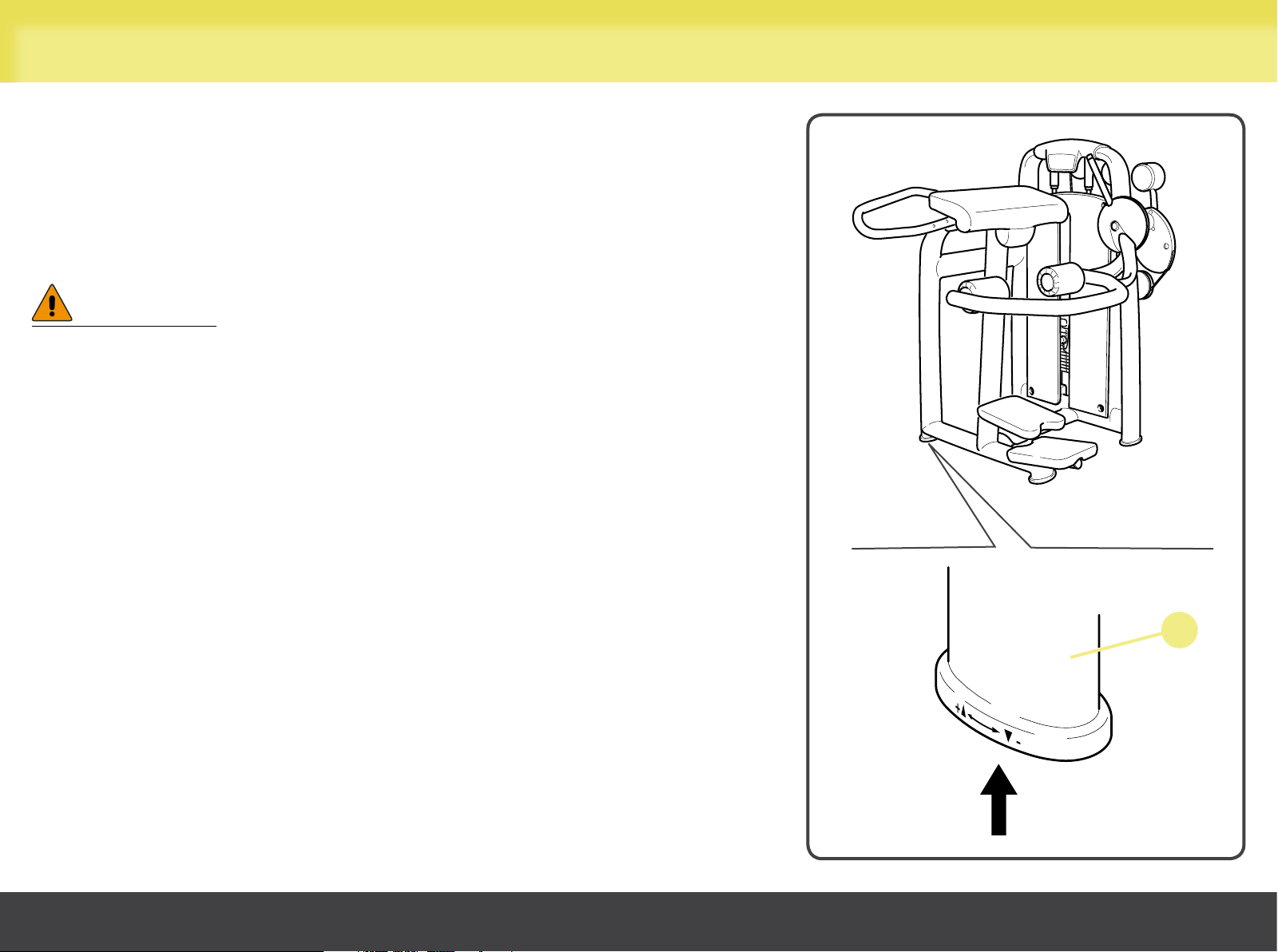

Adjusting the equipment
After the equipment has been positioned on the floor, check that it is level.
An adjuster screw, indicated by two embossed arrows, is supplied for this purpose
under foot (A).
Raise the equipment and adjust the screw until the equipment is level.
WARNING
Given the weight of the equipment, we recommend that it should always
be lifted by more than one person.
Glute
A
99834045
13
Page 14
Routine maintenance
WARNINGS
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs
of damage and/or wear.
Replace defective and worn components immediately, or alternatively remove the equipment from service.
The equipment should always be kept clean and free of dust, in compliance with good hygiene practice, especially if it is used in a
gym or by more than one person.
Use a moist cloth or a sponge and mild soap to clean the padded parts.
Wipe the outside of the equipment every week using a damp sponge.
Do not use chemicals or solvents.
WARNING
Be careful not to rub too hard on the drawings and instructions shown on the labels.
Oiling the weight stack guide rails:
- remove the protective panel covering the weight stack, following the instructions found in the paragraph headed Removing the
front weight stack panel;
- use a soft cloth to remove any dust and oil residues from the guide rails;
- slightly moisten the cloth with the oil supplied in the optional Basic Box kit;
- using this cloth, apply a very thin layer of lubricant over the guide rails, taking care not to apply too much;
- refit the weight stack protective panel.
Call the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual.
Glute
14
Page 15
Replacing the padded parts
If any of the padding shows signs of wear, especially in the interests of hygiene,
we recommend replacing them completely.

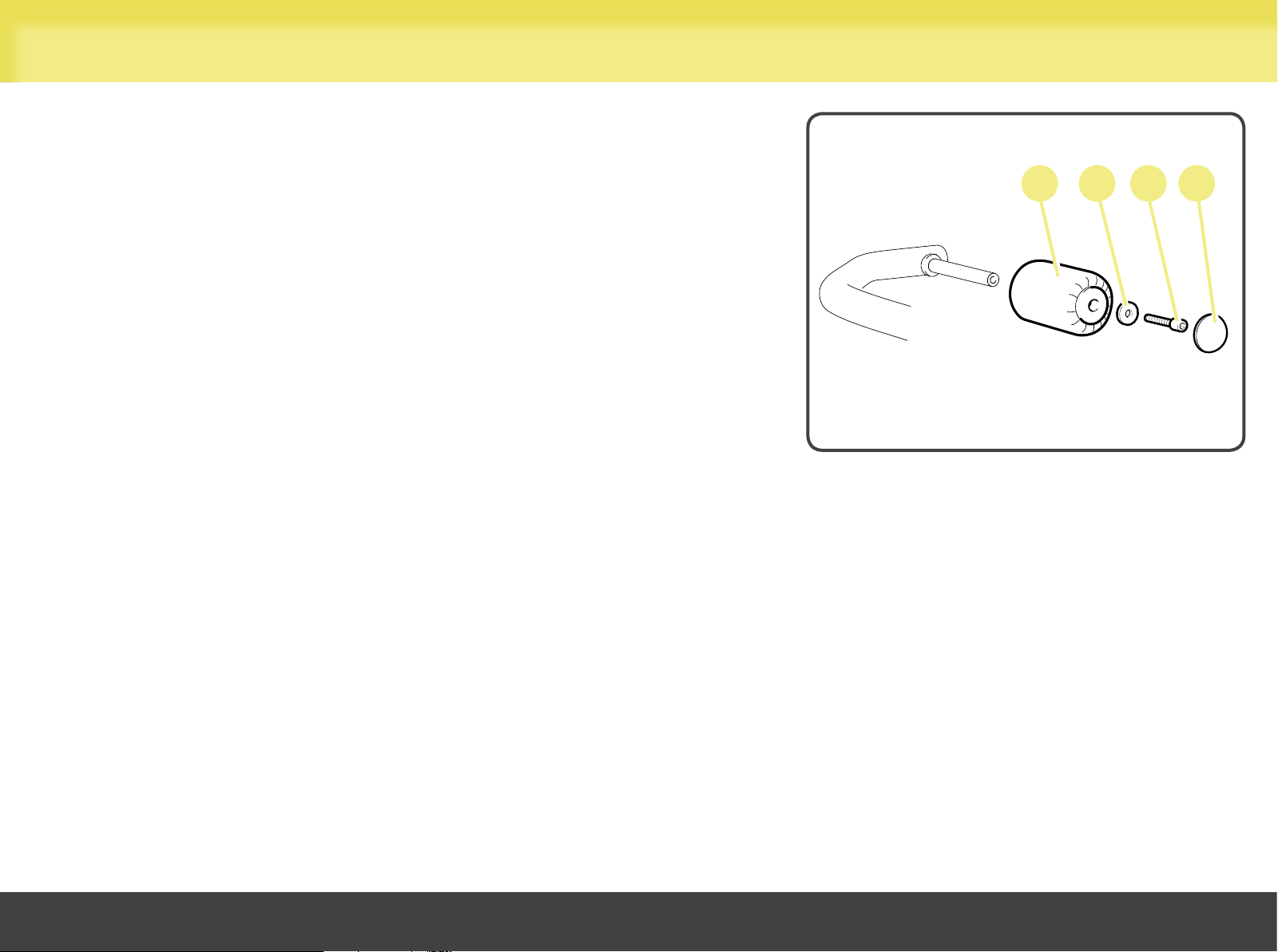

To replace the rollers remove cover (A) and unscrew screw (B); then remove
washer (C) and roller (D).
ABCD
Glute
15
Page 16
Replacing the cable
Cables must always be replaced at the first sign of wear, even if only the outer
rubber protection is worn.
WARNINGS
Carefully check the state of the cables once a month.
ALWAYS use cables supplied directly by Technogym.
To replace the cable, proceed as follows:
- remove the protective panel covering the weight stack, following the
instructions found in the paragraph headed Removing the front weight stack
panel;
- unscrew the screws (A), loosen the lock nut (B) and unscrew adjuster (C);
- pull the cable out from the adjuster side;
Glute
C
B
A
cont.
16
Page 17

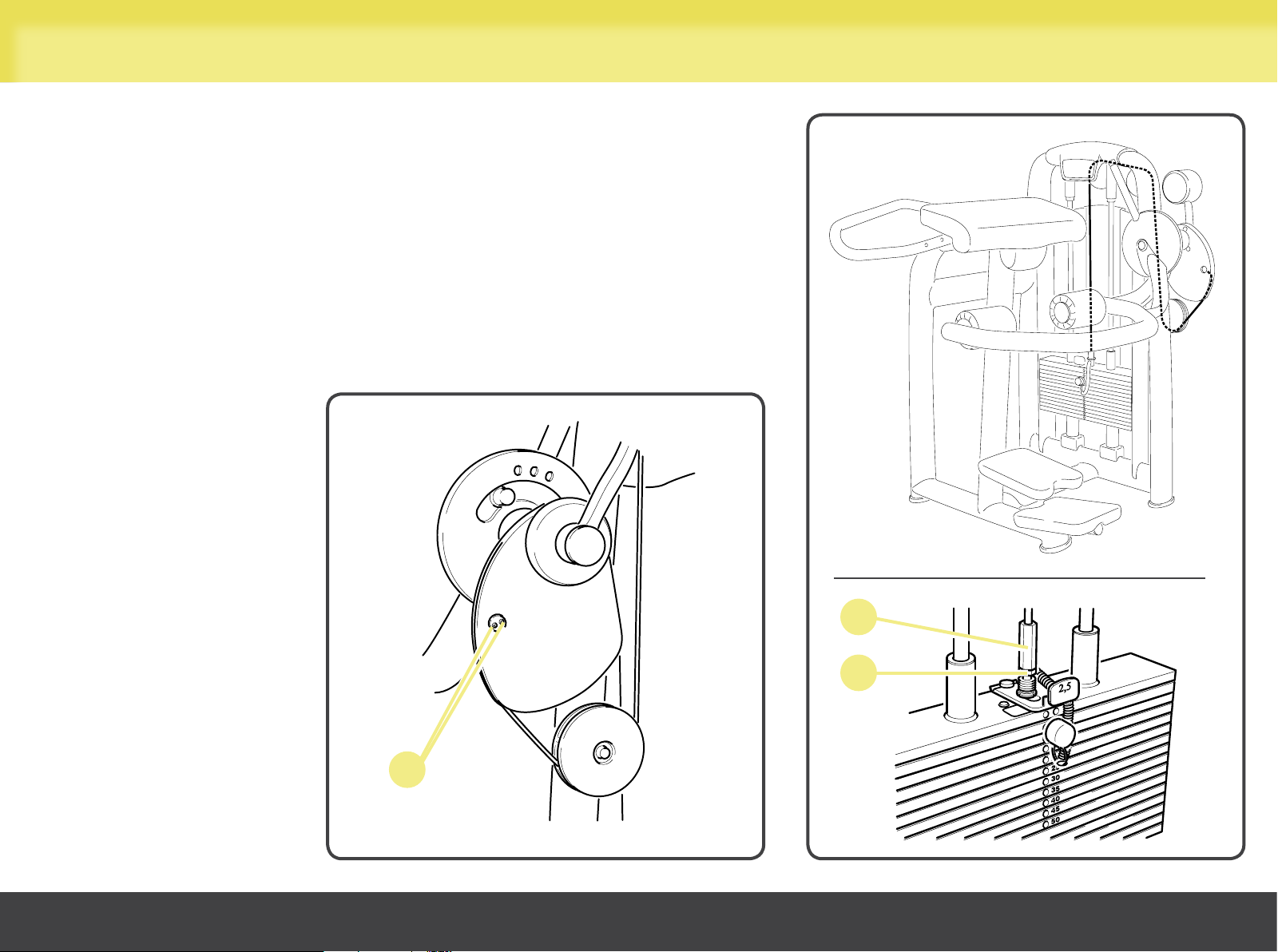

Replacing the cable
- insert the new cable from the adjuster side (ensuring that it follows the same
route as the original cable, as shown in the illustration);
- insert screws (A), screw in adjuster (C), and tighten lock nut (B);
- refit the protective panel on the weight stack
Glute
C
B
A
17
Page 18
Adjusting cable tension

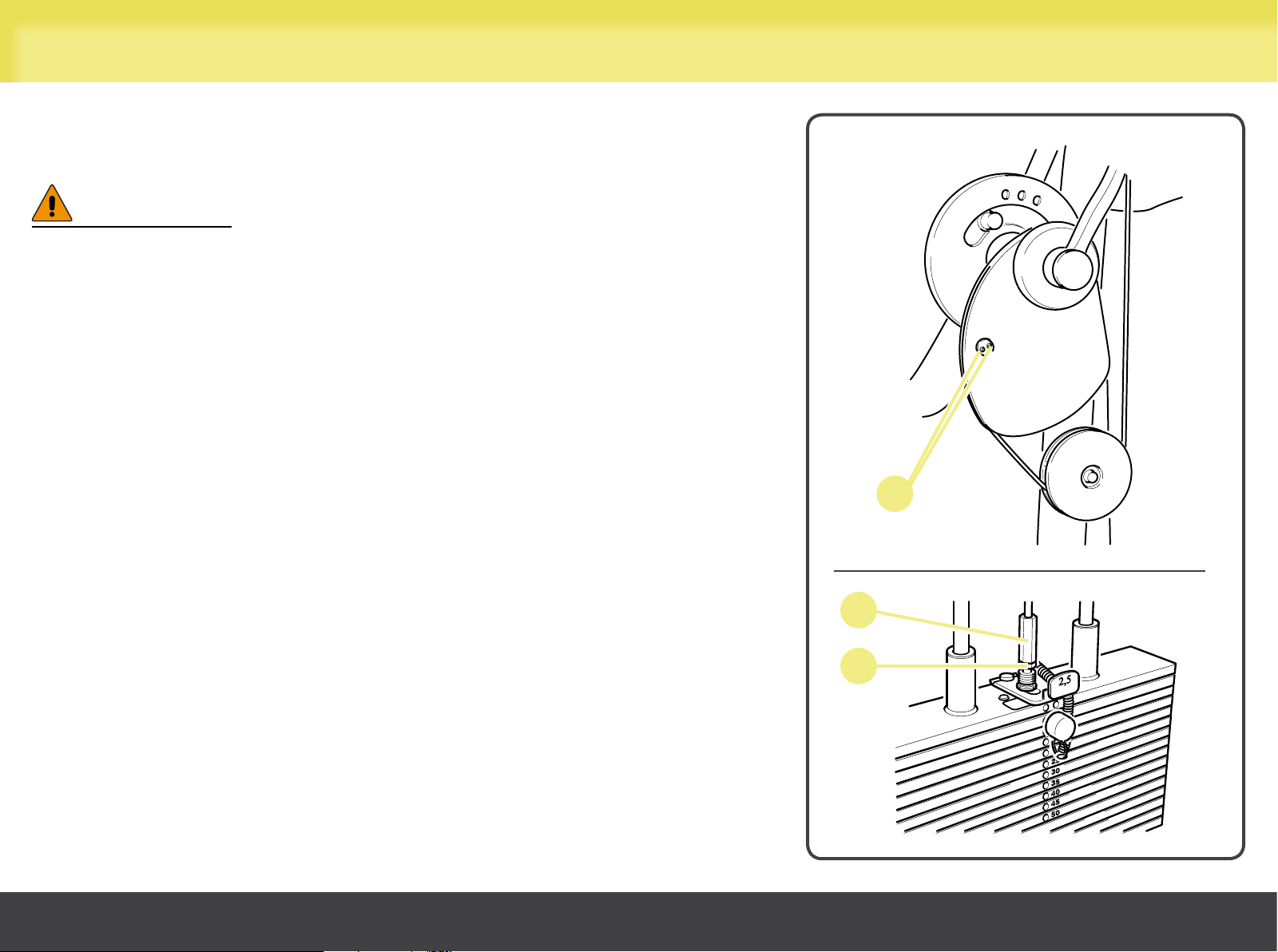

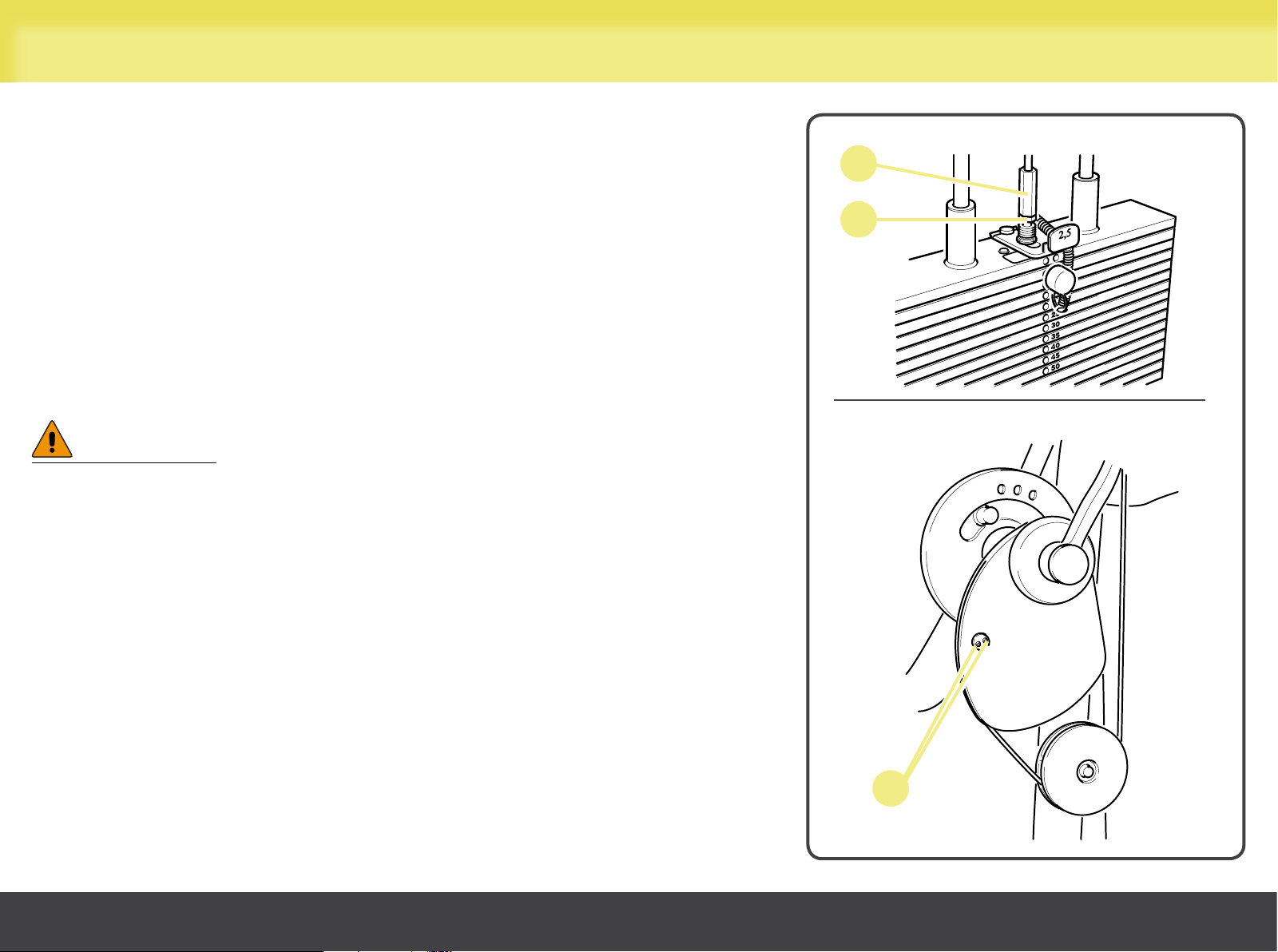

It is possible to take up some of the slack in the weight stack cable using
adjuster (C), after loosening lock nut (B).
WARNING
To pull the cable taut after replacement, it may be helpful, when
tightening screws (A), to insert a thickness of approx. 10 mm (1/2 inch)
under the first weight in the weight stack.
C
B
Glute
A
18
Page 19

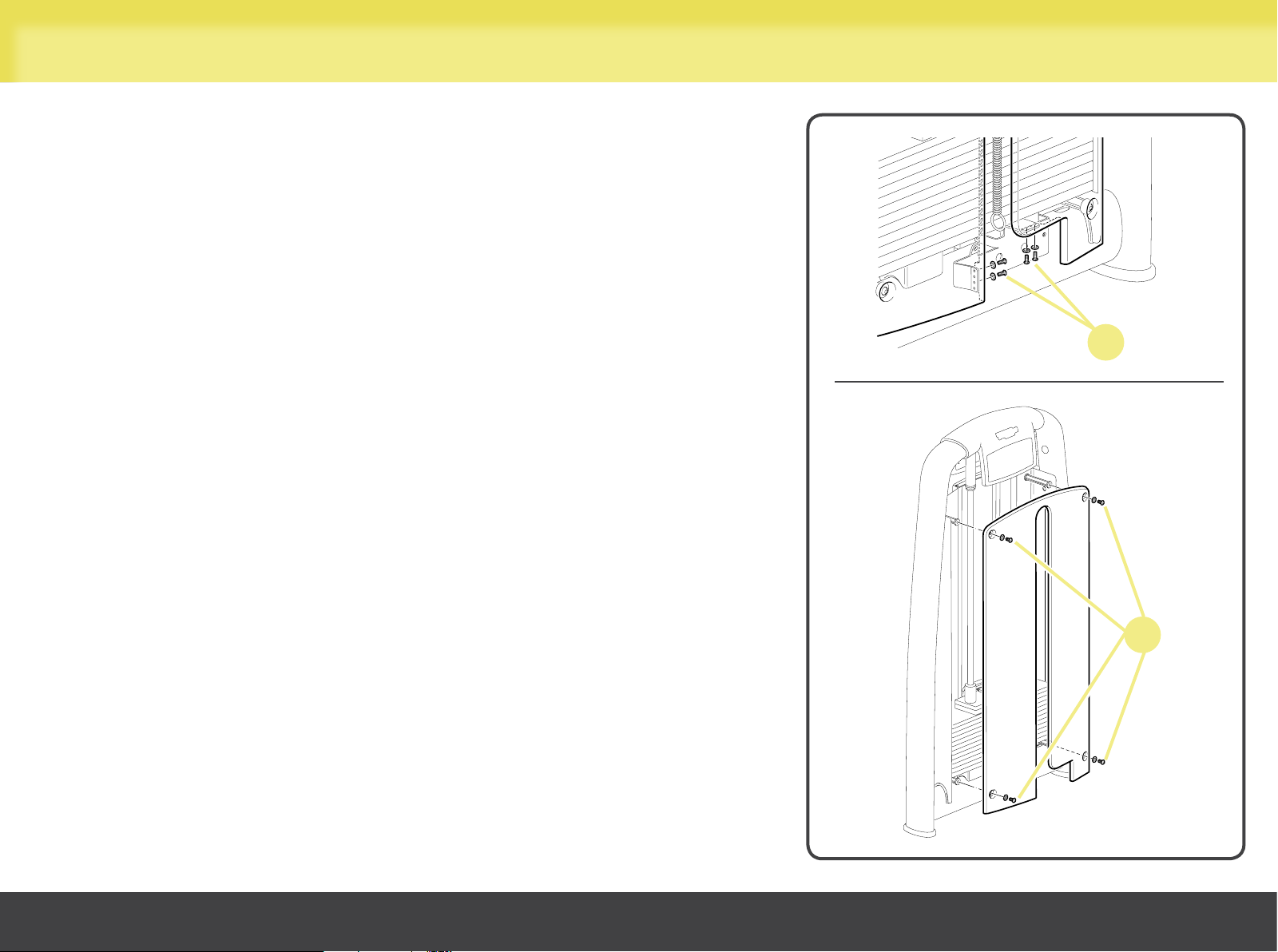

Removing the front weight stack panel
The front protective panel on the weight stack is fixed to the frame by eight screws.
To remove the panel, you must:
- remove the four screws (A);
- remove the four screws (B) while holding the panel with one hand;
- remove the panel.
To refit the panel, carry out the above steps in reverse order.
A
B
Glute
19
Page 20
Technical Service
The Technogym Technical Support Service provides:
- telephone assistance;
- information on which service calls are covered and not covered by warranty;
- on-site assistance;
- sending of original spare parts.
Technogym Technical
email: [email protected]
When contacting the Technogym Technical Support Service, please specify the following details:
- equipment model,
- date of purchase,
- serial number,
- precise description of the problem.
Support Service
tel: 0547 650650
fax: 0547 650150
WARNING
Any operations carried out by persons not authorized by Technogym on the equipment will invalidate the warranty.
Glute
20
Page 21
Storage
If the equipment is not expected to be used for a prolonged period, we recommend storing it:
- in a clean and dry place, covered with a cloth to protect it from dust;
- in an environment with a temperature between +10°C and +25°C and humidity between 20% and 90%.
Use the original packing materials, to better preserve the equipment.
Glute
21
Page 22
Disposal
It is always good practise to ensure that the equipment can never constitute a hazard; therefore do not leave the equipment where
children may play with it.
Do not dump the equipment in the environment, or in public areas or private areas accessible to the public.
The equipment is made from recyclable materials such as steel, aluminium and plastic, which must be disposed of in the manner
prescribed by the urban refuse collection regulations in force, by firms specialised in urban and environmental hygiene.
Glute
22
Page 23

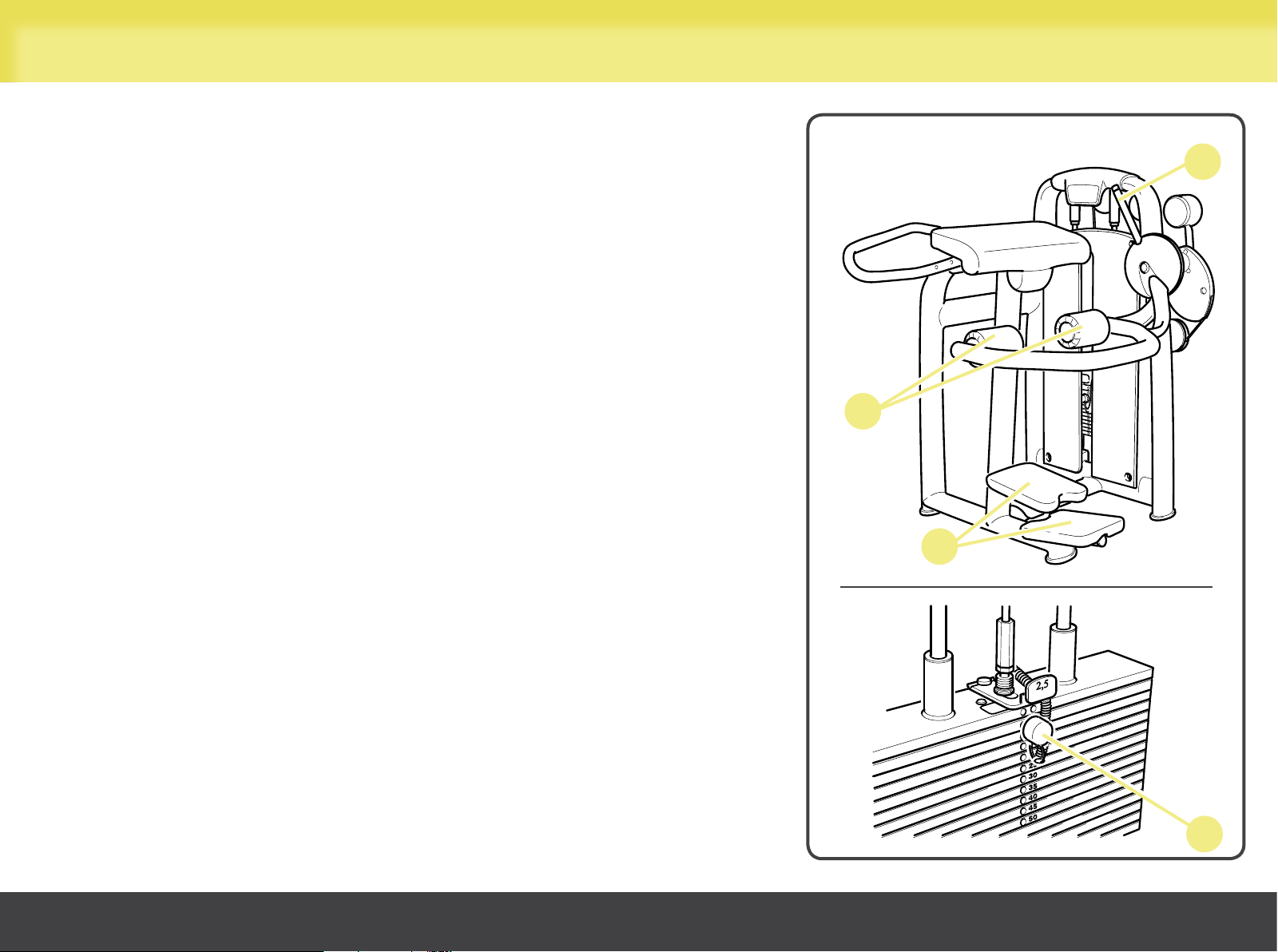

Using the equipment
To access the platform comfortably, push the button on the end of ROM lever (A),
and move rollers (B).
Standing on platform (C) center your hip with the ROM lever rotation point.
Select the workload with pin (D).
Select the desired start position using ROM lever (A).
With one foot firmly on the platform move the other leg in front of the roller.
A
B
Glute
C
cont.
D
23
Page 24
Using the equipment

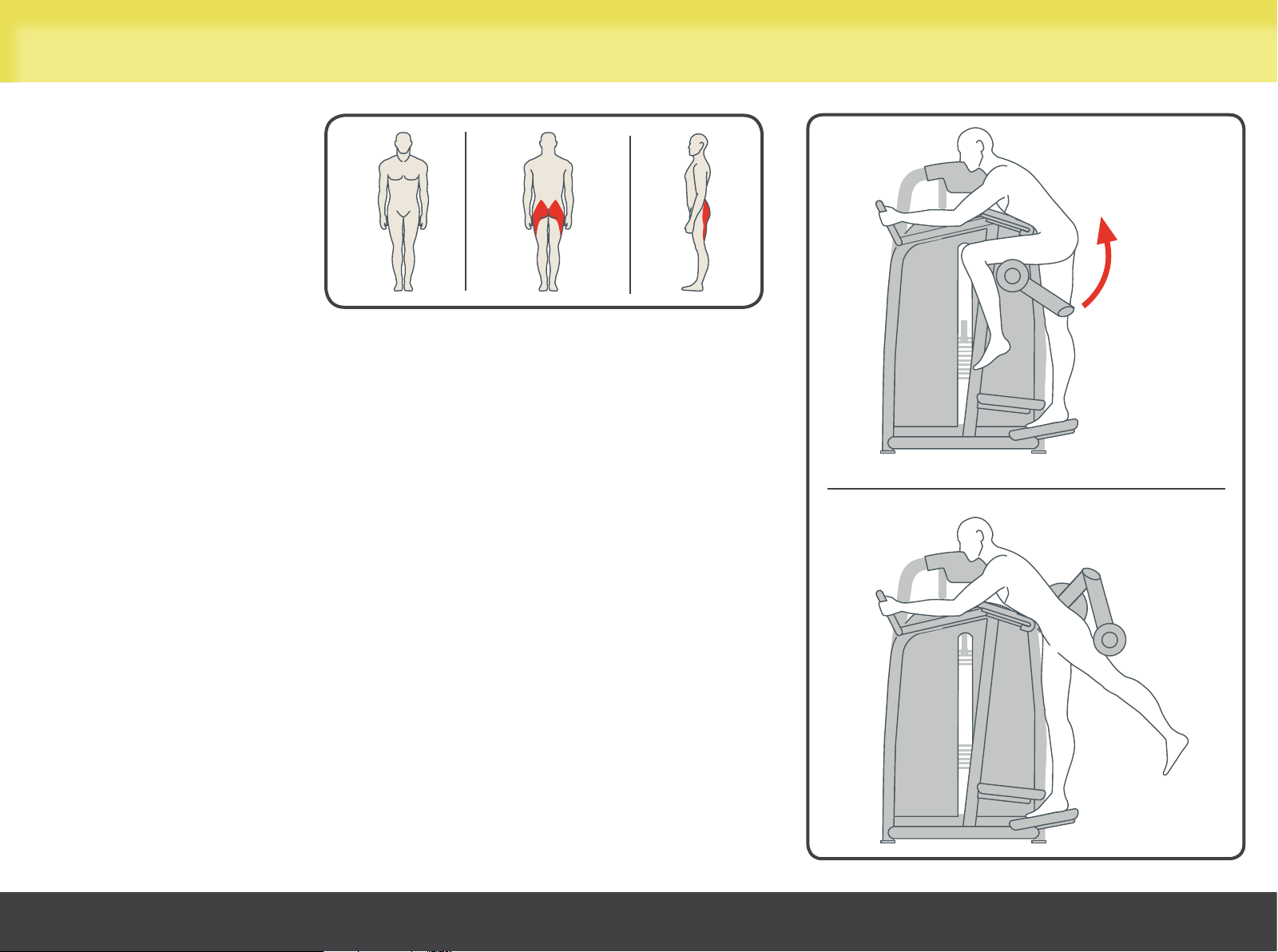

With your hips firmly against the pad, grasp the handgrips and push your leg back.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
To exercise with the other leg, reverse sides and repeat from point 1.
Glute
24
Loading...
