S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
Cable Jungle
User manual
All equipment
1
Page 2
Contents
Identification of the manufacturer and equipment ............................ 3
Description of the equipment ............................................................ 4
Technical data ................................................................................... 5
Safety devices and warnings ............................................................ 6
Place of installation ........................................................................... 8
Lifting and moving the equipment ..................................................... 9
Assembly ......................................................................................... 11
Anchoring to the floor ...................................................................... 19
Fitting the number holder ................................................................ 21
Routine maintenance ...................................................................... 22
Replacing the padded parts ............................................................ 23
Replacing the cables ....................................................................... 24
Replacing the spring hook .............................................................. 29
Technical Service ............................................................................. 30
Storage ............................................................................................ 31
Disposal ........................................................................................... 32
Using the equipment ....................................................................... 33
Cable Jungle
2
Page 3
Identification of the manufacturer and equipment

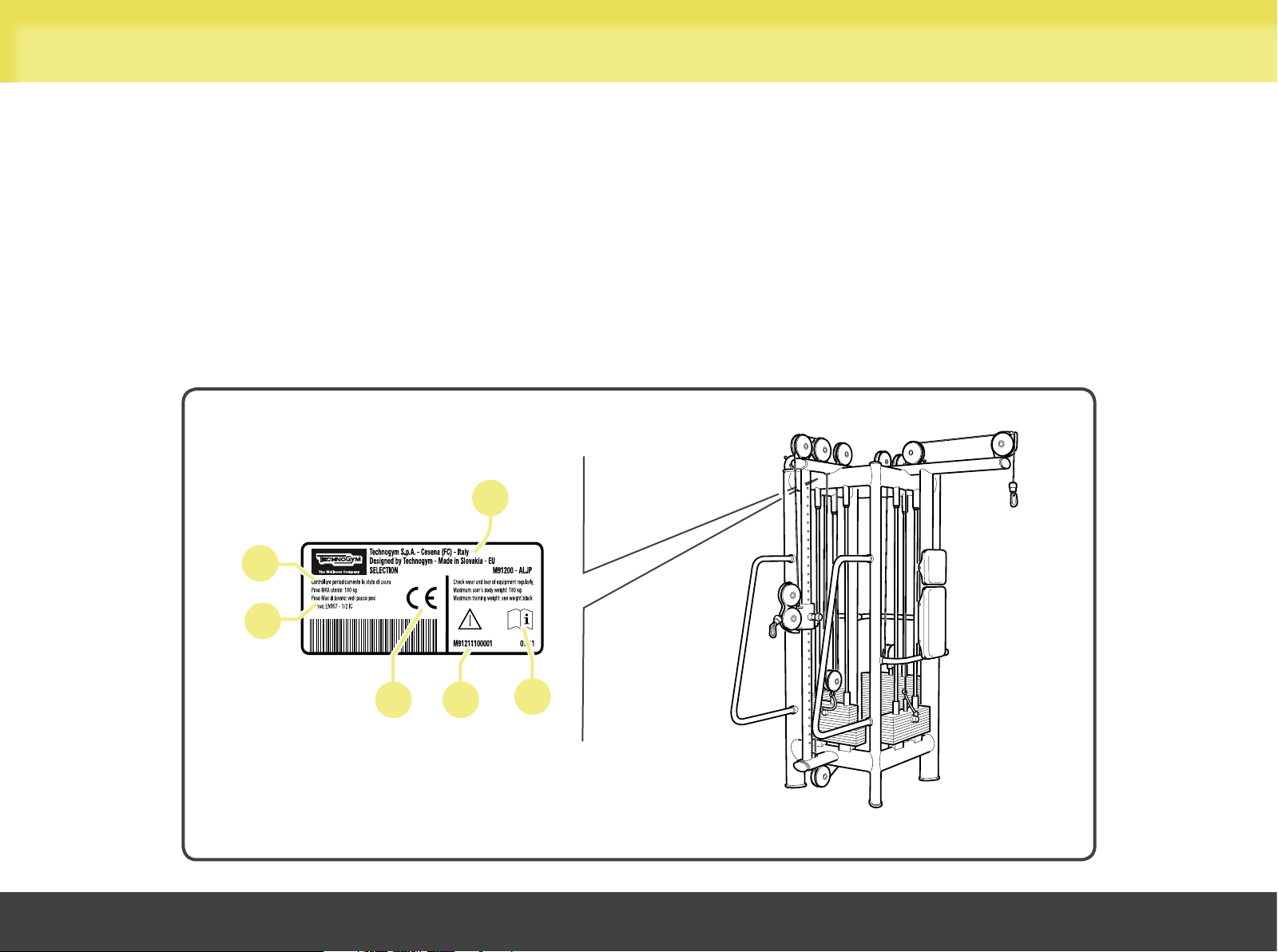

The equipment and manufacturer identification plate, fixed to the upper inside part of the frame, gives the following details:
A Manufacturer's name and address
B CE Mark
C Serial number
D Maximum user weight
E Equipment classification
F Consultation of user manual required
A
Cable Jungle
D
E
B C
F
3
Page 4
Description of the equipment
D
A
B
2
3
4
1
E
C
A Frame: load-bearing structure of the equipment. The user stands in front of any of the four sides of the frame to perform the
exercises. On sides 2 and 4 there are high pulleys; on side 1 there is an adjustable output pulley; on side 3 there is a low pulley
and a high pulley.
3
C
B Adjustable cable outlet: adjust height using knob (D).
C Weight stacks: each pulley, operated by the user, moves the weights along two guide rails by means of a cable. A pin (E) is used
to select the workload, to adjust the exercise effort level.
Cable Jungle
4
Page 5
Technical data

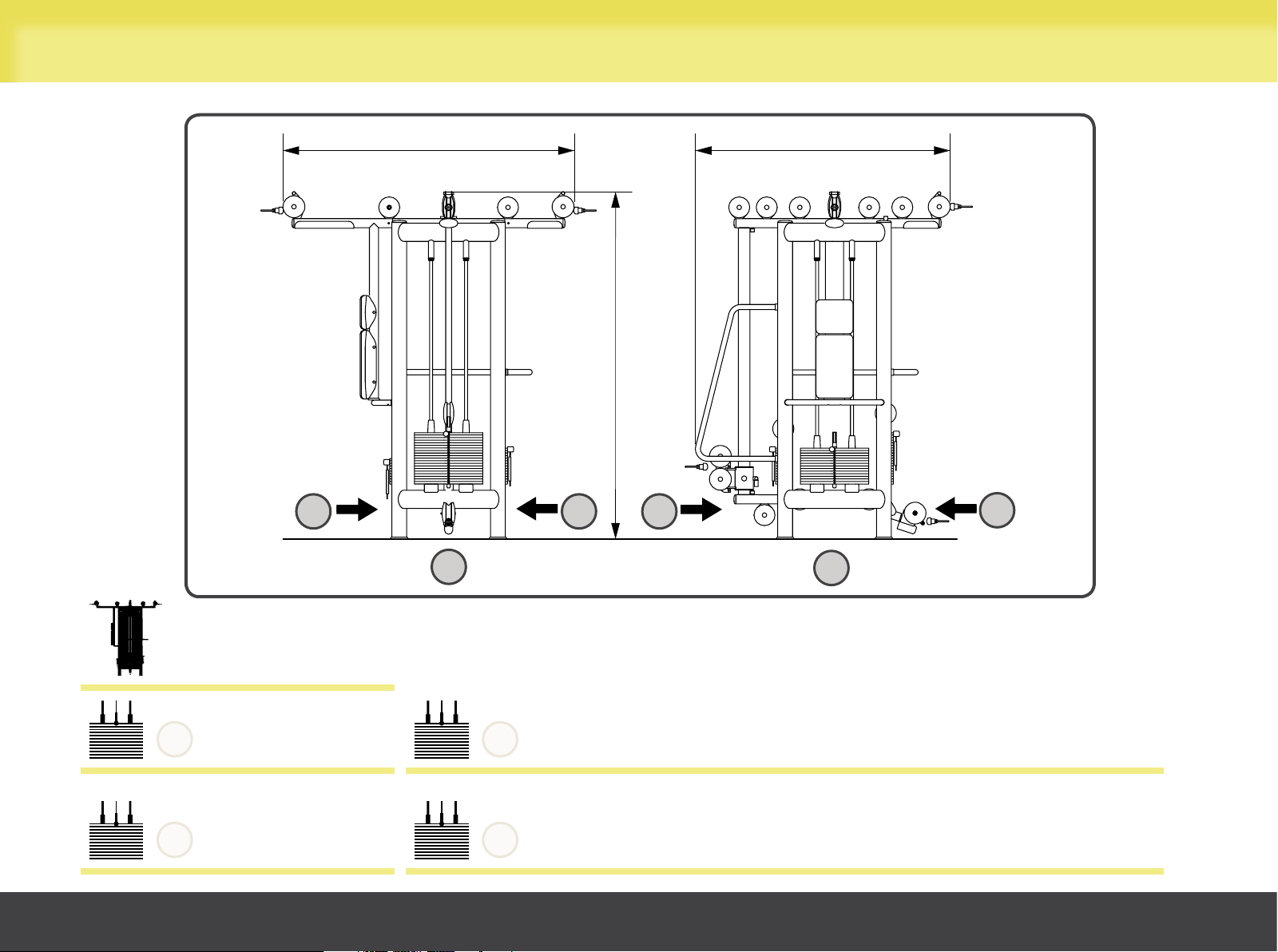

1918 mm
(76")
(90")
2290 mm
2 1
4
3
1679 mm
(66")
3
2
Cable Jungle
518 kg (1142 lb)
2
50 kg (100 lb)
4
70 kg (140 lb)
1
55 kg (110 lb). Effective handgrip workload: 27.5 kg (55 lb)
3
100 kg (200 lb). Effective handgrip workload: 50 kg (100 lb)
5
Page 6
Safety devices and warnings
The maximum user weight is 180 kg.
The equipment has no sharp corners.
All parts which come into contact with the user's body are suitably protected with rubber coverings or padding.
Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF
CRUSHING”.
This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal injury. Pay attention
to all safety warnings accompanied by this symbol to avoid possible injury.
WARNING
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.
Cable Jungle
6
Page 7
Safety devices and warnings
67 x 259
WARNINGS
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.
WARNING
SERIOUS INJURIES CAN OCCUR
ON THIS EQUIPMENT. YOU MUST
ALWAYS TAKE THE FOLLOWING
PRECAUTIONS TO AVOID INJURY!
Before using the equipment, read all the
warnings and all the instructions. Be
certain on the use of the equipment.
Use the equipment only for its intended use.
Do NOT modify the equipment.
Always consult with a qualified and
licensed medical professional before
starting any exercise program.
If you feel any pain or abnormal symptoms,
stop your workout immediately and consult
your physician.
Keep body, hair and clothing away from all
moving parts.
Check the equipment before use.
Do not use the equipment if you see signs
of wear or damages. In this case notify the
staff immediatley.
Before using the equipment check that the
cables are correctly routed inside the races
of all the pulleys, and check the state of
wear of the cables and their connections.
If you see signs of wear, notify the staff
immediatley.
Be certain that the weight pin is completely
inserted. Use only the pin provided by the
manufacturer. If unsure, seek assistance.
Never pin the weights in an elevated
position. DO NOT use the equipment if found
in this condition. Seek assistance from floor
staff.
Do not use attachments not recommended
by the manufacturer.
Do not allow children unsupervised access
to the equipment. Close supervise
teenagers.
DO NOT REMOVE THIS LABEL.
REPLACE IF DAMAGED.
Cable Jungle
WARNING
Before use be certain that the equipment
is secured to the wall or to the floor.
If not, notify the staff immediatley.
If unsure, seek assistance.
7
Page 8
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.
Cable Jungle
8
Page 9
Lifting and moving the equipment
Use the four castor wheels (optional) to move the equipment.
If the equipment has already been anchored to the floor, it needs to be released
from the anchorage and its original feet refitted: follow the instructions in the
paragraph describing anchoring to the floor in reverse order.
WARNING
Move the equipment very carefully, because it may become unstable
and tip over.

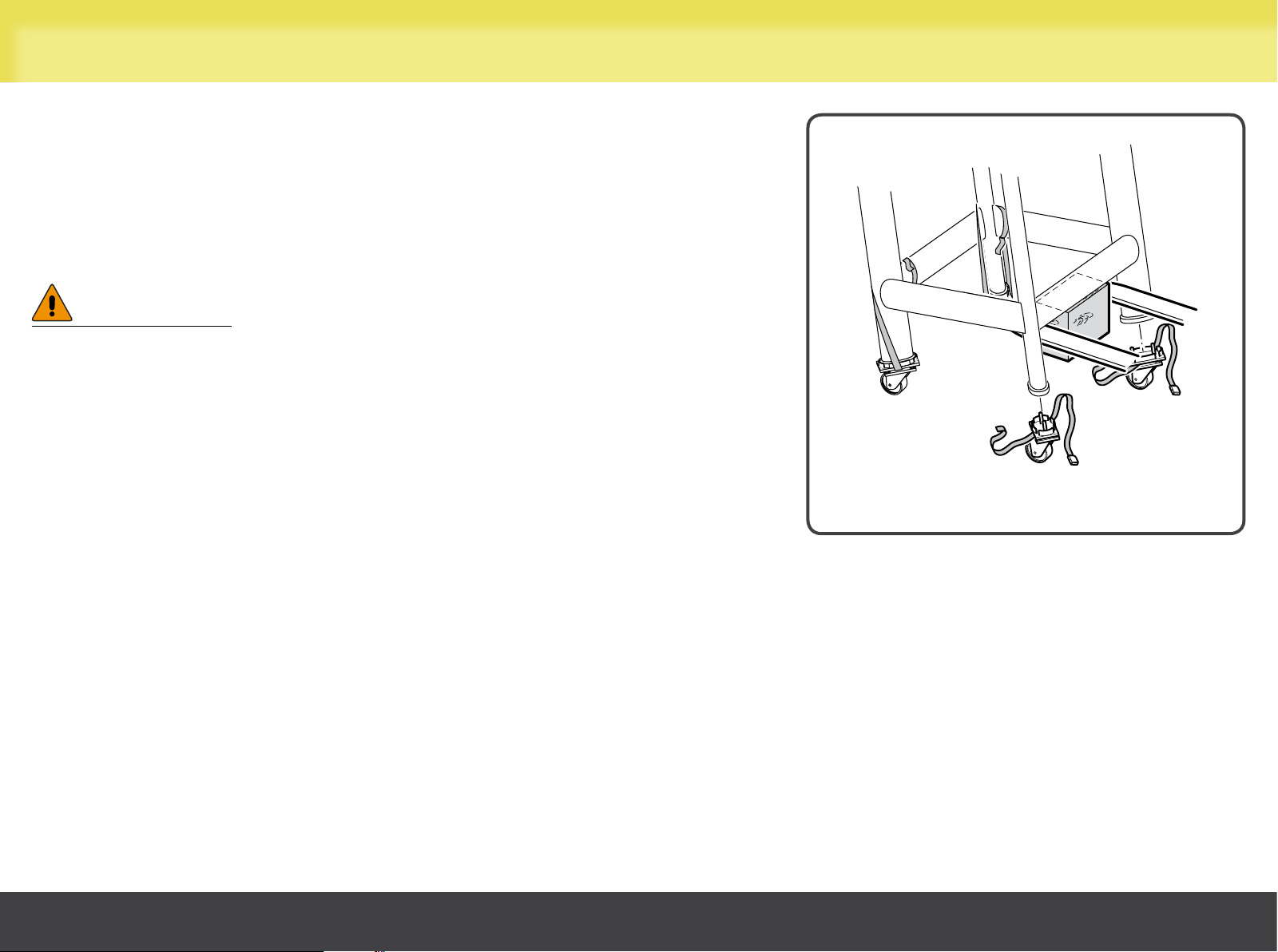

The castors for moving the equipment snap on underneath the feet of the
equipment, after it has been raised, and are held in place by the special straps.
Raise the equipment using a pallet truck or fork-lift truck; and for greater safety
place a wedge under the frame to keep the equipment raised.
WARNING
We recommend placing padded material between the frame and the
wedge and between the frame and the machinery used to lift it.

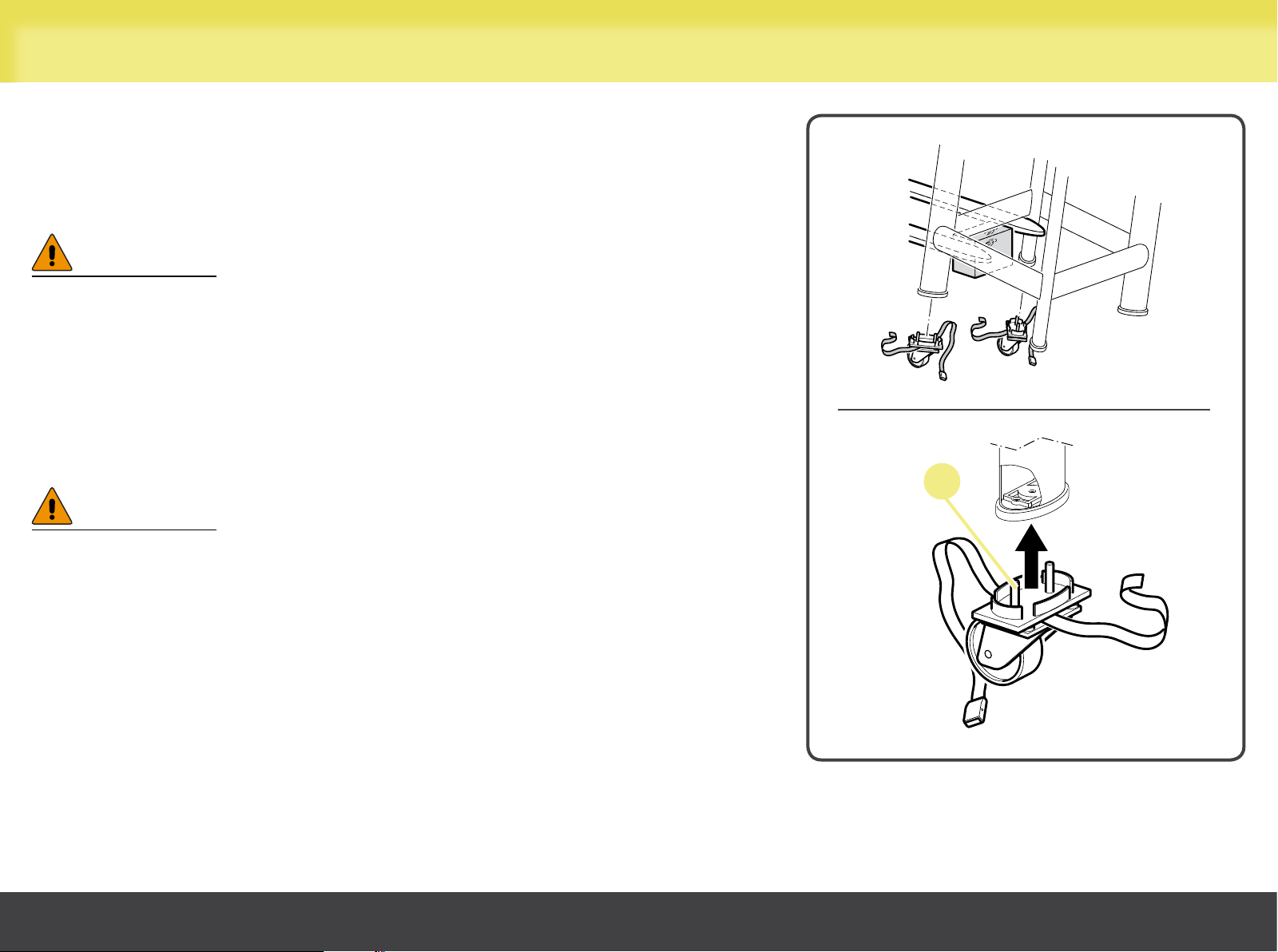

Fit two of the wheels: fit the castor stems (A) into the holes provided under the
equipment feet, then push hard until they snap in.
Cable Jungle
A
01083016
9
Page 10
Lifting and moving the equipment
Proceeding in the same way, lift the equipment from the other side and insert
the other two wheels.
Lastly, lift the equipment again, remove the safety wedges and place the wheels
on the floor.
WARNINGS
Do not use the equipment with the castors fitted. The castors are to
be used only for moving the equipment and must be removed before
exercising on it. After moving the equipment, it must be anchored to
the floor before use.
Cable Jungle
10
Page 11
Assembly
WARNING
When installing the equipment, use suitable personal protective
equipment.
Assembling the weight stacks on sides 2 and 4
Loosen the two screws (A) inside each of the guards (B) on sides 2 and 4, then
lower the guide rails (C) until they are resting on the floor.
WARNING
Screws (A) secure the guide rails (C); hold on to the guide rails when
loosening these screws to prevent them from dropping on the floor.
The weight stacks must be made up as follows:
- side 2 weight stack with backrest: 9 wide weights, plus wide crosspiece;
- side 4 weight stack with high pulley: 13 wide weights, plus wide crosspiece.
A
CB
A
Cable Jungle
4
2
11
Page 12
Assembly

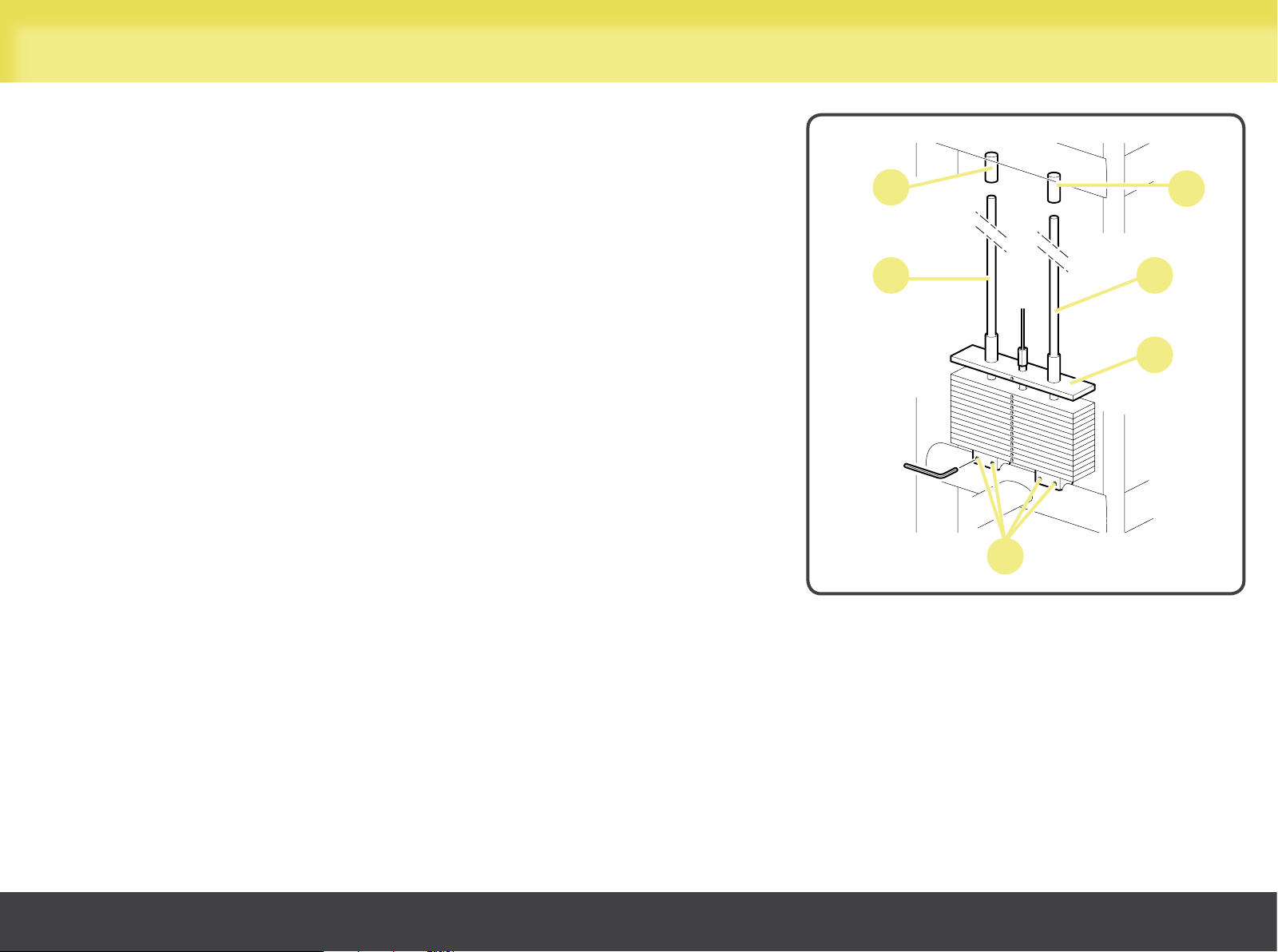

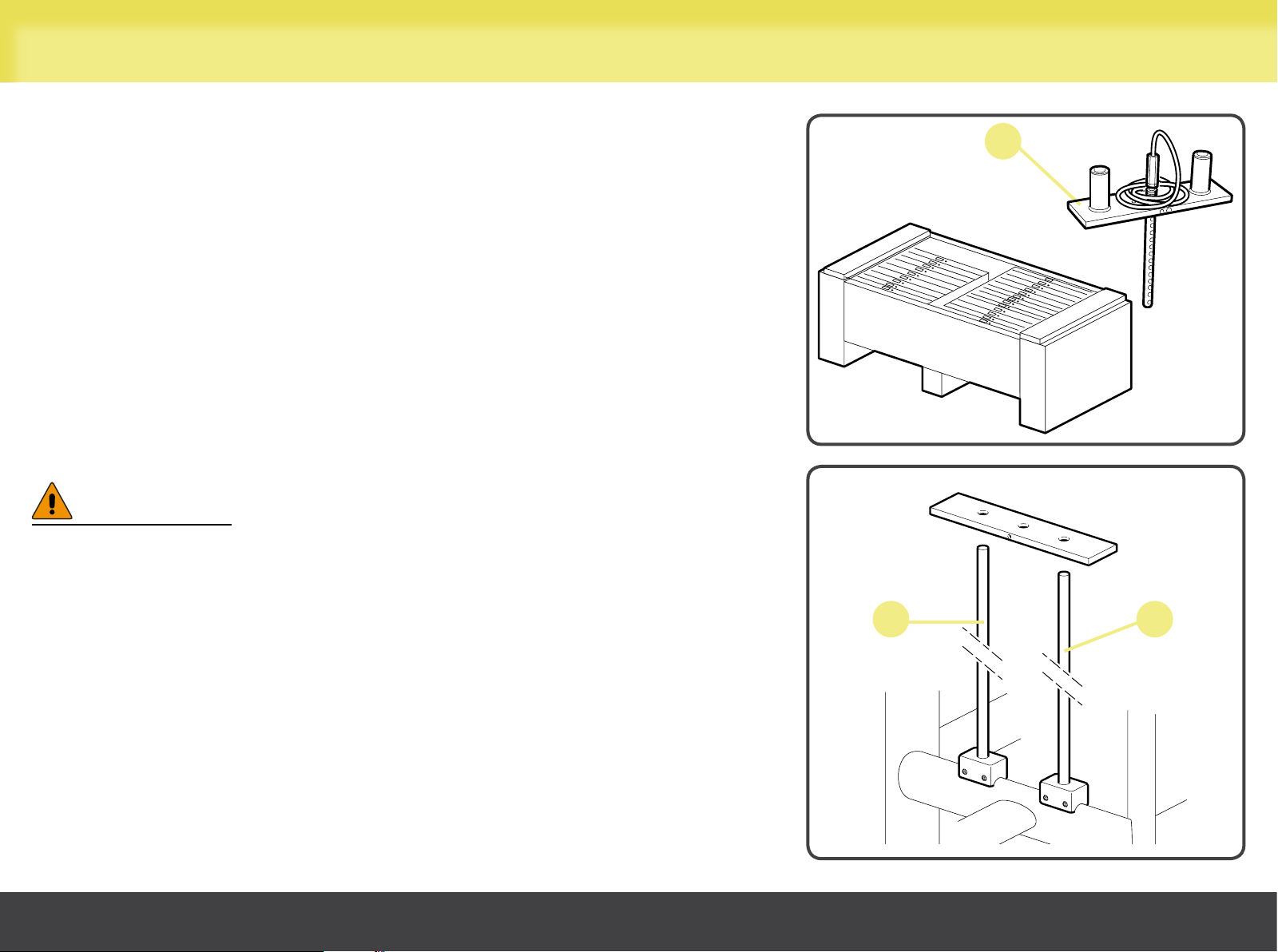

Assemble one weight stack at a time.
For every weight stack take the crosspiece (E) from the crate and then take the
weights out one by one, starting from the last one (the one with the highest
number), and insert them in guide rails (C) from above.
WARNINGS
E
The weights must be assembled with the selection holes facing the
outside of the equipment and the numbers upright.
To keep the weights in the correct order always take them out of the
packaging and insert them ONLY one at a time; this will ensure that
the numbers stamped on the weights will be in the right order in each
weight stack.
Cable Jungle
C C
12
Page 13
Assembly
Once the weight stacks have been assembled insert their respective
crosspiece (E) above the weights; carefully insert guide rails (C) into their upper
housings (F); then tighten screws (A) to lock them in position.
Proceed in the same way for the other weight stack.
F
C C
E
F
A
After completing the weight stacks on sides 2 and 4, assemble the cables (see the Assembling the pulleys and cables section).
Cable Jungle
13
Page 14
Assembly
Assembling the supports
Side 2
B

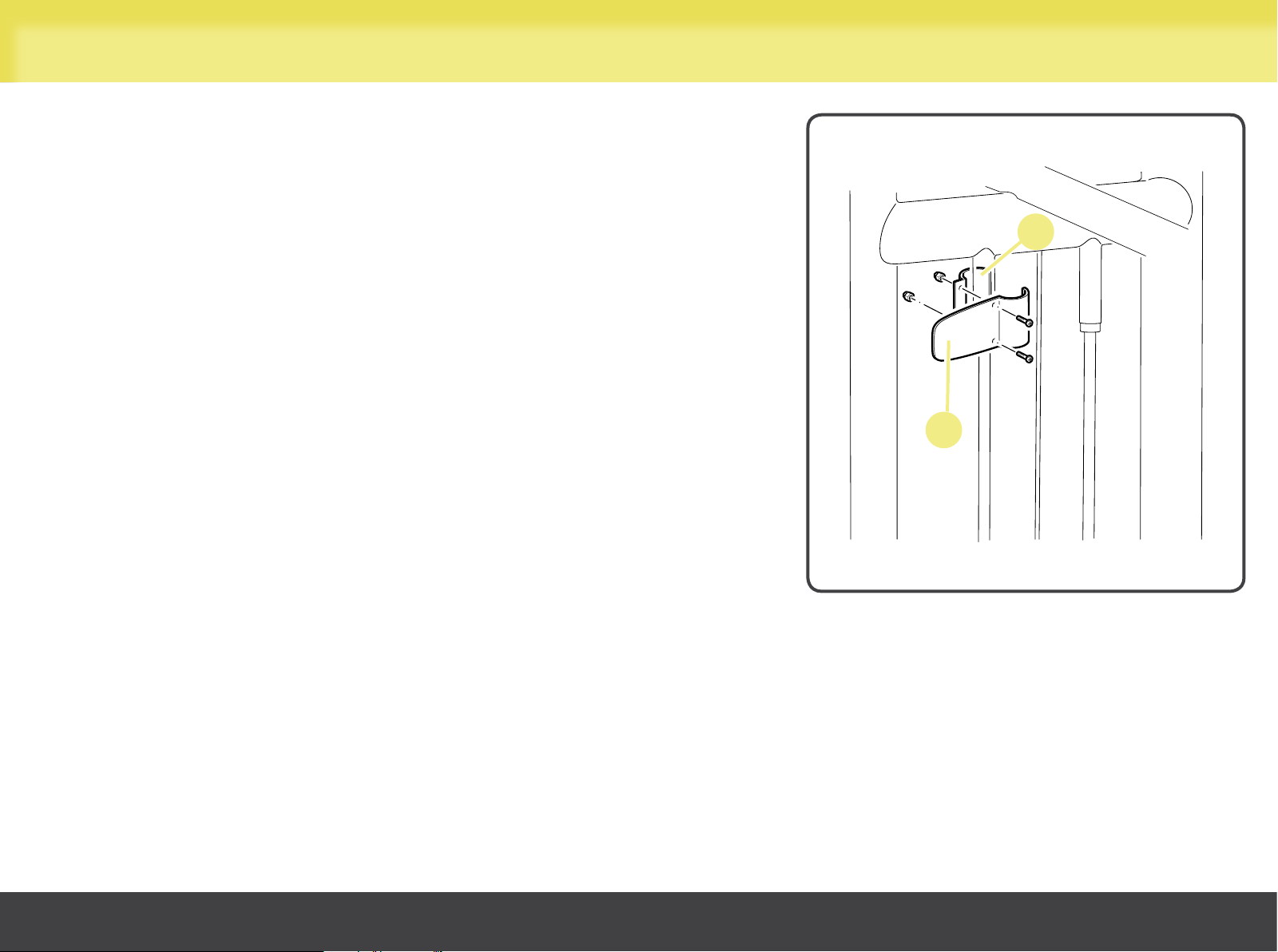

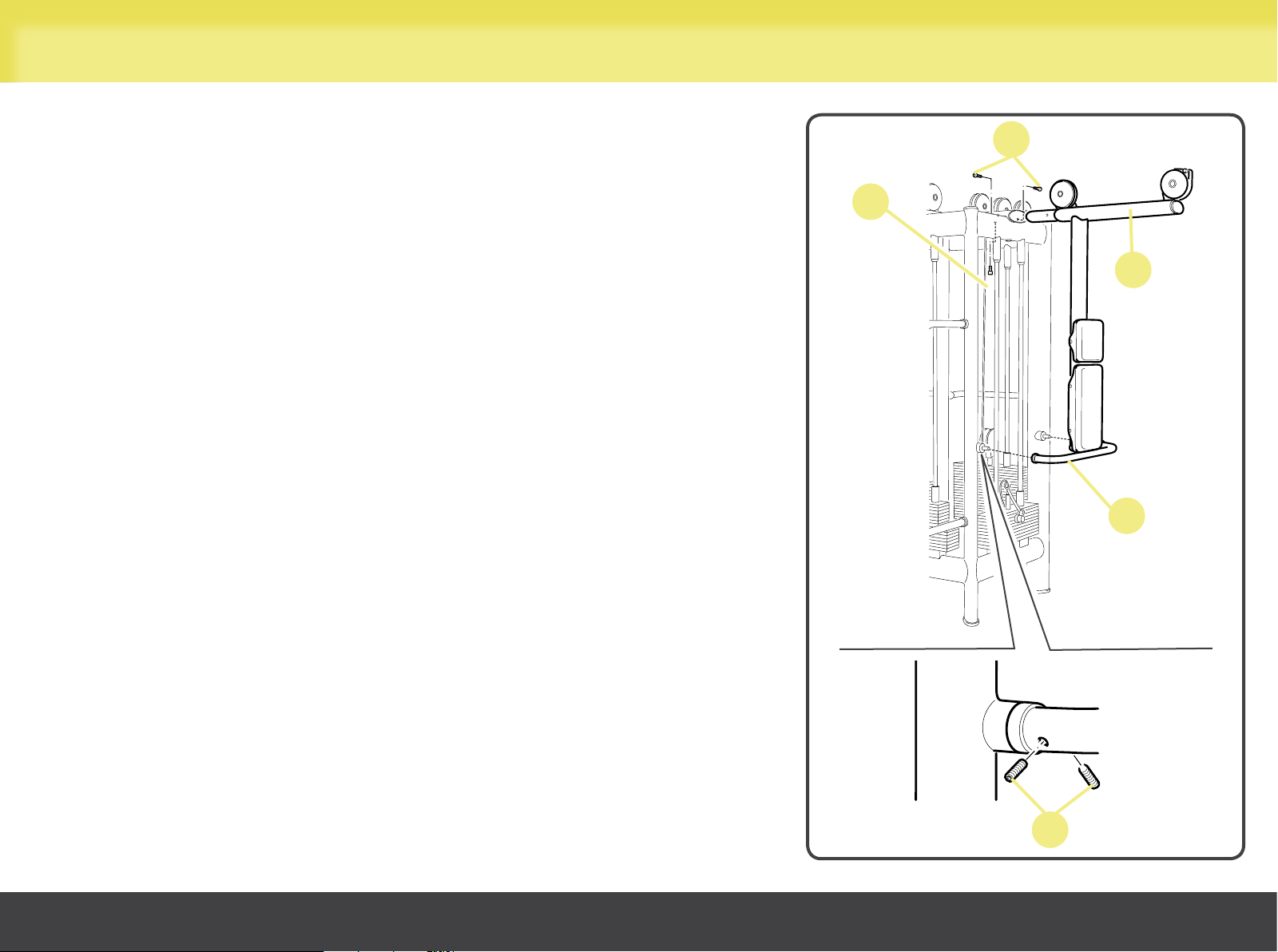

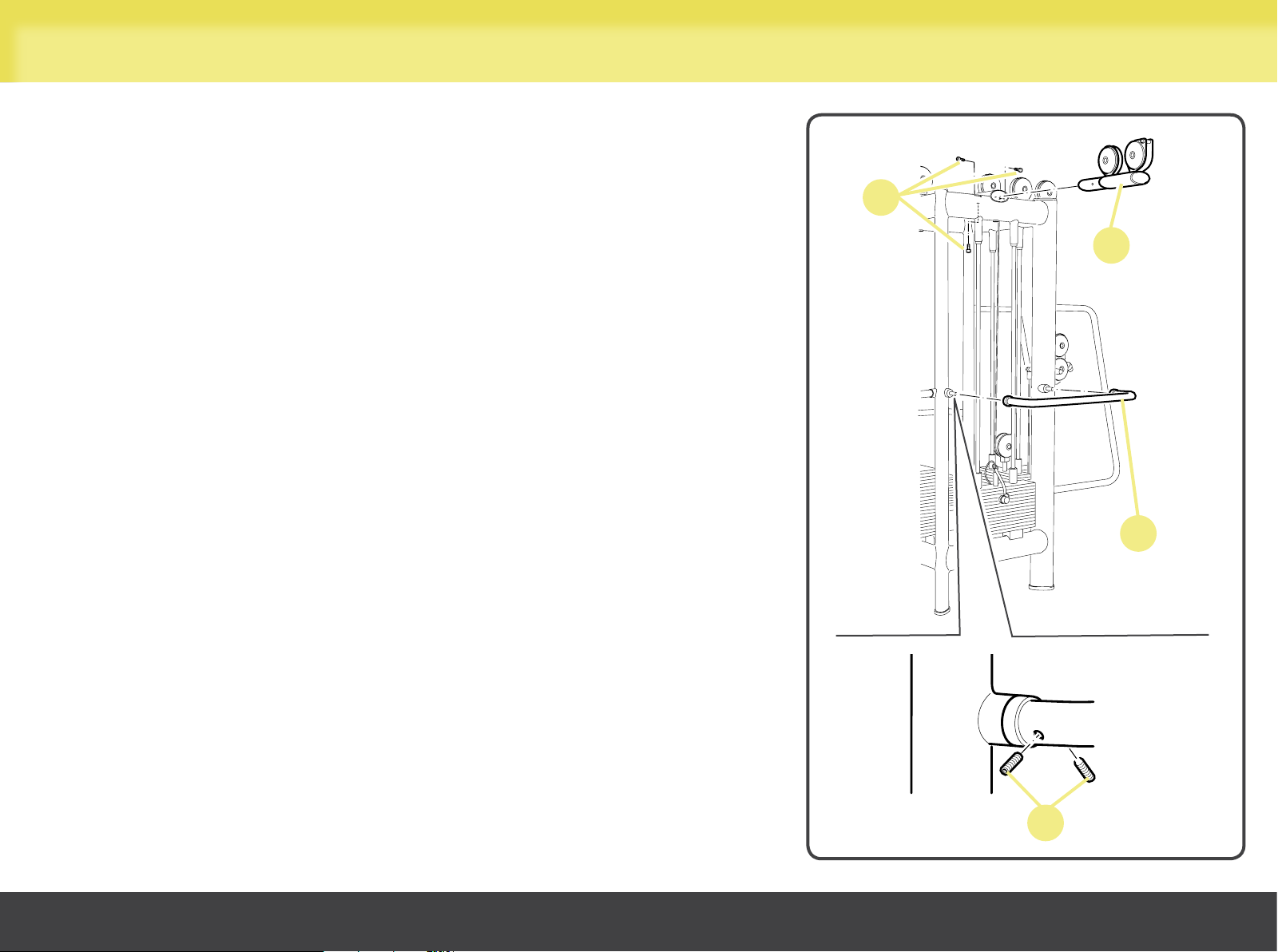

Insert upper cross-bar (A) into the frame and secure it with the three screws (B),
two at the sides and one underneath.
Fit handgrip (C) into the two frame pins and secure it with the four screws (D),
two on each side.
B
A
C
Cable Jungle
D
14
Page 15
Assembly
Side 4
Insert pulley mount (E) into the frame and secure it with the three screws (G),
two at the sides and one underneath.
Fit handgrip (F) into the two frame pins and secure it with the four screws (H),
two on each side.
G
E
Cable Jungle
F
D
15
Page 16
Assembly
Assembling the pulleys and cables

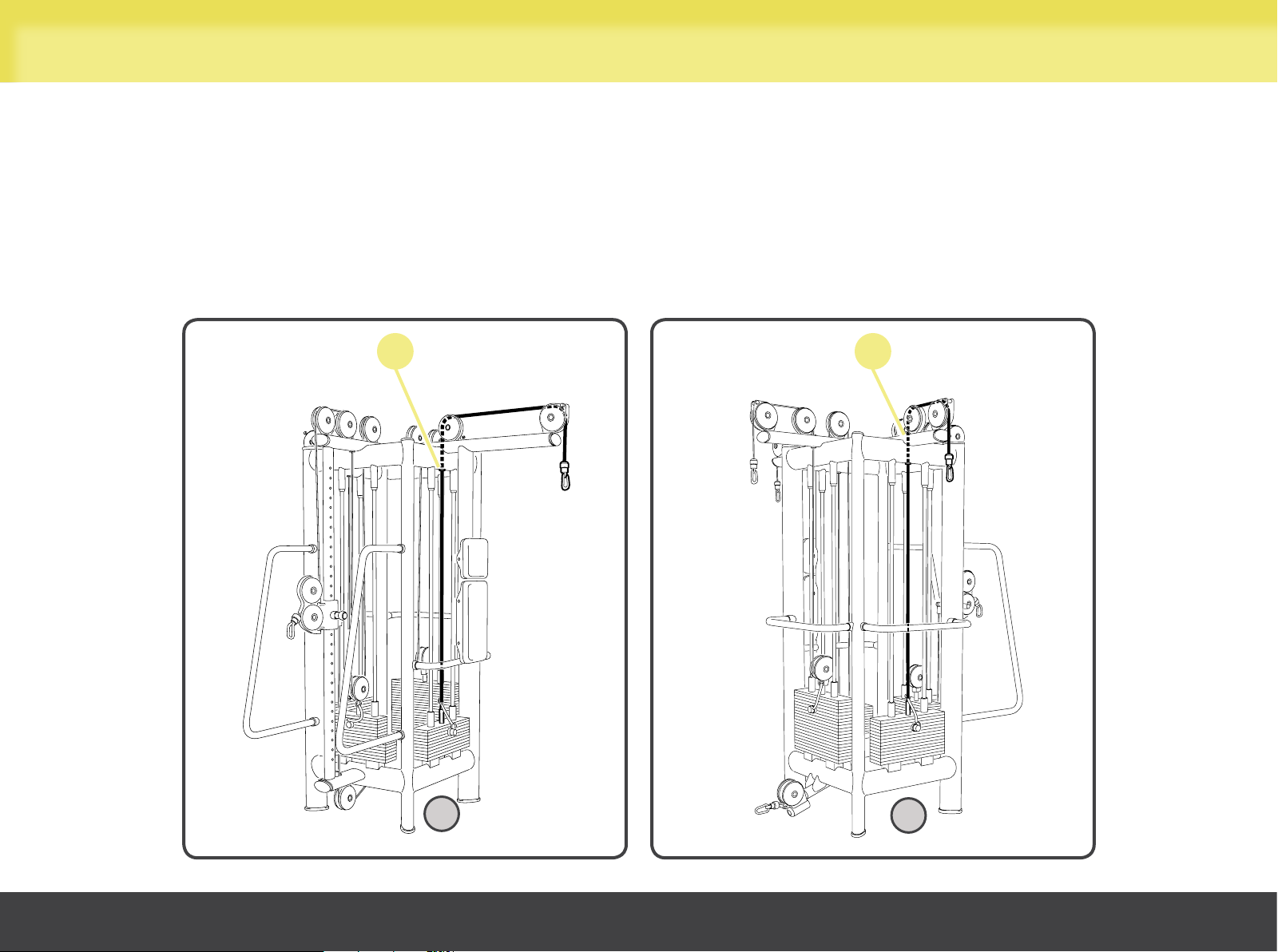

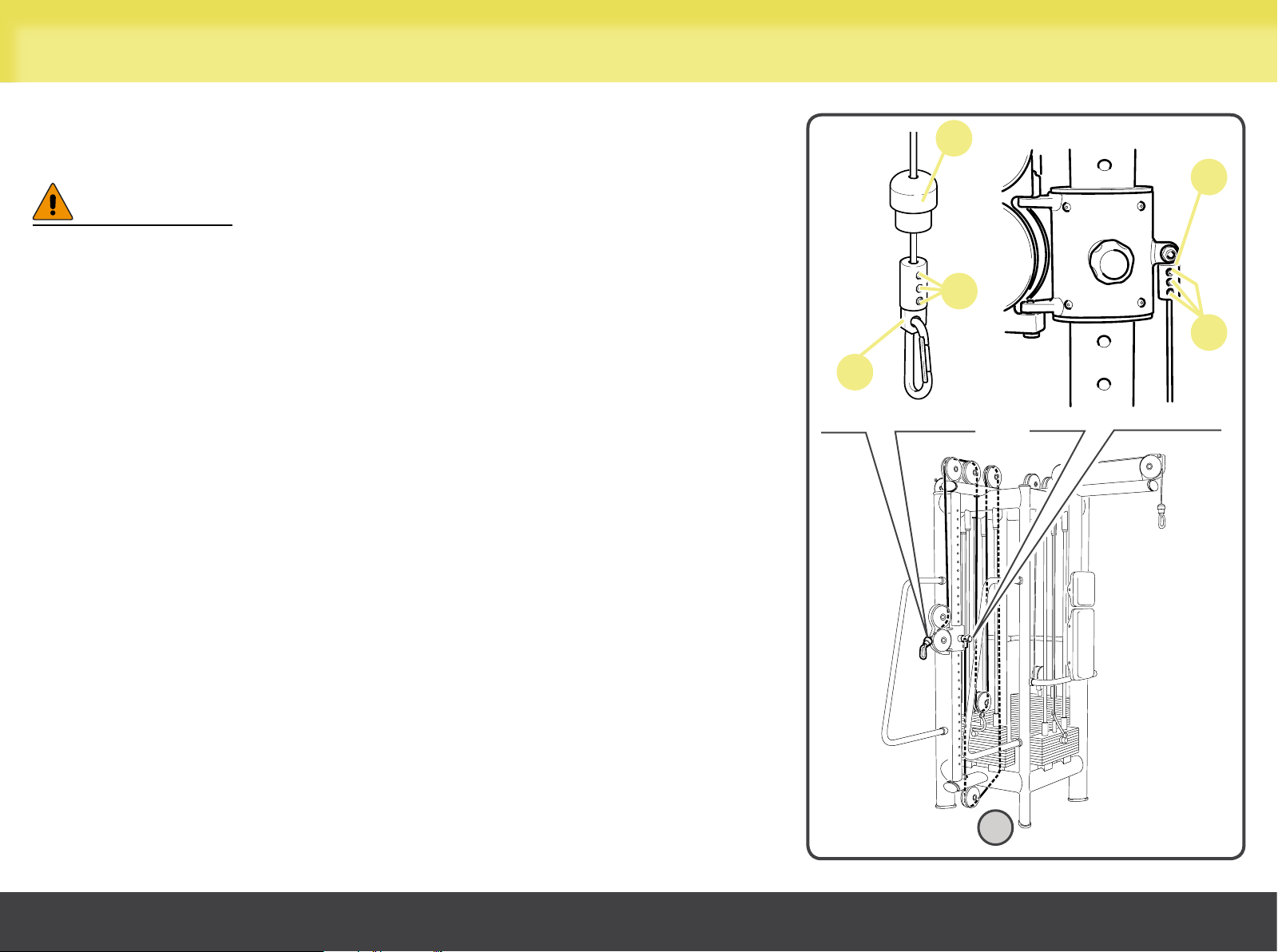

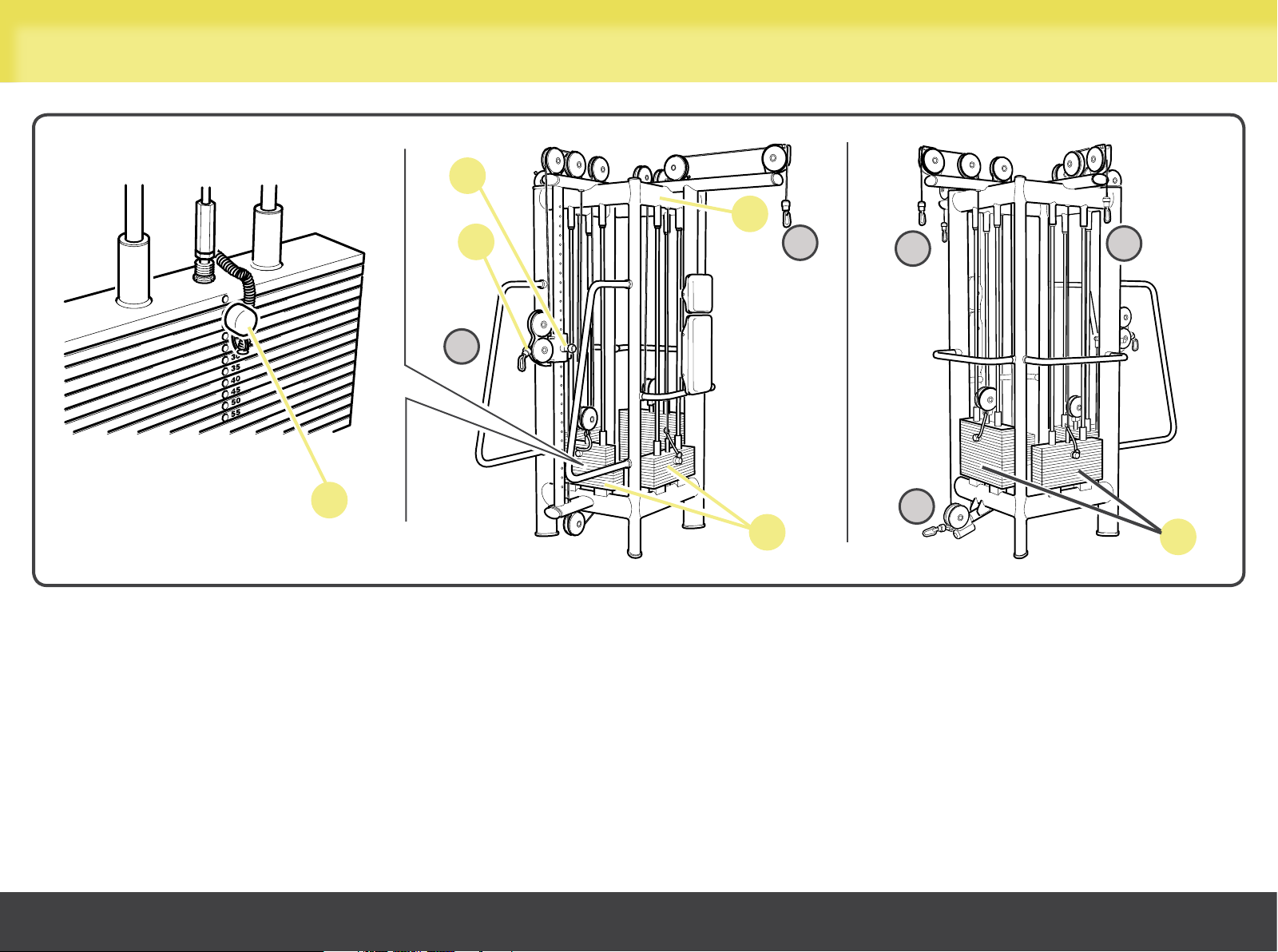

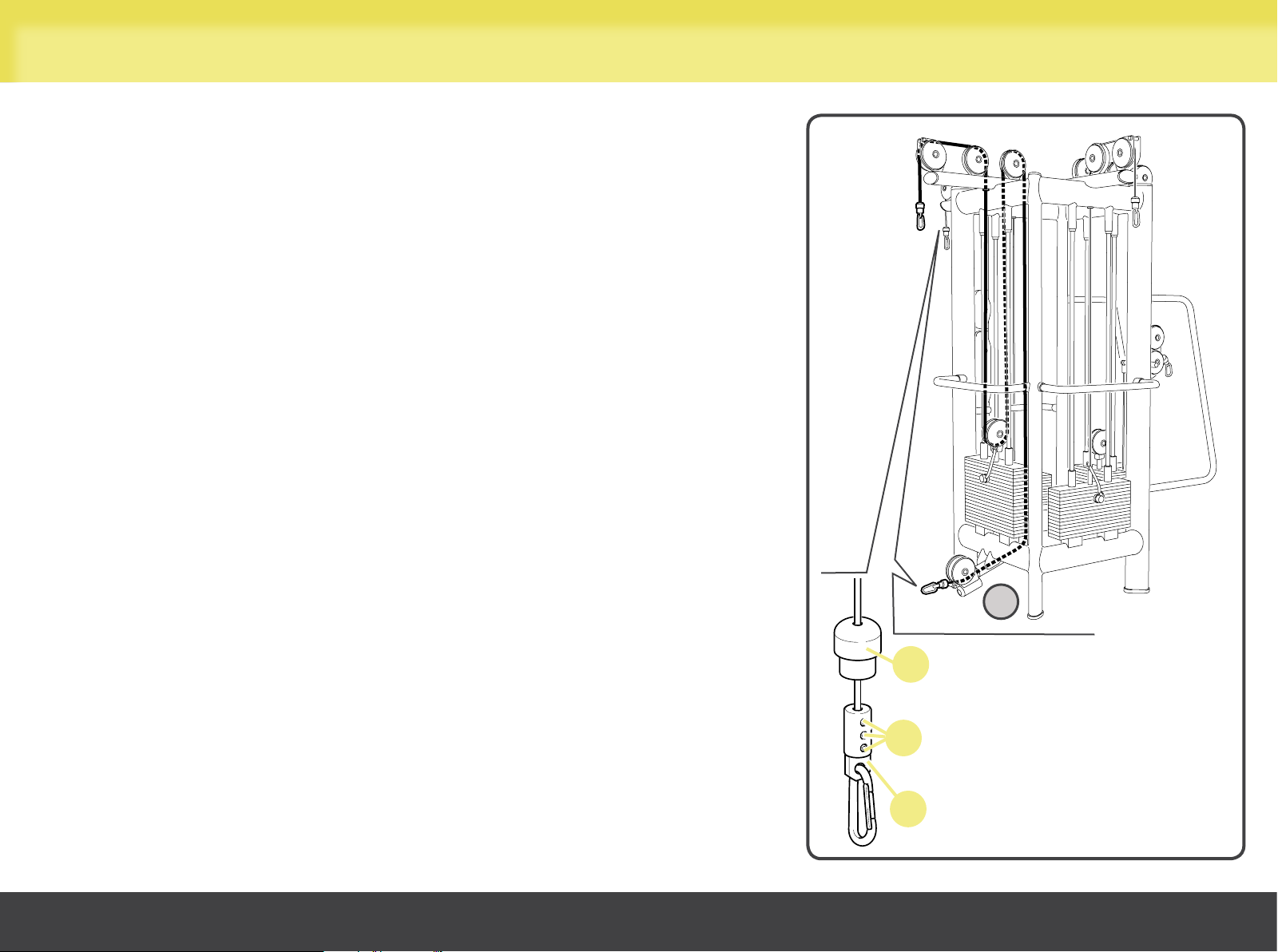

Re-route the cables on sides 2 and 4 as shown in the illustrations, threading them through the holes (A) provided in the equipment
tubing. Check that the cables are correctly positioned in the pulley grooves.
A
2
A
4
Cable Jungle
16
Page 17
Assembly

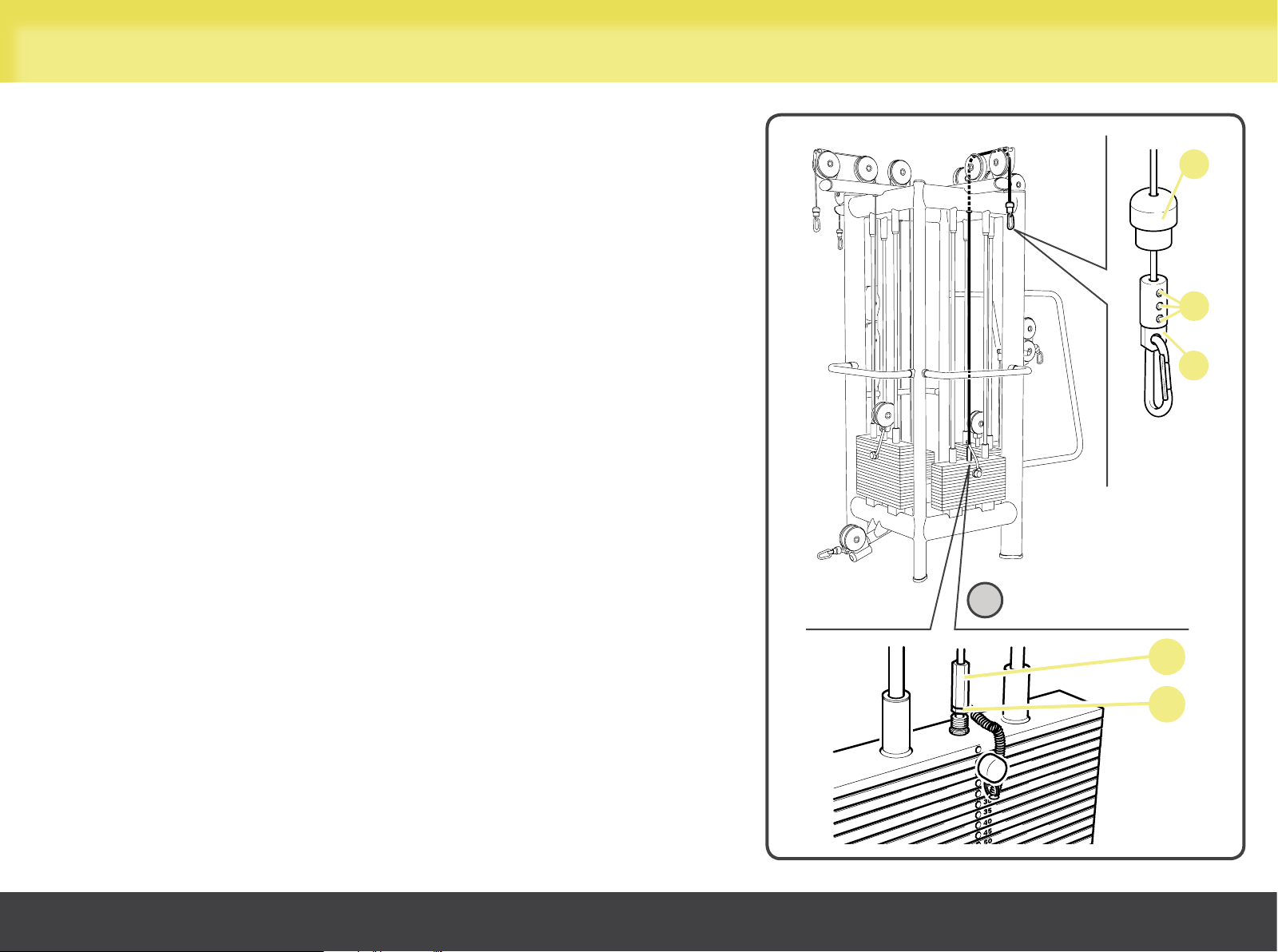

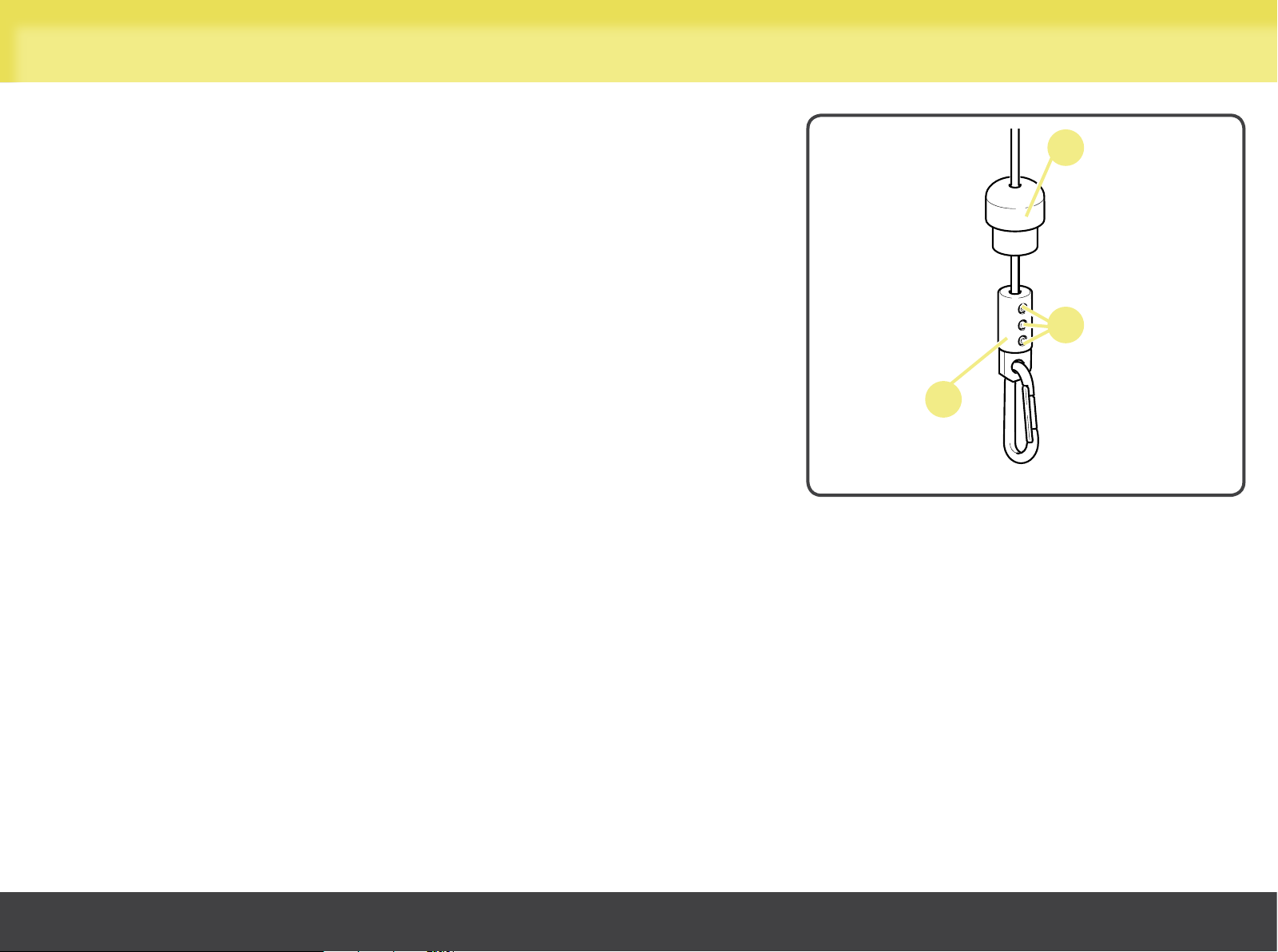

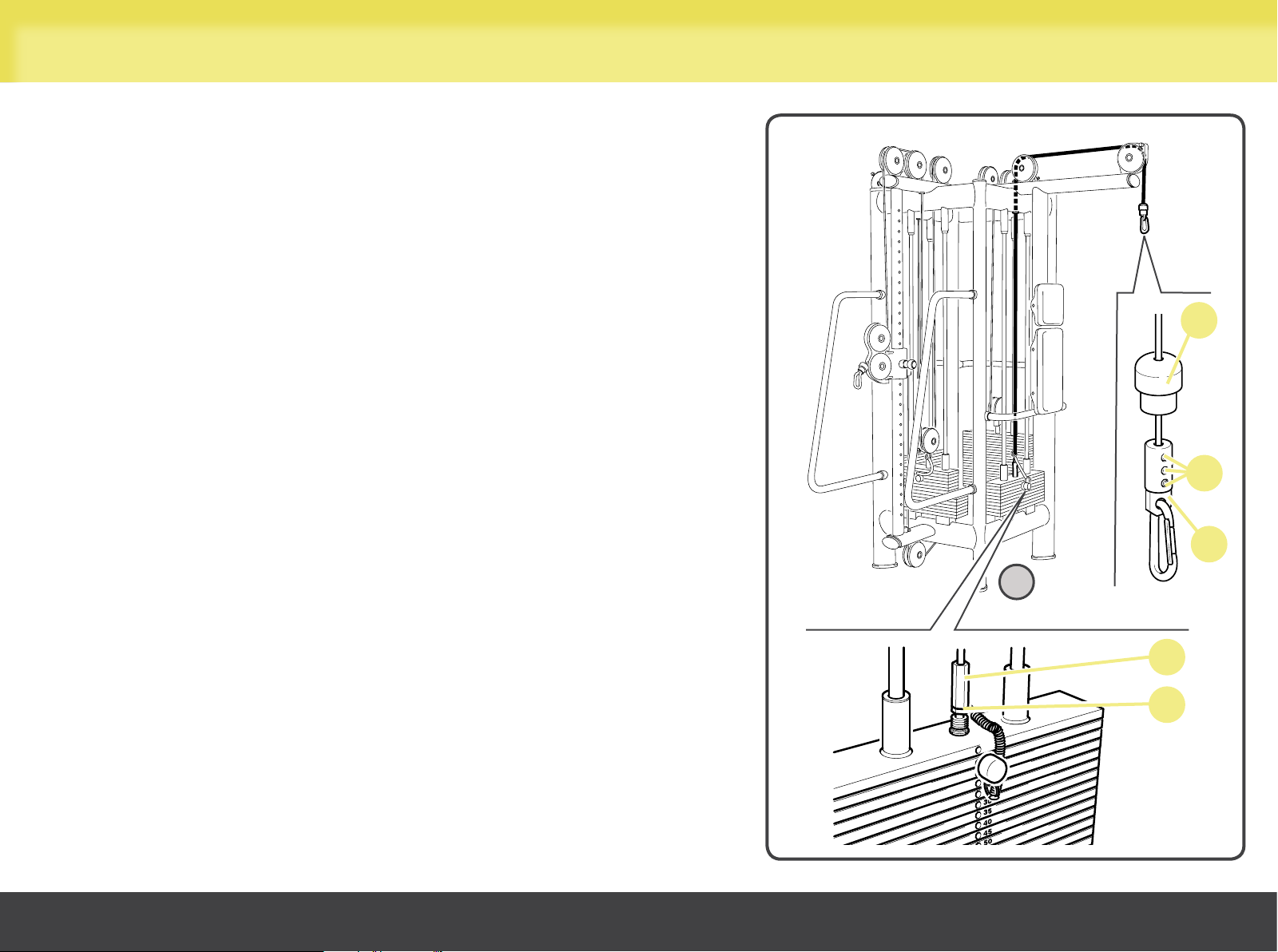

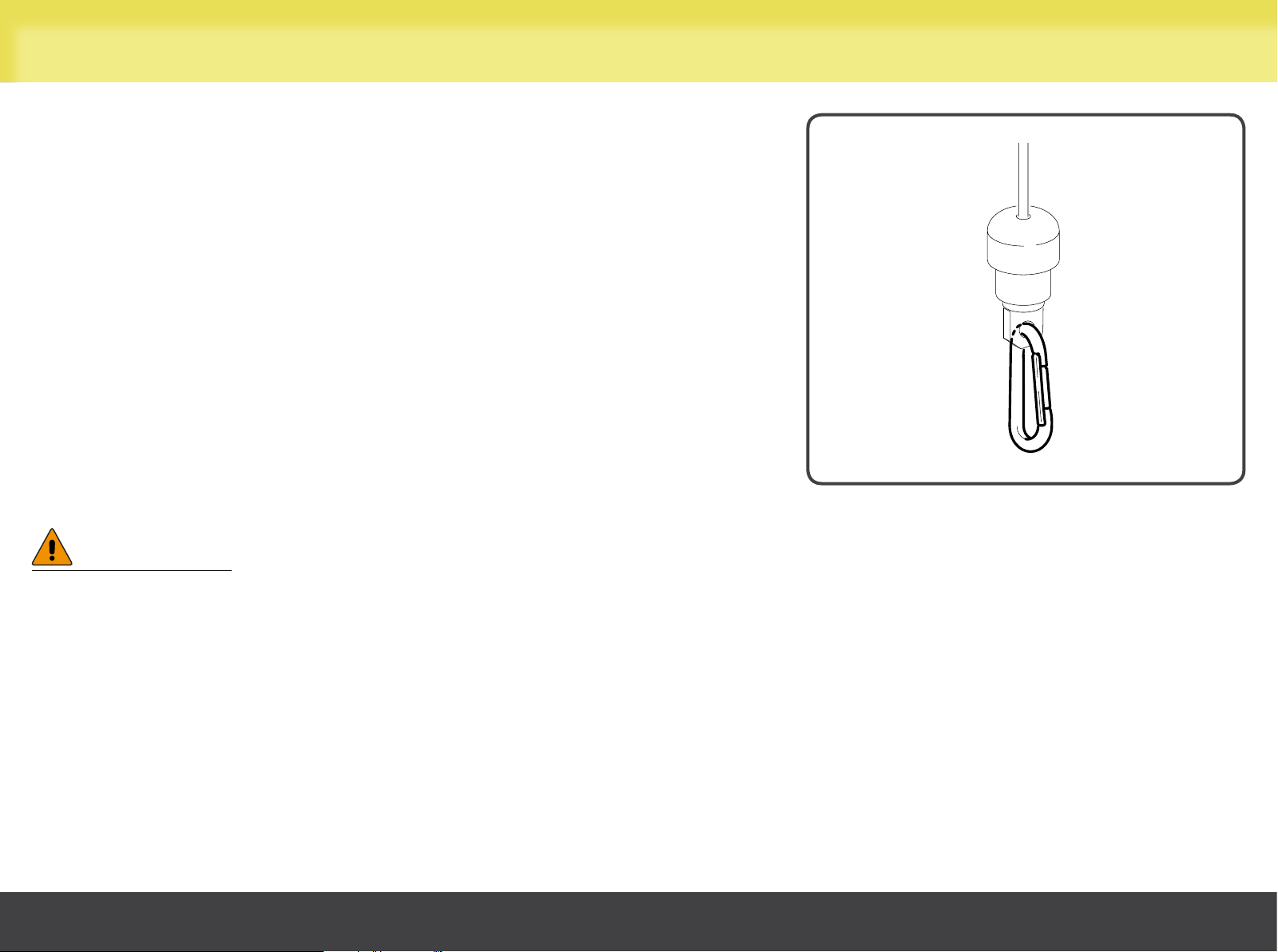

After re-routing, the cables must be secured: fit rubber gaiter (B) on to the end
of the cable, insert the cable into connector (C) and then thoroughly tighten
screws (D).
B
D
C
Cable Jungle
17
Page 18
Anchoring to the floor
The following anchoring parts are supplied: 4 feet, feet protections, anchor screws.
WARNING
To anchor the equipment, use anchor screws suited to the kind of floor,
and which strictly comply with the following minimum requirement:
minimum guaranteed load of 50 kg.

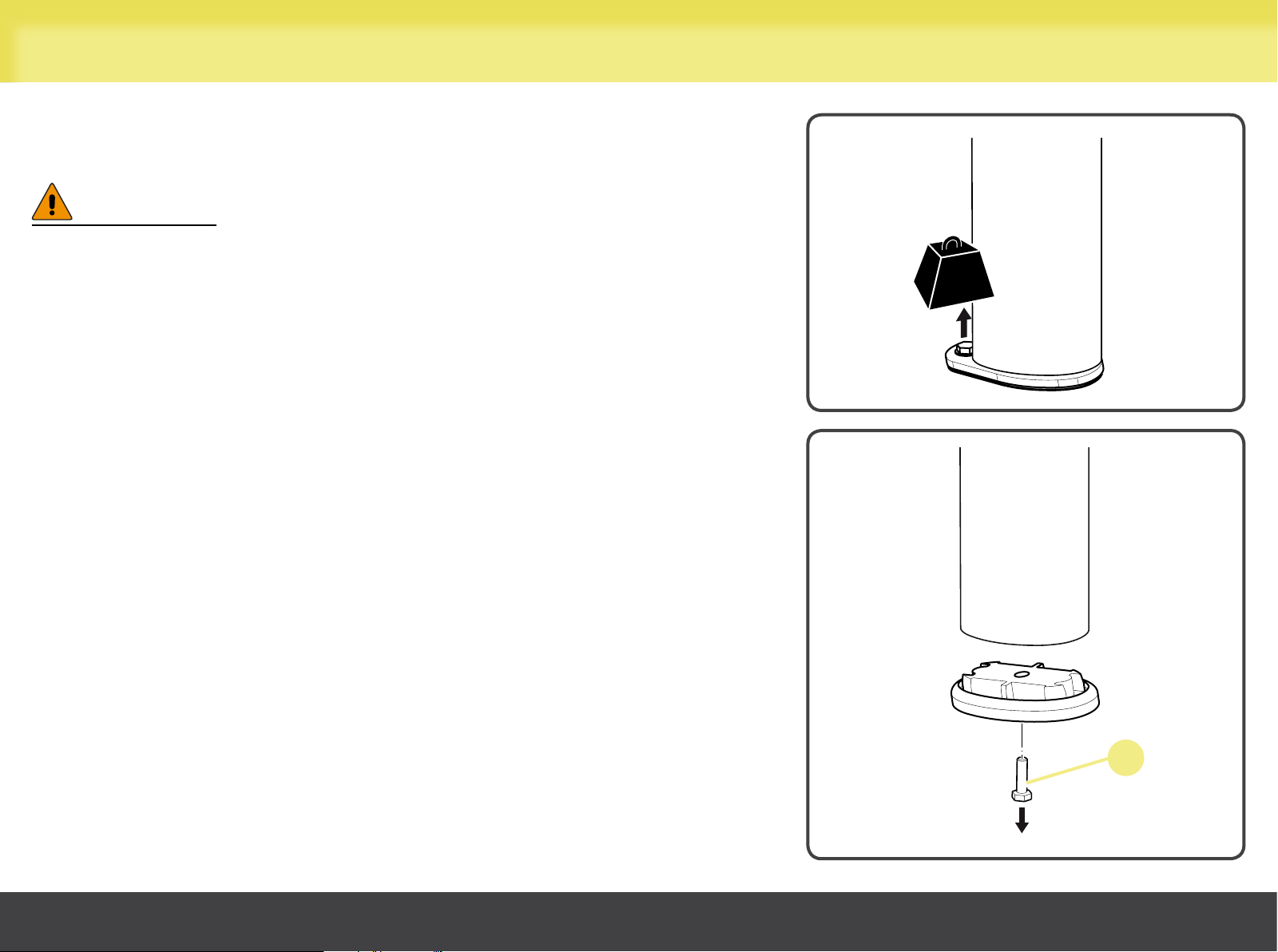

When anchoring the equipment to the floor, the feet need to be replaced: loosen
screw (A) to remove all the supporting feet.
Do not throw the original feet away, so that you can use them for inserting castors
when moving the equipment.
min.
50 kg
Cable Jungle
A
18
Page 19
Anchoring to the floor
Apply adhesive protection (B) to the new feet.
Attach all 4 new feet to the equipment using the screws (C) provided.
Mark the position of the holes to be drilled in the floor.
Drill the holes in the floor.
Insert anchor screws (D) and screw then tightly to the floor.
WARNING
The equipment must be anchored to the floor. Technogym accepts no
responsibility for injury caused by failure to anchor it to the floor.
B
Cable Jungle
D
C
19
Page 20
Fitting the number holder
The number holder must be fixed immediately underneath the cross-bars: standing
facing the equipment, attach the number holder to the left tube supporting the
guide rail, so that it is flush with the rubber stop on the guide rail.
The number holder is made up of two sections: the larger section (A) must be
placed at the front; the curved closing section (B) must be placed at the back of
the equipment.

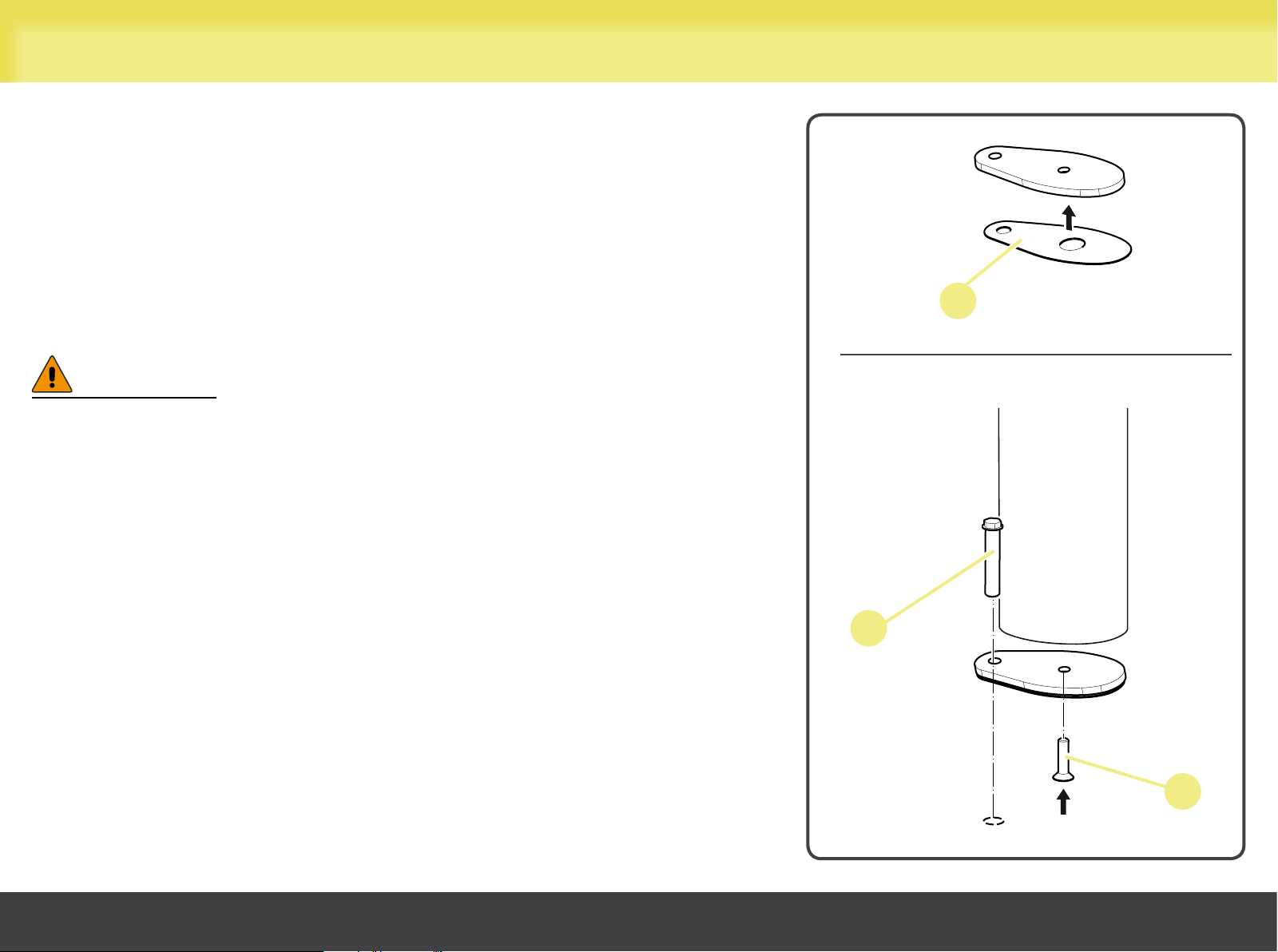

Insert the two screws (Tbic M5x6 Z) from the front of the equipment, coupling them
with the two M5 cap nuts at the rear; then tighten the nuts using the appropriate
spanners.
The number holder is optional.
B
A
Cable Jungle
20
Page 21
Routine maintenance
WARNINGS
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs
of damage and/or wear and to ensure that it is perfectly anchored to the floor.
Replace defective and worn components immediately, or alternatively remove the equipment from service.
The equipment should always be kept clean and free of dust, in compliance with good hygiene practice, especially if it is used in a
gym or by more than one person.
Use a moist cloth or a sponge and mild soap to clean the padded parts.
Wipe the outside of the equipment every week using a damp sponge.
Do not use chemicals or solvents.
WARNING
Be careful not to rub too hard on the drawings and instructions shown on the labels.
Oiling the weight stack guide rails:
- use a soft cloth to remove any dust and oil residues from the guide rails;
- slightly moisten the cloth with the oil supplied in the optional Basic Box kit;
- using this cloth, apply a very thin layer of lubricant over the guide rails, taking care not to apply too much.
Call the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual.
Cable Jungle
21
Page 22
Replacing the padded parts

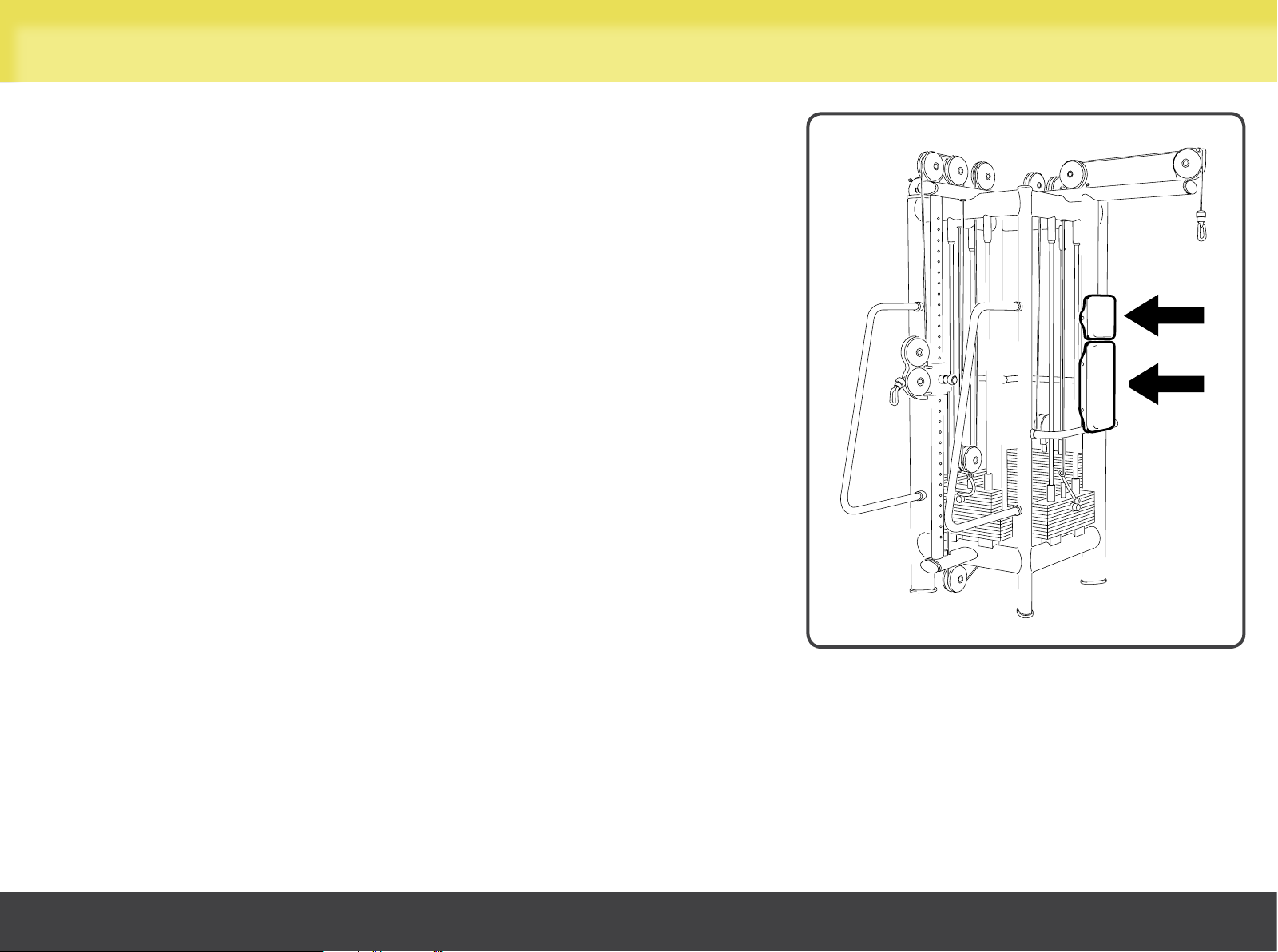

If any of the padding shows signs of wear, especially in the interests of hygiene,
we recommend replacing them completely.
In order to replace the backrest and headrest unscrew the screws on the opposite
side to the padding.
Cable Jungle
22
Page 23
Replacing the cables
Cables must always be replaced at the first sign of wear, even if only the outer
rubber protection is worn.
WARNINGS
Carefully check the state of the cables once a month.
ALWAYS use cables supplied directly by Technogym.
A
E
B
When replacing cables, note that the equipment comes with various cable anchor
systems.
Side 1, adjustable outlet cable
The cable is secured with screws (B) and (D), both to the connector and the
anchor points.
- Remove any accessories;
- raise rubber gaiter (A);
- unscrew the screws (B) and pull the cable out from connector (C);
- unscrew the screws (D) and pull the cable out from connector (E);
- remove the whole cable from the equipment;
- insert the new cable (ensuring that it follows the same route as the original
cable, as shown in the illustration);
- insert the cable into connector (E) and tighten screws (D);
D
C
- insert rubber gaiter (A) and the connector (C); then tighten the screws (B);
- lower rubber gaiter (A).
Cable Jungle
1
23
Page 24
Replacing the cables
Side 2, high pulley
The cable is fixed to attachment (C) with three screws (B), which must be
loosened, and with adjuster (E), from which it must be withdrawn.
- Remove any accessories;
- raise rubber gaiter (A);
- unscrew the screws (B) and pull the cable from connector (C);
- loosen lock nut (D) and unscrew adjuster (E);
- pull out the cable from the weight stack side;
- insert the new cable from the adjuster side (ensuring that it follows the
same route as the original cable, as shown in the illustration); tighten
the adjuster;
- insert the rubber gaiter (A) and connector (C); then tighten the screws (B);
- lower the rubber gaiter (A).
A
B
C
2
E
D
Cable Jungle
24
Page 25
Replacing the cables
Side 3, high pulley and low pulley
The cable is secured with two identical connectors with screws (B), three for
each connector.
- Remove any accessories;
- raise rubber gaiter (A);
- unscrew the screws (B) and pull the cable out of connector (C);
- repeat for the other end of the cable;
- remove the whole cable from the equipment;
- insert the new cable (ensuring that it follows the same route as the original
cable, as shown in the illustration);
- insert rubber gaiter (A) and connector (C); then tighten the screws (B);
- lower the rubber gaiter (A);
- repeat for the other end of the cable.
Cable Jungle
3
B
C
D
25
Page 26
Replacing the cables
Side 4, high pulley
The cable is fixed to connector (C) with three screws (B), which must be
loosened, and with adjuster (E), from which it has to be withdrawn.
- Remove any accessories;
- raise rubber gaiter (A);
- unscrew the screws (B) and pull the cable out of connector (C);
- loosen lock nut (D) and unscrew adjuster (E);
- pull the cable out from the weight stack side;
- insert the new cable from the adjuster side (ensuring that it follows the
same route as the original cable, as shown in the illustration); tighten
the adjuster;
- insert rubber gaiter (A) and connector (C); then tighten the screws (B);
- lower the rubber gaiter (A).
B
D
C
4
Cable Jungle
E
D
26
Page 27
Replacing the spring hook
Always replace the spring hooks as soon as you notice the slightest signs of wear,
buckling, difficulty closing, or anything else that may interfere with its durability.
When replacing, always use a spring hook supplied directly by Technogym. If it
is impossible to obtain an original part, use a spring hook that strictly meets the
following minimum requirements:
- materials used: AISI 316 stainless steel;
- maximum capacity on main axis: 1600 kg (3500 lb);
- maximum capacity on minor axis: 350 kg (770 lb).
WARNINGS
Once a month, carefully check the condition of the spring hook.
Do not alter the spring hooks in any way.
Cable Jungle
27
Page 28
Technical Service
The Technogym Technical Support Service provides:
- telephone assistance;
- information on which service calls are covered and not covered by warranty;
- on-site assistance;
- sending of original spare parts.
Technogym Technical
email: [email protected]
When contacting the Technogym Technical Support Service, please specify the following details:
- equipment model,
- date of purchase,
- serial number,
- precise description of the problem.
Support Service
tel: 0547 650650
fax: 0547 650150
WARNING
Any operations carried out by persons not authorized by Technogym on the equipment will invalidate the warranty.
Cable Jungle
28
Page 29
Storage
If the equipment is not expected to be used for a prolonged period, we recommend storing it:
- in a clean and dry place, covered with a cloth to protect it from dust;
- in an environment with a temperature between +10°C and +25°C and humidity between 20% and 90%.
Use the original packing materials, to better preserve the equipment.
Cable Jungle
29
Page 30
Disposal
It is always good practise to ensure that the equipment can never constitute a hazard; therefore do not leave the equipment where
children may play with it.
Do not dump the equipment in the environment, or in public areas or private areas accessible to the public.
The equipment is made from recyclable materials such as steel, aluminium and plastic, which must be disposed of in the manner
prescribed by the urban refuse collection regulations in force, by firms specialised in urban and environmental hygiene.
Cable Jungle
30
Page 31
Using the equipment

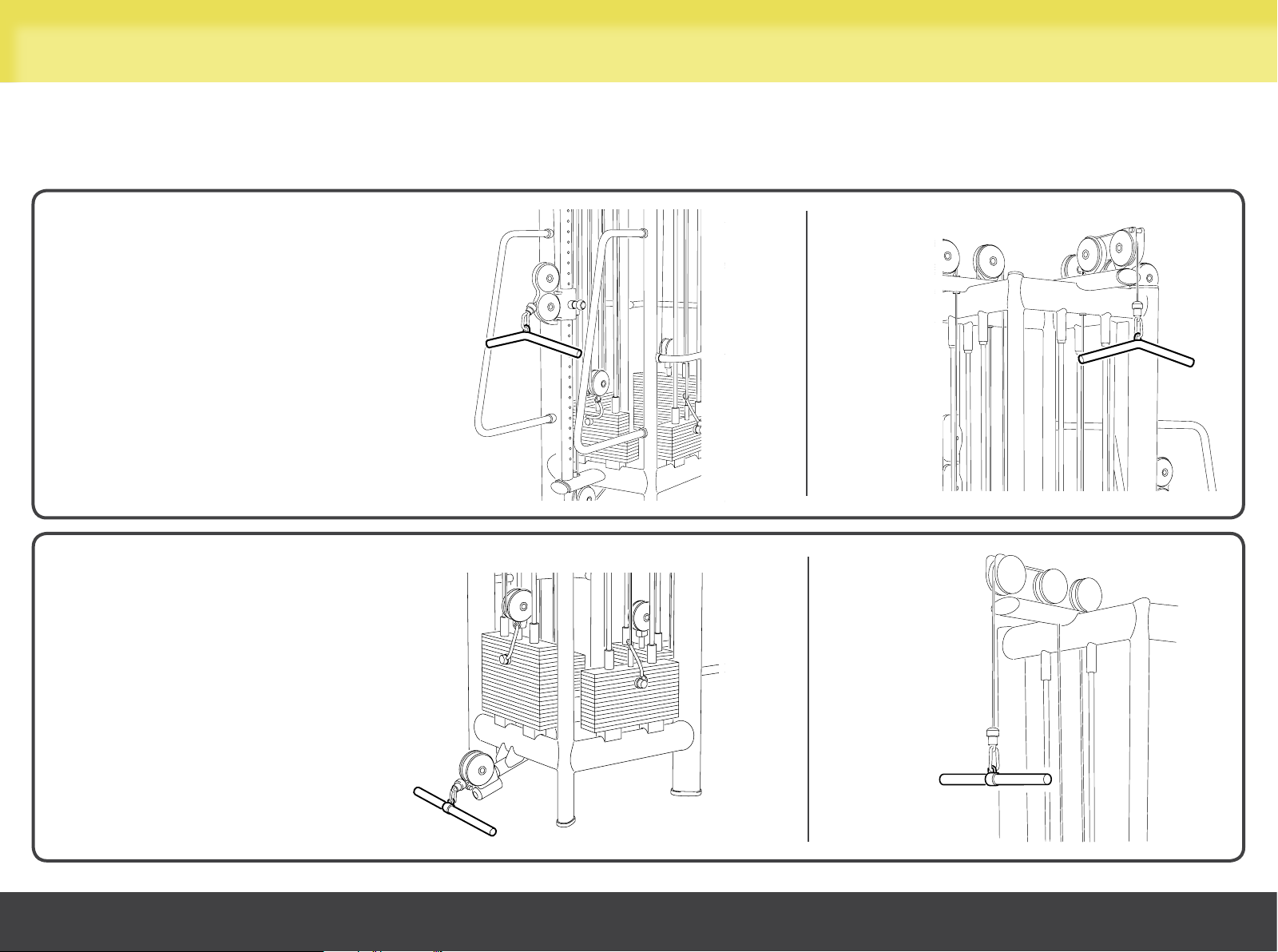

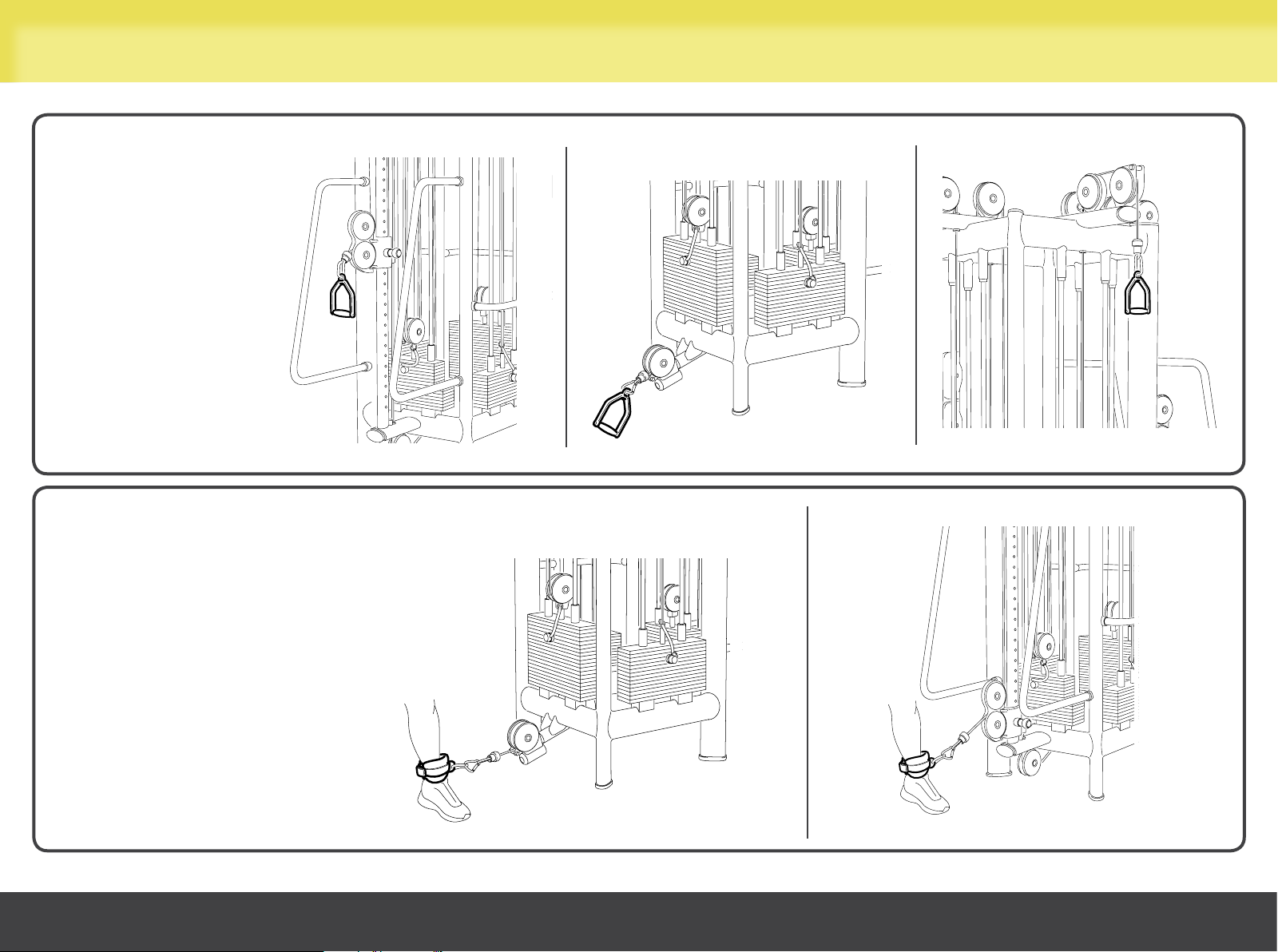

Some examples of installing accessories and a small selection of the exercises that may be carried out using the Cable Jungle are
described below.
Triceps bar
Jointed bar
Cable Jungle
31
Page 32
Using the equipment

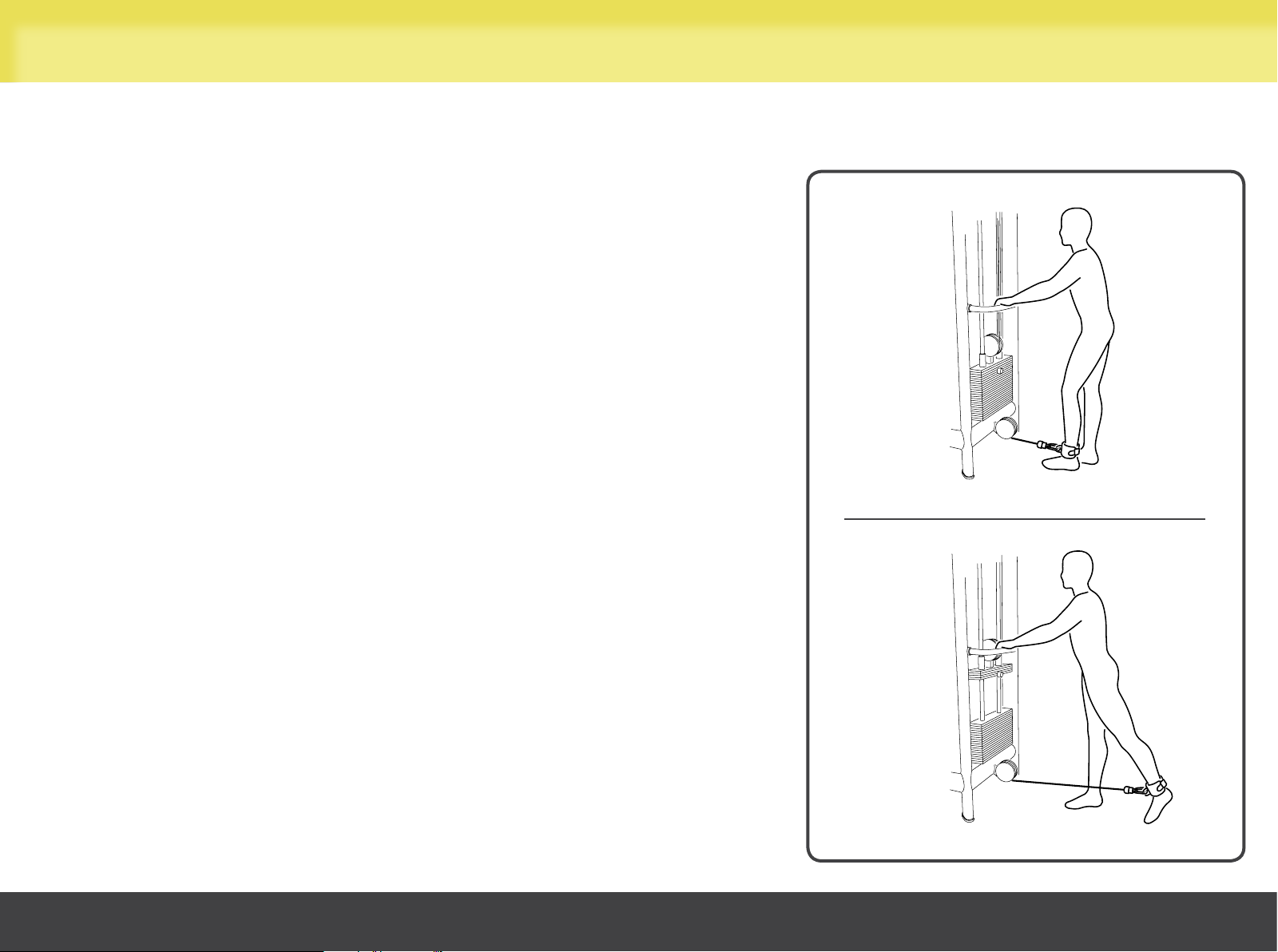

Handle

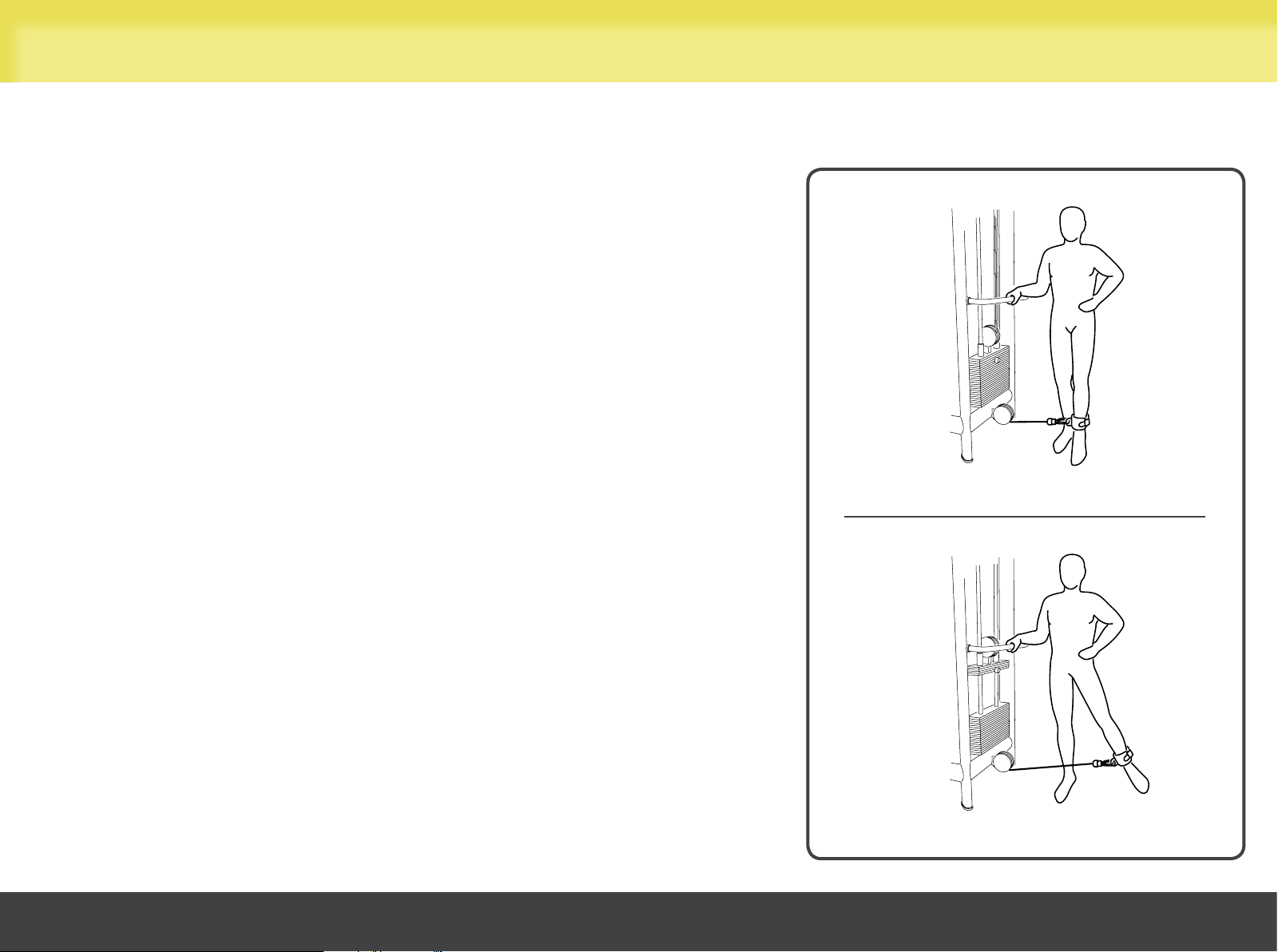

Ankle strap
Cable Jungle
32
Page 33
Using the equipment

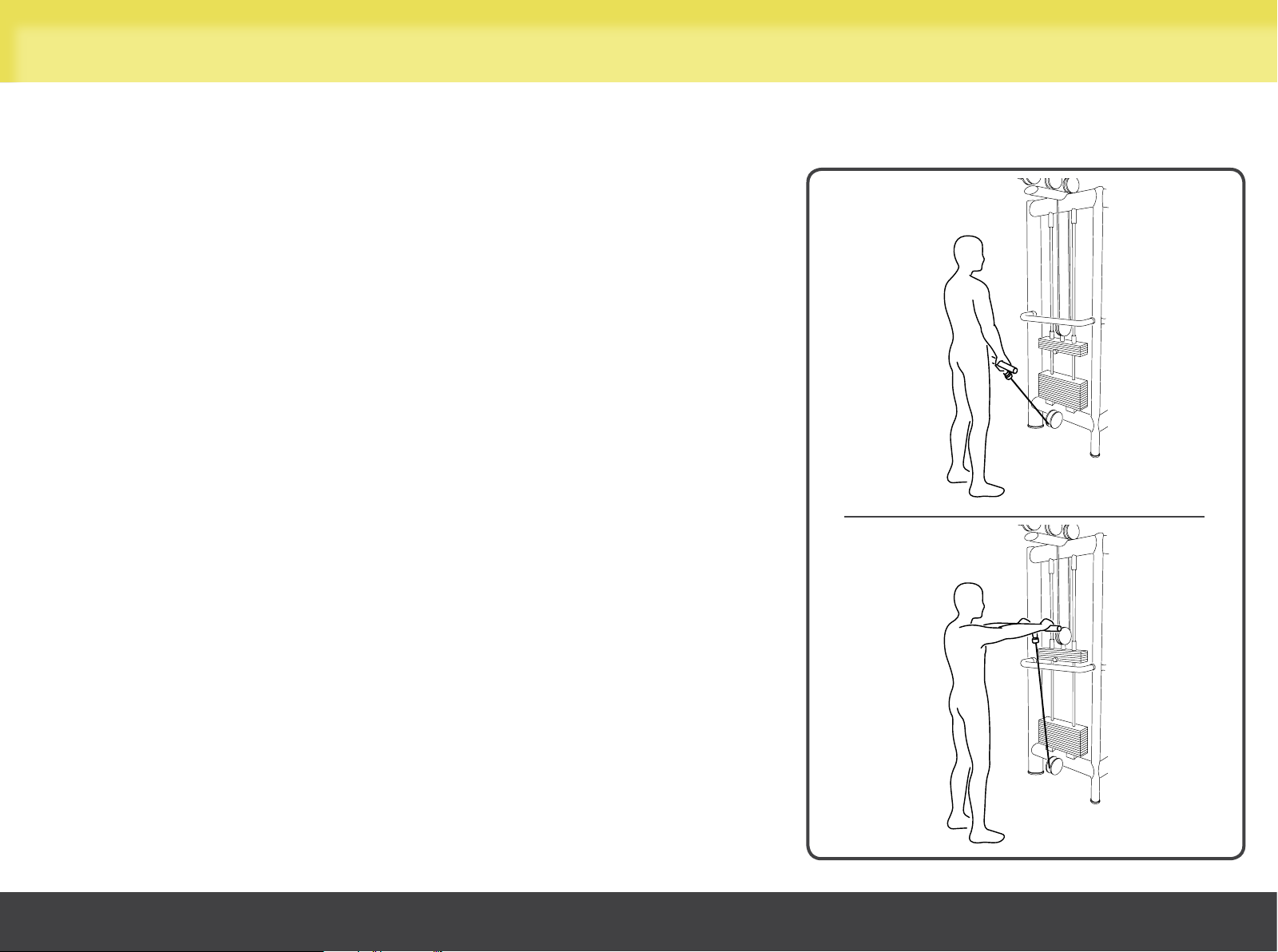

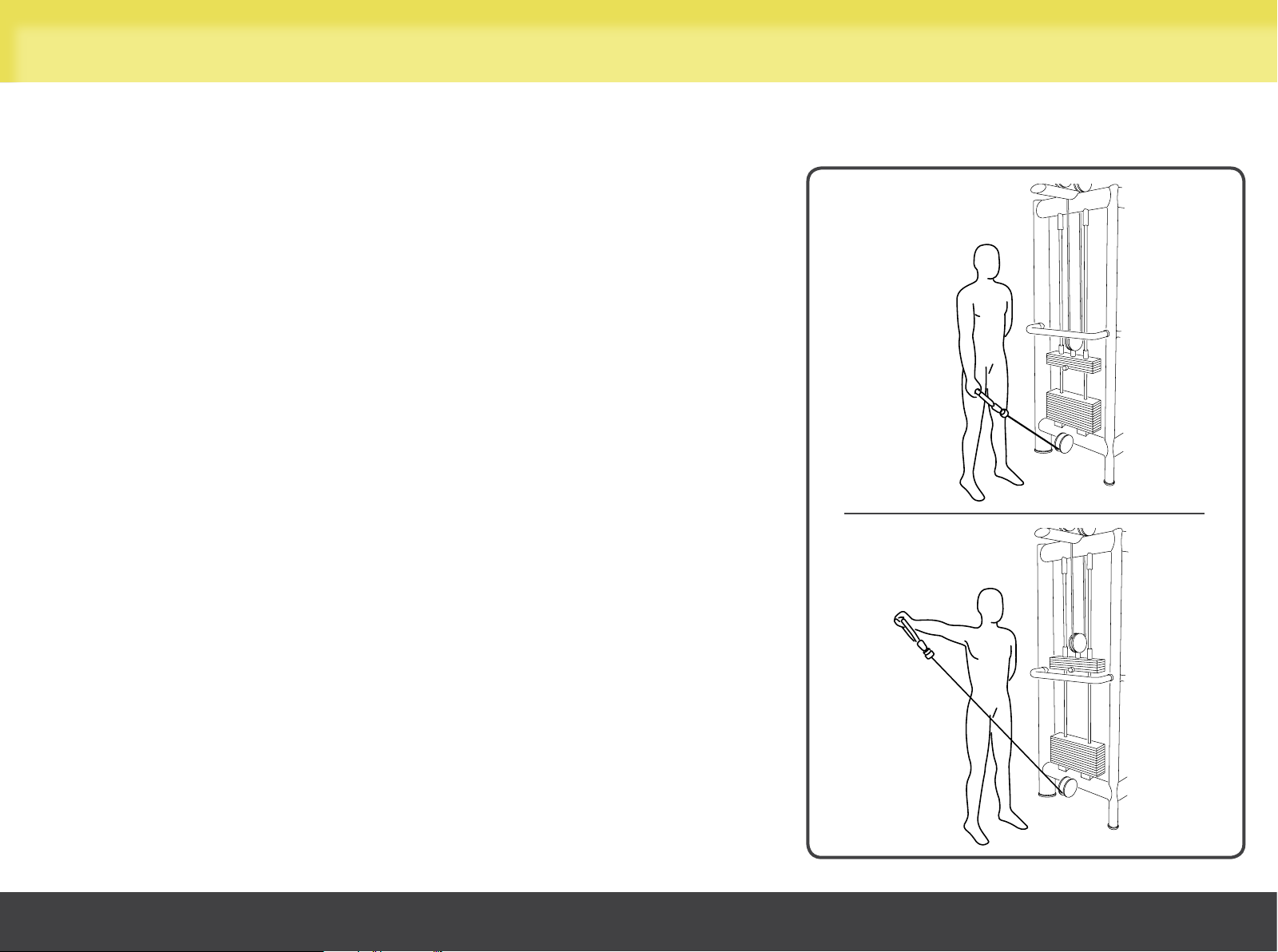

Lateral arm raise (medial and posterior deltoids)
Handle in low position.
Select the workload with the pin.
Stand with the arm to be raised away from the equipment and your legs slightly
apart for greater stability.
Abduct your outstretched arm until it is parallel to the ground without making
counter-lateral movements with your torso.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
33
Page 34
Using the equipment
Front arm raise (anterior deltoids)
Jointed bar in low position.
Select the workload with the pin.
Stand facing the equipment with your legs slightly apart for greater stability.
Lift your arms simultaneously to shoulder height without moving your torso.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
34
Page 35
Using the equipment

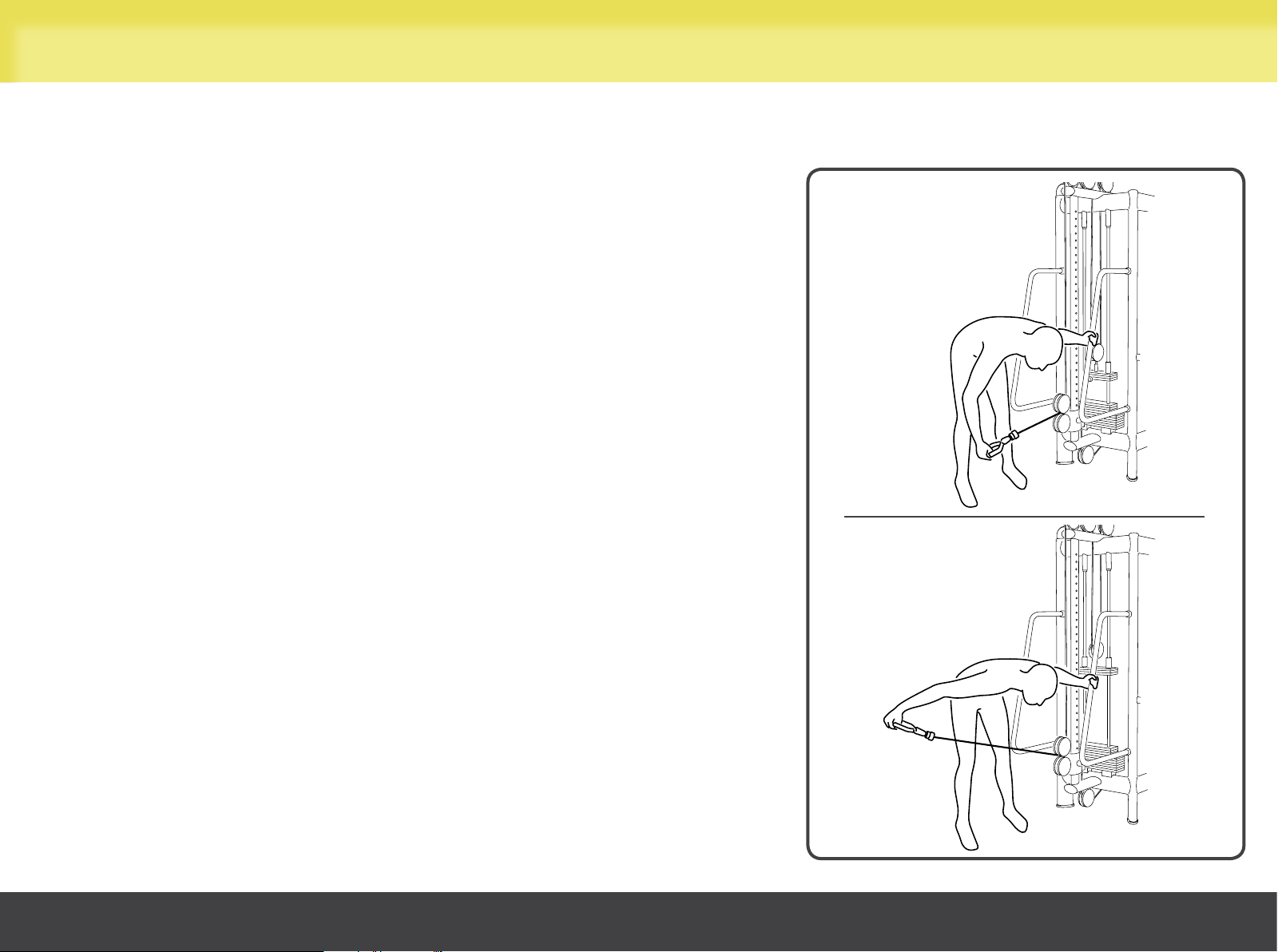

Lateral arm raises, with trunk bent at a right-angle (medial and posterior deltoid)
Handle in low position.
Select the workload with the pin.
Stand with the side to be exercised away from the equipment with your legs
slightly parted and grasp the side handgrip for greater stability; bend your torso
at a right angle.
Raise your outstretched arm until it is parallel with the ground without making
counter-lateral movements with your torso.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
35
Page 36
Using the equipment
Chin pulls (trapezoid)
Jointed bar in low position.
Select the workload with the pin.
Stand facing the equipment with your legs slightly apart for greater stability; arms
outstretched.
Pull the bar toward your chin by bending your elbows: shoulders, elbows and
hands must all be aligned.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
36
Page 37
Using the equipment

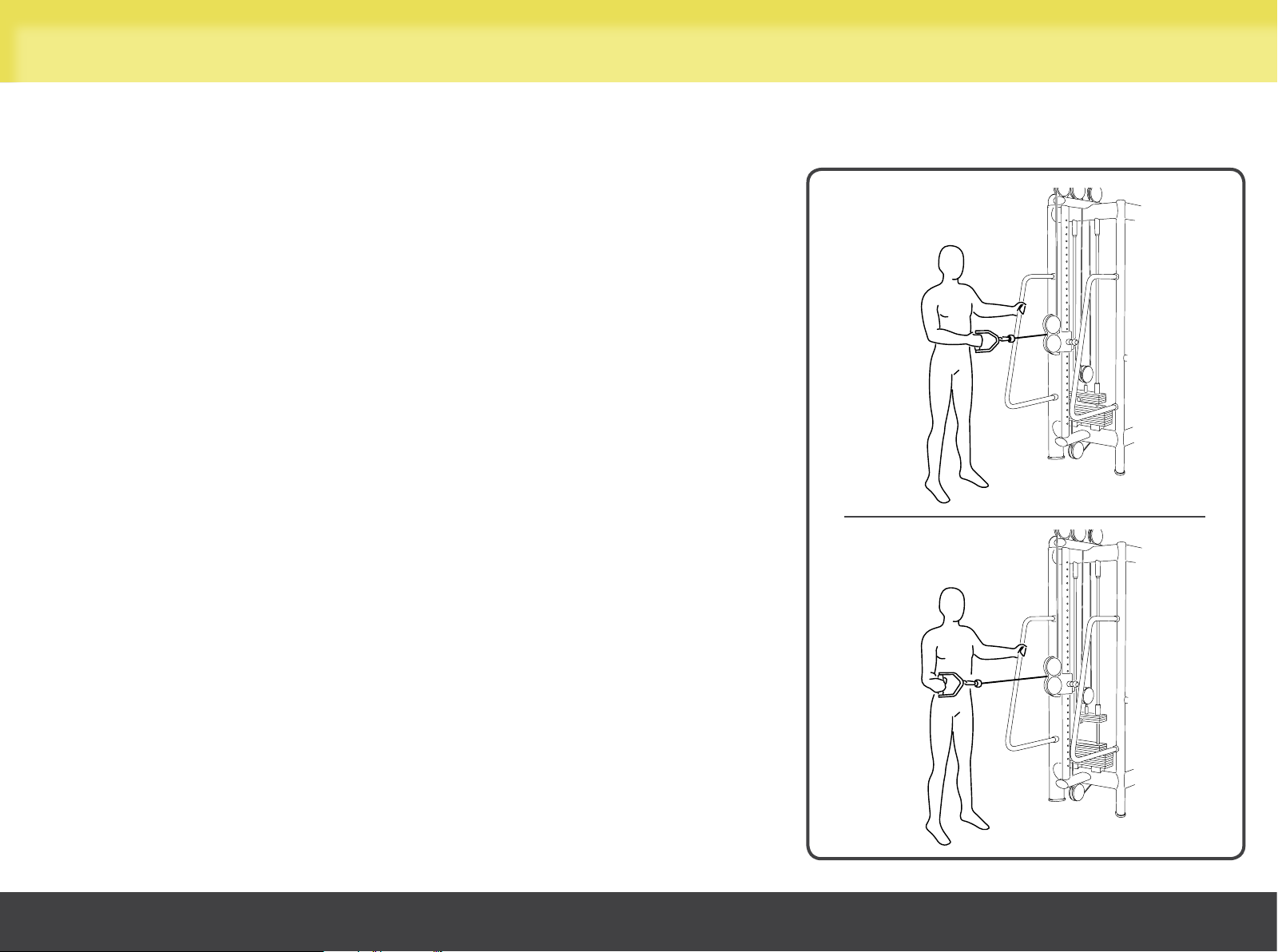

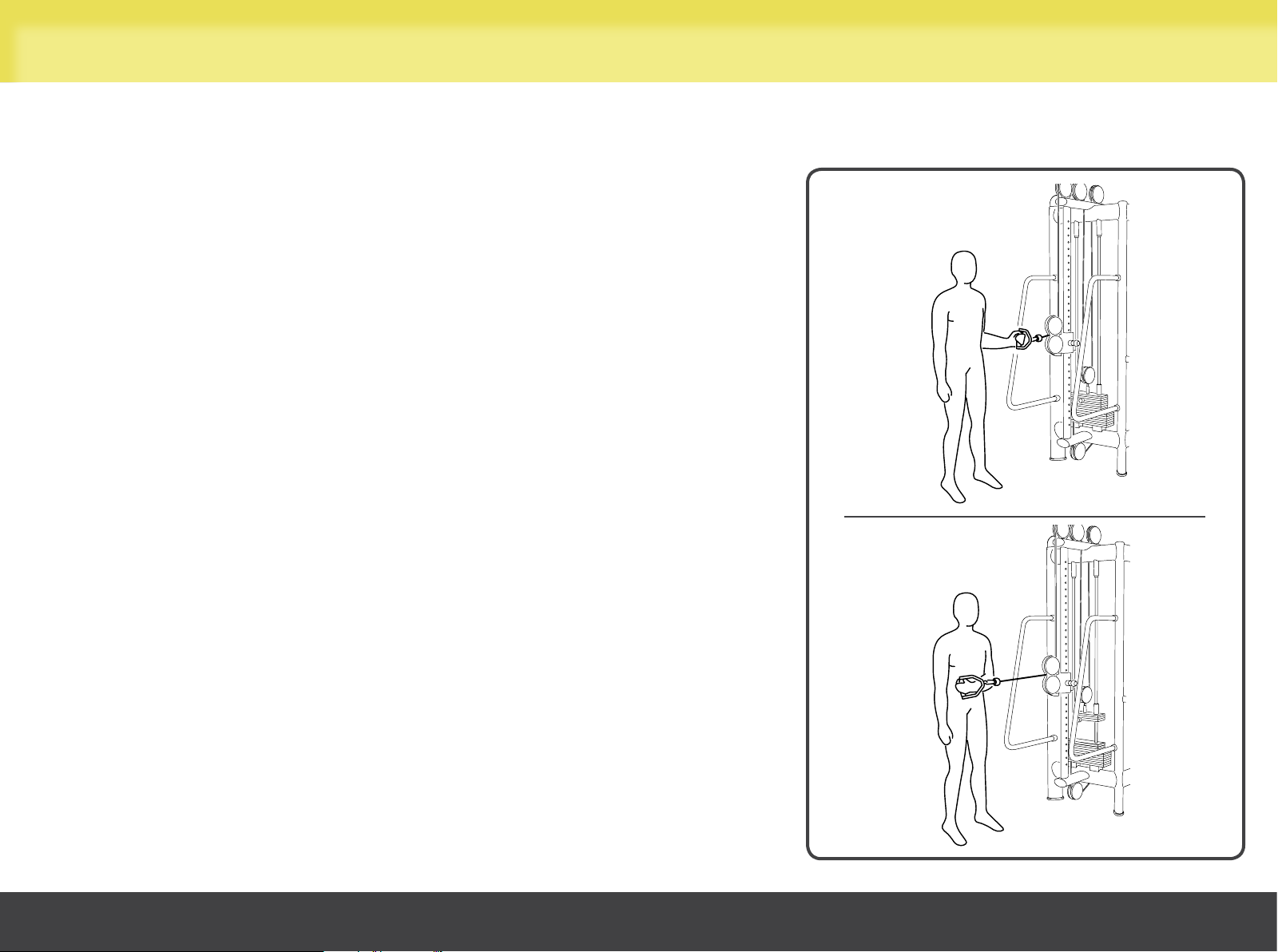

Internal rotation (subscapular, teres major, greater pectoral)
Handle at elbow height.
Select the workload with the pin.
Stand with the side to be exercised toward the weight stack, arm bent at 90° and
turned outward with legs slightly apart for greater stability.
Rotate your arm inwards towards your trunk while keeping your elbow at the
right angle.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
37
Page 38
Using the equipment
External rotation (supraspinatous, subspinatous, teres minor)
Handle at elbow height.
Select the workload with the pin.
Stand with the side to be exercised away from the equipment, arm bent at 90°
and rotated close to your trunk, legs slightly apart. Grasp the side handgrip with
your free hand for greater stability.
Rotate your arm outwards while keeping your elbow at a right angle.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
38
Page 39
Using the equipment

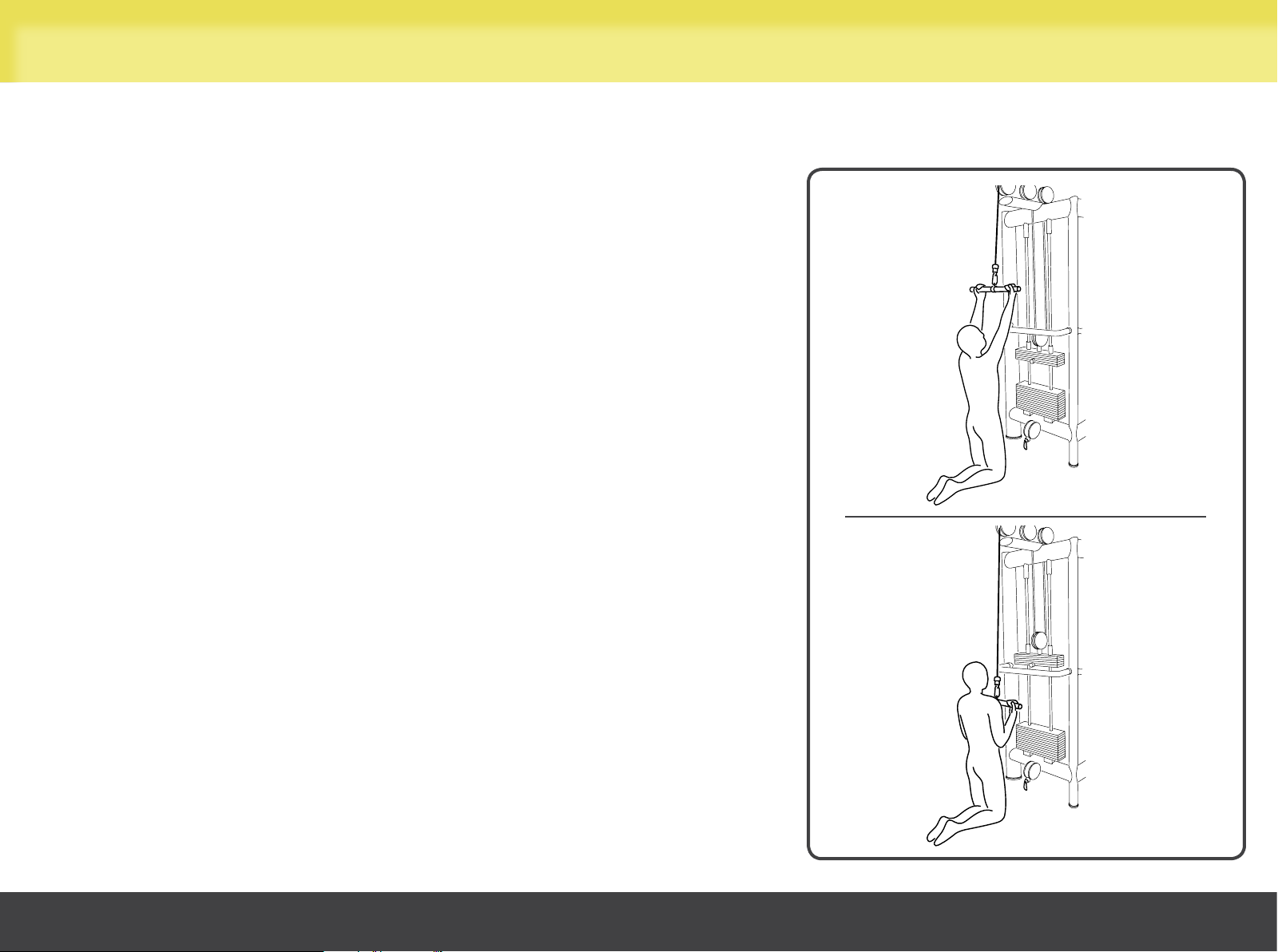

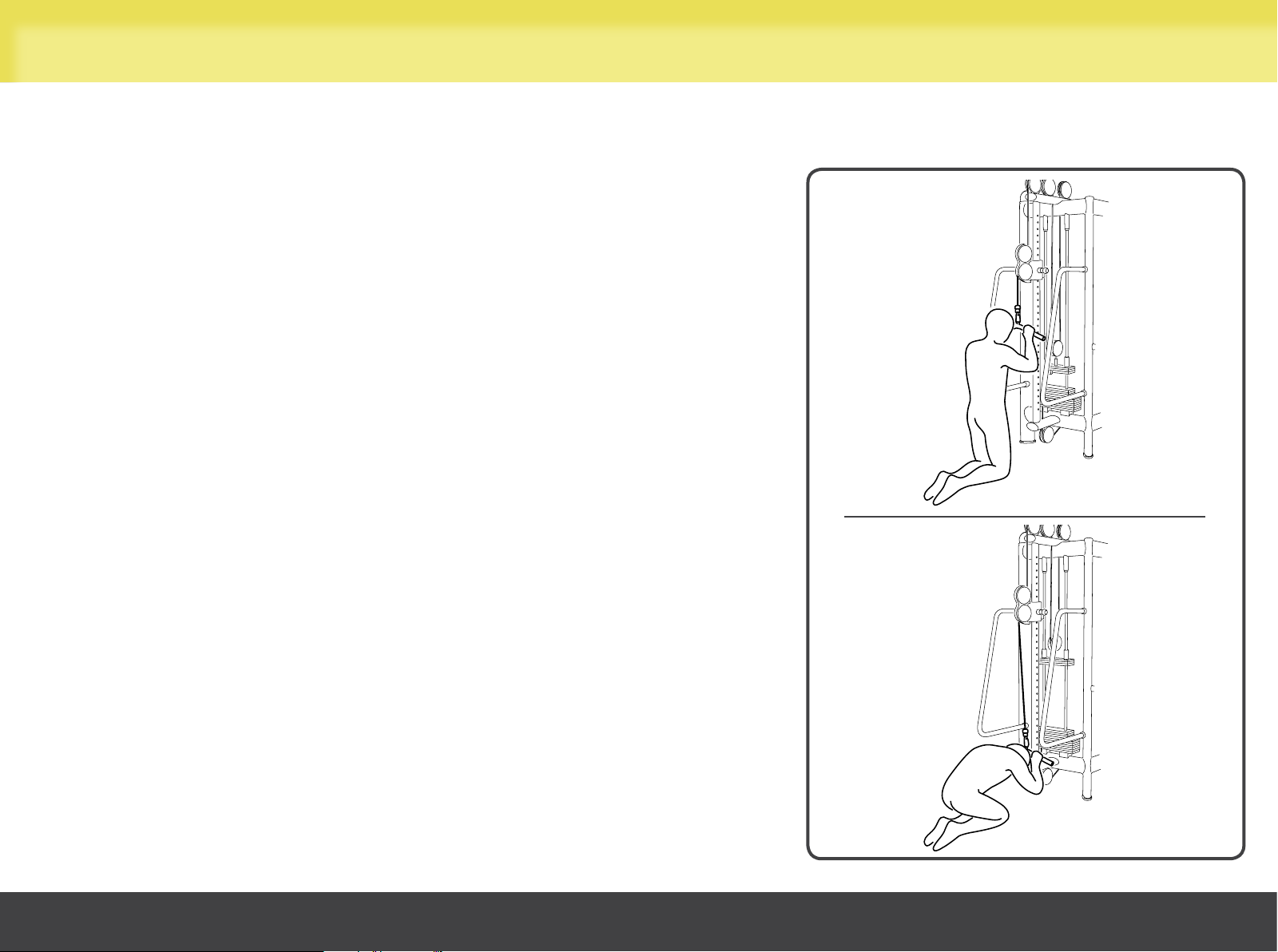

Pulls (latissimus muscle of back)
Jointed bar in high position.
Select the workload with the pin.
Kneel in front of the equipment and grasp the bar with a reverse grip and arms
outstretched.
Curl your arms close to your chest.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
39
Page 40
Using the equipment

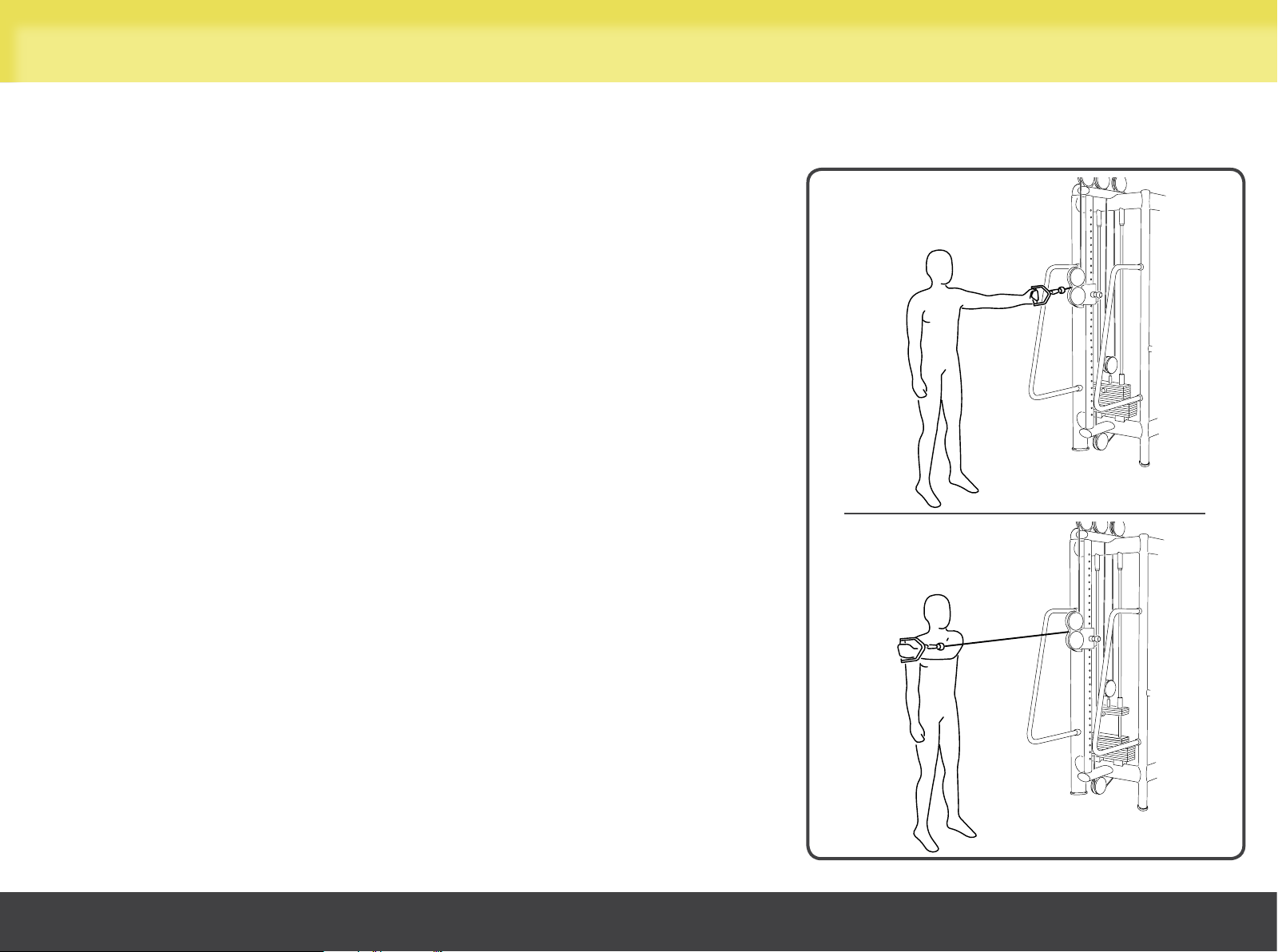

Cross with handle (greater pectoral)
Handle at shoulder height.
Select the workload with the pin.
Stand with the arm to be exercised toward the equipment and legs slightly apart
for greater stability.
Adduct your outstretched arm inwards.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Alter the cable outlet height to change the working angle of the pectoral muscle.
Cable Jungle
40
Page 41
Using the equipment

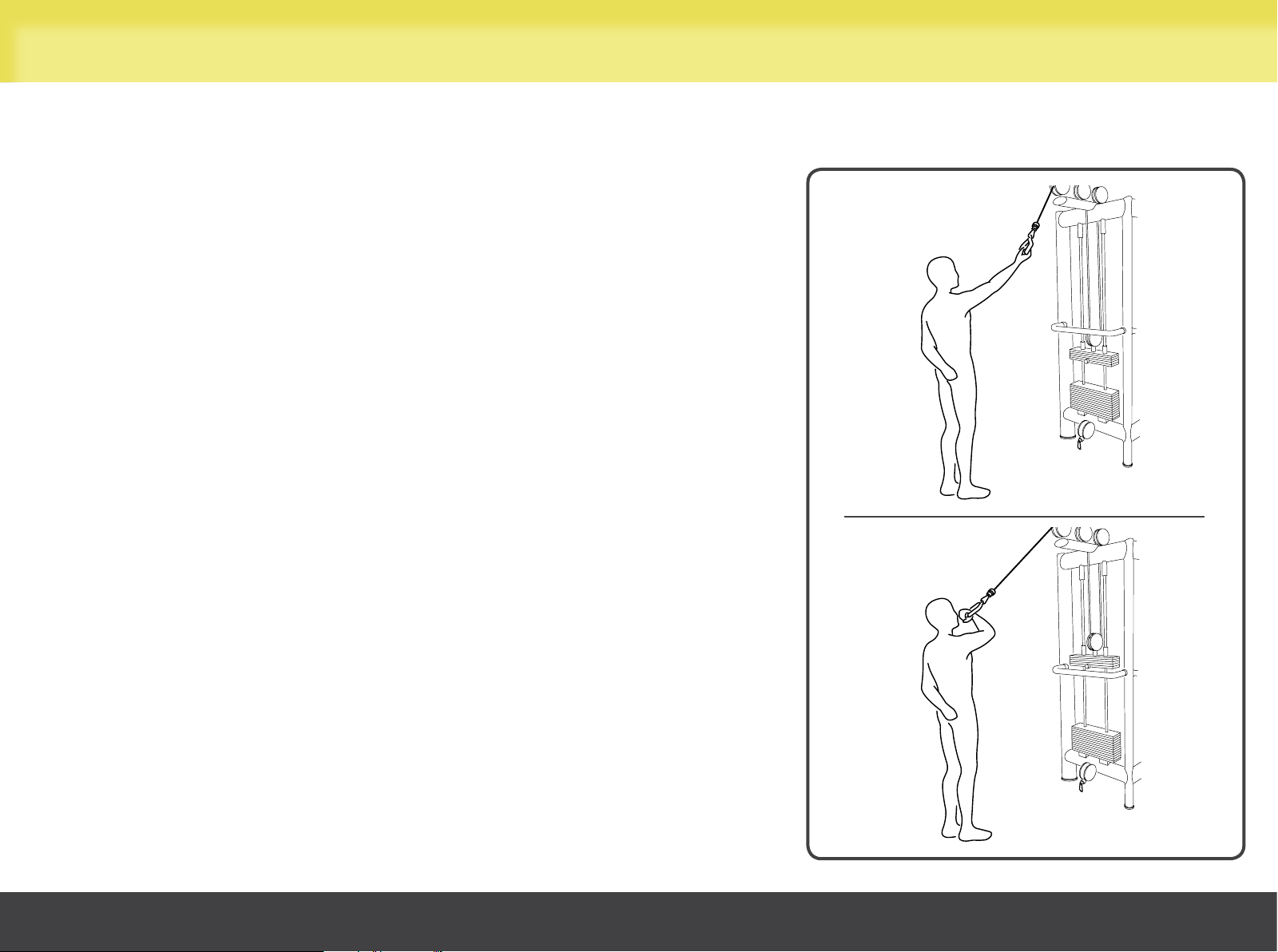

Biceps with handle (biceps)
Handle in high position.
Select the workload with the pin.
Stand facing the equipment with your legs slightly apart for greater stability and
grasp the handle with your arm outstretched, reverse grip.
Curl your forearm up without moving your upper arm.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
41
Page 42
Using the equipment

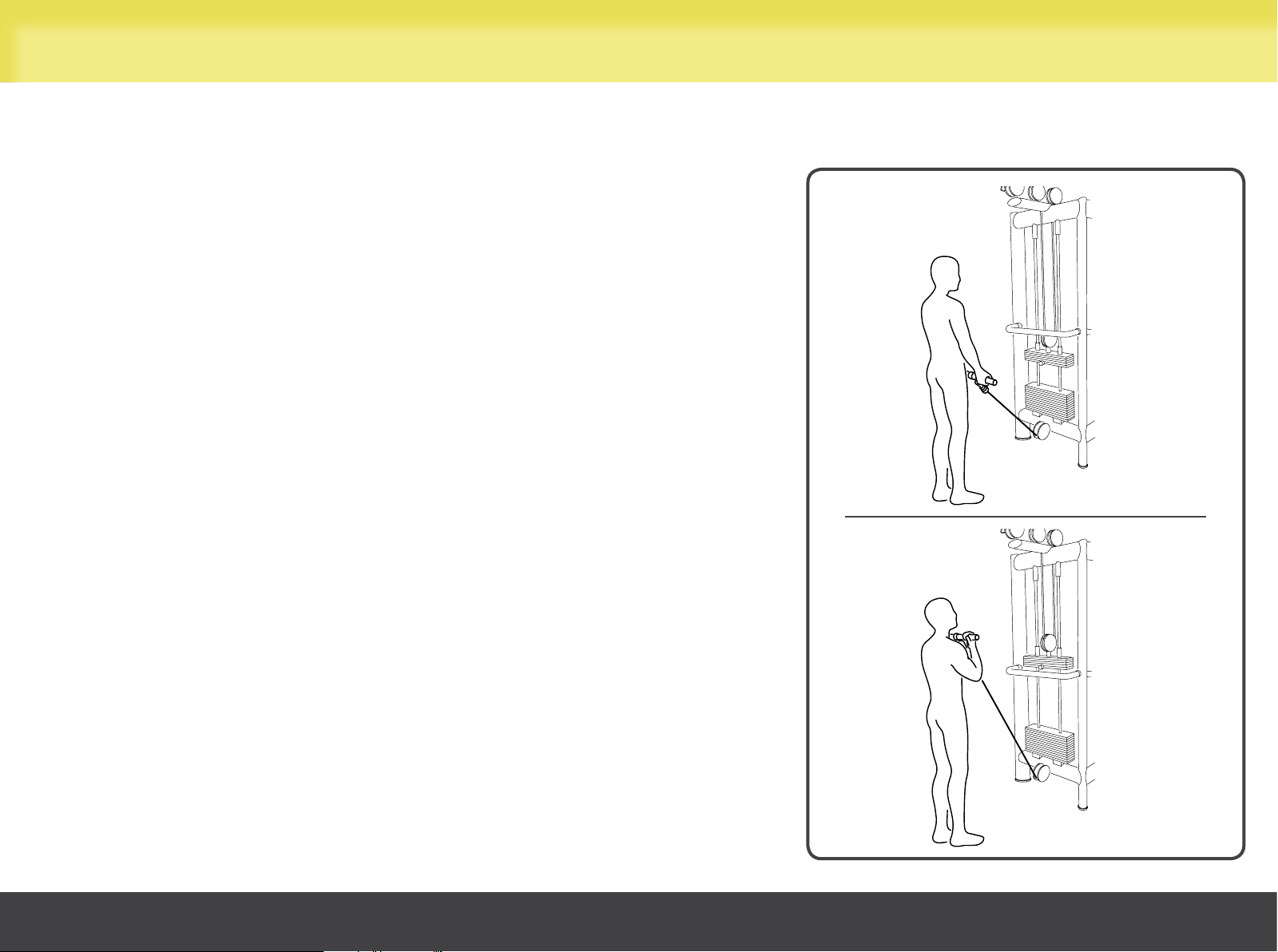

Forearm curls (biceps)
Jointed bar in low position.
Select the workload with the pin.
Stand facing the equipment with your legs slightly apart for greater stability and
grasp the bar with your arm outstretched, reverse grip.
Curl your forearm up without moving your upper arm.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
42
Page 43
Using the equipment

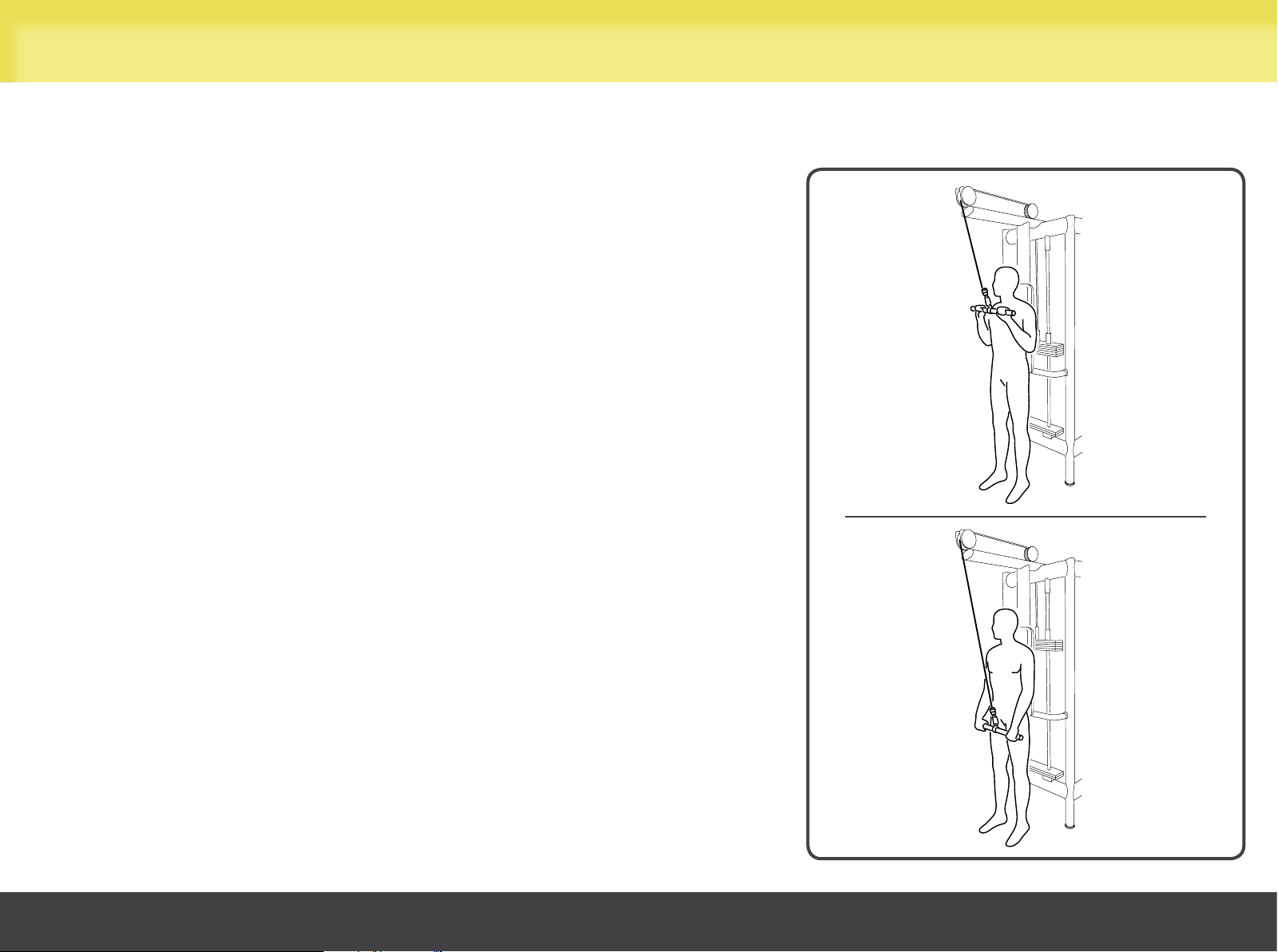

Triceps extensions (triceps)
Jointed bar in high position.
Select the workload with the pin.
Stand with your back against the backrest and grasp the bar at chest height.
Extend your forearm downward without moving your upper arm.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
43
Page 44
Using the equipment

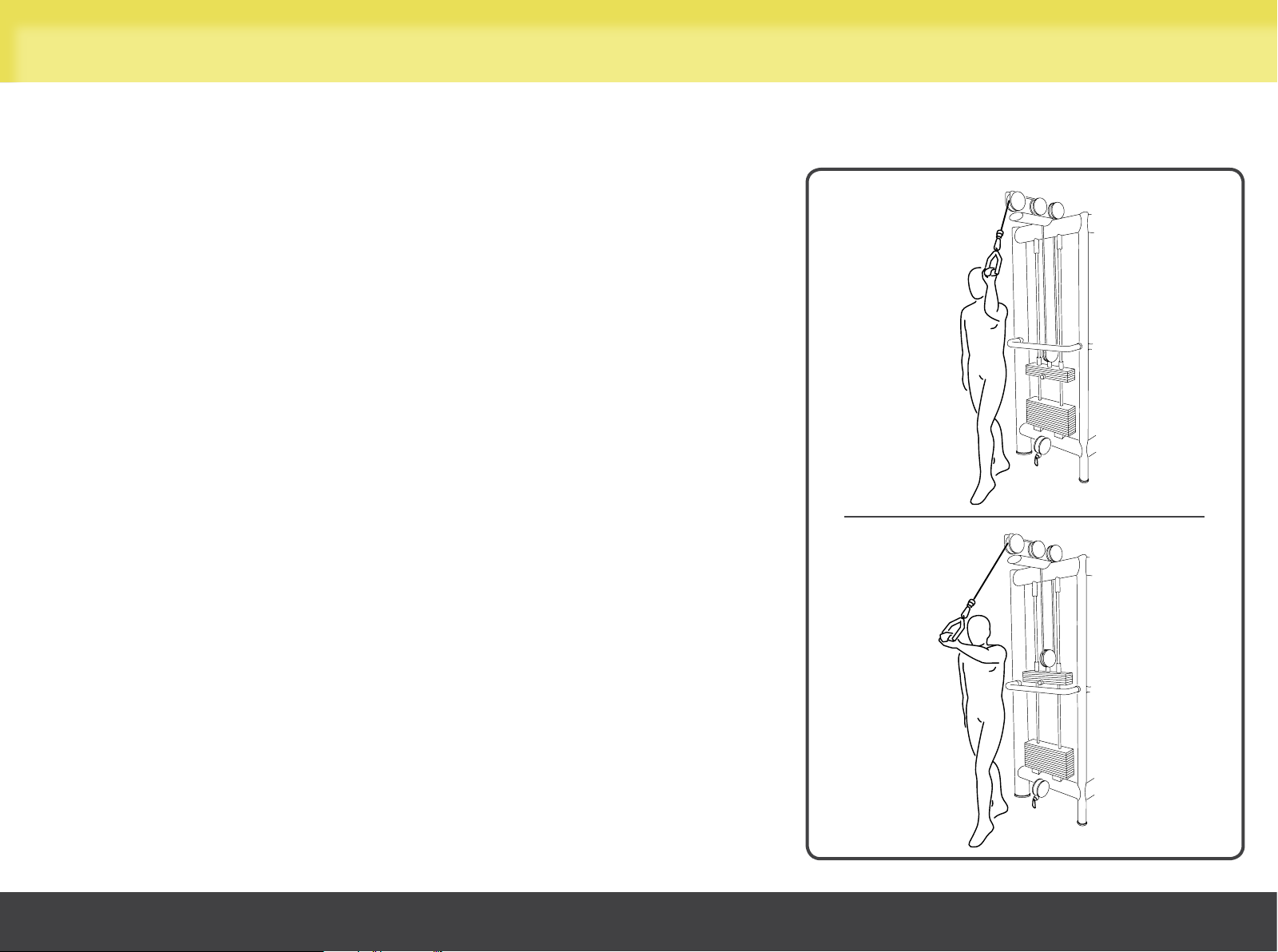

Triceps extensions with handle (triceps)
Handle in high position.
Select the workload with the pin.
Stand with your back towards the equipment and move the leg on the same side
as the working arm in front of the other for greater stability.
Grasp the handle with your arm bent.
Extend your forearm outwards without moving your upper arm.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
44
Page 45
Using the equipment

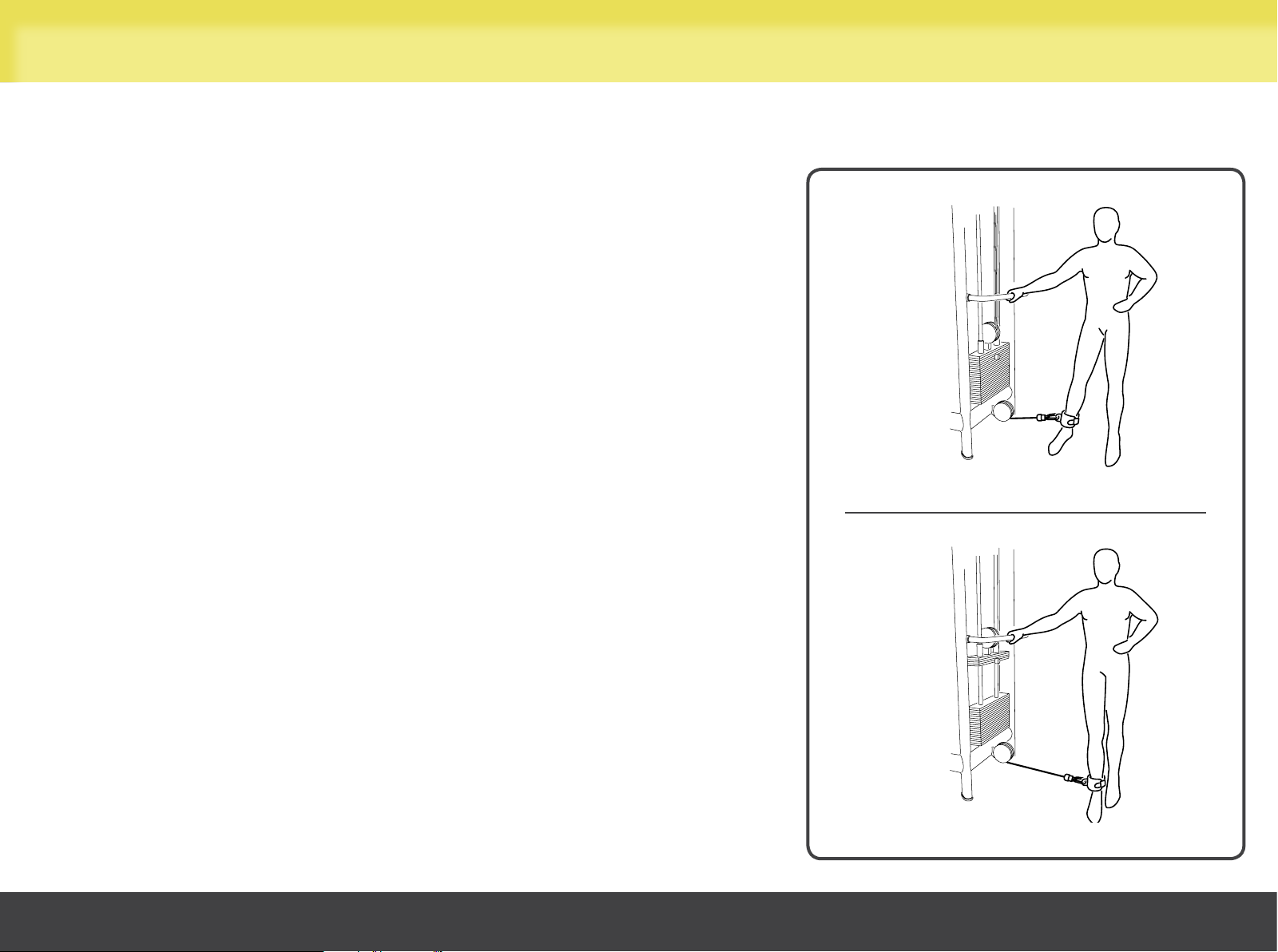

Lateral leg swings (abductors)
Ankle strap in low position.
Select the workload with the pin and put the ankle strap on.
Stand with the side to be exercised away from the equipment. Grasp the handgrip
with one hand to steady your torso.
Swing your leg outwards without making counter-lateral movements with your
torso.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
45
Page 46
Using the equipment
Leg adductions (adductors)
Ankle strap in low position.
Select the workload with the pin and put the ankle strap on.
Stand with the side to be exercised toward the weight stack. Hold your leg
outstretched and slightly raised.
Grasp the handgrip with one hand to steady your torso.
Swing your leg inward without making counter-lateral movements with your torso.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
46
Page 47
Using the equipment
Back leg swings (gluteus)
Ankle strap in low position.
Select the workload with the pin and put the ankle strap on.
Stand facing the equipment and grasp the handgrips to steady your torso. Raise
the leg to be exercised slightly above the ground in front of the other.
Swing your leg back keeping your torso immobile and tilted slightly forward.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
47
Page 48
Using the equipment

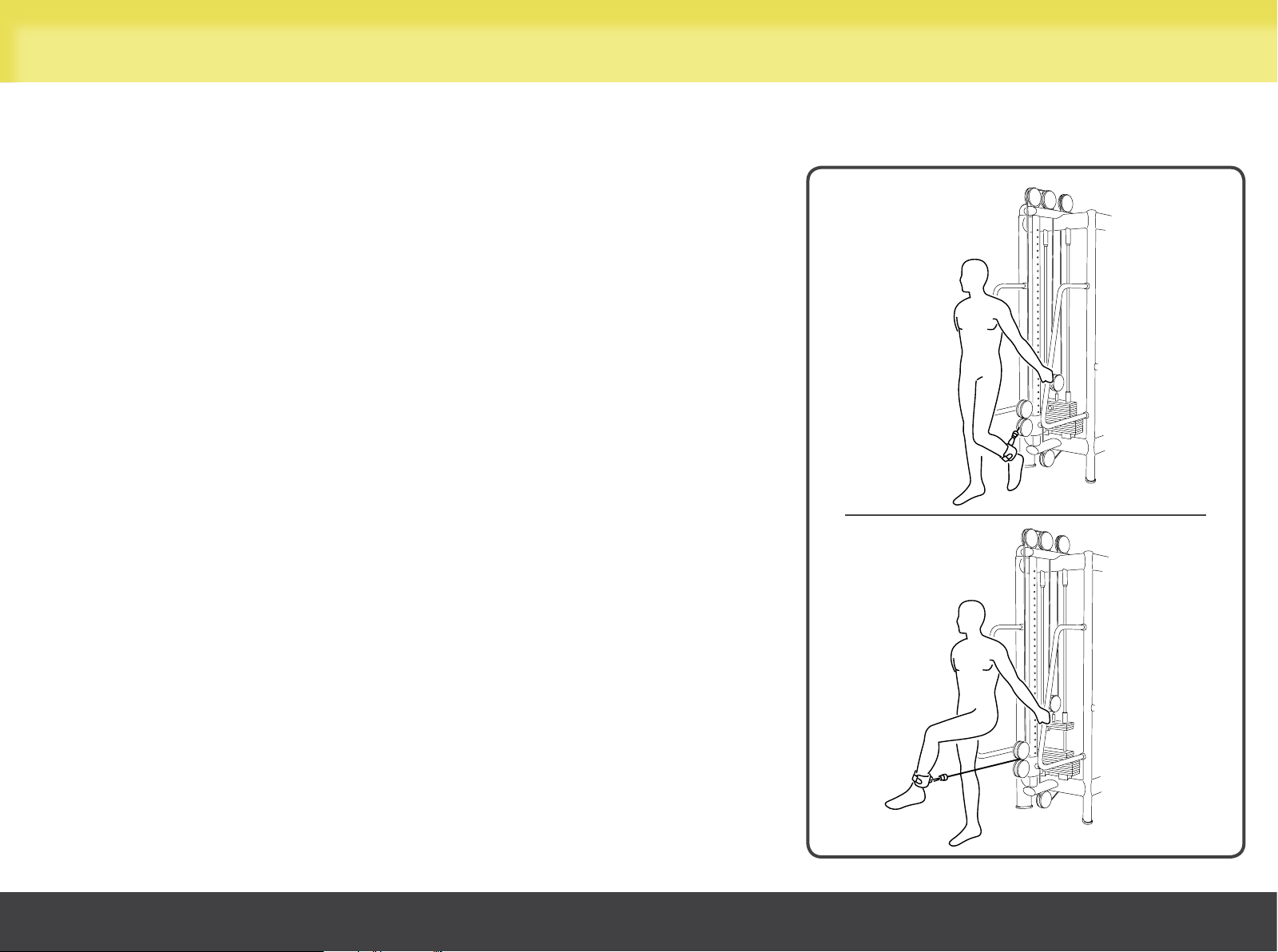

Forward leg bend (hip flexors)
Ankle strap in low position.
Select the workload with the pin and put the ankle strap on.
Stand with your back to the equipment and grasp the two side handgrips to steady
your torso. The leg to be exercised should be slightly raised off the ground and
behind the other.
Swing your leg forward without moving your torso.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
48
Page 49
Using the equipment
Crunch (abdominals)
Kneel facing the equipment; triceps bar in high position.
Select the workload with the pin.
Crunch forward seeking to bring your breast bone as close as possible to your
pelvis.
Maintain a smooth controlled speed; we recommend a slower speed during the
return phase than during the approach phase.
The weight stack should not return completely to rest position during the return
phase.
Cable Jungle
49
Loading...
