TechniSat DigitRadio 580 Wit User manual
Instruction Manual
DIGITRADIO 580
Internet, DAB/DAB+ and FM Digital Radio with CD and Bluetooth
2
Important Safety Instructions
1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use the speaker near water.
6. Clean only with dry cloth.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
SPEAKER TO RAIN OR MOISTURE.
To reduce the risk of electrical shock, fire, etc.:
1. Do not place unit near any heat source such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
2. Do not block any ventilation openings of unit.
3. The unit shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the unit.
4. Do not place any heavy loads onto the unit, and do not step on it, the load may fall and cause
serious injury to the unit.
5. Please read Rating Labels at the rear of unit for power input and other safety information.
6. This unit is intended to be used only with the power supply provided.
7. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at any point where they exit from the unit.
8. Never unplug your unit by pulling on the power cord. Always grasp the plug firmly and pull
straight out from the outlet.
9. Repair or replace all electric service cords that have become frayed or otherwise damaged
immediately. Do not use a cord that shows cracks or abrasion damage along its length, the
plug, or the connector end.
10. To prevent fire or shock hazard, do not use this plug with an extension cord or other outlet
unless the blades can be fully inserted to prevent blade exposure.
11. During lightning or raining days, unplug the unit for additional protection during
thunderstorms or when the unit is not used for prolonged periods. This will prevent damage to
the unit from lightning and power surges.
12. Do not attempt to carry out any service work yourself. By opening or removing the cabinet,
you may be exposed to dangerous voltage or other hazards. Any service work should be
carried out by qualified technicians.
13. The normal function of the product may be disturbed by strong Electro-Magnetic Interference.
If so, simply reset the product to resume normal operation by following the instruction manual.
In case the function could not resume, please use the product in other location.
14. The means of disconnecting this apparatus from the mains supply is plug of adaptor. The
disconnect device shall remain readily operable.
15. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit
switched on while unattended for long periods of time, e.g. overnight, while on holiday or
while out of the house. Switch it off and disconnect the mains plug from the mains socket.
3
Contents
Important Safety Instructions .......................................................................................................... 2!
Contents .......................................................................................................................................... 3!
Your radio ........................................................................................................................................ 5!
Front View ................................................................................................................................ 5!
Rear View ................................................................................................................................ 6!
Remote Control View ............................................................................................................... 6!
Getting Started ................................................................................................................................ 8!
Setup Wizard ................................................................................................................................. 10!
Internet Radio Mode ...................................................................................................................... 13!
Local ‘Country’ ....................................................................................................................... 13!
Selecting a station through ‘Stations’ ..................................................................................... 14!

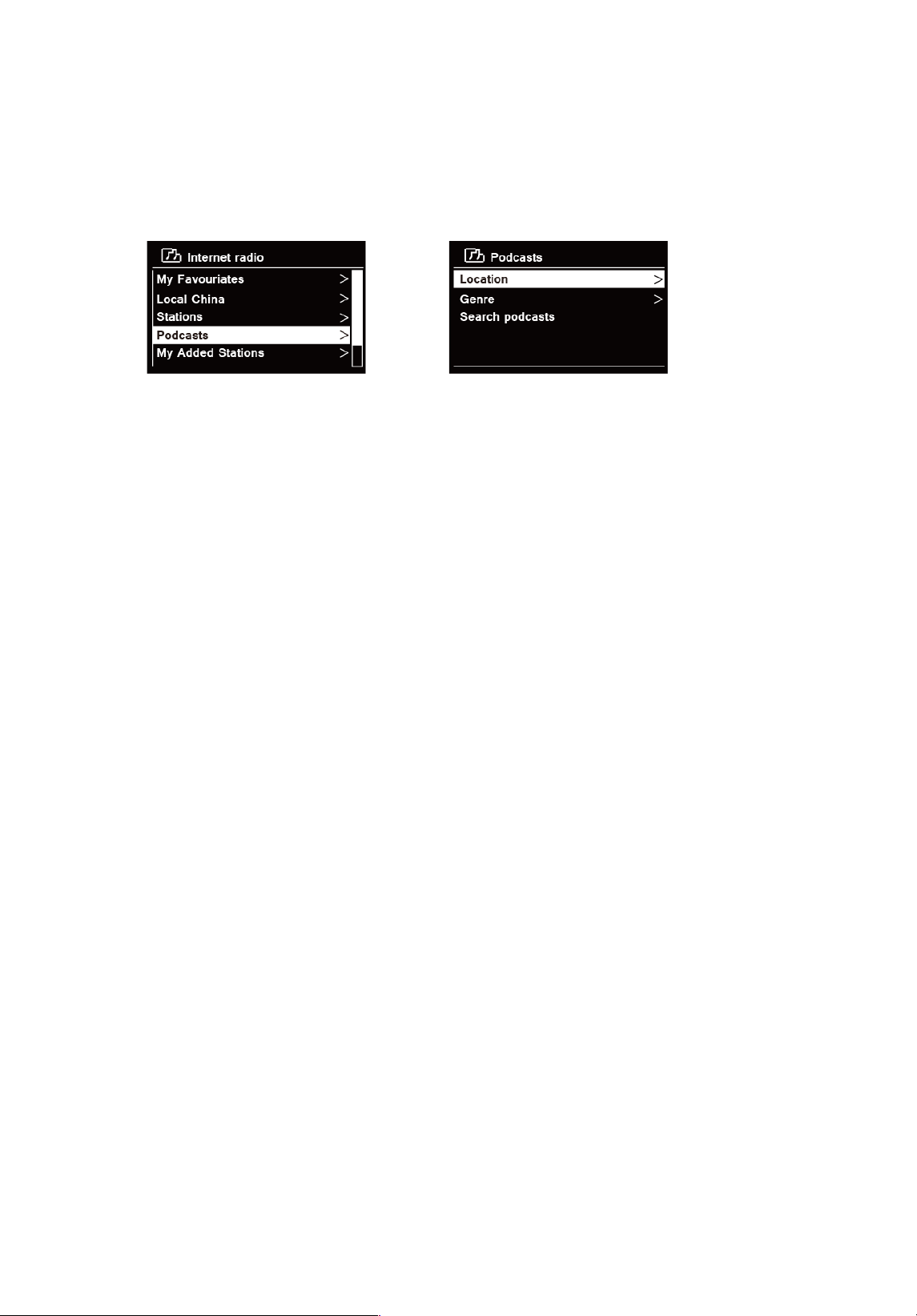

Selecting a program through ‘Podcasts’ ................................................................................ 15!

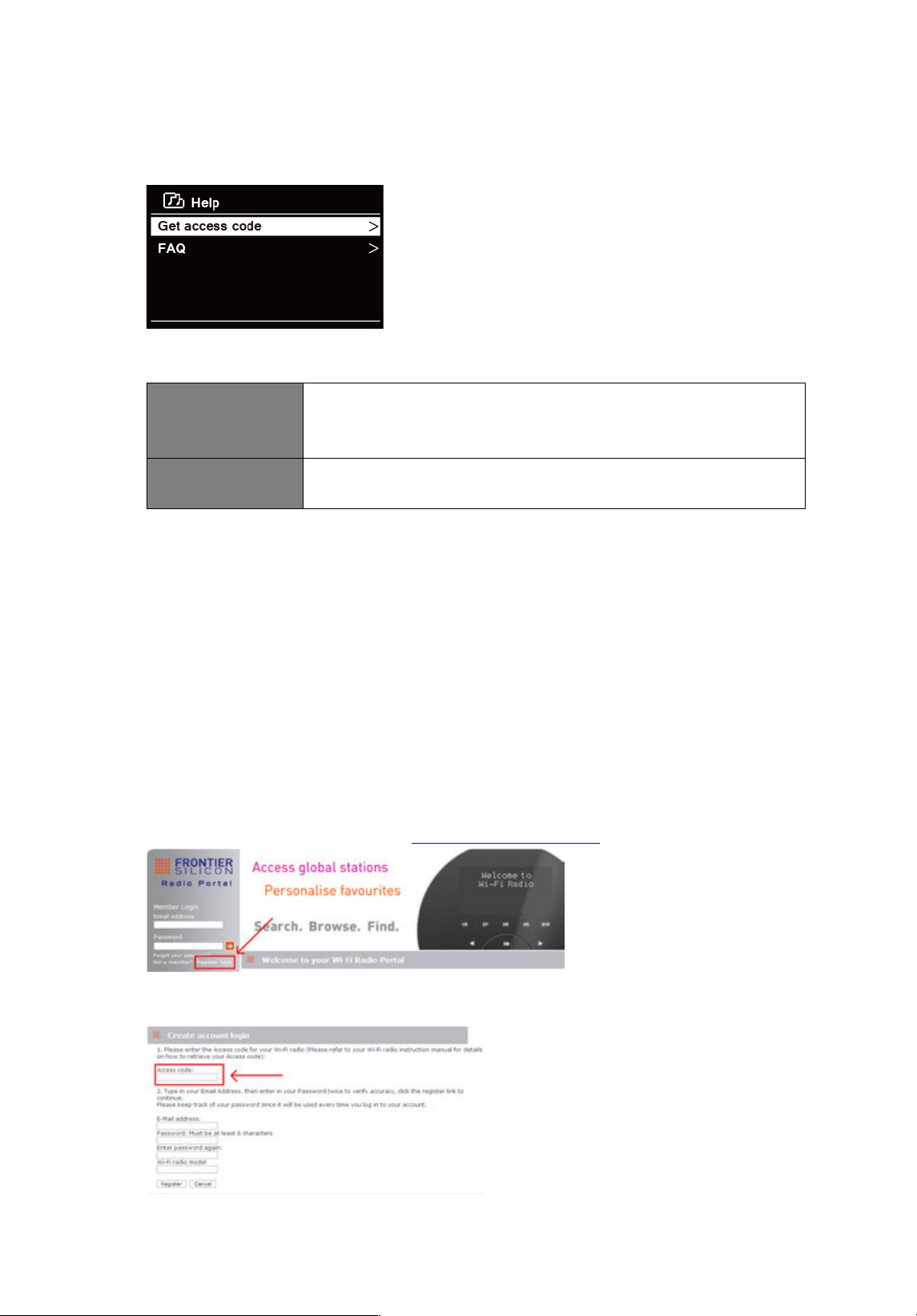

Getting Access Code and FAQ from ‘Help’ ............................................................................ 16!

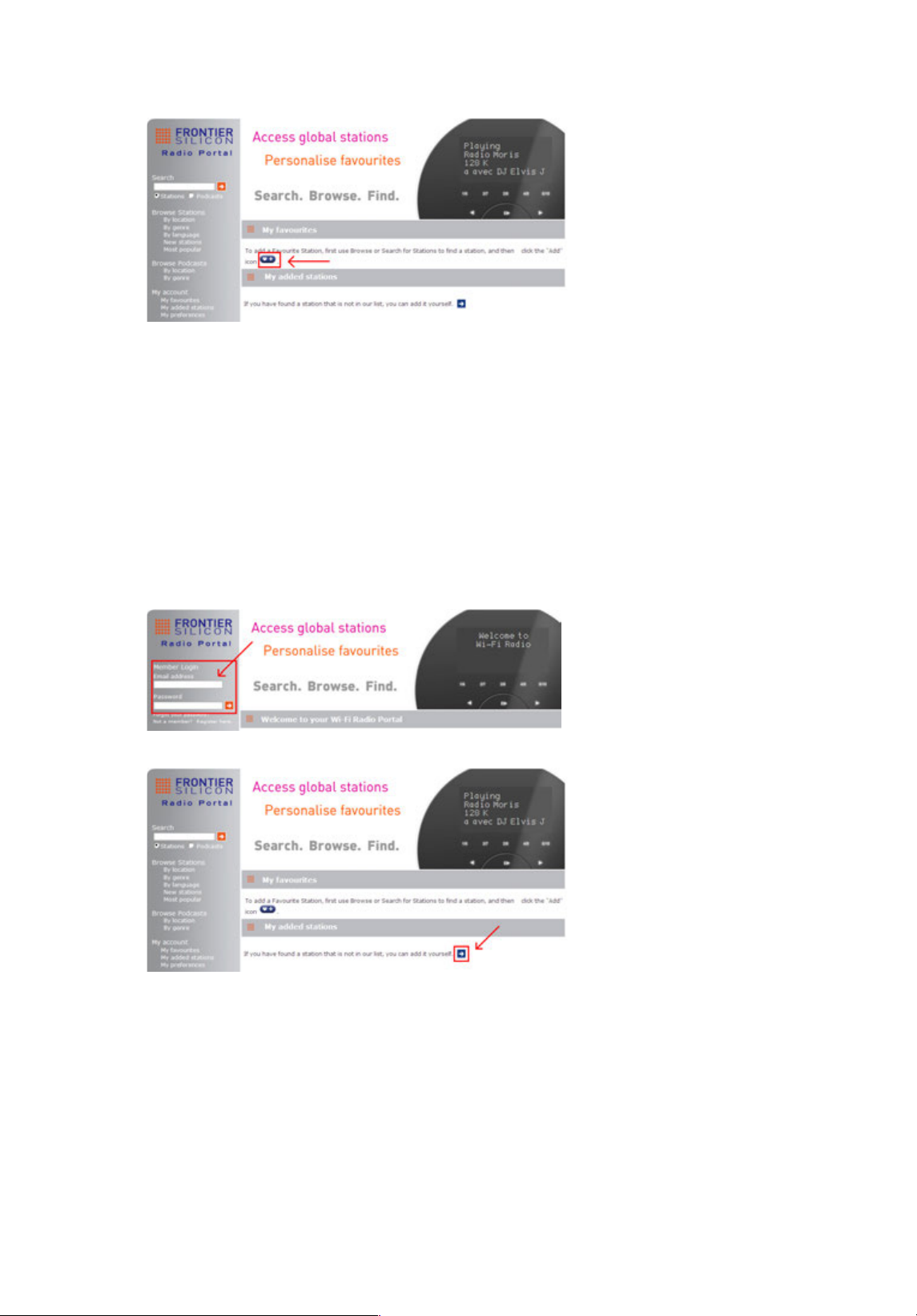

Adding station to ‘My Favourites’ ........................................................................................... 16!
Adding station to ‘My Added Stations’ ................................................................................... 17!
Viewing Station Information ................................................................................................... 18!

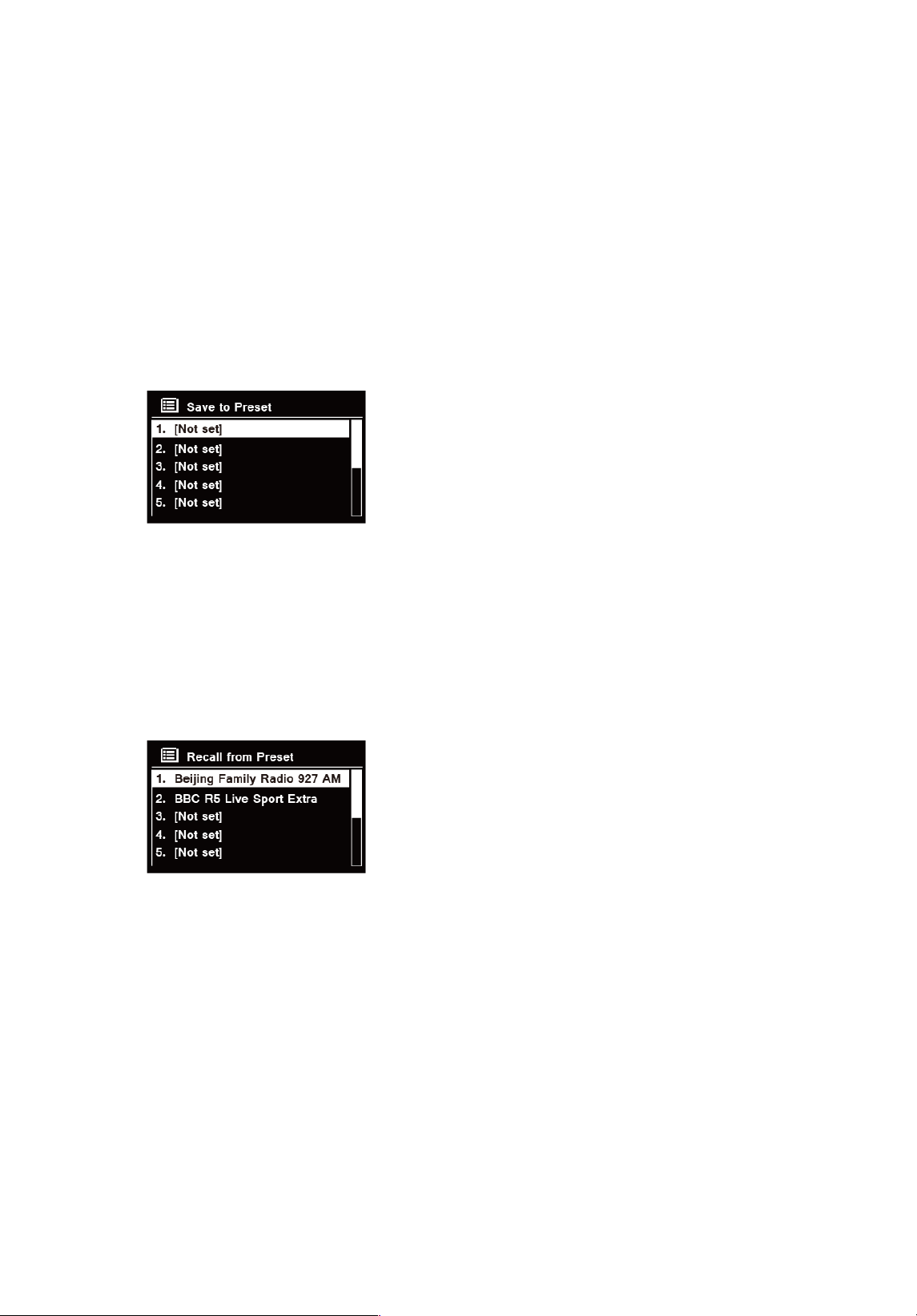

Storing Preset Stations .......................................................................................................... 18!
Recalling a Preset Station ...................................................................................................... 18!
Spotify ........................................................................................................................................... 19!
Using Spotify Connect ........................................................................................................... 19!
Controlling Spotify Connect ................................................................................................... 20!
Using another Spotify account with your radio ....................................................................... 20!
Music player Mode ........................................................................................................................ 21!

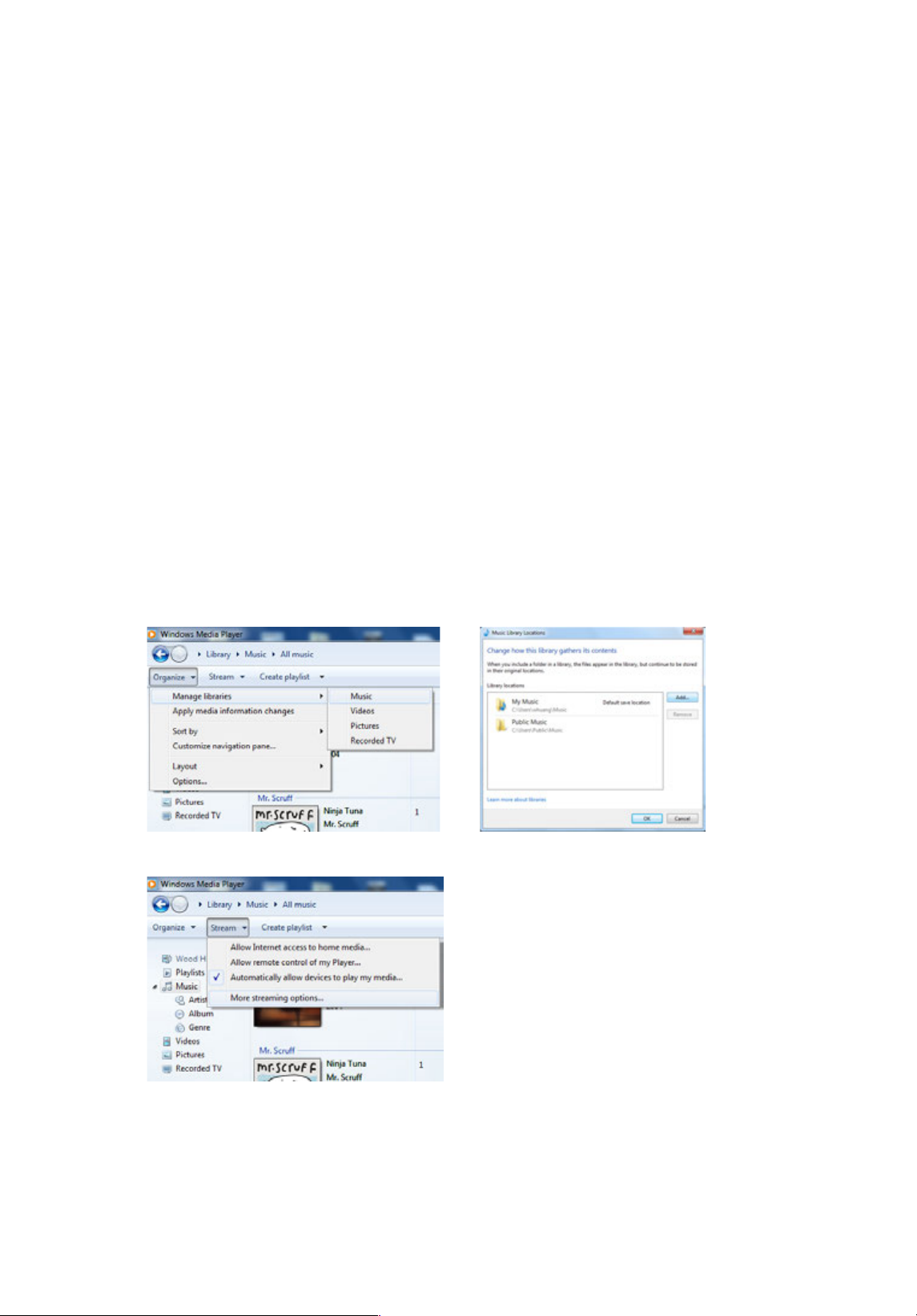

Sharing Media with Windows Media Player ........................................................................... 21!
Playing Shared Media ............................................................................................................ 22!
USB Playback ........................................................................................................................ 23!
My Playlist .............................................................................................................................. 23!
Repeat Play Mode ................................................................................................................. 23!
Shuffle Play Mode .................................................................................................................. 23!
Clearing My Playlist ............................................................................................................... 23!
Prune Servers ........................................................................................................................ 24!
Now Playing Information ........................................................................................................ 24!
DAB Mode ..................................................................................................................................... 25!
Selecting DAB Mode .............................................................................................................. 25!
Selecting another Station ....................................................................................................... 25!
Secondary Service ................................................................................................................. 25!
Scanning Stations .................................................................................................................. 26!

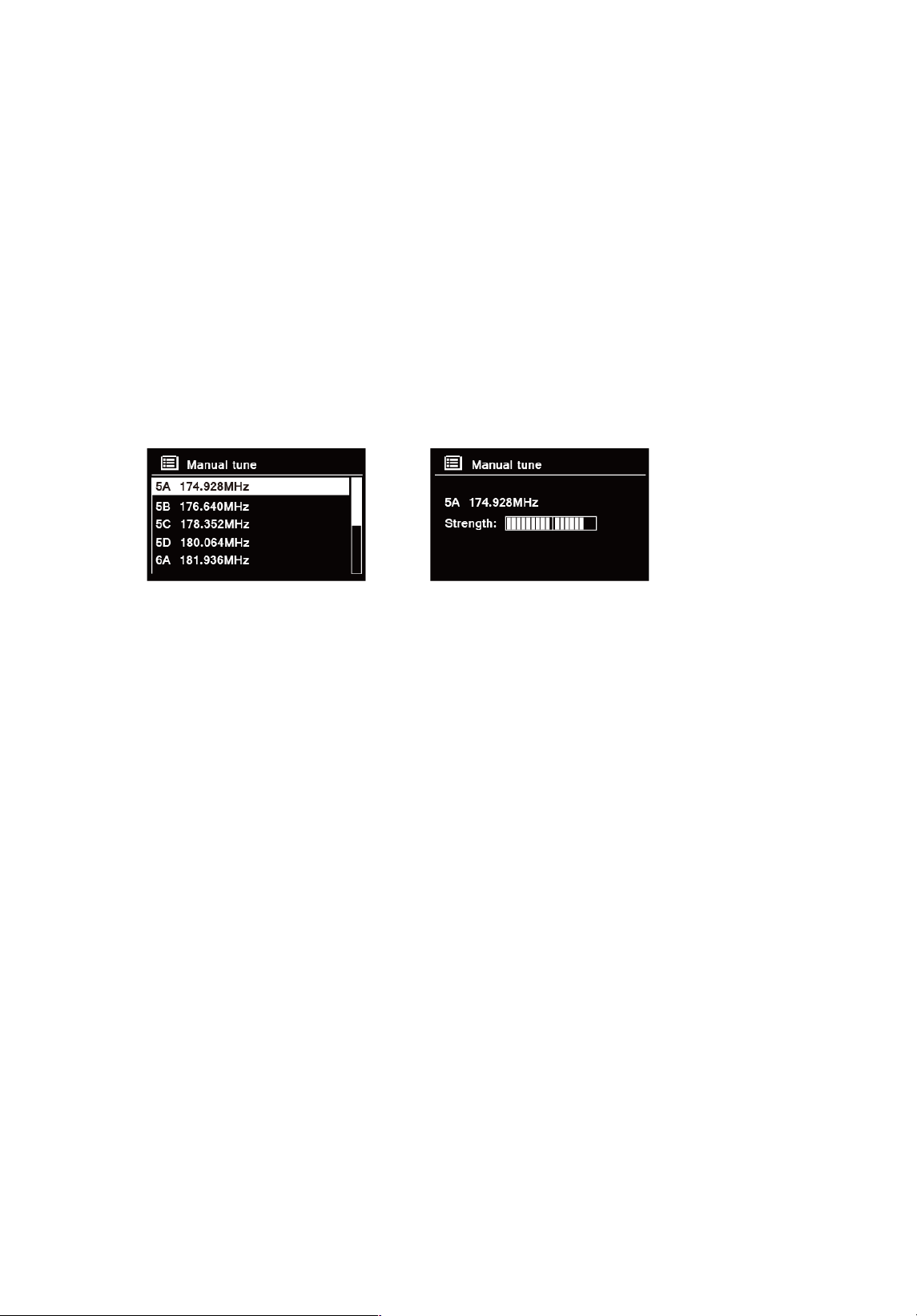

Manual Tune .......................................................................................................................... 26!
Prune Invalid .......................................................................................................................... 26!
DRC (Dynamic Range Control) value .................................................................................... 26!
Changing Station Order ......................................................................................................... 27!
Viewing Station Information ................................................................................................... 27!
Storing Preset Stations .......................................................................................................... 27!
4
Recalling a Preset Station ...................................................................................................... 28!
FM Mode ....................................................................................................................................... 29!

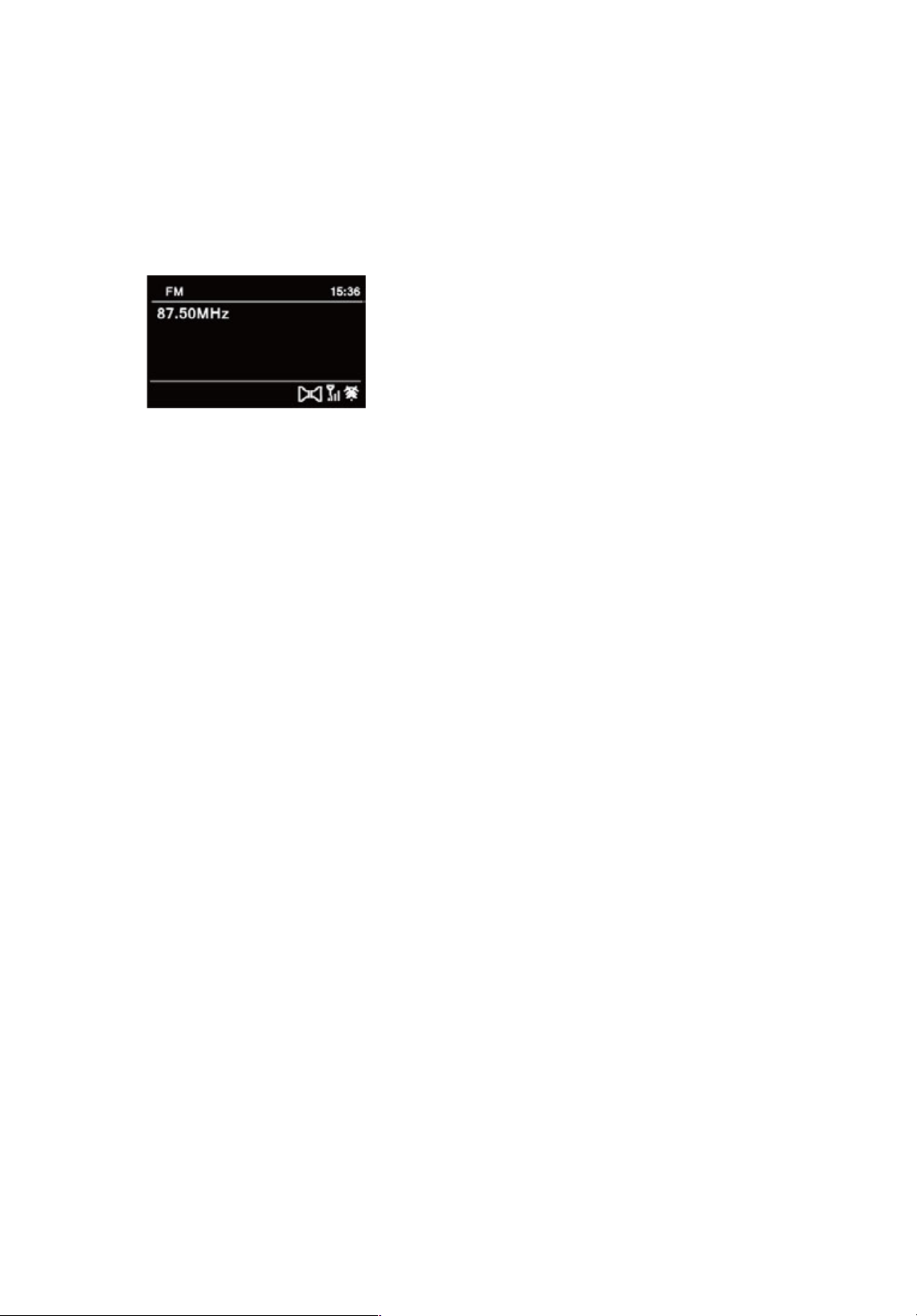

Selecting FM Mode ................................................................................................................ 29!
Scan settings ......................................................................................................................... 29!
Audio Settings ........................................................................................................................ 29!

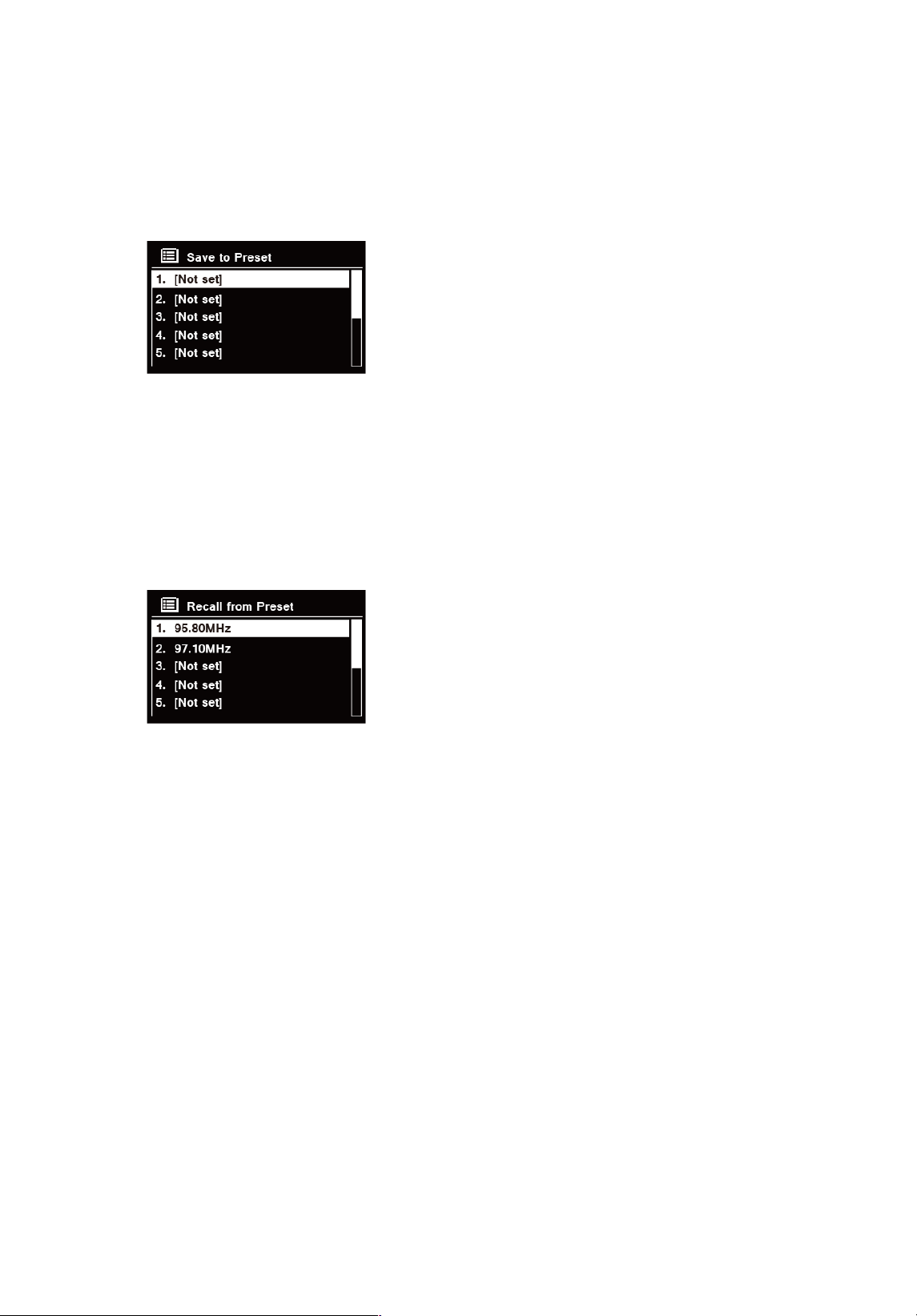

Storing Preset Stations .......................................................................................................... 30!
Recalling a Preset Station ...................................................................................................... 30!
CD Mode ....................................................................................................................................... 31!
Inserting CD ........................................................................................................................... 31!

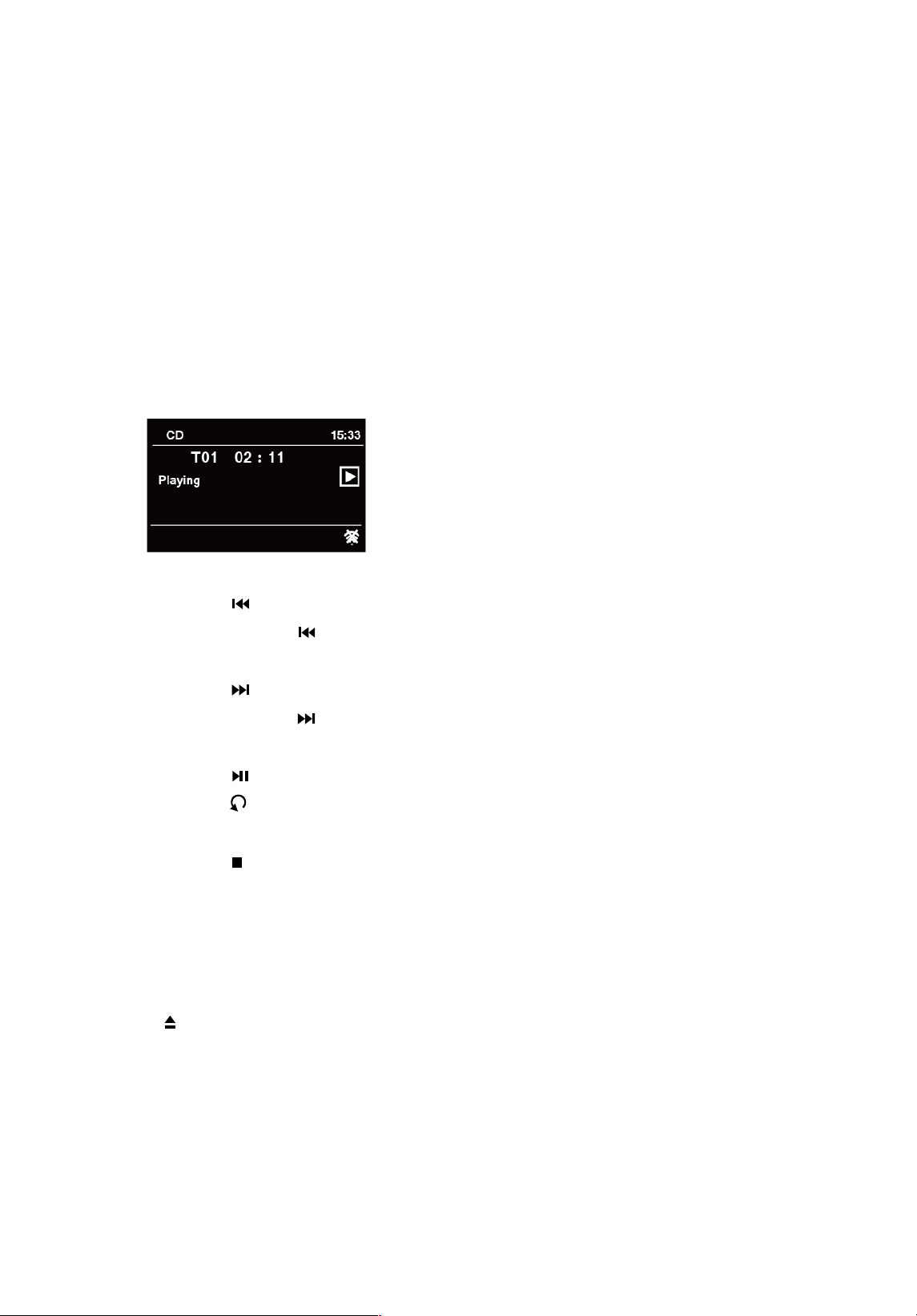

Playing CD Track ................................................................................................................... 31!
Ejecting CD from CD Tray ..................................................................................................... 31!
Bluetooth Mode ............................................................................................................................. 32!

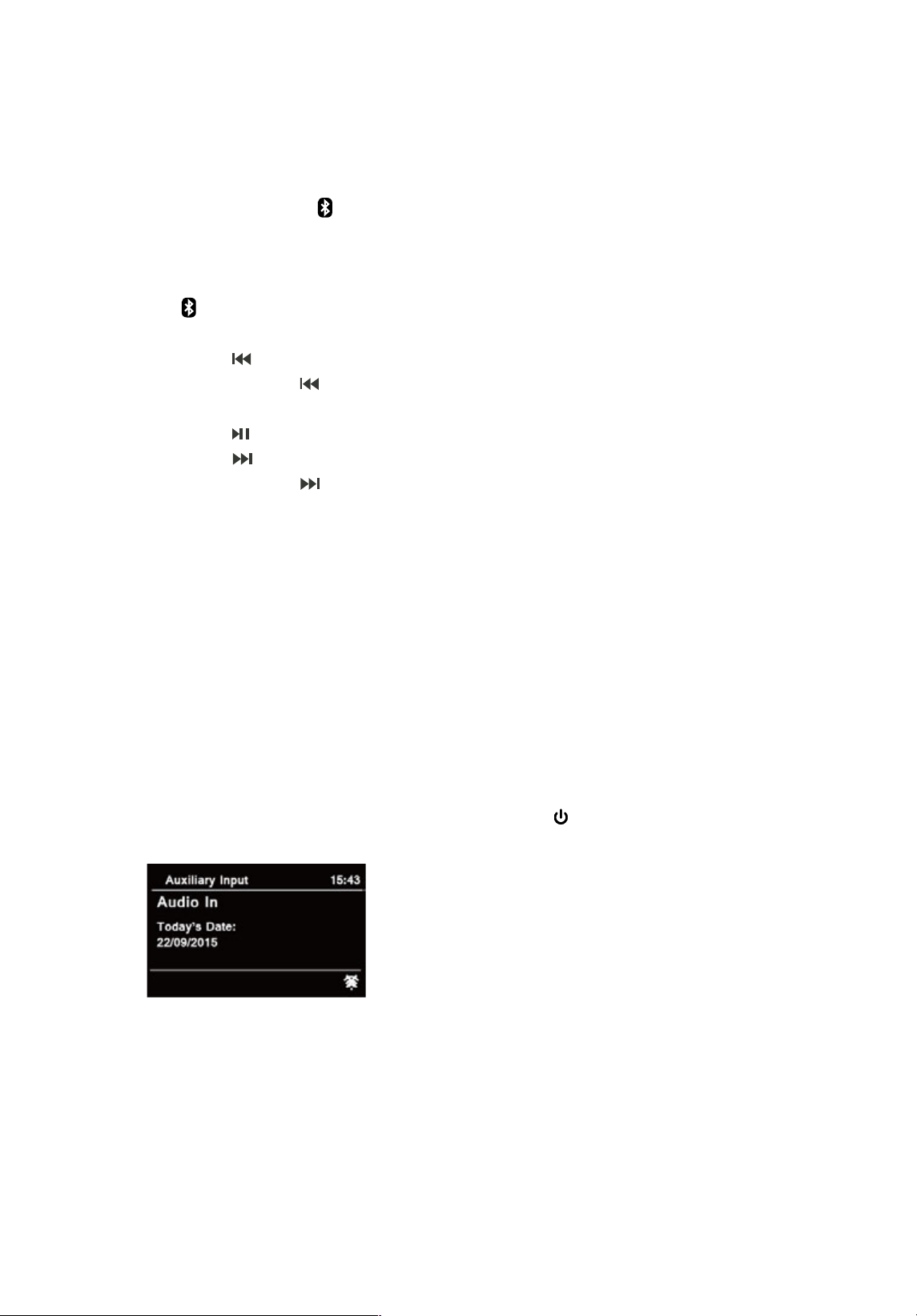

Aux in Mode .................................................................................................................................. 32!
General Operation ......................................................................................................................... 33!
Setting Sleep .......................................................................................................................... 33!
Setting Alarm ......................................................................................................................... 33!
Setting Equaliser .................................................................................................................... 34!
Network Setup ....................................................................................................................... 34!
Setting Time/Date .................................................................................................................. 35!
Setting Language ................................................................................................................... 35!
Factory Reset ......................................................................................................................... 35!
Software Update – Over the network ..................................................................................... 36!
Setup Wizard ......................................................................................................................... 36!
Viewing System Info .............................................................................................................. 36!
Setting Backlight .................................................................................................................... 37!

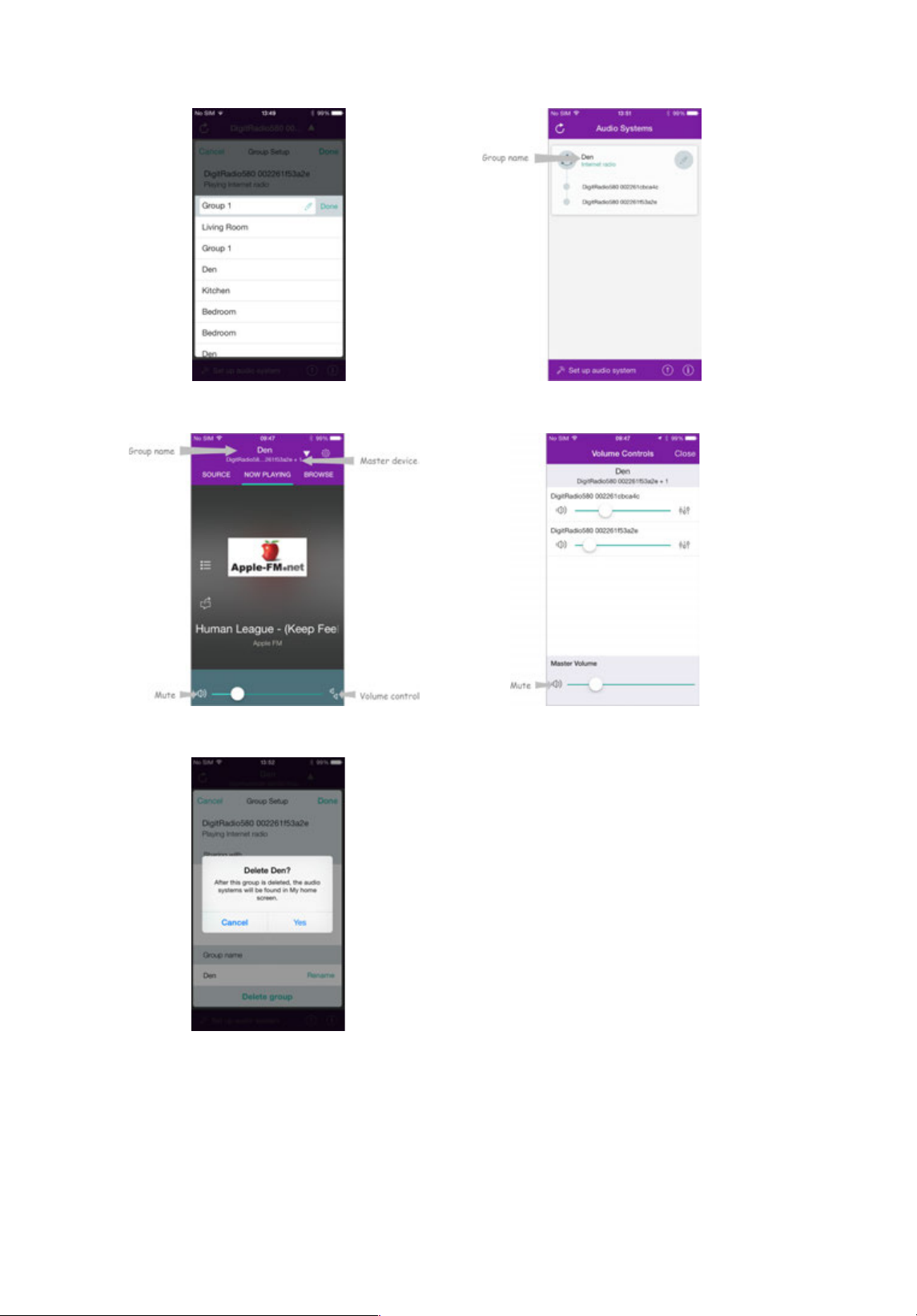

Multi-room .............................................................................................................................. 37!
Troubleshooting ............................................................................................................................ 41!
Specifications ................................................................................................................................ 42!
5
Your radio
Front View
1. MUTE button
Press to mute radio or resume sound.
2. VOLUME/ knob
! Press to switch unit on or standby.
! Turn to adjust volume level.
3. ALARM button
Press to set alarms.
4. Remote sensor
5. MODE button
Press to switch among Internet, Spotify,
Music player, DAB, FM, CD, Bluetooth
and Aux in mode.
6. SLEEP button
Press to set sleep time.
7. INFO button
Press to view station information when a
program is playing
8. MENU button
Press to display or exit menu screen.
9. Display
10. CD tray
11. PRESET button
! Press and hold to save preset
station.
! Press to recall preset station.
12. button
! Press to skip to previous track in
Spotify, Music player, CD and
Bluetooth modes.
! Press and hold to fast reverse
current playing track in Music player,
CD and Bluetooth modes.
13. button
! Press to skip to next track in Spotify,
Music player, CD and Bluetooth
modes.
! Press and hold to fast forward
current playing track in Music player,
CD and Bluetooth modes.
14. BACK button
Press to return to previous menu screen.
15. button
Press to pause or play current playing
track in Spotify, Music player, CD and
Bluetooth modes.
16. SCROLL/SELECT/SNOOZE knob
! Turn to browse options.
! Press to confirm selection.
! Press to activate snooze function
when alarm sounds.
17. button
Press to stop playing track in CD mode.
18. button
Press to eject CD from CD tray.
19. Speaker
Rear View
1. DAB/FM antenna
2. DC IN socket
3. Headphones socket
4. AUX IN socket
5. LAN socket
6. USB port – For charging mobile device and media playback.
Remote Control View
1. button
Press to switch radio on or standby.
2. button
Press to eject CD from CD tray.
3. button
! Press to skip to previous track in Spotify, Music
player, CD and Bluetooth modes.
! Press and hold to fast reverse current playing
track in Music player, CD and Bluetooth modes.
4. button
Press to pause or play current playing track in Spotify,
Music player, CD and Bluetooth modes.
5. button
Press to stop playing track in CD mode.
6. button
! Press to skip to next track in Spotify, Music
player, CD and Bluetooth modes.
! Press and hold to fast forward current playing
track in Music player, CD and Bluetooth modes.
7. button
Press repeatedly to set play mode Repeat
one/Repeat all/Shuffle/None in CD mode.
7
8. MENU button
Press to display menu or exit menu.
9. OK button
Press to confirm your selection.
10. Navigation buttons
up
down
backward
forward
11. BACK button
Press to return to previous menu screen.
12. SCAN button
Press to scan for DAB and FM stations.
13.
button
Press to mute radio or resume sound.
14. MODE / buttons
Press to switch among Internet, Spotify, Music player,
DAB, FM, Bluetooth and Aux in mode.
15. VOL +/- buttons
Press to adjust volume.
16. INFO button
Press to view station information.
17.
button
Press to set alarm 1.
18.
button
Press to set alarm 2.
19.
button
Press to activate snooze when alarm sounds.
20.
button
Press to set sleep time.
21. Preset buttons 1-12
! Press and hold to store preset station.
! Press to recall stored preset station.
8
Getting Started
Carefully remove your radio from the box. You may wish to store the packaging for future use.
What you can find inside of your package
" Main unit
" Power adaptor
" Remote control
" Instruction manual
Positioning your Radio
Place your radio on a flat / stable surface that is not subject to vibrations.
Avoid the following locations:
" Where the unit will be exposed to direct sunlight.
" Where the unit will be close to heat radiating sources.
" Where the humidity is high and ventilation is poor.
" Where it is dusty.
" Where it is damp or there is a possibility of water dripping or splashing onto unit.
LAN Setting:
! Make sure the internet environment is ready and the network settings is available for LAN
(ADSL or Cable Modems is highly recommended).
! To find the Radio’s LAN MAC address, Please follow: Main menu > System settings >
Network > View settings > MAC address.
Wireless LAN Setting
! A broadband Internet connection.
! A wireless access point (Wi-Fi) connected to your broadband Internet, preferably via a router.
! If your wireless network is configured to use Wired Equivalent Privacy (WEP) or Wi-Fi
Protected Access (WPA) data encryption then you need to know the WEP or WPA code so
you can get the radio to communicate with the network.
! If your wireless network is configured for trusted stations you will need to enter the Radio’s
MAC address into your wireless access point. To find the Radio’s MAC address use menu
items as follows: Main menu > System settings > Network > View settings > MAC
address.
Before you continue, make sure that your wireless access point is powered up and connected to
your broadband Internet, or your LAN cable is setting well. To get this part of the system working,
read the instructions supplied with the wireless access point and LAN connecting are highly
recommended.
9
Adjusting the Antenna
Extend the antenna to ensure you receive the best reception possible in both DAB and FM radio
modes. It may be necessary to adjust the position of the radio and /or antenna to achieve the best
signal.
Turning the Unit On/Off
Connect the plug at the end of power adaptor cable to the DC IN socket at the rear of unit. Then
insert the power adaptor into the mains socket.
Press the VOLUME/ knob to turn unit on.
To turn off unit completely, unplug the power adapter from the mains socket.
Radio Auto-standby
To avoid unnecessary energy consumption, the radio will automatically go to standby after 15
minutes if the radio isn’t playing any programme/track.
Charging from USB port
The USB port is designed for media playback and charging mobile devices (e.g. MP3 player,
mobile phone, etc). It supplies 5 V DC at a charging current of up to 1000 mA (1 A).
Use a USB cable (not included) to connect mobile device to the USB port of the unit and the
mobile device will start charging.
# Note: the USB port is only suitable for charging 5V 1A (or less) mobile phone device and it
support charging in all modes except Music player mode. In Music player mode the USB port
is only for media playback.
Volume Control
Adjust the radio volume by turning VOLUME/ knob. Turn anti-clockwise to decrease volume
and turn clockwise to increase volume.
Using Headphones
You will require headphones fitted with a 3.5 mm diameter stereo plug. The Headphones socket
is located at the rear of unit. Headphones are not supplied with this radio.
Turn down the volume before connecting headphones. Slowly raise the volume with the
headphones on until you reach your desired level.
# Note: long-term exposure to loud music may cause hearing damage. It is best to avoid
extreme volume when using headphones, especially for extended periods of time.
10
Setup Wizard
1. For initial use, the display will show ‘Setup wizard’ screen.
2. Press SCROLL/SELECT/SNOOZE knob to confirm ‘YES' to start setup. Options in the setup
wizard include the following:
Date/Time
Set 12 or 24 hour format
Auto update
Synchronously update clock from the playing program you selected or set by yourself.
! Update from DAB
! Update from FM
! Update from Network
Select your time zone and daylight savings is needed.
! No update
Set the date and time is needed.
Keep network connected
Keeps network connected especially in non-internet mode (i.e. DAB, FM, CD, Bluetooth or
Aux in mode) to enable you can use Spotify and Multi-room features all the time.
Select YES or NO
3. The Wizard will now scan your location for accessible wireless networks. When the scan has
finished, a list of networks will be displayed.
Devices that support connection via WPS (Wi-Fi Protected Setup) are identified in the list as
[WPS].
4. Turn SCROLL/SELECT/SNOOZE knob and then press it to select a wireless network you
wanted.
1) If a WEP/WPA key (password) is required, radio will ask you to input the WEP/WPA
code and display the password entry screen as follows:
11
# Note: If a password (WEP/WPA) isn’t required by your network, radio will connect
to the network automatically.
a. Turn SCROLL/SELECT/SNOOZE knob to cycle through the alphanumeric
character list, press SCROLL/SELECT/SNOOZE knob to select an appointed
character.
# Note: WEP/WPA pass codes are case-sensitive.
b. If a wrong operation is being conducted, select to delete designated
character.
# Note: = Backspace; means return to previous track;
radio will automatically save the WEP/WPA you’ve input, so no bother to
re-enter these codes.
c. After selecting the final character of your password, turn
SCROLL/SELECT/SNOOZE knob to , and then press
SCROLL/SELECT/SNOOZE knob to confirm. The radio is connected to wireless
network.
2) If you wish to establish a connection via WPS, press SCROLL/SELECT/SNOOZE knob
after you have selected desired network. The radio then offers the option to initiate WPS.
Turn SCROLL/SELECT/SNOOZE knob to select through Push Button, Pin and Skip
WPS, press SCROLL/SELECT/SNOOZE knob to confirm.
Push Button
You must start the WPS scan on the remote station (e.g. router).
Consult the manual for your router or Access Points (AP) to learn
how to do this.
After you have done this, press SCROLL/SELECT/SNOOZE knob
on the radio and then both devices will establish a connection.
Pin
The radio creates an 8-digit number, which you then have to enter
into the remote station.
After entering the PIN, press the SCROLL/SELECT/SNOOZE
knob to establish the connection between both devices.
Skip WPS
In addition to a WPS connection, you can also establish a
connection using a Pre-Shared-Key. The required key is often on
the rear of the router, or you may have defined it yourself.
This method is used automatically for networks without WPS. You
can call up the Pre-Shared-Key function on networks with WPS by
selecting menu item ‘Skip WPS’.
An input field should now appear. You can enter the required key
(PSK) by turning and pressing SCROLL/SELECT/SNOOZE knob,
and then select ‘OK’ and press SCROLL/SELECT/SNOOZE knob
complete the entry. The radio should now establish the connection
to the network.
12
5. If you want to use wired network, turn SCROLL/SELECT/SNOOZE knob to select [Wired],
and then press SCROLL/SELECT/SNOOZE knob to confirm, the display will show “Waiting
for Ethernet”. Connect LAN cable to the LAN socket at the rear of unit, then the radio is
connected to wired network.
6. Setup wizard completed, press SCROLL/SELECT/SNOOZE knob again to exit.
13
Internet Radio Mode
1. The display will show 'Main menu' after 'Setup wizard' completed. Press
SCROLL/SELECT/SNOOZE knob to select Internet radio mode.
2. While 'Station list' is highlighted, press SCROLL/SELECT/SNOOZE knob to confirm.
→
3. Then refer following section to choice stations. Or if failed to connect to network, please
follow:
a. Check your Router, see it working normally or not;
b. Relocate your radio to a stronger signal position is necessary.
c. Make sure your password is correct input.
Local ‘Country’
Local ‘Country’ will change according to your current location (e.g. Local Australia). It displays
local stations of your current location.
1. To enter local stations, press MENU button > Station list > Local ‘Country’, press
SCROLL/SELECT/SNOOZE knob to confirm.
→
2. Station genres are listed. Turn SCROLL/SELECT/SNOOZE knob to select the genre you
wanted, and then press SCROLL/SELECT/SNOOZE knob to confirm.
3. Turn SCROLL/SELECT/SNOOZE knob to select you desired station, and then press
SCROLL/SELECT/SNOOZE knob to confirm broadcasting.
Loading...
