Page 1
Proline Promass F 500 Coriolis Flowmeter
EtherNet/IP
Operating Instructions Manual
BA01812O/06/EN/01.17
Valid as of version 01.00.zz (Device rmware)
71382414
MANUAL
c
p
e
o
e
v
K
e
r
t
i
g
h
t
w
h
i
l
e
n
e
n
f
f
ö
g
n
u
n
n
a
p
S
e
l
i
v
a
e
r
a
s
t
i
u
c
r
i
c
N
i
c
h
t
u
n
t
e
r
Page 2
Proline Promass E 100 HART
Important
• Make sure the document is stored in a safe place such that it is always available when
working on or with the device.
• To avoid danger to individuals or the facility, read the "Basic safety instructions" section
carefully, as well as all other safety instructions in the document that are specific to
working procedures.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser Sales Center will supply you with current information and updates to
these Instructions.
All information and technical specications in this documentation have been carefully checked and compiled by
the author. However, we cannot completely exclude the possibility of errors. TechnipFMC is always grateful to be
informed of any errors. Contact us on the website.
Smith Meter® is a registered trademark of TechnipFMC.
Technical Support
Contact Information:
Field Service Response Center
24/7 Technical Support/Schedule a Technician: 1-844-798-3819
System Installation Supervision, Start-Up, and Commissioning Services Available
Customer Support
Contact Information:
Customer Service
TechnipFMC
1602 Wagner Avenue
Erie, Pennsylvania 16510 USA
P: +1 814 898-5000
F: +1 814 899-8927
TechnipFMC.com
Literature Library:
http://fmctechnologies.com/en/MeasurementSolutions/OnlineServices.aspx
Page 3
Proline Promass F 500 EtherNet/IP Table of contents
Table of contents
1 About this document ................ 6
1.1 Document function ..................... 6
1.2 Symbols used .......................... 6
1.2.1 Safety symbols .................. 6
1.2.2 Electrical symbols ................ 6
1.2.3 Communication symbols ........... 7
1.2.4 Tool symbols .................... 7
1.2.5 Symbols for
certain types of information ......... 7
1.2.6 Symbols in graphics ............... 8
1.3 Documentation ........................ 8
1.3.1 Standard documentation ........... 8
1.3.2 Supplementary device-dependent
documentation .................. 9
1.4 Registered trademarks ................... 9
2 Basic safety instructions ........... 10
2.1 Requirements for the personnel ........... 10
2.2 Designated use ....................... 10
2.3 Workplace safety ...................... 11
2.4 Operational safety ..................... 11
2.5 Product safety ........................ 12
2.6 IT security ........................... 12
2.7 Device-specific IT security ................ 12
2.7.1 Protecting access via hardware write
protection ..................... 12
2.7.2 Protecting access via a password .... 13
2.7.3 Access via fieldbus ............... 13
2.7.4 Access via Web server ............ 14
2.7.5 Access via CDI-RJ45 service
interface ...................... 14
3 Product description ................ 15
3.1 Product design ........................ 15
3.1.1 Proline 500 – digital ............. 15
3.1.2 Proline 500 .................... 16
4 Incoming acceptance and product
identification ..................... 17
4.1 Incoming acceptance ................... 17
4.2 Product identification ................... 18

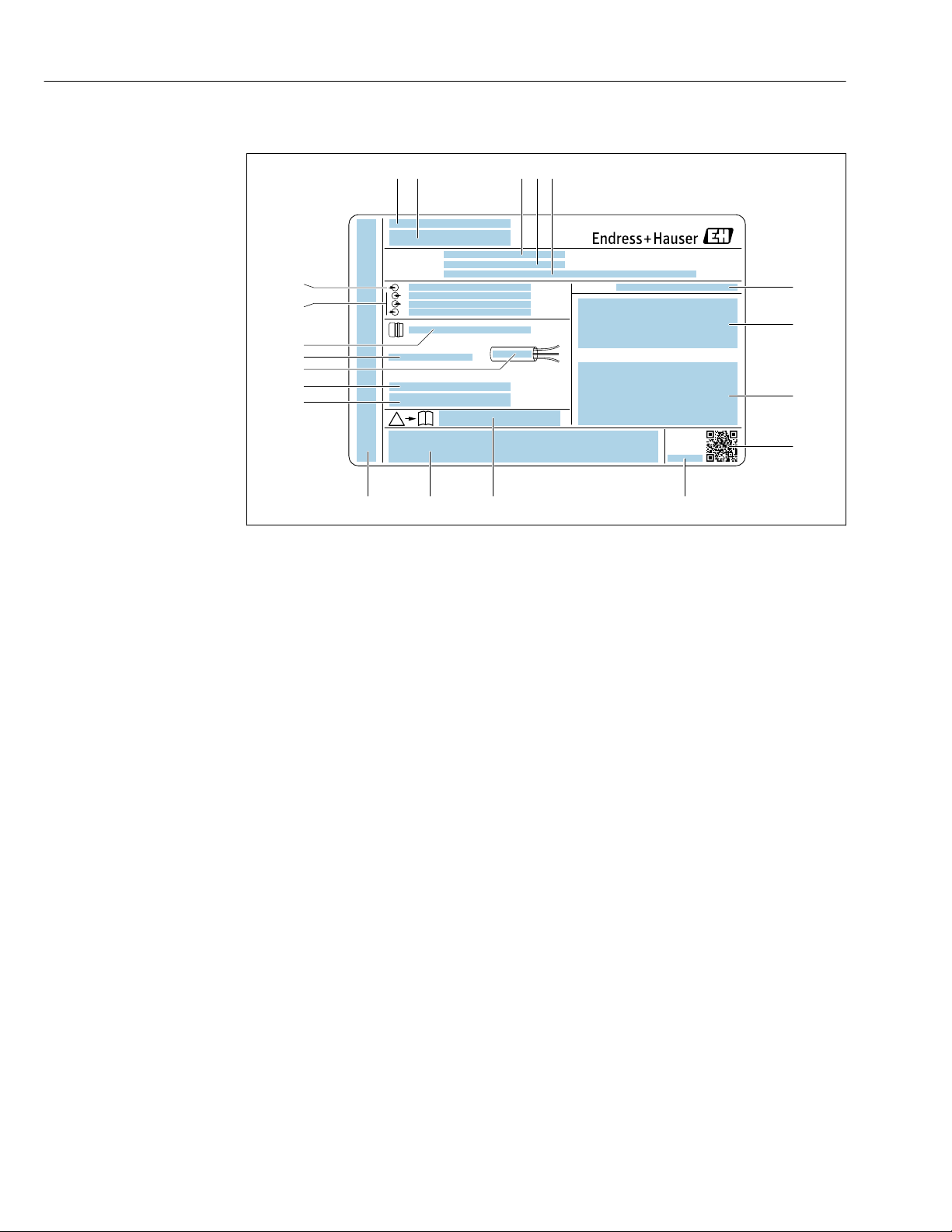

4.2.1 Transmitter nameplate ........... 19
4.2.2 Sensor nameplate ............... 21
4.2.3 Symbols on measuring device ...... 22
5 Storage and transport ............. 23
5.1 Storage conditions ..................... 23
5.2 Transporting the product ................ 23
5.2.1 Measuring devices without lifting
lugs ......................... 23
5.2.2 Measuring devices with lifting lugs .. 24
5.2.3 Transporting with a fork lift ........ 24
5.3 Packaging disposal ..................... 24
6 Installation ....................... 24
6.1 Installation conditions .................. 24
6.1.1 Mounting position ............... 25
6.1.2 Requirements from environment and
process ....................... 27
6.1.3 Special mounting instructions ...... 30
6.2 Mounting the measuring device ........... 32
6.2.1 Required tools .................. 32
6.2.2 Preparing the measuring device ..... 32
6.2.3 Mounting the measuring device ..... 33
6.2.4 Mounting the transmitter housing:
Proline 500 – digital ............. 33
6.2.5 Mounting the transmitter housing:
Proline 500 .................... 35
6.2.6 Turning the transmitter housing:
Proline 500 .................... 36

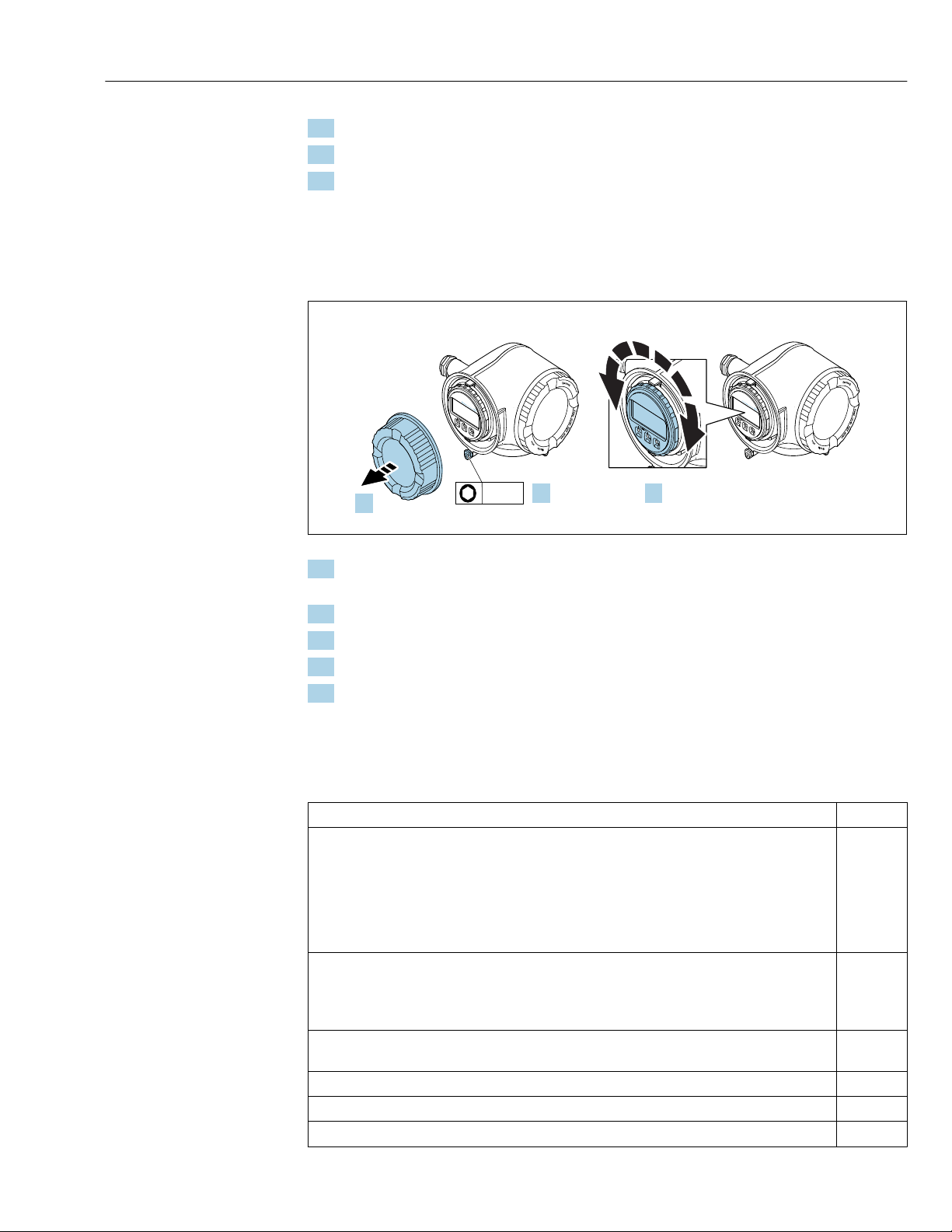

6.2.7 Turning the display module: Proline
500 ......................... 37
6.3 Post-installation check .................. 37
7 Electrical connection .............. 38
7.1 Connection conditions .................. 38
7.1.1 Required tools .................. 38
7.1.2 Requirements for connecting cable ... 38
7.1.3 Terminal assignment ............. 43
7.1.4 Device plugs available ............ 43
7.1.5 Pin assignment of device plug ...... 44
7.1.6 Preparing the measuring device ..... 44
7.2 Connecting the measuring device: Proline
500 - digital ......................... 45
7.2.1 Connecting the connecting cable .... 45
7.2.2 Connecting the transmitter ........ 51
7.2.3 Integrating the transmitter into a
network ...................... 54
7.3 Connecting the measuring device: Proline
500 ................................ 56
7.3.1 Connecting the connecting cable .... 56
7.3.2 Connecting the transmitter ........ 60
7.3.3 Integrating the transmitter into a
network ...................... 63
7.4 Ensure potential equalization ............. 64
7.4.1 Requirements .................. 64
3
Page 4
Table of contents Proline Promass F 500 EtherNet/IP
7.5 Special connection instructions ............ 65
7.5.1 Connection examples ............. 65
7.6 Hardware settings ..................... 68
7.6.1 Setting the device address ......... 68
7.6.2 Activating the default IP address .... 70
7.7 Ensuring the degree of protection .......... 71
7.8 Post-connection check .................. 72
8 Operation options ................. 73
8.1 Overview of operation options ............ 73
8.2 Structure and function of the operating
menu .............................. 74
8.2.1 Structure of the operating menu .... 74
8.2.2 Operating philosophy ............ 76
8.3 Access to the operating menu via the local
display ............................. 77
8.3.1 Operational display .............. 77
8.3.2 Navigation view ................ 79
8.3.3 Editing view ................... 81
8.3.4 Operating elements .............. 83
8.3.5 Opening the context menu ......... 84
8.3.6 Navigating and selecting from list ... 85
8.3.7 Calling the parameter directly ...... 86
8.3.8 Calling up help text .............. 86
8.3.9 Changing the parameters ......... 87
8.3.10 User roles and related access
authorization .................. 87
8.3.11 Disabling write protection via access
code ......................... 88
8.3.12 Enabling and disabling the keypad
lock ......................... 88
8.4 Access to the operating menu via the Web
browser ............................. 89
8.4.1 Function range ................. 89
8.4.2 Prerequisites ................... 89
8.4.3 Establishing a connection ......... 91
8.4.4 Logging on .................... 94
8.4.5 User interface .................. 94
8.4.6 Disabling the Web server .......... 95
8.4.7 Logging out .................... 96
8.5 Access to the operating menu via the
operating tool ........................ 96
8.5.1 Connecting the operating tool ...... 96
8.5.2 FieldCare .................... 101
8.5.3 DeviceCare ................... 103
9.4 Cyclic data transmission ............... 105
9.4.1 Block model .................. 105
9.4.2 Input and output groups ......... 107
9.5 Diagnostic information via EtherNet/IP .... 118
10 Commissioning .................. 123
10.1 Function check ...................... 123
10.2 Switching on the measuring device ........ 123
10.3 Connecting via FieldCare ............... 123
10.4 Setting the operating language ........... 123
10.5 Configuring the measuring device ........ 124
10.5.1 Defining the tag name ........... 126
10.5.2 Setting the system units ......... 126
10.5.3 Configuring the communication
interface ..................... 128
10.5.4 Selecting and setting the medium .. 130
10.5.5 Displaying the I/O configuration ... 132
10.5.6 Configuring the current input ..... 132
10.5.7 Configuring the status input ...... 134
10.5.8 Configuring the current output .... 134
10.5.9 Configuring the pulse/frequency/
switch output ................. 139
10.5.10 Configuring the relay output ...... 150
10.5.11 Configuring the local display ...... 153
10.5.12 Configuring the low flow cut off .... 164
10.5.13 Configuring the partial filled pipe
detection .................... 165
10.6 Advanced settings .................... 166
10.6.1 Using the parameter to enter the
access code ................... 167
10.6.2 Calculated values ............... 167
10.6.3 Carrying out a sensor adjustment ... 168
10.6.4 Configuring the totalizer ......... 169
10.6.5 Carrying out additional display
configurations ................. 172
10.6.6 WLAN configuration ............ 183
10.6.7 Configuration management ....... 185
10.6.8 Using parameters for device
administration ................ 186
10.7 Simulation .......................... 188
10.8 Protecting settings from unauthorized
access ............................. 192
10.8.1 Write protection via access code ... 192
10.8.2 Write protection via write protection
switch ....................... 194
9 System integration ............... 104
9.1 Overview of device description files ........ 104
9.1.1 Current version data for the device .. 104
9.1.2 Operating tools ................ 104
9.2 Overview of system files ................ 105
9.3 Integrating the measuring device in the
system ............................ 105
4
11 Operation ....................... 196
11.1 Reading the device locking status ......... 196
11.2 Adjusting the operating language ......... 196
11.3 Configuring the display ................ 196
11.4 Reading measured values ............... 196
11.4.1 "Measured variables" submenu ..... 197
11.4.2 "Totalizer" submenu ............. 199
11.4.3 "Input values" submenu .......... 199
Page 5
Proline Promass F 500 EtherNet/IP Table of contents
11.4.4 Output values ................. 201
11.5 Adapting the measuring device to the process
conditions .......................... 203
11.6 Performing a totalizer reset ............. 203
11.6.1 Function scope of the "Control
Totalizer" parameter ............ 204
11.6.2 Function scope of the "Reset all
totalizers" parameter ............ 204
11.7 Showing data logging ................. 205
12 Diagnostics and troubleshooting .. 210
12.1 General troubleshooting ................ 210
12.2 Diagnostic information via light emitting
diodes ............................. 213
12.2.1 Transmitter ................... 213
12.2.2 Sensor connection housing ....... 215
12.3 Diagnostic information on local display ..... 217
12.3.1 Diagnostic message ............. 217
12.3.2 Calling up remedial measures ..... 219
12.4 Diagnostic information in the Web browser . 220
12.4.1 Diagnostic options .............. 220
12.4.2 Calling up remedy information .... 221
12.5 Diagnostic information in DeviceCare or
FieldCare ........................... 221
12.5.1 Diagnostic options .............. 221
12.5.2 Calling up remedy information .... 222
12.6 Diagnostic information via communication
interface ........................... 222
12.6.1 Reading out diagnostic information 222
12.7 Adapting the diagnostic information ...... 223
12.7.1 Adapting the diagnostic behavior ... 223
12.8 Overview of diagnostic information ....... 223
12.8.1 Diagnostic of sensor ............ 223
12.8.2 Diagnostic of electronic .......... 225
12.8.3 Diagnostic of configuration ....... 229
12.8.4 Diagnostic of process ............ 233
12.9 Pending diagnostic events .............. 237
12.10 Diagnostic list ....................... 238
12.11 Event logbook ....................... 239
12.11.1 Reading out the event logbook ..... 239
12.11.2 Filtering the event logbook ....... 239
12.11.3 Overview of information events .... 240
12.12 Resetting the measuring device .......... 241
12.12.1 Function scope of the "Device reset"
parameter .................... 241
12.13 Device information ................... 242
12.14 Firmware history ..................... 243
14 Repairs .......................... 245
14.1 General notes ....................... 245
14.1.1 Repair and conversion concept ..... 245
14.1.2 Notes for repair and conversion .... 245
14.2 Spare parts ......................... 245
14.3 Endress+Hauser services ............... 245
14.4 Return ............................. 245
14.5 Disposal ........................... 246
14.5.1 Removing the measuring device .... 246
14.5.2 Disposing of the measuring device .. 246
15 Accessories ...................... 247
15.1 Device-specific accessories .............. 247
15.1.1 For the transmitter ............. 247
15.1.2 For the sensor ................. 248
15.2 Communication-specific accessories ....... 248
15.3 Service-specific accessories .............. 249
15.4 System components ................... 249
16 Technical data ................... 251
16.1 Application ......................... 251
16.2 Function and system design ............. 251
16.3 Input .............................. 252
16.4 Output ............................ 255
16.5 Power supply ........................ 260
16.6 Performance characteristics ............. 261
16.7 Installation ......................... 266
16.8 Environment ........................ 266
16.9 Process ............................ 268
16.10 Mechanical construction ............... 271
16.11 Operability ......................... 276
16.12 Certificates and approvals .............. 280
16.13 Application packages .................. 282
16.14 Accessories ......................... 284
16.15 Supplementary documentation ........... 284
Index ................................. 286
13 Maintenance .................... 244
13.1 Maintenance tasks .................... 244
13.1.1 Exterior cleaning ............... 244
13.1.2 Interior cleaning ............... 244
13.2 Measuring and test equipment ........... 244
13.3 Endress+Hauser services ............... 244
5
Page 6
About this document Proline Promass F 500 EtherNet/IP
DANGER
WARNING
CAUTION
NOTICE
1 About this document
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Symbols used
1.2.1 Safety symbols
Symbol Meaning
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning
Direct current
Alternating current
Direct current and alternating current
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a
grounding system.
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other
connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
6
Page 7
Proline Promass F 500 EtherNet/IP About this document
A
1.
1.2.3 Communication symbols
Symbol Meaning
Wireless Local Area Network (WLAN)
Communication via a wireless, local network.
LED
Light emitting diode is off.
LED
Light emitting diode is on.
LED
Light emitting diode is flashing.
1.2.4 Tool symbols
Symbol Meaning
Torx screwdriver
Phillips head screwdriver
Open-ended wrench
1.2.5 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
Reference to page.
Reference to graphic.
Notice or individual step to be observed.
, 2., 3.… Series of steps.
Result of a step.
Help in the event of a problem.
Visual inspection.
7
Page 8
About this document Proline Promass F 500 EtherNet/IP
1.
-
.
1.2.6 Symbols in graphics
Symbol Meaning
1, 2, 3, ... Item numbers
, 2., 3., … Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
Safe area (non-hazardous area)
Flow direction
1.3 Documentation
For an overview of the scope of the associated Technical Documentation, refer to the
following:
• The W@M Device Viewer : Enter the serial number from the nameplate
(www.endress.com/deviceviewer)
• The Endress+Hauser Operations App: Enter the serial number from the nameplate
or scan the 2-D matrix code (QR code) on the nameplate.
For a detailed list of the individual documents along with the documentation code
→ 284
1.3.1 Standard documentation
Document type Purpose and content of the document
Technical Information Planning aid for your device
The document contains all the technical data on the device and provides
an overview of the accessories and other products that can be ordered for
the device.
Sensor Brief Operating Instructions Guides you quickly to the 1st measured value - Part 1
The Sensor Brief Operating Instructions are aimed at specialists with
responsibility for installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
8
Page 9
Proline Promass F 500 EtherNet/IP About this document
Document type Purpose and content of the document
Transmitter Brief Operating
Instructions
Description of Device Parameters Reference for your parameters
Guides you quickly to the 1st measured value - Part 2
The Transmitter Brief Operating Instructions are aimed at specialists with
responsibility for commissioning, configuring and parameterizing the
measuring device (until the first measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
The document provides a detailed explanation of each individual
parameter in the Expert operating menu. The description is aimed at
those who work with the device over the entire life cycle and perform
specific configurations.
1.3.2 Supplementary device-dependent documentation
Additional documents are supplied depending on the device version ordered: Always
comply strictly with the instructions in the supplementary documentation. The
supplementary documentation is an integral part of the device documentation.
1.4 Registered trademarks
EtherNet/IP™
Trademark of ODVA, Inc.
TRI-CLAMP®
Registered trademark of Ladish & Co., Inc., Kenosha, USA
9
Page 10
Basic safety instructions Proline Promass F 500 EtherNet/IP
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
Trained, qualified specialists must have a relevant qualification for this specific function
‣
and task.
Are authorized by the plant owner/operator.
‣
Are familiar with federal/national regulations.
‣
Before starting work, read and understand the instructions in the manual and
‣
supplementary documentation as well as the certificates (depending on the
application).
Follow instructions and comply with basic conditions.
‣
The operating personnel must fulfill the following requirements:
Are instructed and authorized according to the requirements of the task by the facility's
‣
owner-operator.
Follow the instructions in this manual.
‣
2.2 Designated use
Application and media
The measuring device described in these Brief Operating Instructions is intended only for
flow measurement of liquids and gases.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
Keep within the specified pressure and temperature range.
‣
Only use the measuring device in full compliance with the data on the nameplate and
‣
the general conditions listed in the Operating Instructions and supplementary
documentation.
Based on the nameplate, check whether the ordered device is permitted for the
‣
intended use in the hazardous area (e.g. explosion protection, pressure vessel safety).
Use the measuring device only for media to which the process-wetted materials are
‣
sufficiently resistant.
If the measuring device is not operated at atmospheric temperature, compliance with
‣
the relevant basic conditions specified in the associated device documentation is
absolutely essential: "Documentation" section→ 8.
Protect the measuring device permanently against corrosion from environmental
‣
influences.
10
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage
caused by improper or non-designated use.
Page 11
Proline Promass F 500 EtherNet/IP Basic safety instructions
WARNING
L
Danger of breakage due to corrosive or abrasive fluids!
Verify the compatibility of the process fluid with the sensor material.
‣
Ensure the resistance of all fluid-wetted materials in the process.
‣
Keep within the specified pressure and temperature range.
‣
NOTICE
Verification for borderline cases:
For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance
‣
in verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
WARNING
L
The electronics and the medium may cause the surfaces to heat up. This presents a
burn hazard!
For elevated fluid temperatures, ensure protection against contact to prevent burns.
‣
WARNING
L
Danger of housing breaking due to measuring tube breakage!
In the event of a measuring tube breakage for a device version without rupture disk it is
‣
possible for the pressure loading capacity of the sensor housing to be exceeded. This
can lead to rupture or failure of the sensor housing.
2.3 Workplace safety
For work on and with the device:
Wear the required personal protective equipment according to federal/national
‣
regulations.
For welding work on the piping:
Do not ground the welding unit via the measuring device.
‣
If working on and with the device with wet hands:
Due to the increased risk of electric shock, gloves must be worn.
‣
2.4 Operational safety
Risk of injury.
Operate the device in proper technical condition and fail-safe condition only.
‣
The operator is responsible for interference-free operation of the device.
‣
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
If, despite this, modifications are required, consult with Endress+Hauser.
‣
Repair
To ensure continued operational safety and reliability,
Carry out repairs on the device only if they are expressly permitted.
‣
Observe federal/national regulations pertaining to repair of an electrical device.
‣
11
Page 12
Basic safety instructions Proline Promass F 500 EtherNet/IP
Use original spare parts and accessories from Endress+Hauser only.
‣
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the
Operating Instructions. The device is equipped with security mechanisms to protect it
against any inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.
2.7 Device-specific IT security
The device offers a range of specific functions to support protective measures on the
operator's side. These functions can be configured by the user and guarantee greater inoperation safety if used correctly. An overview of the most important functions is provided
in the following section.
Function/interface Factory setting Recommendation
Write protection via hardware write
protection switch → 12
Access code
(also applies for Web server login or
FieldCare connection) → 13
WLAN
(order option in display module)
WLAN security mode Enabled (WPA2-
WLAN passphrase
(password) → 13
WLAN mode Access Point Individually following risk assessment.
Web server→ 14 Enabled. Individually following risk assessment.
CDI-RJ45 service interface → 14 – Individually following risk assessment.
Not enabled. Individually following risk assessment.
Not enabled
(0000).
Enabled. Individually following risk assessment.
PSK)
Serial number Assign an individual access code during
Assign an individual access code during
commissioning.
Do not change.
commissioning.
12

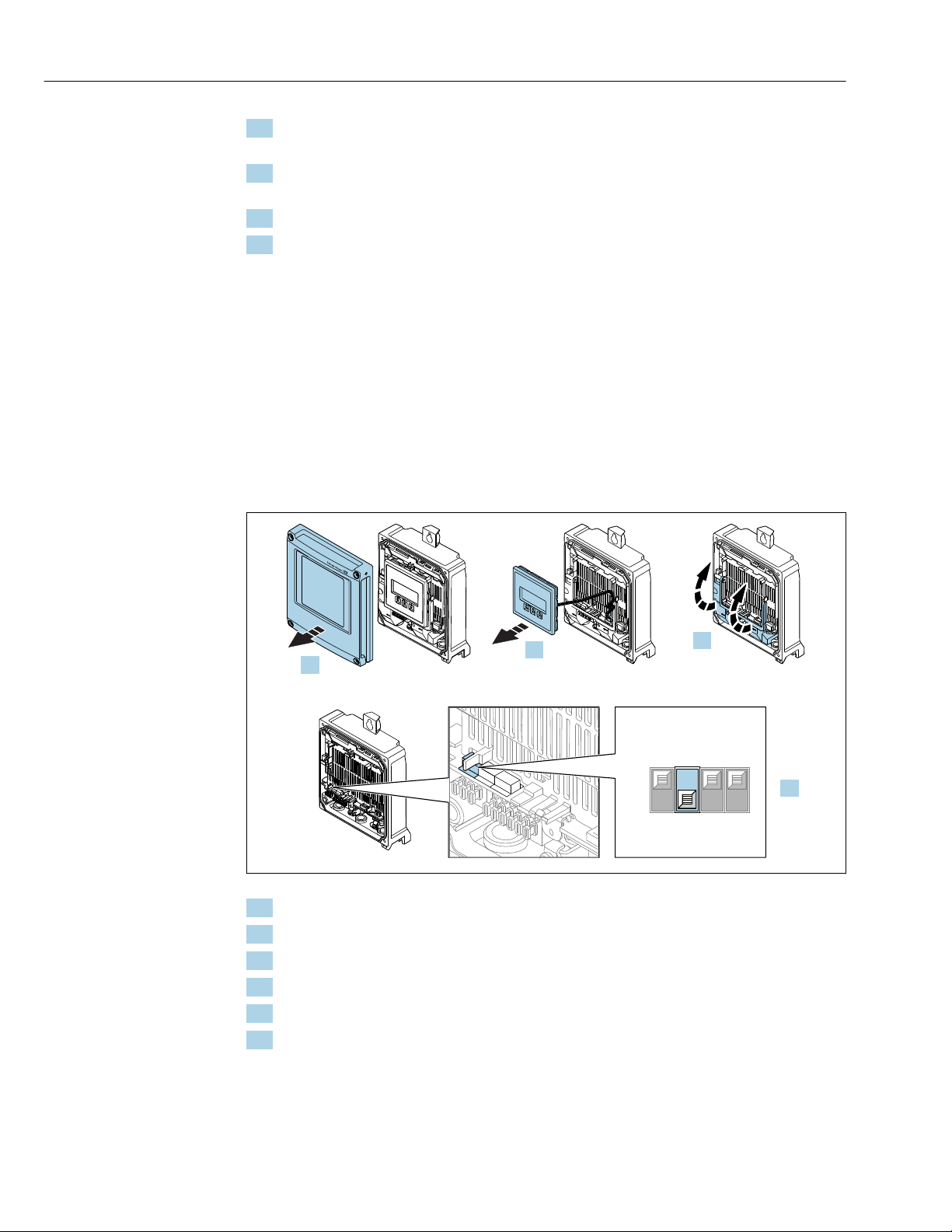

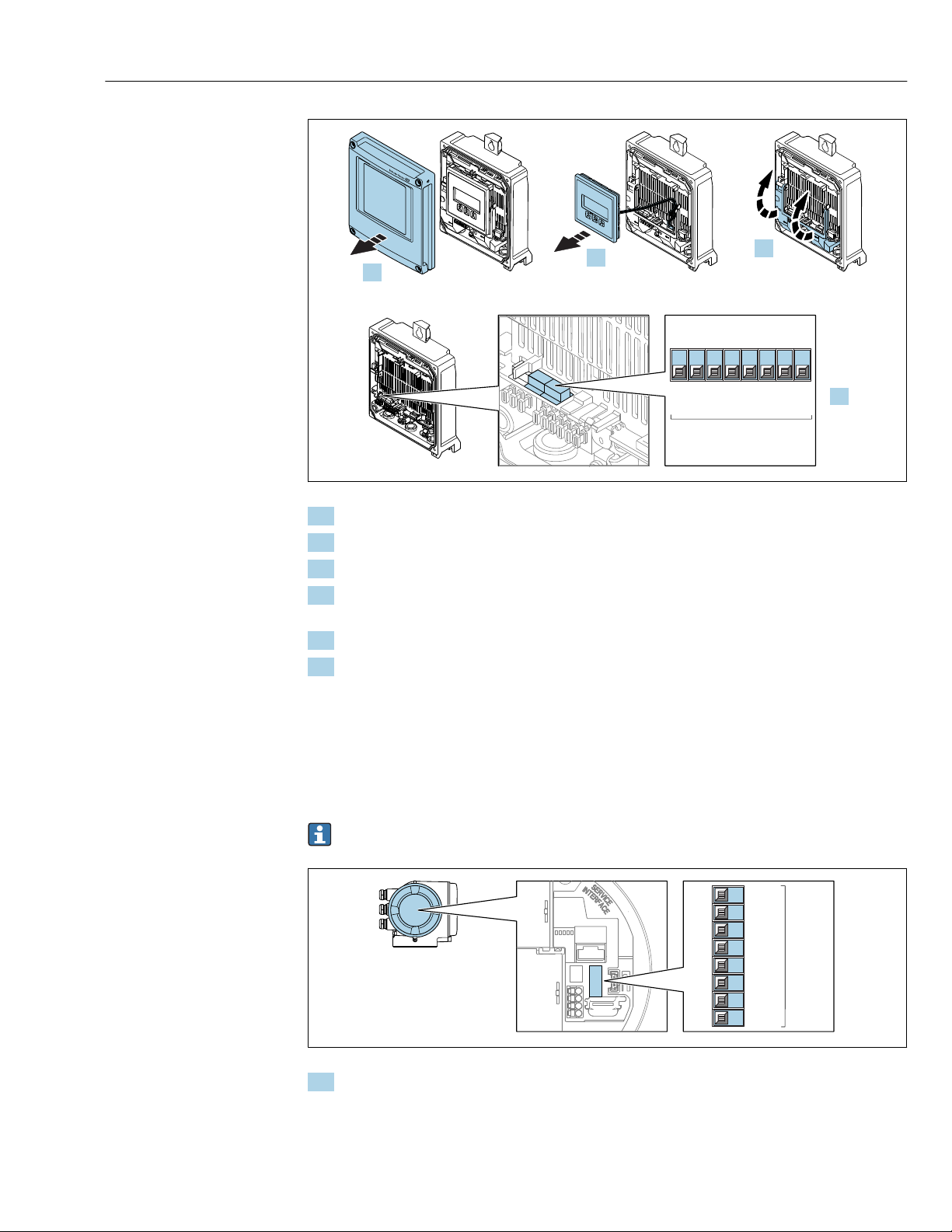

2.7.1 Protecting access via hardware write protection
Write access to the device parameters via the local display, Web browser or operating tool
(e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on
Page 13
Proline Promass F 500 EtherNet/IP Basic safety instructions
the motherboard). When hardware write protection is enabled, only read access to the
parameters is possible.
Hardware write protection is disabled when the device is delivered → 194.
2.7.2 Protecting access via a password
Different passwords are available to protect write access to the device parameters or access
to the device via the WLAN interface.
• User-specific access code
Protect write access to the device parameters via the local display, Web browser or
operating tool (e.g. FieldCare, DeviceCare). Access authorization is clearly regulated
through the use of a user-specific access code.
• WLAN passphrase
The network key protects a connection between an operating unit (e.g. notebook or
tablet) and the device via the WLAN interface which can be ordered as an option.
User-specific access code
Write access to the device parameters via the local display, Web browser or operating tool
(e.g. FieldCare, DeviceCare) can be protected by the modifiable, user-specific access code
(→ 192).
When the device is delivered, the device does not have an access code and is equivalent to
0000 (open).
WLAN passphrase
A connection between an operating unit (e.g. notebook or tablet) and the device via the
WLAN interface (→ 99) which can be ordered as an option is protected by the
network key. The WLAN authentication of the network key complies with the IEEE 802.11
standard.
When the device is delivered, the network key is pre-defined depending on the device. It
can be changed via the WLAN settings submenu in the WLAN passphrase parameter
(→ 184).
General notes on the use of passwords
• The access code and network key supplied with the device should be changed during
commissioning.
• Follow the general rules for generating a secure password when defining and managing
the access code or network key.
• The user is responsible for the management and careful handling of the access code and
network key.
• For information on configuring the access code or on what to do if you lose the
password, see the "Write protection via access code" section → 192
2.7.3 Access via fieldbus
When communicating via fieldbus, access to the device parameters can be restricted to
"Read only" access. The option can be changed in the Fieldbus writing access parameter.
This does not affect cyclic measured value transmission to the higher-order system, which
is always guaranteed.
For detailed information, see the "Description of Device Parameters" document
pertaining to the device → 284
13
Page 14
Basic safety instructions Proline Promass F 500 EtherNet/IP
2.7.4 Access via Web server
The device can be operated and configured via a Web browser with the integrated Web
server (→ 89). The connection is via the service interface (CDI-RJ45), the connection
for EtherNet/IP signal transmission (RJ45 connector) or the WLAN interface.
The Web server is enabled when the device is delivered. The Web server can be disabled if
necessary (e.g. after commissioning) via the Web server functionality parameter.
The device and status information can be hidden on the login page. This prevents
unauthorized access to the information.
For detailed information, see the "Description of Device Parameters" document
pertaining to the device → 284

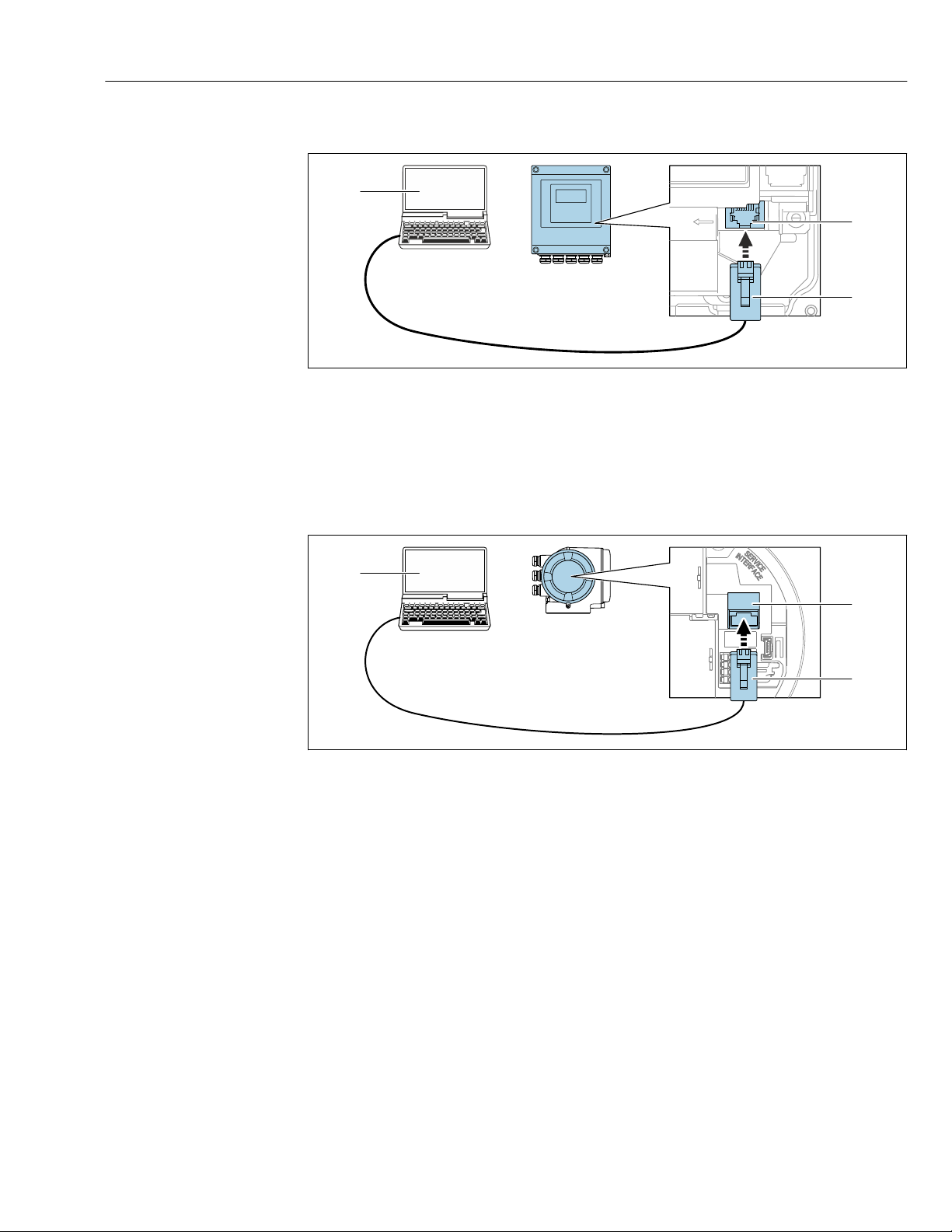

2.7.5 Access via CDI-RJ45 service interface
The device can be connected to a network via the CDI-RJ45 service interface. Devicespecific functions guarantee the secure operation of the device in a network.
It is advisable to take relevant security concepts into consideration, such as those issued by
the Federal Office for Information Security. This includes organizational security measures
such as the assignment of access authorization as well as technical measures such as
network segmentation.

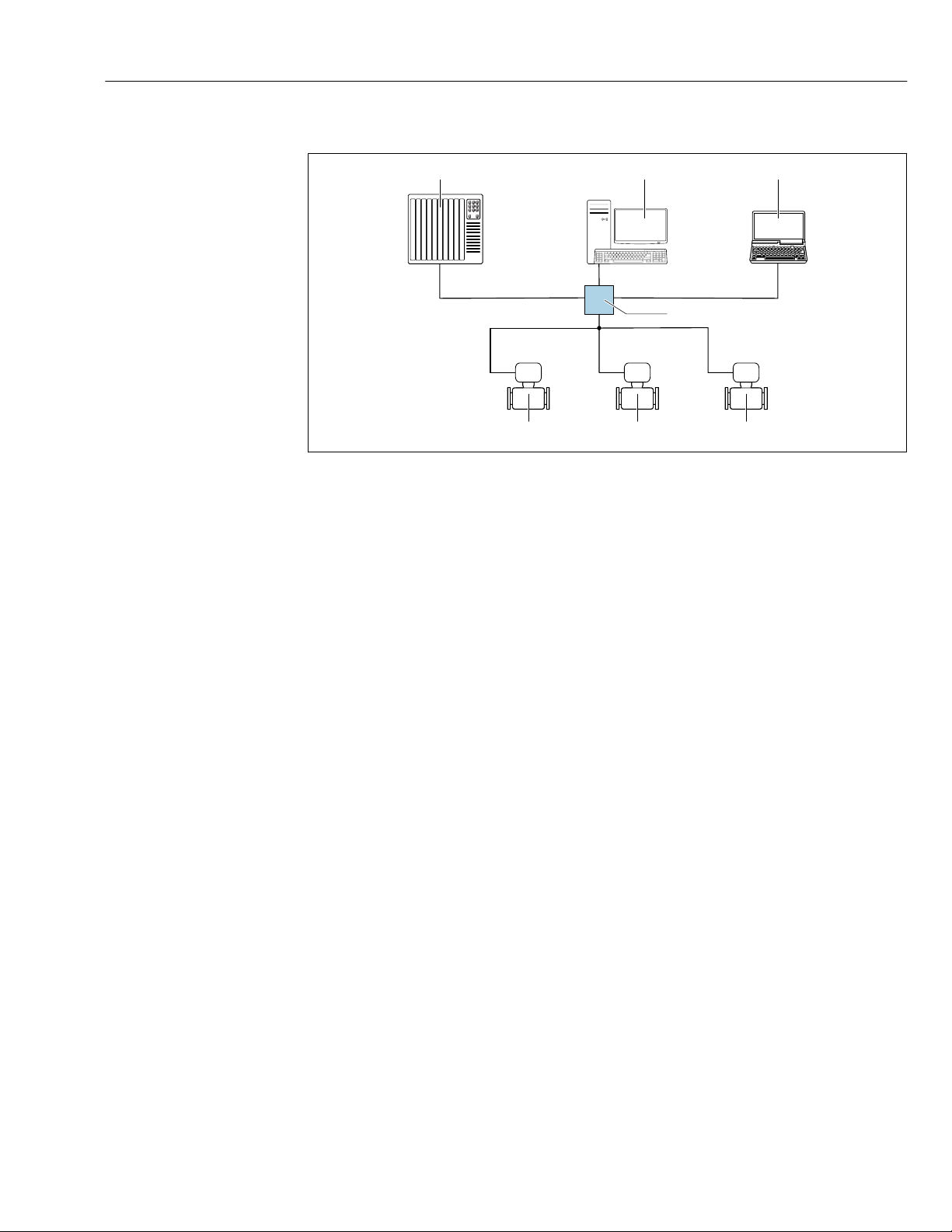

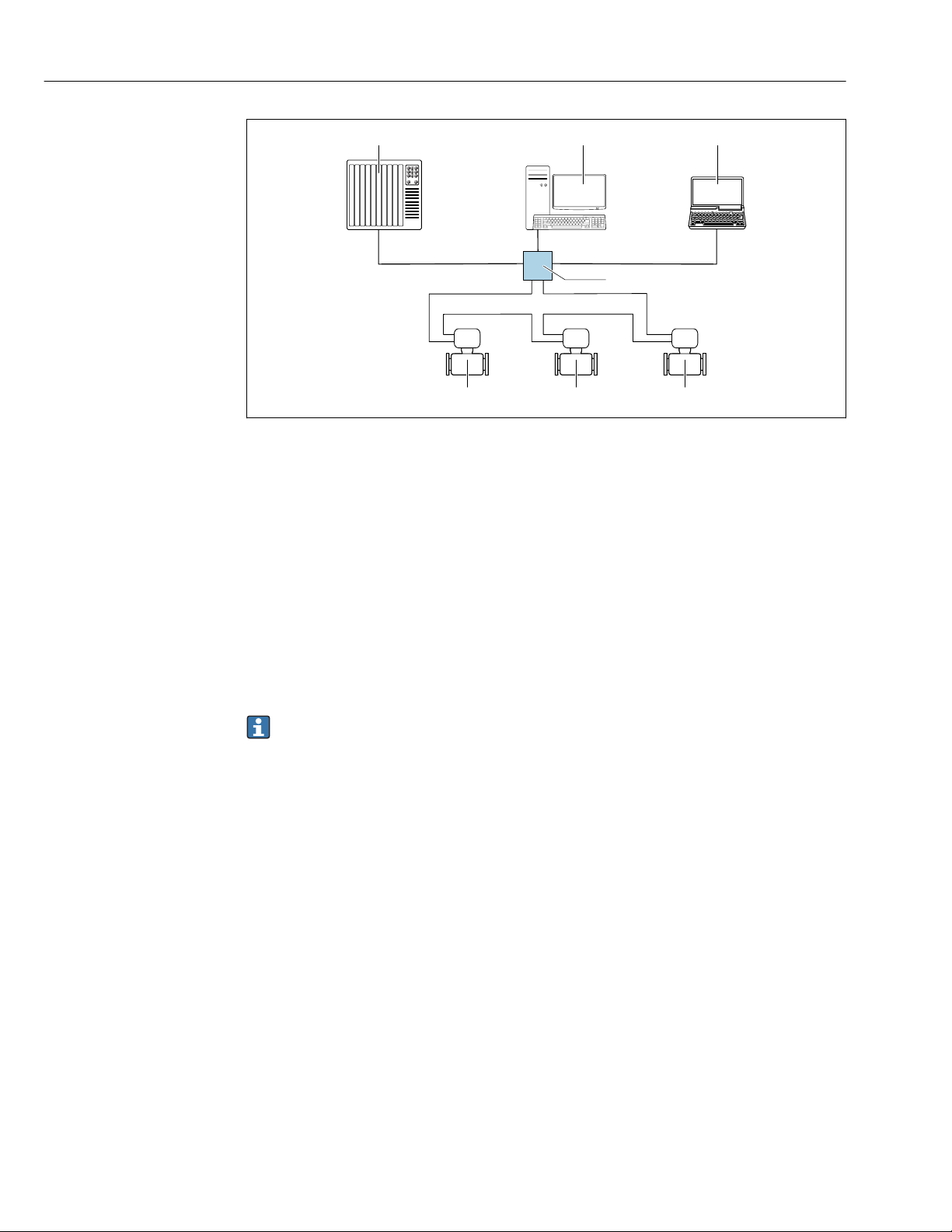

The device can be integrated in a ring topology. The device is integrated via the
terminal connection for signal transmission (output 1) and the connection to the
service interface (CDI-RJ45) → 64 or → 55.
14
Page 15
Proline Promass F 500 EtherNet/IP Product description
5
2
-
+
-
ESC
1
4
3
3 Product description
The measuring system consists of a transmitter and a sensor. The transmitter and sensor
are mounted in physically separate locations. They are interconnected by one connecting
cable(s).
3.1 Product design
Two versions of the transmitter are available.
3.1.1 Proline 500 – digital
Signal transmission: digital
Order code for "Integrated ISEM electronics", option A "Sensor"
For use in applications not required to meet special requirements due to ambient or
operating conditions.
As the electronics are located in the sensor, the device is ideal:
For simple transmitter replacement.
• A standard cable can be used as the connecting cable.
• Not sensitive to external EMC interference.
1 Important components of a measuring device
1 Electronics compartment cover
2 Display module
3 Transmitter housing
4 Sensor connection housing with integrated ISEM electronics: connecting cable connection
5 Sensor
A0029593
15
Page 16
Product description Proline Promass F 500 EtherNet/IP
N
i
c
h
t
u
n
t
e
r
c
i
r
c
u
i
t
s
a
r
e
a
l
i
v
e
4
7
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
I/O
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
D
i
s
p
l
a
y
+
E
ESC
–
1
2
3
5
6
3.1.2 Proline 500
Signal transmission: analog
Order code for "Integrated ISEM electronics", option B "Transmitter"
For use in applications required to meet special requirements due to ambient or operating
conditions.
As the electronics are located in the transmitter, the device is ideal in the event of:
• Strong vibrations at the sensor.
• Sensor operation in underground installations.
• Permanent sensor immersion in water.
A0029589
2 Important components of a measuring device
1 Connection compartment cover
2 Display module
3 Transmitter housing with integrated ISEM electronics
4 Electronics compartment cover
5 Sensor
6 Sensor connection housing: connecting cable connection
7 Connection compartment cover: connecting cable connection
16
Page 17
Proline Promass F 500 EtherNet/IP Incoming acceptance and product identification
1
2
1
2
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
4 Incoming acceptance and product
identification

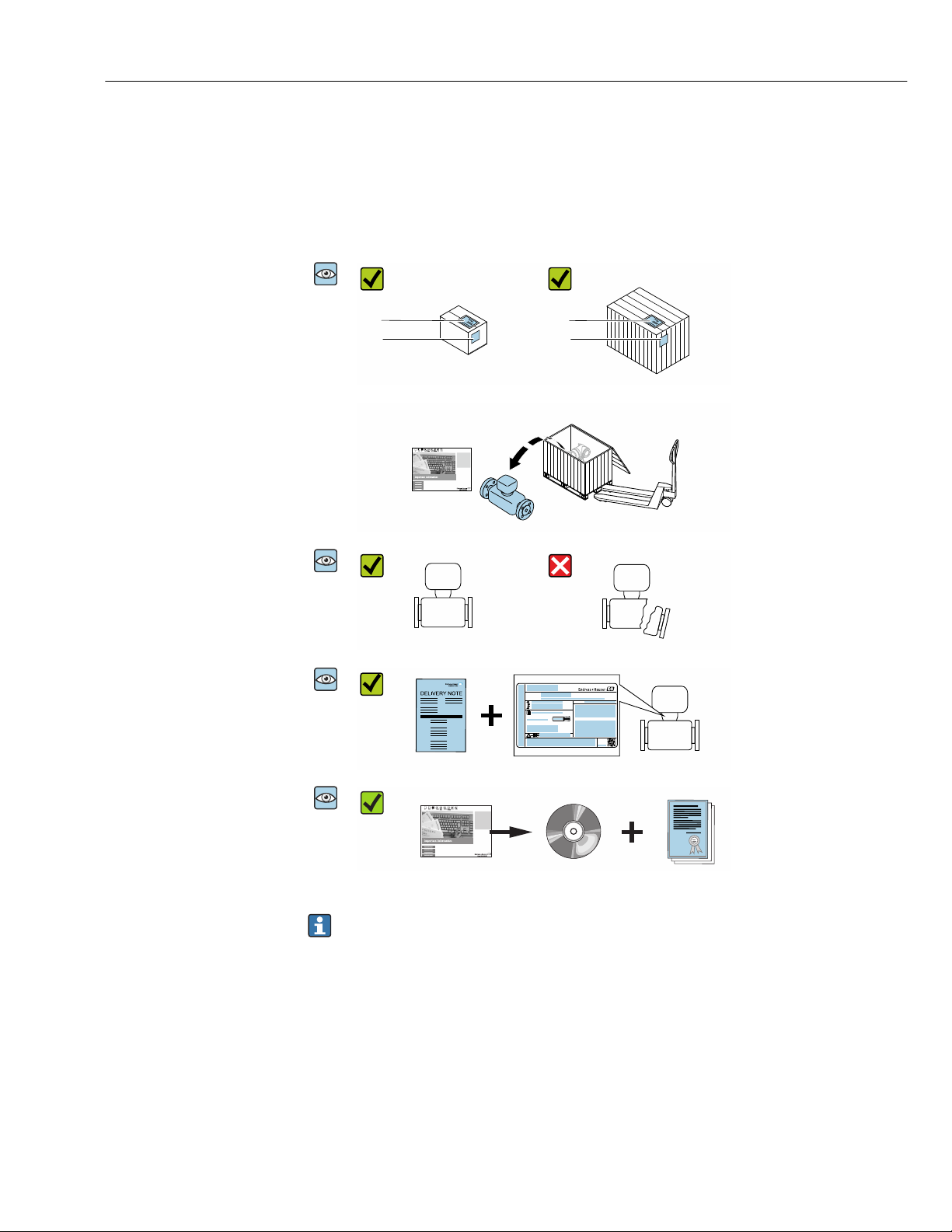

4.1 Incoming acceptance
Are the order codes on the
A0028673
delivery note (1) and the
product sticker (2) identical?
Are the goods undamaged?
A0028673
Do the nameplate data
A0028673
match the ordering
information on the delivery
note?
Is the CD-ROM with the
A0028673
Technical Documentation
(depends on device version)
and documents present?
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center.
• Depending on the device version, the CD-ROM might not be part of the delivery!
The Technical Documentation is available via the Internet or via the Endress+Hauser
Operations App, see the "Product identification" section → 18.
17
Page 18
Incoming acceptance and product identification Proline Promass F 500 EtherNet/IP
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is
displayed.
• Enter the serial number from the nameplates into the Endress+Hauser Operations App
or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser
Operations App: all the information for the measuring device is displayed.
For an overview of the scope of the associated Technical Documentation, refer to the
following:
• The chapters "Additional standard documentation on the device" → 8 and
"Supplementary device-dependent documentation" → 9
• The W@M Device Viewer: Enter the serial number from the nameplate
(www.endress.com/deviceviewer)
• The Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2-D matrix code (QR code) on the nameplate.
18
Page 19
Proline Promass F 500 EtherNet/IP Incoming acceptance and product identification
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
1
4
5
6
7
891012
2
13
11
3
4.2.1 Transmitter nameplate
Proline 500 – digital
A0029194
3 Example of a transmitter nameplate
1 Name of the transmitter
2 Manufacturing location
3 Space for approvals: use in hazardous areas
4 Degree of protection
5 Electrical connection data: available inputs and outputs
6 Permitted ambient temperature (Ta)
7 2-D matrix code
8 Space for approvals and certificates: e.g. CE mark, C-Tick
9 Permitted temperature range for cable
10 Manufacturing date: year-month
11 Firmware version (FW) and device revision (Dev.Rev.) from the factory
12 Document number of safety-related supplementary documentation
13 Space for additional information in the case of special products
14 Available inputs and outputs, supply voltage
15 Electrical connection data: supply voltage
16 Extended order code (Ext. ord. cd.)
17 Serial number (ser. no.)
18 Order code
19
Page 20
Incoming acceptance and product identification Proline Promass F 500 EtherNet/IP
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
1 2 3 4 5
6
7
8
9
13 12 1011
Proline 500
4 Example of a transmitter nameplate
1 Manufacturing location
2 Name of the transmitter
3 Order code
4 Serial number (ser. no.)
5 Extended order code (Ext. ord. cd.)
6 Degree of protection
7 Space for approvals: use in hazardous areas
8 Electrical connection data: available inputs and outputs
9 2-D matrix code
10 Manufacturing date: year-month
11 Document number of safety-related supplementary documentation
12 Space for approvals and certificates: e.g. CE mark, C-Tick
13 Space for degree of protection of connection and electronics compartment when used in hazardous areas
14 Firmware version (FW) and device revision (Dev.Rev.) from the factory
15 Space for additional information in the case of special products
16 Permitted temperature range for cable
17 Permitted ambient temperature (Ta)
18 Information on cable gland
19 Available inputs and outputs, supply voltage
20 Electrical connection data: supply voltage
A0029192
20
Page 21
Proline Promass F 500 EtherNet/IP Incoming acceptance and product identification
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
1
3
4
5
6
7
8
9
2
10
1112
4.2.2 Sensor nameplate
A0029199
5 Example of a sensor nameplate
1 Name of the sensor
2 Manufacturing location
3 Order code
4 Serial number (ser. no.)
5 Extended order code (Ext. ord. cd.)
6 Nominal diameter of the sensor; flange nominal diameter/nominal pressure; sensor test pressure; medium
temperature range; material of measuring tube and manifold; sensor-specific information: e.g. pressure range
of secondary containment, wide-range density specification (special density calibration)
7 Approval information for explosion protection, Pressure Equipment Directive and degree of protection
8 Flow direction
9 Manufacturing date: year-month
10 2-D matrix code
11 Document number of safety-related supplementary documentation
12 CE mark, C-Tick
13 Surface roughness
14 Permitted ambient temperature (Ta)
Order code
The measuring device is reordered using the order code.
Extended order code
• The device type (product root) and basic specifications (mandatory features) are
always listed.
• Of the optional specifications (optional features), only the safety and approvalrelated specifications are listed (e.g. LA). If other optional specifications are also
ordered, these are indicated collectively using the # placeholder symbol (e.g. #LA#).
• If the ordered optional specifications do not include any safety and approval-related
specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE
+).
21
Page 22
Incoming acceptance and product identification Proline Promass F 500 EtherNet/IP
4.2.3 Symbols on measuring device
Symbol Meaning
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious
or fatal injury.
Reference to documentation
Refers to the corresponding device documentation.
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
22
Page 23
Proline Promass F 500 EtherNet/IP Storage and transport
5 Storage and transport
5.1 Storage conditions
Observe the following notes for storage:
Store in the original packaging to ensure protection from shock.
‣
Do not remove protective covers or protective caps installed on process connections.
‣
They prevent mechanical damage to the sealing surfaces and contamination in the
measuring tube.
Protect from direct sunlight to avoid unacceptably high surface temperatures.
‣
Store in a dry and dust-free place.
‣
Do not store outdoors.
‣
Storage temperature→ 267

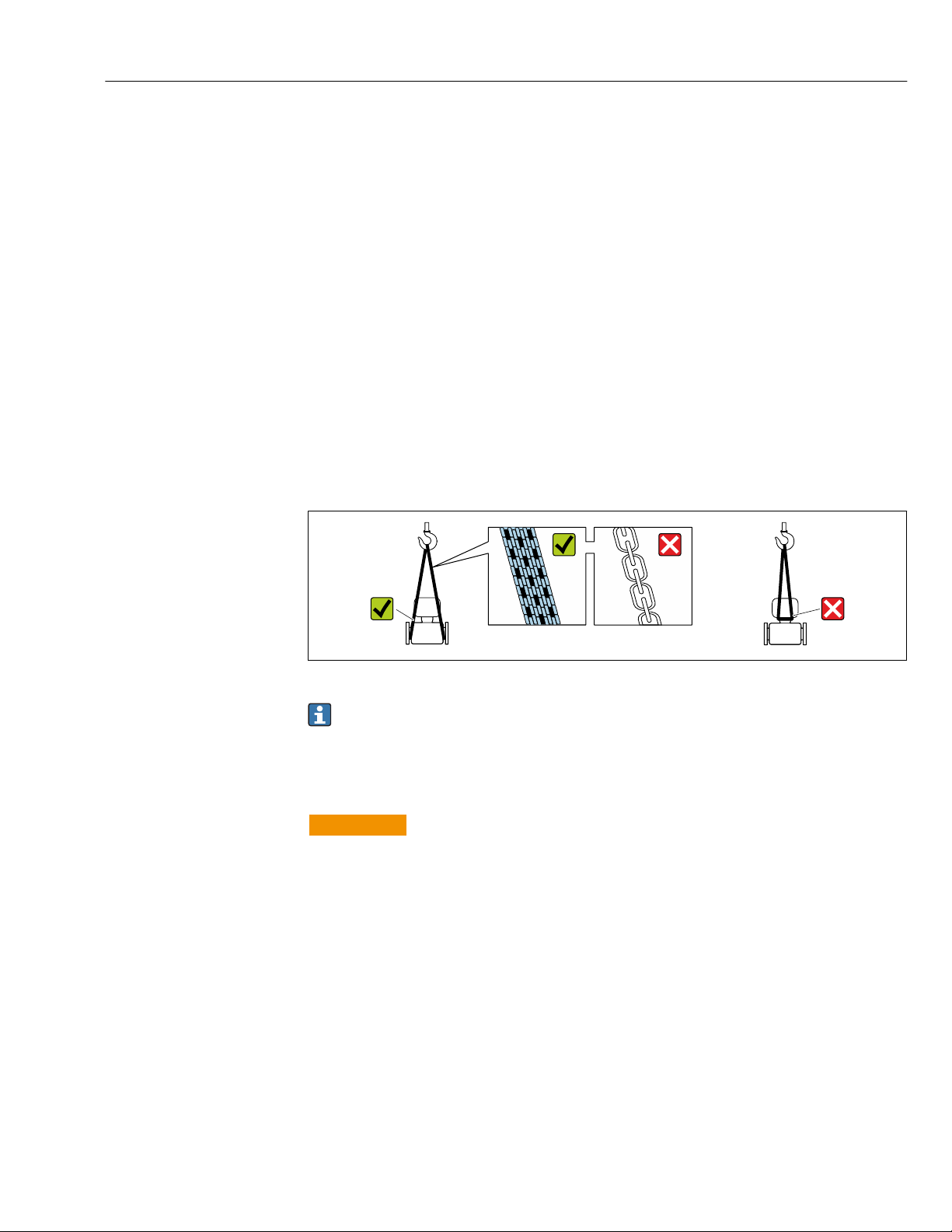

5.2 Transporting the product
Transport the measuring device to the measuring point in the original packaging.
A0029252

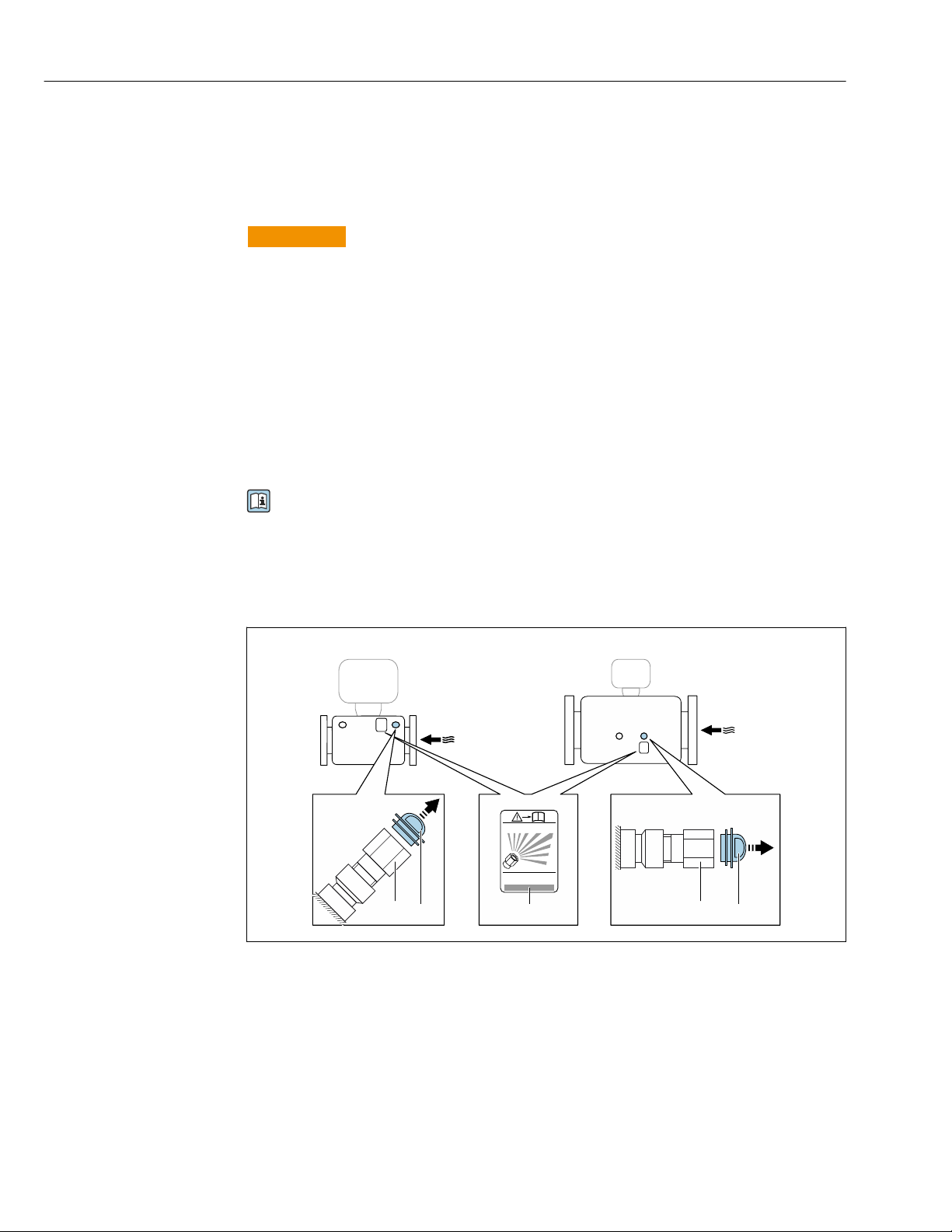

Do not remove protective covers or caps installed on process connections. They
prevent mechanical damage to the sealing surfaces and contamination in the
measuring tube.

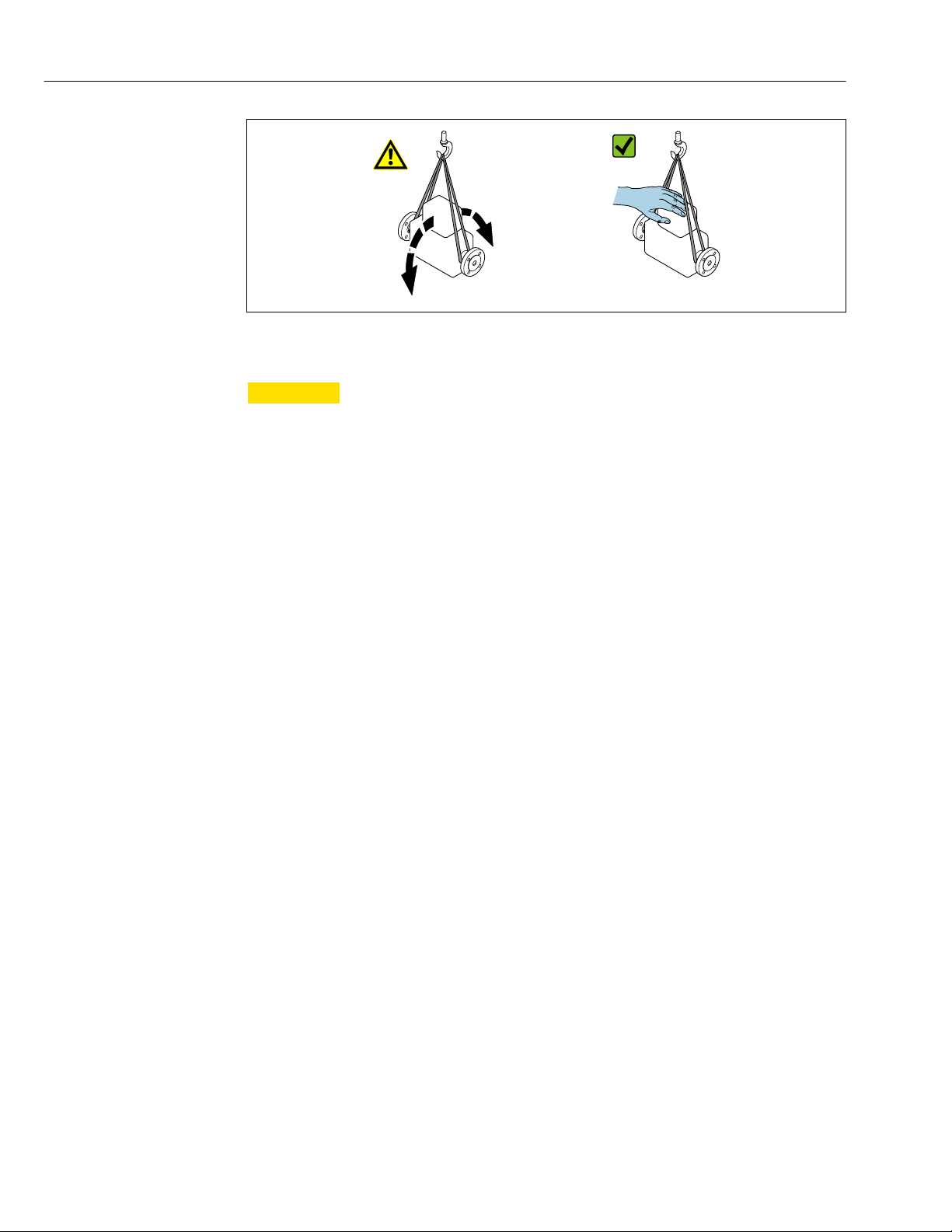

5.2.1 Measuring devices without lifting lugs
WARNING
L
Center of gravity of the measuring device is higher than the suspension points of the
webbing slings.
Risk of injury if the measuring device slips.
Secure the measuring device against slipping or turning.
‣
Observe the weight specified on the packaging (stick-on label).
‣
23
Page 24
Installation Proline Promass F 500 EtherNet/IP
A0029214
5.2.2 Measuring devices with lifting lugs
CAUTION
L
Special transportation instructions for devices with lifting lugs
Only use the lifting lugs fitted on the device or flanges to transport the device.
‣
The device must always be secured at two lifting lugs at least.
‣
5.2.3 Transporting with a fork lift
If transporting in wood crates, the floor structure enables the crates to be lifted lengthwise
or at both sides using a forklift.
5.3 Packaging disposal
All packaging materials are environmentally friendly and 100% recyclable:
• Measuring device secondary packaging: polymer stretch film that conforms to EC
Directive 2002/95/EC (RoHS).
• Packaging:
– Wood crate, treated in accordance with ISPM 15 standard, which is confirmed by the
affixed IPPC logo.
or
– Carton in accordance with European Packaging Directive 94/62EC; recyclability is
confirmed by the affixed RESY symbol.
• Seaworthy packaging (optional): Wood crate, treated in accordance with ISPM 15
standard, which is confirmed by the affixed IPPC logo.
• Carrying and mounting hardware:
– Disposable plastic pallet
– Plastic straps
– Plastic adhesive strips
• Dunnage: Paper cushion
24
6 Installation
6.1 Installation conditions
No special measures such as supports are necessary. External forces are absorbed by the
construction of the device.
Page 25
Proline Promass F 500 EtherNet/IP Installation
1
2
3
4
5
6.1.1 Mounting position
Mounting location
A0028772
To prevent measuring errors arising from accumulation of gas bubbles in the measuring
tube, avoid the following mounting locations in the pipe:
• Highest point of a pipeline.
• Directly upstream of a free pipe outlet in a down pipe.
Installation in down pipes
However, the following installation suggestion allows for installation in an open vertical
pipeline. Pipe restrictions or the use of an orifice with a smaller cross-section than the
nominal diameter prevent the sensor running empty while measurement is in progress.
A0028773
6 Installation in a down pipe (e.g. for batching applications)
1 Supply tank
2 Sensor
3 Orifice plate, pipe restriction
4 Valve
5 Batching tank
DN Ø orifice plate, pipe restriction
[mm] [in] [mm] [in]
8 ³⁄₈ 6 0.24
15 ½ 10 0.40
25
Page 26
Installation Proline Promass F 500 EtherNet/IP
DN Ø orifice plate, pipe restriction
[mm] [in] [mm] [in]
25 1 14 0.55
40 1½ 22 0.87
50 2 28 1.10
80 3 50 1.97
100 4 65 2.60
150 6 90 3.54
250 10 150 5.91

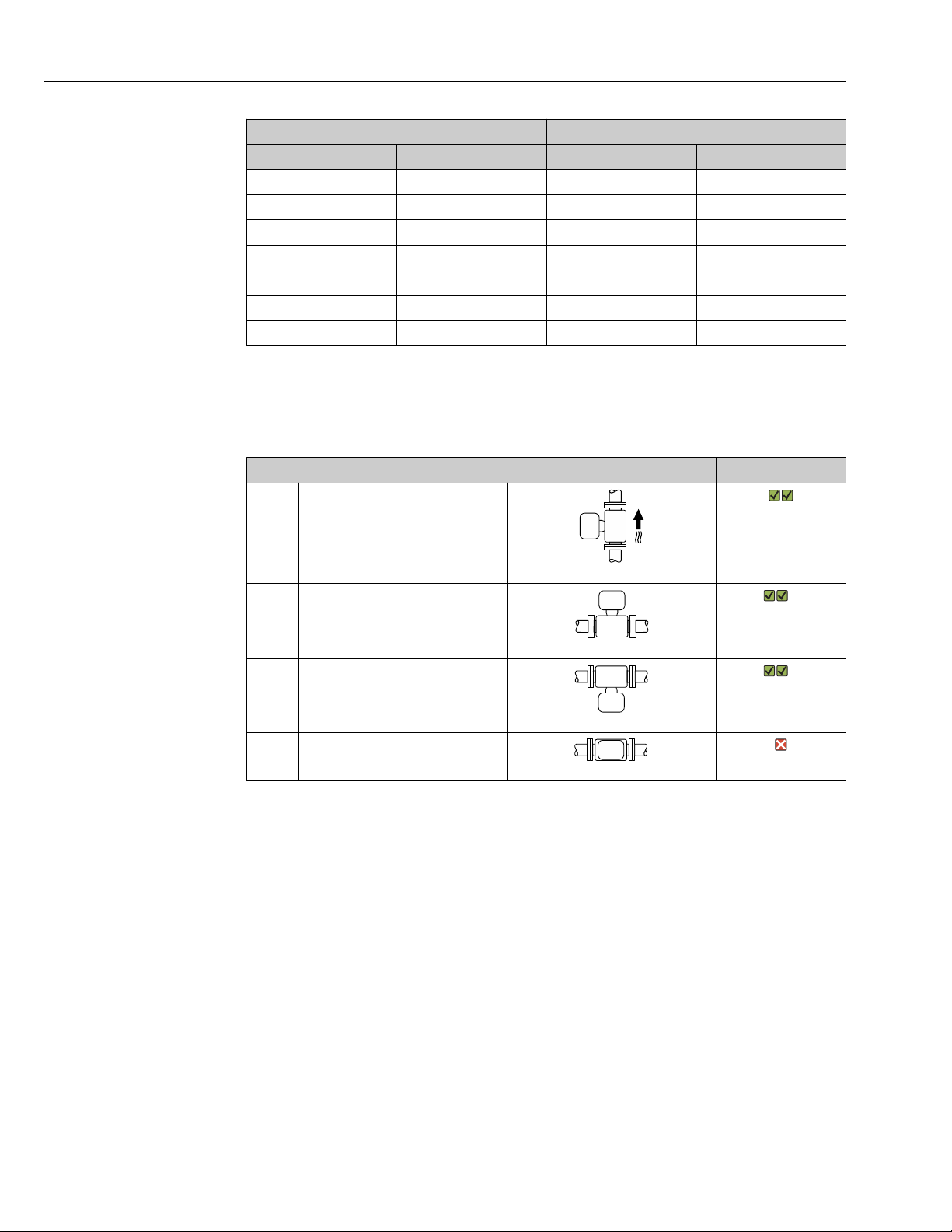

Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor
according to the flow direction (direction of medium flow through the piping).
Orientation Recommendation
A Vertical orientation
A0015591
B Horizontal orientation, transmitter at
top
1)
Exceptions:
→ 7, 27
A0015589
C Horizontal orientation, transmitter at
bottom
2)
Exceptions:
→ 7, 27
A0015590
D Horizontal orientation, transmitter at
side
A0015592
1) Applications with low process temperatures may decrease the ambient temperature. To maintain the
minimum ambient temperature for the transmitter, this orientation is recommended.
2) Applications with high process temperatures may increase the ambient temperature. To maintain the
maximum ambient temperature for the transmitter, this orientation is recommended.
If a sensor is installed horizontally with a curved measuring tube, match the position of the
sensor to the fluid properties.
26
Page 27
Proline Promass F 500 EtherNet/IP Installation
1 2
A0028774

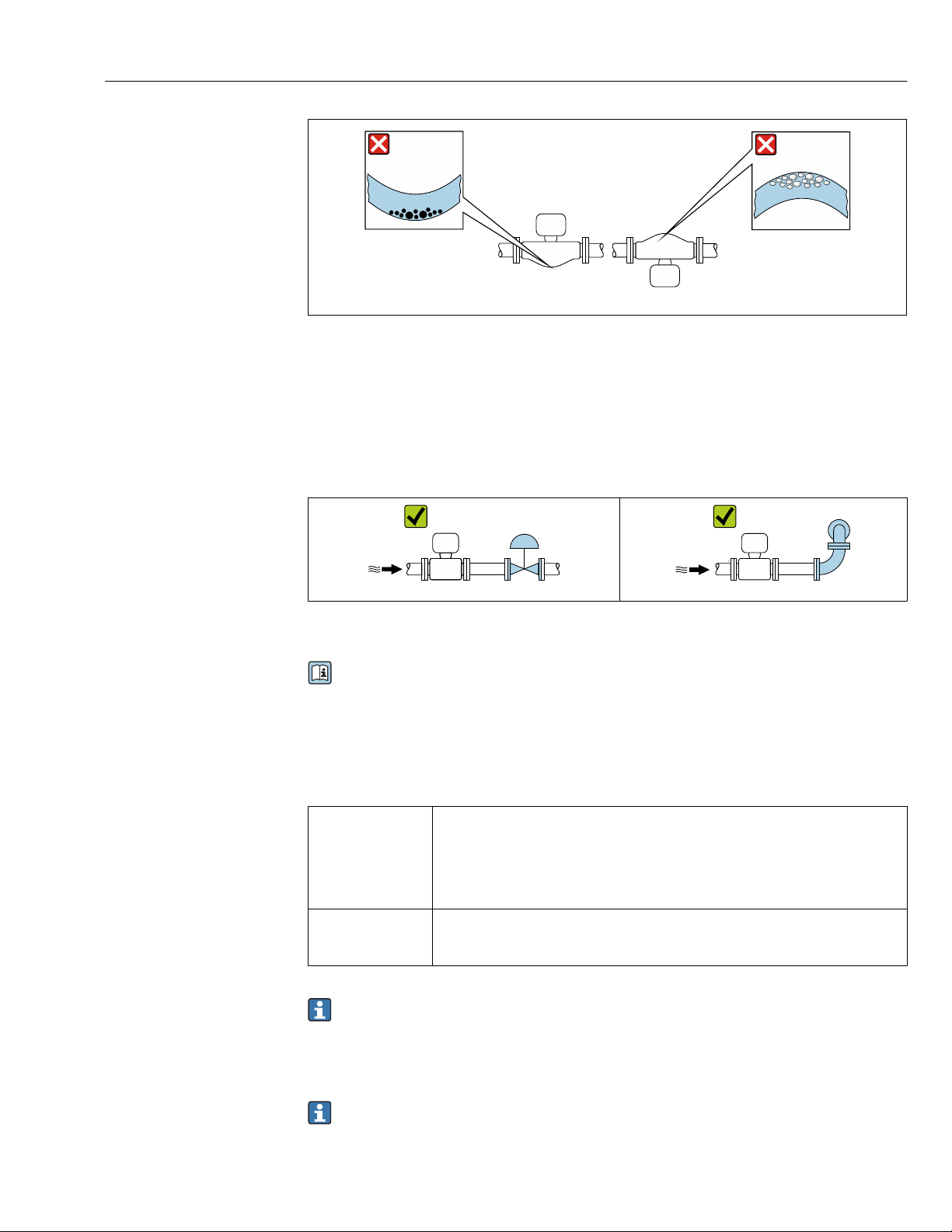

7 Orientation of sensor with curved measuring tube
1 Avoid this orientation for fluids with entrained solids: Risk of solids accumulating.
2 Avoid this orientation for outgassing fluids: Risk of gas accumulating.
Inlet and outlet runs
No special precautions need to be taken for fittings which create turbulence, such as
valves, elbows or T-pieces, as long as no cavitation occurs → 28.
A0029322 A0029323
Installation dimensions
For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section.
6.1.2 Requirements from environment and process
Ambient temperature range
Measuring device • –40 to +60 °C (–40 to +140 °F)
• Order code for "Test, certificate", option JP:
–50 to +60 °C (–58 to +140 °F)
• Order code for "Test, certificate", option JQ:
– Sensor:–60 to +60 °C (–76 to +140 °F)
– Transmitter: –50 to +60 °C (–58 to +140 °F)
Readability of the
local display
Dependency of ambient temperature on medium temperature→ 268
–20 to +60 °C (–4 to +140 °F)
The readability of the display may be impaired at temperatures outside the temperature
range.
If operating outdoors:
‣
Avoid direct sunlight, particularly in warm climatic regions.

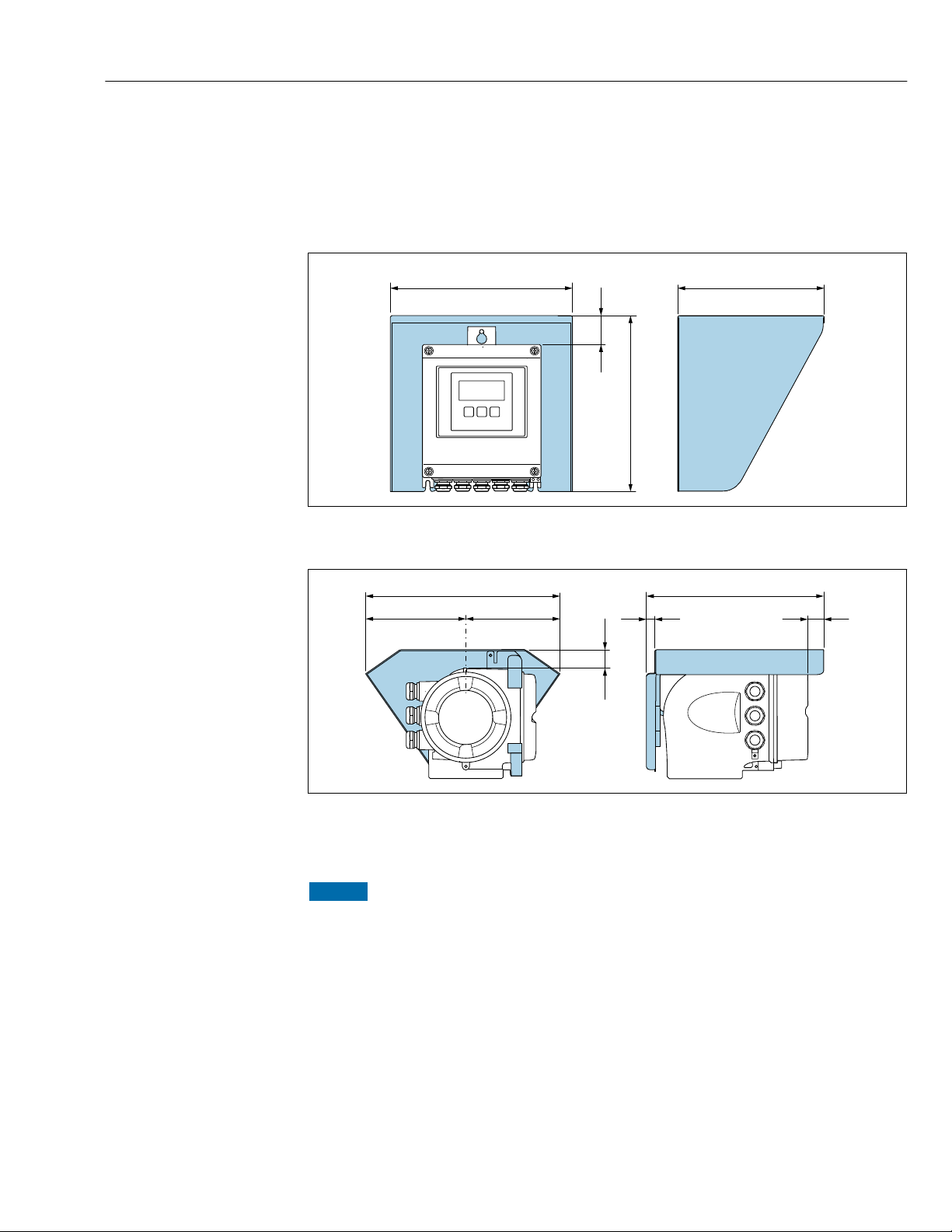

You can order a weather protection cover from Endress+Hauser : → 247
27
Page 28
Installation Proline Promass F 500 EtherNet/IP
System pressure
It is important that cavitation does not occur, or that gases entrained in the liquids do not
outgas.
Cavitation is caused if the pressure drops below the vapor pressure:
• In liquids that have a low boiling point (e.g. hydrocarbons, solvents, liquefied gases)
• In suction lines
Ensure the system pressure is sufficiently high to prevent cavitation and outgassing.
‣
For this reason, the following mounting locations are recommended:
• At the lowest point in a vertical pipe
• Downstream from pumps (no danger of vacuum)
A0028777

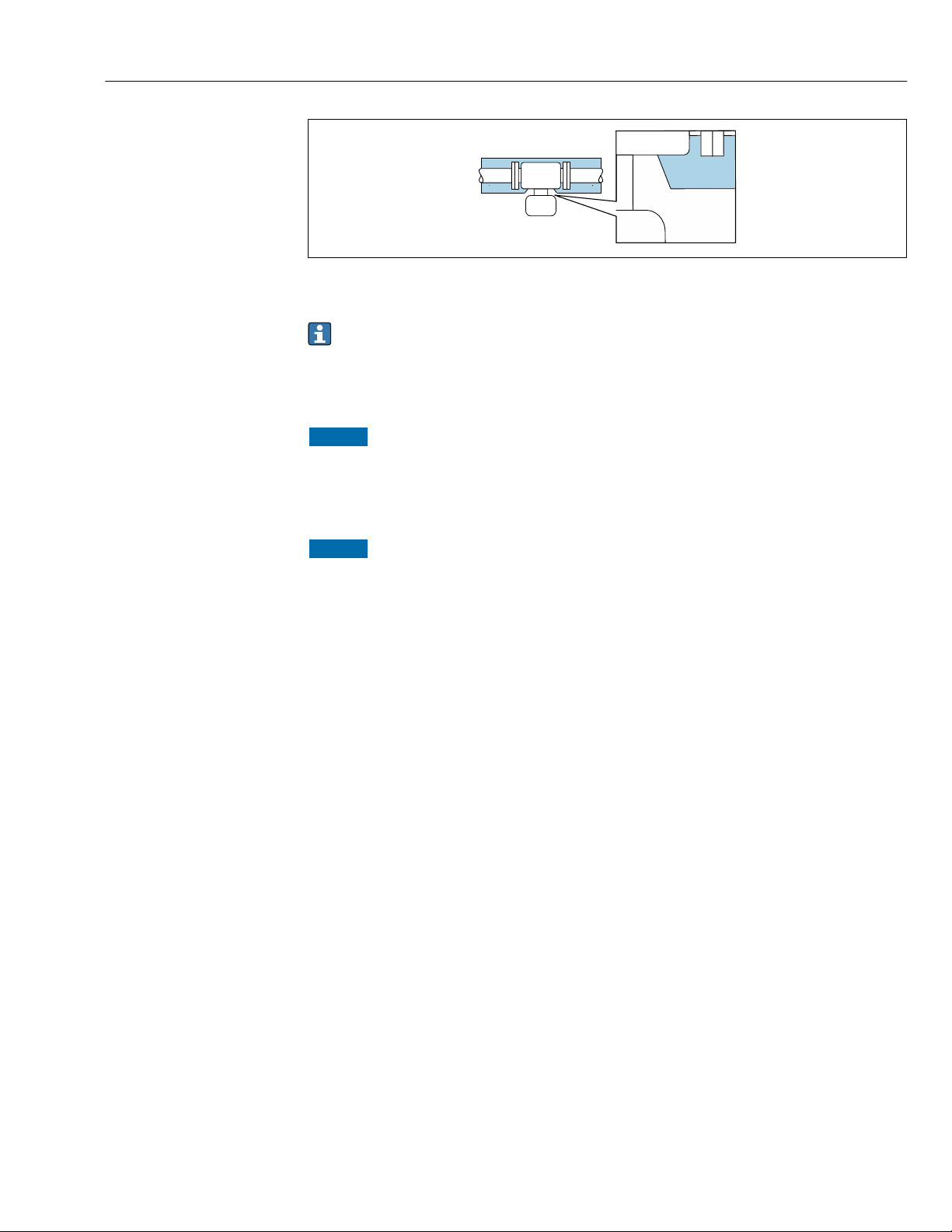

Thermal insulation
In the case of some fluids, it is important to keep the heat radiated from the sensor to the
transmitter to a low level. A wide range of materials can be used for the required
insulation.
The following device versions are recommended for versions with thermal insulation:
• Version with extended neck for insulation:
Order code for "Sensor option", option CG with an extended neck length of
105 mm (4.13 in).
• Extended temperature version:
Order code for "Measuring tube material", option SD, SE, SF or TH with an extended neck
length of 105 mm (4.13 in).
• High-temperature version:
Order code for "Measuring tube material", option TT or TU with an extended neck length
of 142 mm (5.59 in).
NOTICE
Electronics overheating on account of thermal insulation!
Recommended orientation: horizontal orientation, sensor connection housing pointing
‣
downwards.
Do not insulate the sensor connection housing.
‣
Maximum permissible temperature at the lower end of the sensor connection housing:
‣
80 °C (176 °F)
Thermal insulation with extended neck free: the insulation is omitted around the
‣
extended neck. We recommend that you do not insulate the extended neck in order to
ensure optimum dissipation of heat.
28
Page 29
Proline Promass F 500 EtherNet/IP Installation
A0034391
8 Thermal insulation with extended neck free
Low-temperature version: It is generally not necessary to insulate the sensor
connection housing. If insulation is provided, the rules that apply are the same as
those for thermal insulation.
Heating
NOTICE
Electronics can overheat due to elevated ambient temperature!
Observe maximum permitted ambient temperature for the transmitter .
‣
Depending on the fluid temperature, take the device orientation requirements into
‣
account .
NOTICE
Danger of overheating when heating
Ensure that the temperature at the lower end of the transmitter housing does not
‣
exceed 80 °C (176 °F).
Ensure that convection takes place on a sufficiently large scale at the transmitter neck.
‣
Ensure that a sufficiently large area of the housing support remains exposed. The
‣
uncovered part serves as a radiator and protects the electronics from overheating and
excessive cooling.
Heating options
If a fluid requires that no heat loss should occur at the sensor, users can avail of the
following heating options:
• Electrical heating, e.g. with electric band heaters
• Via pipes carrying hot water or steam
• Via heating jackets
Using an electrical trace heating system
If heating is regulated via phase angle control or pulse packages, magnetic fields can affect
the measured values (= for values that are greater than the values permitted by the EN
standard (sine 30 A/m)).
For this reason, the sensor must be magnetically shielded: the housing can be shielded
with tin plates or electric sheets without a privileged direction (e.g. V330-35A).
The sheet must have the following properties:
• Relative magnetic permeability µr ≥ 300
• Plate thickness d ≥ 0.35 mm (d ≥ 0.014 in)
Vibrations
The high oscillation frequency of the measuring tubes ensures that the correct operation of
the measuring system is not influenced by plant vibrations.
29
Page 30
Installation Proline Promass F 500 EtherNet/IP
RUPTURE DISK
i
2
3
1
2
3
6.1.3 Special mounting instructions
Rupture disk
Information that is relevant to the process: → 271.
WARNING
L
Limited functional reliability of the rupture disk.
Danger to persons from escaping fluids!
Do not remove the rupture disk.
‣
When using a rupture disk, do not use a heating jacket.
‣
Make sure that the function and operation of the rupture disk is not impeded through
‣
the installation of the device.
Take precautions to prevent damage and danger to persons if the rupture disk is
‣
actuated.
Observe information on the rupture disk sticker.
‣
The position of the rupture disk is indicated on a sticker beside it.
The transportation guard must be removed.
For information on the dimensions: see the "Mechanical construction" section
The existing connecting nozzles are not intended for the purpose of rinsing or pressure
monitoring, but instead serve as the mounting location for the rupture disk.
In the event of a failure of the rupture disk, a discharge device can be screwed onto the
internal thread of the rupture disk in order to drain off any escaping medium.
1 Rupture disk label
2 Rupture disk with 1/2" NPT internal thread with 1" width across flat
3 Transport protection
A0028903
30
Zero point adjustment
All measuring devices are calibrated in accordance with state-of-the-art technology.
Calibration takes place under reference conditions→ 261. Therefore, a zero point
adjustment in the field is generally not required.
Page 31
Proline Promass F 500 EtherNet/IP Installation
213 (8.4)
39 (1.5)
243 (9.6)
203 (8.0)
146 (5.75)
48 (1.9)
12 (0.47)
280 (11.0) 255 (10.0)
134 (5.3)
30 (1.18)
Experience shows that zero point adjustment is advisable only in special cases:
• To achieve maximum measuring accuracy even with low flow rates.
• Under extreme process or operating conditions (e.g. very high process temperatures or
very high-viscosity fluids).
Protective cover
A0029552
9 Weather protection cover for Proline 500 – digital
10 Weather protection cover for Proline 500

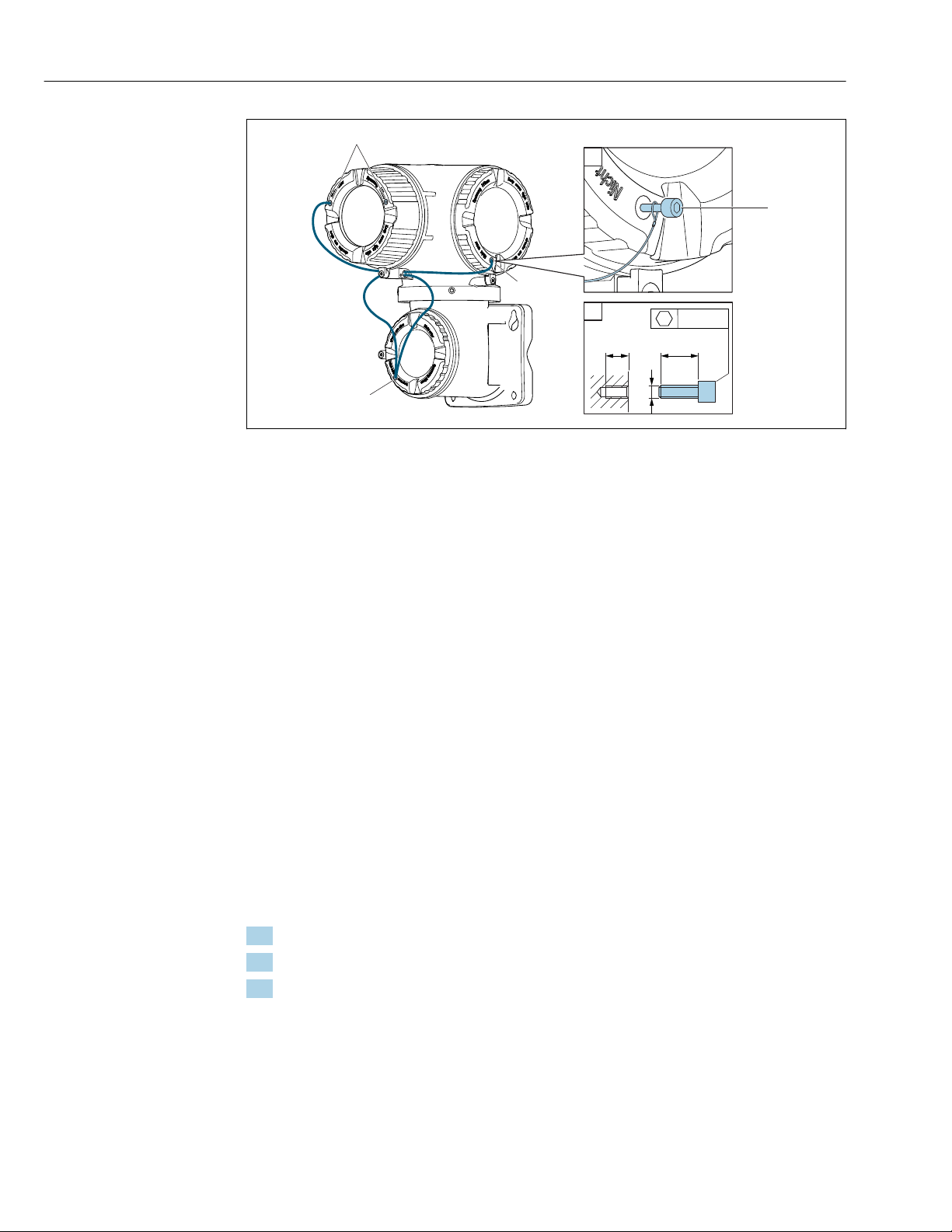

Cover locking: Proline 500
NOTICE
Order code "Transmitter housing", option L "Cast, stainless": The covers of the
transmitter housing are provided with a borehole to lock the cover.
The cover can be locked using screws and a chain or cable provided by the customer.
It is recommended to use stainless steel cables or chains.
‣
If a protective coating is applied, it is recommended to use a heat shrink tube to protect
‣
the housing paint.
A0029553
31
Page 32
Installation Proline Promass F 500 EtherNet/IP
1
1
2
2
1
1
5 (0.2) min. 15 (0.6)
SW 2.5
M3
A0029799
1 Cover borehole for the securing screw
2 Securing screw to lock the cover
6.2 Mounting the measuring device
6.2.1 Required tools
For transmitter
For mounting on a post:
• Proline 500 – digital transmitter
– Open-ended wrench AF 10
– Torx screwdriver TX 25
• Proline 500 transmitter
Open-ended wrench AF 13
For wall mounting:
Drill with drill bit ⌀ 6.0 mm
For sensor
For flanges and other process connections: Corresponding mounting tools
6.2.2 Preparing the measuring device
1. Remove all remaining transport packaging.
2. Remove any protective covers or protective caps present from the sensor.
3. Remove stick-on label on the electronics compartment cover.
32
Page 33
Proline Promass F 500 EtherNet/IP Installation
6.2.3 Mounting the measuring device
WARNING
L
Danger due to improper process sealing!
Ensure that the inside diameters of the gaskets are greater than or equal to that of the
‣
process connections and piping.
Ensure that the gaskets are clean and undamaged.
‣
Install the gaskets correctly.
‣
1. Ensure that the direction of the arrow on the nameplate of the sensor matches the
flow direction of the fluid.
2. Install the measuring device or turn the transmitter housing so that the cable entries
do not point upwards.
6.2.4 Mounting the transmitter housing: Proline 500 – digital
CAUTION
L
Ambient temperature too high!
Danger of electronics overheating and housing deformation.
Do not exceed the permitted maximum ambient temperature .
‣
If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in
‣
warm climatic regions.
CAUTION
L
Excessive force can damage the housing!
Avoid excessive mechanical stress.
‣
The transmitter can be mounted in the following ways:
• Post mounting
• Wall mounting
Post mounting
WARNING
L
Excessive tightening torque applied to the fixing screws!
Risk of damaging the plastic transmitter.
Tighten the fixing screws as per the tightening torque: 2 Nm (1.5 lbf ft)
‣
A0029263
33
Page 34
Installation Proline Promass F 500 EtherNet/IP
ø 20…70
( 0.79…2.75)ø
~102 (~ 4.0)
4 x
SW 10
3 x
TX 25
149 (5.85)
211 (8.31)
=
5.8 (0.23)
17 (0.67) =
L
5.8 (0.23)
A0029051
11 Engineering unit mm (in)
Wall mounting
12 Engineering unit mm (in)
L Depends on order code for "Transmitter housing"
A0029054
34
Order code for "Transmitter housing"
• Option A, aluminum coated: L =14 mm (0.55 in)
• Option D, polycarbonate: L = 13 mm (0.51 in)
1. Drill the holes.
2. Insert wall plugs into the drilled holes.
3. Screw in the securing screws slightly at first.
Page 35
Proline Promass F 500 EtherNet/IP Installation
20 (0.79)
100 (3.94)
100 (3.94)
! 8.6 (0.39)
! 18 (0.71)
! 10 (0.39)
4. Fit the transmitter housing over the securing screws and mount in place.
5. Tighten the securing screws.
6.2.5 Mounting the transmitter housing: Proline 500
CAUTION
L
Ambient temperature too high!
Danger of electronics overheating and housing deformation.
Do not exceed the permitted maximum ambient temperature .
‣
If operating outdoors: Avoid direct sunlight and exposure to weathering, particularly in
‣
warm climatic regions.
CAUTION
L
Excessive force can damage the housing!
Avoid excessive mechanical stress.
‣
The transmitter can be mounted in the following ways:
• Post mounting
• Wall mounting
Wall mounting
13 Engineering unit mm (in)
1. Drill the holes.
2. Insert wall plugs into the drilled holes.
3. Screw in the securing screws slightly at first.
4. Fit the transmitter housing over the securing screws and mount in place.
5. Tighten the securing screws.
A0029068
35
Page 36
Installation Proline Promass F 500 EtherNet/IP
4 x
SW 13
! … (! 0.79 to 2.75)20 70
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
1.
2.
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
3.
3 mm 4 mm
4.
Post mounting
WARNING
L
Order code for "Transmitter housing", option L "Cast, stainless": cast transmitters are
very heavy.
They are unstable if they are not mounted on a secure, fixed post.
Only mount the transmitter on a secure, fixed post on a stable surface.
‣
36
14 Engineering unit mm (in)
6.2.6 Turning the transmitter housing: Proline 500
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned.
1. Depending on the device version: Loosen the securing clamp of the connection
compartment cover.
2. Unscrew the connection compartment cover.
3. Release the fixing screw.
4. Turn the housing to the desired position.
A0029057
A0029993
Page 37
Proline Promass F 500 EtherNet/IP Installation
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
1.
2.
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
3.
3 mm
+
E
ESC
–
5. Firmly tighten the securing screw.
6. Screw on the connection compartment cover
7. Depending on the device version: Attach the securing clamp of the connection
compartment cover.
6.2.7 Turning the display module: Proline 500
The display module can be turned to optimize display readability and operability.
A0030035
1. Depending on the device version: Loosen the securing clamp of the connection
compartment cover.
2. Unscrew the connection compartment cover.
3. Turn the display module to the desired position: max. 8 × 45° in each direction.
4. Screw on the connection compartment cover.
5. Depending on the device version: Attach the securing clamp of the connection
compartment cover.
6.3 Post-installation check
Is the device undamaged (visual inspection)?
Does the measuring device conform to the measuring point specifications?
For example:
• Process temperature → 268
• Process pressure (refer to the section on "Pressure-temperature ratings" in the "Technical
Information" document)
• Ambient temperature
• Measuring range
Has the correct orientation for the sensor been selected ?
• According to sensor type
• According to medium temperature
• According to medium properties (outgassing, with entrained solids)
Does the arrow on the sensor nameplate match the direction of flow of the fluid through the
piping → 26?
Are the measuring point identification and labeling correct (visual inspection)?
Is the device adequately protected from precipitation and direct sunlight?
Are the securing screw and securing clamp tightened securely?
37
Page 38
Electrical connection Proline Promass F 500 EtherNet/IP
7 Electrical connection
NOTICE
The measuring device does not have an internal circuit breaker.
For this reason, assign the measuring device a switch or power-circuit breaker so that
‣
the power supply line can be easily disconnected from the mains.
Although the measuring device is equipped with a fuse, additional overcurrent
‣
protection (maximum 10 A) should be integrated into the system installation.
7.1 Connection conditions
7.1.1 Required tools
• For cable entries: Use corresponding tools
• For securing clamp: Allen key 3 mm
• Wire stripper
• When using stranded cables: crimper for wire end ferrule

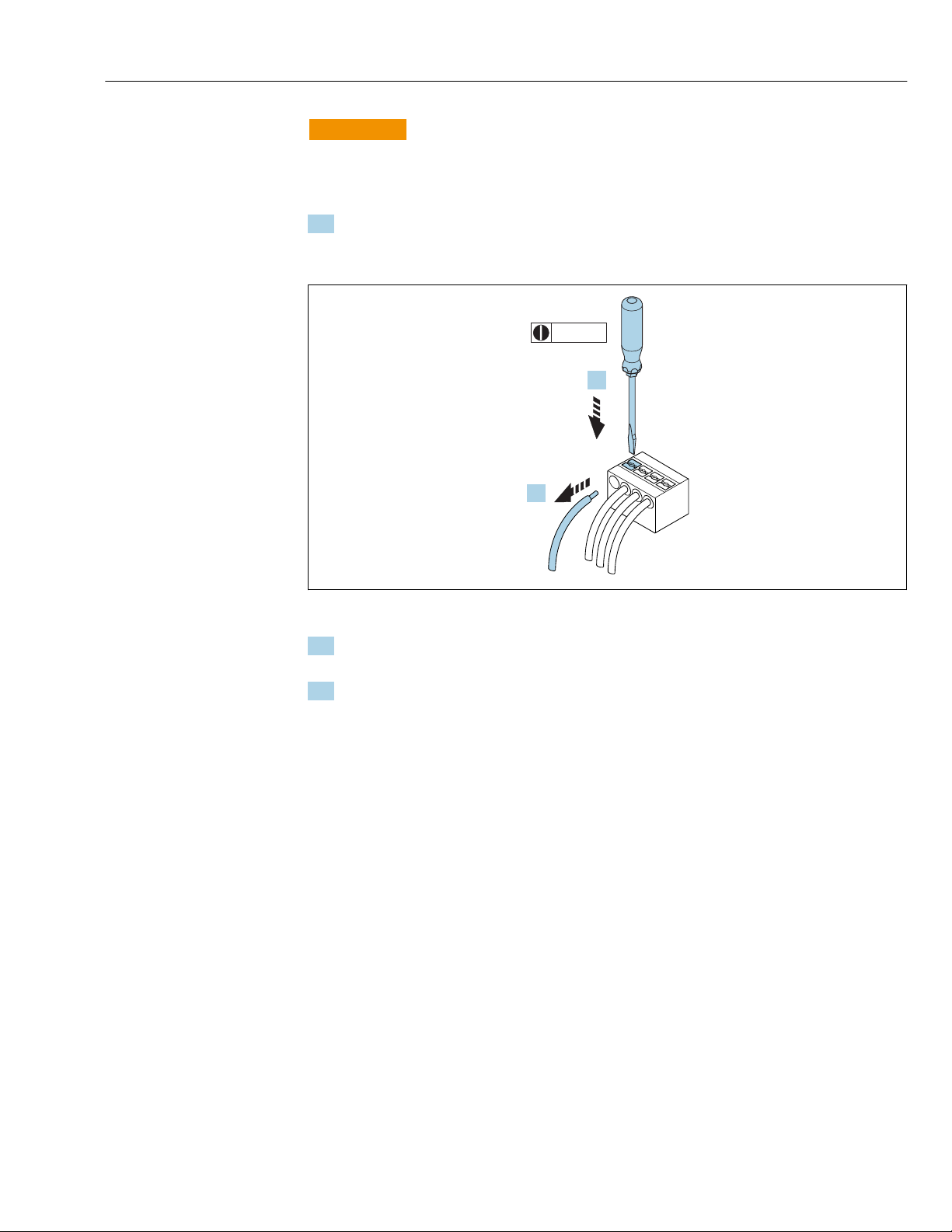

• For removing cables from terminal: Flat blade screwdriver ≤ 3 mm (0.12 in)
7.1.2 Requirements for connecting cable
The connecting cables provided by the customer must fulfill the following requirements.
Electrical safety
In accordance with applicable federal/national regulations.
Protective ground cable
Cable: 2.1 mm2 (14 AWG)
The grounding impedance must be less than 1 Ω.
Permitted temperature range
• The installation guidelines that apply in the country of installation must be observed.
• The cables must be suitable for the minimum and maximum temperatures to be
expected.
Power supply cable
Standard installation cable is sufficient.
Signal cable
EtherNet/IP
The standard ANSI/TIA/EIA-568-B.2 Annex specifies CAT 5 as the minimum category for
a cable used for EtherNet/IP. CAT 5e and CAT 6 are recommended.
For more information on planning and installing EtherNet/IP networks, please refer
to the "Media Planning and Installation Manual. EtherNet/IP" of ODVA Organization
38
Current output 0/4 to 20 mA
Standard installation cable is sufficient.
Page 39
Proline Promass F 500 EtherNet/IP Electrical connection
Pulse/frequency/switch output
Standard installation cable is sufficient.
Relay output
Standard installation cable is sufficient.
Current input 0/4 to 20 mA
Standard installation cable is sufficient.
Status input
Standard installation cable is sufficient.
Cable diameter
• Cable glands supplied:
M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in)
• Spring-loaded terminals: Suitable for strands and strands with ferrules.
Conductor cross-section 0.2 to 2.5 mm2 (24 to 12 AWG).
Choice of connecting cable between the transmitter and sensor
Depends on the type of transmitter and the installation zones
39
Page 40
Electrical connection Proline Promass F 500 EtherNet/IP
2
3
C
1
3
B
1
3
A
1
3
A
1
3
B
2
3
C
4
5
6
A0032476

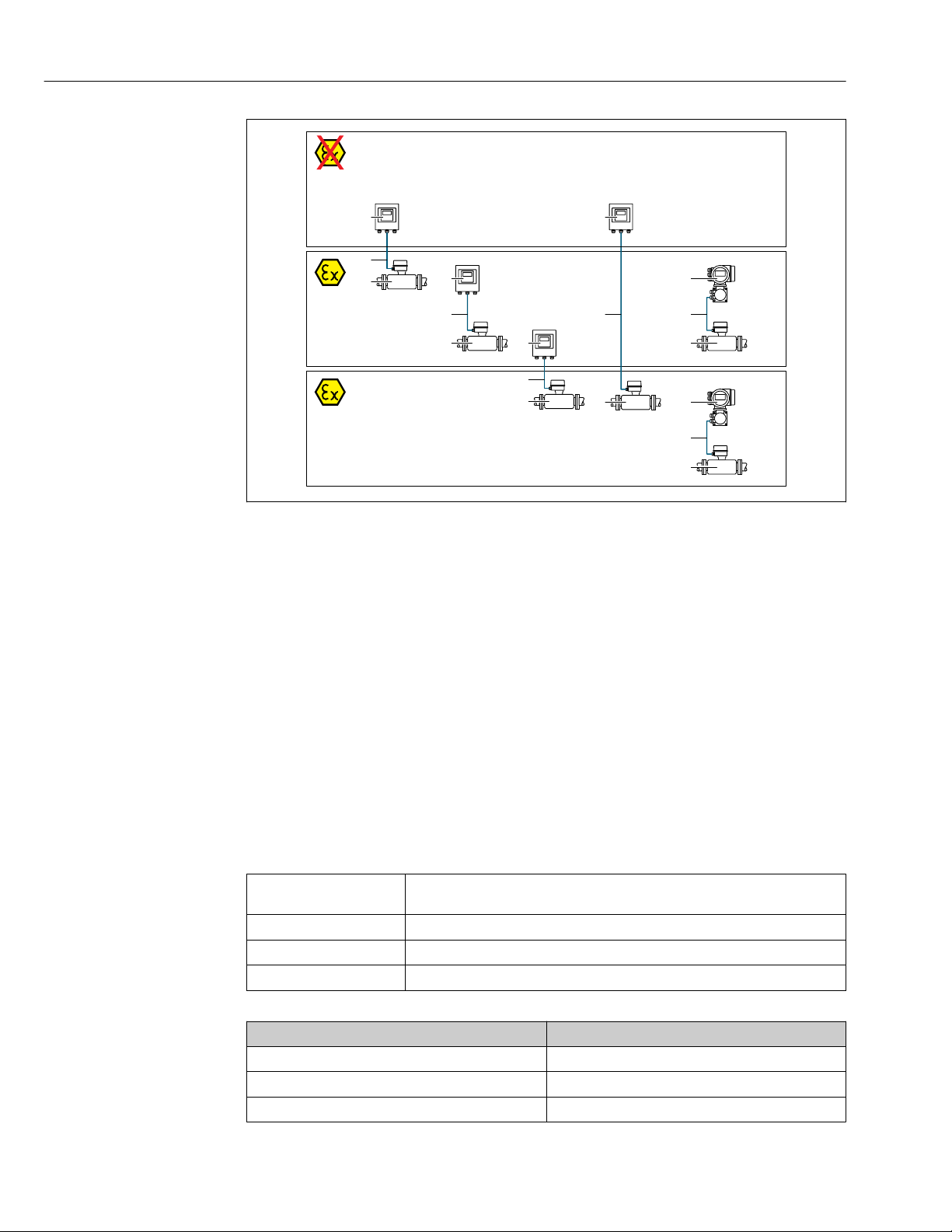

1 Proline 500 digital transmitter
2 Proline 500 transmitter
3 Promass sensor
4 Non-hazardous area
5 Hazardous area: Zone 2; Class I, Division 2
6 Hazardous area: Zone 1; Class I, Division 1
A Standard cable to 500 digital transmitter → 40
Transmitter installed in the non-hazardous area or hazardous area: Zone 2; Class I, Division 2 / sensor
installed in the hazardous area: Zone 2; Class I, Division 2
B Standard cable to 500 digital transmitter → 41
Transmitter installed in the hazardous area: Zone 2; Class I, Division 2 / sensor installed in the hazardous
area: Zone 1; Class I, Division 1
C Signal cable to 500 transmitter → 43
Transmitter and sensor installed in the hazardous area: Zone 2; Class I, Division 2 oder Zone 1;
Class I, Division 1
A: Connecting cable between sensor and transmitter: Proline 500 – digital
Standard cable
A standard cable with the following specifications can be used as the connecting cable.
Design 4 cores (2 pairs); uninsulated stranded CU wires; pair-stranded with common
shield
40
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Loop resistance Power supply line (+, –): maximum 10 Ω
Cable length Maximum 300 m (1 000 ft), see the following table.
Cross-section Cable length [max.]
0.34 mm2 (AWG 22) 80 m (270 ft)
0.50 mm2 (AWG 20) 120 m (400 ft)
0.75 mm2 (AWG 18) 180 m (600 ft)
Page 41
Proline Promass F 500 EtherNet/IP Electrical connection
Cross-section Cable length [max.]
1.00 mm2 (AWG 17) 240 m (800 ft)
1.50 mm2 (AWG 15) 300 m (1 000 ft)
Optionally available connecting cable
Design
Flame resistance According to DIN EN 60332-1-2
Oil-resistance According to DIN EN 60811-2-1
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Operating temperature When mounted in a fixed position: –50 to +105 °C (–58 to +221 °F); when cable
Available cable length Fixed: 20 m (65 ft); variable: up to maximum 50 m (165 ft)
1) UV radiation can impair the cable outer sheath. Protect the cable from direct sunshine where possible.
2 × 2 × 0.34 mm2 (AWG 22) PVC cable
uninsulated stranded CU wires; pair-stranded)
can move freely: –25 to +105 °C (–13 to +221 °F)
1)
with common shield (2 pairs,
B: Connecting cable between sensor and transmitter: Proline 500 - digital
Standard cable
A standard cable with the following specifications can be used as the connecting cable.
Design 4, 6, 8 cores (2, 3, 4 pairs); uninsulated stranded CU wires; pair-stranded with
common shield
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Capacitance C Maximum 760 nF IIC, maximum 4.2 µF IIB
Inductance L Maximum 26 µH IIC, maximum 104 µH IIB
Inductance/resistance
ratio (L/R)
Loop resistance Power supply line (+, –): maximum 5 Ω
Cable length Maximum 150 m (500 ft), see the following table.
Maximum 8.9 µH/Ω IIC, maximum 35.6 µH/Ω IIB (e.g. in accordance with IEC
60079-25)
41
Page 42
Electrical connection Proline Promass F 500 EtherNet/IP
A
B
A
B
A
B

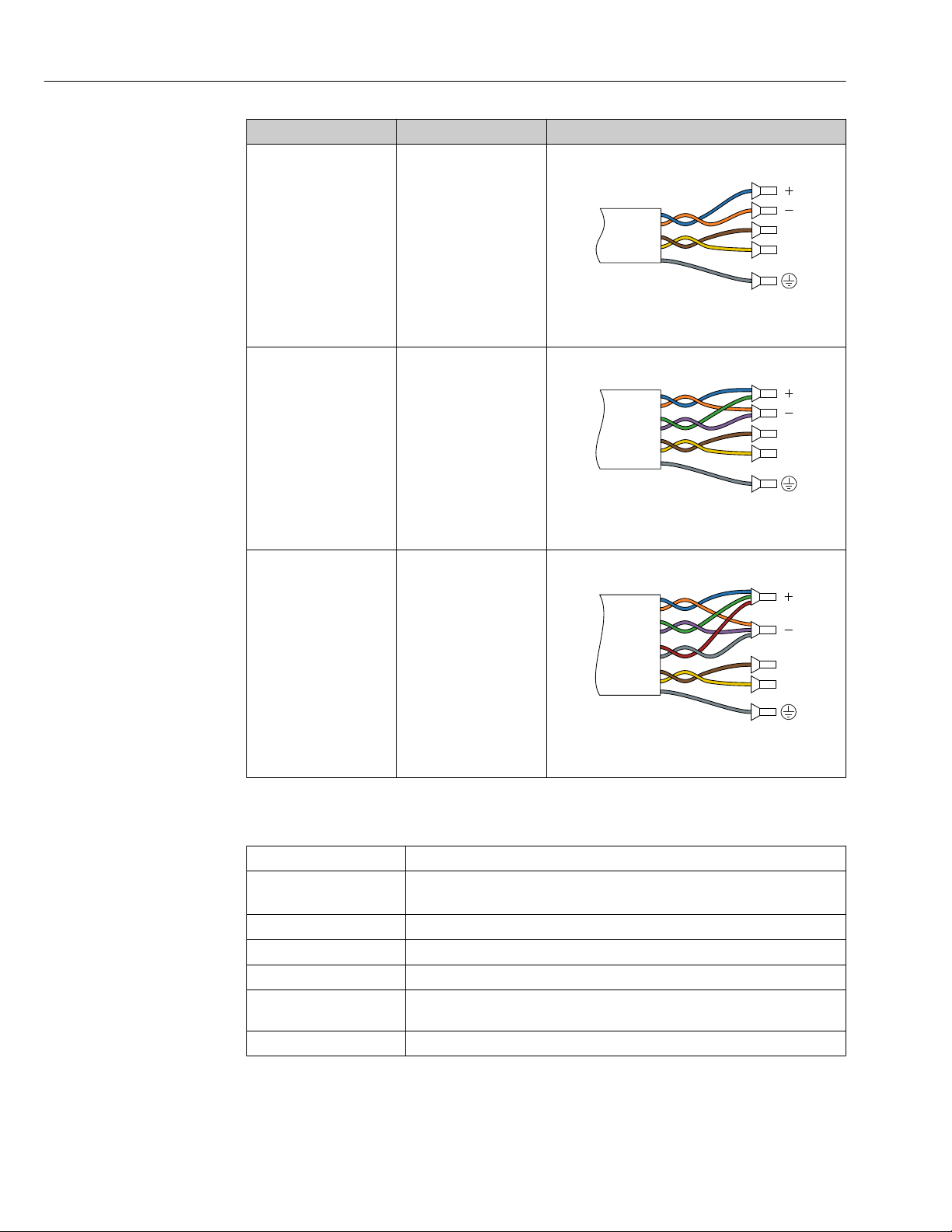

Cross-section Cable length [max.] Termination
2 x 2 x 0.50 mm
(AWG 22)
2
50 m (165 ft) 2 x 2 x 0.50 mm2 (AWG 22)
3 x 2 x 0.50 mm
(AWG 22)
4 x 2 x 0.50 mm
(AWG 22)
• +, – = 0.5 mm
• A, B = 0.5 mm
2
100 m (330 ft) 3 x 2 x 0.50 mm2 (AWG 22)
• +, – = 1.0 mm
• A, B = 0.5 mm
2
150 m (500 ft) 4 x 2 x 0.50 mm2 (AWG 22)
• +, – = 1.5 mm
• A, B = 0.5 mm
2
2
2
2
2
2
42
Optionally available connecting cable
Connecting cable for Zone 1; Class I, Division 1
Standard cable
2 × 2 × 0.5 mm2 (AWG 20) PVC cable
stranded)
Flame resistance According to DIN EN 60332-1-2
Oil-resistance According to DIN EN 60811-2-1
Shielding Tin-plated copper-braid, optical cover ≥ 85 %
Operating temperature When mounted in a fixed position: –50 to +105 °C (–58 to +221 °F); when cable
can move freely: –25 to +105 °C (–13 to +221 °F)
Available cable length Fixed: 20 m (65 ft); variable: up to maximum 50 m (165 ft)
1) UV radiation can impair the cable outer sheath. Protect the cable from direct sunshine where possible.
1)
with common shield (2 pairs, pair-
Page 43
Proline Promass F 500 EtherNet/IP Electrical connection
C: Connecting cable between sensor and transmitter: Proline 500
Standard cable 6 × 0.38 mm2 PVC cable
cores
Conductor resistance ≤50 Ω/km (0.015 Ω/ft)
Capacitance: core/shield ≤420 pF/m (128 pF/ft)
Cable length (max.) 20 m (65 ft)
Cable lengths (available for
order)
Operating temperature Depends on the device version and how the cable is installed:
1) UV radiation can impair the cable outer sheath. Protect the cable from direct sunshine where possible.
5 m (15 ft), 10 m (32 ft), 20 m (65 ft)
• Standard version:
– Cable - fixed installation: –40 to +105 °C (–40 to +221 °F)
– Cable - movable: –25 to +105 °C (–13 to +221 °F)
• Order code for "Test, certificate", option JP:
– Cable - fixed installation: –50 to +105 °C (–58 to +221 °F)
– Cable - movable: –25 to +105 °C (–13 to +221 °F)
• Order code for "Test, certificate", option JQ:
– Cable - fixed installation: –60 to +105 °C (–76 to +221 °F)
– Cable - movable: –25 to +105 °C (–13 to +221 °F)
1)
with common shield and individually shielded
7.1.3 Terminal assignment
Transmitter: supply voltage, input/outputs
The terminal assignment of the inputs and outputs depends on the individual order
version of the device. The device-specific terminal assignment is documented on an
adhesive label in the terminal cover.
Supply voltage Input/output
1
1 (+) 2 (–) EtherNet/IP
(RJ45 Stecker)
Input/output
2
24 (+) 25 (–) 22 (+) 23 (–) 20 (+) 21 (–)
Device-specific terminal assignment: adhesive label in terminal
Input/output
3
cover.
Input/output
4
Transmitter and sensor connection housing: connecting cable
The sensor and transmitter, which are mounted in separate locations, are interconnected
by a connecting cable. The cable is connected via the sensor connection housing and the
transmitter housing.
Terminal assignment and connection of the connecting cable:
• Proline 500 – digital→ 45
• Proline 500 → 56
7.1.4 Device plugs available
Device plugs may not be used in hazardous areas!
43
Page 44
Electrical connection Proline Promass F 500 EtherNet/IP
3
2
4
1
Order code for "Input; output 1", option NA "EtherNet/IP"
Order code for Cable entry/connection
"Electrical connection" 2 3
L, N, P, U Connector M12 × 1 –
1) 2)
1) 2)
1) 2)
R
, S
, T
1) Cannot be combined with an external WLAN antenna (order code for "Enclosed accessories", option P8) of
an RJ45 M12 adapter for the service interface (order code for "Accessories mounted", option NB) or of the
remote display and operating module DKX001
2) Suitable for integrating the device in a ring topology.
, V
1) 2)
Connector M12 × 1 Connector M12 × 1
7.1.5 Pin assignment of device plug
Pin Assignment
1 + Tx
2 + Rx
3 - Tx
4 - Rx
A0016812
Coding Plug/socket
D Socket
7.1.6 Preparing the measuring device
Carry out the steps in the following order:
1. Mount the sensor and transmitter.
2. Connection housing, sensor: Connect connecting cable.
3. Transmitter: Connect connecting cable.
4. Transmitter: Connect signal cable and cable for supply voltage.
NOTICE
Insufficient sealing of the housing!
Operational reliability of the measuring device could be compromised.
Use suitable cable glands corresponding to the degree of protection.
‣
1. Remove dummy plug if present.
2. If the measuring device is supplied without cable glands:
Provide suitable cable gland for corresponding connecting cable.
3. If the measuring device is supplied with cable glands:
Observe requirements for connecting cables → 38.
44
Page 45
Proline Promass F 500 EtherNet/IP Electrical connection
+ – AB
61 62 63 64
+ – AB
61 62 63 64
4
2
1
4
3
5
6
7.2 Connecting the measuring device: Proline 500 digital
NOTICE
Limitation of electrical safety due to incorrect connection!
Have electrical connection work carried out by appropriately trained specialists only.
‣
Observe applicable federal/national installation codes and regulations.
‣
Comply with local workplace safety regulations.
‣
Always connect the protective ground cable before connecting additional cables.
‣
For use in potentially explosive atmospheres, observe the information in the device-
‣
specific Ex documentation.

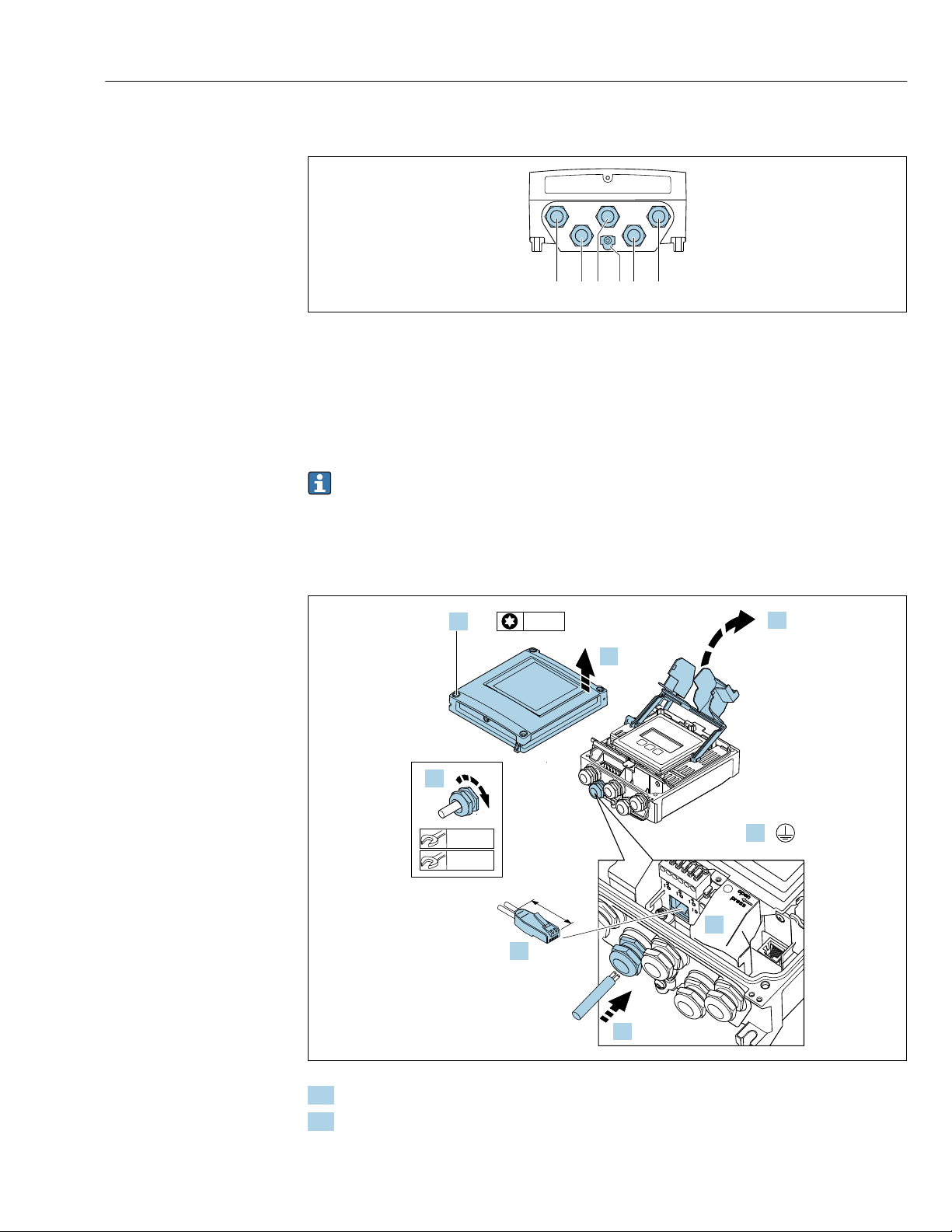

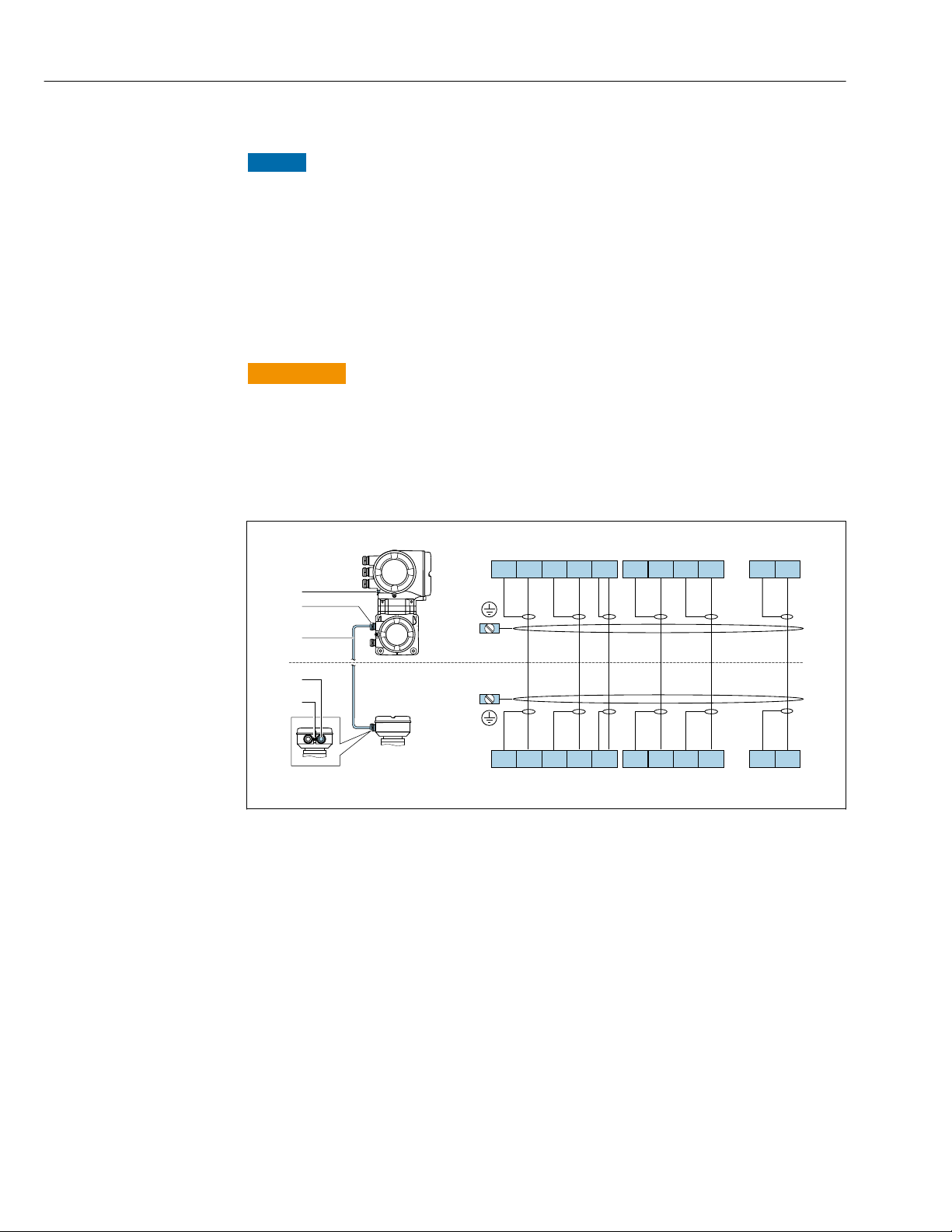

7.2.1 Connecting the connecting cable
WARNING
L
Risk of damaging the electronic components!
Connect the sensor and transmitter to the same potential equalization.
‣
Only connect the sensor to a transmitter with the same serial number.
‣
Ground the connection housing of the sensor via the external screw terminal.
‣
Connecting cable terminal assignment
A0028198
1 Cable entry for cable on transmitter housing
2 Protective earth (PE)
3 Connecting cable ISEM communication
4 Grounding via ground connection; on device plug versions grounding is through the plug itself
5 Cable entry for cable or connection of device plug on sensor connection housing
6 Protective earth (PE)
Connecting the connecting cable to the sensor connection housing
• Connection via terminals with order code for "Sensor connection housing":
– Option A "Aluminum, coated"→ 47
– Option B "Stainless" → 48
– Option L "Cast, stainless"→ 47
• Connection via connectors with order code for "Sensor connection housing":
Option C "Ultra-compact hygienic, stainless"→ 49
45
Page 46
Electrical connection Proline Promass F 500 EtherNet/IP
Connecting the connecting cable to the transmitter
The cable is connected to the transmitter via terminals → 50.
46
Page 47
Proline Promass F 500 EtherNet/IP Electrical connection
2.
1.
3.
6.
5.
3 mm
10 (0.4)
TX 20TX 20
22 mm
7.
24 mm

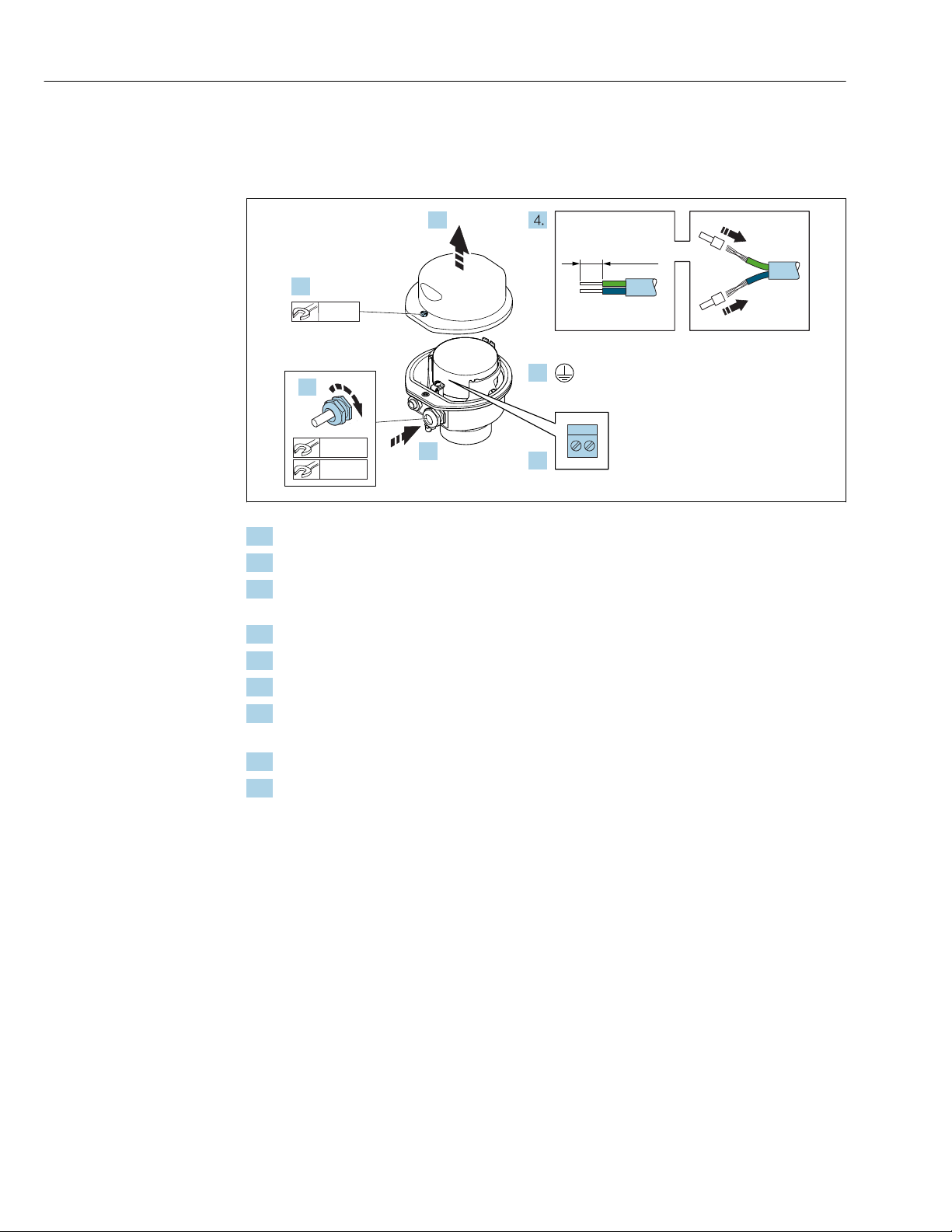

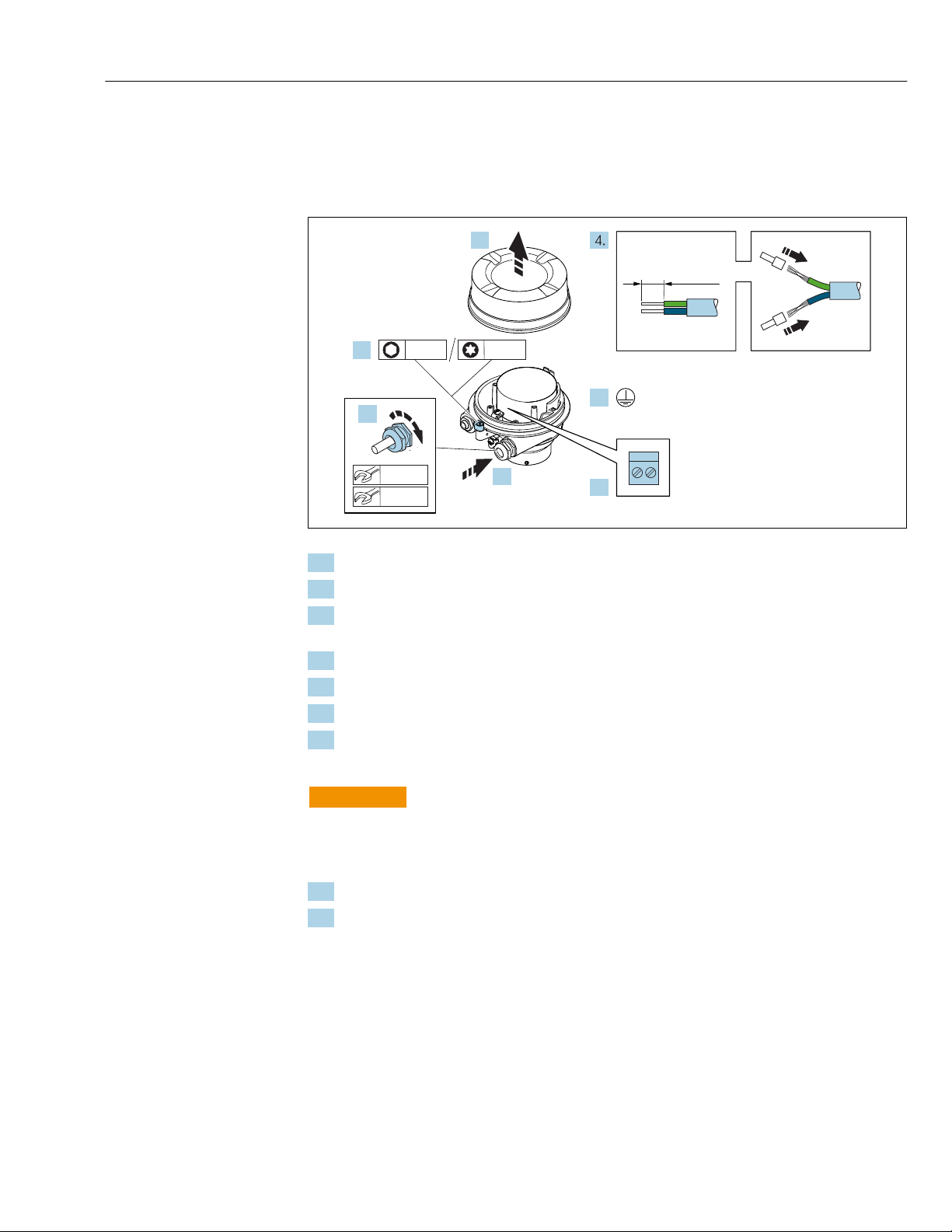

Connecting the sensor connection housing via terminals
For the device version with the order code for "Sensor connection housing":
• Option A "Aluminum coated"
• Option L "Cast, stainless"
A0029616
1. Loosen the securing clamp of the housing cover.
2. Unscrew the housing cover.
3. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.
5. Connect the protective ground.
6. Connect the cable in accordance with the connecting cable terminal assignment.
7. Firmly tighten the cable glands.
This concludes the process for connecting the connecting cable.
WARNING
L
Housing degree of protection voided due to insufficient sealing of the housing.
Screw in the thread on the cover without using any lubricant. The thread on the cover is
‣
coated with a dry lubricant.
8. Screw on the housing cover.
9. Tighten the securing clamp of the housing cover.
47
Page 48
Electrical connection Proline Promass F 500 EtherNet/IP
2.
1.
3.
6.
5.
10 (0.4)
8 mm
22 mm
7.
24 mm
Connecting the sensor connection housing via terminals
For the device version with the order code for "Sensor connection housing":
Option B "Stainless"
A0029613
1. Release the securing screw of the housing cover.
2. Open the housing cover.
3. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.
5. Connect the protective ground.
6. Connect the cable in accordance with the connecting cable terminal assignment.
7. Firmly tighten the cable glands.
This concludes the process for connecting the connecting cable.
8. Close the housing cover.
9. Tighten the securing screw of the housing cover.
48
Page 49
Proline Promass F 500 EtherNet/IP Electrical connection
1.
2.
Connecting the sensor connection housing via the connector
For the device version with the order code for "Sensor connection housing":
Option C "Ultra-compact hygienic, stainless"
A0029615
1. Connect the protective ground.
2. Connect the connector.
49
Page 50
Electrical connection Proline Promass F 500 EtherNet/IP
1.
3.
2.
4.
4 x
5.
7.
TX 20TX 20
6.
10 (0.4)
22 mm
8.
24 mm

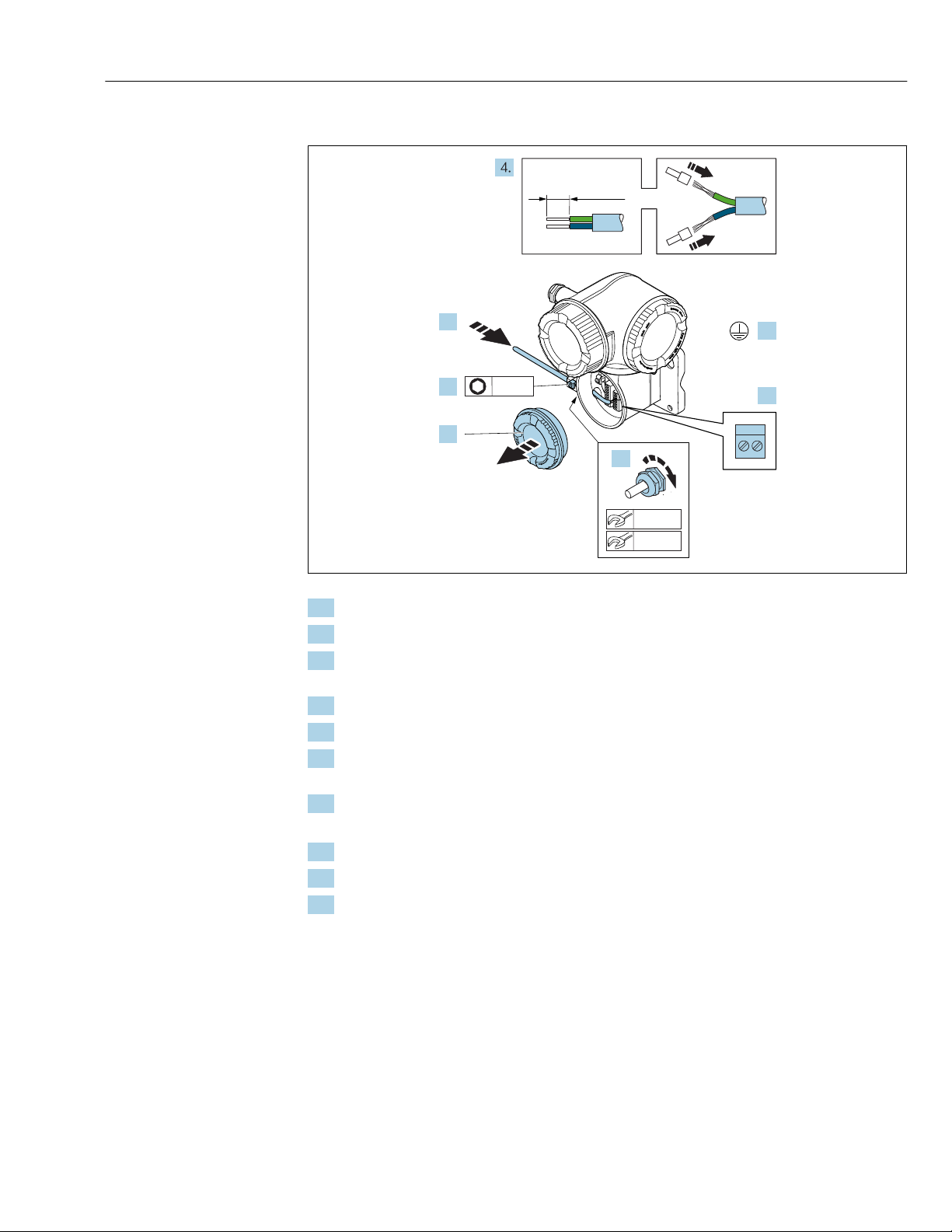

Connecting the connecting cable to the transmitter
A0029597
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. Fold open the terminal cover.
4. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
5. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.
6. Connect the protective ground.
7. Connect the cable in accordance with the connecting cable terminal assignment
→ 45.
8. Firmly tighten the cable glands.
This concludes the process for connecting the connecting cable.
9. Close the housing cover.
10. Tighten the securing screw of the housing cover.
11. After connecting the connecting cable:
Connect the signal cable and the supply voltage cable → 51.
50
Page 51
Proline Promass F 500 EtherNet/IP Electrical connection
1 2 3 4 56
1.
3.
2.
4 x
TX 20TX 20
22 mm
8.
24 mm
5.
6.
4.
≤
42 (1.6)
7.
7.2.2 Connecting the transmitter
A0028200
1 Terminal connection for supply voltage
2 Terminal connection for signal transmission, input/output
3 Terminal connection for signal transmission, input/output
4 Terminal connection for connecting cable between sensor and transmitter
5 Terminal connection for signal transmission, input/output or terminal connection for network connection
(DHCP client) via service interface (CDI-RJ45); optional: connection for external WLAN antenna
6 Protective earth (PE)
In addition to connecting the device via EtherNet/IP and the available inputs/outputs,
additional connection options are also available:
• Integrate into a network via the service interface (CDI-RJ45) → 54.
• Integrate the device into a ring topology → 55.
Connecting the EtherNet/IP connector
A0033987
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
51
Page 52
Electrical connection Proline Promass F 500 EtherNet/IP
1.
3.
2.
4.
4 x
7.
TX 20TX 20
6.
10 (0.4)
22 mm
8.
24 mm
5.
3. Fold open the terminal cover.
4. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
5. Strip the cable and cable ends and connect to the RJ45 connector.
6. Connect the protective ground.
7. Plug in the RJ45 connector.
8. Firmly tighten the cable glands.
This concludes the EtherNet/IP connection process.
Connecting the supply voltage and additional inputs/outputs
A0033831
1. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
2. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.
3. Connect the protective ground.
4. Connect the cable in accordance with the terminal assignment .
Signal cable terminal assignment: The device-specific terminal assignment is
documented on an adhesive label in the terminal cover.
Supply voltage terminal assignment: Adhesive label in the terminal cover or
→ 43.
5. Firmly tighten the cable glands.
This concludes the cable connection process.
6. Close the terminal cover.
7. Close the housing cover.
WARNING
L
Housing degree of protection may be voided due to insufficient sealing of the housing.
Screw in the screw without using any lubricant.
‣
52
Page 53
Proline Promass F 500 EtherNet/IP Electrical connection
3 (0.12)
2.
1.
WARNING
L
Excessive tightening torque applied to the fixing screws!
Risk of damaging the plastic transmitter.
Tighten the fixing screws as per the tightening torque: 2 Nm (1.5 lbf ft)
‣
8. Tighten the 4 fixing screws on the housing cover.
Removing a cable
A0029598
15 Engineering unit mm (in)
1. To remove a cable from the terminal, use a flat-blade screwdriver to push the slot
between the two terminal holes
2. while simultaneously pulling the cable end out of the terminal.
53
Page 54
Electrical connection Proline Promass F 500 EtherNet/IP
Power
open
press
open
press
ESC
E
+
-
I/O 4
Power
I/O 2
I/O 3
≤
42 (1.6)
1
7.2.3 Integrating the transmitter into a network
This section only presents the basic options for integrating the device into a network.
For information on the procedure to follow to connect the transmitter correctly → 45.

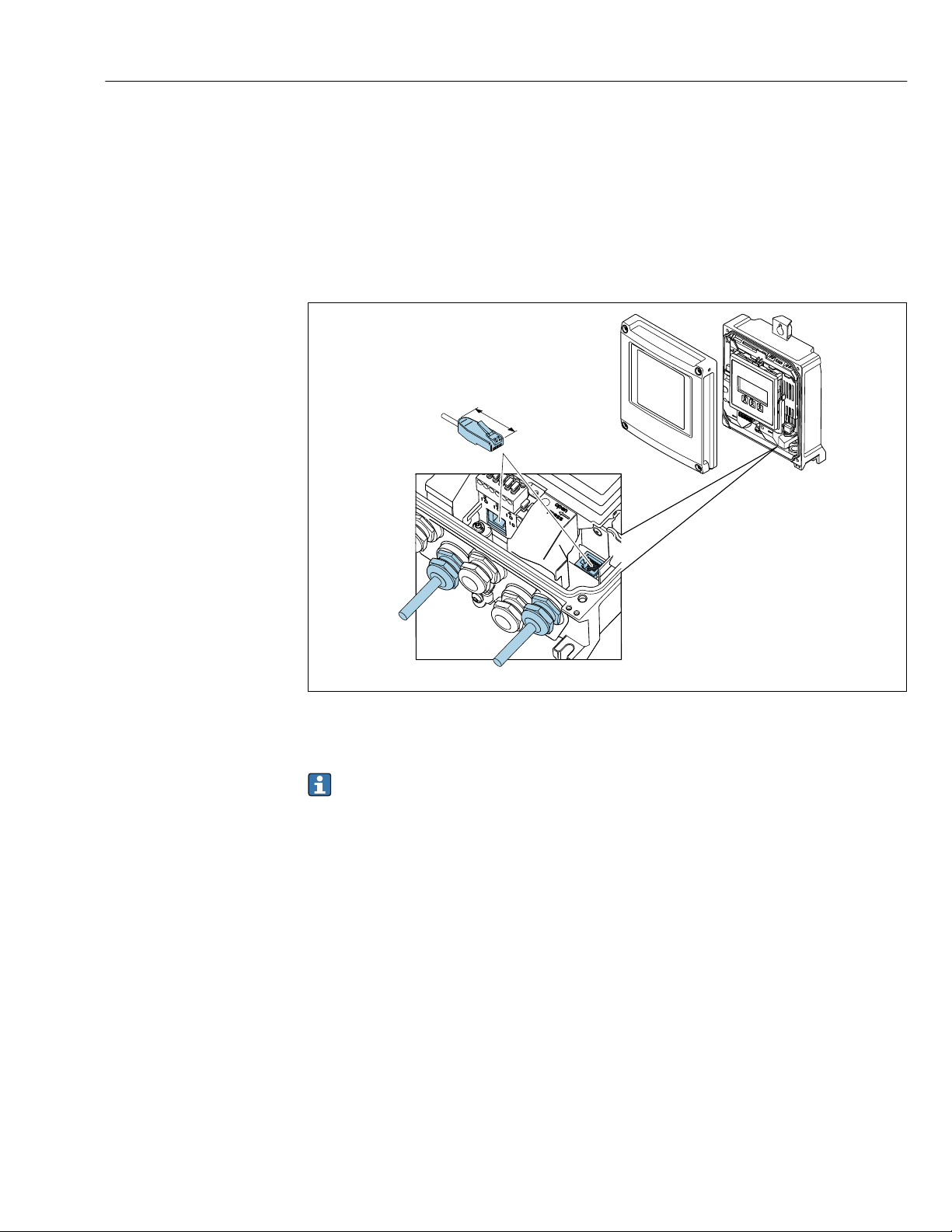

Integrating via the service interface
The device is integrated via the connection to the service interface (CDI-RJ45).
Note the following when connecting:
• Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector
• Maximum cable thickness: 6 mm
• Length of connector including bend protection: 42 mm
• Bending radius: 5 x cable thickness
54
1 Service interface (CDI-RJ45)
An adapter for RJ45 and the M12 connector is optionally available:
Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"
The adapter connects the service interface (CDI-RJ45) to an M12 connector mounted
in the cable entry. Therefore the connection to the service interface can be established
via an M12 connector without opening the device.
A0033832
Page 55
Proline Promass F 500 EtherNet/IP Electrical connection
≤
42 (1.6)
2
Power
open
press
open
press
ESC
E
+
-
I/O 4
Power
I/O 2
I/O 3
Integrating into a ring topology
The device is integrated via the terminal connection for signal transmission (output 1) and
the connection to the service interface (CDI-RJ45).
Note the following when connecting:
• Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector
• Maximum cable thickness: 6 mm
• Length of connector including bend protection: 42 mm
• Bending radius: 2.5 x cable thickness
1 EtherNet/IP connection
2 Service interface (CDI-RJ45)
An adapter for RJ45 and the M12 connector is optionally available:
Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"
The adapter connects the service interface (CDI-RJ45) to an M12 connector mounted
in the cable entry. Therefore the connection to the service interface can be established
via an M12 connector without opening the device.
A0033830
55
Page 56
Electrical connection Proline Promass F 500 EtherNet/IP
4
56
7
8
1112 41
42
S1S1S2S2GNDTMTMTTTT
++++
++++
S1S1S2S2GNDTMTMTTTT
2
ER
+
+
ER
ER
ER
5
1
10
9
456789101112 4142
3
4
7.3 Connecting the measuring device: Proline 500
NOTICE
Limitation of electrical safety due to incorrect connection!
Have electrical connection work carried out by appropriately trained specialists only.
‣
Observe applicable federal/national installation codes and regulations.
‣
Comply with local workplace safety regulations.
‣
Always connect the protective ground cable before connecting additional cables.
‣
For use in potentially explosive atmospheres, observe the information in the device-
‣
specific Ex documentation.
7.3.1 Connecting the connecting cable
WARNING
L
Risk of damaging the electronic components!
Connect the sensor and transmitter to the same potential equalization.
‣
Only connect the sensor to a transmitter with the same serial number.
‣
Ground the connection housing of the sensor via the external screw terminal.
‣
Connecting cable terminal assignment
A0028197
1 Protective earth (PE)
2 Cable entry for connecting cable on transmitter connection housing
3 Connecting cable
4 Cable entry for connecting cable on sensor connection housing
5 Protective earth (PE)
Connecting the connecting cable to the sensor connection housing
Connection via terminals with order code for "Housing":
– Option B "Stainless"→ 58
– Option L "Cast, stainless"→ 57
56
Connecting the connecting cable to the transmitter
The cable is connected to the transmitter via terminals → 59.
Page 57
Proline Promass F 500 EtherNet/IP Electrical connection
2.
1.
3.
6.
5.
3 mm
10 (0.4)
22 mm
7.
24 mm
Connecting the sensor connection housing via terminals
For the device version with the order code for "Housing":
Option L "Cast, stainless"
A0029612
1. Loosen the securing clamp of the housing cover.
2. Unscrew the housing cover.
3. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.
5. Connect the protective ground.
6. Connect the cable in accordance with the connecting cable terminal assignment.
7. Firmly tighten the cable glands.
This concludes the process for connecting the connecting cable.
WARNING
L
Housing degree of protection voided due to insufficient sealing of the housing.
Screw in the thread on the cover without using any lubricant. The thread on the cover is
‣
coated with a dry lubricant.
8. Screw on the housing cover.
9. Tighten the securing clamp of the housing cover.
57
Page 58
Electrical connection Proline Promass F 500 EtherNet/IP
2.
1.
3.
6.
5.
10 (0.4)
8 mm
22 mm
7.
24 mm
Connecting the sensor connection housing via terminals
For the device version with the order code for "Housing":
Option B "Stainless"
A0029613
1. Release the securing screw of the housing cover.
2. Open the housing cover.
3. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, fit ferrules.
5. Connect the protective ground.
6. Connect the cable in accordance with the connecting cable terminal assignment.
7. Firmly tighten the cable glands.
This concludes the process for connecting the connecting cable.
8. Close the housing cover.
9. Tighten the securing screw of the housing cover.
58
Page 59
Proline Promass F 500 EtherNet/IP Electrical connection
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
N
i
c
h
t
u
n
t
e
r
c
i
r
c
u
i
t
s
a
r
e
a
l
i
v
e
1.
2.
3.
6.
5.
10 (0.4)
3 mm
22 mm
7.
24 mm
Connecting the connecting cable to the transmitter
A0029592
1. Loosen the securing clamp of the connection compartment cover.
2. Unscrew the connection compartment cover.
3. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
4. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
5. Connect the protective ground.
6. Connect the cable in accordance with the connecting cable terminal assignment
→ 56.
7. Firmly tighten the cable glands.
This concludes the process for connecting the connecting cable.
8. Screw on the connection compartment cover.
9. Tighten the securing clamp of the connection compartment cover.
10. After connecting the connecting cable: After connecting the connecting cables:
Connect the signal cable and the supply voltage cable .
59
Page 60
Electrical connection Proline Promass F 500 EtherNet/IP
1
2
3
4
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
1.
2.
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
+
E
ESC
–
3.
3.
4.
3 mm
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
I/O
+
E
ESC
–
5.
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
I/O
+
E
ESC
–
Power
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
I/O
6.
7.3.2 Connecting the transmitter
A0026781
1 Terminal connection for supply voltage
2 Terminal connection for signal transmission, input/output
3 Terminal connection for signal transmission, input/output or terminal connection for network connection via
service interface (CDI-RJ45)
4 Protective earth (PE)
In addition to connecting the device via EtherNet/IP and the available inputs/outputs,
additional connection options are also available:
• Integrate into a network via the service interface (CDI-RJ45) → 63.
• Integrate the device into a ring topology → 64.
Connecting the EtherNet/IP connector
1. Loosen the securing clamp of the connection compartment cover.
2. Unscrew the connection compartment cover.
3. Squeeze the tabs of the display module holder together.
4. Remove the display module holder.
A0029813
60
5. Attach the holder to the edge of the electronics compartment.
A0029814
Page 61
Proline Promass F 500 EtherNet/IP Electrical connection
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
7.
10.
22 mm
24 mm
8.
9.
11.
≤
42 (1.6)
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
10 (0.4)
mm (in)
2.
1.
3.
6. Open the terminal cover.
A0033722
7. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
8. Strip the cable and cable ends and connect to the RJ45 connector.
9. Connect the protective ground.
10. Plug in the RJ45 connector.
11. Firmly tighten the cable glands.
This concludes the EtherNet/IP connection process.
Connecting the supply voltage and additional inputs/outputs
A0033983
1. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
2. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
3. Connect the protective ground.
61
Page 62
Electrical connection Proline Promass F 500 EtherNet/IP
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
22 mm
24 mm
5.
4.
3 (0.12)
2.
1.
A0033984
4. Connect the cable in accordance with the terminal assignment .
Signal cable terminal assignment: The device-specific terminal assignment is
documented on an adhesive label in the terminal cover.
Supply voltage terminal assignment: Adhesive label in the terminal cover or
→ 43.
5. Firmly tighten the cable glands.
This concludes the cable connection process.
6. Close the terminal cover.
7. Fit the display module holder in the electronics compartment.
8. Screw on the connection compartment cover.
9. Secure the securing clamp of the connection compartment cover.
Removing a cable
A0029598
16 Engineering unit mm (in)
1. To remove a cable from the terminal, use a flat-blade screwdriver to push the slot
between the two terminal holes
2. while simultaneously pulling the cable end out of the terminal.
62
Page 63
Proline Promass F 500 EtherNet/IP Electrical connection
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
I/O
≤
42 (1.6)
1
7.3.3 Integrating the transmitter into a network
This section only presents the basic options for integrating the device into a network.
For information on the procedure to follow to connect the transmitter correctly → 56.
Integrating via the service interface
The device is integrated via the connection to the service interface (CDI-RJ45).
Note the following when connecting:
• Recommended cable: CAT 5e, CAT 6 or CAT 7, with shielded connector
• Maximum cable thickness: 6 mm
• Length of connector including bend protection: 42 mm
• Bending radius: 5 x cable thickness
A0033703
1 Service interface (CDI-RJ45)
An adapter for RJ45 and the M12 connector is optionally available:
Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"
The adapter connects the service interface (CDI-RJ45) to an M12 connector mounted
in the cable entry. Therefore the connection to the service interface can be established
via an M12 connector without opening the device.
63
Page 64
Electrical connection Proline Promass F 500 EtherNet/IP
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
≤
42 (1.6)
1
2
Integrating into a ring topology
The device is integrated via the terminal connection for signal transmission (output 1) and
the connection to the service interface (CDI-RJ45).
Note the following when connecting:
• Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector
• Maximum cable thickness: 6 mm
• Length of connector including bend protection: 42 mm
• Bending radius: 2.5 x cable thickness
1 EtherNet/IP connection
2 Service interface (CDI-RJ45)
An adapter for RJ45 and the M12 connector is optionally available:
Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"
The adapter connects the service interface (CDI-RJ45) to an M12 connector mounted
in the cable entry. Therefore the connection to the service interface can be established
via an M12 connector without opening the device.
7.4 Ensure potential equalization
7.4.1 Requirements
No special measures for potential equalization are required.
A0033717
64
Page 65
Proline Promass F 500 EtherNet/IP Electrical connection
1
2
4
3
5
5
1 2 4
5
5
3

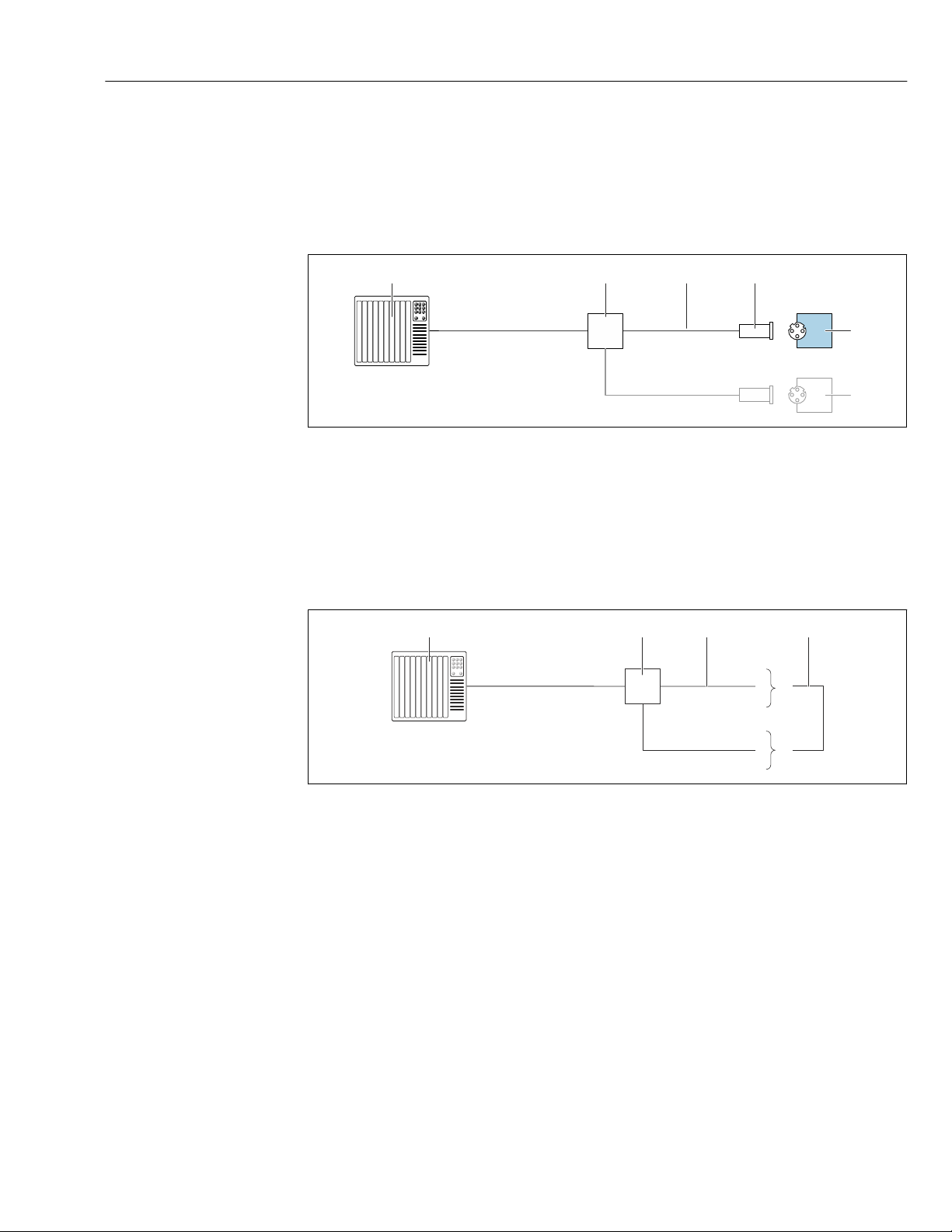

7.5 Special connection instructions
7.5.1 Connection examples
EtherNet/IP
A0028767
17 Connection example for EtherNet/IP
1 Control system (e.g. PLC)
2 Ethernet switch
3 Observe cable specifications
4 Device plug
5 Transmitter
EtherNet/IP: DLR (Device Level Ring)
1 Control system (e.g. PLC)
2 Ethernet switch
3 Observe cable specifications → 38
4 Connecting cable between the two transmitters
5 Transmitter
A0027544
65
Page 66
Electrical connection Proline Promass F 500 EtherNet/IP
4...20 mA
2
1
3
2
4...20 mA
3
1
4
1
2
3
12345
Current output 4-20 mA
A0028758
18 Connection example for 4-20 mA current output (active)
1 Automation system with current input (e.g. PLC)
2 Analog display unit: observe maximum load
3 Transmitter
19 Connection example for 4-20 mA current output (passive)
1 Automation system with current input (e.g. PLC)
2 Active barrier for power supply (e.g. RN221N)
3 Analog display unit: observe maximum load
4 Transmitter
Pulse/frequency output
20 Connection example for pulse/frequency output (passive)
1 Automation system with pulse/frequency input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values → 255
A0028759
A0028761
66
Page 67
Proline Promass F 500 EtherNet/IP Electrical connection
1
2
3
1
2
3
31
4
2
Switch output
A0028760
21 Connection example for switch output (passive)
1 Automation system with switch input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values → 255
Relay output
A0028760
22 Connection example for relay output (passive)
1 Automation system with relay input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values → 257
Current input
A0028915
23 Connection example for 4 to 20 mA current input
1 Power supply
2 External measuring device (for reading in pressure or temperature, for instance)
3 Transmitter: Observe input values
67
Page 68
Electrical connection Proline Promass F 500 EtherNet/IP
1
2
3

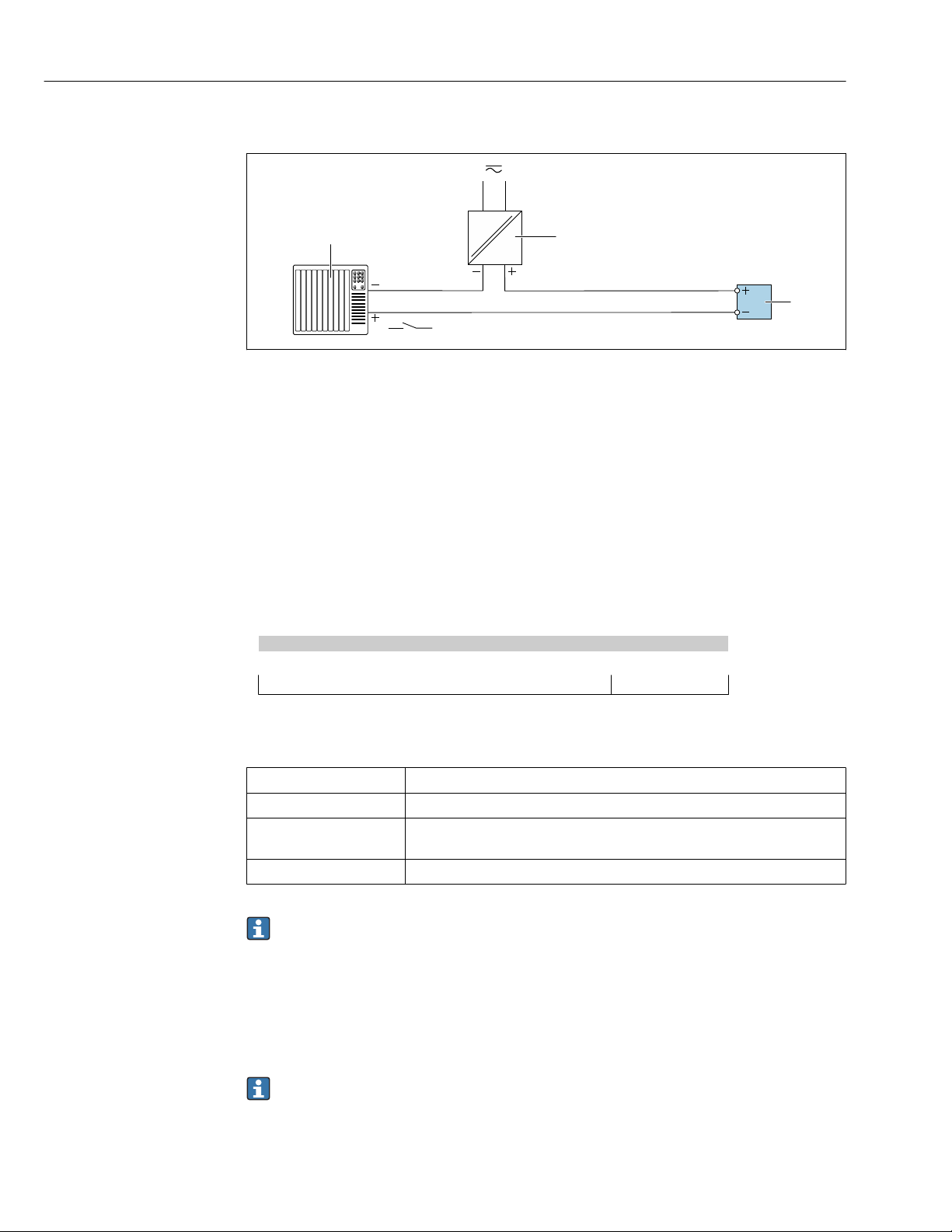

Status input
A0028764
24 Connection example for status input
1 Automation system with status output (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values
7.6 Hardware settings
7.6.1 Setting the device address
The IP address of the measuring device can be configured for the network via DIP switches.
Addressing data
IP address and configuration options
1st octet 2nd octet 3rd octet 4th octet
192. 168. 1. XXX
↓ ↓
Can only be configured via software addressing Can be configured via software addressing
and hardware addressing
IP address range 1 to 254 (4th octet)
IP address broadcast 255
Addressing mode ex
works
IP address ex works DHCP server active
Software addressing: The IP address is entered via the IP address parameter
(→ 129) .
Setting the IP address: Proline 500 - digital
Risk of electric shock when opening the transmitter housing.
Before opening the transmitter housing:
‣
Disconnect the device from the power supply.
‣
Software addressing; all DIP switches for hardware addressing are set to OFF.
The default IP address may not be activated → 70.
68
Page 69
Proline Promass F 500 EtherNet/IP Electrical connection
Power
I/O 2
I/O 3
I/O 3
4.
1
2 3
4
567
8
128
64
32
16
8
4
2
1
IP Address setting
(last octet)
3.
-
+
-
ESC
2.
Power
open
press
open
press
ESC
E
+
-
I/O 4
Power
I/O 2
I/O 3
1.
1
2
3
4
5
6
7
8
128
64
32
16
8
4
2
1
IP Address setting
(last octet)
A0029678
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. Fold open the terminal cover.
4. Set the desired IP address using the corresponding DIP switches on the I/O
electronics module.
5. Reverse the removal procedure to reassemble the transmitter.
6. Reconnect the device to the power supply.
The configured device address is used once the device is restarted.
Setting the IP address: Proline 500
Risk of electric shock when opening the transmitter housing.
Before opening the transmitter housing:
‣
Disconnect the device from the power supply.
‣
The default IP address may not be activated → 71.
A0029635
69
1. Depending on the housing version, loosen the securing clamp or fixing screw of the
housing cover.
Page 70
Electrical connection Proline Promass F 500 EtherNet/IP
Power
I/O 2
I/O 3
I/O 3
Off
On
1
4
3
2
4.
3.
-
+
-
ESC
2.
Power
open
press
open
press
ESC
E+
-
I/O 4
Power
I/O 2
I/O 3
1.
2. Depending on the housing version, unscrew or open the housing cover and
disconnect the local display from the main electronics module where necessary.
3. Set the desired IP address using the corresponding DIP switches on the I/O
electronics module.
4. Reverse the removal procedure to reassemble the transmitter.
5. Reconnect the device to the power supply.
The configured device address is used once the device is restarted.
7.6.2 Activating the default IP address
The DHCP function is enabled in the device at the factory, i.e. the device expects an IP
address to be assigned by the network. This function can be disabled and the device can be
set to the default IP address 192.168.1.212 by DIP switch.
Activating the default IP address by DIP switch: Proline 500 - digital
Risk of electric shock when opening the transmitter housing.
Before opening the transmitter housing:
‣
Disconnect the device from the power supply.
‣
A0034500
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. Fold open the terminal cover.
4. Set DIP switch No. 2 on the I/O electronics module from OFF → ON.
5. Reverse the removal procedure to reassemble the transmitter.
6. Reconnect the device to the power supply.
The default IP address is used once the device is restarted.
70
Page 71
Proline Promass F 500 EtherNet/IP Electrical connection
On
Off
4
3
1
2

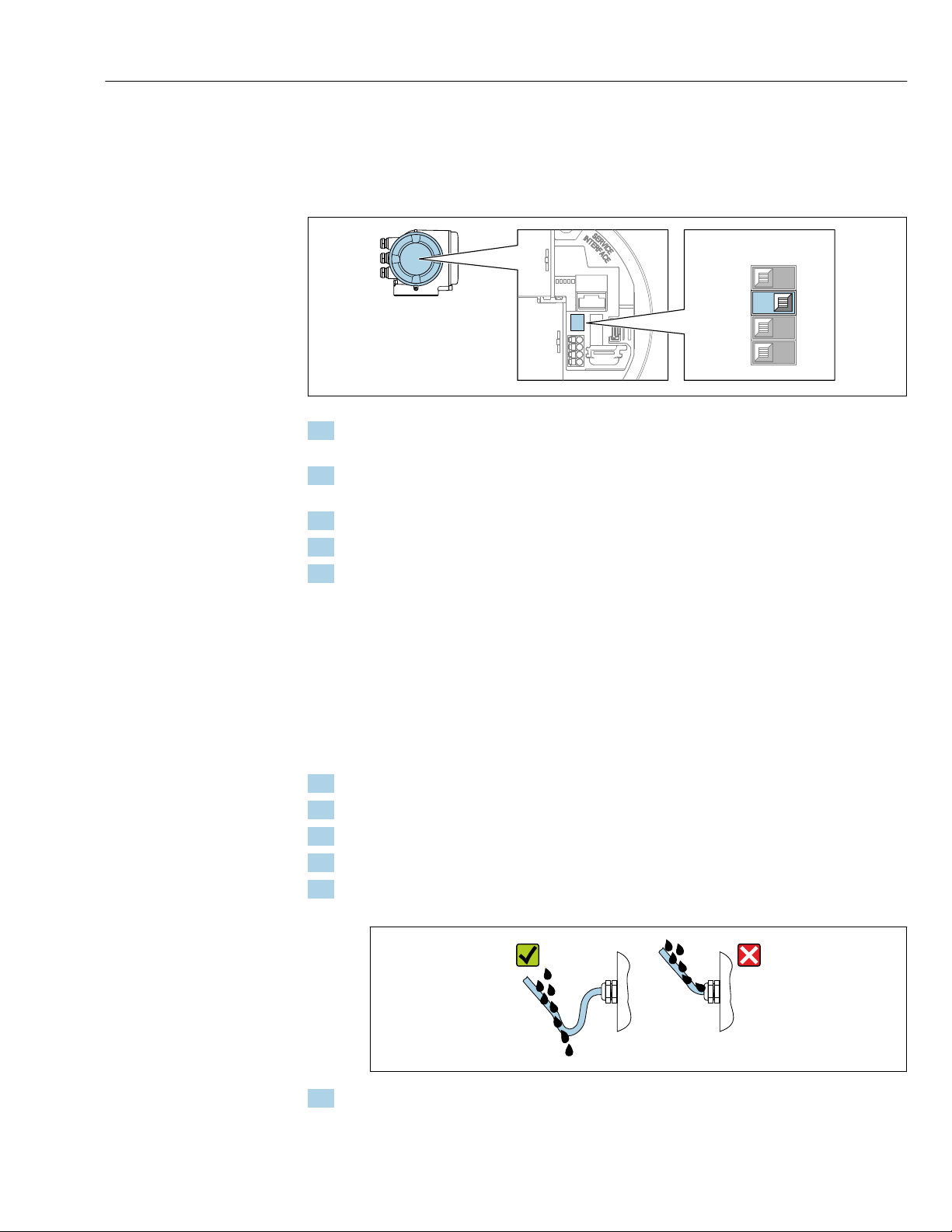

Activating the default IP address via the DIP switch: Proline 500
Risk of electric shock when opening the transmitter housing.
Before opening the transmitter housing:
‣
Disconnect the device from the power supply.
‣
A0034499
1. Depending on the housing version, loosen the securing clamp or fixing screw of the
housing cover.
2. Depending on the housing version, unscrew or open the housing cover and
disconnect the local display from the main electronics module where necessary .
3. Set DIP switch No. 2 on the I/O electronics module from OFF → ON.
4. Reverse the removal procedure to reassemble the transmitter.
5. Reconnect the device to the power supply.
The default IP address is used once the device is restarted.
7.7 Ensuring the degree of protection
The measuring device fulfills all the requirements for the IP66/67 degree of protection,
Type 4X enclosure.
To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following
steps after the electrical connection:
1. Check that the housing seals are clean and fitted correctly.
2. Dry, clean or replace the seals if necessary.
3. Tighten all housing screws and screw covers.
4. Firmly tighten the cable glands.
5. To ensure that moisture does not enter the cable entry:
Route the cable so that it loops down before the cable entry ("water trap").
6. Insert dummy plugs into unused cable entries.
A0029278
71
Page 72
Electrical connection Proline Promass F 500 EtherNet/IP
7.8 Post-connection check
Are cables or the device undamaged (visual inspection)?
Do the cables used meet the requirements?
Do the cables have adequate strain relief?
Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"
→ 71 ?
72
Page 73
Proline Promass F 500 EtherNet/IP Operation options
1
2 3 4
5
E+-
ESC
8 Operation options

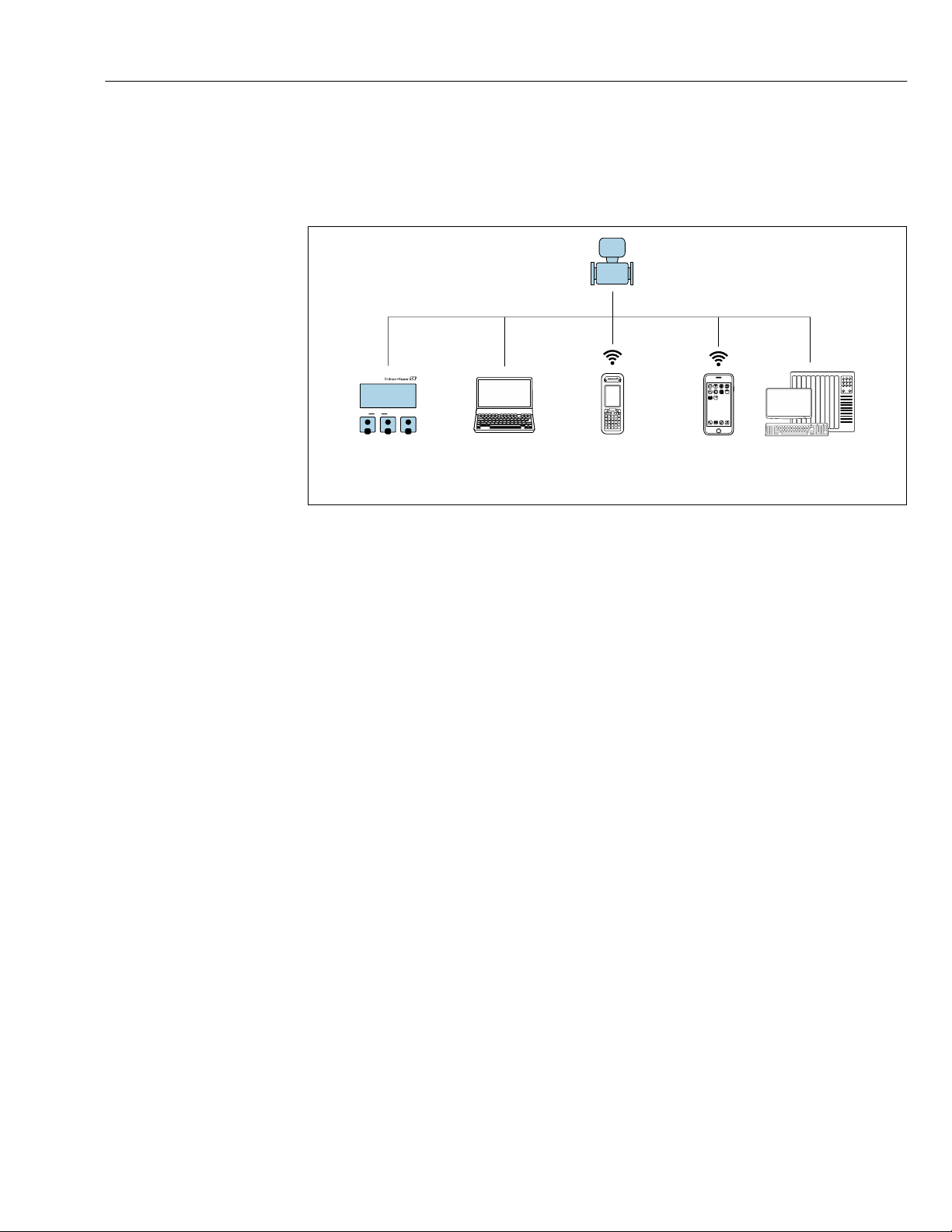

8.1 Overview of operation options
A0034513
1 Local operation via display module
2 Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS
Device Manager, SIMATIC PDM)
3 Field Xpert SFX350 or SFX370
5 Mobile handheld terminal
6 Control system (e.g. PLC)
73
Page 74
Operation options Proline Promass F 500 EtherNet/IP
8.2 Structure and function of the operating menu
8.2.1 Structure of the operating menu
For an overview of the operating menu for experts: "Description of Device Parameters"
document supplied with the device→ 284
74
Page 75
Proline Promass F 500 EtherNet/IP Operation options
!
Expert
System
Sensor
Communication
Application
Diagnostics
Access status display
Output
Operating menu for experts
Language
Operatation Language
Parameter 1
Setup
Submenu 1
Submenu n
Device tag
Advanced setup
Enter access code
Parameter 1
Parameter n
Submenu 1
Submenu n
Diagnostics
Parameter 1
Parameter n
Submenu 1
Submenu n
Operating menu for operators and maintenances
Parameter n
Operator
Maintenance
Task-oriented
Function-oriented
Expert
Wizard 1 / Parameter 1
Wizard n / Parameter n
Parameter n
Input
25 Schematic structure of the operating menu
A0018237-EN
75
Page 76
Operation options Proline Promass F 500 EtherNet/IP
8.2.2 Operating philosophy
The individual parts of the operating menu are assigned to certain user roles (operator,
maintenance etc.). Each user role contains typical tasks within the device lifecycle.
For custody transfer, once the device has been put into circulation or sealed, its
operation is restricted.
Menu/parameter User role and tasks Content/meaning
Language task-oriented Role "Operator", "Maintenance"
Tasks during operation:
• Configuring the operational
Operation • Configuring the operational display (e.g. display format, display contrast)
Setup "Maintenance" role
Diagnostics "Maintenance" role
display
• Reading measured values
Commissioning:
• Configuration of the
measurement
• Configuration of the inputs and
outputs
• Configuration of the
communication interface
Fault elimination:
• Diagnostics and elimination of
process and device errors
• Measured value simulation
• Defining the operating language
• Defining the Web server operating language
• Resetting and controlling totalizers
• Resetting and controlling totalizers
Wizards for fast commissioning:
• Set the system units
• Configuration of the communication interface
• Define the medium
• Display I/O/configuration
• Configure the inputs
• Configure the outputs
• Configuring the operational display
• Define the output conditioning
• Set the low flow cut off
• Configure partial and empty pipe detection
Advanced setup
• For more customized configuration of the measurement (adaptation to
special measuring conditions)
• Configuration of totalizers
• Configure the WLAN settings
• Administration (define access code, reset measuring device)
Contains all parameters for error detection and analyzing process and device
errors:
• Diagnostic list
Contains up to 5 currently pending diagnostic messages.
• Event logbook
Contains event messages that have occurred.
• Device information
Contains information for identifying the device.
• Measured values
Contains all current measured values.
• Data logging submenu with "Extended HistoROM" order option
Storage and visualization of measured values
• Heartbeat
The functionality of the device is checked on demand and the verification
results are documented.
• Simulation
Is used to simulate measured values or output values.
76
Page 77
Proline Promass F 500 EtherNet/IP Operation options
X X X X X X XX X
1
3
kg/h
1120.50
F
Menu/parameter User role and tasks Content/meaning
Expert function-oriented Tasks that require detailed
knowledge of the function of the
device:
• Commissioning measurements
under difficult conditions
• Optimal adaptation of the
measurement to difficult
conditions
• Detailed configuration of the
communication interface
• Error diagnostics in difficult cases

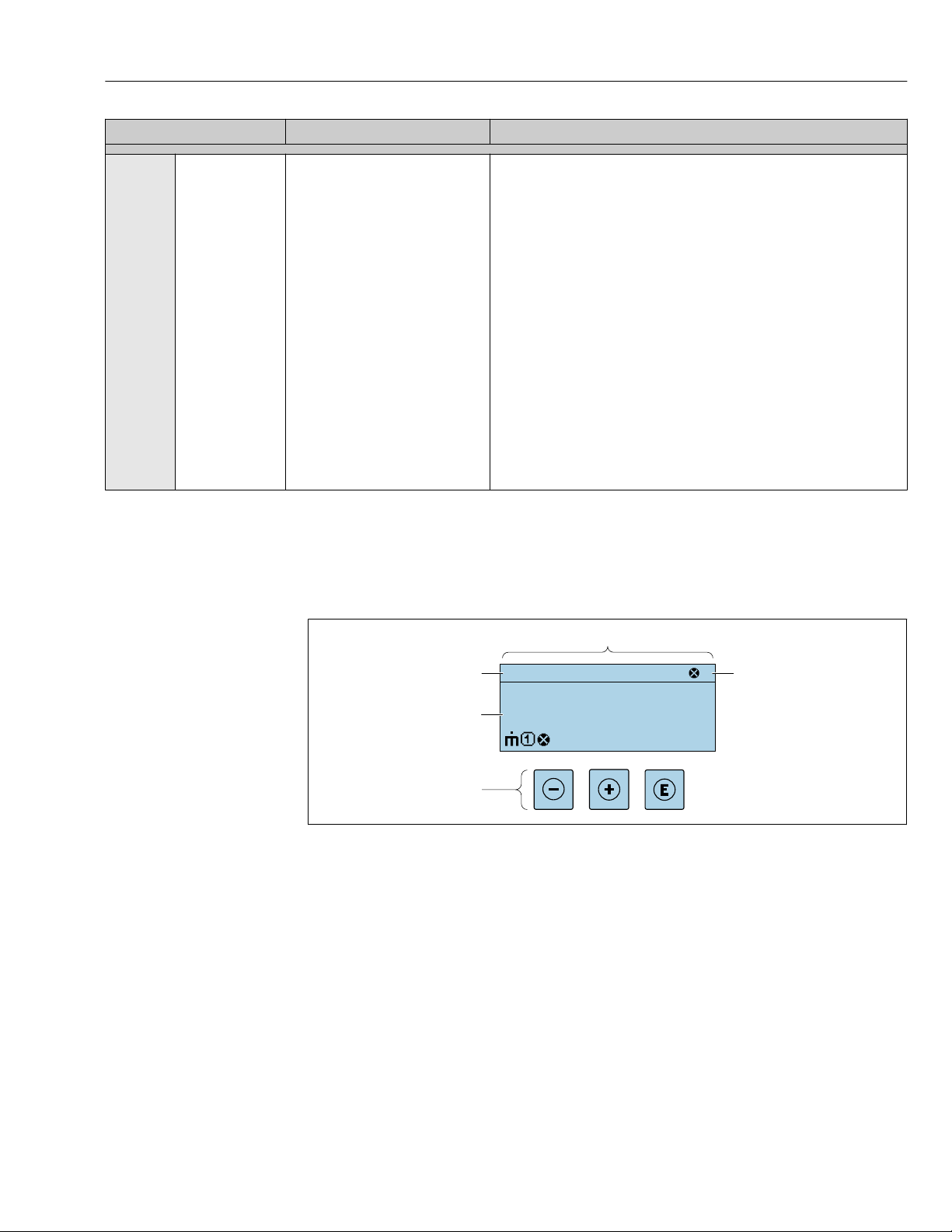

8.3 Access to the operating menu via the local display
8.3.1 Operational display
Contains all the parameters of the device and makes it possible to access
these parameters directly using an access code. The structure of this menu is
based on the function blocks of the device:
• System
Contains all higher-order device parameters which do not concern the
measurement or the communication interface.
• Sensor
Configuration of the measurement.
• Input
Configuring the status input.
• Output
Configuring of the analog current outputs as well as the pulse/frequency
and switch output.
• Communication
Configuration of the digital communication interface and the Web server.
• Application
Configure the functions that go beyond the actual measurement (e.g.
totalizer).
• Diagnostics
Error detection and analysis of process and device errors and for device
simulation and Heartbeat Technology.
A0029348
1 Operational display
2 Device tag
3 Status area
4 Display area for measured values (4-line)
5 Operating elements→ 83
77
Page 78
Operation options Proline Promass F 500 EtherNet/IP
Status area

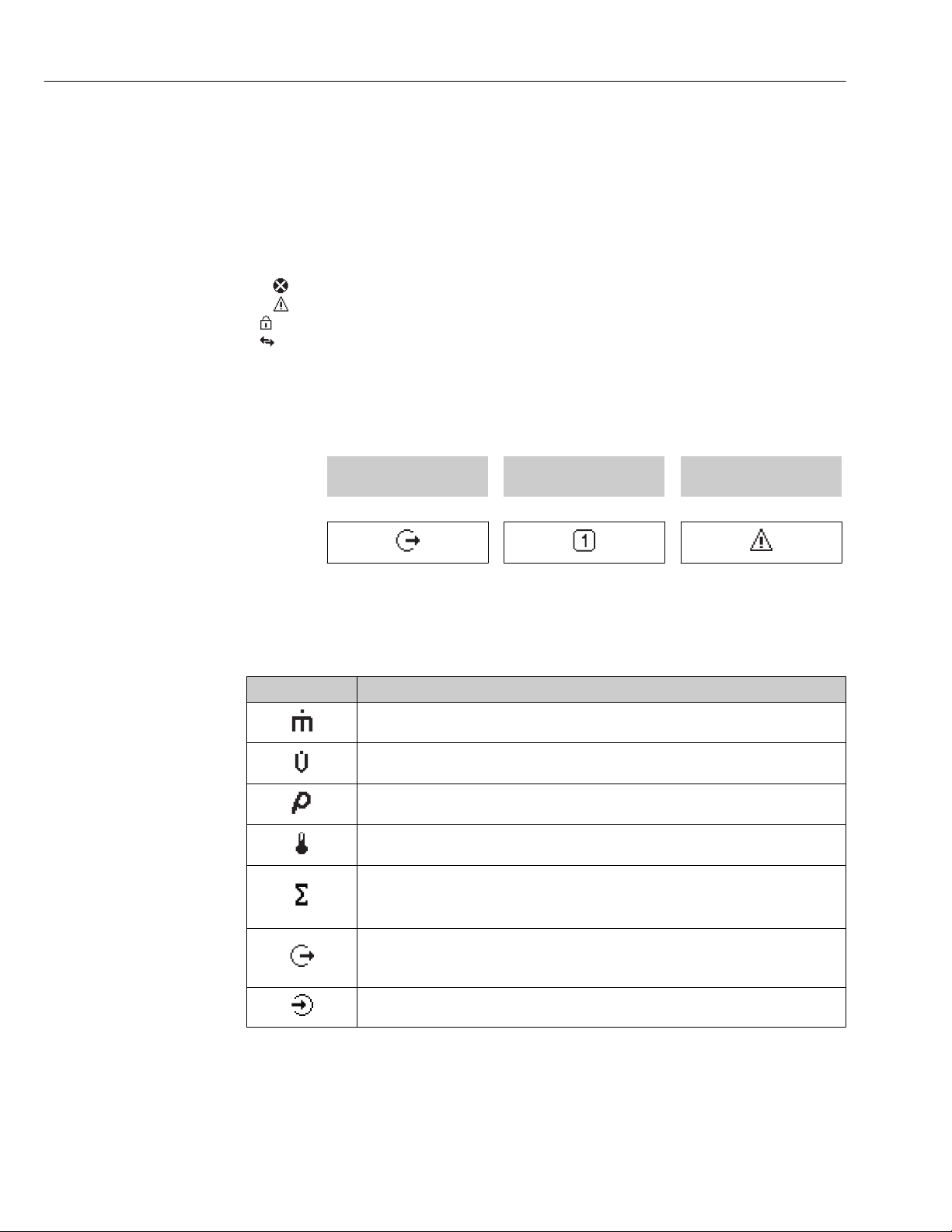

The following symbols appear in the status area of the operational display at the top right:
• Status signals→ 217
– F: Failure
– C: Function check
– S: Out of specification
– M: Maintenance required
• Diagnostic behavior→ 218
– : Alarm
– : Warning
• : Locking (the device is locked via the hardware )
• : Communication (communication via remote operation is active)
Display area
In the display area, each measured value is prefaced by certain symbol types for further
description:
Measured variable Measurement channel
Example
Measured values
Symbol Meaning
Mass flow
• Volume flow
• Corrected volume flow
• Density
• Reference density
Temperature
Totalizer
Output
Diagnostic behavior
number
↓ ↓ ↓
Appears only if a diagnostics
event is present for this
measured variable.
The measurement channel number indicates which of the three totalizers is
displayed.
The measurement channel number indicates which of the outputs is displayed.
78
Status input
Page 79
Proline Promass F 500 EtherNet/IP Operation options
4
1
3
/../Operation
0091-1
Access stat.disp
Operator
Locking status
Display
4
1
3
/../Select medium
Select medium
Liquid

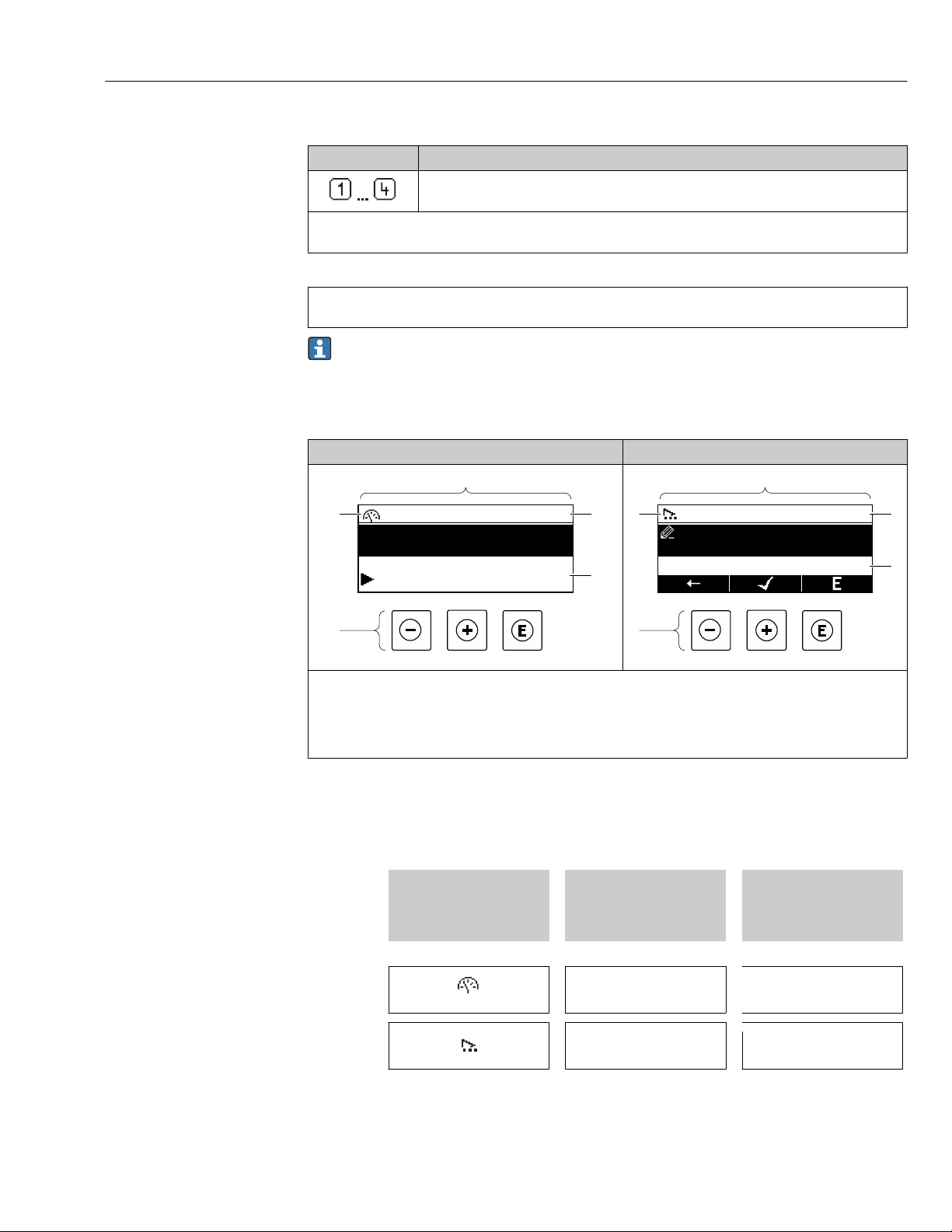

Measurement channel numbers
Symbol Meaning
Measurement channel 1 to 4
The measurement channel number is displayed only if more than one channel is present for the same measured
variable type (e.g. Totalizer 1 to 3).
Diagnostic behavior
The diagnostic behavior pertains to a diagnostic event that is relevant to the displayed measured variable.
For information on the symbols → 218
The number and display format of the measured values can be configured via the
Format display parameter (→ 154).
8.3.2 Navigation view
In the submenu In the wizard
A0013993-EN
1
Navigation view
2
Navigation path to current position
3
Status area
4
Display area for navigation
5
Operating elements → 83
Navigation path
The navigation path - displayed at the top left in the navigation view - consists of the
following elements:
• In the submenu:
Display symbol for menu
• In the wizard:
Display symbol for wizard
↓ ↓ ↓
Examples / ../ Display
Omission symbol for
operating menu levels in
between
/ ../ Display
Name of current
• Submenu
• Wizard
• Parameters
A0013995-EN
79
Page 80
Operation options Proline Promass F 500 EtherNet/IP
For more information about the icons in the menu, refer to the "Display area" section
→ 80
Status area
The following appears in the status area of the navigation view in the top right corner:
• In the submenu
– The direct access code for the parameter you are navigating to (e.g. 0022-1)
– If a diagnostic event is present, the diagnostic behavior and status signal
• In the wizard
If a diagnostic event is present, the diagnostic behavior and status signal
• For information on the diagnostic behavior and status signal → 217
• For information on the function and entry of the direct access code → 86
Display area
Menus
Symbol Meaning
Operation
Appears:
• In the menu next to the "Operation" selection
• At the left in the navigation path in the Operation menu
Setup
Appears:
• In the menu next to the "Setup" selection
• At the left in the navigation path in the Setup menu
Diagnostics
Appears:
• In the menu next to the "Diagnostics" selection
• At the left in the navigation path in the Diagnostics menu
Expert
Appears:
• In the menu next to the "Expert" selection
• At the left in the navigation path in the Expert menu
80
Submenus, wizards, parameters
Symbol Meaning
Submenu
Wizard
Parameters within a wizard
No display symbol exists for parameters in submenus.
Locking
Symbol Meaning
Parameter locked
When displayed in front of a parameter name, indicates that the parameter is locked.
• By a user-specific access code
• By the hardware write protection switch
Page 81
Proline Promass F 500 EtherNet/IP Operation options
+0.000 Xx
0 1 2 3 4
+
5
6 7
8
9
–
Wizard operation
Symbol Meaning
Switches to the previous parameter.
Confirms the parameter value and switches to the next parameter.
Opens the editing view of the parameter.
8.3.3 Editing view
Numeric editor
26 For entering values in parameters (e.g. limit values)
1 Entry display area
2 Input screen
3 Confirm, delete or reject entry
4 Operating elements
A0034250
81
Page 82
Operation options Proline Promass F 500 EtherNet/IP
Xxxxxxx
A B C D E F G H I J K
M N O P Q R S T U V W
X YLZ
5
6
7
+
Text editor
A0034114
27 For entering text in parameters (e.g. tag name)
1 Entry display area
2 Current input screen
3 Change input screen
4 Operating elements
5 Move entry position
6 Delete entry
7 Reject or confirm entry
Using the operating elements in the editing view
Operating key(s) Meaning
Minus key
Move the entry position to the left.
Plus key
Move the entry position to the right.
Enter key
• Press the key briefly: confirm your selection.
• Press the key for 2 s: confirm the entry.
Escape key combination (press keys simultaneously)
Close the editing view without accepting the changes.
Input screens
Symbol Meaning
Upper case
Lower case
Numbers
Punctuation marks and special characters: = + – * / ² ³ ¼ ½ ¾ ( ) [ ] < > { }
82
Punctuation marks and special characters: ' " `^. , ; : ? ! % µ ° € $ £ ¥ § @ # / \ I ~ & _
Umlauts and accents
Page 83
Proline Promass F 500 EtherNet/IP Operation options
Controlling data entries
Symbol Meaning
Move entry position
Reject entry
Confirm entry
Delete character immediately to the left of the entry position
Delete character immediately to the right of the entry position
Clear all the characters entered
8.3.4 Operating elements
Operating key(s) Meaning
Minus key
In a menu, submenu
Moves the selection bar upwards in a choose list.
With a Wizard
Confirms the parameter value and goes to the previous parameter.
With a text and numeric editor
Move the entry position to the left.
Plus key
In a menu, submenu
Moves the selection bar downwards in a choose list.
With a Wizard
Confirms the parameter value and goes to the next parameter.
With a text and numeric editor
Move the entry position to the right.
Enter key
For operational display
• Pressing the key briefly opens the operating menu.
• Pressing the key for 2 s opens the context menu including the option for activating the
keypad lock.
In a menu, submenu
• Pressing the key briefly:
– Opens the selected menu, submenu or parameter.
– Starts the wizard.
– If help text is open, closes the help text of the parameter.
• Pressing the key for 2 s for parameter:
If present, opens the help text for the function of the parameter.
With a Wizard
Opens the editing view of the parameter.
With a text and numeric editor
• Press the key briefly: confirm your selection.
• Press the key for 2 s: confirm the entry.
83
Page 84
Operation options Proline Promass F 500 EtherNet/IP
+
+
XXXXXXXXXX
l/h
Setup
Conf.backup
Simulation
Keylock on
Operating key(s) Meaning
Escape key combination (press keys simultaneously)
In a menu, submenu
• Pressing the key briefly:
– Exits the current menu level and takes you to the next higher level.
– If help text is open, closes the help text of the parameter.
• Pressing the key for 2 s returns you to the operational display ("home position").
With a Wizard
Exits the wizard and takes you to the next higher level.
With a text and numeric editor
Close the editing view without accepting the changes.
Minus/Enter key combination (press the keys simultaneously)
Press the key for 3 s: deactivate the keypad lock.
8.3.5 Opening the context menu
Using the context menu, the user can call up the following menus quickly and directly from
the operational display:
• Setup
• Data backup
• Simulation
Calling up and closing the context menu
The user is in the operational display.
1. Press for 2 s.
The context menu opens.
2. Press + simultaneously.
The context menu is closed and the operational display appears.
Calling up the menu via the context menu
1. Open the context menu.
2. Press to navigate to the desired menu.
3. Press to confirm the selection.
The selected menu opens.
A0034608-EN
84
Page 85
Proline Promass F 500 EtherNet/IP Operation options
X X X X X X XX X
20.50
0104-1
2 s
0091-1
0098-1
0098-1
0098-1
X X X X X X XX X
10.50
2800
Hz
mA
3.
4.
5.
6.
7.
8.
1.
2.
Display/operat.
Display/operat.
Setup
Main menu
English
Main menu
Format display
/ ../Display
Contrast display
Display intervall
1 value, max.
Setup
Access stat.disp
/ ../Display/operat.
Display
Locking status
1 value, max.
/ ../Format display
2 values
Val. large+2val.
Bargr. + 1 value
Locking status
/ ../Display/operat.
Display
1 value, max.
/ ../Format display
2 values
Val. large+2val.
Bargr. + 1 value
Operator
Language
Language
8.3.6 Navigating and selecting from list
Different operating elements are used to navigate through the operating menu. The
navigation path is displayed on the left in the header. Icons are displayed in front of the
individual menus. These icons are also shown in the header during navigation.
For an explanation of the navigation view with symbols and operating elements
→ 79

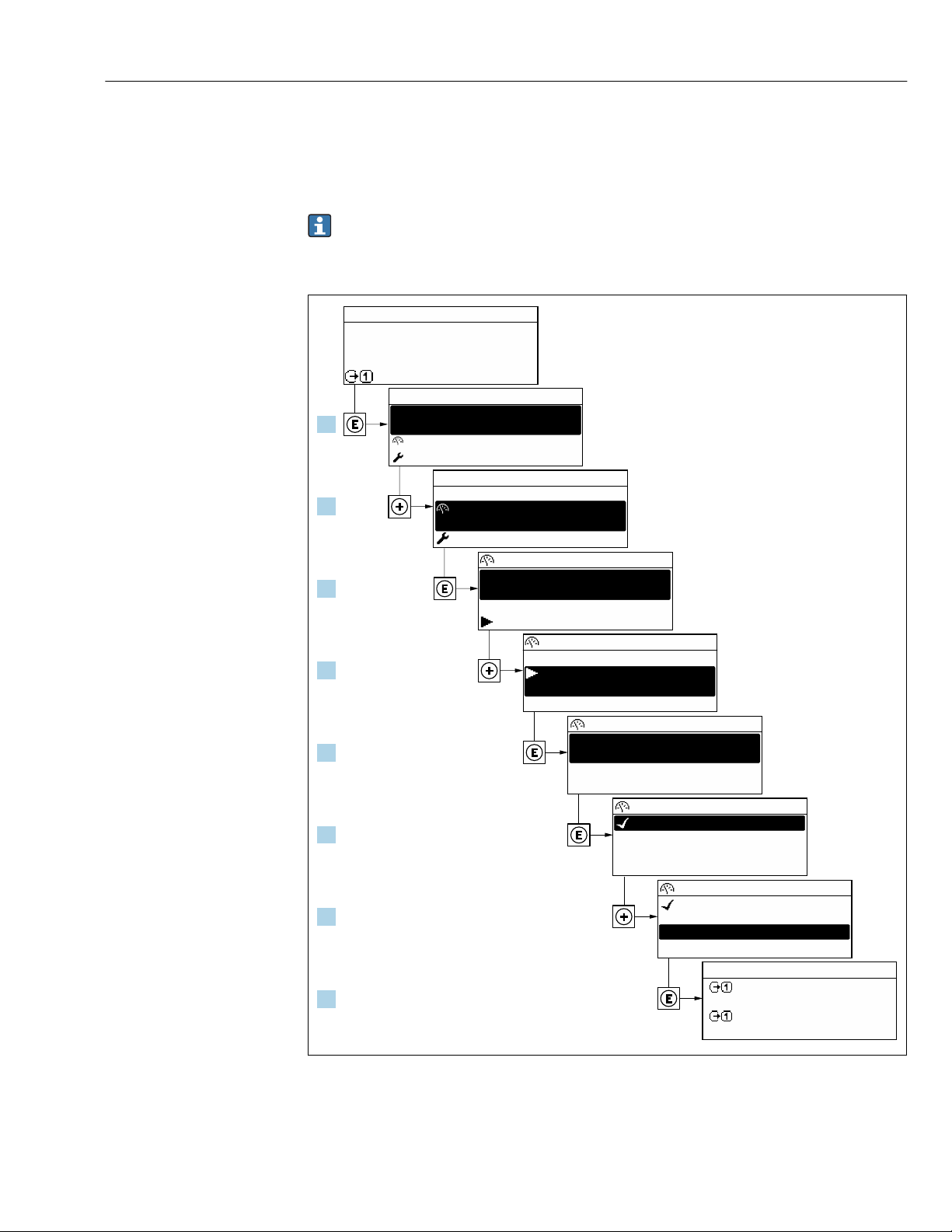

Example: Setting the number of displayed measured values to "2 values"
A0029562-EN
85
Page 86
Operation options Proline Promass F 500 EtherNet/IP
1
00914-2
Ent.accesscode
Enteraccesscodetodisable
writeprotec.
8.3.7 Calling the parameter directly
A parameter number is assigned to every parameter to be able to access a parameter
directly via the onsite display. Entering this access code in the Direct access parameter
calls up the desired parameter directly.
Navigation path
Expert → Direct access
The direct access code consists of a 5-digit number (at maximum) and the channel
number, which identifies the channel of a process variable: e.g. 00914-2. In the navigation
view, this appears on the right-hand side in the header of the selected parameter.
A0029414
1 Direct access code
Note the following when entering the direct access code:
• The leading zeros in the direct access code do not have to be entered.
Example: Enter "914" instead of "00914"
• If no channel number is entered, channel 1 is accessed automatically.
Example: Enter 00914 → Assign process variable parameter
• If a different channel is accessed: Enter the direct access code with the corresponding
channel number.
Example: Enter 00914-2 → Assign process variable parameter
For the direct access codes of the individual parameters, see the "Description of Device
Parameters" document for the device
8.3.8 Calling up help text
Help text is available for some parameters and can be called up from the navigation view.
The help text provides a brief explanation of the parameter function and thereby supports
swift and safe commissioning.
Calling up and closing the help text
The user is in the navigation view and the selection bar is on a parameter.
1. Press for 2 s.
The help text for the selected parameter opens.
86
A0014002-EN
28 Example: Help text for parameter "Enter access code"
2. Press + simultaneously.
The help text is closed.
Page 87
Proline Promass F 500 EtherNet/IP Operation options
Ent.accesscode
Invalidoroutofrangeinput
value
Max:9999
Min:0
8.3.9 Changing the parameters
Parameters can be changed via the numeric editor or text editor.
• Numeric editor: Change values in a parameter, e.g. specifications for limit values.
• Text editor: Enter text in a parameter, e.g. tag name.
A message is displayed if the value entered is outside the permitted value range.
A0014049-EN
For a description of the editing view - consisting of the text editor and numeric editor
- with symbols → 81, for a description of the operating elements → 83
8.3.10 User roles and related access authorization
The two user roles "Operator" and "Maintenance" have different write access to the
parameters if the customer defines a user-specific access code. This protects the device
configuration via the local display from unauthorized access → 192.
Defining access authorization for user roles
An access code is not yet defined when the device is delivered from the factory. Access
authorization (read and write access) to the device is not restricted and corresponds to the
"Maintenance" user role.
Define the access code.
‣
The "Operator" user role is redefined in addition to the "Maintenance" user role.
Access authorization differs for the two user roles.
Access authorization to parameters: "Maintenance" user role
Access code status Read access Write access
An access code has not yet been defined
(factory setting).
After an access code has been defined.
1) The user only has write access after entering the access code.
1)
Access authorization to parameters: "Operator" user role
Access code status Read access Write access
After an access code has been defined. ––
1) Despite the defined access code, certain parameters can always be modified and thus are excepted from
the write protection, as they do not affect the measurement. Refer to the "Write protection via access code"
section
1)
The user role with which the user is currently logged on is indicated by the Access
status parameter. Navigation path: Operation → Access status
87
Page 88
Operation options Proline Promass F 500 EtherNet/IP
8.3.11 Disabling write protection via access code
If the -symbol appears on the local display in front of a parameter, the parameter is
write-protected by a user-specific access code and its value cannot be changed at the
moment using local operation → 192.
Parameter write protection via local operation can be disabled by entering the user-specific
access code in the Enter access code parameter (→ 167) via the respective access
option.
1. After you press , the input prompt for the access code appears.
2. Enter the access code.
The -symbol in front of the parameters disappears; all previously write-
protected parameters are now re-enabled.
8.3.12 Enabling and disabling the keypad lock
The keypad lock makes it possible to block access to the entire operating menu via local
operation. As a result, it is no longer possible to navigate through the operating menu or
change the values of individual parameters. Users can only read the measured values on
the operational display.
The keypad lock is switched on and off via the context menu.
Switching on the keypad lock
The keypad lock is switched on automatically:
• If the device has not been operated via the display for > 1 minute.
• Each time the device is restarted.
To activate the keylock manually:
1. The device is in the measured value display.
Press for at least 2 seconds.
A context menu appears.
2. In the context menu select the Keylock on option.
The keypad lock is switched on.
If the user attempts to access the operating menu while the keypad lock is active, the
Keylock on message appears.
Switching off the keypad lock
1. The keypad lock is switched on.
Press for at least 2 seconds.
A context menu appears.
2. In the context menu select the Keylock off option.
The keypad lock is switched off.
88
Page 89
Proline Promass F 500 EtherNet/IP Operation options
8.4 Access to the operating menu via the Web browser
8.4.1 Function range
Thanks to the integrated Web server, the device can be operated and configured via a Web
browser and via a service interface (CDI-RJ45) or via a WLAN interface. The structure of
the operating menu is the same as for the local display. In addition to the measured values,
status information on the device is also displayed and allows the user to monitor the status
of the device. Furthermore the device data can be managed and the network parameters
can be configured.
A device that has a WLAN interface (can be ordered as an option) is required for the
WLAN connection: order code for "Display; operation", option G "4-line, illuminated; touch
control + WLAN". The device acts as an Access Point and enables communication by
computer or a mobile handheld terminal.
For additional information on the Web server, refer to the Special Documentation for
the device → 285
8.4.2 Prerequisites
Computer hardware
Hardware Interface
CDI-RJ45 WLAN
Interface The computer must have an RJ45
interface.
Connection Standard Ethernet cable with RJ45
connector.
Screen Recommended size: ≥12" (depends on the screen resolution)
The operating unit must have a
WLAN interface.
Connection via Wireless LAN.
Computer software
Software Interface
CDI-RJ45 WLAN
Recommended operating
systems
Web browsers supported • Microsoft Internet Explorer 8 or higher
• Microsoft Windows 7 or higher.
• Mobile operating systems:
– iOS
– Android
Microsoft Windows XP is supported.
• Microsoft Edge
• Mozilla Firefox
• Google Chrome
• Safari
89
Page 90
Operation options Proline Promass F 500 EtherNet/IP
Computer settings
Settings Interface
CDI-RJ45 WLAN
User rights Appropriate user rights (e.g. administrator rights) for TCP/IP and proxy server
settings are necessary (for adjusting the IP address, subnet mask etc.).
Proxy server settings of the
Web browser
JavaScript JavaScript must be enabled.
Network connections Only the active network connections to the measuring device should be used.
The Web browser setting Use a Proxy Server for Your LAN must be
deselected .
If JavaScript cannot be enabled:
enter http://192.168.1.212/basic.html in the address line of the Web
browser. A fully functional but simplified version of the operating menu
structure starts in the Web browser.
When installing a new firmware version: To enable correct data display,
clear the temporary memory (cache) of the Web browser under Internet
options.
Switch off all other network
connections such as WLAN.
Switch off all other network
connections.
In the event of connection problems: → 211
Measuring device: Via CDI-RJ45 service interface
Device CDI-RJ45 service interface
Measuring device The measuring device has an RJ45 interface.
Web server Web server must be enabled; factory setting: ON
For information on enabling the Web server → 95
IP address If the IP address of the device is not known:
• The IP address can be read out via local operation:
Diagnostics → Device information → IP address
• Communication with the Web server can be established via the default IP
address 192.168.1.212.
The DHCP function is enabled in the device at the factory, i.e. the device
expects an IP address to be assigned by the network. This function can be
disabled and the device can be set to the default IP address 192.168.1.212:
set DIP switch No. 4 from OFF → ON.
Set the default IP address → 70.
Measuring device: via WLAN interface
Device WLAN interface
Measuring device The measuring device has a WLAN antenna:
• Transmitter with integrated WLAN antenna
• Transmitter with external WLAN antenna
Web server Web server and WLAN must be enabled; factory setting: ON
For information on enabling the Web server → 95
90
Page 91
Proline Promass F 500 EtherNet/IP Operation options
Device WLAN interface
IP address If the IP address of the device is not known:
• The IP address can be read out via local operation:
Diagnostics → Device information → IP address
• Communication with the Web server can be established via the default IP
address 192.168.1.212.
The DHCP function is enabled in the device at the factory, i.e. the device
expects an IP address to be assigned by the network. This function can be
disabled and the device can be set to the default IP address 192.168.1.212:
set DIP switch No. 4 from OFF → ON.
Set the default IP address → 70.
8.4.3 Establishing a connection
Via service interface (CDI-RJ45)
Preparing the measuring device
Proline 500 – digital
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. The location of the connection socket depends on the measuring device and the
communication protocol:
Connect the computer to the RJ45 connector via the standard Ethernet connecting
cable .
Proline 500
1. Depending on the housing version:
Release the securing clamp or securing screw of the housing cover.
2. Depending on the housing version:
Unscrew or open the housing cover.
3. The location of the connection socket depends on the measuring device and the
communication protocol:
Connect the computer to the RJ45 connector via the standard Ethernet connecting
cable .
Configuring the Internet protocol of the computer
The IP address can be assigned to the measuring device in a variety of ways:
• Dynamic Host Configuration Protocol (DHCP), factory setting:
The IP address is automatically assigned to the measuring device by the automation
system (DHCP server).
• Hardware addressing:
The IP address is set via DIP switches → 68.
• Software addressing:
The IP address is entered via the IP address parameter (→ 129) .
• DIP switch for "Default IP address":
To establish the network connection via the service interface (CDI-RJ45): the fixed IP
address 192.168.1.212 is used → 70.
The measuring device works with the Dynamic Host Configuration Protocol (DHCP), on
leaving the factory, i.e. the IP address of the measuring device is automatically assigned by
the automation system (DHCP server).
91
Page 92
Operation options Proline Promass F 500 EtherNet/IP
To establish a network connection via the service interface (CDI-RJ45): the "Default IP
address" DIP switch must be set to ON. The measuring device then has the fixed IP address:
192.168.1.212. This address can now be used to establish the network connection.
1. Via DIP switch 2, activate the default IP address 192.168.1.212: → 70.
2. Switch on the measuring device.
3. Connect to the computer using a cable → 98.
4. If a 2nd network card is not used, close all the applications on the notebook.
Applications requiring Internet or a network, such as e-mail, SAP applications,
Internet or Windows Explorer.
5. Close any open Internet browsers.
6. Configure the properties of the Internet protocol (TCP/IP) as defined in the table:
IP address 192.168.1.XXX; for XXX all numerical sequences except: 0, 212 and 255 → e.g.
192.168.1.213
Subnet mask 255.255.255.0
Default gateway 192.168.1.212 or leave cells empty
Via WLAN interface
Configuring the Internet protocol of the mobile terminal
NOTICE
If the WLAN connection is lost during the configuration, settings made may be lost.
Make sure that the WLAN connection is not disconnected while configuring the device.
‣
NOTICE
In principle, avoid simultaneous access to the measuring device via the service
interface (CDI-RJ45) and the WLAN interface from the same mobile terminal. This
could cause a network conflict.
Only activate one service interface (CDI-RJ45 service interface or WLAN interface).
‣
If simultaneous communication is necessary: configure different IP address ranges, e.g.
‣
192.168.0.1 (WLAN interface) and 192.168.1.212 (CDI-RJ45 service interface).
Preparing the mobile terminal
Enable WLAN reception on the mobile terminal.
‣
Establishing a connection from the mobile terminal to the measuring device
1. In the WLAN settings of the mobile terminal:
Select the measuring device using the SSID (e.g. EH_Promass_500_A802000).
2. If necessary, select the WPA2 encryption method.
92
Page 93
Proline Promass F 500 EtherNet/IP Operation options
6
7
8
9
10
1 52 3 4
3. Enter the password: serial number of the measuring device ex-works (e.g.
L100A802000).
LED on display module flashes: it is now possible to operate the measuring device
with the Web browser, FieldCare or DeviceCare.
The serial number can be found on the nameplate.
To ensure the safe and swift assignment of the WLAN network to the measuring
point, it is advisable to change the SSID name. It should be possible to clearly assign
the new SSID name to the measuring point (e.g. tag name) because it is displayed as
the WLAN network.
Disconnecting
After configuring the device:
‣
Terminate the WLAN connection between the operating unit and measuring device.
Starting the Web browser
1. Start the Web browser on the computer.
2. Enter the IP address of the Web server in the address line of the Web browser:
192.168.1.212
The login page appears.
1 Picture of device
2 Device name
3 Device tag
4 Status signal
5 Current measured values
6 Operating language
7 User role
8 Access code
9 Login
10 Reset access code (→ 188)
If a login page does not appear, or if the page is incomplete → 211
A0029417
93
Page 94
Operation options Proline Promass F 500 EtherNet/IP
2
1
3
8.4.4 Logging on
1. Select the preferred operating language for the Web browser.
2. Enter the user-specific access code.
3. Press OK to confirm your entry.
Access code 0000 (factory setting); can be changed by customer
If no action is performed for 10 minutes, the Web browser automatically returns to
the login page.
8.4.5 User interface
1 Function row
2 Local display language
3 Navigation area
Header
The following information appears in the header:
• Device name
• Device tag
• Device status with status signal → 220
• Current measured values
Function row
Functions Meaning
Measured values Displays the measured values of the measuring device
• Access to the operating menu from the measuring device
Menu
Device status Displays the diagnostic messages currently pending, listed in order of priority
• The structure of the operating menu is the same as for the local display
For detailed information on the structure of the operating menu, see the Operating
Instructions for the measuring device
A0029418
94
Page 95
Proline Promass F 500 EtherNet/IP Operation options
Functions Meaning
Data exchange between PC and measuring device:
• Device configuration:
– Load settings from the device
(XML format, save configuration)
– Save settings to the device
(XML format, restore configuration)
• Logbook - Export Event logbook (.csv file)
Data
management
Network
configuration
Logout End the operation and call up the login page
• Documents - Export documents:
– Export backup data record
(.csv file, create documentation of the measuring point configuration)
– Verification report
(PDF file, only available with the "Heartbeat Verification" application package)
• File for system integration - If using fieldbuses, upload device drivers for system
integration from the measuring device:
EtherNet/IP: EDS file
• Firmware update - Flashing a firmware version
Configuration and checking of all the parameters required for establishing the connection to
the measuring device:
• Network settings (e.g. IP address, MAC address)
• Device information (e.g. serial number, firmware version)
Navigation area
If a function is selected in the function bar, the submenus of the function open in the
navigation area. The user can now navigate through the menu structure.
Working area
Depending on the selected function and the related submenus, various actions can be
performed in this area:
• Configuring parameters
• Reading measured values
• Calling up help text
• Starting an upload/download
8.4.6 Disabling the Web server
The Web server of the measuring device can be switched on and off as required using the
Web server functionality parameter.
Navigation
"Expert" menu → Communication → Web server
Parameter overview with brief description
Parameter Description Selection Factory setting
Web server functionality Switch the Web server on and off. • Off
• HTML Off
• On
On
95
Page 96
Operation options Proline Promass F 500 EtherNet/IP
Function scope of the "Web server functionality" parameter
Option Description
Off • The web server is completely disabled.
• Port 80 is locked.
On • The complete functionality of the web server is available.
• JavaScript is used.
• The password is transferred in an encrypted state.
• Any change to the password is also transferred in an encrypted state.
Enabling the Web server
If the Web server is disabled it can only be re-enabled with the Web server functionality
parameter via the following operating options:
• Via local display
• Via Bedientool "FieldCare"
• Via "DeviceCare" operating tool
8.4.7 Logging out
Before logging out, perform a data backup via the Data management function
(upload configuration from device) if necessary.
1. Select the Logout entry in the function row.
The home page with the Login box appears.
2. Close the Web browser.
3. If no longer needed:
Reset modified properties of the Internet protocol (TCP/IP) → 91.
If communication with the Web server was established via the default IP address
192.168.1.212, DIP switch No. 10 must be reset (from ON → OFF). Afterwards, the IP
address of the device is active again for network communication.
8.5 Access to the operating menu via the operating tool
The structure of the operating menu in the operating tools is the same as for operation via
the local display.
8.5.1 Connecting the operating tool
Via EtherNet/IP network
This communication interface is available in device versions with EtherNet/IP.
96
Page 97
Proline Promass F 500 EtherNet/IP Operation options
4
21 3
5 5 5
Star topology
A0032078
29 Options for remote operation via EtherNet/IP network: star topology
1 Automation system, e.g. "RSLogix" (Rockwell Automation)
2 Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell
Automation) or with Electronic Data Sheet (EDS)
3 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or
computer with operating tool (e.g. FieldCare, DeviceCare) with COM DTM "CDI Communication TCP/IP"
4 Ethernet switch
5 Measuring device
Ring topology
The device is integrated via the terminal connection for signal transmission (output 1) and
the service interface (CDI-RJ45).
97
Page 98
Operation options Proline Promass F 500 EtherNet/IP
4
21 3
5
5 5
A0033725
30 Options for remote operation via EtherNet/IP network: ring topology
1 Automation system, e.g. "RSLogix" (Rockwell Automation)
2 Workstation for measuring device operation: with Custom Add-On Profile for "RSLogix 5000" (Rockwell
Automation) or with Electronic Data Sheet (EDS)
3 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or
computer with operating tool (e.g. FieldCare, DeviceCare) with COM DTM "CDI Communication TCP/IP"
4 Ethernet switch
5 Measuring device
Service interface
Via service interface (CDI-RJ45)
A point-to-point connection can be established to configure the device onsite. With the
housing open, the connection is established directly via the service interface (CDI-RJ45) of
the device.
An adapter for RJ45 and the M12 connector is optionally available:
Order code for "Accessories", option NB: "Adapter RJ45 M12 (service interface)"
The adapter connects the service interface (CDI-RJ45) to an M12 connector mounted
in the cable entry. Therefore the connection to the service interface can be established
via an M12 connector without opening the device.
98
Page 99
Proline Promass F 500 EtherNet/IP Operation options
open
press
2
3
2
3
Proline 500 – digital transmitter
A0029163
31 Connection via service interface (CDI-RJ45)
1 Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated
device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"
2 Standard Ethernet connecting cable with RJ45 connector
3 Service interface (CDI-RJ45) of the measuring device with access to the integrated Web server
Proline 500 transmitter
A0027563
32 Connection via service interface (CDI-RJ45)
1 Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated
device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"
2 Standard Ethernet connecting cable with RJ45 connector
3 Service interface (CDI-RJ45) of the measuring device with access to the integrated Web server
Via WLAN interface
The optional WLAN interface is available on the following device version:
Order code for "Display; operation", option G "4-line, illuminated, graphic display; touch
control + WLAN"
99
Page 100
Operation options Proline Promass F 500 EtherNet/IP
1
2 2
1
3
4
3
4
3
4
3
4
5 6 7
A0034569

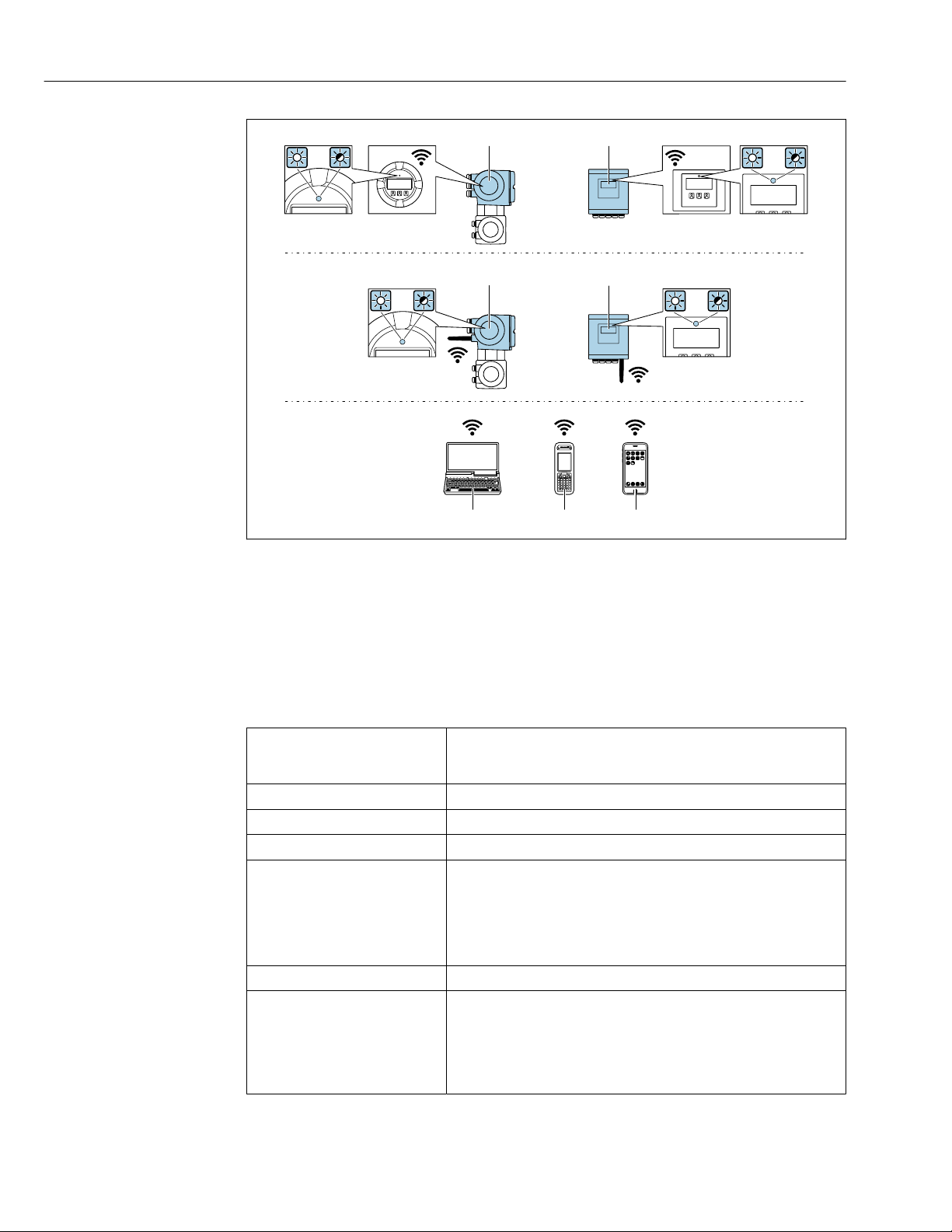

1 Transmitter with integrated WLAN antenna
2 Transmitter with external WLAN antenna
3 LED lit constantly: WLAN reception is enabled on measuring device
4 LED flashing: WLAN connection established between operating unit and measuring device
5 Computer with WLAN interface and Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for
accessing the integrated device Web server or with operating tool (e.g. FieldCare, DeviceCare)
6 Mobile handheld terminal with WLAN interface and Web browser (e.g. Microsoft Internet Explorer, Microsoft
Edge) for accessing the integrated device Web server or operating tool (e.g. FieldCare, DeviceCare)
7 Smartphone or tablet
Function WLAN: IEEE 802.11 b/g (2.4 GHz)
• Access point with DHCP server (default setting)
• Network
Encryption WPA2-PSK/AES 128 bit
Configurable WLAN channels 1 to 11
Degree of protection IP67
Available antennas • Internal antenna
Max. range 50 m (164 ft)
Materials:
External WLAN antenna
• External antenna (optional)
In the event of poor transmission/reception conditions at the place of
installation.
Only one antenna active in each case!
• Antenna: ASA plastic (acrylic ester-styrene-acrylonitrile) and nickelplated brass
• Adapter: Stainless steel and nickel-plated brass
• Cable: Polyethylene
• Connector: Nickel-plated brass
• Angle bracket: Stainless steel
